Fabric-Air-Permeability-Tester-LFAP-A10

Labtron fabric air permeability tester measures permeability from 1 to 40000 mm/s with a pressure range of 1 to 4000 Pa. It supports ISO9237, ISO7231, and ISO5636 standards and features an in-built continuous measuring mode. Microcomputer processing ensures accurate and direct results.

keeleyssalinas
Download Presentation

Fabric-Air-Permeability-Tester-LFAP-A10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

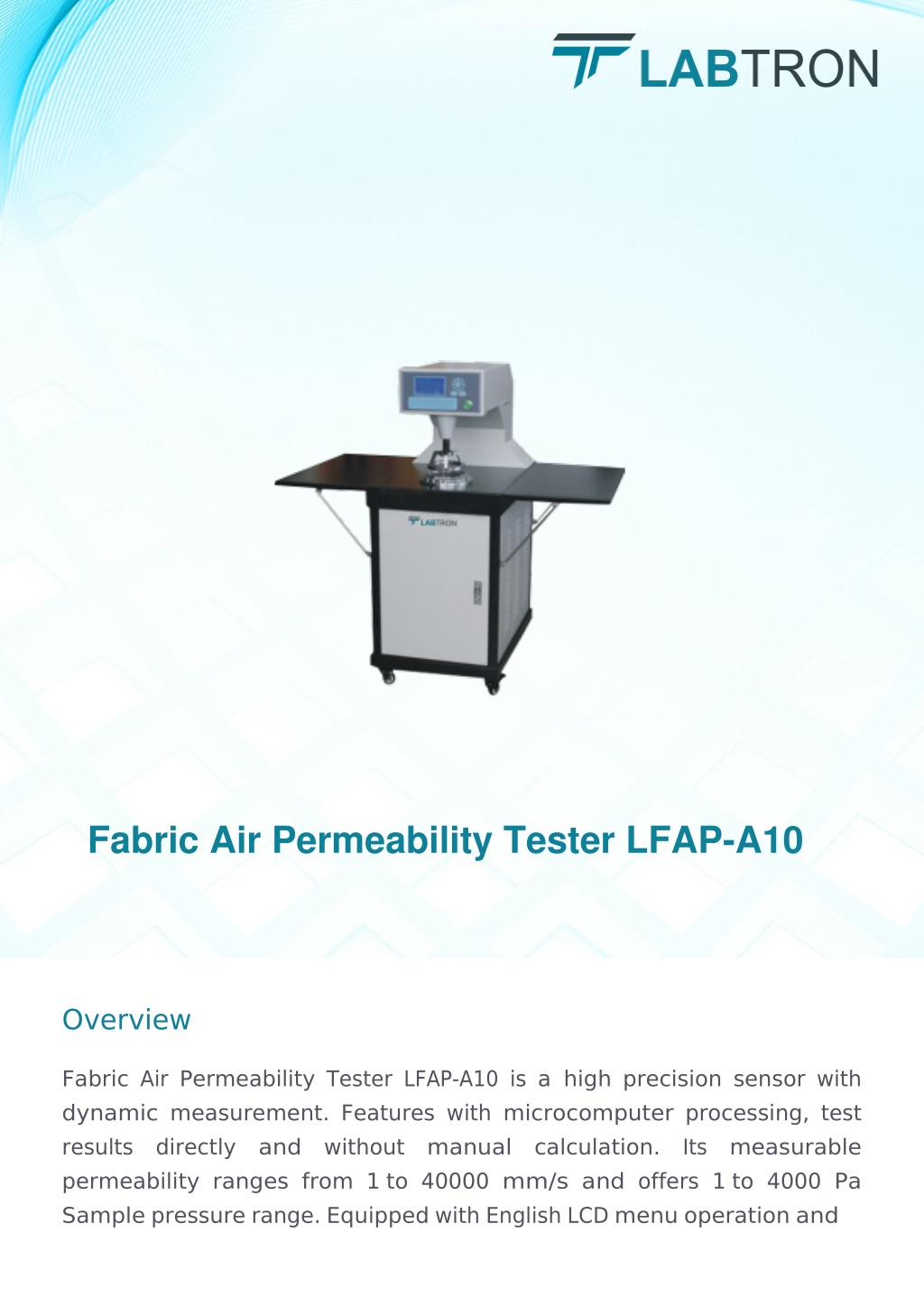

  1. Fabric Air Permeability Tester LFAP-A10 Overview Fabric Air Permeability Tester LFAP-A10 is a high precision sensor with dynamic measurement. Features with microcomputer processing, test results directly and without manual permeability ranges from 1 to 40000 mm/s and offers 1 to 4000 Pa Sample pressure range. Equipped with English LCD menu operation and calculation. Its measurable

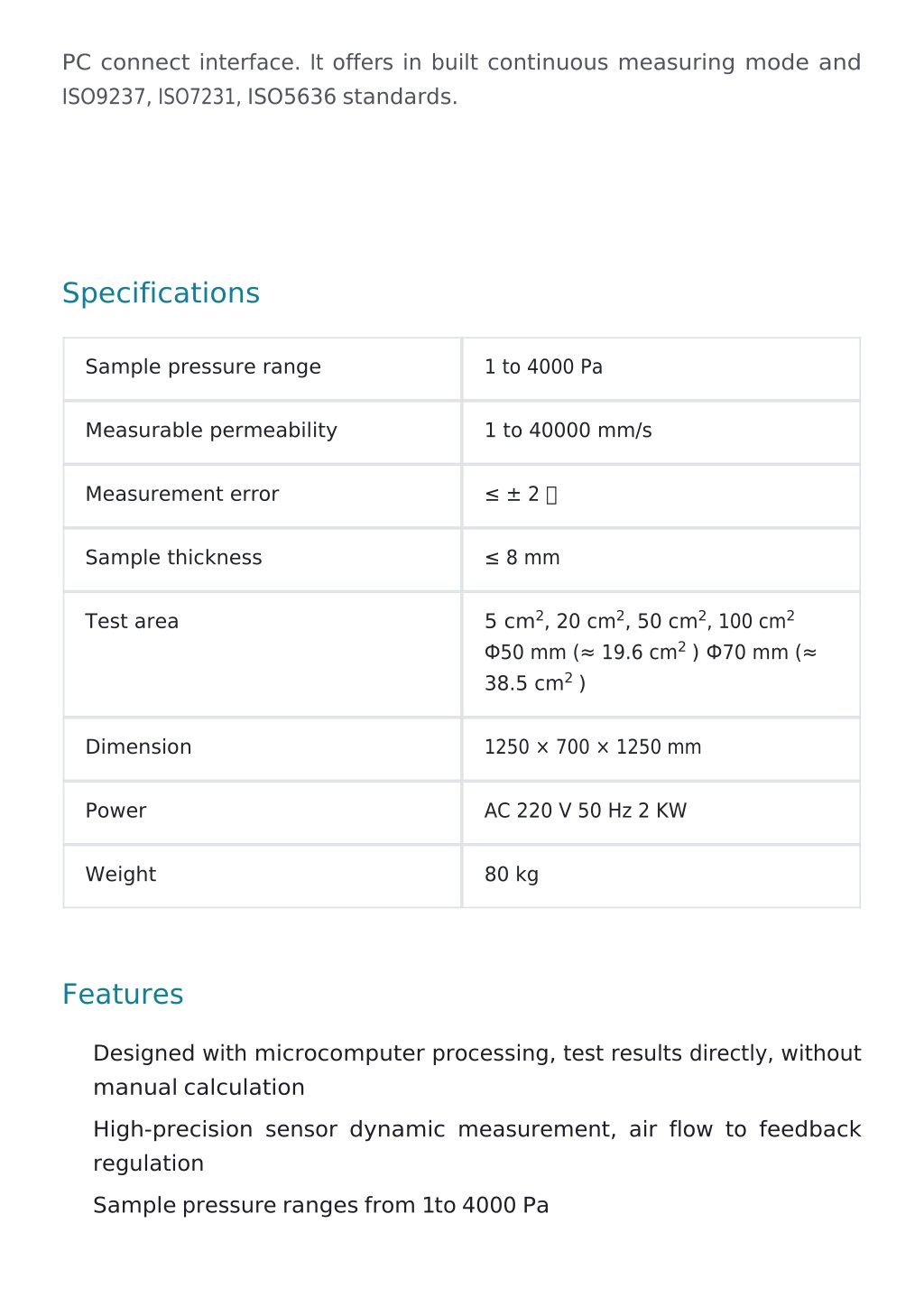

  2. PC connect interface. It offers in built continuous measuring mode and ISO9237, ISO7231, ISO5636 standards. Specifications Sample pressure range 1 to 4000 Pa Measurable permeability 1 to 40000 mm/s Measurement error ≤ ± 2 ％ Sample thickness ≤ 8 mm 2 2 2 2 Test area 5 cm , 20 cm , 50 cm , 100 cm Ф50 mm (≈ 19.6 cm ) Ф70 mm (≈ 38.5 cm ) 2 2 Dimension 1250 × 700 × 1250 mm Power AC 220 V 50 Hz 2 KW Weight 80 kg Features Designed with microcomputer processing, test results directly, without manual calculation ? High-precision sensor dynamic measurement, air flow to feedback regulation ? Sample pressure ranges from 1to 4000 Pa ? ?

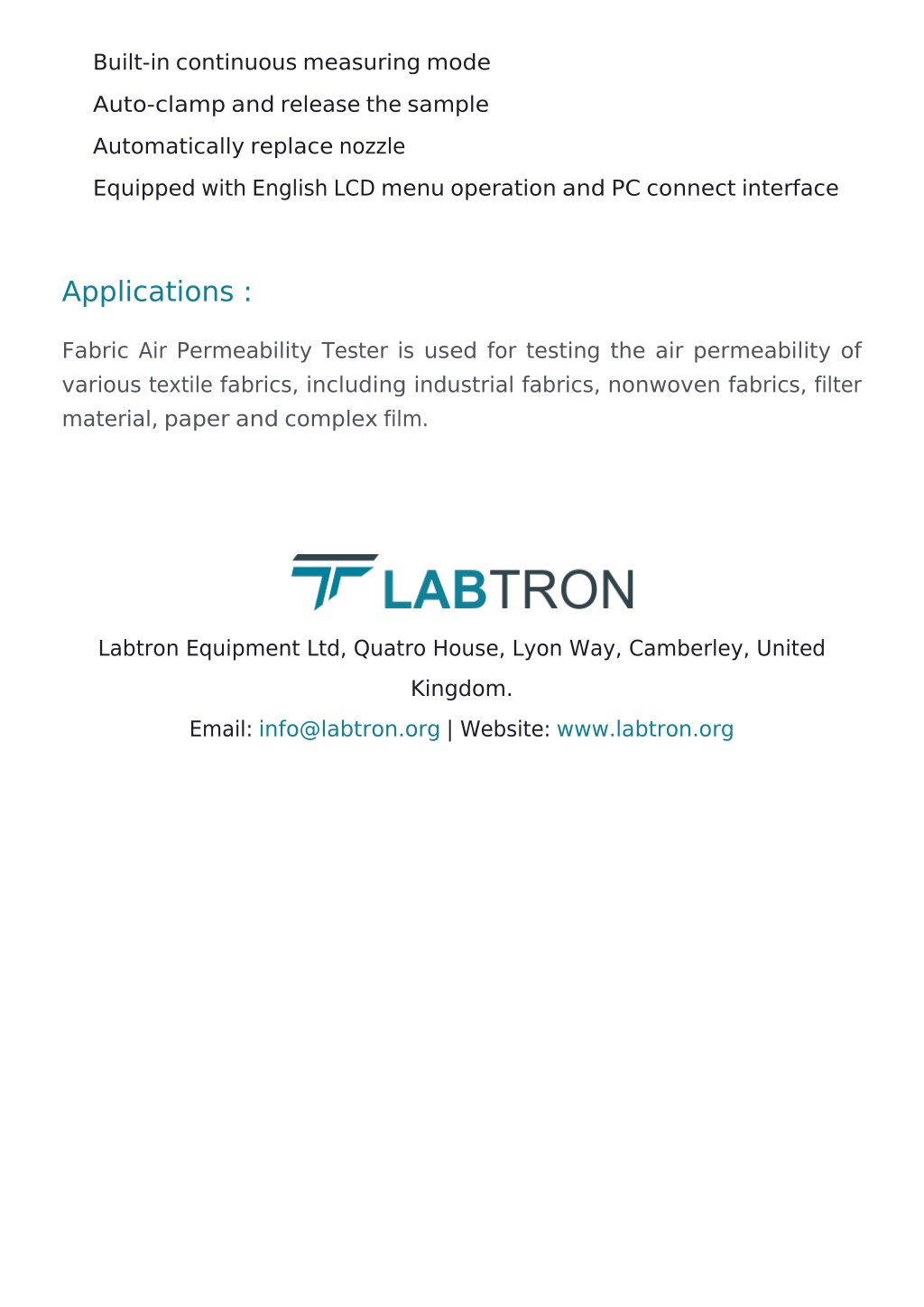

  3. Built-in continuous measuring mode Auto-clamp and release the sample ? Automatically replace nozzle ? Equipped with English LCD menu operation and PC connect interface ? Applications : Fabric Air Permeability Tester is used for testing the air permeability of various textile fabrics, including industrial fabrics, nonwoven fabrics, filter material, paper and complex film. Labtron Equipment Ltd, Quatro House, Lyon Way, Camberley, United Kingdom. Email: info@labtron.org | Website: www.labtron.org
