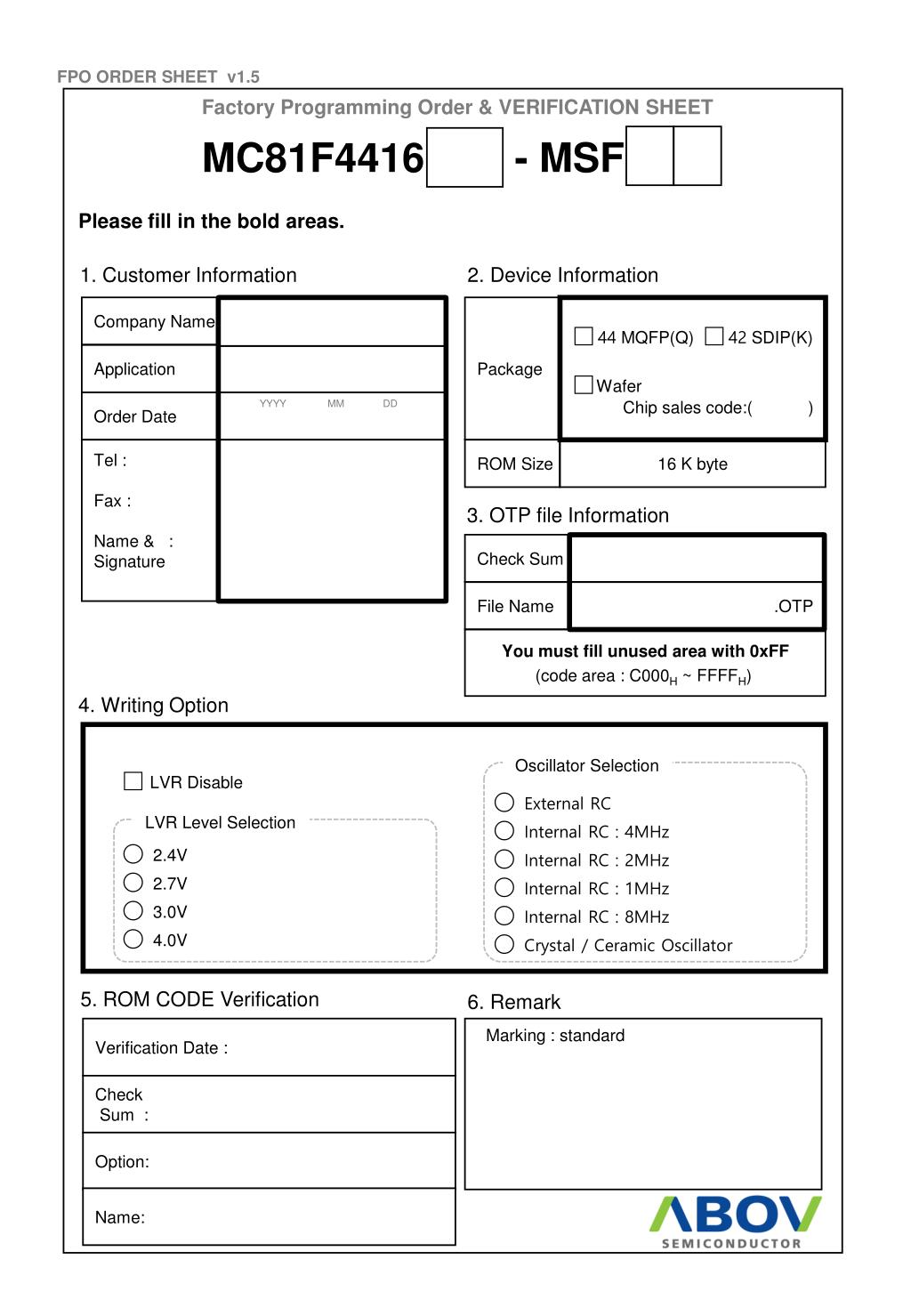

  1. FPO ORDER SHEET v1.5 Factory Programming Order & VERIFICATION SHEET MC81F4416 - MSF Please fill in the bold areas. 1. Customer Information 2. Device Information Company Name Package □44 MQFP(Q) □42 SDIP(K) □Wafer Chip sales code:( ) Application Order Date YYYY MM DD Tel : Fax : Name & : Signature ROM Size 16 K byte 3. OTP file Information Check Sum File Name .OTP You must fill unused area with 0xFF (code area : C000H ~ FFFFH) 4. Writing Option □LVR Disable ○ 2.4V○ 2.7V ○ 3.0V ○ 4.0V ○ External RC ○ Internal RC : 4MHz ○ Internal RC : 2MHz ○ Internal RC : 1MHz ○ Internal RC : 8MHz ○ Crystal / Ceramic Oscillator Oscillator Selection LVR Level Selection 5. ROM CODE Verification 6. Remark Verification Date : Marking : standard Check Sum : Option: Name:

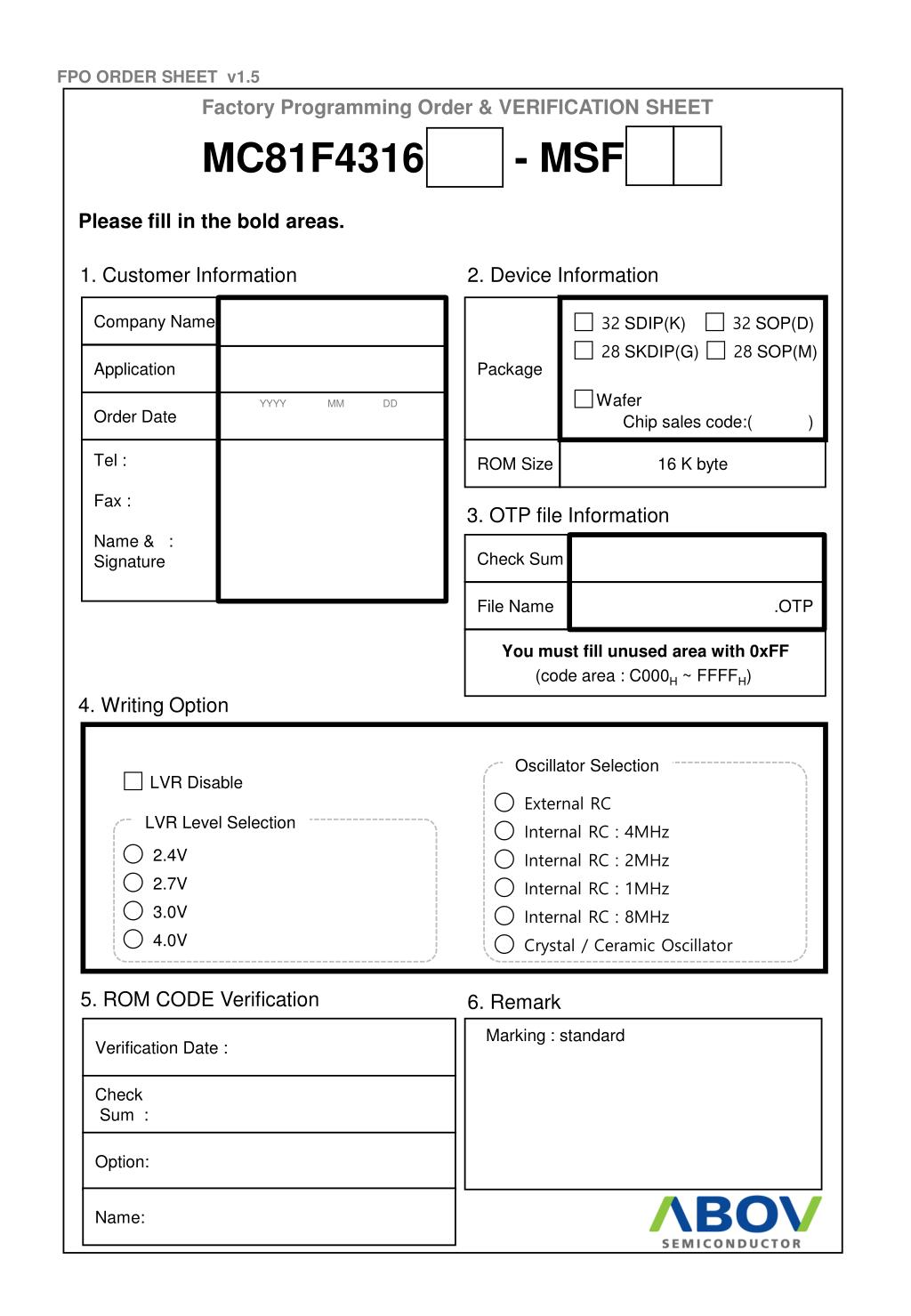

  2. FPO ORDER SHEET v1.5 Factory Programming Order & VERIFICATION SHEET MC81F4316 - MSF Please fill in the bold areas. 1. Customer Information 2. Device Information Company Name Package □ 32 SDIP(K) □ 32 SOP(D) □ 28 SKDIP(G) □ 28 SOP(M) □Wafer Chip sales code:( ) Application Order Date YYYY MM DD Tel : Fax : Name & : Signature ROM Size 16 K byte 3. OTP file Information Check Sum File Name .OTP You must fill unused area with 0xFF (code area : C000H ~ FFFFH) 4. Writing Option □LVR Disable ○ 2.4V○ 2.7V ○ 3.0V ○ 4.0V ○ External RC ○ Internal RC : 4MHz ○ Internal RC : 2MHz ○ Internal RC : 1MHz ○ Internal RC : 8MHz ○ Crystal / Ceramic Oscillator Oscillator Selection LVR Level Selection 5. ROM CODE Verification 6. Remark Verification Date : Marking : standard Check Sum : Option: Name:

  3. FPO ORDER SHEET v1.5 Factory Programming Order & VERIFICATION SHEET MC81F4216 - MSF Please fill in the bold areas. 1. Customer Information 2. Device Information Company Name Package □ 24 SSOP(S) □ 20 PDIP(B) □ 20 SOP(D) □Wafer Chip sales code:( ) Application Order Date YYYY MM DD Tel : Fax : Name & : Signature ROM Size 16 K byte 3. OTP file Information Check Sum File Name .OTP You must fill unused area with 0xFF (code area : C000H ~ FFFFH) 4. Writing Option □LVR Disable ○ 2.4V○ 2.7V ○ 3.0V ○ 4.0V ○ External RC ○ Internal RC : 4MHz ○ Internal RC : 2MHz ○ Internal RC : 1MHz ○ Internal RC : 8MHz ○ Crystal / Ceramic Oscillator Oscillator Selection LVR Level Selection 5. ROM CODE Verification 6. Remark Verification Date : Marking : standard Check Sum : Option: Name:
