Presentation Transcript
slide1

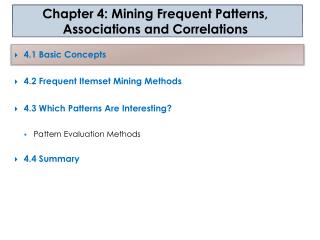

Chapter 4: Mining Frequent Patterns, Associations and Correlations

  • 4.1 Basic Concepts
  • 4.2 Frequent Itemset Mining Methods
  • 4.3 Which Patterns Are Interesting?
    • Pattern Evaluation Methods
  • 4.4 Summary
frequent pattern analysis
Frequent Pattern Analysis
  • Frequent Pattern: a pattern (a set of items, subsequences, substructures, etc.) that occurs frequently in a data set
  • Goal: finding inherent regularities in data
    • What products were often purchased together?— Beer and diapers?!
    • What are the subsequent purchases after buying a PC?
    • What kinds of DNA are sensitive to this new drug?
    • Can we automatically classify Web documents?
  • Applications:
    • Basket data analysis, cross-marketing, catalog design, sale campaign analysis, Web log (click stream) analysis, and DNA sequence analysis.
why is frequent pattern mining important
Why is Frequent Pattern Mining Important?
  • An important property of datasets
  • Foundation for many essential data mining tasks
    • Association, correlation, and causality analysis
    • Sequential, structural (e.g., sub-graph) patterns
    • Pattern analysis in spatiotemporal, multimedia, time-series, and stream data
    • Classification: discriminative, frequent pattern analysis
    • Clustering analysis: frequent pattern-based clustering
    • Data warehousing: iceberg cube and cube-gradient
    • Semantic data compression
    • Broad applications
frequent patterns
Frequent Patterns
  • itemset: A set of one or more items
  • K-itemset X = {x1, …, xk}
  • (absolute) support, or, support count of X: Frequency or occurrence of an itemset X
  • (relative) support, s, is the fraction of transactions that contains X (i.e., the probability that a transaction contains X)
  • An itemset X is frequent if X’s support is no less than a minsup threshold

Customer

buys both

Customer

buys diaper

Customer

buys beer

association rules
Association Rules
  • Find all the rules X  Ywith minimum support and confidence threshold
    • support, s, probability that atransaction contains X  Y
    • confidence, c, conditional probability that a transaction having X also contains Y

Let minsup = 50%, minconf = 50%

Freq. Pat.: Beer:3, Nuts:3, Diaper:4, Eggs:3, {Beer, Diaper}:3

  • Association rules: (many more!)
    • Beer  Diaper (60%, 100%)
    • Diaper  Beer (60%, 75%)
  • Rules that satisfy both minsup and minconf are called strong rules

Customer

buys both

Customer

buys diaper

Customer

buys beer

closed patterns and max patterns
Closed Patterns and Max-Patterns
  • A long pattern contains a combinatorial number of sub-patterns, e.g., {a1, …, a100}contains (1001) + (1002) + … + (110000) = 2100 – 1 = 1.27*1030 sub-patterns!
  • Solution: Mine closed patterns and max-patterns instead
  • An itemset Xis closedif X is frequent and there exists no super-pattern Y כ X, with the same support as X
  • An itemset X is a max-pattern if X is frequent and there exists no frequent super-pattern Y כ X
  • Closed pattern is a lossless compression of freq. patterns
    • Reducing the number of patterns and rules
closed patterns and max patterns1
Closed Patterns and Max-Patterns

Example

  • DB = {<a1, …, a100>, < a1, …, a50>}
  • Min_sup=1
  • What is the set of closed itemset?
    • <a1, …, a100>: 1
    • < a1, …, a50>: 2
  • What is the set of max-pattern?
    • <a1, …, a100>: 1
  • What is the set of all patterns?
    • !!
computational complexity
Computational Complexity
  • How many itemsets are potentially to be generated in the worst case?
    • The number of frequent itemsets to be generated is sensitive to the minsup threshold
    • When minsup is low, there exist potentially an exponential number of frequent itemsets
    • The worst case: MN where M: # distinct items, and N: max length of transactions
slide9

Chapter 4: Mining Frequent Patterns, Associations and Correlations

  • 4.1 Basic Concepts
  • 4.2 Frequent Itemset Mining Methods

4.2.1 Apriori: A Candidate Generation-and-Test Approach

4.2.2 Improving the Efficiency of Apriori

4.2.3 FPGrowth: A Frequent Pattern-Growth Approach

4.2.4 ECLAT: Frequent Pattern Mining with Vertical Data Forma

  • 4.3 Which Patterns Are Interesting?
    • Pattern Evaluation Methods
  • 4.4 Summary
4 2 1apriori concepts and principle
4.2.1Apriori: Concepts and Principle
  • The downward closure property of frequent patterns
    • Any subset of a frequent itemset must be frequent
    • If {beer, diaper, nuts} is frequent, so is {beer, diaper}
    • i.e., every transaction having {beer, diaper, nuts} also contains {beer, diaper}
  • Apriori pruning principle:If there isanyitemset which is infrequent, its superset should not be generated/tested
4 2 1apriori method
4.2.1Apriori: Method
  • Initially, scan DB once to get frequent 1-itemset
  • Generate length (k+1) candidate itemsets from length k frequent itemsets
  • Test the candidates against DB
  • Terminate when no frequent or candidate set can be generated
apriori example
Apriori: Example

Supmin = 2

Database

L1

C1

1st scan

C2

C2

L2

2nd scan

L3

C3

3rd scan

apriori algorithm
Apriori Algorithm

Ck: Candidate itemset of size k

Lk : frequent itemset of size k

L1 = {frequent items};

for(k = 1; Lk !=; k++) do begin

Ck+1 = candidates generated from Lk;

for each transaction t in database do

increment the count of all candidates in Ck+1 that are contained in t

Lk+1 = candidates in Ck+1 with min_support

end

returnkLk;

candidate generation
Candidate Generation
  • How to generate candidates?
    • Step 1: self-joining Lk
    • Step 2: pruning
  • Example of Candidate Generation
    • L3={abc, abd, acd, ace, bcd}
    • Self-joining: L3*L3: abcdfrom abc and abd, acde from acd and ace
    • Pruning: acde is removed because adeis not in L3
    • C4 = {abcd}
4 2 2 generating association rules
4.2.2 Generating Association Rules
  • Once the frequent itemsets have been found, it is straightforward to generate strong association rules that satisfy:
    • minimum Support
    • minimum confidence
  • Relation between support and confidence:

support_count(AB)

Confidence(AB) = P(B|A)=

support_count(A)

    • Support_count(AB) is the number of transactions containing the itemsets A  B
    • Support_count(A) is the number of transactions containing the itemset A.
generating association rules
Generating Association Rules
  • For each frequent itemset L, generate all non empty subsets of L
  • For every no empty subset S of L, output the rule:

S  (L-S)

If (support_count(L)/support_count(S)) >= min_conf

example
Example
  • Suppose the frequent Itemset L={I1,I2,I5}
  • Subsets of L are: {I1,I2},

{I1,I5},{I2,I5},{I1},{I2},{I5}

  • Association rules :

I1  I2  I5 confidence = 2/4= 50%

I1  I5  I2 confidence=2/2=100%

I2  I5  I1 confidence=2/2=100%

I1  I2  I5 confidence=2/6=33%

I2  I1  I5 confidence=2/7=29%

I5  I2  I2 confidence=2/2=100%

If the minimum confidence =70%

Question: what is the difference between association rules and decision tree rules?

Transactional Database

4 2 2 improving the efficiency of apriori
4.2.2 Improving the Efficiency of Apriori
  • Major computational challenges
    • Huge number of candidates
    • Multiple scans of transaction database
    • Tedious workload of support counting for candidates
  • Improving Apriori: general ideas
    • Shrink number of candidates
    • Reduce passes of transaction database scans
    • Facilitate support counting of candidates
a dhp hash based technique
(A) DHP: Hash-based Technique

Database

Itemset

sup

{A}

2

C1

{B}

3

{C}

3

1st scan

{D}

1

{E}

3

Making a hash table

10: {A,C}, {A, D}, {C,D} 20: {B,C}, {B, E}, {C,E}30: {A,B}, {A, C}, {A,E}, {B,C}, {B, E}, {C,E}40: {B, E}

Hash codes

Buckets

Buckets

counters

1 0 1 0 1 0 1

{A,B} 1

{A, C} 3

{A,E} 3

{B,C} 2

{B, E} 3

{C,E} 3

min-support=2

We have the following

binary vector

{A, C}

{B,C}

{B, E}

{C,E}

J. Park, M. Chen, and P. Yu. An effective hash-based algorithm for mining association rules. SIGMOD’95

b partition scan database only twice
(B) Partition: Scan Database Only Twice
  • Subdivide the transactions of D into k non overlapping partitions
  • Ifσ is the min_sup of D, the min-sup of Diisσi,= σ|Di|
  • Any itemset that is potentially frequent in D must be frequent in at least one of the partition of Di
  • Each partition can fit into main memory, thus it is read only once
  • Steps:
    • Scan1: partition database and find local frequent patterns
    • Scan2: consolidate global frequent patterns

D1

+

D2

+

+

Dk

= D

σ2 = σ|D2|

σk = σ|Dk|

σ1= σ|D1|

  • A. Savasere, E. Omiecinski and S. Navathe, VLDB’95
c sampling for frequent patterns
(C) Sampling for Frequent Patterns
  • Select a sample of the original database
  • Mine frequent patterns within the sample using Apriori
  • Use a lower support threshold than the minimum support to find local frequent itemsets
  • Scan the database once to verify the frequent itemsets found in the sample
  • Only broader frequent patterns are checked
    • Example: check abcd instead of ab, ac,…, etc.
  • Scan the database again to find missed frequent patterns

H. Toivonen. Sampling large databases for association rules. In VLDB’96

d dynamic reduce number of scans
(D) Dynamic: Reduce Number of Scans
  • Once both A and D are determined frequent, the counting of AD begins
  • Once all length-2 subsets of BCD are determined frequent, the counting of BCD begins

ABCD

ABC

ABD

ACD

BCD

Transactions

AB

AC

BC

AD

BD

CD

1-itemsets

2-itemsets

Apriori

B

C

D

A

1-itemsets

{}

2-items

Itemset lattice

DIC

3-items

  • S. Brin R. Motwani, J. Ullman, and S. Tsur. Dynamic itemset counting and implication rules for market basket data. In SIGMOD’97
4 2 3 fp growth frequent pattern growth
4.2.3 FP-Growth: Frequent Pattern-Growth
  • Adopts a divide and conquer strategy
  • Compress the database representing frequent items into a frequent –pattern tree or FP-tree
    • Retains the itemset association information
  • Divid the compressed database into a set of conditional databases, each associated with one frequent item
  • Mine each such databases separately
example fp growth
Example: FP-Growth
  • The first scan of data is the same as Apriori
  • Derive the set of frequent 1-itemsets
  • Let min-sup=2
  • Generate a set of ordered items

Transactional Database

construct the fp tree
Construct the FP-Tree

Transactional Database

- Create a branch for each transaction

- Items in each transaction are processed in order

1- Order the items T100: {I2,I1,I5}

2- Construct the first branch:

<I2:1>, <I1:1>,<I5:1>

null

I2:1

I1:1

I5:1

construct the fp tree1
Construct the FP-Tree

Transactional Database

- Create a branch for each transaction

- Items in each transaction are processed in order

1- Order the items T200: {I2,I4}

2- Construct the second branch:

<I2:1>, <I4:1>

null

I2:2

I2:1

I4:1

I1:1

I5:1

construct the fp tree2
Construct the FP-Tree

Transactional Database

- Create a branch for each transaction

- Items in each transaction are processed in order

1- Order the items T300: {I2,I3}

2- Construct the third branch:

<I2:2>, <I3:1>

null

I2:2

I2:3

I4:1

I1:1

I3:1

I5:1

construct the fp tree3
Construct the FP-Tree

Transactional Database

- Create a branch for each transaction

- Items in each transaction are processed in order

1- Order the items T400: {I2,I1,I4}

2- Construct the fourth branch:

<I2:3>, <I1:1>,<I4:1>

null

I2:4

I2:3

I4:1

I1:2

I1:1

I3:1

I5:1

I4:1

construct the fp tree4
Construct the FP-Tree

Transactional Database

- Create a branch for each transaction

- Items in each transaction are processed in order

1- Order the items T400: {I1,I3}

2- Construct the fifth branch:

<I1:1>, <I3:1>

null

I1:1

I2:4

I4:1

I1:2

I3:1

I3:1

I5:1

I4:1

construct the fp tree5
Construct the FP-Tree

Transactional Database

null

I1:2

I2:7

I4:1

I1:4

I3:2

I3:2

I5:1

I4:1

When a branch of a transaction is added, the count for each node along a common prefix is incremented by 1

I3:2

I5:1

construct the fp tree6
Construct the FP-Tree

null

I2:7

I1:2

I1:4

I4:1

I3:2

I3:2

I5:1

I4:1

I3:2

I5:1

The problem of mining frequent patterns in databases is transformed to that of mining the FP-tree

construct the fp tree7
Construct the FP-Tree

null

I2:7

I1:2

I1:4

I4:1

I3:2

I3:2

I5:1

I4:1

I3:2

I5:1

-Occurrences of I5:<I2,I1,I5> and <I2,I1,I3,I5>

-Two prefix Paths<I2, I1: 1> and <I2,I1,I3: 1>

-Conditional FP tree contains only <I2: 2, I1: 2>, I3 is not considered because its support count of 1 is less than the minimum support count.

-Frequent patterns {I2,I5:2}, {I1,I5:2},{I2,I1,I5:2}

construct the fp tree8
Construct the FP-Tree

null

I2:7

I1:2

Item ID

Support count

I1:4

I2

7

I4:1

I3:2

I1

6

I3:2

I3

6

I5:1

I4

2

I4:1

I5

2

I3:2

I5:1

construct the fp tree9
Construct the FP-Tree

null

I2:7

I1:2

Item ID

Support count

I1:4

I2

7

I4:1

I3:2

I1

6

I3:2

I3

6

I5:1

I4

2

I4:1

I5

2

I3:2

I5:1

fp growth properties
FP-growth properties
  • FP-growth transforms the problem of finding long frequent patterns to searching for shorter once recursively and the concatenating the suffix
  • It uses the least frequent suffix offering a good selectivity
  • It reduces the search cost
  • If the tree does not fit into main memory, partition the database
  • Efficient and scalable for mining both long and short frequent patterns
