  1. MASS FLOW RATE Brian and neil

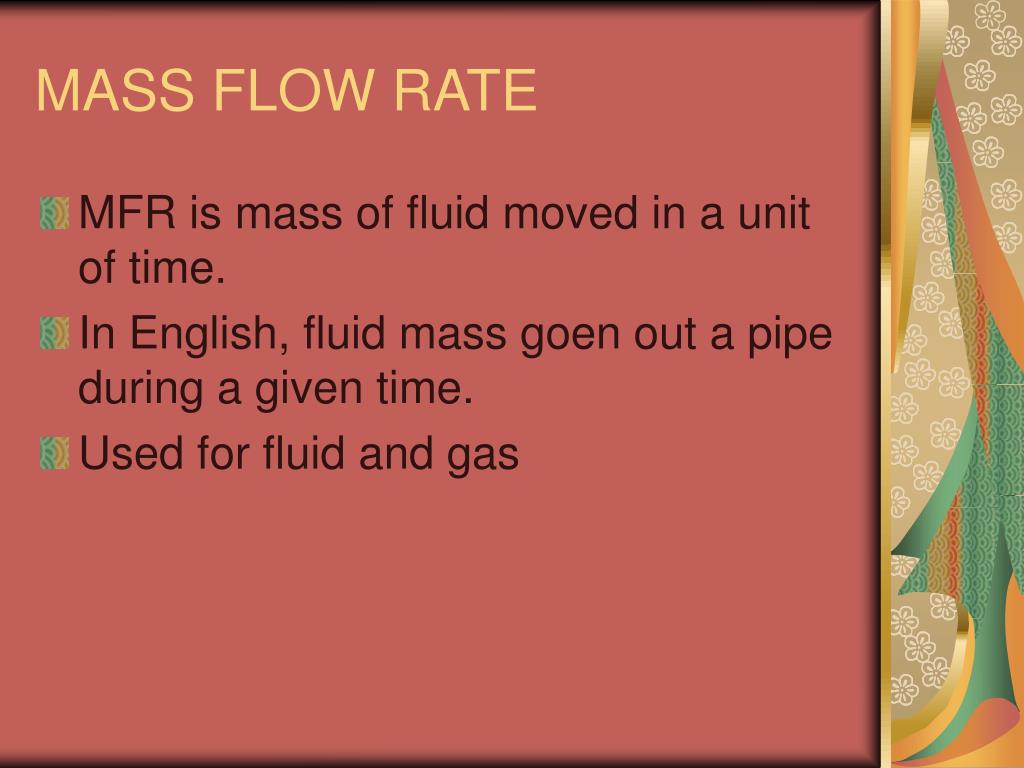

  2. MASS FLOW RATE • MFR is mass of fluid moved in a unit of time. • In English, fluid mass goen out a pipe during a given time. • Used for fluid and gas

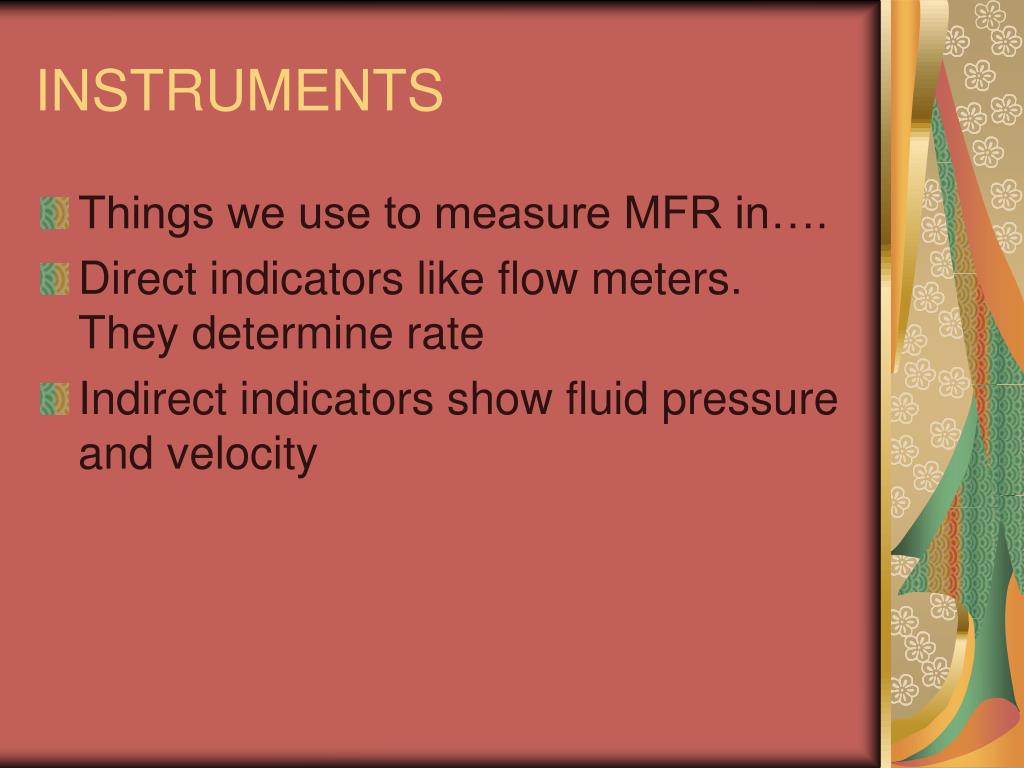

  3. INSTRUMENTS • Things we use to measure MFR in…. • Direct indicators like flow meters. They determine rate • Indirect indicators show fluid pressure and velocity

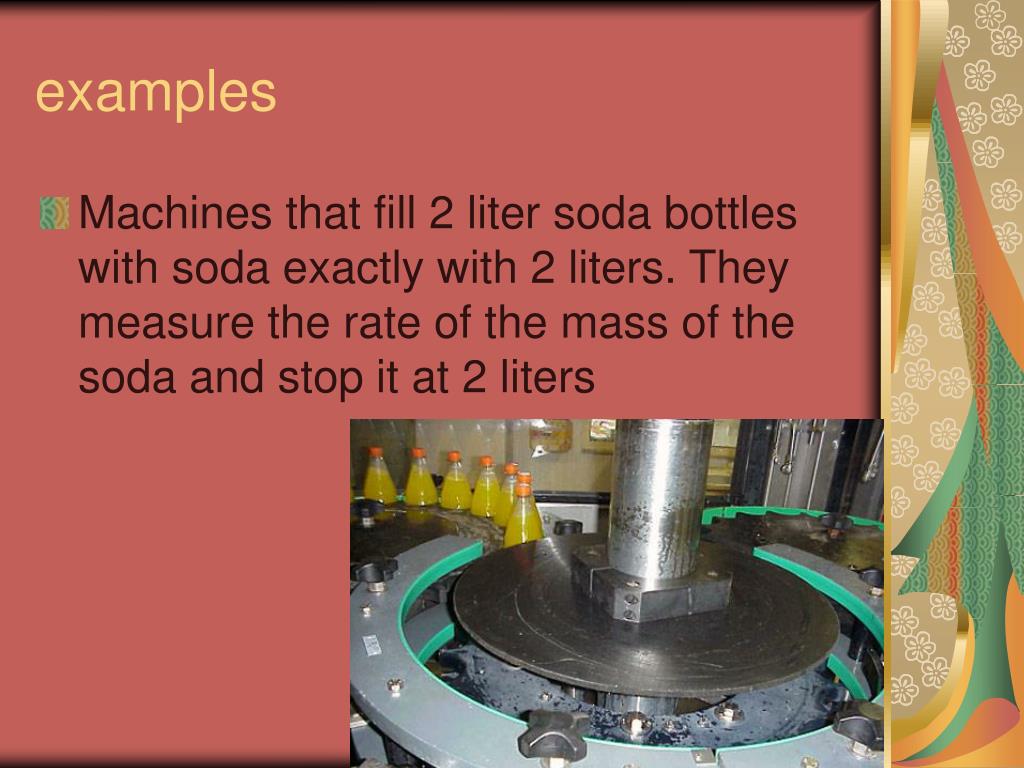

  4. examples • Machines that fill 2 liter soda bottles with soda exactly with 2 liters. They measure the rate of the mass of the soda and stop it at 2 liters

  5. This is were they fill them

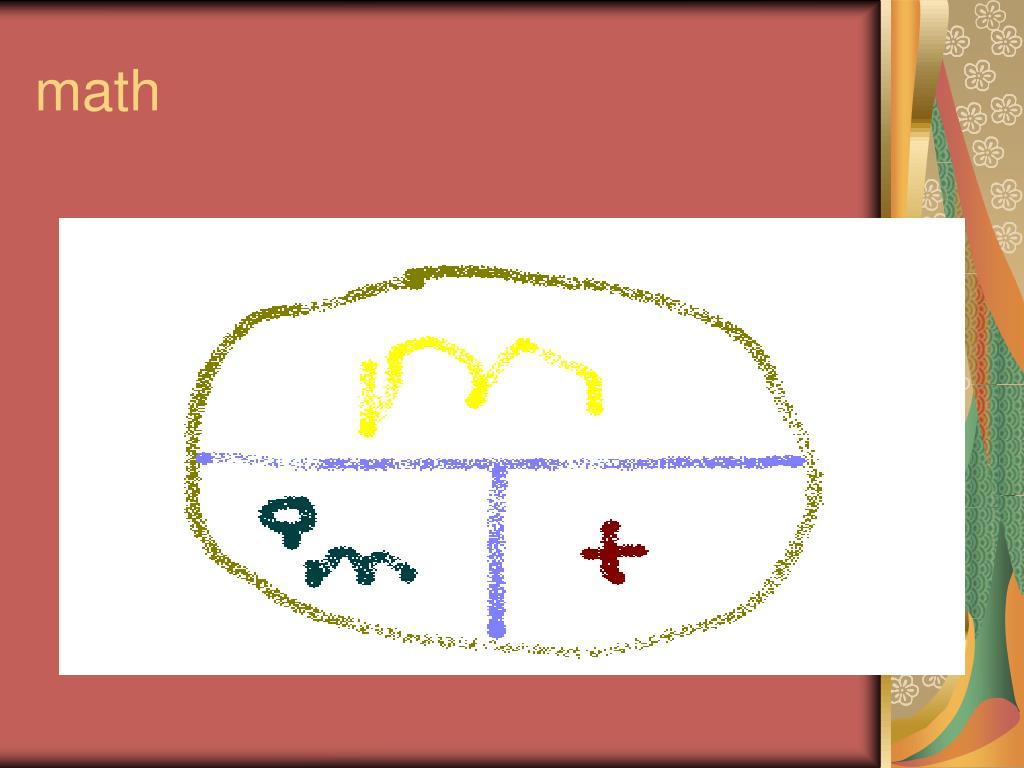

  6. math

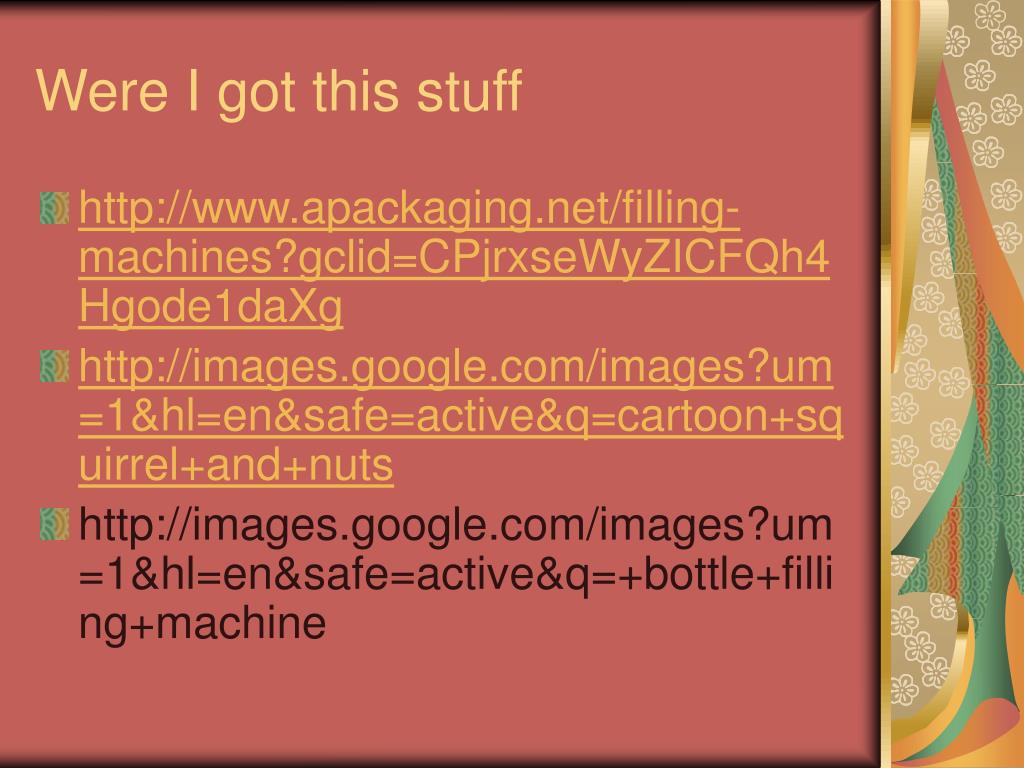

  7. Were I got this stuff • http://www.apackaging.net/filling-machines?gclid=CPjrxseWyZICFQh4Hgode1daXg • http://images.google.com/images?um=1&hl=en&safe=active&q=cartoon+squirrel+and+nuts • http://images.google.com/images?um=1&hl=en&safe=active&q=+bottle+filling+machine
