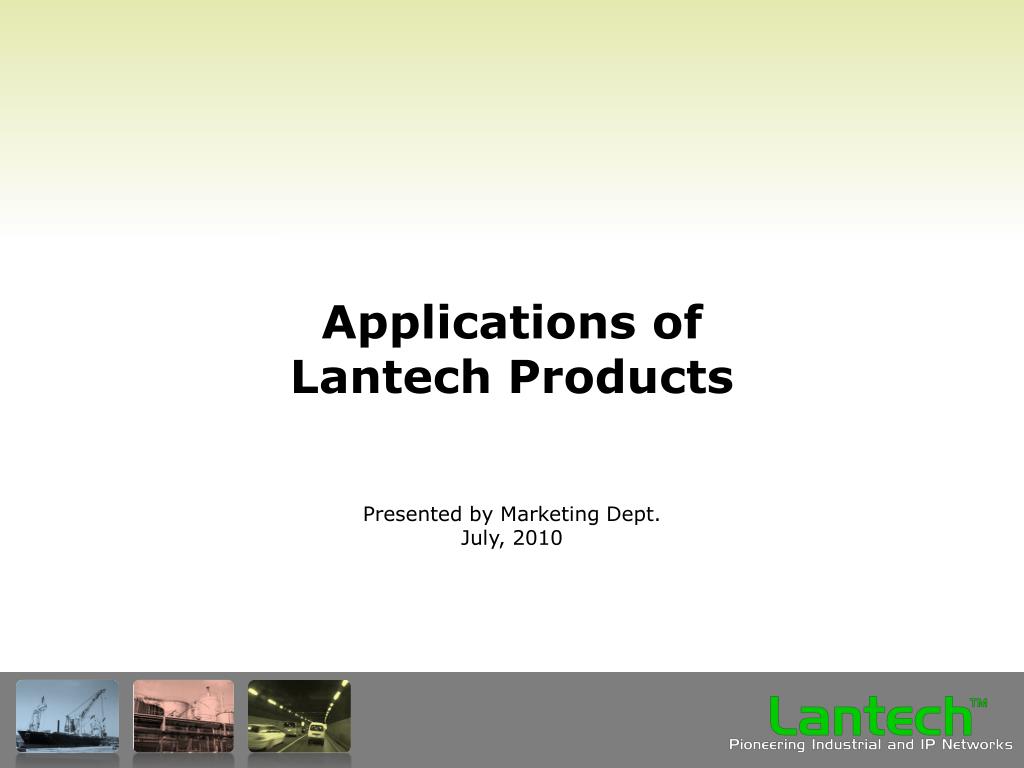

  1. Applications of Lantech Products Presented by Marketing Dept. July, 2010

  2. Agenda • Applications • Overview & Challenge • Topology Example • Recommended Models • Comparison with Competitors

  3. Applications

  4. Surveillance To solve the insecurity issue of public transportation Train, Bus, Tunnel, Highway, etc. Traffic Status Control and Electronic Display Train Monitor and Control Anti-skid system status Hotbox Brake cylinder condition The train pipe pressure, etc. Overview & Challenge • Challenges: • Low Voltage Power Supply (24V) • Extreme Temperature • Network Crash

  5. Topology Example

  6. Recommended Models

  7. Power Grid Power plant Transmission substation Local power substation Smart Grid The Ethernet-based network Reduce installation and maintenance cost Increase the efficiency of energy Remote management Connects IED, RTU, HMI, etc. Overview & Challenge • Challenge: • the phenomena EMI interference • Inductive load switching • Lightening • Radio frequency • High current fault • ESD discharge • Temp. requirement: • -40°C~85°C • Certification: • IEC-61850 with • GOOSE message

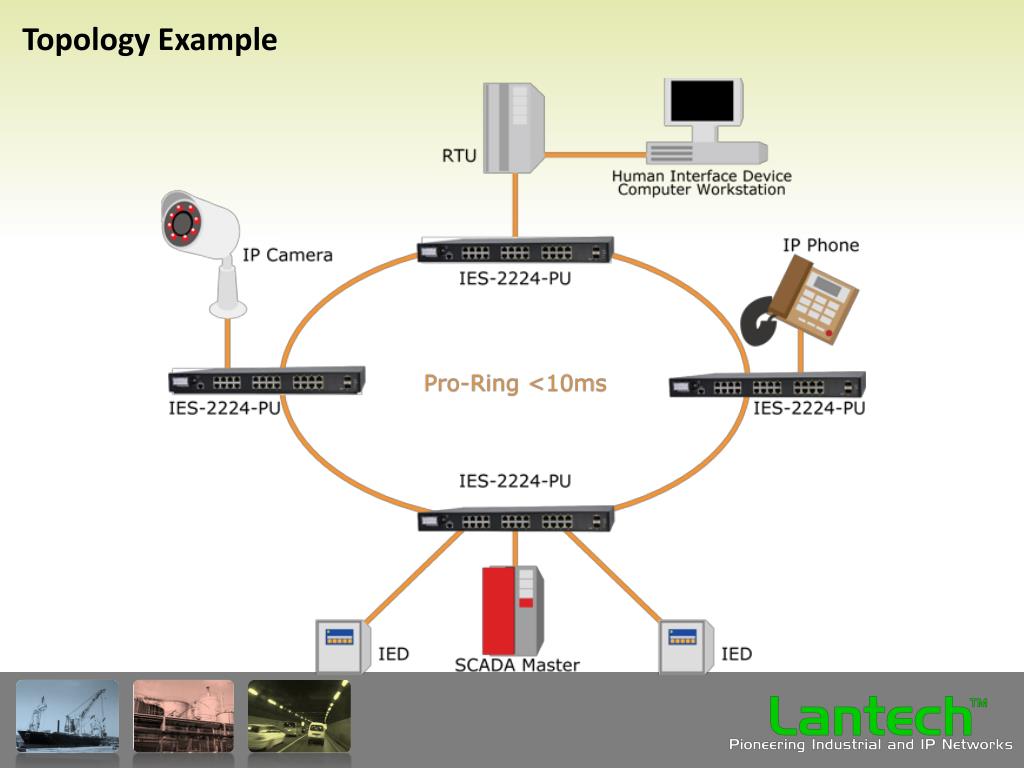

  8. Topology Example

  9. Recommended Models IES-2224-PU IES-22812F-PU 24 10/100TX + 2 1000 SFP Industrial Power Station L2 Plus Managed Switch 12 100FX + 8 10/100TX + 2 1000 SFP Industrial Power Station L2 Plus Managed Switch • Ready to comply with IEC61850 standard • Support GOOSE message • Pro-Ringsystem: X-Ring, Dual Homing and Couple Ring • Powerful management functions:LACP, QoS, IGMP, VLAN, etc. • Wide operating temperature: -40°C~85°C • Redundant power supply

  10. On-shore Lighthouse surveillance Wind turbine controlling and monitoring Tide power controlling and monitoring Off-shore Oil platform Battleship Yachts Cruise liner Overview & Challenge • Challenges: • Vibration • High Voltage • Conducted Radio Frequency Immunity and Emission • Extreme temperature • Network Crash

  11. Topology Example

  12. Recommended Models • DNV type approval for ships, craft and offshore platforms *pending • Most of the models have UL Class I Division II certification • The Marine Equipment Directive(MED) • The Low Voltage Directive (LVD) • The Electromagnetic Compatibility Directive( EMC)

  13. Wellhead Data transfer Video record IP phone, etc. Pump station and pipeline Pipeline pressure monitor Detect and locate leaks Refine system An efficient Ethernet network to support DCS (Distributed Control System) Overview & Challenge • Challenges: • Oil and Gas are flammable • Extreme Temperature • Network Crash may cause huge disasters

  14. Topology Example

  15. Recommended Models

  16. Recommended Models

  17. FTTx (Fiber to the X) Triple Play Data, Voice, and Video Media on Demand Distance Education Telemedicine Overview & Challenge • Challenges: • High density Fiber Gigabit or 100M aggregation switch • IGMP to reduce network traffic • VLAN stacking • OAM management • 48V power DC input

  18. Topology Example

  19. Recommended Models

  20. Various Applications and Huge Demand Prevent criminal activities Quality control Resource management Digital Surveillance System Video: IP Camera, NVR (mpeg, H.264) Biometric surveillance RFID Overview & Challenge • Challenges: • Power and Ethernet network installation • Heavy network traffic • Extreme temperature • Network crash • Compatibility with leading brand Video camera

  21. Topology Example

  22. Recommended Models

  23. Recommended Models

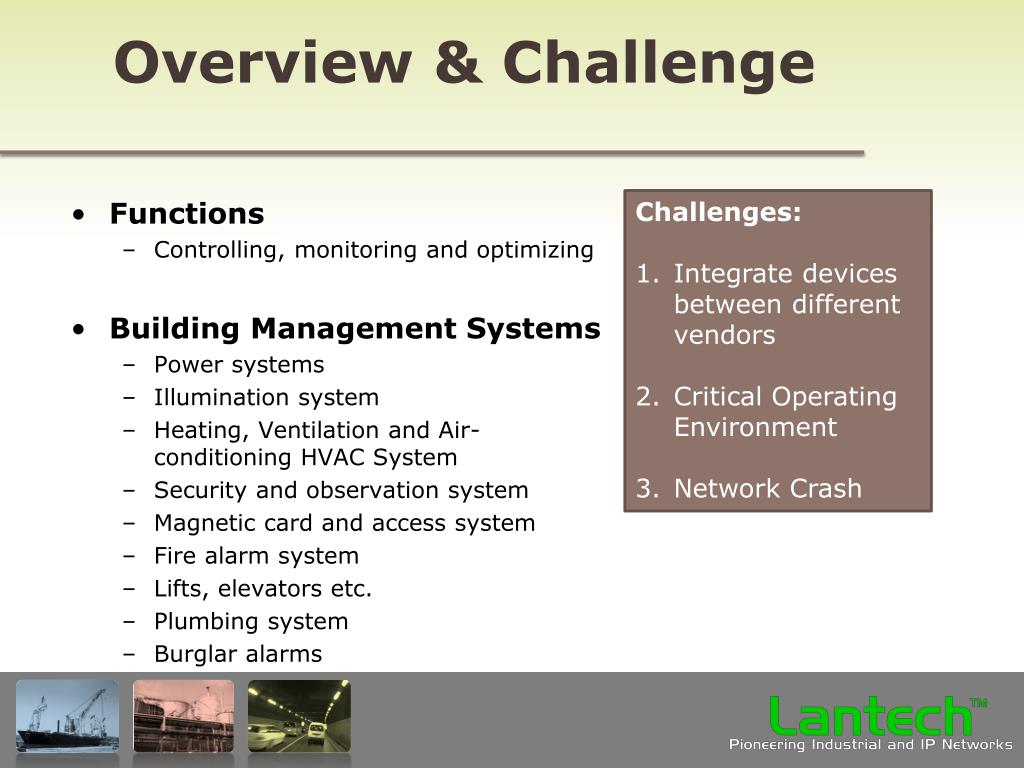

  24. Functions Controlling, monitoring and optimizing Building Management Systems Power systems Illumination system Heating, Ventilation and Air-conditioning HVAC System Security and observation system Magnetic card and access system Fire alarm system Lifts, elevators etc. Plumbing system Burglar alarms Overview & Challenge • Challenges: • Integrate devices between different vendors • Critical Operating Environment • Network Crash

  25. Topology Example

  26. Recommended Models

  27. Remote Control Connects PLC, DCS, and SCADA with database Monitor the status Detect the failure Solve the problem Analyze the statistic data Improve the productivity Flexibility Simpler and more convenient control systems Satisfy the rapid changing industrial environment Overview & Challenge • Challenges: • Require Absolutely Accuracy • Critical Operating Environment • Network Crash

  28. Topology Example

  29. Recommended Models

  30. Mining Monitoring System Data transfer Video record IP phone, etc. Remote Control Boiler Conveyor belt Mining machinery, etc. Overview & Challenge • Challenges: • Dangerous Environment • Extreme Temperature • Constant Vibration

  31. Mining Topology Example

  32. Recommended Models

  33. Recommended Models

  34. Surveillance System IP camera NVR Passenger Entertainment / Information System Media on Demand Wireless AP Digital Display Train Status Monitoring Overview & Challenge • Challenges: • Low Voltage Power Supply (24V) • Extreme Temperature • Shock & Vibration • Water & dust • Network Crash

  35. Topology Example

  36. Recommended Models IES-2008-67IES-2208F-67IPES-2208F-67 IPES-0008-4

  37. Comparison
