DNA and its Processes

DNA and its Processes. Chapter 12 Material on Midterm. Section 12-1: DNA. Key Concepts List the conclusions of Griffith, Avery, Hershey-Chase, Franklin, Chargaff, and Watson-Crick drew from their experiments Describe Watson and Crick’s model of the DNA molecule. Section 12-1: DNA.

kaden
Download Presentation

DNA and its Processes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

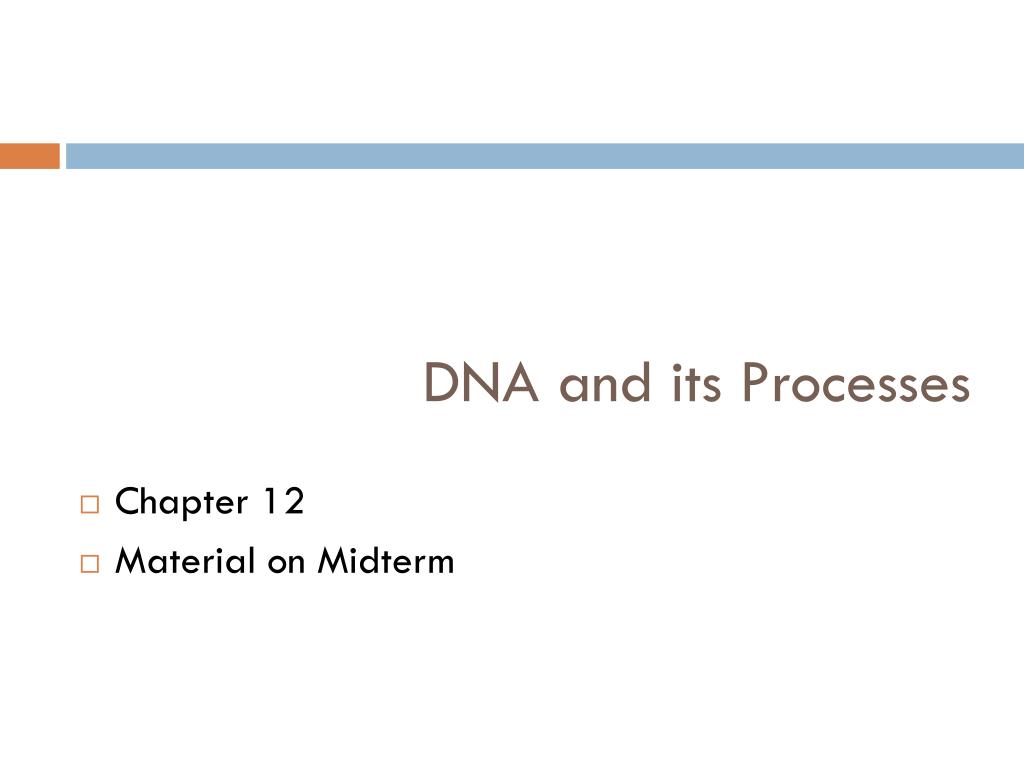

  1. DNA and its Processes • Chapter 12 • Material on Midterm

  2. Section 12-1: DNA • Key Concepts • List the conclusions of Griffith, Avery, Hershey-Chase, Franklin, Chargaff, and Watson-Crick drew from their experiments • Describe Watson and Crick’s model of the DNA molecule

  3. Section 12-1: DNA • There are several scientists that have contributed to our understanding of DNA • Griffith • Avery • Hershey-Chase • Chargaff • Franklin • Watson-Crick

  4. Griffith

  5. Section 12-1: DNA • Answer these questions • What are the two types of strains? • Seeing what happens to mice injected with virulent strains, what do you think “virulent” means?

  6. Section 12-1: DNA • Frederick Griffith • Responsible for transformation • Process in which one strain of bacteria is changed by gene(s) from another strain • Worked with mice and pneumonia • Mice that were injected with rough or heat-killed smooth strain lived • Mice that had the smooth strain died • Mice that had the heat-killed smooth but living rough died. • Why?

  7. Avery

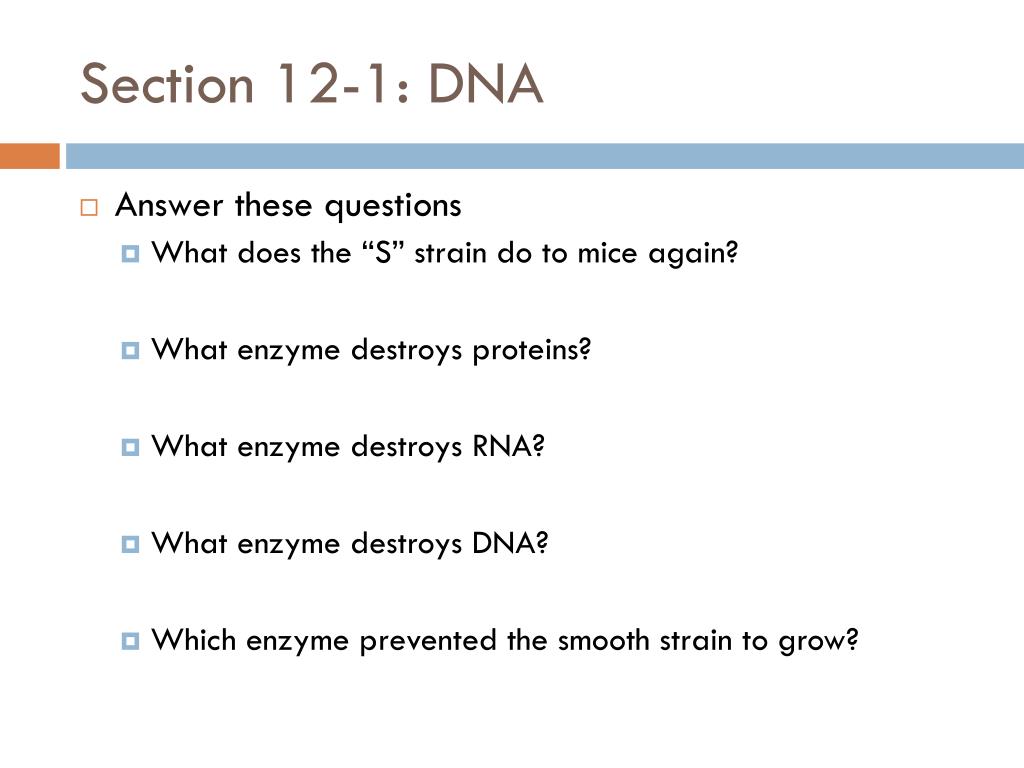

  8. Section 12-1: DNA • Answer these questions • What does the “S” strain do to mice again? • What enzyme destroys proteins? • What enzyme destroys RNA? • What enzyme destroys DNA? • Which enzyme prevented the smooth strain to grow?

  9. Section 12-1: DNA • Oswald Avery • Responsible for determining that the molecule important in transformation was nucleic acid DNA • Took heat-killed bacteria and made extract • Enzymes for lipids, proteins, and carbohydrates—no effect • Still transformation of smooth strain • Enzymes for nucleic acid—major effect • Smooth strain not transformed

  10. Hershey & Chase

  11. Section 12-1: DNA • Answer these questions • Why did they use radioactive sulfur for identifying protein? (Think about the elements in protein!) • Why did they use radioactive phosphorus for identifying DNA? (Think about the elements in DNA!) • Which is more dense—DNA or protein? • What remained in the bacteria—DNA or protein?

  12. Section 12-1: DNA • Alfred Hershey and Martha Chase • Determined that the genetic material is made out of DNA, not protein • Used radioactive labels • Sulfur-35 for protein—CHOSN for protein • Phosphorus-32 for nucleic acid—CHOPN • Genetic material glowed with P-32…DNA

  13. Section 12-1: DNA • Chargaff • Looked at numerous organisms • Compared concentrations of nitrogenous bases (bases) • What do you notice? __________________________ Chargaff had no idea WHY this was happening!

  14. Section 12-1: DNA • Rosalind Franklin • Used X-ray diffraction to study image of DNA • Helical shape • Twisted strands • 2 strands • Bases near middle

  15. Section 12-1: DNA • What words do you not recognize in the paper? Make a list. • How does the length of the paper compare to a normal scientific article (around 5 pages)? • Why don’t they like Pauling’s and Corey’s model (2 reasons)? • How many helical chains do they propose? • How many base pairs (residues) are in the chain before it repeats? • Where are the phosphates located? • What type of bond joins the bases? • What base pairing rules do they suggest? • What is the sugar?

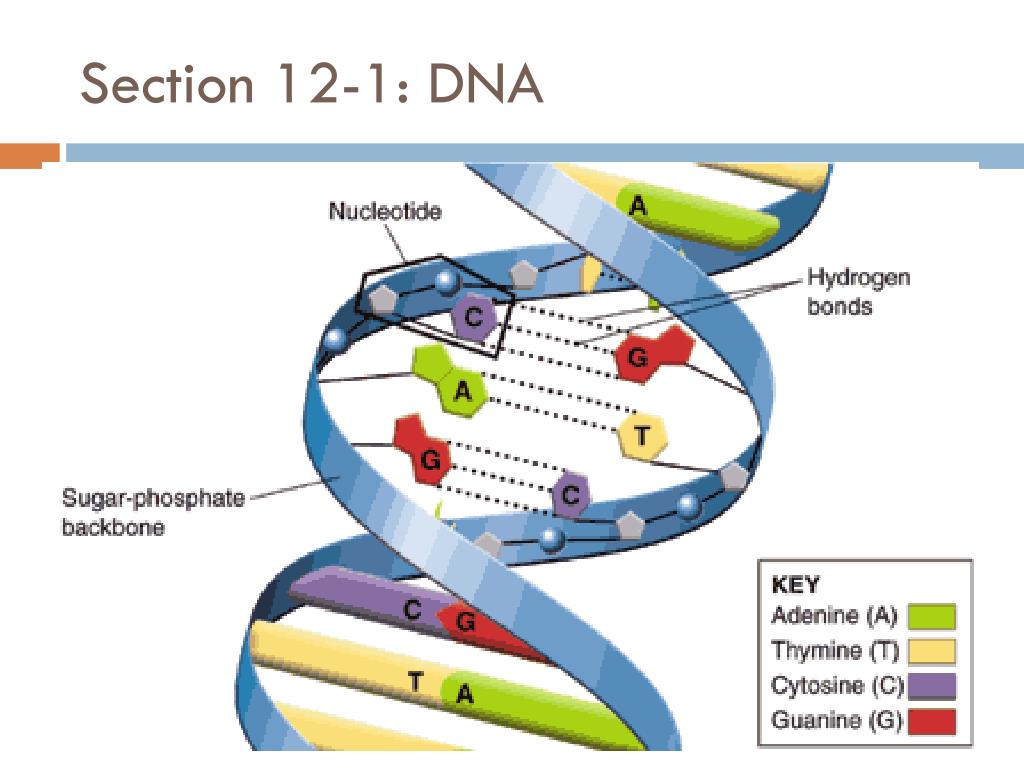

  16. Section 12-1: DNA • Built 3-D models of DNA • Used work of everyone before them • Model: double helix • Twisted ladder • H-bonds between nitrogenous bases • Base pairing: A with T, G with C • EXPLAINS CHARGAFF

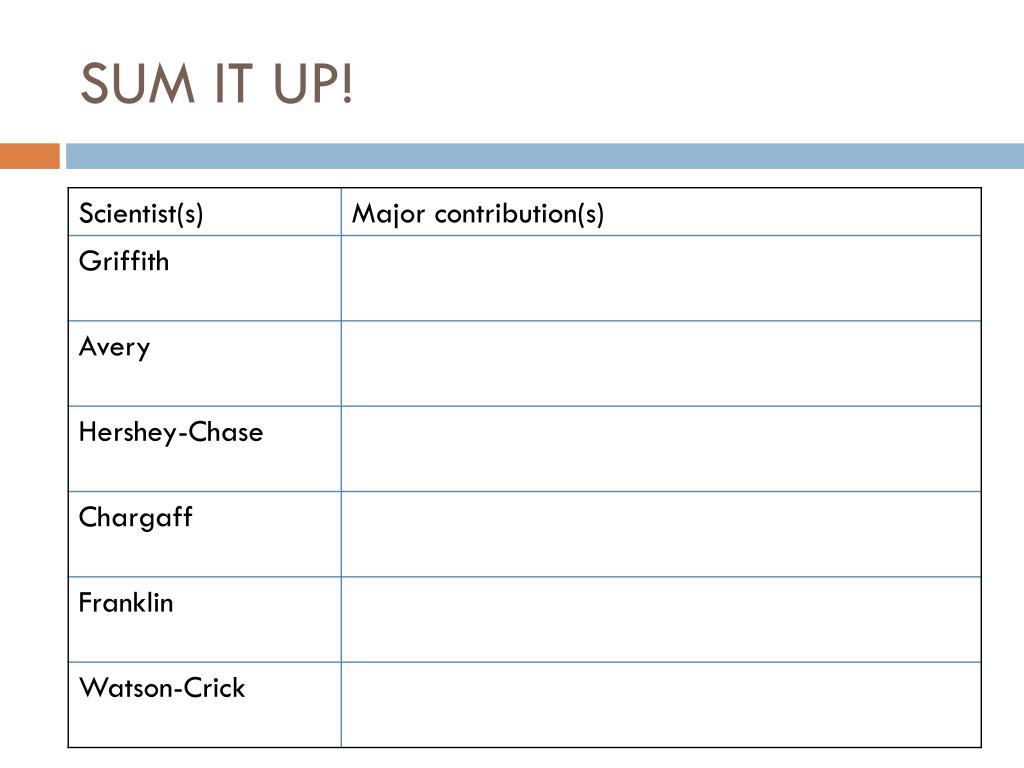

  17. SUM IT UP!

  18. 12-1: DNA • Components & Structure of DNA • What are the monomers and polymers of nucleic acid? ____________ ___________ • Double-stranded • Each nucleotide is made up of three parts • Phosphate group • Nitrogenous base • 4 types • 5-carbon sugar • Deoxyribose

  19. 12-1: DNA • 4 different nitrogenous bases • Guanine (G) • Adenine (A) • Cytosine (C) • Thymine (T) A pairs up with T, and G pairs up with C

  20. 12-1: DNA The Sugar and the Phosphate group are the BACKBONE of DNA (covalent bonds) • Role of hydrogen bonds • SUMMARY:

  21. Section 12-1: DNA • Purines • 2 rings • Nucleotide adenine • Nucleotide guanine • Pyridimes • 1 ring • Nucleotide thymine • Nucleotide cytosine Two styles of nucleotides based on size Ones with “y” are pyrimidines Longer word; less rings

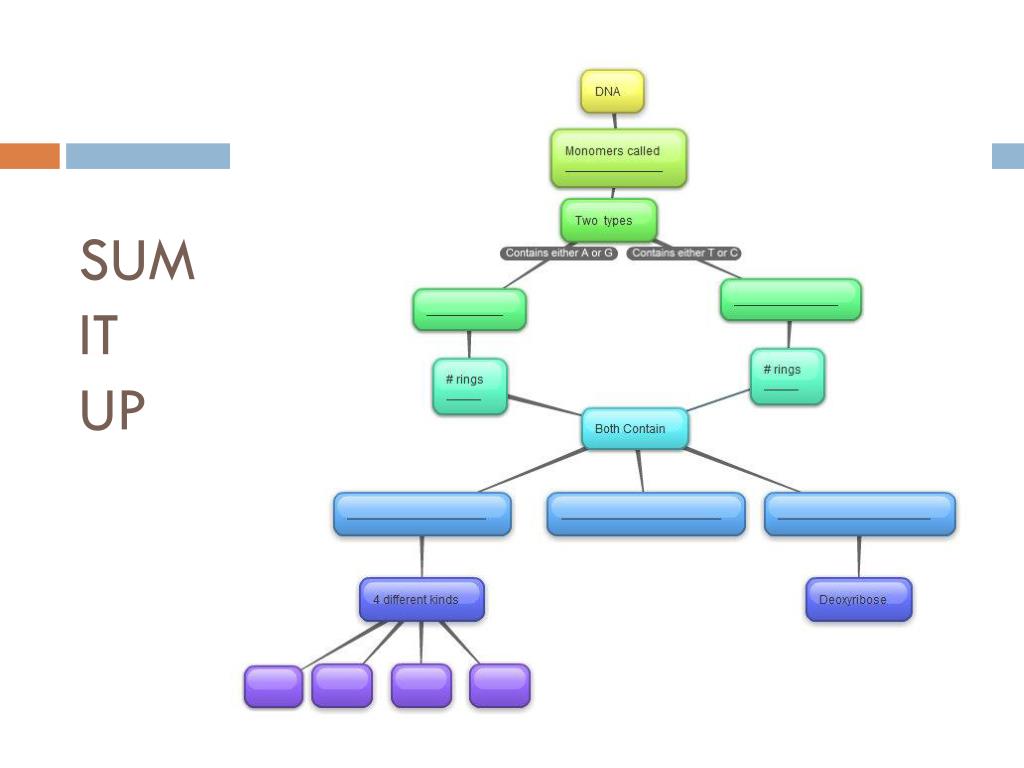

  22. SUMITUP

  23. 12-1: DNA • Please answer the following on your Key Concepts Sheet • List the conclusions of Griffith, Avery, Hershey-Chase, Franklin, Chargaff, and Watson-Crick drew from their experiments • Describe Watson and Crick’s model of the DNA molecule

  24. 12-2: Chromosomes and DNA Replication • Key Concepts • Explain how DNA condenses • Explain how DNA is replicated

  25. 12-2: Chromosomes and DNA Replication • Think back to mitosis…What happens in the “S” phase of interphase?

  26. 12-2: Chromosomes and DNA Replication • When DNA goes through mitosis, it condenses for easy sorting and separation • When its thin, it’s chromatin • Wrapped around histone proteins like beads on a string • Coils up • Coils coil up • A chromosome is the very condensed form of DNA

  27. 12-2: Chromosomes and DNA Replication • The path to condensation

  28. 12-2: Chromosomes and DNA Replication • Your turn!

  29. DNA condensation • DNA replication • Goal: two identical strands of DNA • General steps: • Unzip double-strands • Add new base pairs • Clean up

  30. 12-2: Chromosomes and DNA Replication If I were an enzyme… • DNA Replication • DNA helicase comes in and unzips the double helix • RNA primers are added • DNA polymerase ‘lands’ on primers and adds new base pairs • Two identical daughter strands result

  31. 12-2: Chromosomes and DNA Replication • Parent strand • DNA helicase separates • DNA Polymerase adds • DNA ligase cleans up

  32. 12-2: Chromosomes and DNA Replication • It the parent strand is AATCCG, what will the result be? TTAGGC • If we are looking at ONE HALF of a DNA strand for DNA polymerase to add bases to, what would the other half be? GTCAGTTCCATCCTAG

  33. 12-2: Chromosomes and DNA Replication • SUM IT UP!

  34. 12-2: Chromosomes and DNA Replication • Please answer the following on your Key Concepts Sheet • Explain how DNA condenses • Explain how DNA is replicated

  35. 12-3: RNA and Protein Synthesis • Key Concepts • What are the three main types and functions of RNA? • What occurs during transcription? • What occurs during translation?

  36. 12-3: RNA and Protein Synthesis • Components & Structure of RNA • What are the monomers and polymers of nucleic acid? ____________ ___________ • Single-stranded • Each nucleotide is made up of three parts • Phosphate group • Nitrogenous base • 4 types • 5-carbon sugar • ribose

  37. 12-3: RNA and Protein Synthesis • 4 different nitrogenous bases • Guanine (G) • Adenine (A) • Cytosine (C) • Uracil (U) A pairs up with U, and G pairs up with C

  38. 12-3: RNA and Protein Synthesis

  39. 12-3: RNA and Protein Synthesis

  40. 12-3: RNA and Protein Synthesis • Sum it up!

  41. 12-3: RNA and Protein Synthesis • Messenger RNA • mRNA • Carries copies of instructions for the assembly of amino acids into proteins from DNA to the rest of the cell Involved in protein synthesis

  42. 12-3: RNA and Protein Synthesis • Ribosomal RNA • rRNA • RNA that makes up a major part of the ribosome • Site of protein synthesis ALSO involved in protein synthesis

  43. 12-3: RNA and Protein Synthesis • Transfer RNA • tRNA • Transfers amino acid to ribosome during protein synthesis And STILL involved in protein synthesis

  44. SUM IT UP

  45. 12-3: RNA and Protein Synthesis • Transcription • Goal: make a strand of mRNA that “pairs up” with a template strand of DNA • Complementary strand • Steps • Unzip double helix • Add in RNA bases • Break away and leave nucleus

  46. 12-3: RNA and Protein Synthesis • Transcription • RNA polymerase does the job of DNA helicase and DNA polymerase combined • Unzips and adds bases, but only to the TEMPLATE strand (coding strand)

  47. 12-3: RNA and Protein Synthesis • It the parent strand is AATCCG, what will the result be if the TOP TTAGGCstrand istranscribed? • If we are looking at ONE HALF of a DNA strand for RNA polymerase to add bases to, what would the other half be? GTCAGTTCCATCCTAG

  48. 12-3: RNA and Protein Synthesis • SUM IT UP • Write TWO LINES about the similarities between replication and transcription • Write TWO LINES about the differences between replication and transcription
