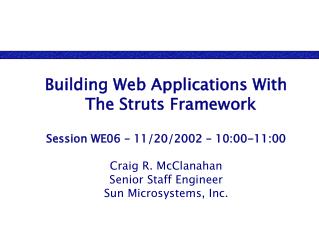

Building Web Applications With The Struts Framework

Session WE06 – 11/20/2002 – 10:00-11:00

Craig R. McClanahan

Senior Staff Engineer

Sun Microsystems, Inc.

session outline
Session Outline
  • Web Applications Backgrounder
  • The Model-View-Controller Architecture
  • The Struts Framework
  • Building A Web Application With Struts
  • Resources
web applications backgrounder4
Web Applications Backgrounder
  • Web applications run over the HTTP protocol:
    • Request/response oriented
    • Stateless
  • Web applications use varied presentation (markup) languages, and talk to varied client hardware devices:
    • “Standard HTML” -- not!
    • Varying dynamic and JavaScript capabilities
    • Wireless devices vary in capabilities, language dialect, and input device support
simple solutions for simple problems
Simple Solutions ... for Simple Problems
  • For relatively simple applications, a simple architecture works fine
  • For each page in the user interface ...
    • Create a servlet, JSP page, or something similar
    • The page includes:
      • Logic to create the user interface
      • Logic to retrieve required information from the database
      • Logic to perform the appropriate business transaction
      • Logic to update the corresponding database information
    • And it's all mixed together in one source file
  • This works fine for a Guest Book app, but what about something bigger?
what about large scale applications
What About Large Scale Applications?
  • Disparate skill sets required:
    • Presentation Layer-- User interface design, visual appearance, interaction model
    • Application Layer – Functional business logic to perform required transactions
    • Persistence Layer – Databases, directory servers, messaging, Enterprise JavaBeansTM (EJBs)
    • Application Deployment – Networks, firewalls, public key infrastructures, load balancing, failover
  • We need a fundamental organizing principle:
    • The Model-View-Controller (MVC) architecture
the model view controller architecture
The Model-View-Controller Architecture
  • Divides the overall functionality of an application into three layers:
    • Model Layer – Contains the functional business logic of the application, as well as a representation of the persistently stored data backing the application
    • View Layer – Contains the user interface, including mechanisms to accept user input and render results
    • Controller Layer – Contains the logic that manages the flow of individual requests, dispatching to the appropriate business logic component
the model layer
The Model Layer
  • Functional business logic:
    • Should be modelled as JavaBeans or Session EJBs
    • Should be reusable in non-web environments
    • API exposes public methods for each logical unit of work (while hiding the details)
  • Persistent data storage:
    • Should manage permanent storage of application data
    • Typically shared across many applications
    • API should expose data retrieval and storage operations (while hiding the mechanisms)
the view layer
The View Layer
  • Creation of the user interface:
    • Typically in HTML or an XML-based dialect
    • Normally a combination of static and dynamic content
  • Actual content varies depending on:
    • Device or browser type
    • User preferences / personalization
    • Internationalization and localization requirements
    • Accessibility requirements
the controller layer
The Controller Layer
  • Incoming requests flow through a common path:
    • Received by common component
    • Standardized request pre-processing
    • Dispatch to request-specific model component (business logic)
    • Forward to business-logic-specified view component
    • Standardized request post-processing
  • Often called “Model 2 Design” in the JSP/Servlet community
  • In modern design pattern terminology, Struts implements the front controller pattern.
the struts framework model layer
The Struts Framework – Model Layer
  • Struts does not restrict implementation techniques for model layer
    • JDBC-accessed databases
    • Enterprise JavaBeans
    • O-R mapping tools
  • Optional JDBC connection pool available
  • Common design pattern:
    • Action acquires information from persistence tier
    • Exposes information as request/session attributes
    • View layer pulls data from attributes for display
the struts framework view layer
The Struts Framework – View Layer
  • Form Bean maintains state of form input fields across requests:
    • ActionForm – Standard JavaBean design pattern
    • DynaActionForm – Property names and types defined in Struts configuration file
  • In addition to properties, form beans define two standard methods:
    • reset() -- Reset form properties to initial state
    • validate() -- Perform field-level validations
  • Form bean properties are typically Strings
    • Allows redisplay of invalid input
the struts framework view layer16
The Struts Framework – View Layer
  • Internationalization Support enables locale-specific applications
    • Locale – Standard Java class representing a choice of language and/or country
    • MessageFormat – Standard Java class representing an individual message with replaceable parameters:
      • “{0} is not a valid credit rating”
    • MessageResources – Struts abstraction around sets of messages for supported locales
    • ActionErrors / ActionMessages – Struts collections of localized messages
the struts framework view layer17
The Struts Framework – View Layer
  • JSP Custom Tag Libraries – If you are using JSP pages for your presentation
    • struts-bean.tld – Fundamental bean manipulation and internationalization
    • struts-html.tld – “Smart” HTML elements
    • struts-logic.tld – Basic conditionals and iteration
    • struts-template.tld – Basic layout management
the struts framework view layer18
The Struts Framework – View Layer
  • Standard tag libraries added in Struts 1.1:
    • struts-nested.tld -- “Nested” variants of standard tags that resolve relative references against beans
    • struts-tiles.tld – Full features layout management library
  • Contributed libraries added in Struts 1.1:
    • struts-xxx-el.tld – Versions of standard Struts tag libraries that support the expression language syntax of JSP Standard Tag Library
the struts framework view layer19
The Struts Framework – View Layer
  • Validation Framework
    • No-code-required field level validations
    • Configured in an XML document included in the web application
    • Optionally generates client side JavaScript to enforce validation rules
    • Extensible architecture
the struts framework controller layer
The Struts Framework – Controller Layer
  • ActionServlet – Standard implementation of controller
  • At application startup, reads configuration file and initializes resources
    • [Struts 1.1] PlugIn – General start/stop hook
  • On each request, implements the standard Struts request processing lifecycle (in Struts 1.1, implemented in RequestProcessor)
  • Specialization / customization via subclassing
  • [Struts 1.1] Sub-application modules support
the struts framework controller layer21
The Struts Framework – Controller Layer
  • Action – Standard base class for business logic components and adapters:
    • Mapped to logical names by request processor
    • Single instance per application (must be thread safe)
    • Instantiated as needed, like servlets
  • Implements the “Command Pattern”
    • execute() -- Invoked for each request
    • Can (but typically does not) create response content directly
    • Typically returns ActionForward to select resource to prepare response
the struts framework controller layer22
The Struts Framework – Controller Layer
  • Standard Request Processing Lifecycle 1:
    • processLocale() -- Record user's locale preference (if not already present)
    • processPreprocess() -- general purpose pre-processing hook
    • processMapping() -- select Action to be utilized
    • processRoles() -- perform security role-based restrictions on action execution
    • processActionForm() -- Create or acquire an appropriate ActionForm instance
the struts framework controller layer23
The Struts Framework – Controller Layer
  • Standard Request Processing Lifecycle 2:
    • processPopulate() -- Copy the request parameters into the form bean properties
    • processValidate() -- Call form bean's validate() method
    • processActionCreate() -- Create or acquire an appropriate Action instance
    • processActionPerform() -- Call action's execute() method
    • processActionForward() -- Process returned ActionForward instance (if any)
the struts framework controller layer24
The Struts Framework – Controller Layer
  • XML Configuration Document (/WEB-INF/struts-config.xml)
    • Standard place to configure all aspects of the application's behavior
    • DTD included for optional (but recommended) validation
    • Logical-to-physical mappings for Actions, ActionForms, and ActionForwards
    • General configuration settings
  • [Struts 1.1] Configuration Document per module if more than one
the struts framework commons libraries
The Struts Framework – Commons Libraries
  • Non-Struts Specific Logic Factored Out:
    • commons-beanutils – Generic bean property manipulation
    • commons-collections – Extensions to standard Java2 collections classes
    • commons-dbcp – Optional JDBC connection pool
    • commons-digester – XML parsing for configuration files
    • commons-fileupload – Support library for HTML file uploads
the struts framework commons libraries26
The Struts Framework – Commons Libraries
  • Non-Struts Specific Logic Factored Out:
    • commons-logging – Application logging wrapper
    • commons-pool – Object pooling library
    • commons-resources – Message resources support library
    • Commons-validator – Field validation framework
building web applications with struts28
Building Web Applications With Struts
  • Now that we understand the architecture of Struts, let's look at parts of an example app that is built with it
  • Struts includes a canonical example that is useful in determining whether you have installed things correctly
    • struts-example.war
  • Application models (part of) an email portal site that lets you maintain multiple subscriptions
sample application model layer persistence tier
Sample Application – Model Layer (Persistence Tier)
  • Modelled via a Data Access Object (DAO)
    • org.apache.struts.webapp.example.UserDatabase

public interface UserDatabase {

public User createUser(String username);

public void close() throws Exception;

public User findUser(String username);

public User[] findUsers();

public void open() throws Exception;

public void removeUser(User user);

public void save() throws Exception;

}

sample application model layer persistence tier30
Sample Application – Model Layer (Persistence Tier)
  • Default implementation based on loading an XML document into memory:
    • o.a.s.e.memory.MemoryUserDatabase
  • JDBC-based (or LDAP-based) implementation is easy to imagine, and would be transparent to the business logic
  • Implementation selection implemented via a PlugIn ... see configuration file example later
sample application model layer business logic
Sample Application – Model Layer (Business Logic)
  • Two common Struts design patterns illustrated
  • View --> View --> Action
    • Welcome Page has link to logon page:
      • <html:link page=”/logon.jsp”>...</html:link>
    • Logon page instantiates LogonForm bean
    • Form submit goes to “/logon” action
  • View --> Action --> View --> Action
    • Setup action “/editRegistration?action=Edit” pulls data from “database” and populates form bean
    • Registration page “/registration.jsp” displays current data
    • Form submit goes to “/saveRegistration” action
sample application view layer logon jsp
Sample Application – View Layer (logon.jsp)

<%@ page contentType=”text/html;charset=”UTF-8” %>

<%@ taglib uri=”/WEB-INF/struts-bean.tld”

prefix=”bean” %>

<%@ taglib uri=”/WEB-INF/struts-html.tld”

prefix=”html” %>

<html:html locale=”true”>

<head>

<title>

<bean:message key=”logon.title”/>

</title>

<html:base/>

</head>

sample application view layer logon jsp33
Sample Application – View Layer (logon.jsp)

<body bgcolor=”white”>

<html:errors/>

<html:form action=”/logon” focus=”username”

onsubmit=”return validateLogonForm(this);”>

<table border=”0” width=”100%”>

<tr>

<th align=”right”> <bean:message key=”prompt.username”/>

</th>

<td align=”left”>

<html:text property=”username” size=”16”/>

</td>

</tr>

sample application view layer logon jsp34
Sample Application – View Layer (logon.jsp)

<tr>

<th align=”right”> <bean:message key=”prompt.password”/>

</th>

<td align=”left”>

<html:password property=”password”

size=”16”/>

</td>

</tr>

</table></html:form>

<html:javascript formName=”logonForm”

dynamicJavascript=”true”

staticJavascript=”false”/>

<script language=”Javascript” .../>

</body></html:html>

sample application controller layer
Sample Application – Controller Layer
  • No application logic required – Struts does everything for you :-)
  • Controller functionality is configured via XML-based files:
    • struts-config.xml – Struts controller configuration
    • validation.xml – Validator framework configuration
    • web.xml – Web application configuration
sample application struts configuration struts config xml
Sample Application – Struts Configuration (struts-config.xml)

<struts-config>

<form-beans>

...

<form-bean name=”logonForm”

type=”org.apache.struts.action.DynaActionForm”>

<form-property name=”username”

type=”java.lang.String”/>

<form-property name=”password”

type=”java.lang.String”/>

</form-bean>

<form-bean name=”registrationForm”

type=”org.apache.webapp.example.RegistrationForm”/>

...

</form-beans>

sample application struts configuration struts config xml37
Sample Application – Struts Configuration (struts-config.xml)

<global-forwards>

<forward name=”logoff” path=”/logoff.do”/>

<forward name=”logon” path=”/logon.do”/>

<forward name=”registration”

path=”/registration.jsp”/>

<forward name=”success”

path=”/mainMenu.jsp”/>

</global-forwards>

sample application struts configuration struts config xml38
Sample Application – Struts Configuration (struts-config.xml)

<action-mappings>

<action path=”/editRegistration”

type=”org.apache.struts.webapp.example.EditRegistrationAction”

name=”registrationForm”

scope=”request” validate=”false”>

<forward name=”success”

path=”/registration.jsp”/>

</action>

<action path=”/saveRegistration”

type=”org.apache.struts.webapp.example.SaveRegistrationAction”

name=”registrationForm”

scope=”request” validate=”true”

input=”registration”/>

sample application struts configuration struts config xml39
Sample Application – Struts Configuration (struts-config.xml)

<action path=”/logon”

type=”org.apache.struts.webapp.example.LogonAction”

input=”request”

name=”logonForm”

scope=”request”/>

...

</action-mappings>

<controller>

<set-property property=”inputForward”

value=”true”/>

</controller>

<message-resources

parameter=”org.apache.struts.example.ApplicationResources”/>

sample application struts configuration struts config xml40
Sample Application – Struts Configuration (struts-config.xml)

<plug-in className=”org.apache.struts.webapp.example.memory.MemoryDatabasePlugIn”>

<set-property property=”pathname”

value=”/WEB-INF/database.xml”/>

</plug-in>

<plug-in className=”org.apache.struts.validator.ValidatorPlugIn”>

<set-property property=”pathnames”

value=”/WEB-INF/validator-rules.xml,

/WEB-INF/validation.xml”/>

</plug-in>

</struts-config>

sample application struts configuration validation xml
Sample Application – Struts Configuration (validation.xml)

<form-validation>

<formset>

<form name=”logonForm”>

<field property=”username”

depends=”minlength,...”>

<arg0 key=”prompt.username”/>

<arg1 key=”${var:minlength}”

name=”minlength”

resource=”false”/>

<var><var-name>minlength</var-name>

<var-value>3</var-value></var>

...

</field>

...

</form>

...

</formset>

</form-validation>

sample application webapp configuration web xml
Sample Application – Webapp Configuration (web.xml)

<web-app>

<servlet>

<servlet-name>Controller</servlet-name>

<servlet-class>

org.apache.struts.action.ActionServlet

</servlet-class>

<init-param>

<param-name>config</param-name>

<param-value>

/WEB-INF/struts-config.xml

</param-value>

</init-param>

<load-on-startup> 1 </load-on-startup>

</servlet>

sample application webapp configuration web xml43
Sample Application – Webapp Configuration (web.xml)

<servlet-mapping>

<servlet-name>Controller</servlet-name>

<url-pattern> *.do </url-pattern>

</servlet-mapping>

...

</web-app>

struts 1 1 release
Struts 1.1 Release
  • When? “Real Soon Now”
  • What new features?
    • Apache Commons Libraries
    • DynaActionForm
    • Declarative Exception Handling
    • Nested Tag Library
    • PlugIn API
    • Sub-Application Module Support
    • (Contributed) STRUTS-EL Tag Libraries
struts and jstl
Struts and JSTL
  • JSP Standard Tag Library (JSTL) 1.0:
    • Expression language (“${customer.address[“mailing”].city”)
    • General purpose actions (out, set, remove, catch)
    • Conditional actions (if, choose, when, otherwise)
    • Iterator actions (forEach, forTokens)
    • URL actions (import, url, redirect, param)
    • Internationalization actions (message, setLocale, bundle, setBundle, message, param, requestEncoding)
    • Formatting actions (timeZone, setTimeZone, formatNumber, parseNumber, formatDate, parseDate)
struts and jstl47
Struts and JSTL
  • JSP Standard Tag Library (JSTL) 1.0, continued:
    • SQL actions (not relevant in an MVC framework environment)
    • XML core actions (parse, out, set)
    • XML flow control actions (if, choose, when, otherwise, forEach)
    • XML transform actions (transform, param)
  • The struts-xxx-el libraries are a bridge for Struts developers who want to leverage JSTL tags, and expression language syntax, now
struts and jsf
Struts and JSF
  • JavaServer Faces (currently under development in JSR-127)
  • Goals:
    • Standard GUI component framework for web applications
    • RenderKits for different rendering environments (browser vs. wireless device, different locales, etc.)
  • Struts will provide an integration library:
    • Requires changes to view layer and struts-config.xml file only!
    • Plugs in to RequestProcessor APIs
this presentation online
This Presentation Online
  • StarOffice 6.0:
    • http://www.apache.org/~craigmcc/apachecon-2002-struts.sxi
  • Powerpoint:
    • http://www.apache.org/~craigmcc/apachecon-2002-struts.ppt
internet technologies
Internet Technologies
  • Hypertext Markup Language (HTML) 4.01:
    • http://www.w3.org/TR/html4/
  • Hypertext Transfer Protocol (HTTP) 1.1:
    • http://www.ietf.org/rfc/rfc2616.txt
  • Uniform Resource Identifiers (URI):
    • http://www.ietf.org/rfc/rfc2396.txt
model layer standard java apis
Model Layer – Standard Java APIs
  • JavaBeans:
    • http://java.sun.com/products/javabeans/
  • Java Database Connectivity (JDBC):
    • http://java.sun.com/products/jdbc/
  • Java Data Objects:
    • http://java.sun.com/products/jdo/
    • http://jcp.org/jsr/detail/12.jsp
  • Java Naming and Directory Interface:
    • http://java.sun.com/products/jndi/
  • Enterprise JavaBeans (EJB):
    • http://java.sun.com/products/ejb/
model layer persistence frameworks
Model Layer – Persistence Frameworks
  • Castor:
    • http://castor.exolab.org/
  • Java Data Objects:
    • http://java.sun.com/products/jdo/
  • Object/Relational Bridge:
    • http://jakarta.apache.org/ojb/
  • Torque:
    • http://jakarta.apache.org/turbine/torque/
view layer standard java apis
View Layer – Standard Java APIs
  • Servlets:
    • http://java.sun.com/products/servlet/
  • JavaServer Pages (JSP):
    • http://java.sun.com/products/jsp/
  • JSP Standard Tag Library (JSTL):
    • http://java.sun.com/products/jsp/jstl/
  • JavaServer Faces:
    • http://java.sun.com/j2ee/javaserverfaces/
    • http://jcp.org/jsr/detail/127.jsp
struts resources
Struts Resources
  • The Struts and Commons Web Sites:
    • http://jakarta.apache.org/struts/
    • http://jakarta.apache.org/commons/
  • Recent Books About Struts:
    • Cavaness, Chuck; Programming Jakarta Struts; O'Reilly
    • Goodwill, James; Mastering Jakarta Struts; John Wiley
    • Husted, Ted; Java Web Development With Struts; Manning
    • Spielman, Sue; The Struts Framework: Practical Guide for Programmers; Morgan Kaufman
    • Turner, James; Struts Kick Start; Sams
design patterns resources
Design Patterns Resources
  • The Java Blueprints Web Site:
    • http://java.sun.com/blueprints/
  • Design Patterns Books:
    • Gamma, Erich (et. al.); Design Patterns: Elements of Reusable Object-Oriented Software; Addison-Wesley
    • Alur, Deepak (et. al.); Core J2EE Patterns: Best Practices and Design Strategies; Prentice Hall
