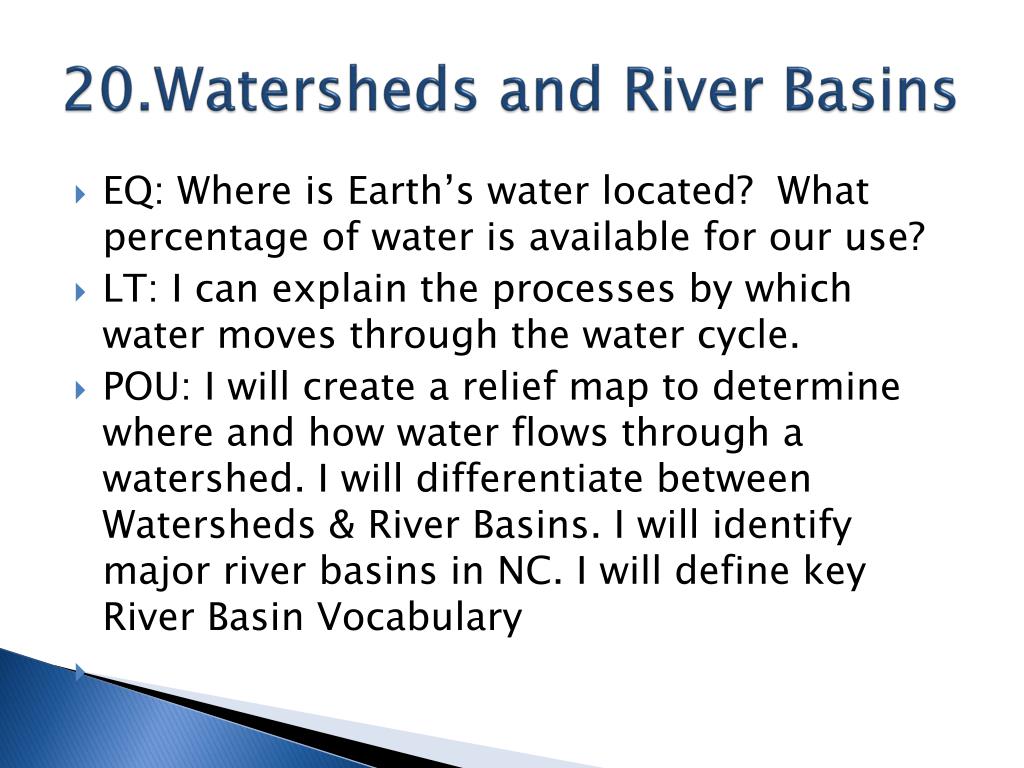

  1. 20.Watersheds and River Basins • EQ: Where is Earth’s water located? What percentage of water is available for our use? • LT: I can explain the processes by which water moves through the water cycle. • POU: I will create a relief map to determine where and how water flows through a watershed. I will differentiate between Watersheds & River Basins. I will identify major river basins in NC. I will define key River Basin Vocabulary

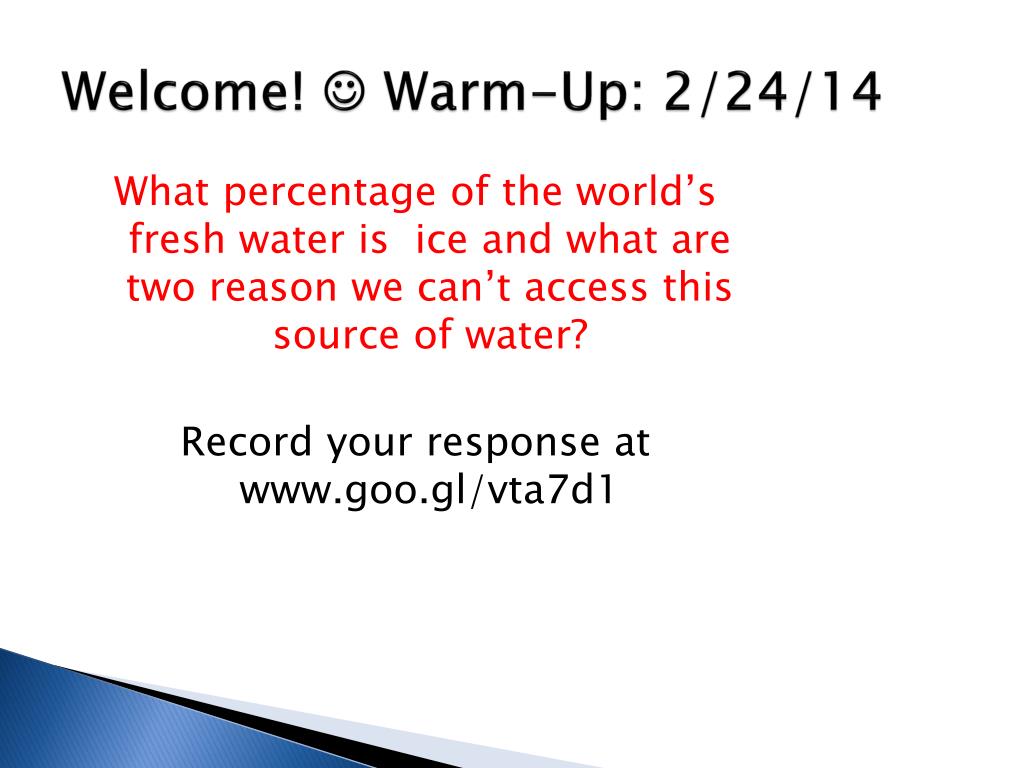

  2. Welcome! Warm-Up: 2/24/14 What percentage of the world’s fresh water is ice and what are two reason we can’t access this source of water? Record your response at www.goo.gl/vta7d1

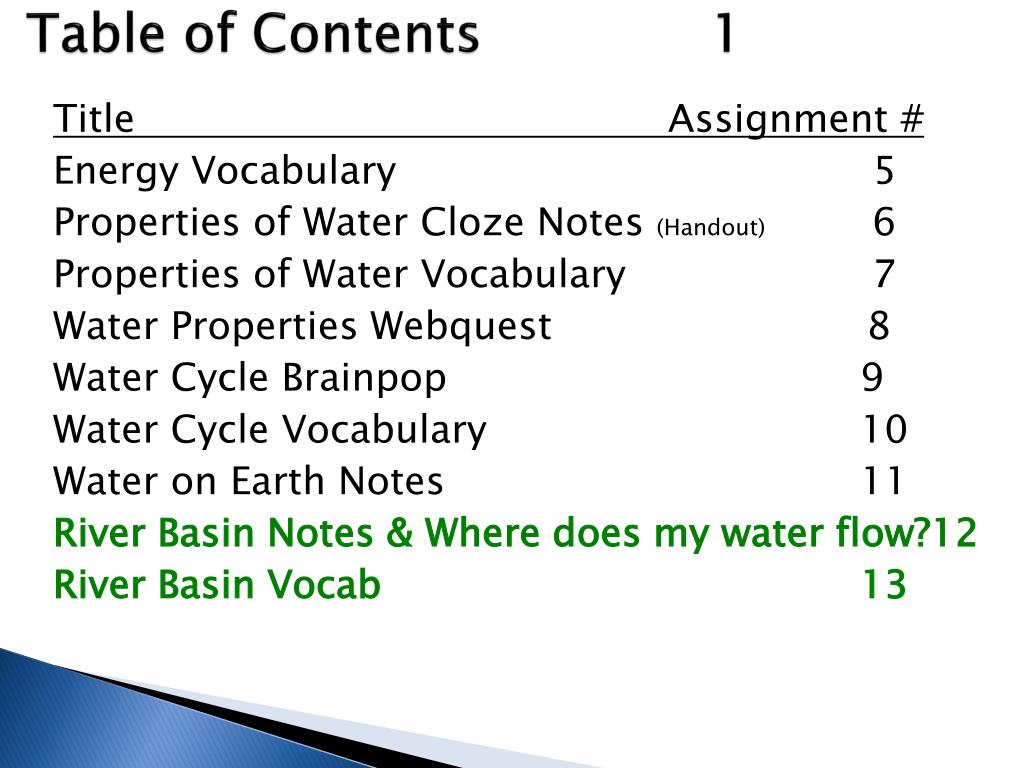

  3. Table of Contents 1 Title Assignment # Energy Vocabulary 5 Properties of Water Cloze Notes (Handout) 6 Properties of Water Vocabulary 7 Water Properties Webquest 8 Water Cycle Brainpop 9 Water Cycle Vocabulary 10 Water on Earth Notes 11 River Basin Notes & Where does my water flow?12 River Basin Vocab 13

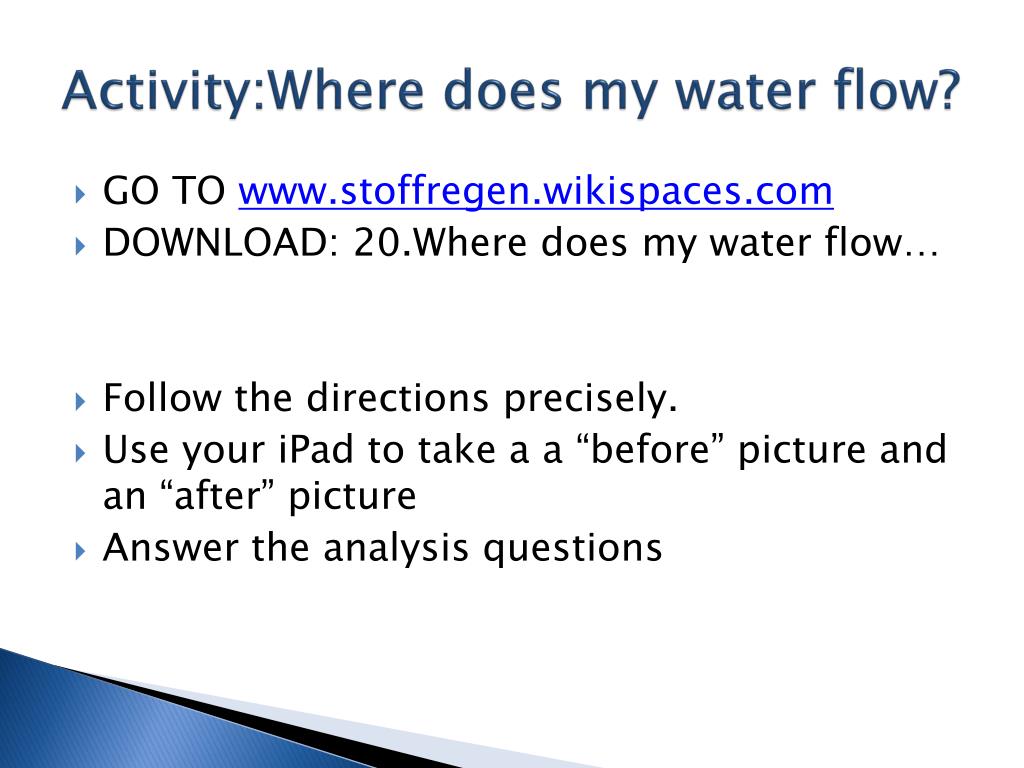

  4. Activity:Where does my water flow? • GO TO www.stoffregen.wikispaces.com • DOWNLOAD: 20.Where does my water flow… • Follow the directions precisely. • Use your iPad to take a a “before” picture and an “after” picture • Answer the analysis questions

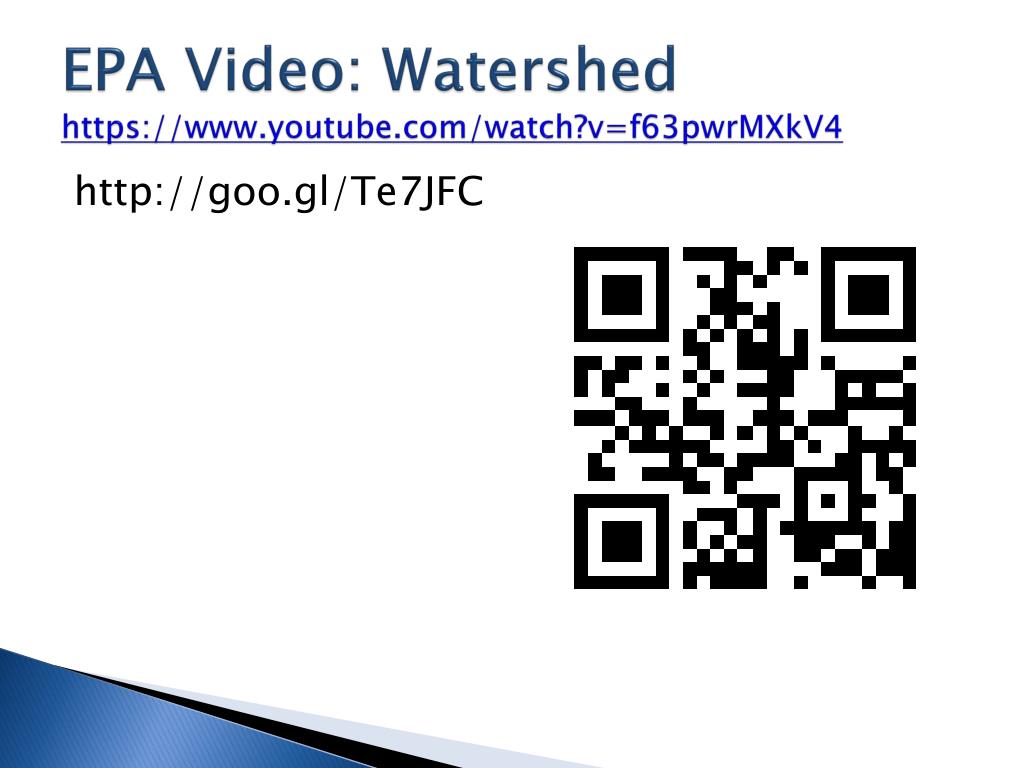

  5. EPA Video: Watershed https://www.youtube.com/watch?v=f63pwrMXkV4 http://goo.gl/Te7JFC

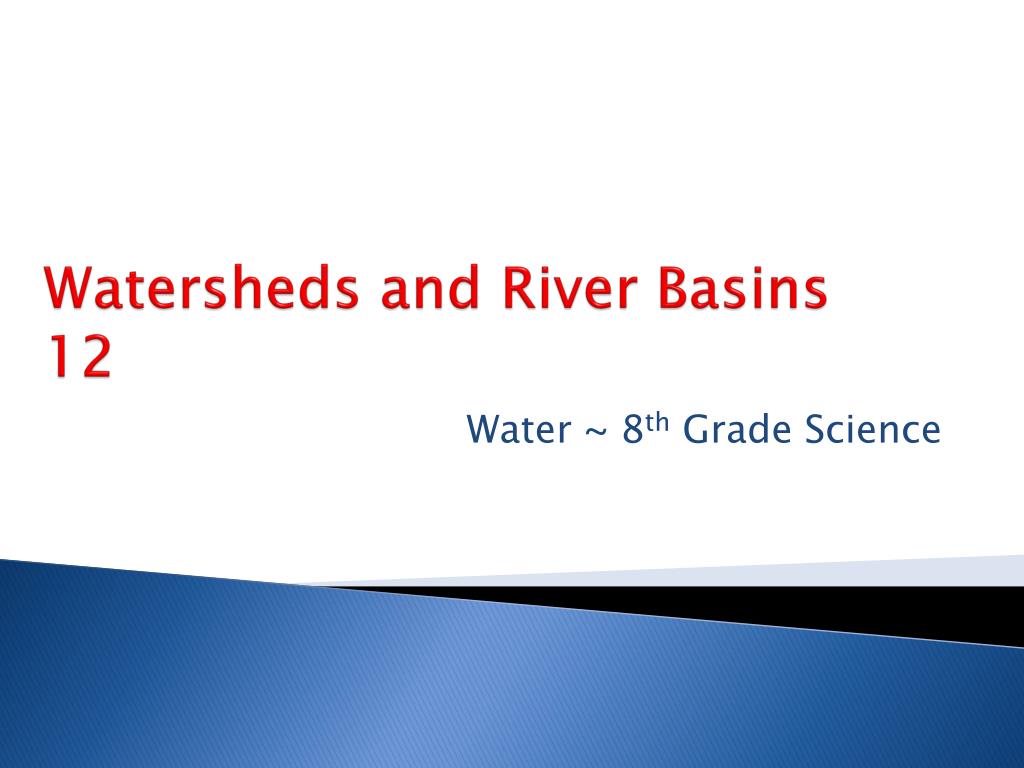

  6. Watersheds and River Basins 12 Water ~ 8th Grade Science

  7. Surface Water • We know that precipitation (rain, snow, sleet and hail) will soak into the ground or it runs downhill into surface water. • What is surface water? • Water found on the surface of the Earth such as rivers, lakes, streams or ocean

  8. Fresh Surface Water Locations— Rivers, Streams, and Lakes • What is a river? • A large channel along which water is continually flowing down a slope—made of many streams that come together (tributaries) • What are tributaries? • streams and smaller rivers that feed into a main/large river • What is a stream? • A small channel along which water is continually flowing down a slope—made of small gullies • What is a lake? • A body of water of considerable size contained on a body of land

  9. What is a watershed? an area of land that drains water to the lowest point—a river, stream, lake, or ocean

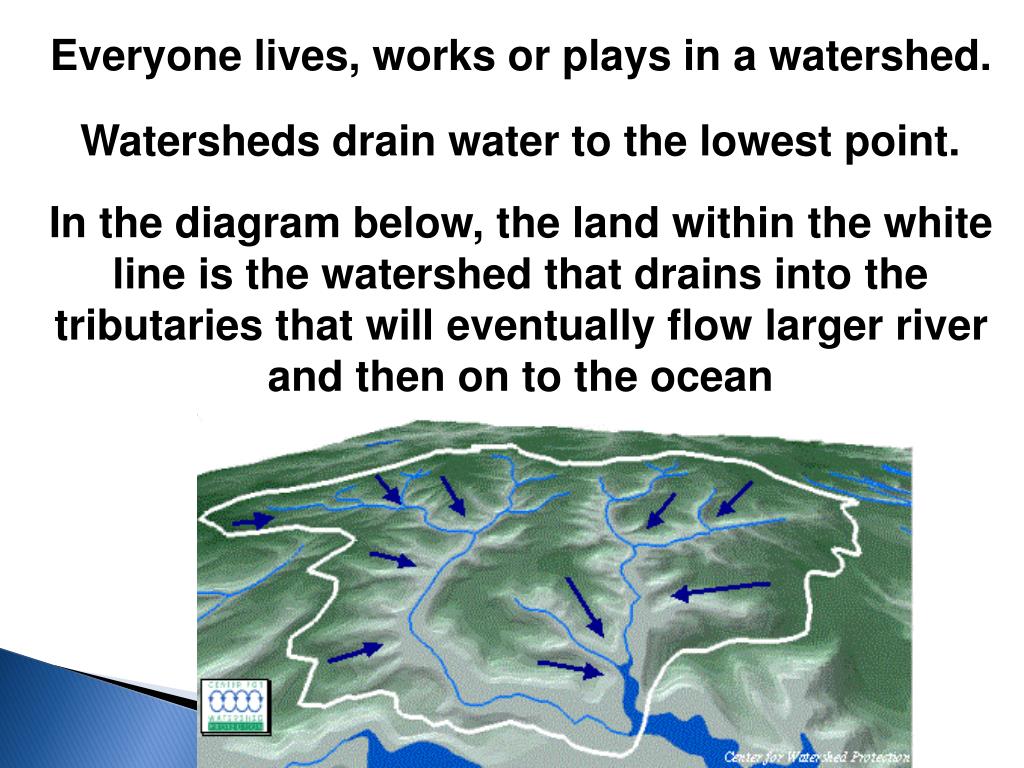

  10. Everyone lives, works or plays in a watershed. Watersheds drain water to the lowest point.  In the diagram below, the land within the white line is the watershed that drains into the tributaries that will eventually flow larger river and then on to the ocean

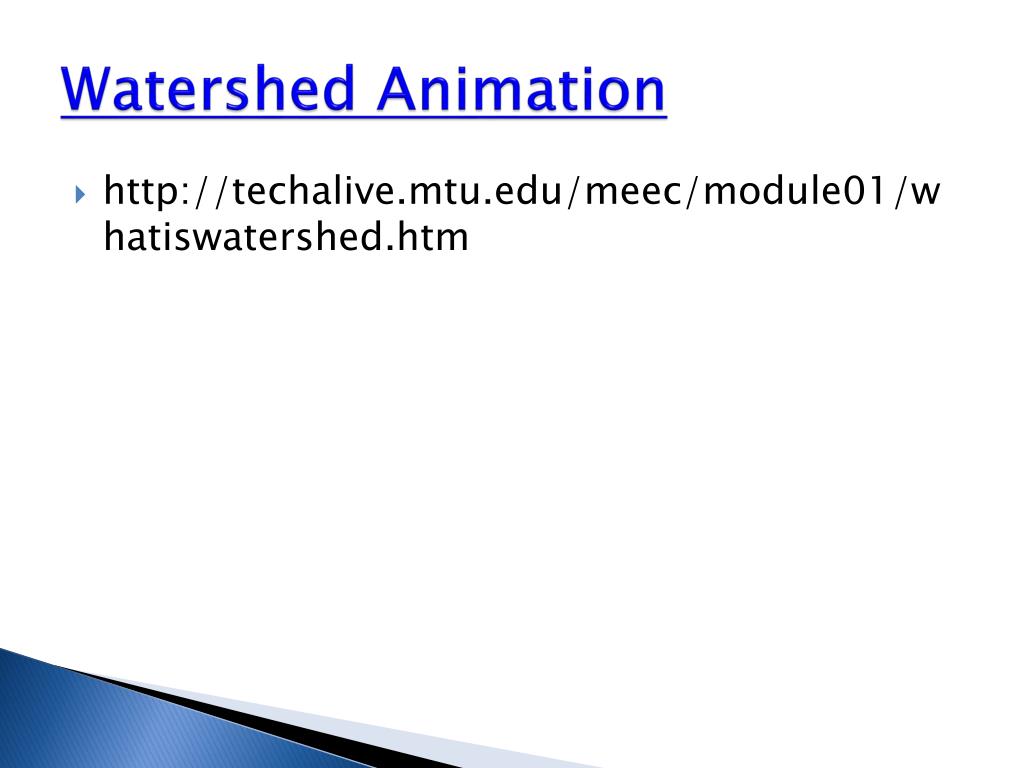

  11. Watershed Animation • http://techalive.mtu.edu/meec/module01/whatiswatershed.htm

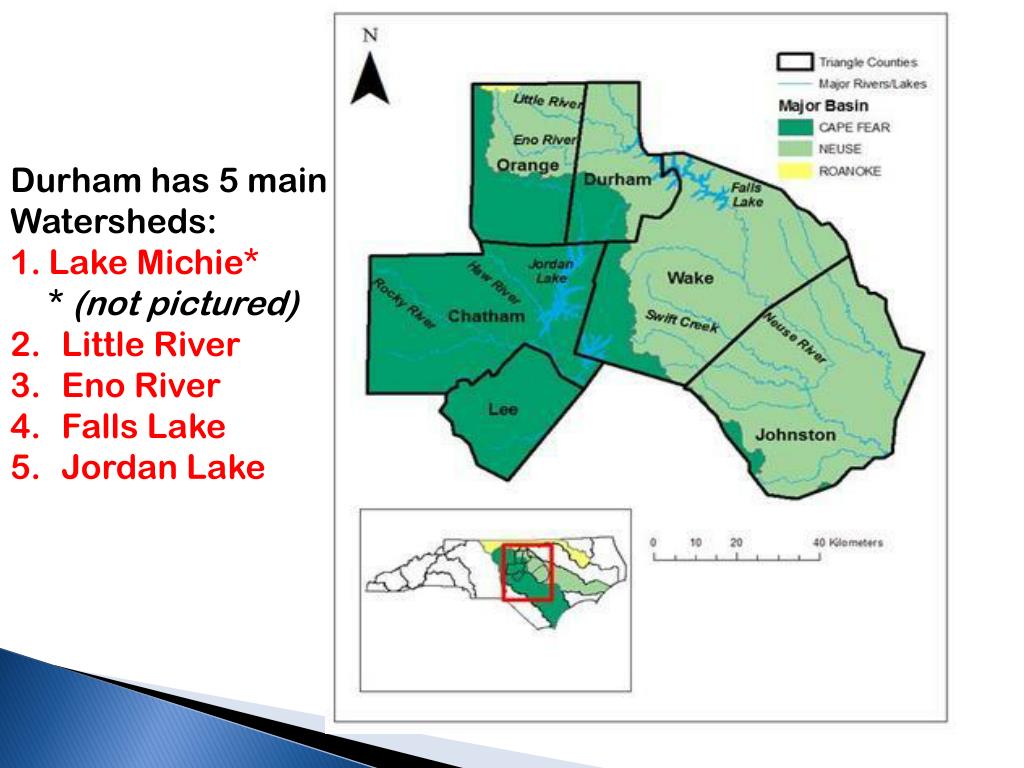

  12. Durham has 5 main • Watersheds: • Lake Michie* • * (not pictured) • Little River • Eno River • Falls Lake • Jordan Lake

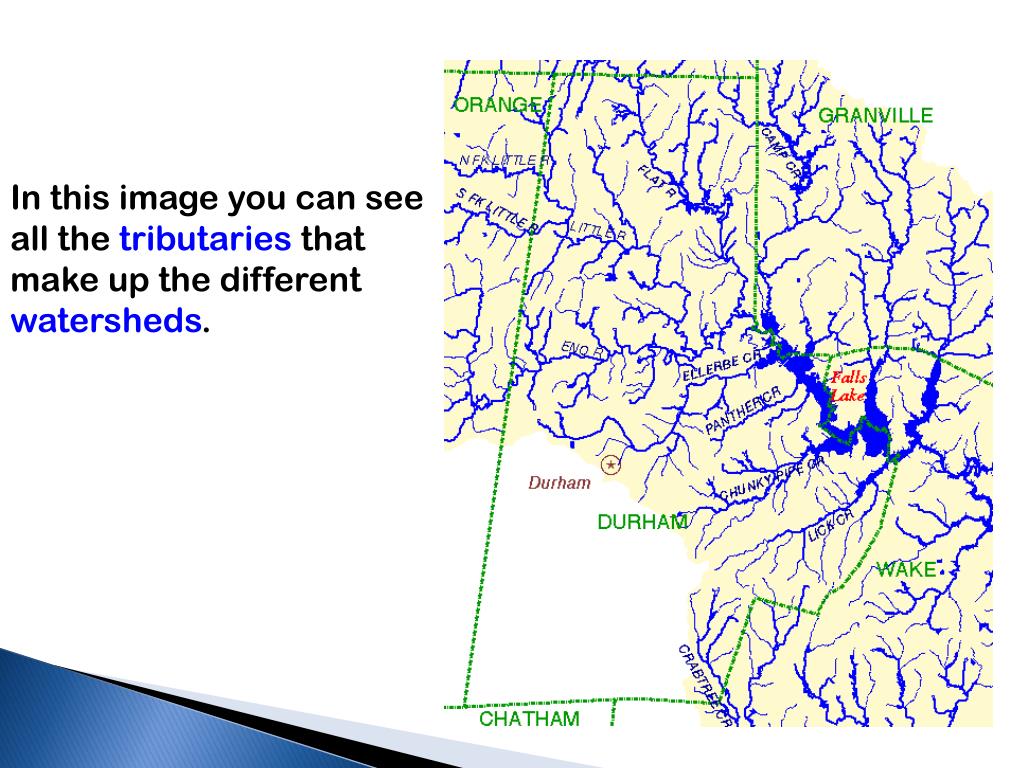

  13. In this image you can see all the tributaries that make up the different watersheds.

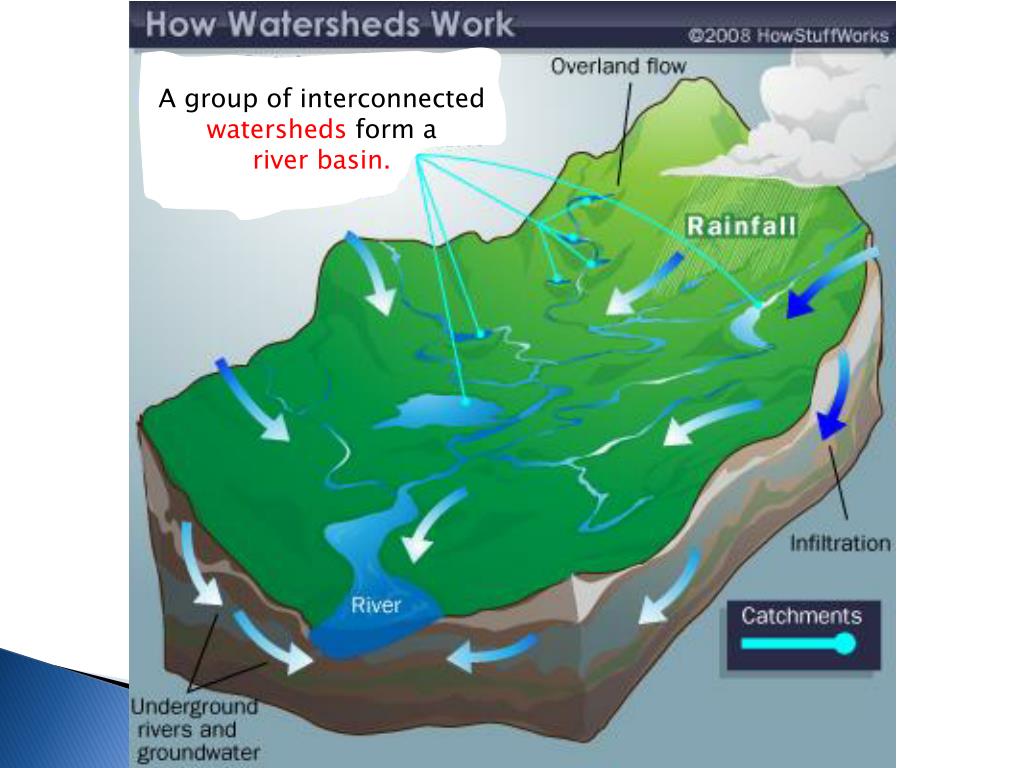

  14. A group of interconnected watersheds form a river basin.

  15. What is a River Basin? Encompasses all land surface drained by tributaries (streams and creeks) that flow downhill eventually into one large river. • A river basin’s final destination is an estuary or ocean.

  16. River Basin Analogy…. A bathtub catches all water falling within its’ sides, a River basin sends all the water falling on surrounding land into a central river and out to an estuary or ocean.

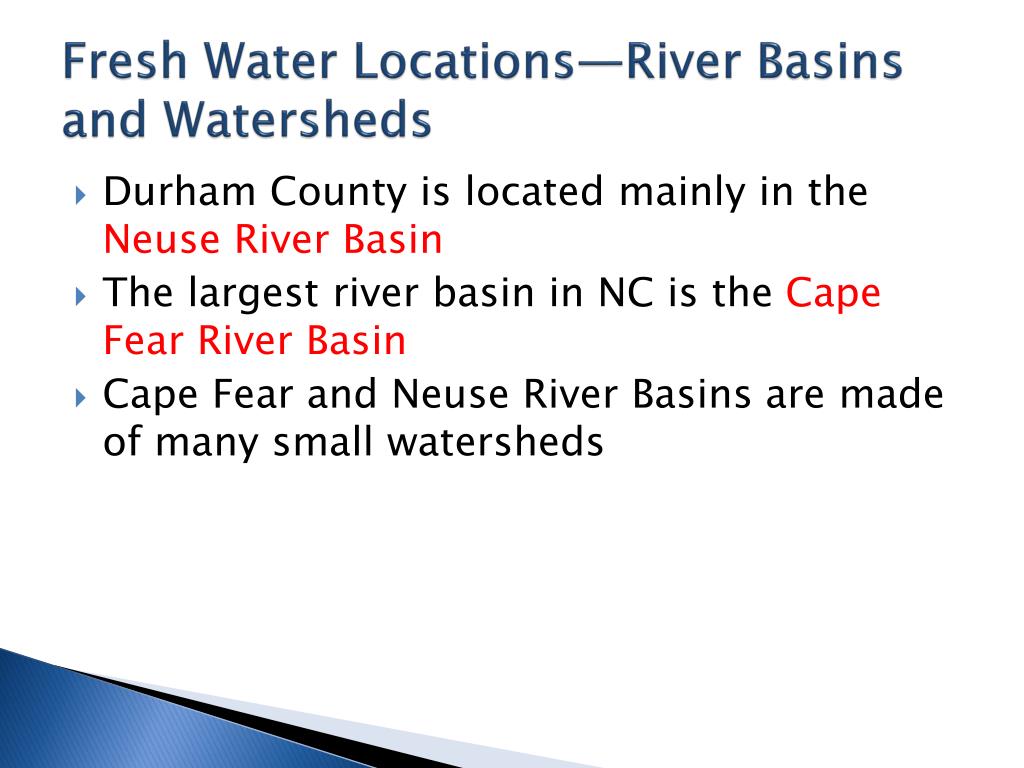

  17. Fresh Water Locations—River Basins and Watersheds • Durham County is located mainly in the Neuse River Basin • The largest river basin in NC is the Cape Fear River Basin • Cape Fear and Neuse River Basins are made of many small watersheds

  18. North Carolina River Basins Durham NC is made of 17 river basins 5 will flow into the Mississippi River Basin The other 12 will flow into the Atlantic Ocean 11 originate in NC Only 4 are entirely contained within NC: Cape Fear, Neuse, White Oak, and Tar-Pamlico

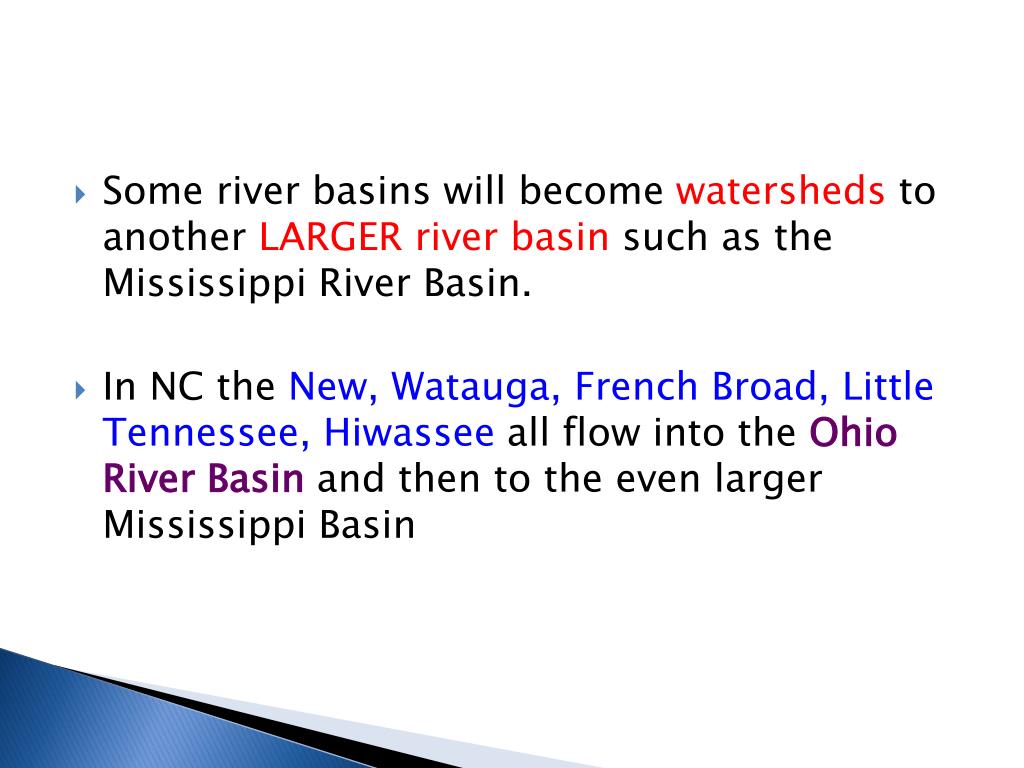

  19. Some river basins will become watersheds to another LARGER river basin such as the Mississippi River Basin. • In NC the New, Watauga, French Broad, Little Tennessee, Hiwassee all flow into the Ohio River Basin and then to the even larger Mississippi Basin

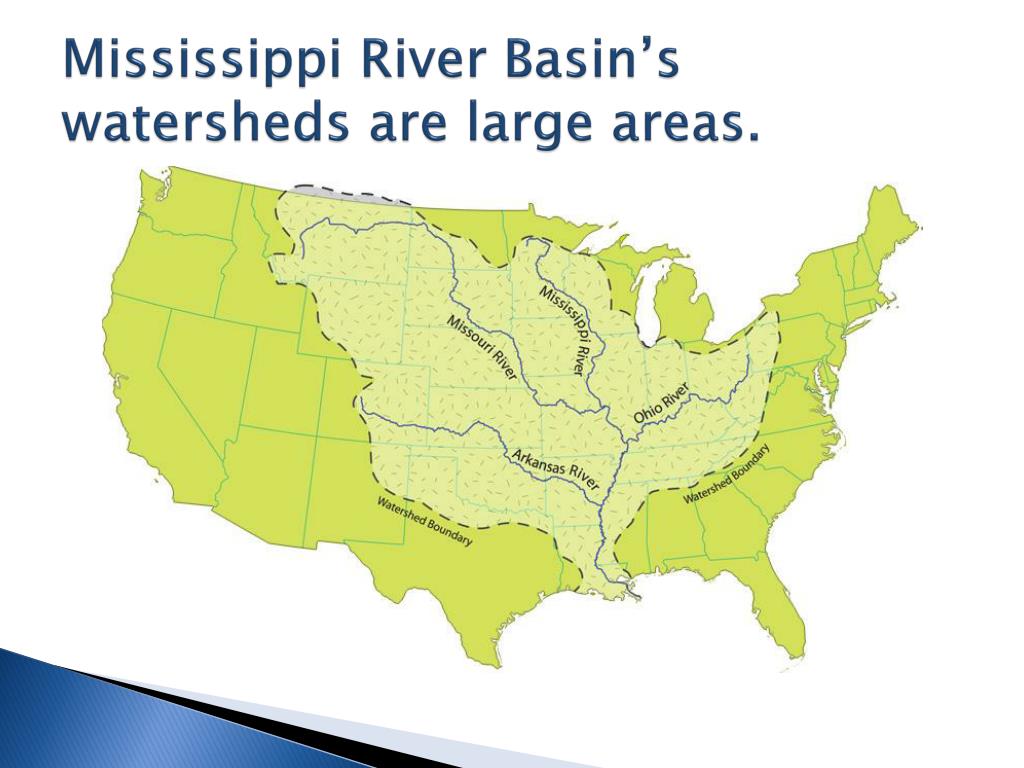

  20. Mississippi River Basin’s watersheds are large areas.

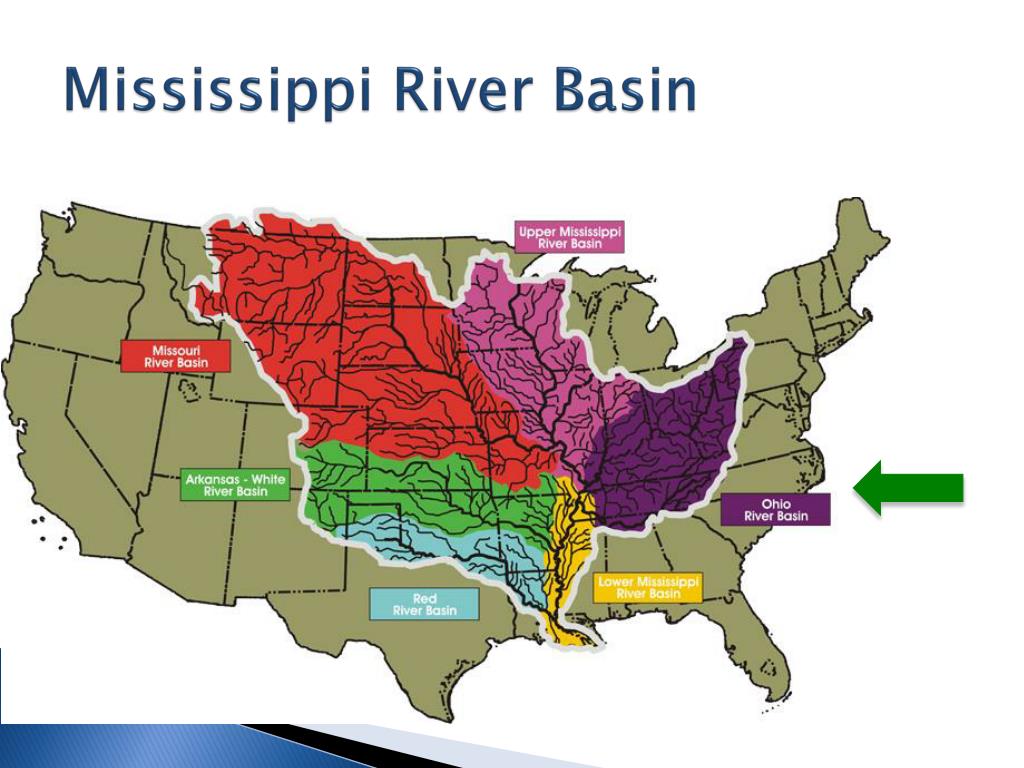

  21. Mississippi River Basin

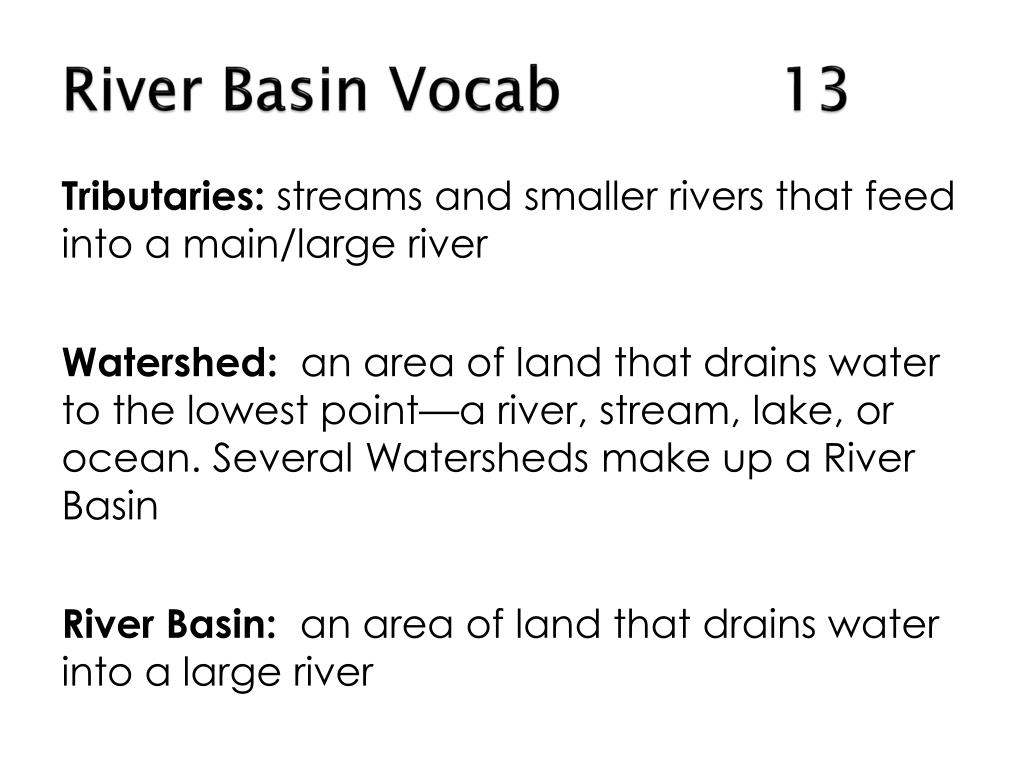

  22. River Basin Vocab 13 Tributaries: streams and smaller rivers that feed into a main/large river Watershed: an area of land that drains water to the lowest point—a river, stream, lake, or ocean. Several Watersheds make up a River Basin River Basin: an area of land that drains water into a large river

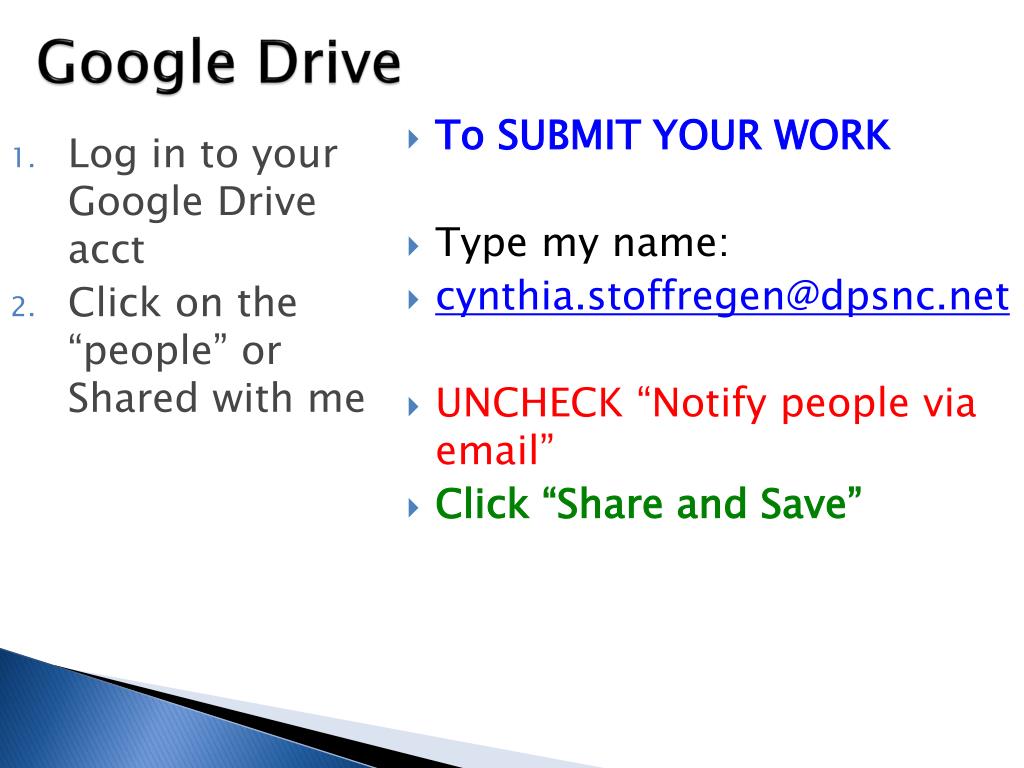

  23. Google Drive • Log in to your Google Drive acct • Click on the “people” or Shared with me • To SUBMIT YOUR WORK hare it with me • Type my name: • cynthia.stoffregen@dpsnc.net • UNCHECK “Notify people via email” • Click “Share and Save”

  24. Work Cited: • http://triangleenvironment.wikispaces.com/CleanWater • http://science.howstuffworks.com/environmental/conservation/issues/watershed1.htm • http://www.bizjournals.com/triangle/stories/2005/08/15/focus2.html?page=all
