Presentation Transcript
apta passenger information systems
APTAPassenger Information Systems

APTA, Kevin Hassett, September 24, 2002 1

technology the system integrator s perspective
Technology:The System Integrator’s Perspective

Kevin Hassett, President

Train Track Computer Systems, Inc.

Newport Beach, CA

APTA, Kevin Hassett, September 24, 2002 2

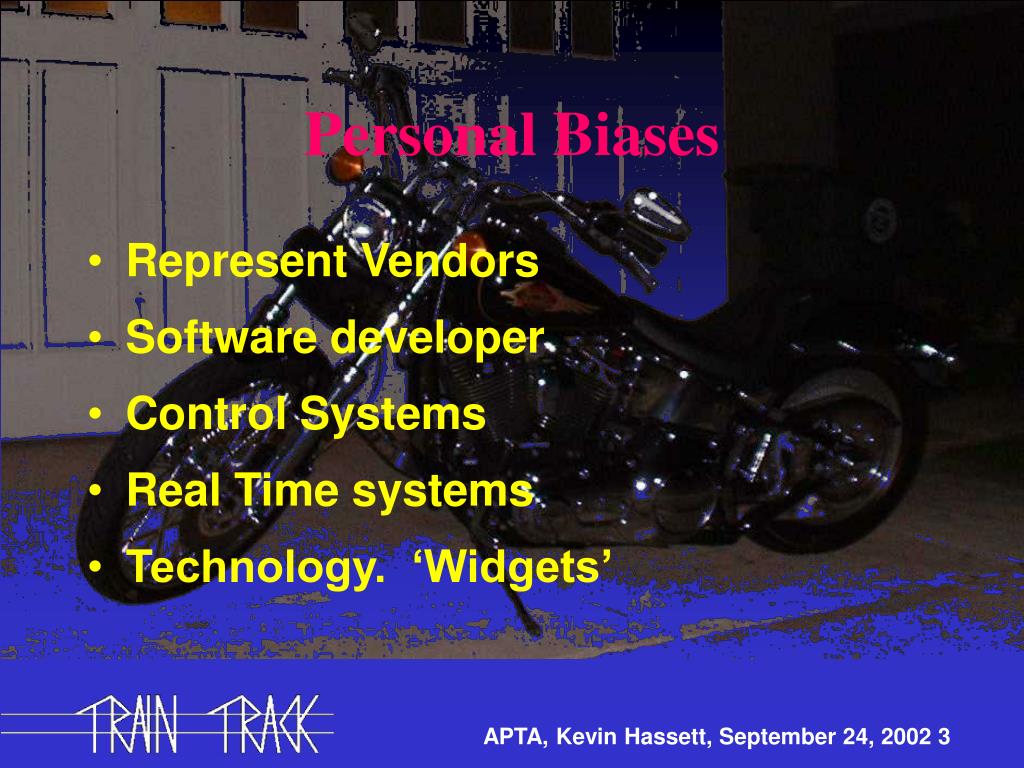

personal biases
Personal Biases
  • Represent Vendors
  • Software developer
  • Control Systems
  • Real Time systems
  • Technology. ‘Widgets’

APTA, Kevin Hassett, September 24, 2002 3

product goals
Product Goals
  • Easy to use
  • Expandable
  • Integrated
  • Cost: Lower cost to build / own

APTA, Kevin Hassett, September 24, 2002 4

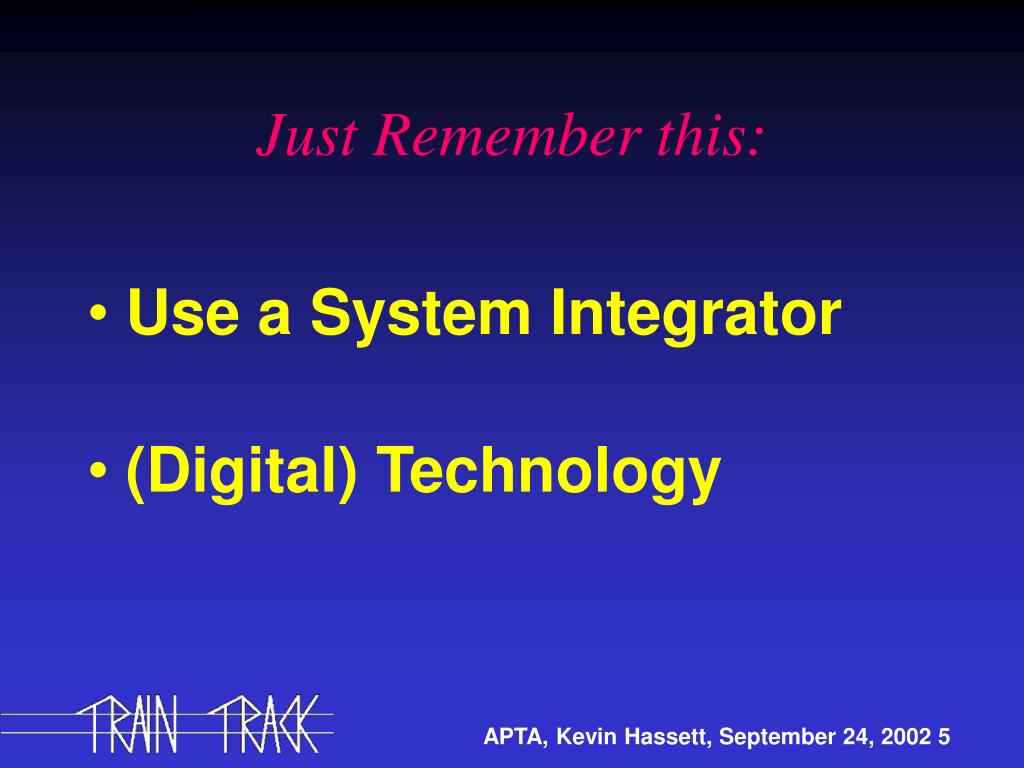

just remember this
Just Remember this:
  • Use a System Integrator
  • (Digital) Technology

APTA, Kevin Hassett, September 24, 2002 5

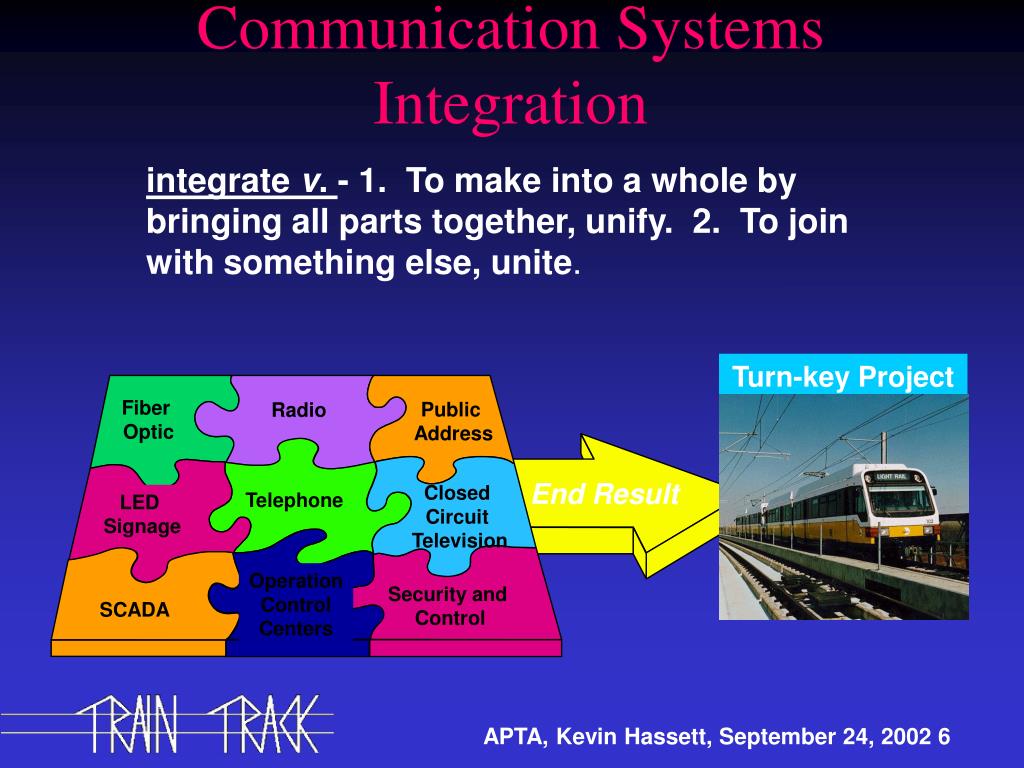

communication systems integration
Turn-key Project

Public

Address

Fiber

Optic

Radio

End Result

Closed

Circuit

Television

Telephone

LED

Signage

Operation

Control

Centers

Security and

Control

SCADA

Communication Systems Integration
  • integrate v. - 1. To make into a whole by bringing all parts together, unify. 2. To join with something else, unite.

APTA, Kevin Hassett, September 24, 2002 6

top 5 technologies
Top 5 technologies

5. Fire

4. Compact Disk: digitized sound

3. The ‘PC’

2. The Internet

1. The Internet

APTA, Kevin Hassett, September 24, 2002 7

ubiquitous digital communication
Ubiquitous Digital Communication

A picture of the Internet

APTA, Kevin Hassett, September 24, 2002 8

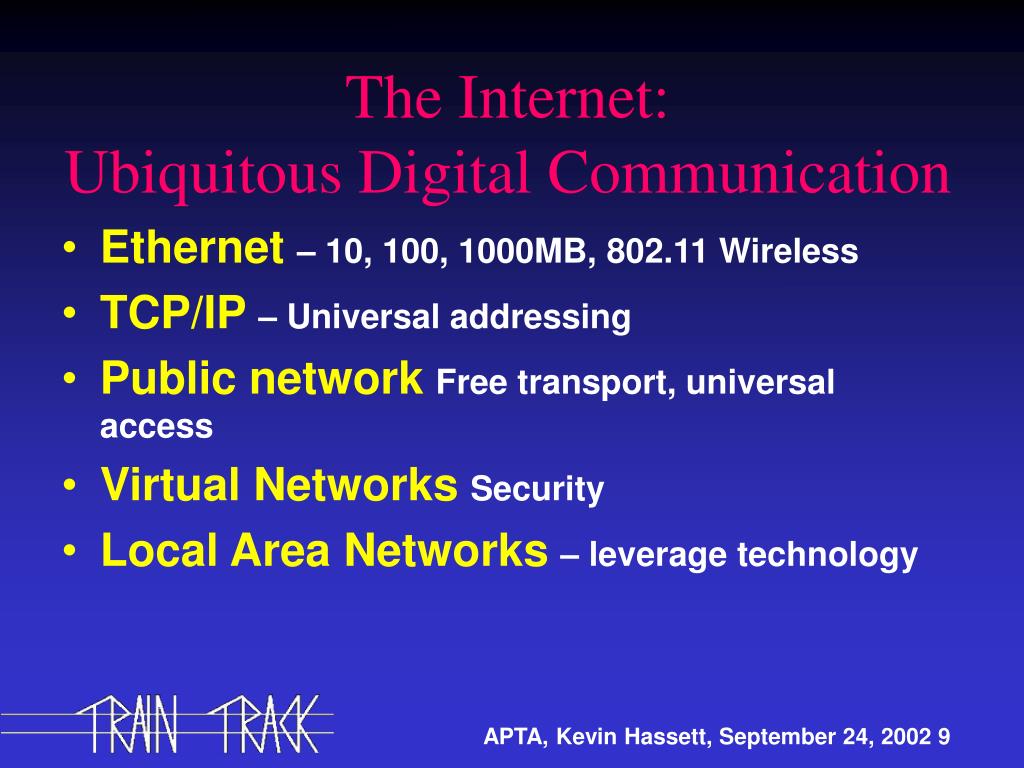

the internet ubiquitous digital communication
The Internet:Ubiquitous Digital Communication
  • Ethernet – 10, 100, 1000MB, 802.11 Wireless
  • TCP/IP – Universal addressing
  • Public network Free transport, universal access
  • Virtual Networks Security
  • Local Area Networks – leverage technology

APTA, Kevin Hassett, September 24, 2002 9

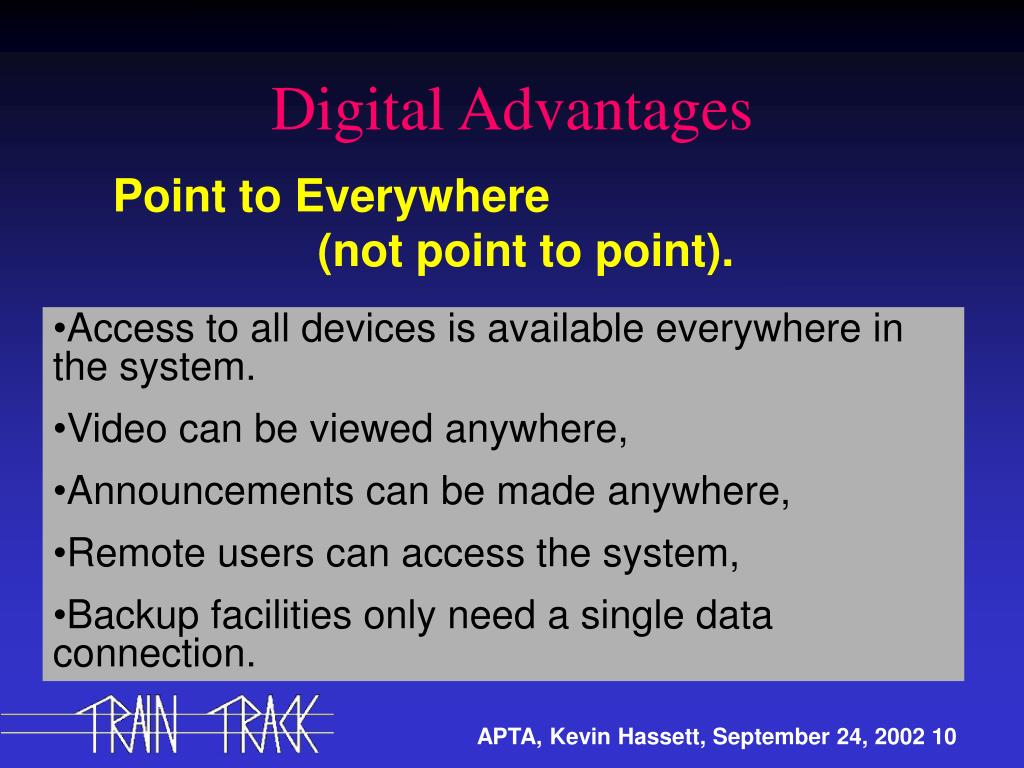

digital advantages
Digital Advantages

Point to Everywhere (not point to point).

  • Access to all devices is available everywhere in the system.
  • Video can be viewed anywhere,
  • Announcements can be made anywhere,
  • Remote users can access the system,
  • Backup facilities only need a single data connection.

APTA, Kevin Hassett, September 24, 2002 10

digital advantages11
Digital Advantages

Point to Everywhere (not point to point).

Routing

The Internet technology is all about efficient and redundant and reliable routing of data.

APTA, Kevin Hassett, September 24, 2002 11

digital advantages12
Digital Advantages

Point to Everywhere (not point to point).

Routing

Capacity

No need to dedicate ‘types’ of channels for specific devices.

All data paths are combined and shared dynamically.

APTA, Kevin Hassett, September 24, 2002 12

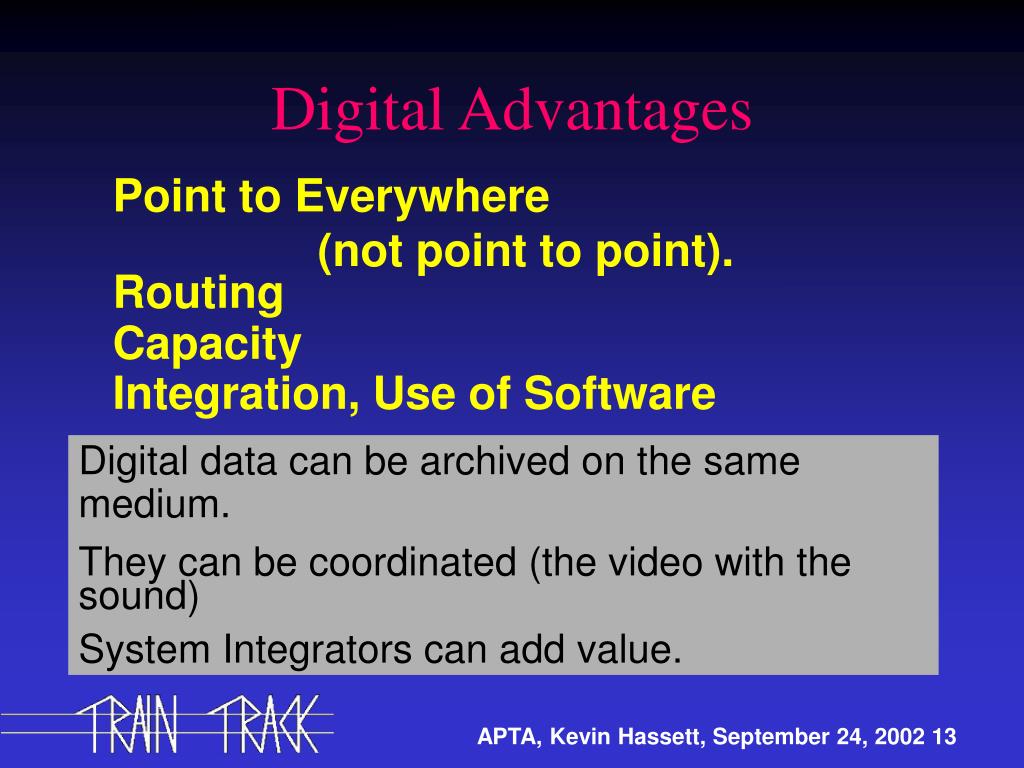

digital advantages13
Digital Advantages

Point to Everywhere (not point to point).

Routing

Capacity

Integration, Use of Software

Digital data can be archived on the same medium.

They can be coordinated (the video with the sound)

System Integrators can add value.

APTA, Kevin Hassett, September 24, 2002 13

digital advantages14
Digital Advantages

Point to Everywhere (not point to point).

Routing

Capacity

Integration, Use of Software

Compatibility

A true SYSTEM

APTA, Kevin Hassett, September 24, 2002 14

passenger information systems
Passenger Information Systems
  • Public address
  • Variable Message Signs (VMS)
  • CCTV
  • Radio
  • Telephone
  • Customer information system
  • Web Access

APTA, Kevin Hassett, September 24, 2002 15

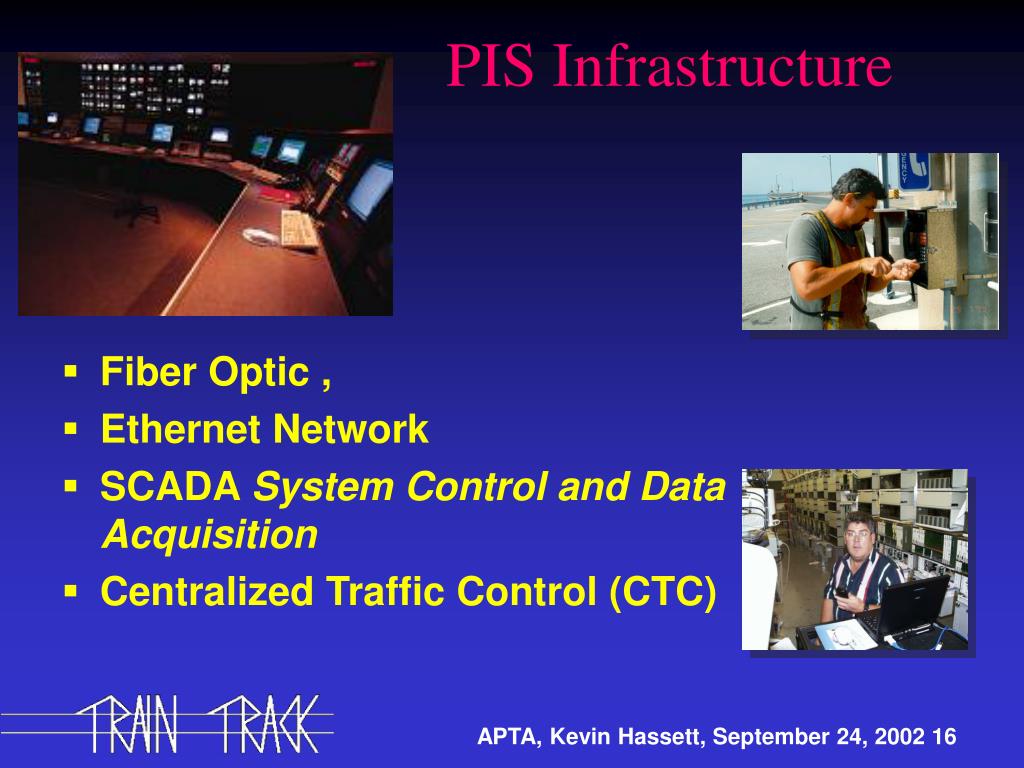

pis infrastructure
PIS Infrastructure
  • Fiber Optic ,
  • Ethernet Network
  • SCADA System Control and Data Acquisition
  • Centralized Traffic Control (CTC)

APTA, Kevin Hassett, September 24, 2002 16

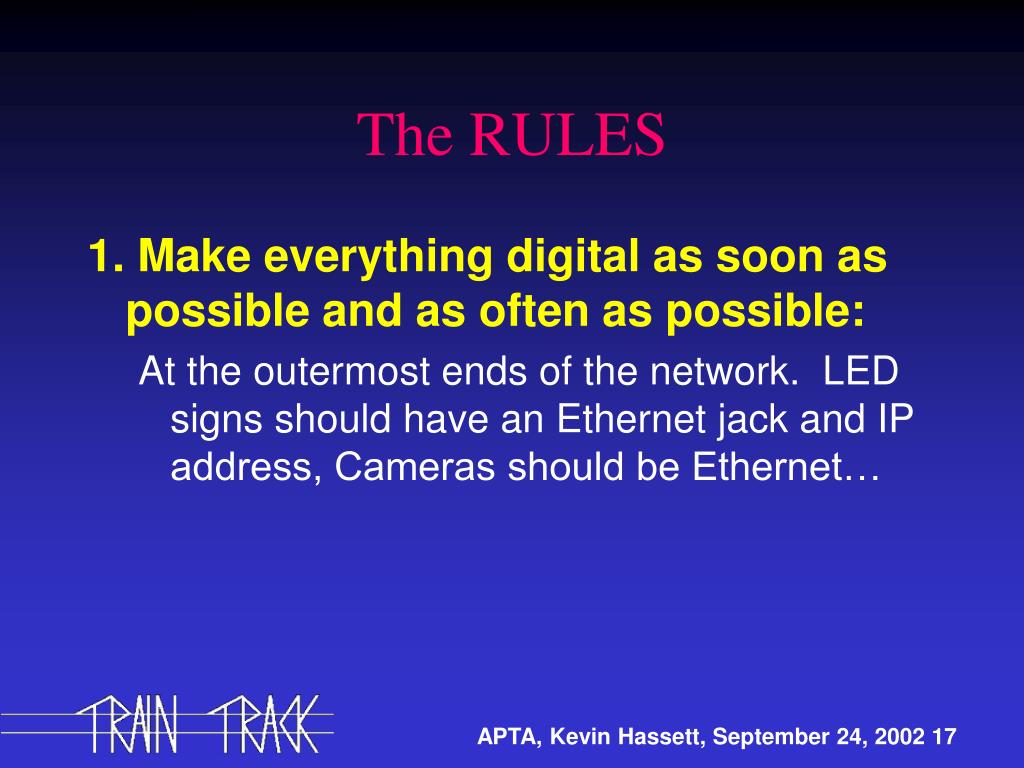

the rules
The RULES

1. Make everything digital as soon as possible and as often as possible:

At the outermost ends of the network. LED signs should have an Ethernet jack and IP address, Cameras should be Ethernet…

APTA, Kevin Hassett, September 24, 2002 17

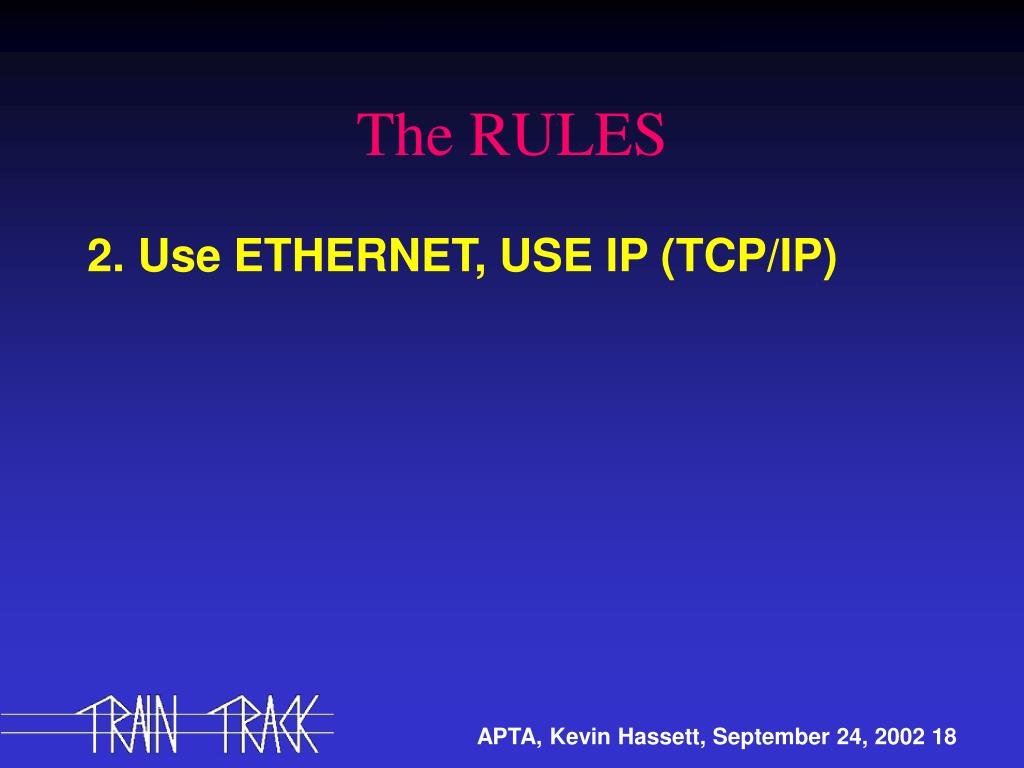

the rules18
The RULES

2. Use ETHERNET, USE IP (TCP/IP)

APTA, Kevin Hassett, September 24, 2002 18

the rules19
The RULES

3. USE Point-to-everywhere versus Point to point communications

APTA, Kevin Hassett, September 24, 2002 19

the rules20
The RULES

4. Use a System Integrator:

Use Software for Integration

You need MORE than an Electrical Contractor !

APTA, Kevin Hassett, September 24, 2002 20

the results
The RESULTS
  • Customized systems at standardized pricing.
  • Systems that can grow with your needs
  • Systems that stay in step with technology.

APTA, Kevin Hassett, September 24, 2002 21

thank you
Thank You

APTA, Kevin Hassett, September 24, 2002 22

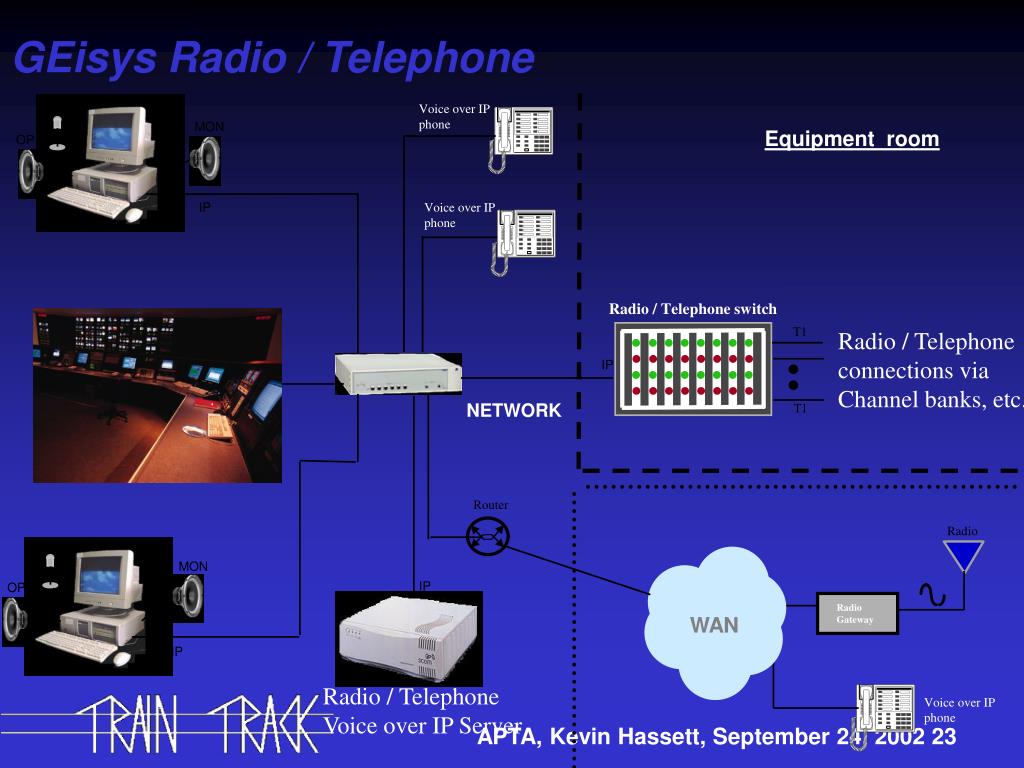

slide23
Voice over IP phone

MIC

Equipment room

MON

OP

IP

Voice over IP phone

Radio / Telephone switch

T1

Radio / Telephone connections via Channel banks, etc.

IP

NETWORK

T1

Router

WAN

Radio

MIC

IP

MON

OP

Radio Gateway

IP

Radio / Telephone Voice over IPServer

Voice over IP phone

GEisys Radio / Telephone

APTA, Kevin Hassett, September 24, 2002 23

slide24
GEisys PA /VMB ‘Hybrid’

Station

NETWORK

AUDIO

SERIAL

AUDIO

AUDIO

APTA, Kevin Hassett, September 24, 2002 24
