Presentation Transcript
Artificial airways


SVCC Respiratory Care Programs


  • A tube or tube-like device that is inserted through the nose, mouth, or into the trachea to provide an opening for ventilation

SVCC Respiratory Care Programs

Types of artificial airways
Types of Artificial Airways

  • Oropharyngeal airways

  • Nasopharyngeal tubes

  • Orotracheal tubes

  • Nasotracheal tubes

  • Tracheostomy tubes

  • Esophageal obturator airway

  • Cricothyroid tubes

SVCC Respiratory Care Programs

Indications for artificial airways

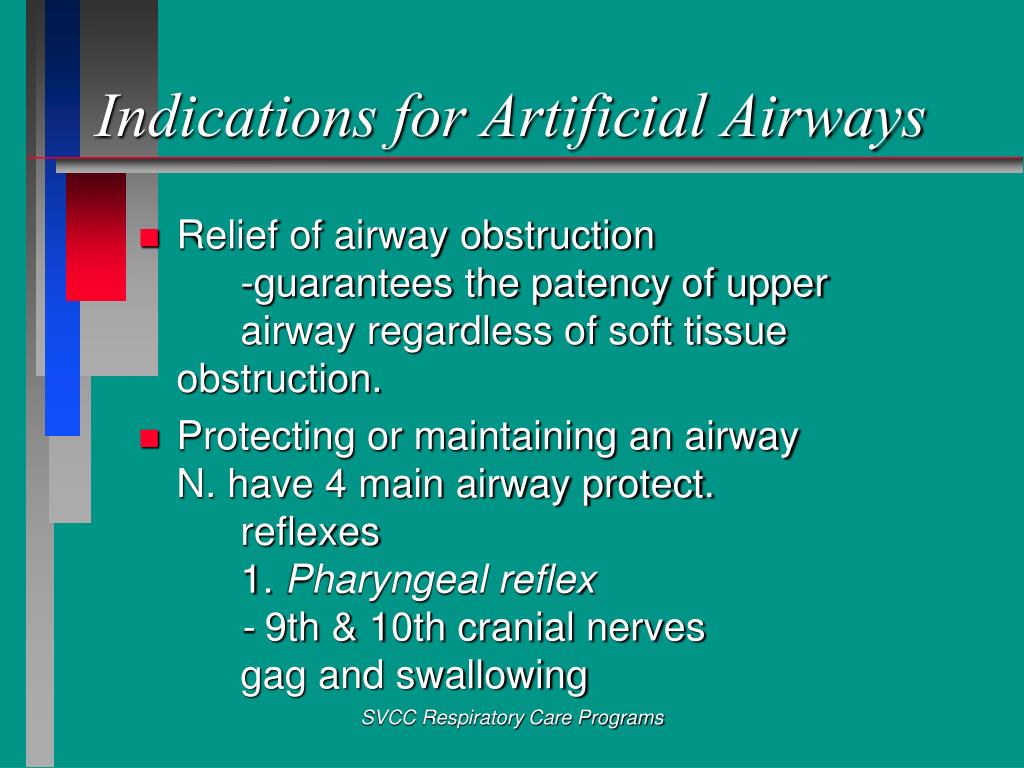

Indications for Artificial Airways

  • Relief of airway obstruction -guarantees the patency of upper airway regardless of soft tissue obstruction.

  • Protecting or maintaining an airway N. have 4 main airway protect. reflexes 1. Pharyngeal reflex - 9th & 10th cranial nerves gag and swallowing

SVCC Respiratory Care Programs

Indications cont d
Indications (cont’d)

  • Reflexes (cont’d) 2.Laryngeal -vagovagal reflex - will cause laryngospasm 3.Tracheal -vagovagal reflex - cough when a foreign body or irritation in trachea 4.Carinal -cough with irritation of carina

SVCC Respiratory Care Programs

Indications cont d1
Indications (cont’d)

  • Facilitation of tracheobronchial clearance

    - mobilization of secretions from the trachea requires either an adequate cough or direct suctioning of the trachea

  • Facilitation of artificial ventilation

    - ventilation with a mask should on be used for short periods d/t gastric insufflation

SVCC Respiratory Care Programs

Hazards of artificial airways

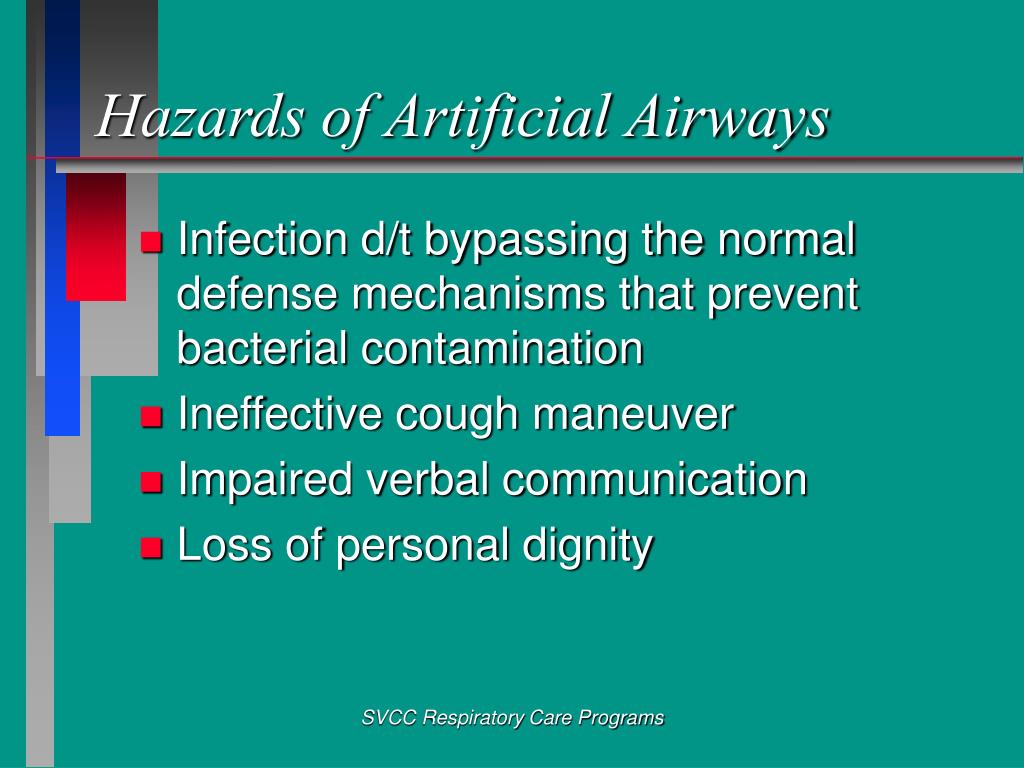

Hazards of Artificial Airways

  • Infection d/t bypassing the normal defense mechanisms that prevent bacterial contamination

  • Ineffective cough maneuver

  • Impaired verbal communication

  • Loss of personal dignity

SVCC Respiratory Care Programs

Oropharyngeal airway
Oropharyngeal Airway

  • Device designed for insertion along the tongue until the teeth &/or gingiva limit the insertion

  • Lies between the posterior pharynx and the tongue and pushes the tongue forward

  • Will activate the gag reflex, should use on unconscious patient

  • Correct sizing of airway is imperative

SVCC Respiratory Care Programs

Hazards of oropharyngeal airway
Hazards of Oropharyngeal Airway

  • If too small, may not displace tongue or may cause tongue to obstruct airway or may aspirated

  • It too large, may cause epiglottis impaction

  • Roof of mouth may be lacerated upon insertion

  • Aspiration from intact gag reflex

SVCC Respiratory Care Programs

Nasopharyngeal airway

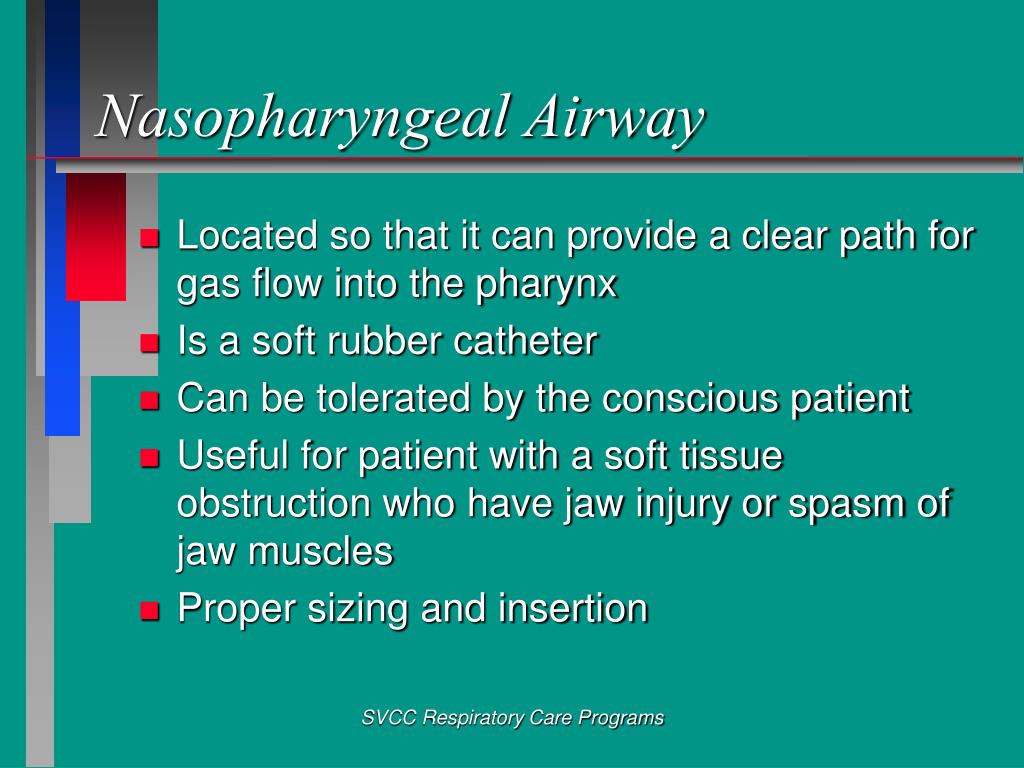

Nasopharyngeal Airway

  • Located so that it can provide a clear path for gas flow into the pharynx

  • Is a soft rubber catheter

  • Can be tolerated by the conscious patient

  • Useful for patient with a soft tissue obstruction who have jaw injury or spasm of jaw muscles

  • Proper sizing and insertion

SVCC Respiratory Care Programs

Orotracheal airway

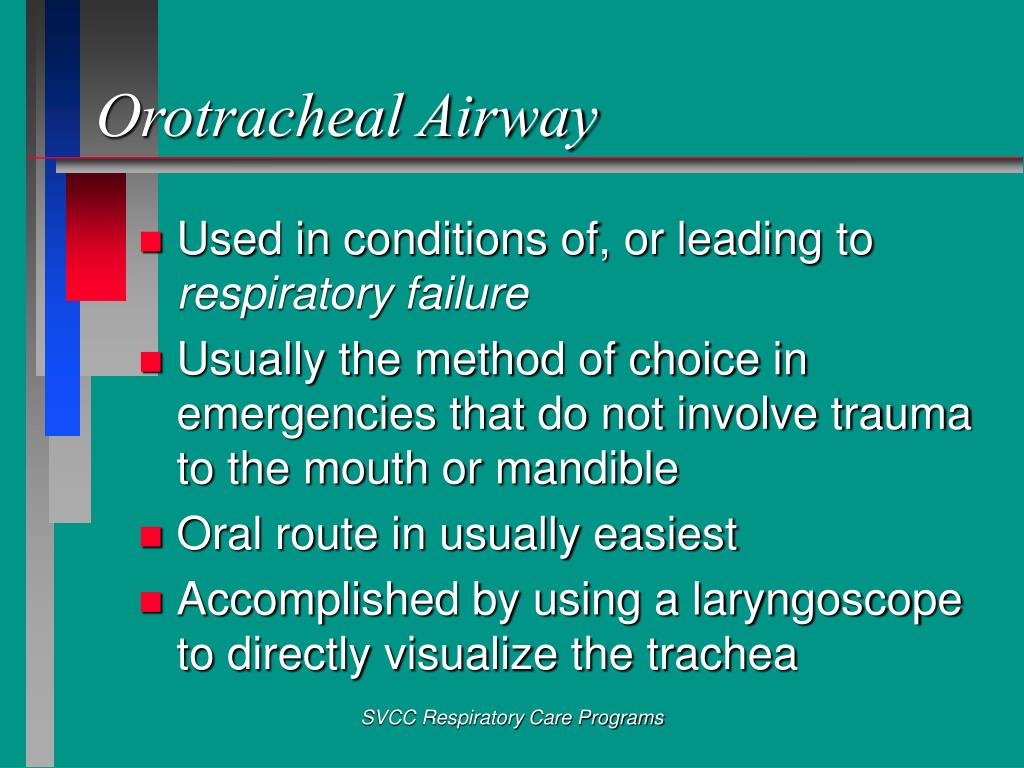

Orotracheal Airway

  • Used in conditions of, or leading to respiratory failure

  • Usually the method of choice in emergencies that do not involve trauma to the mouth or mandible

  • Oral route in usually easiest

  • Accomplished by using a laryngoscope to directly visualize the trachea

SVCC Respiratory Care Programs

Nasotracheal airway
Nasotracheal Airway

  • More difficult route than oral

  • Requires a longer and more flexible tracheal tube

  • Insert through nose by touch and when in oropharynx use larynoscope and forceps (can perform “blind”)

  • Usually N. T. tube is better tolerated by patient than oral

SVCC Respiratory Care Programs

Tracheostomy tube
Tracheostomy Tube

  • Tracheostomy is performed through the anterior tracheal wall either by the open method or percutaneous method

  • Performed usually to prevent or treat long-term respiratory failure

  • Decreases anatomic deadspace by 50%

SVCC Respiratory Care Programs

Complications and hazards of tracheostomies
Complications and Hazards of Tracheostomies

  • Postsurgical bleeding

  • Infection

  • Mediastinal emphysema

  • Pneumothorax

  • Subcutaneous emphysema

  • Stoma collapse (should not be moved or changed first 36 hours)

SVCC Respiratory Care Programs

Esophageal obturator airway eoa
Esophageal Obturator Airway(EOA)

  • Place in the esophagus to prevent stomach contents from entering the lungs while the patient is being artificially ventilated

  • Cuff must be passed beyond carina before inflated

  • Inflated cuff with 35 cc air

  • Mask must fit tightly to ensure ventilation

SVCC Respiratory Care Programs

Pharyngealtracheal lumen airway ptl
Pharyngealtracheal Lumen Airway (PTL)

  • Double-lumen airway combining an EOA and an endotracheal tube

  • Designed to be inserted blindly

  • Has an oropharyngeal cuff and a cuff that can seal off either the trachea or the esophagus

SVCC Respiratory Care Programs

Other specialized et tubes
Other Specialized ET Tubes

  • Rae Tube, directs the airway connection away from the surgical field

  • Endotrol Tube, controls the distal tip for intubation

  • Hi-Lo Jet Tube, for high freq. jet ventilation

  • Laser Flex Tube, reflects a diffused beam if comes in contact with tube

  • Endobronchial Tubes

SVCC Respiratory Care Programs
