  1. Airmux-200Version 1.800 GA

  2. Airmux-200 in Brief Airmux-200 is a point-to-point & multipoint-to-point radio solution for combined TDM and Ethernet traffic over license free frequencies

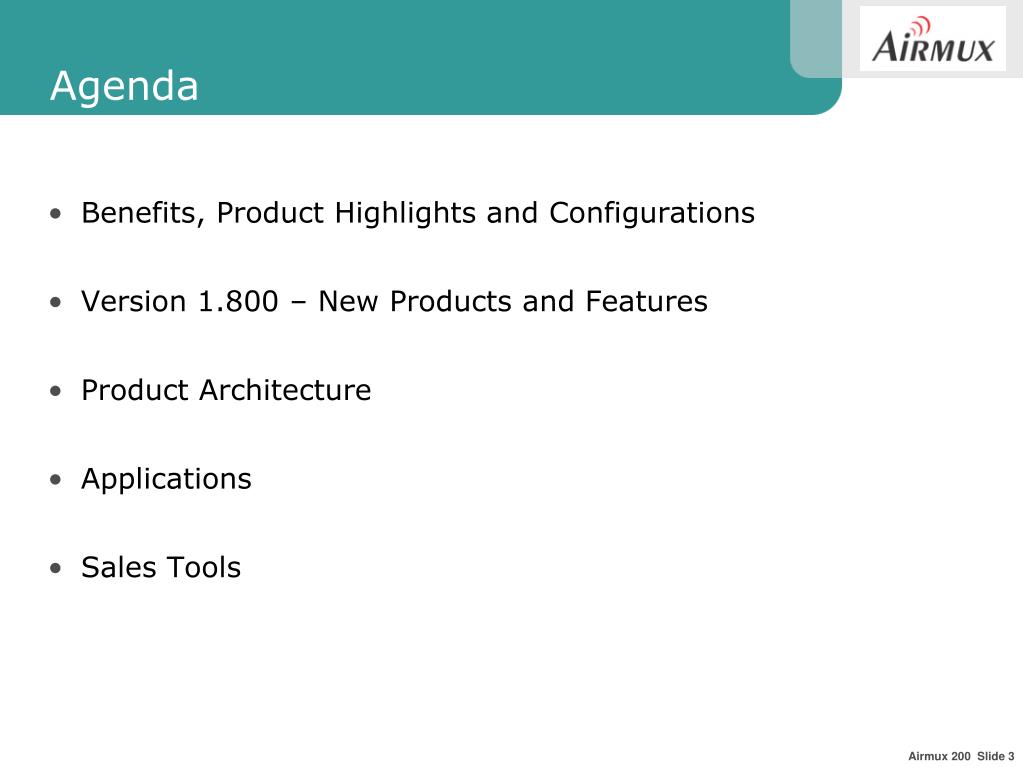

  3. Agenda • Benefits, Product Highlights and Configurations • Version 1.800 – New Products and Features • Product Architecture • Applications • Sales Tools

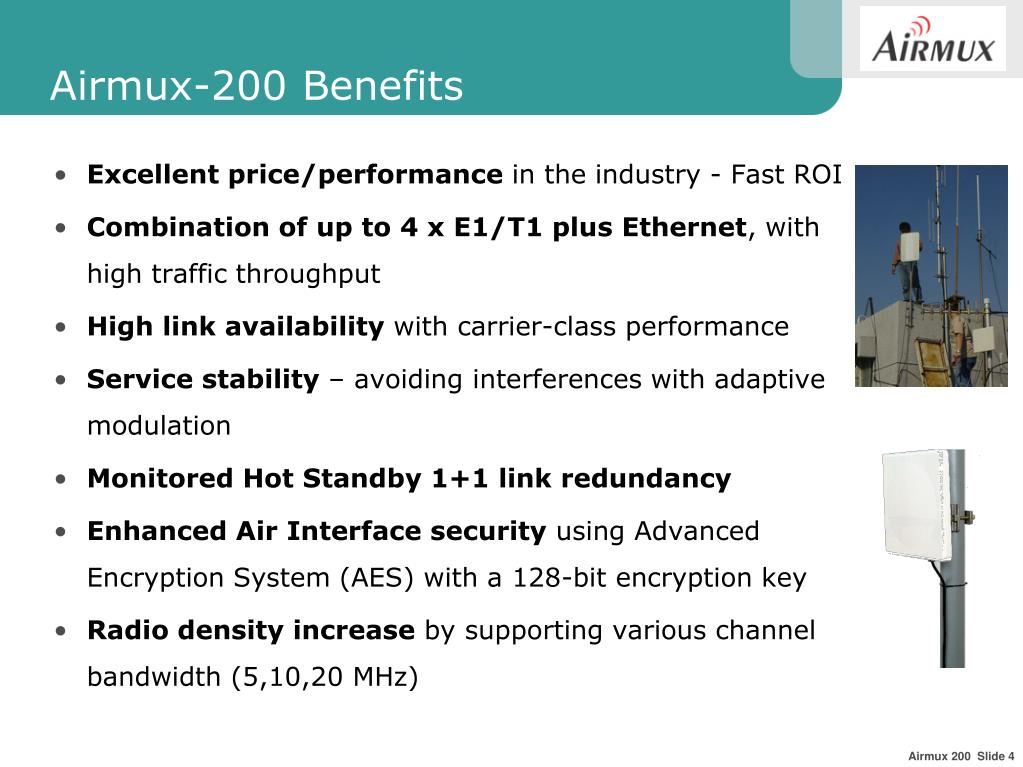

  4. Airmux-200 Benefits • Excellent price/performance in the industry - Fast ROI • Combination of up to 4 x E1/T1 plus Ethernet, with high traffic throughput • High link availability with carrier-class performance • Service stability – avoiding interferences with adaptive modulation • Monitored Hot Standby 1+1 link redundancy • Enhanced Air Interface security using Advanced Encryption System (AES) with a 128-bit encryption key • Radio density increase by supporting various channel bandwidth (5,10,20 MHz)

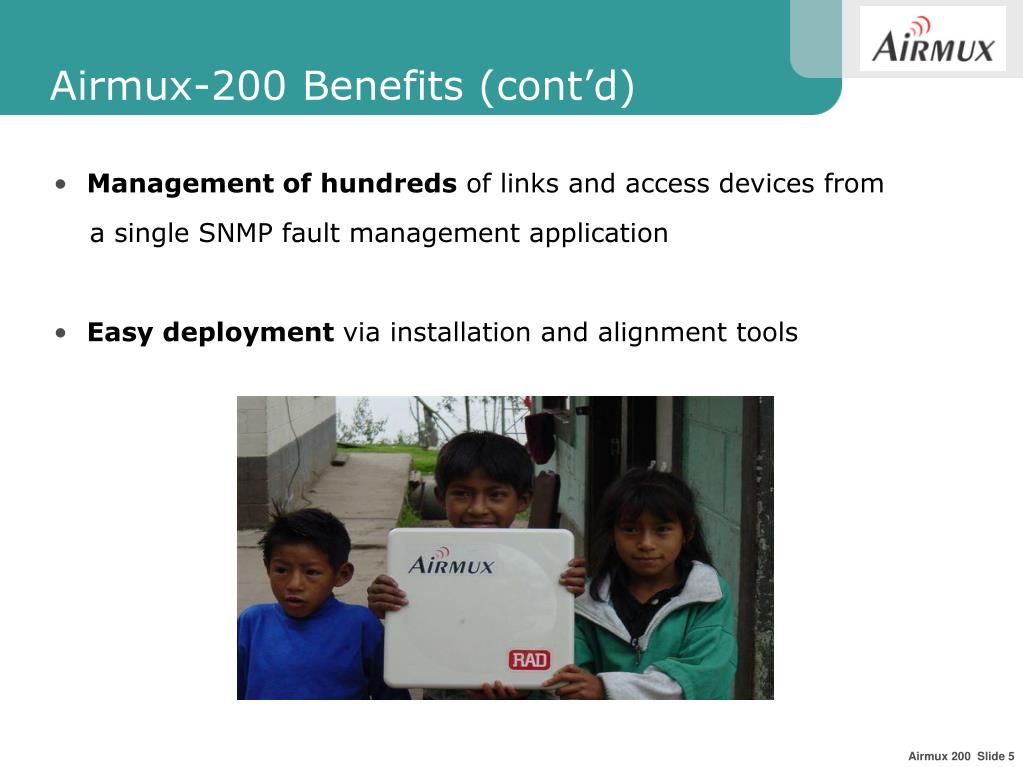

  5. Airmux-200 Benefits (cont’d) • Management of hundreds of links and access devices from a single SNMP fault management application • Easy deployment via installation and alignment tools

  6. AirMux-200 Highlights • Combination of E1 or T1 and Ethernet • Up to 4 x E1 or 4 x T1 + Ethernet (IDU “E”) • Up to 48Mbps air throughput - Function of distance, net payload is 18.3 Mbps FDX • Range up to 80km/50 miles – for Ethernet services only • RADview SNMP network fault management • Robust and reliable; Telco-Grade • Easy and fast installation • Compliant with FCC, ETSI, CSA • OFDM (Orthogonal Frequency Division Multiplexing) based air-interface, enabling N-LOS (Non Line of Sight) deployments

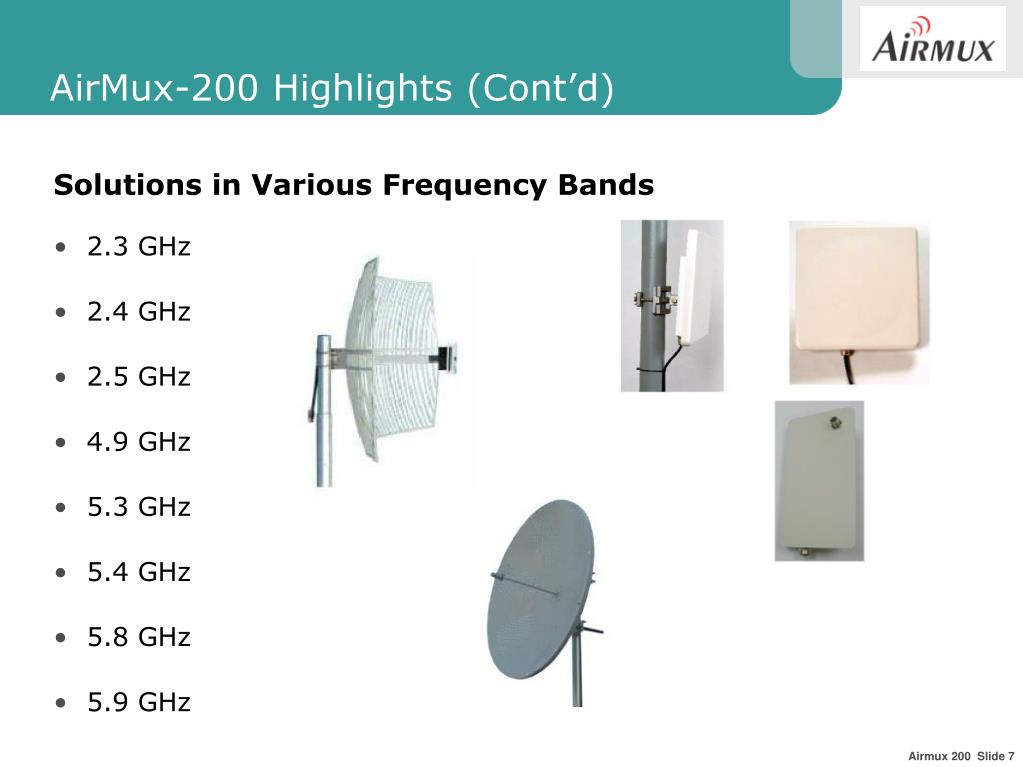

  7. AirMux-200 Highlights (Cont’d) Solutions in Various Frequency Bands • 2.3 GHz • 2.4 GHz • 2.5 GHz • 4.9 GHz • 5.3 GHz • 5.4 GHz • 5.8 GHz • 5.9 GHz

  8. Airmux-200Various Products Configurations (1/2) • Airmux 200 AIND (All-indoor Configuration) • Combines the IDU and ODU in a single enclosure. • Supports 4T1 & ETH with 5.8GHz FCC, designed for the US market • Airmux-200 L • Low price POE link for Ethernet services only, enables improved position versus low end competitors. • Frequencies: 2.4 FCC, 2.4 High Power, 5.8 FCC • Throughput: 2 Mbps full duplex • Max Range: 20 Km • Channel BW: 5 MHz • Transmit Power: 18dBm max

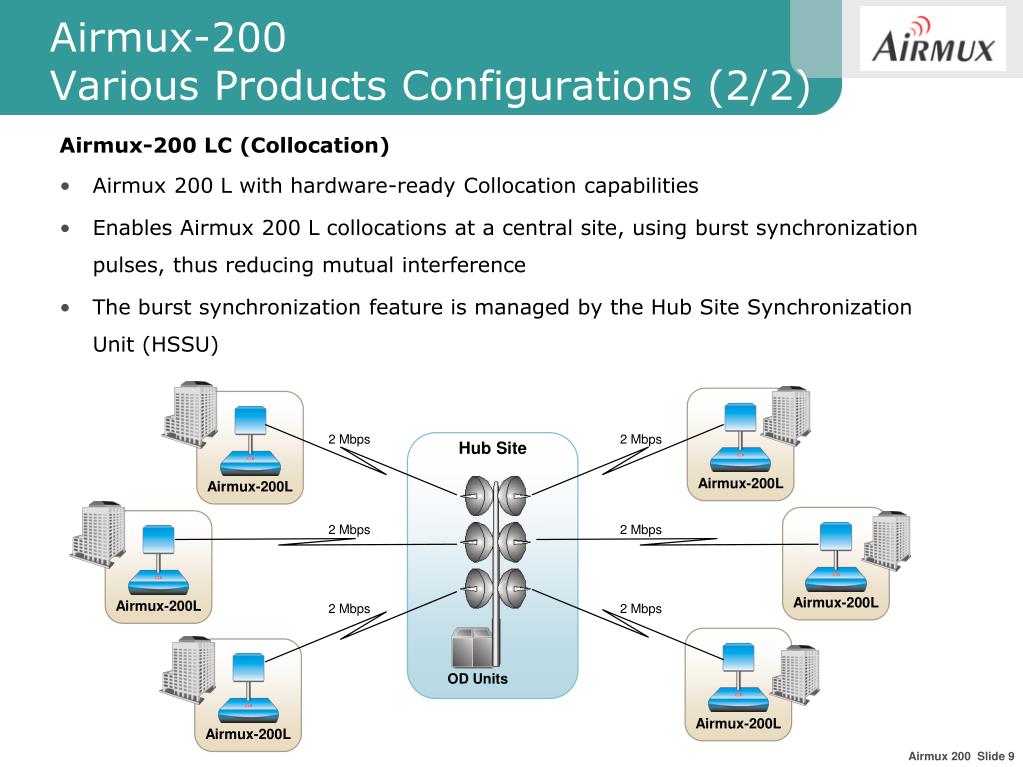

  9. 2 Mbps 2 Mbps Hub Site Airmux-200L Airmux-200L 2 Mbps 2 Mbps Airmux-200L Airmux-200L 2 Mbps 2 Mbps OD Units Airmux-200L Airmux-200L Airmux-200Various Products Configurations (2/2) Airmux-200 LC (Collocation) • Airmux 200 L with hardware-ready Collocation capabilities • Enables Airmux 200 L collocations at a central site, using burst synchronization pulses, thus reducing mutual interference • The burst synchronization feature is managed by the Hub Site Synchronization Unit (HSSU)

  10. Version 1.800 Products and Features

  11. New “Unified “ IDU-E • Replaces all 8 different IDU-E products • Supports 2 options : • Ethernet services only (2 ports) or • TDM (4 ports) + Ethernet (2 ports) services. • Both options include an SFP interface to enable E3/T3 services • The TDM ports are user configurable (E1/T1) • Independent clock per TDM port to support several networks • Dual wide range DC power supply

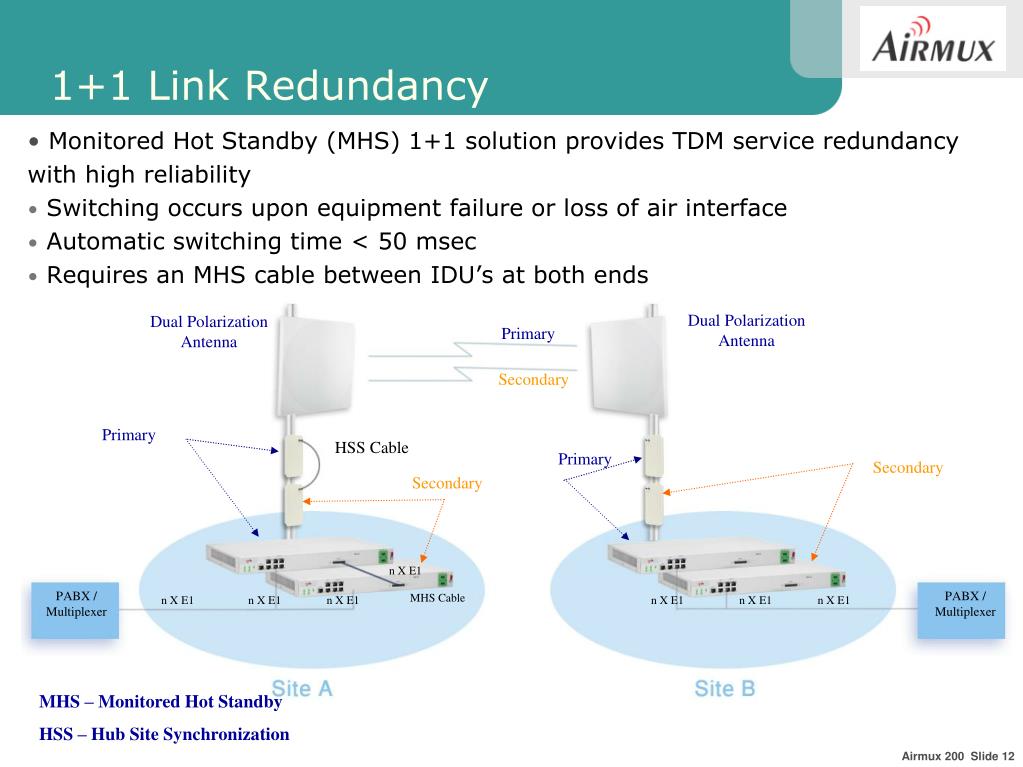

  12. 1+1 Link Redundancy • Monitored Hot Standby (MHS) 1+1 solution provides TDM service redundancy with high reliability • Switching occurs upon equipment failure or loss of air interface • Automatic switching time < 50 msec • Requires an MHS cable between IDU’s at both ends Dual Polarization Antenna Dual Polarization Antenna Primary Secondary Primary HSS Cable Primary Secondary Secondary n X E1 PABX / Multiplexer PABX / Multiplexer MHS Cable n X E1 n X E1 n X E1 n X E1 n X E1 n X E1 MHS – Monitored Hot Standby HSS – Hub Site Synchronization

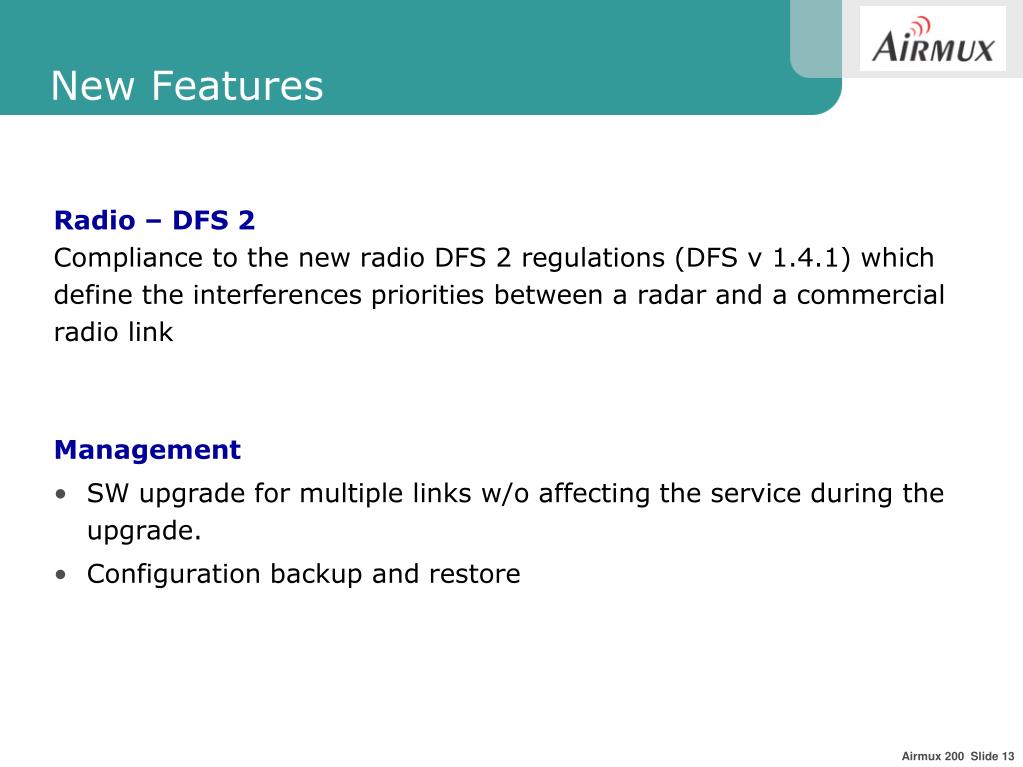

  13. New Features Radio – DFS 2 Compliance to the new radio DFS 2 regulations (DFS v 1.4.1) which define the interferences priorities between a radar and a commercial radio link Management • SW upgrade for multiple links w/o affecting the service during the upgrade. • Configuration backup and restore

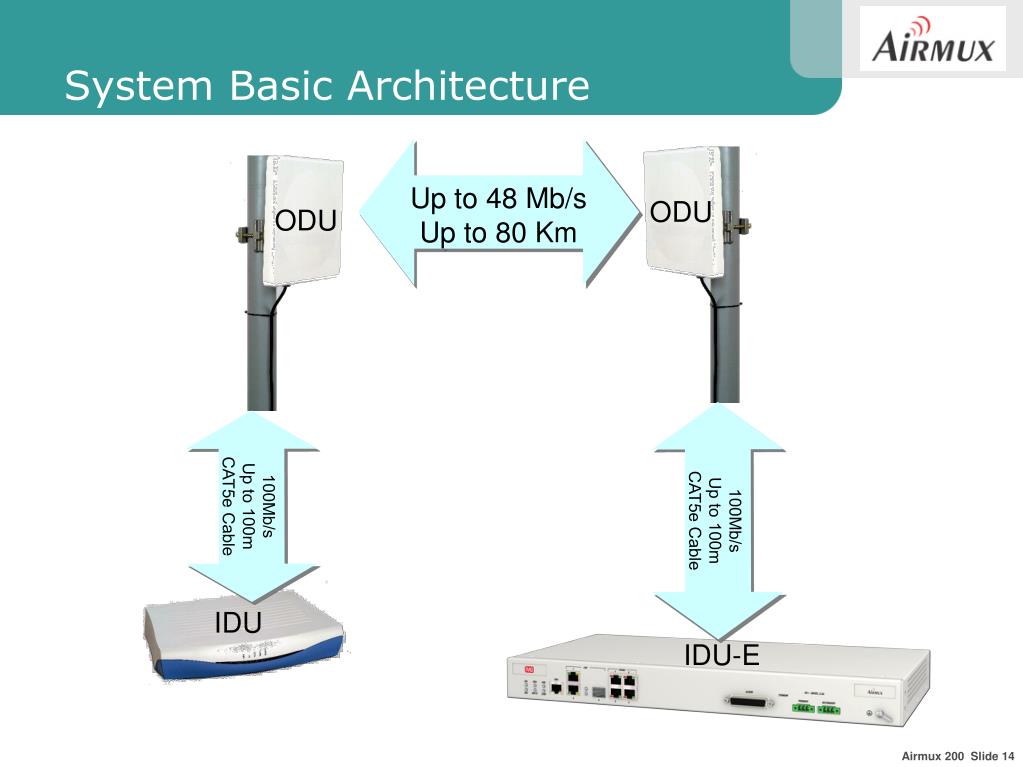

  14. System Basic Architecture Up to 48 Mb/s Up to 80 Km ODU ODU 100Mb/s Up to 100m CAT5e Cable 100Mb/s Up to 100m CAT5e Cable IDU IDU-E

  15. IDU – Standard indoor unit Ethernet Ethernet + E1 or T1 Ethernet + 2 x E1 or 2 x T1 IDU “E” – Carrier-class indoor unit 2 x Ethernet 4 x E1/T1 ports and 2 x Ethernet Airmux-200 System Components-IDU’s

  16. IDU – Performance • Jitter and wander according to G.823.4 • Clock recovery (<0.05 PPM) • E1 typical delay is 8 msec • TDM circuit BER < 10e-11 @ sensitivity threshold • Ethernet delay less than 3 msec • Lossless Ethernet traffic – Even in 10% Air interface loss still there will be no ETH packet loss • Lossless TDM traffic supported as well • Unit size – One “U”

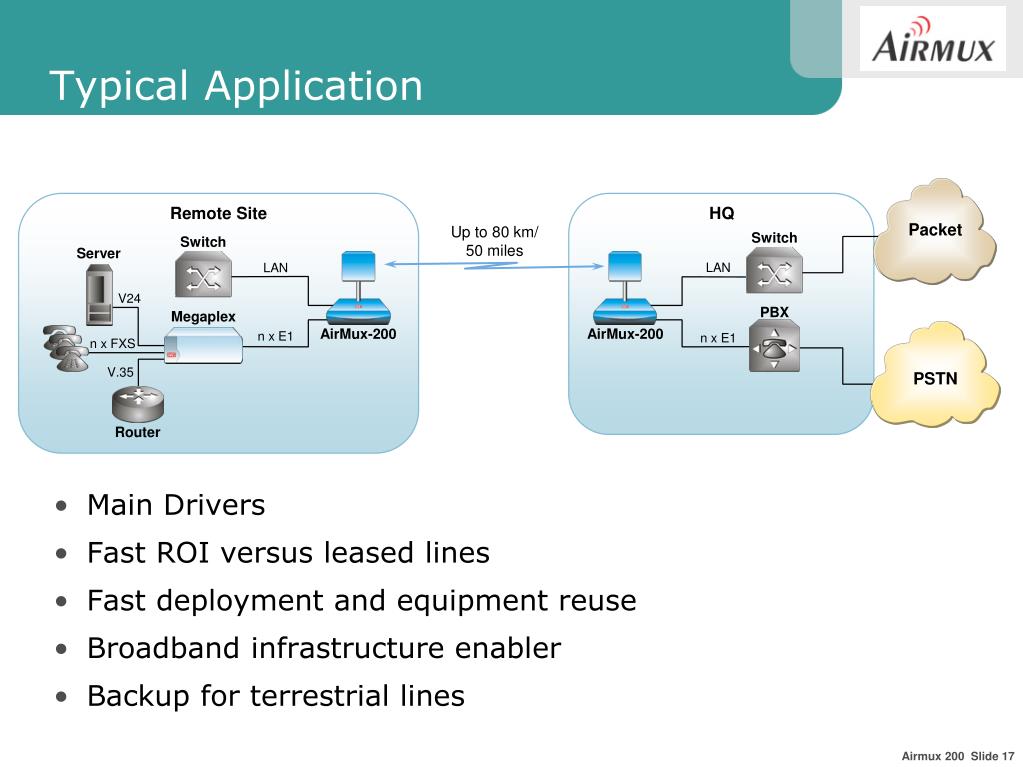

  17. Typical Application • Main Drivers • Fast ROI versus leased lines • Fast deployment and equipment reuse • Broadband infrastructure enabler • Backup for terrestrial lines Remote Site HQ Packet Up to 80 km/ 50 miles Switch Switch Server LAN LAN V24 PBX Megaplex AirMux-200 AirMux-200 n x E1 n x E1 n x FXS V.35 PSTN Router

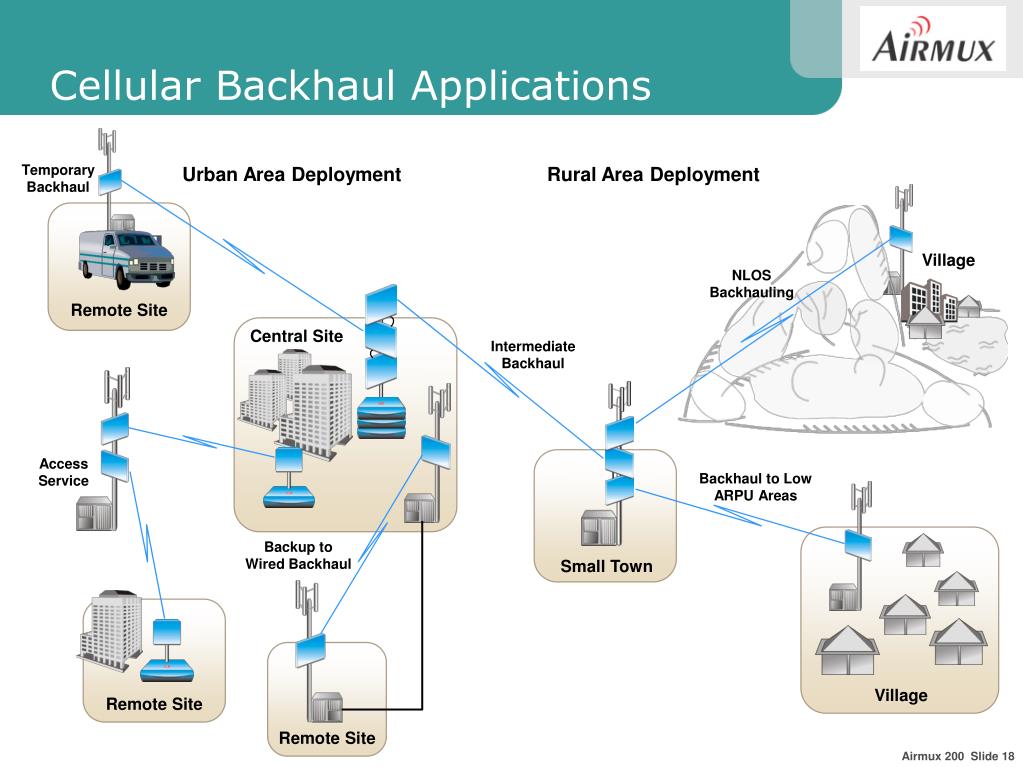

  18. Village Remote Site Central Site Small Town Village Remote Site Remote Site Cellular Backhaul Applications Temporary Backhaul Urban Area Deployment Rural Area Deployment NLOS Backhauling Intermediate Backhaul Access Service Backhaul to Low ARPU Areas Backup to Wired Backhaul

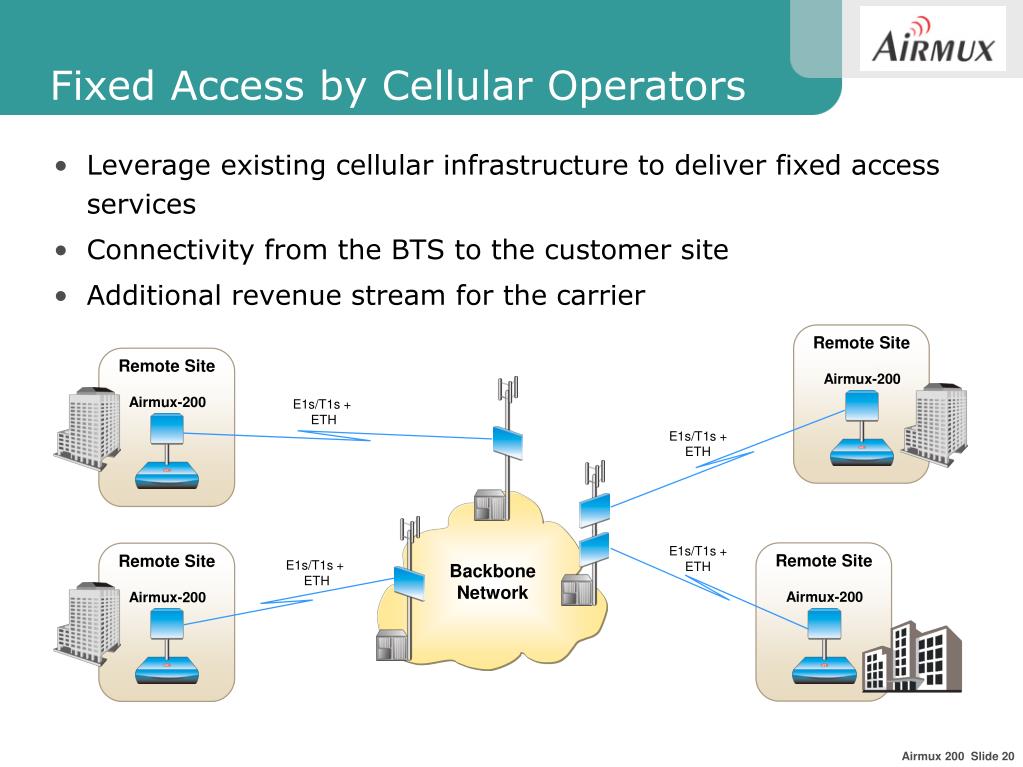

  19. Remote Site Remote Site Airmux-200 Airmux-200 E1s/T1s + ETH E1s/T1s + ETH E1s/T1s + ETH Remote Site Remote Site E1s/T1s + ETH Backbone Network Airmux-200 Airmux-200 Fixed Access by Cellular Operators • Leverage existing cellular infrastructure to deliver fixed access services • Connectivity from the BTS to the customer site • Additional revenue stream for the carrier

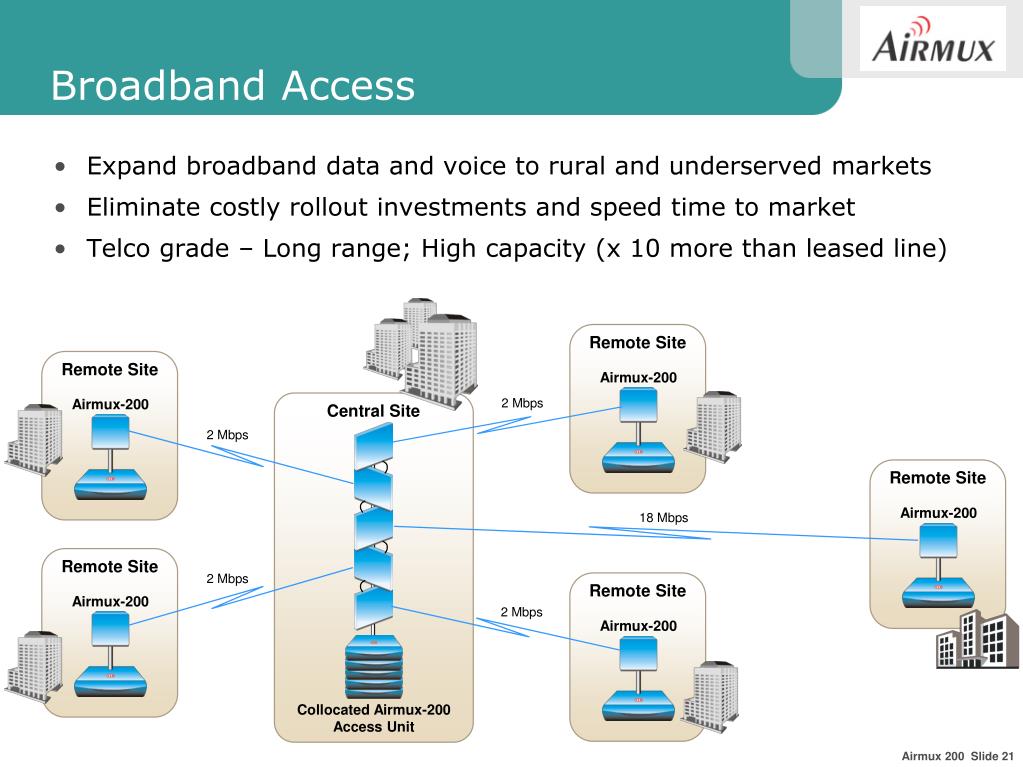

  20. Remote Site Remote Site Airmux-200 2 Mbps Airmux-200 Central Site 2 Mbps Remote Site Airmux-200 18 Mbps Remote Site 2 Mbps Remote Site Airmux-200 2 Mbps Airmux-200 Collocated Airmux-200 Access Unit Broadband Access • Expand broadband data and voice to rural and underserved markets • Eliminate costly rollout investments and speed time to market • Telco grade – Long range; High capacity (x 10 more than leased line)

  21. Branch #1 PBX T1/E1 AirMux-200 Vmux-110 FCD-IP Remote/Rural Location MP-104/204 E1 AirMux-200 CPE MP-2100 NMS PBX Servers AirMux-200 Applications with RAD Products • AirMux-200 provides a high ROI in a variety of campus, enterprise and service provider applications. These include: • Lossless Hot Spot Backhauling • Telephone Service Extension to Remote/Rural Locations • Multiple Services in Daisy Chain Topology • Multiple Services with Unique E1/T1 Ring Protection • Emergency Services and Temporary Deployment • Wireless Backup • Interconnecting Multiple Legacy Services over Packet Networks • Cellular Backhaul • Voice Traffic Extension over Wireless

  22. 1 .Lossless Hot Spot Backhauling • Supports full 5.8 GHz for lossless hot spot backhauling including band and channel separation • Transparent Ethernet forwarding • Ethernet and power over Ethernet ODU/IDU connection ISP Hot Spot 5.8 GHz Ethernet Ethernet Packet Access Point AirMux-200 AirMux-200 Router

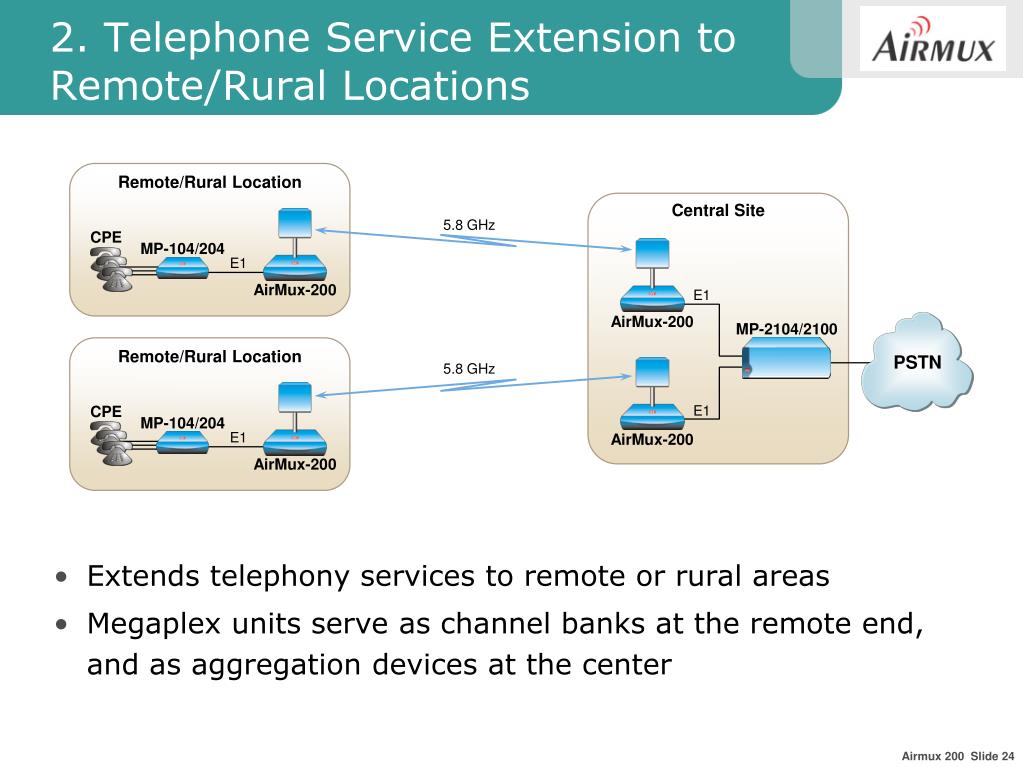

  23. 2. Telephone Service Extension to Remote/Rural Locations Remote/Rural Location Central Site • Extends telephony services to remote or rural areas • Megaplex units serve as channel banks at the remote end, and as aggregation devices at the center 5.8 GHz CPE MP-104/204 E1 AirMux-200 E1 AirMux-200 MP-2104/2100 Remote/Rural Location PSTN 5.8 GHz E1 CPE MP-104/204 E1 AirMux-200 AirMux-200

  24. 3. Multiple Services in Daisy Chain Topology • Drop-and-insert topology saves cost of lease lines or infrastructure investment • Drop of any service • Optimized solution for specific node requirements • Target markets: utilities, cellular, transportation AirMux-200 AirMux-200 AirMux-200 AirMux-200 MP-2104 MP-2104 FCD-IP FCD-IP V.52

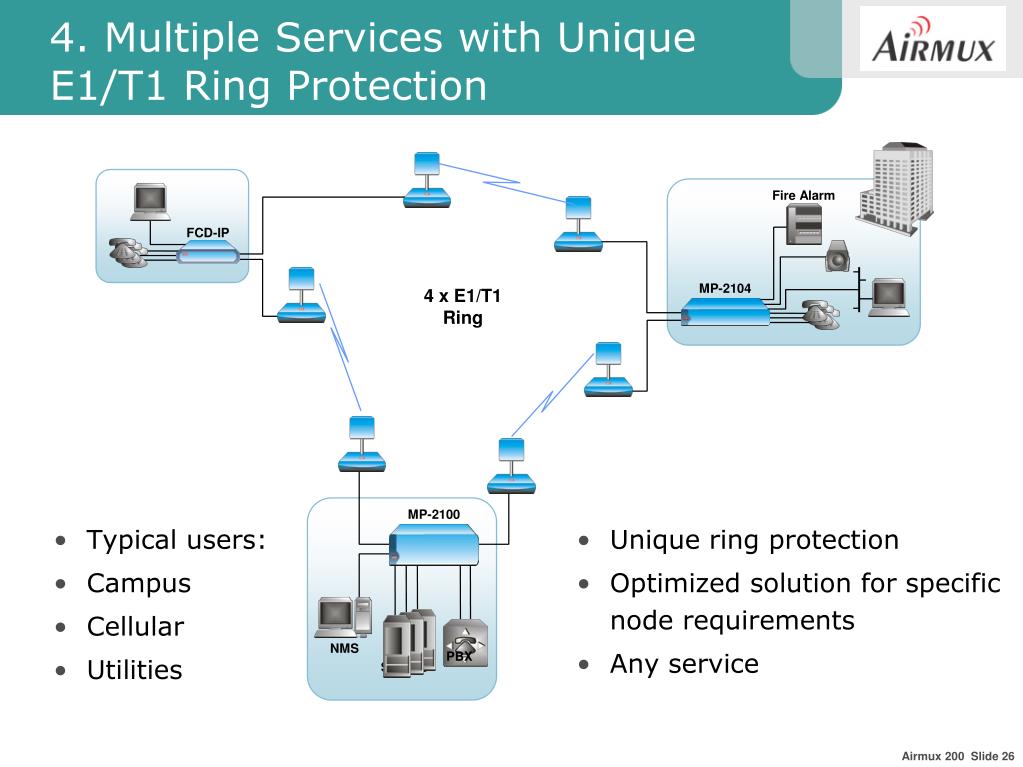

  25. Typical users: Campus Cellular Utilities Unique ring protection Optimized solution for specific node requirements Any service MP-2100 NMS PBX Servers 4. Multiple Services with Unique E1/T1 Ring Protection Fire Alarm FCD-IP MP-2104 4 x E1/T1 Ring

  26. 5.Emergency Services and Temporary Deployment Central Site • Enables mobility and fast deployment • Typical users: military, emergency services, broadcast, etc. AirMux-200 Remote Site n x links Switch Switch Megaplex AirMux-200 AirMux-200 n x E1 DXC

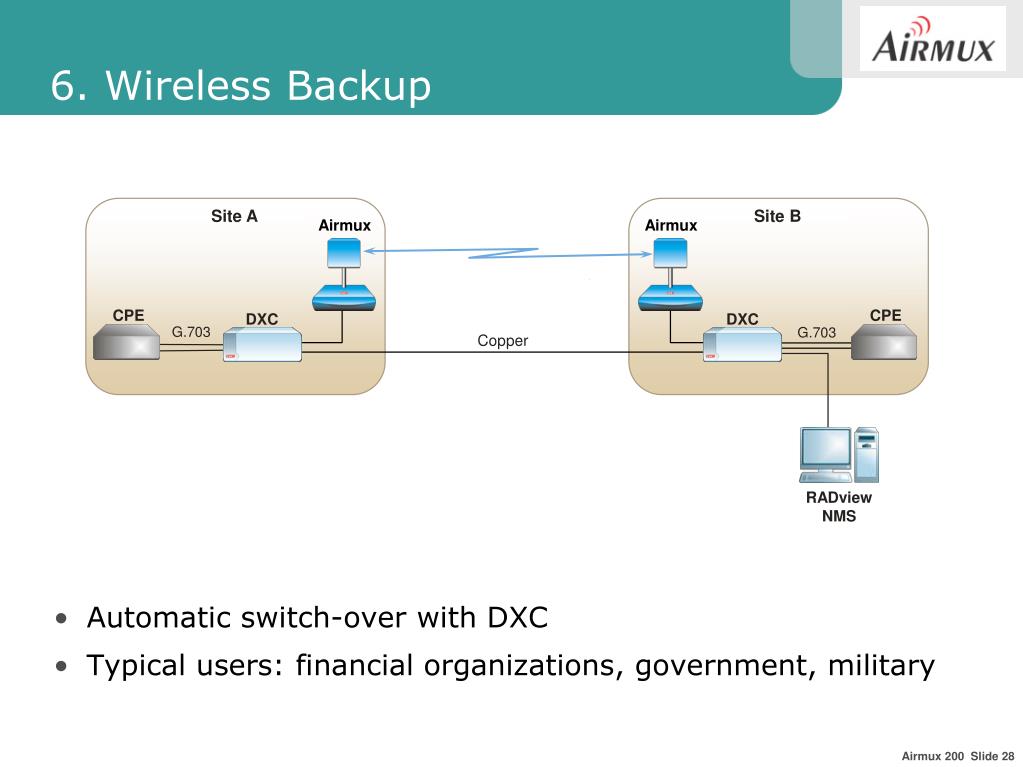

  27. 6. Wireless Backup • Automatic switch-over with DXC • Typical users: financial organizations, government, military Site A Site B Airmux Airmux CPE CPE DXC DXC G.703 G.703 Copper RADview NMS

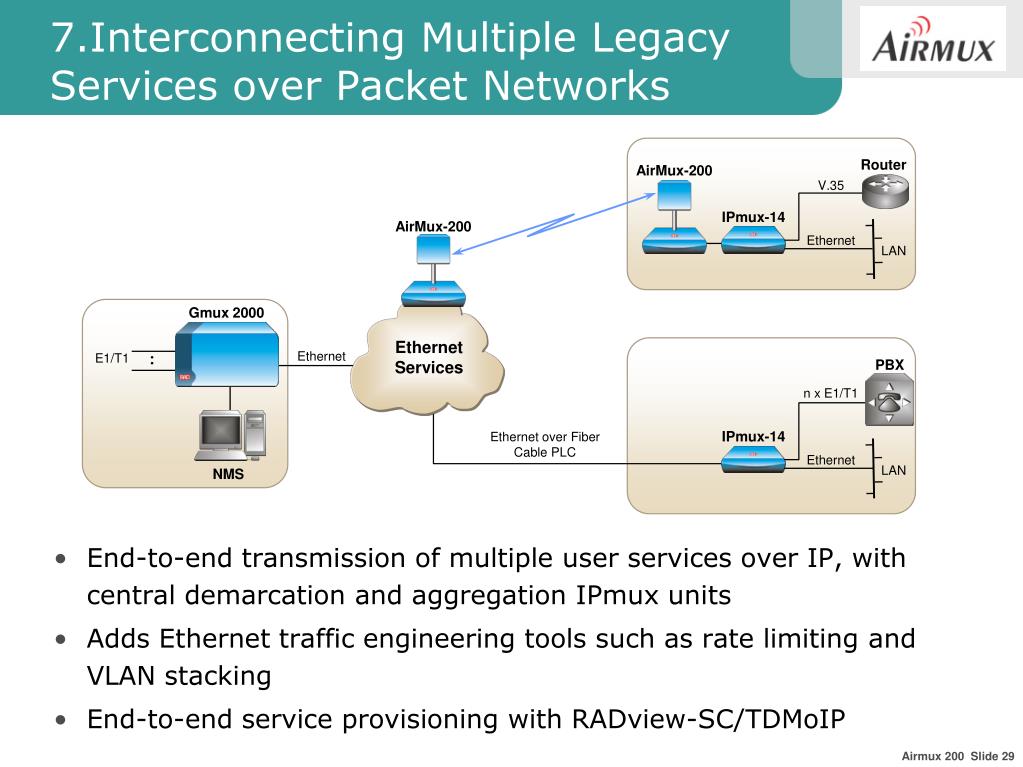

  28. 7.Interconnecting Multiple Legacy Services over Packet Networks Router AirMux-200 V.35 • End-to-end transmission of multiple user services over IP, with central demarcation and aggregation IPmux units • Adds Ethernet traffic engineering tools such as rate limiting and VLAN stacking • End-to-end service provisioning with RADview-SC/TDMoIP IPmux-14 AirMux-200 Ethernet LAN Gmux 2000 Ethernet Services Ethernet E1/T1 PBX n x E1/T1 IPmux-14 Ethernet over Fiber Cable PLC Ethernet LAN NMS

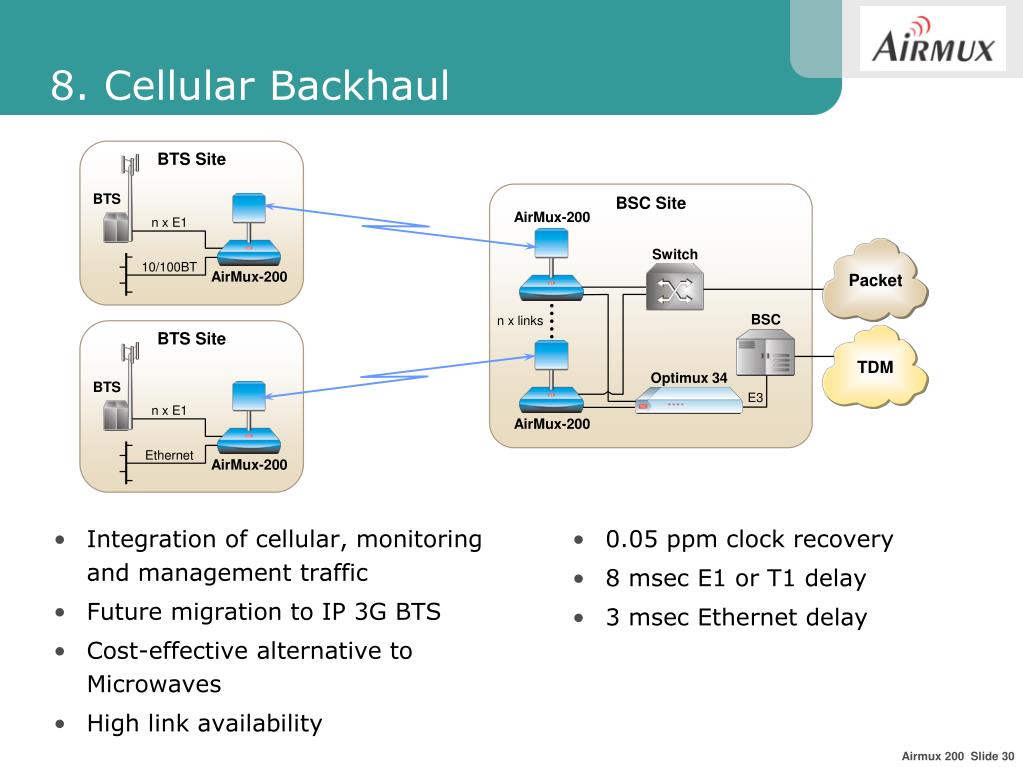

  29. Integration of cellular, monitoring and management traffic Future migration to IP 3G BTS Cost-effective alternative to Microwaves High link availability 0.05 ppm clock recovery 8 msec E1 or T1 delay 3 msec Ethernet delay 8. Cellular Backhaul BTS Site BTS BSC Site AirMux-200 n x E1 Switch 10/100BT AirMux-200 Packet BSC n x links BTS Site TDM Optimux 34 BTS E3 n x E1 AirMux-200 Ethernet AirMux-200

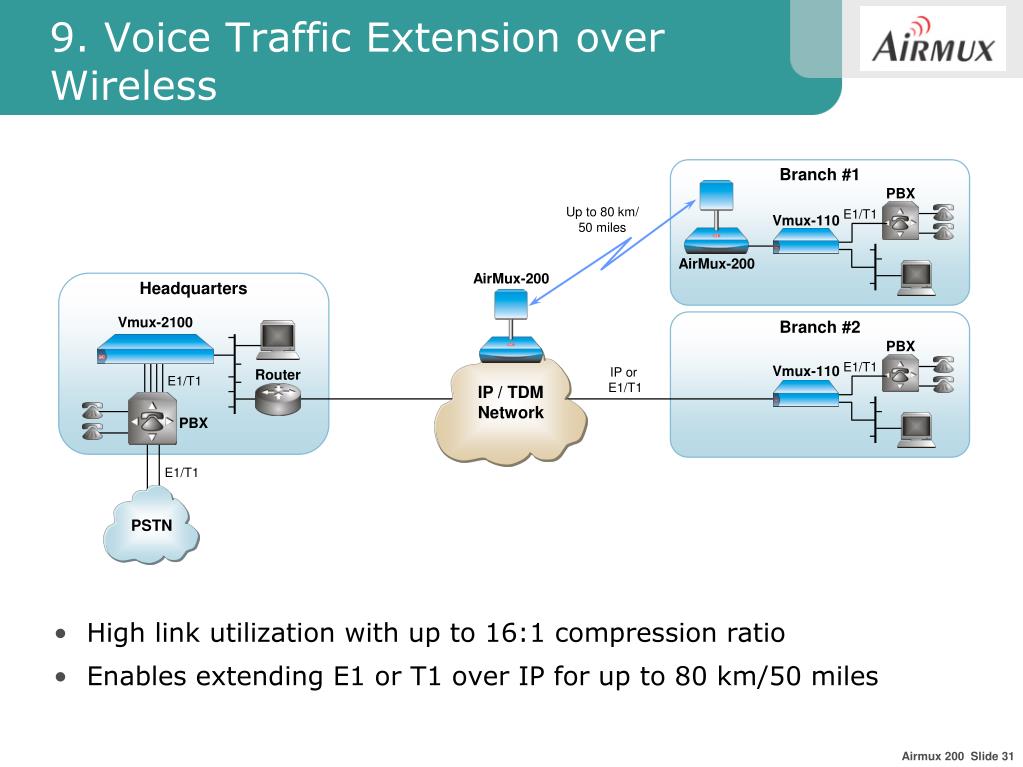

  30. 9. Voice Traffic Extension over Wireless Branch #1 PBX • High link utilization with up to 16:1 compression ratio • Enables extending E1 or T1 over IP for up to 80 km/50 miles Up to 80 km/ 50 miles E1/T1 Vmux-110 AirMux-200 AirMux-200 Headquarters Vmux-2100 Branch #2 PBX E1/T1 Vmux-110 IP or E1/T1 Router E1/T1 IP / TDM Network PBX E1/T1 PSTN

  31. Marketing Presentation Airmux Brochure Airmux 200 Product Profile Airmux POE Product Profile Datasheet 3 Case Studies 6 Application Notes Bandwidth Calculator Technical A total of 25 certificates and safety declarations Certified WirelessReady Airmux 200 – Sales Tools
