  1. Airmux-5000Mobility Presented by: Larry Jacobs Director, Account Management (201) 378-0330, Larry_J@RAD.com

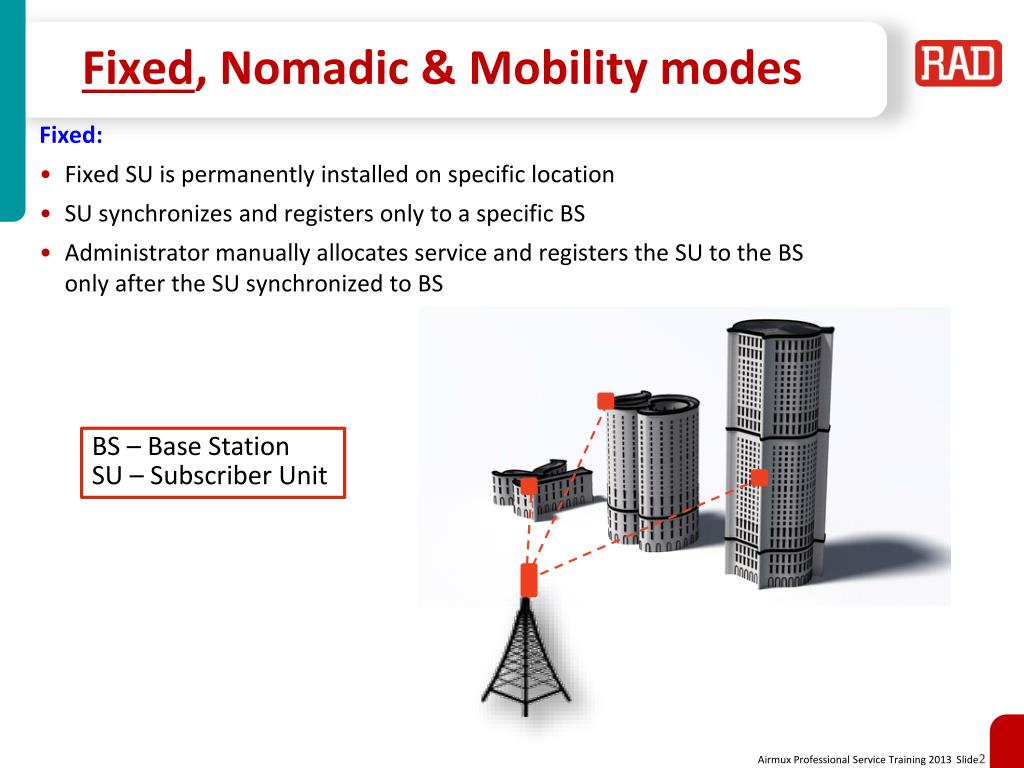

  2. Fixed, Nomadic & Mobility modes Fixed: • Fixed SU is permanently installed on specific location • SU synchronizes and registers only to a specific BS • Administrator manually allocates service and registers the SU to the BS only after the SU synchronized to BS BS – Base Station SU – Subscriber Unit

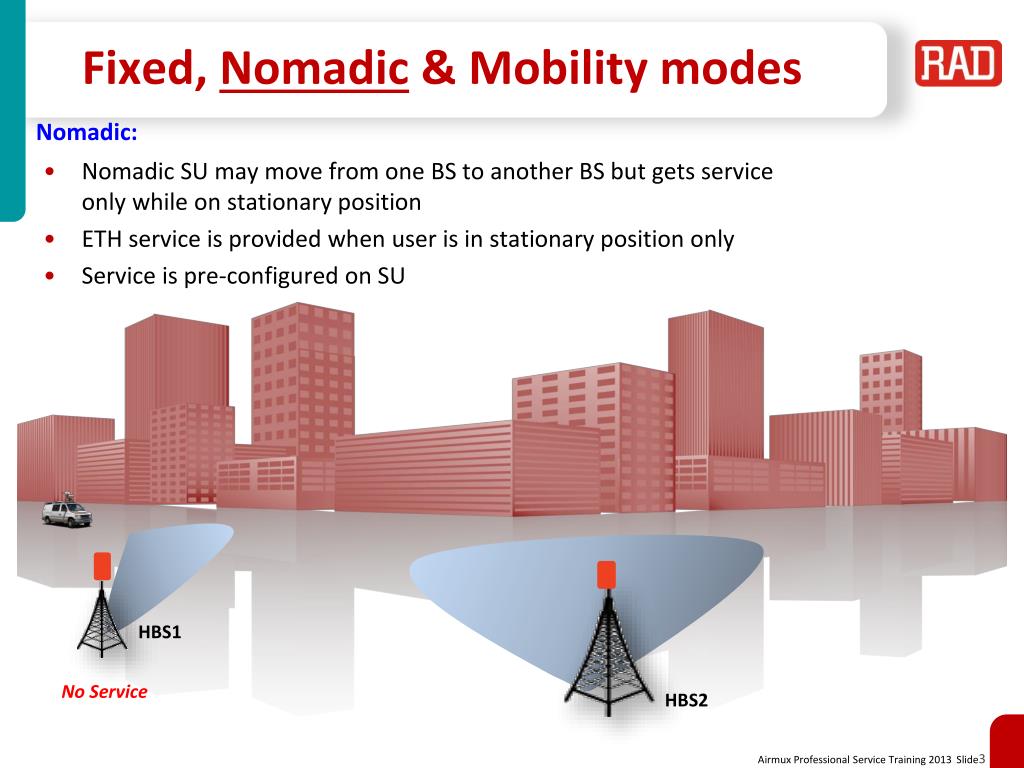

  3. Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU HBS1 No Service HBS2

  4. Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU Service Available HBS1 HBS2

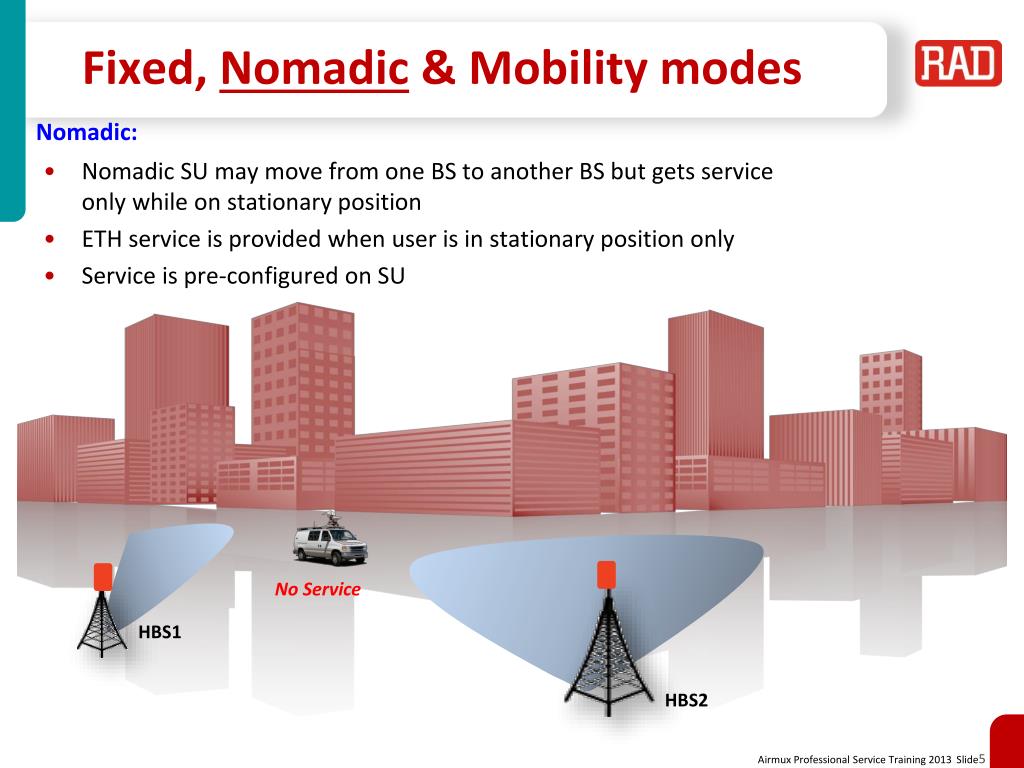

  5. Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU No Service HBS1 HBS2

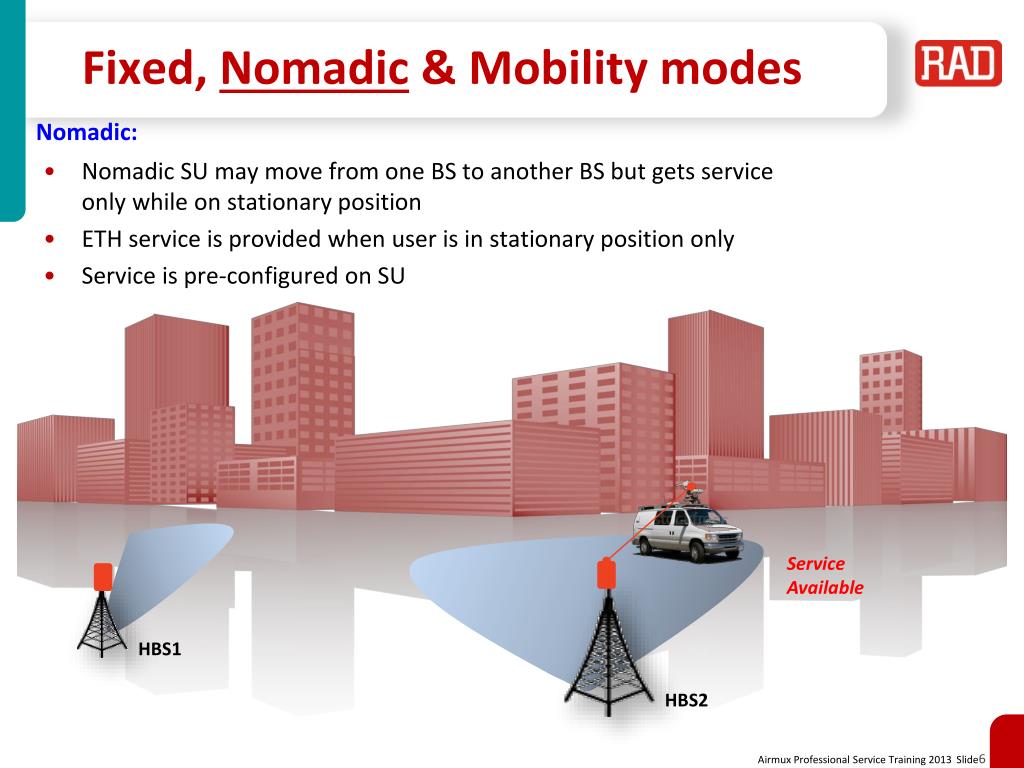

  6. Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU Service Available HBS1 HBS2

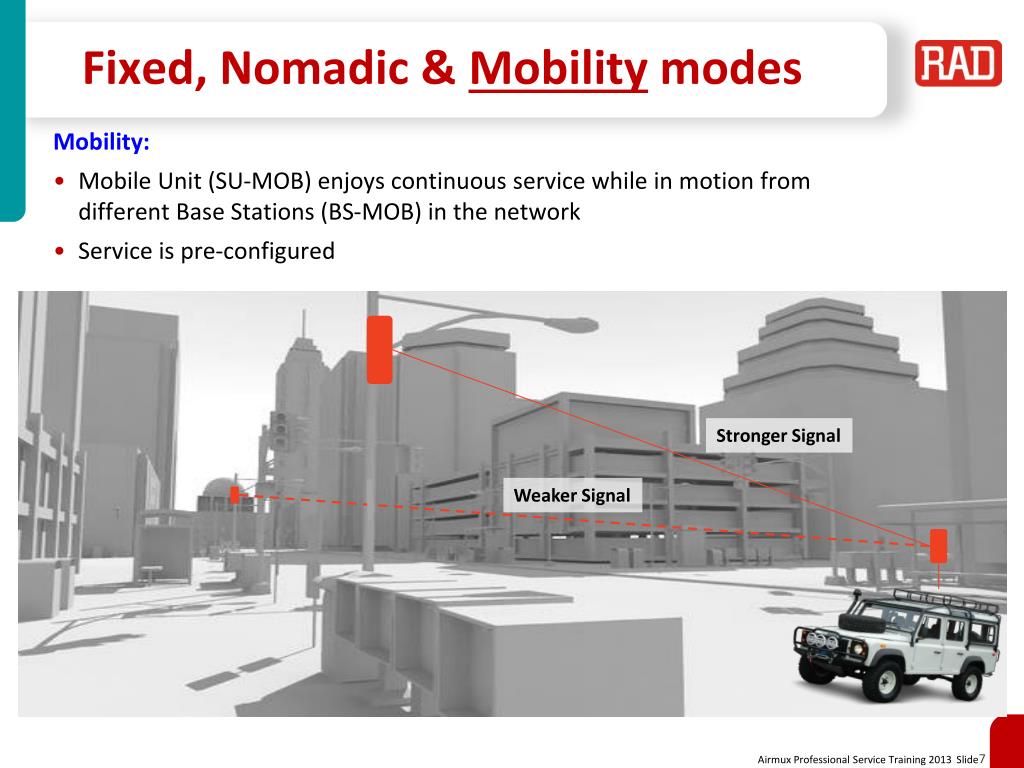

  7. Fixed, Nomadic & Mobility modes Mobility: • Mobile Unit (SU-MOB) enjoys continuous service while in motion from different Base Stations (BS-MOB) in the network • Service is pre-configured Stronger Signal Weaker Signal

  8. Fixed, Nomadic & Mobility modes • Mobility: • Mobile Unit (SU-MOB) enjoys continuous service while in motion from different Base Stations (BS-MOB) in the network • Service is pre-configured Weaker Signal Stronger Signal

  9. Mobility Applications

  10. Airmux-5000 PTMP New Products HBS -5800 Series for Mobility application HMU-5700 Series for Mobility application RAD Airmux-5000 - Mobility Main Features

  11. Supports up to 32 HSUs in all HBS products Supports up to 64 Time Slots (better granularity allocated per user) Supports Mobility & Nomadic Enhanced Mobility features Mobility Configuration via RAD Manager RAD Manager map view for RAD Airmux-5000 RAD Airmux-5000 - Mobility Main Features

  12. Transportation security

  13. Mobility Solution Railway accident mitigation Single surveillance camera

  14. Mobility Solution Railway accident mitigation Command Center Approaching train alerted Radios without camera Real time video & data transmitted to train monitor Car on railway line detected using video streaming

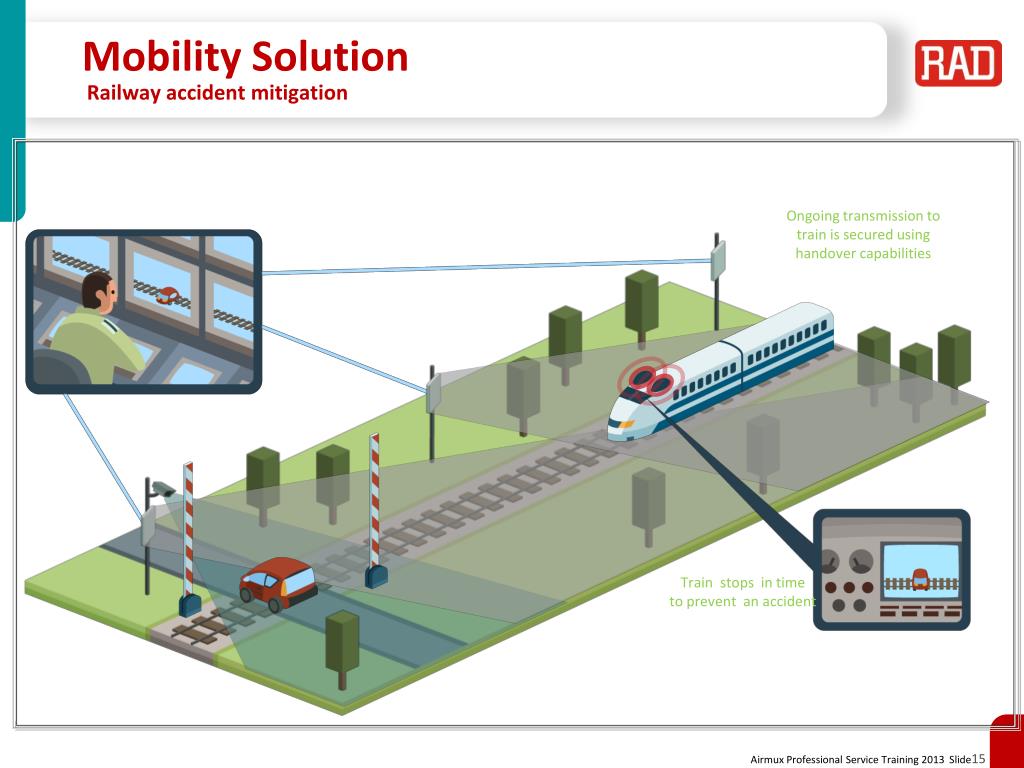

  15. Mobility Solution Railway accident mitigation Ongoing transmission to train is secured using handover capabilities Train stops in time to prevent an accident

  16. Mobility Solution Seamless internet connectivity Radios Backhaul connectivity secures onboard WI-FI Passengers connect to their wireless devices

  17. Mobility Solution Seamless internet connectivity Continuous connectivity is secured during high speed travel

  18. Mobility Solution On-board security Radios Surveillance cameras are deployed on the train Backhaul connectivity

  19. Mobility Solution On-board security Continuous high capacity video surveillance is secured

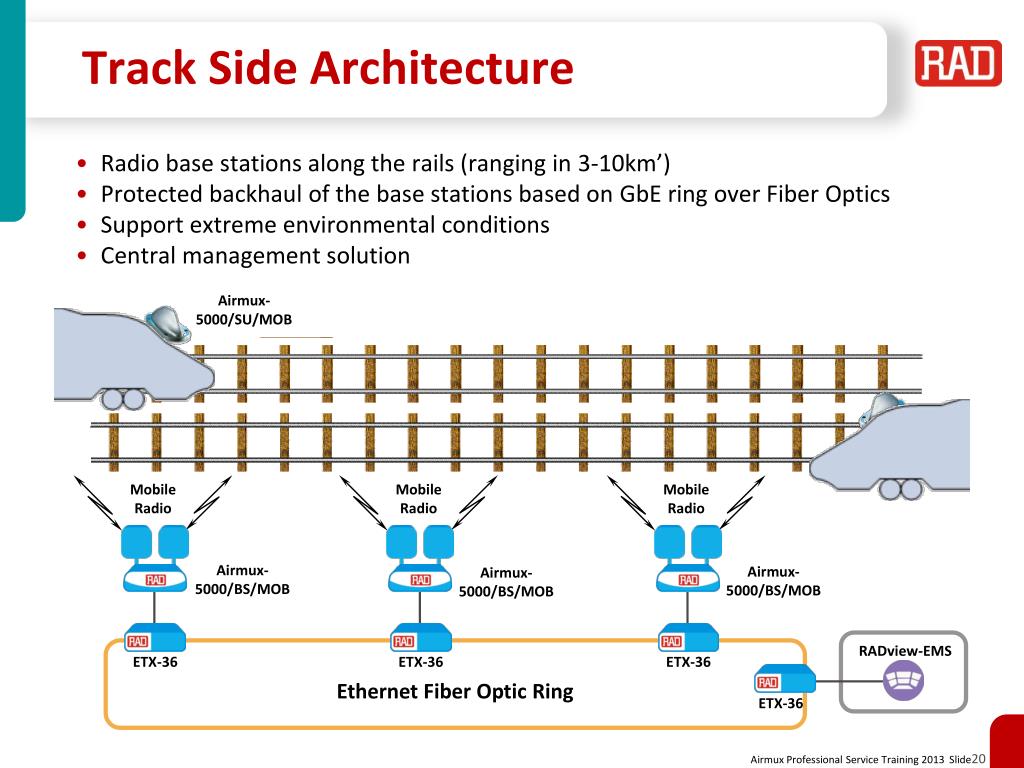

  20. Track Side Architecture • Radio base stations along the rails (ranging in 3-10km’) • Protected backhaul of the base stations based on GbE ring over Fiber Optics • Support extreme environmental conditions • Central management solution Airmux- 5000/SU/MOB Mobile Radio Mobile Radio Mobile Radio Airmux- 5000/BS/MOB Airmux- 5000/BS/MOB Airmux- 5000/BS/MOB RADview-EMS ETX-36 ETX-36 ETX-36 ETX-36 Ethernet Fiber Optic Ring

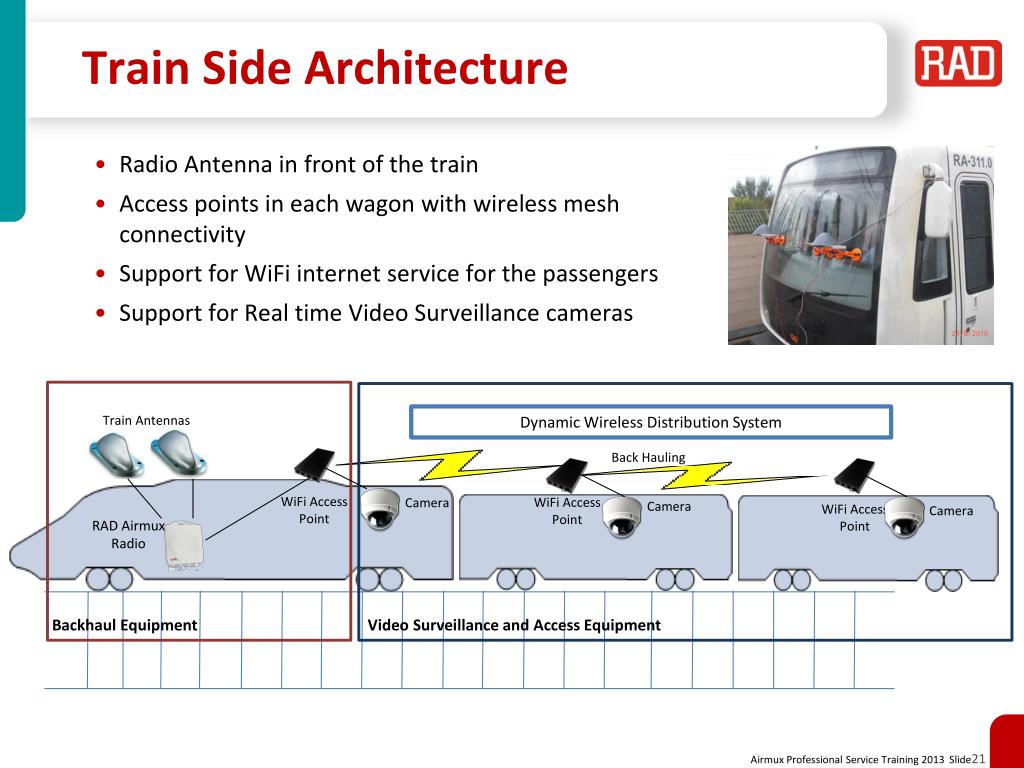

  21. Train Side Architecture • Radio Antenna in front of the train • Access points in each wagon with wireless mesh connectivity • Support for WiFi internet service for the passengers • Support for Real time Video Surveillance cameras Train Antennas Dynamic Wireless Distribution System Back Hauling WiFi Access Point WiFi Access Point Camera Camera WiFi Access Point Camera RAD Airmux Radio Backhaul Equipment Video Surveillance and Access Equipment

  22. Train Applications

  23. Train Applications

  24. Train Video Applications

  25. Train Video Applications

  26. Key Features & Benefits

  27. Oil & Gas

  28. Oil and Gas Security Market Transportation Exploration and Production Refining (Oil) Processing (Gas) • Challenges: • Security – Terror, theft from pipelines, etc. • Safety – Hazard material, Oil spills, etc. • Infrastructure and personnel connectivity • Remote motoring and control • Dynamic growth Airmux Provides End-to-End Communication Solution to each link of the value chain !

  29. Airmux-400 Airmux-5000 Off-Shore Oil Rigs Communication Airmux Mobility

  30. Airmux-400 On-Shore Oil Rigs Communication Airmux-5000

  31. Airmux- 5000 Pipeline Protection Airmux Mobility

  32. Airmux-400 Airmux-5000 Perimeter Security Airmux Mobility Mobile Fire & Rescue Perimeter Surveillance Mobile Patrol Unit

  33. Mines

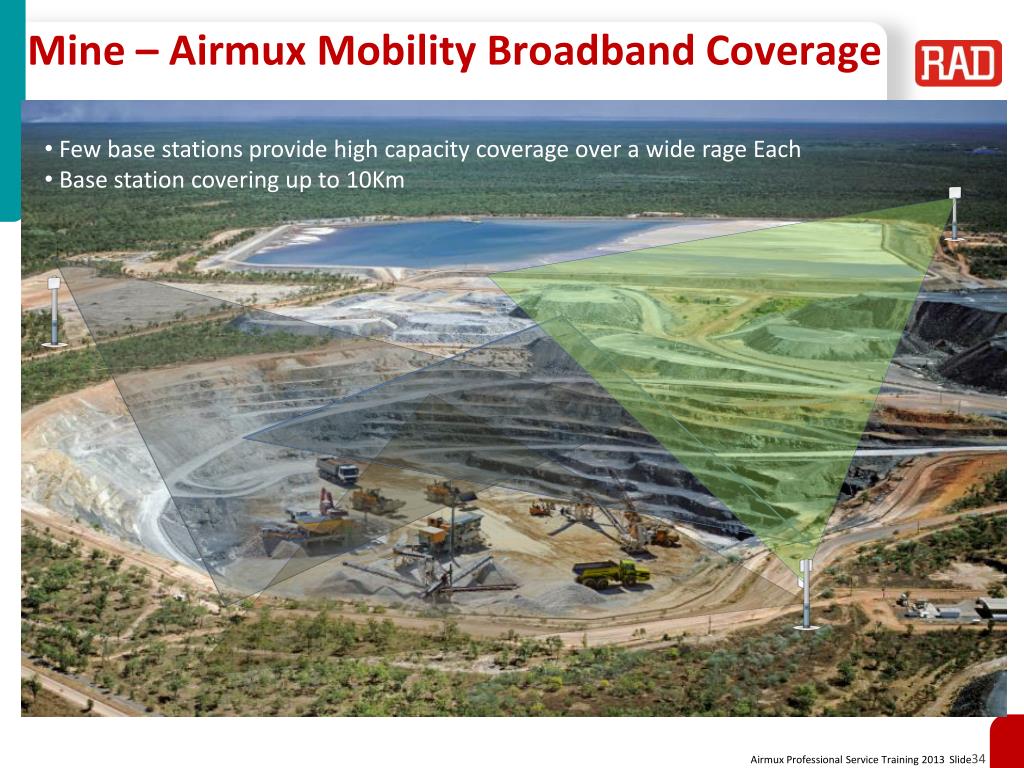

  34. Mine – Airmux Mobility Broadband Coverage • Few base stations provide high capacity coverage over a wide rage Each • Base station covering up to 10Km

  35. Mine – Airmux Wireless Mobility Broadband • Airmux Wireless Mobility Solution Provides: • Wide coverage of the mine area to: • Access roads • Coverage in deep area for heavy machinery • Offices and other facilities • High capacity connectivity (up to 30Mbps) to all mine video and data applications • Full co-existence with Airmux PtMP and PtP radios • Simple and Fast to installation • Smart RF Planning tool to assure project success

  36. High Speed Connectivity for Mines Applications • Airmux Wireless Mobile Network enables video and data transmission for • multiple mine applications: • Mobile machinery real-time tracking (mine wagons, large wheel loaders and mining trucks) • Remote control • Autonomous operation of vehicles • High level of Security and Safety: • Video surveillance (Fixed and Mobile) • Perimeter Security (Mobile patrol vehicles) • Real-time monitoring of machinery operators • Sensors transmission - Load count and more… • Backhaul to Wi-Fi services

  37. LMR Backhaul & Public Safety Agencies Connectivity

  38. LMR (Land Mobile Radio) Backhaul (TETRA, P25) Inter and Intra Agency connectivity (between Police stations, Fire stations, etc.) 911 (Emergency) call center connectivity Dispatch backup Traffic monitoring & control Public Safety Networks Projects

  39. Public Safety Network

  40. Customer: Arvada Fire Department, Colorado, USA Project: Connecting fire departments stations over a wide geographical area to the main HQ Why Airmux: Meeting the mission-critical voice, video and data connectivity needs of fire department (Airmux-400 T1s & high capacity Ethernet) Eliminate recurrent leased lines charges Connecting Fire Departments, Arvada, Colorado “We were previously leasing T1 lines and paying tens of thousands of dollars per year. Today, following the deployment of Airmux’s unlicensed radios, we couldn’t be happier with their high capacity and performance.” Scott Winberg, IT specialist, Arvada Fire Department,

  41. Customer: Gibson County 911 Services, Tennessee, USA Project: Establish a network connecting county's 911 Command Center and Police, Fire, and Emergency Service personnel in the field Solution: Airmux’s Multiple Point-to-Point 5.8 GHz systems connect sites in 5 towns, providing coverage for Gibson County’s 604 sq miles & beyond Why Airmux: Fast and affordable transport of audio traffic between remote sites and 911 Command Center Reliable and Robust for mission-critical application Easy installation and maintenance Gibson County 911 Emergency Services “We started deploying this system and I must say that it is performing exceptionally well. We can't figure out how we got along without it!” Bob Moore, Operations Manager for 911 Services, Gibson County, TN, USA

  42. Public Safety Wireless Network Requirements 1 2 3 4 5 6 7 8

  43. Dedicated and robust wireless link to a mobile unit (Trains) Bi-directional high capacity, up to 30 Mbps net aggregate throughput Wide coverage, Base stations up to 10km apart Continuous connectivity, both above-ground and underground Very low latency, suitable for VoIP and video applications Tested and approved up to 150Km/h, designed for higher speeds Fast handoff between base stations to ensure uninterrupted service Complies with the European railway standard EN50155 Airmux Broadband Mobility Solution

  44. Mobility Solution - Comparison Table

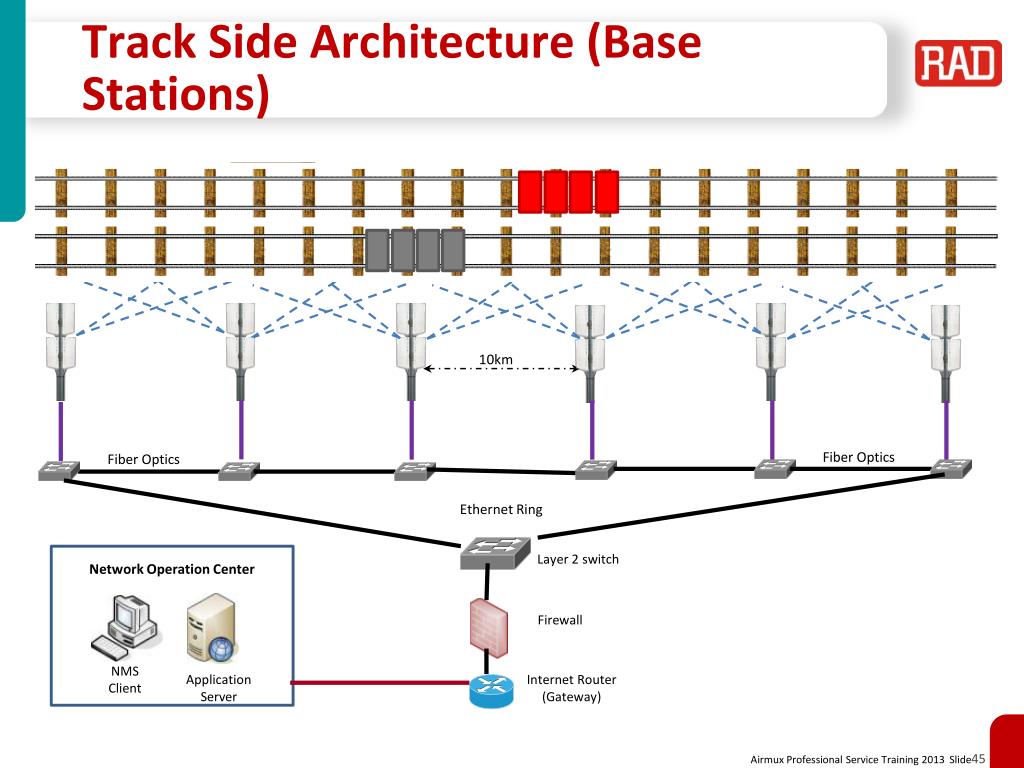

  45. Track Side Architecture (Base Stations) 10km Fiber Optics Fiber Optics Ethernet Ring Layer 2 switch Network Operation Center Firewall NMS Client Application Server Internet Router (Gateway)

  46. OnboardArchitecture (Mobile Unit) Train Antennas WiFiAccess Point PoE WiFiAccess Point Airmux Radio Router CCTV CCTV 46

  47. Sofia Metro Airmux Broadband Mobility Solution Installation TunnelBase Stations installation TrainMobile Unit installation

  48. Network Operation Center (NOC) NOCLCD Screens displaying Real Time Video form Train Carts

  49. Border security

  50. Monitoring, detection and prevention of cross-border violators Provide video transmission and sensor traffic: From sensors and cameras to command center From command center to patrol cars From patrol cars to the command center Real time Mobile broadband communication for wide area scenarios and tough terrain Border Security – The Challenges
