  1. AirMux-200Product Launch

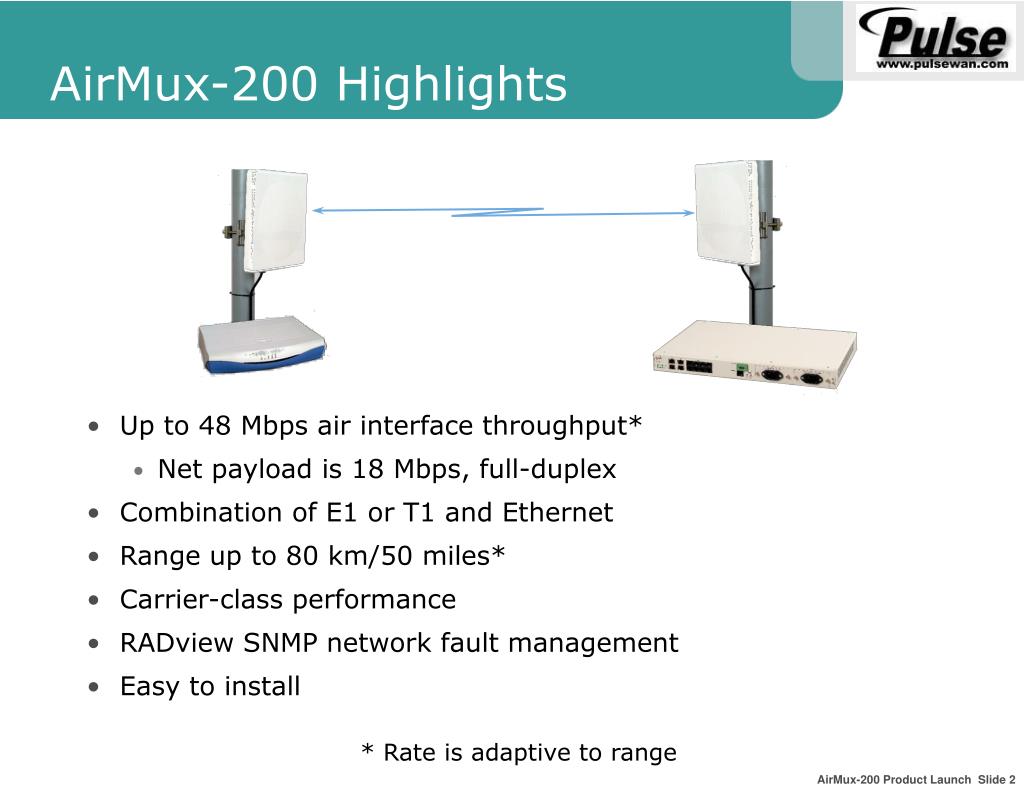

  2. Up to 48 Mbps air interface throughput* Net payload is 18 Mbps, full-duplex Combination of E1 or T1 and Ethernet Range up to 80 km/50 miles* Carrier-class performance RADview SNMP network fault management Easy to install AirMux-200 Highlights * Rate is adaptive to range

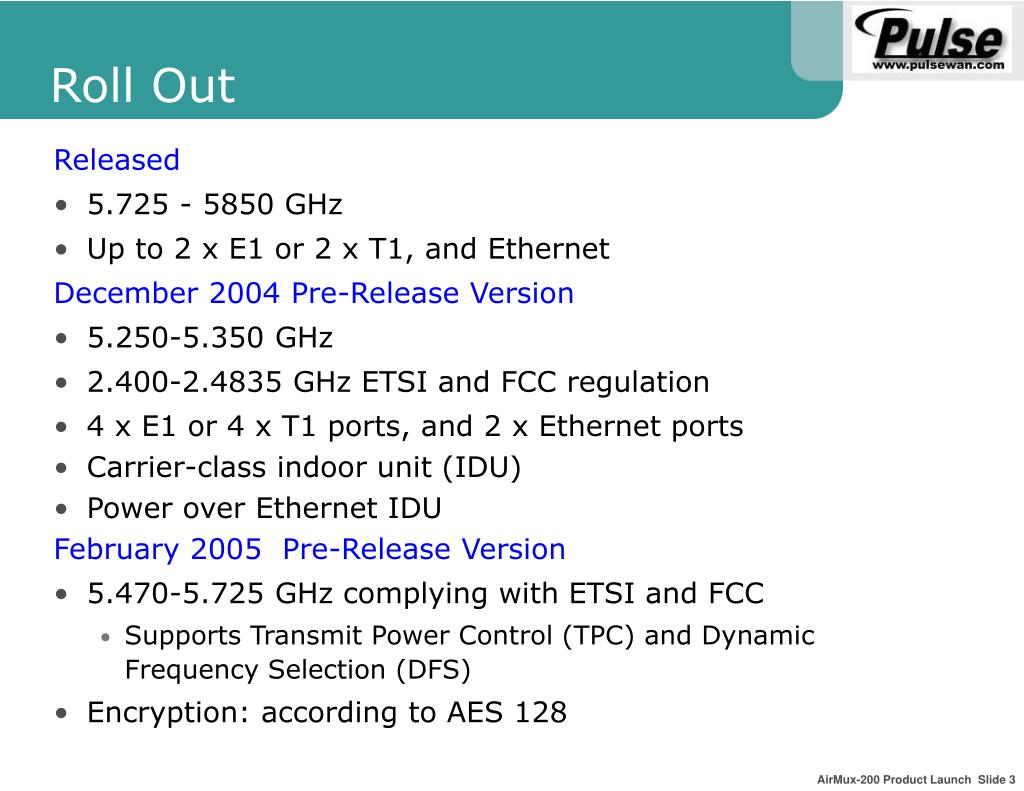

  3. Roll Out Released • 5.725 - 5850 GHz • Up to 2 x E1 or 2 x T1, and Ethernet December 2004 Pre-Release Version • 5.250-5.350 GHz • 2.400-2.4835 GHz ETSI and FCC regulation • 4 x E1 or 4 x T1 ports, and 2 x Ethernet ports • Carrier-class indoor unit (IDU) • Power over Ethernet IDU February 2005 Pre-Release Version • 5.470-5.725 GHz complying with ETSI and FCC • Supports Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) • Encryption: according to AES 128

  4. Main Drivers Fast ROI versus leased lines Fast deployment and equipment reuse Broadband infrastructure enabler Backup for terrestrial lines Typical Application Remote Site HQ Packet Server Up to 80 km/50 miles Switch Switch LAN LAN PBX V24 Megaplex AirMux-200 AirMux-200 n x E1 n x E1 n x FXS V.35 PSTN Router

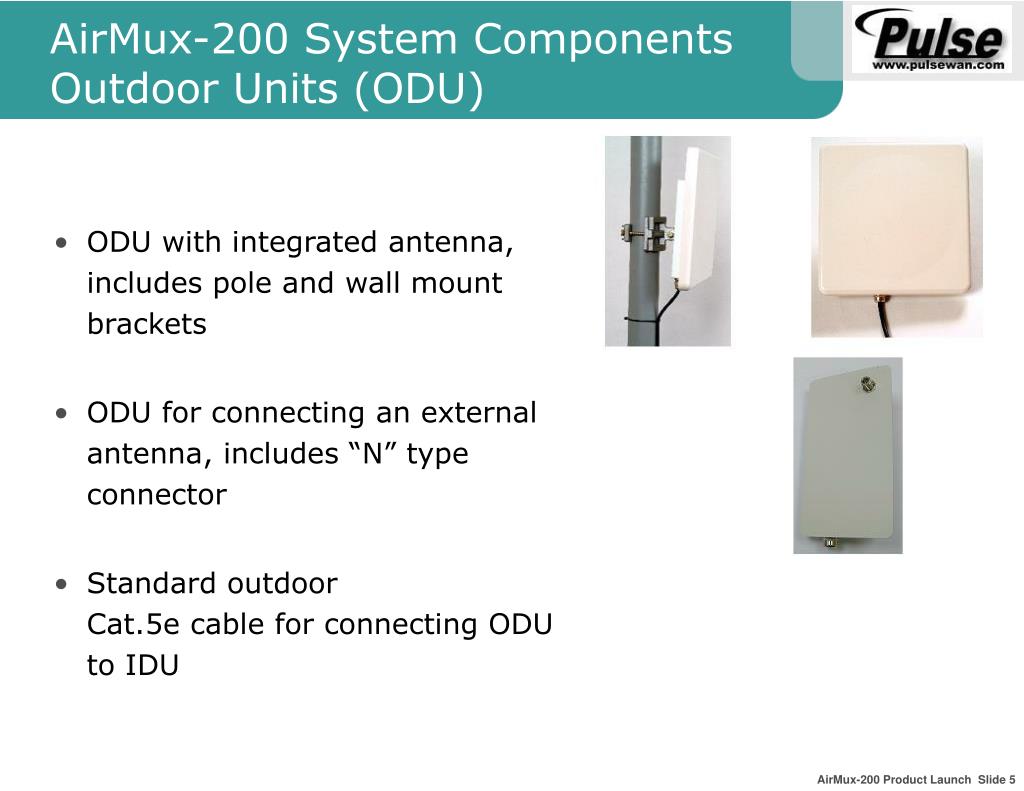

  5. AirMux-200 System ComponentsOutdoor Units (ODU) • ODU with integrated antenna, includes pole and wall mount brackets • ODU for connecting an external antenna, includes “N” type connector • Standard outdoor Cat.5e cable for connecting ODU to IDU

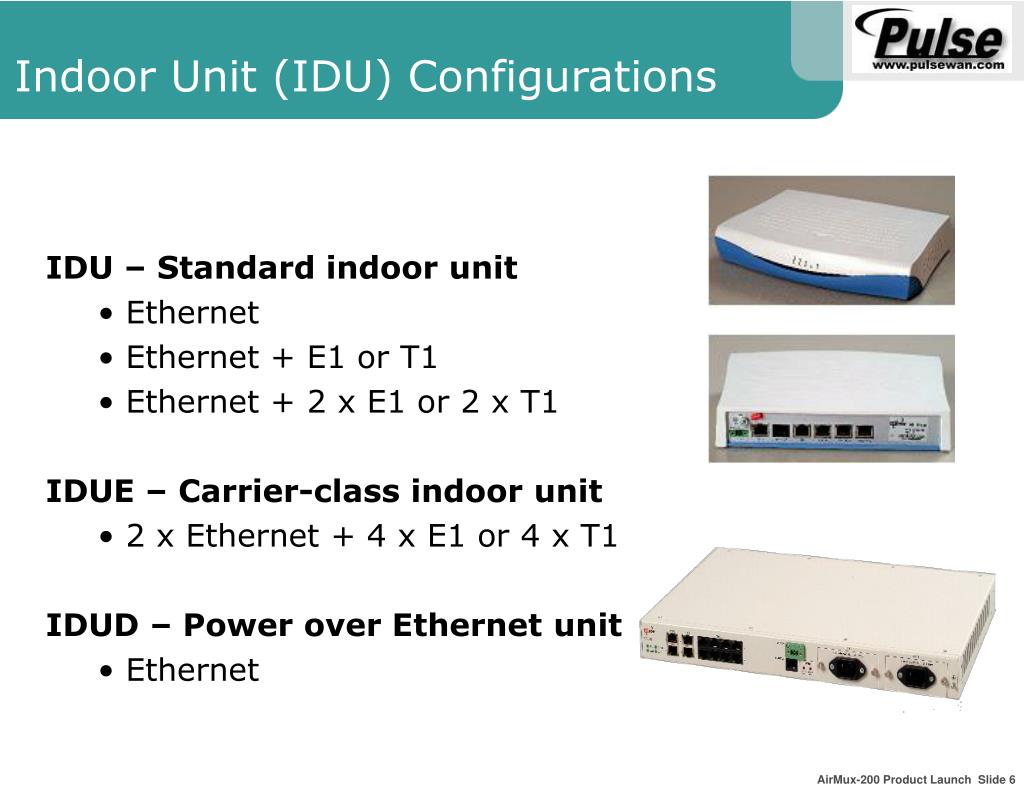

  6. Indoor Unit (IDU) Configurations • IDU – Standard indoor unit • Ethernet • Ethernet + E1 or T1 • Ethernet + 2 x E1 or 2 x T1 • IDUE – Carrier-class indoor unit • 2 x Ethernet + 4 x E1 or 4 x T1 • IDUD – Power over Ethernetunit • Ethernet

  7. Air Interface Features

  8. Typical Throughput * Figures are for 22 dBi integrated antenna, at 5.725-5.850 GHz band. Maximum range is 80 km/50 miles with 28 dBi antenna at same band.

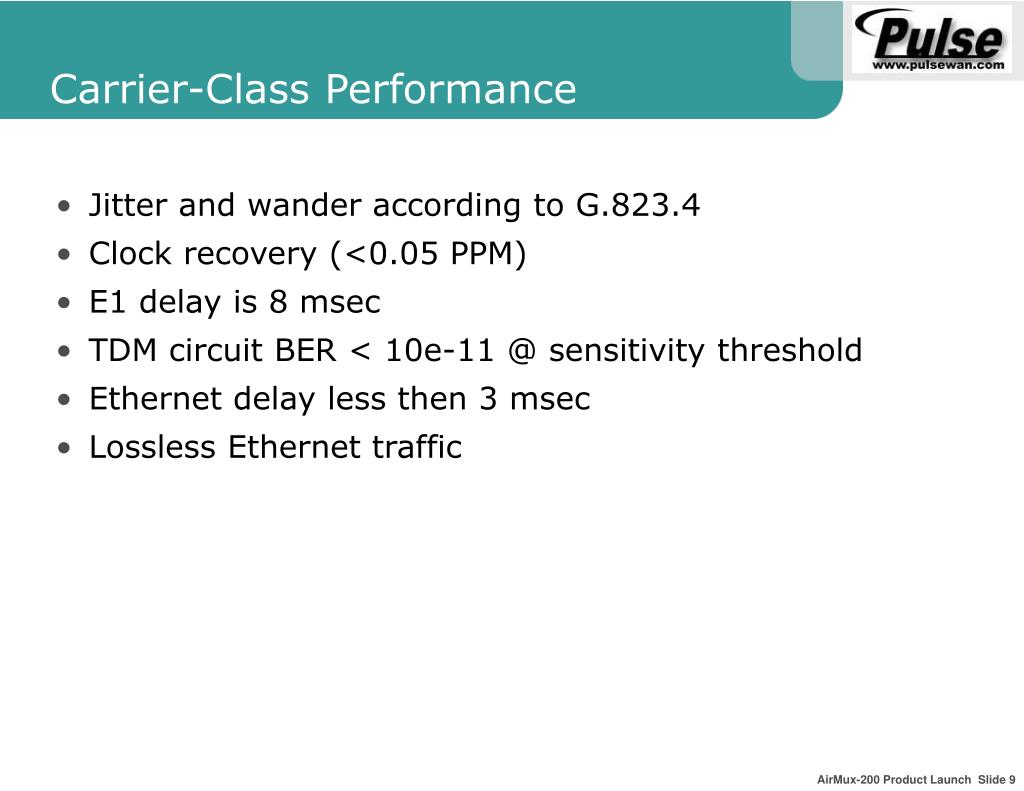

  9. Carrier-Class Performance • Jitter and wander according to G.823.4 • Clock recovery (<0.05 PPM) • E1 delay is 8 msec • TDM circuit BER < 10e-11 @ sensitivity threshold • Ethernet delay less then 3 msec • Lossless Ethernet traffic

  10. Management • Airmux Manager: • SNMP-based • Installation wizard • Link-based configuration for management of link with single IP address • On-line monitoring of air interface, E1/T1 and Ethernet services • Maintenance • E1/T1 Local and Remote loopbacks • Over-the-air software upgrade • RADview SNMP Network Fault Management

  11. Easy Installation and Alignment • No need for digital volt meter (DVM) • Survey performed by ODU • Audio indication for optimal received signal strength (RSS) • Per-link configuration and settings • Unique system signal identification • No pre-installation setting is required • Light-weight ODU

  12. License-Free Coverage • Regulated coverage in many other regions * Special limitations or requirements may apply here

  13. AirMux-200 Applications • AirMux-200 provides a high return on investment in a variety of campus, enterprise and service provider applications. These include: • Lossless Hot Spot Backhauling • Telephone Service Extension to Remote/Rural Locations • Multiple Services in Daisy Chain Topology • Multiple Services with Unique E1/T1 Ring Protection • Emergency Services and Temporary Deployment • Wireless Backup • Interconnecting Multiple Legacy Services over Packet Networks • Cellular Backhaul • Cellular Backhaul with TDMoIP Mesh Protection • Voice Traffic Extension over Wireless

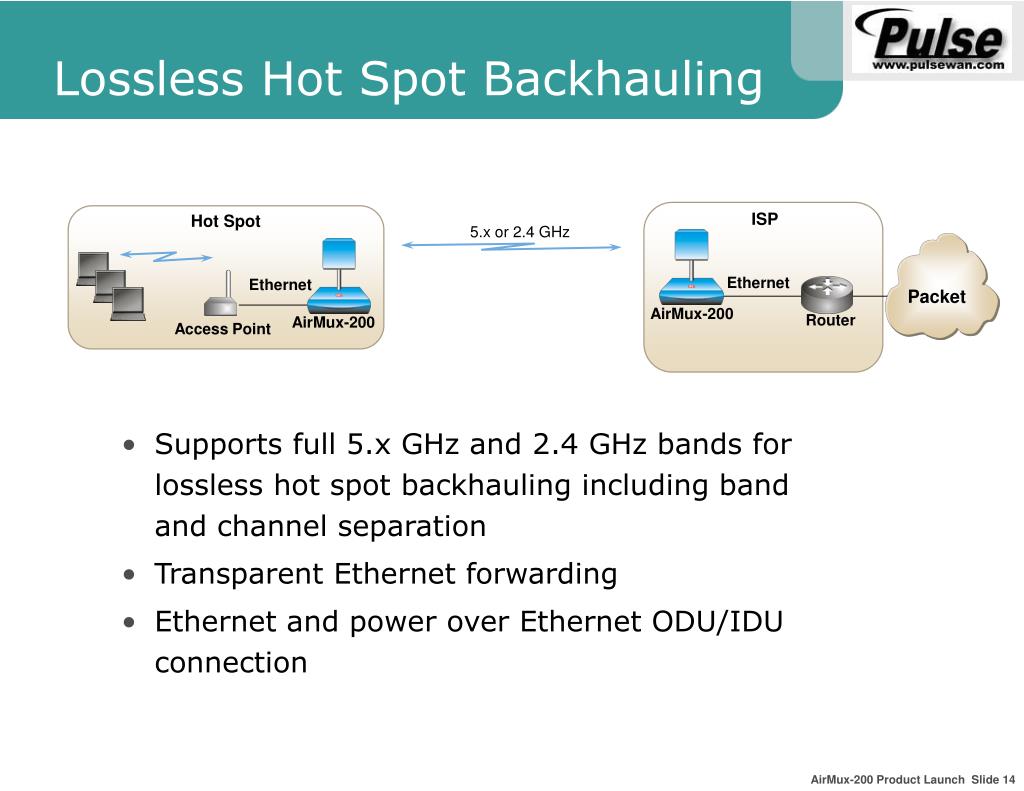

  14. Supports full 5.x GHz and 2.4 GHz bands for lossless hot spot backhauling including band and channel separation Transparent Ethernet forwarding Ethernet and power over Ethernet ODU/IDU connection Lossless Hot Spot Backhauling ISP Hot Spot 5.x or 2.4 GHz Ethernet Ethernet Packet AirMux-200 Router AirMux-200 AccessPoint

  15. Extends telephony services to remote or rural areas Megaplex units serve as channel banks at the remote end, and as aggregation devices at the center Telephone Service Extension to Remote/Rural Locations 5.x or 2.4 GHz Remote/Rural Location MP-104/204 E1 MP-2104/2100 E1 AirMux-200 PSTN CPE AirMux-200 E1 Remote/Rural Location 5.x or 2.4 GHz MP-104/204 Central Site E1 AirMux-200 AirMux-200 CPE

  16. Multiple Services in Daisy Chain Topology AirMux-200 AirMux-200 AirMux-200 AirMux-200 MP-2104 MP-2104 FCD-IP FCD-IP V.52 • Drop-and-insert topology saves cost of lease lines or infrastructure investment • Drop of any service • Optimized solution for specific node requirements • Target markets: utilities, cellular, transportation

  17. Typical users: Campus Cellular Utilities Multiple Services with Unique E1/T1 Ring Protection Fire Alarm FCD-IP MP-2104 4 x E1/T1 Ring • Unique ring protection • Optimized solution for specific node requirements • Any service MP-2100 NMS PBX Servers

  18. Emergency Services and Temporary Deployment • Enables mobility and fast deployment • Typical users: military, emergency services, broadcast, etc. Central Site AirMux-200 Remote Site n x links Switch Switch Megaplex AirMux-200 AirMux-200 n x E1 DXC

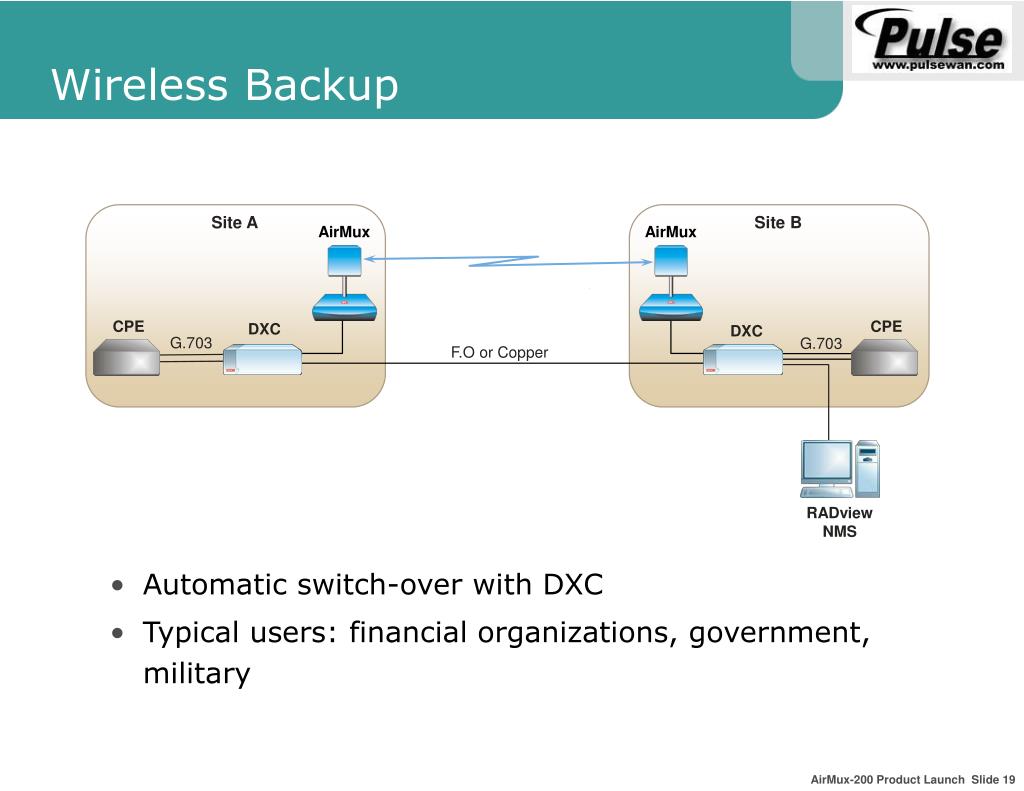

  19. Wireless Backup • Automatic switch-over with DXC • Typical users: financial organizations, government, military Site A Site B AirMux AirMux CPE CPE DXC DXC G.703 G.703 F.O or Copper RADview NMS

  20. Interconnecting Multiple Legacy Services over Packet Networks Router AirMux-200 V.35 • End-to-end transmission of multiple user services over IP, with central demarcation and aggregation IPmux units • Adds Ethernet traffic engineering tools such as rate limiting and VLAN stacking • End-to-end service provisioning with RADview-SC/TDMoIP IPmux-14 AirMux-200 Ethernet LAN IPmux-8/16 Ethernet Services 4-16 E1/T1 Ethernet PBX n x E1/T1 IPmux-14 Ethernet over Fiber Cable PLC Ethernet LAN NMS

  21. Integration of cellular, monitoring and management traffic Future migration to IP 3G BTS Cost-effective alternative to Microwaves High link availability Cellular Backhaul BTS Site BTS BSC Site AirMux-200 n x E1 Switch Packet 10/100BT AirMux-200 BSC n x links TDM BTS Site E3 BTS n x E1 AirMux-200 DACS Ethernet AirMux-200 • 0.05 ppm clock recovery • 8 msec E1 or T1 delay • 3 msec Ethernet delay

  22. Complies to clock accuracy, jitter and wander GSM requirements Protection via packet ring or mesh topology 25%-50% equipment savings versus 1+1 protection Cellular Backhaul with TDMoIP® Mesh Protection BTS Site BTS BSC Site 1-4 x E1 AirMux-200 IPmux-14 BSC 2 x 10/100BT AirMux-200 Up to 16 x E1 Backbone BTS Site n x links n x F.Eth IPmux-16 BTS 1-4 x E1 AirMux-200 IPmux-14 2 x 10/100BT AirMux-200

  23. Voice Traffic Extension over Wireless Branch #1 PBX Up to 80 km/50 miles E1/T1 Vmux-110 AirMux-200 • High link utilization with up to 16:1 compression ratio • Enables extending E1 or T1 over IP for up to 80 km/50 miles Headquarters AirMux-200 Router Vmux-2100 Branch #2 E1/T1 PBX IP / TDM Network IP or E1/T1 E1/T1 Vmux-110 PBX E1/T1 PSTN

  24. Summary of AirMux-200 Benefits • Best price/performance in the industry - Fast ROI • Combination of up to 4 x E1/T1 plus Ethernet, with high traffic throughput • High link availability with carrier-class performance • Reduction of deployment time and expenses as part of a complete interoperable solution with other RAD devices (e.g. Megaplex Multiservice Access Multiplexers) • Management of hundreds of links and access devices from a single SNMP fault management application • Enhanced security with standard encryption mechanism • Easy deployment via installation and alignment tools

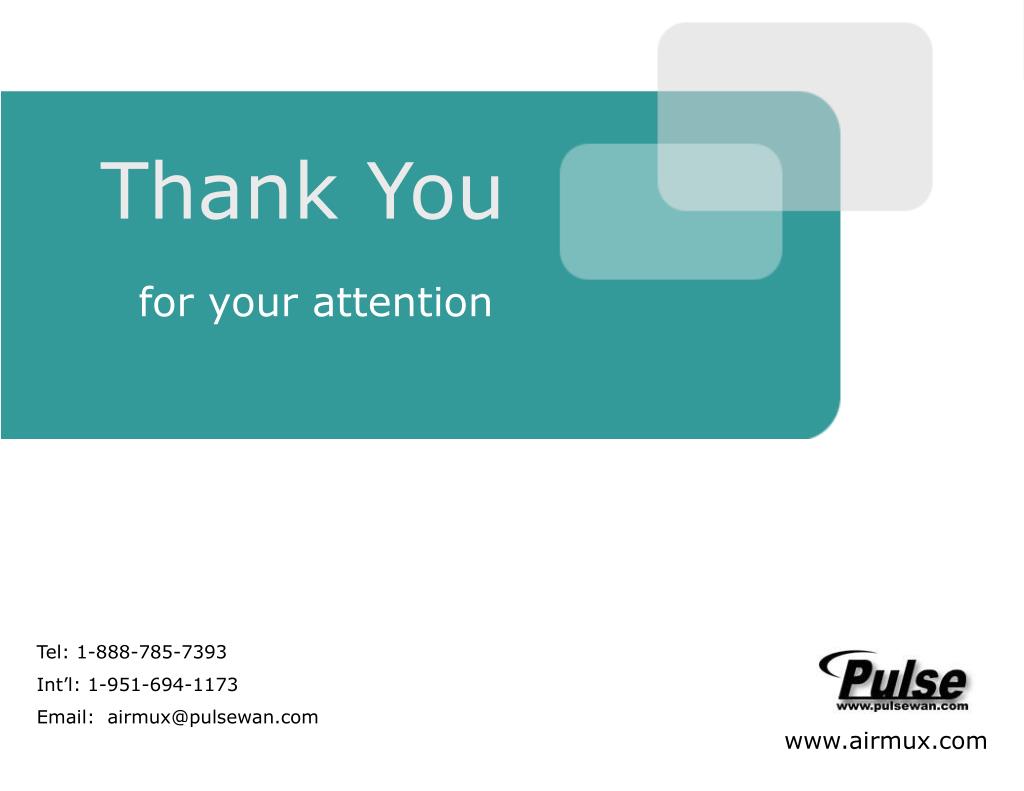

  25. Thank You for your attention Tel: 1-888-785-7393 Int’l: 1-951-694-1173 Email: airmux@pulsewan.com www.airmux.com
