Presentation Transcript
overview

Software Components Developed

Hardware Components Developed

Operating Systems Developed

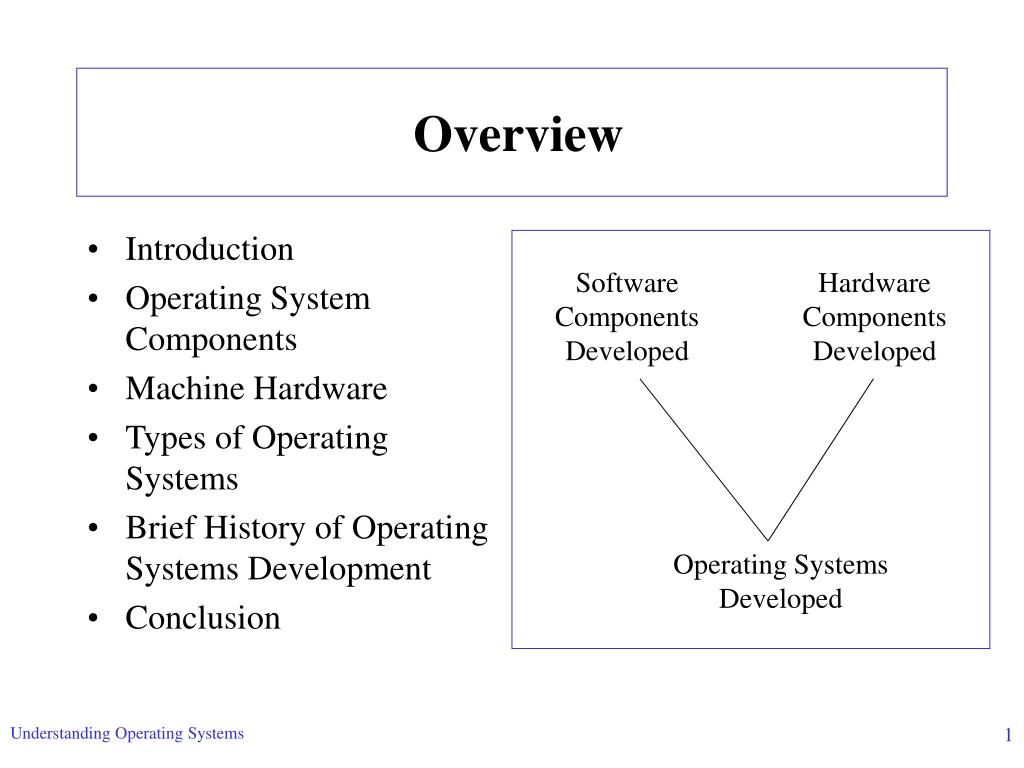

Overview
  • Introduction
  • Operating System Components
  • Machine Hardware
  • Types of Operating Systems
  • Brief History of Operating Systems Development
  • Conclusion

Understanding Operating Systems

brief history of operating systems development
Brief History of Operating Systems Development

Recent Developments

Distributed computing, personal computers, high-speed communication, multi-media

Second Generation

Job scheduling, JCL, faster I/O, spooling, batch, files

1940 1955 1965 1980 1990

First Generation

Vacuum tube, single user, early operating systems

Third Generation

Shared processing, multiprogramming, virtual memory, DBMS

Understanding Operating Systems

operating systems
Operating Systems

Operating Systems in Practice

MS-DOS Operating System

Windows 2000

UNIX/Linux Operating System

OpenVMS Alpha Operating System

IBM OS/390 Operating System

Understanding Operating Systems

what is an os
What is an OS?

Users

Application programs

Operating System

Computer Hardware

Understanding Operating Systems

what is an os1
What is an OS?
  • Clients or users (e.g., people or machines) trying to use the resources to solve problems
  • Application programs (e.g., text editors, compilers, video games, databases, business software) which define how the resources can be used to solve computing problems
  • An operating system (OS) (a computer program) which acts as an intermediary between the users and the hardware. The purpose of the OS is to provide an environment for a user to execute programs conveniently and efficiently
  • A computer hardware (consisting of CPU, Memory, I/O devices) which provides the basic computing resources.

Understanding Operating Systems

components of an operating system

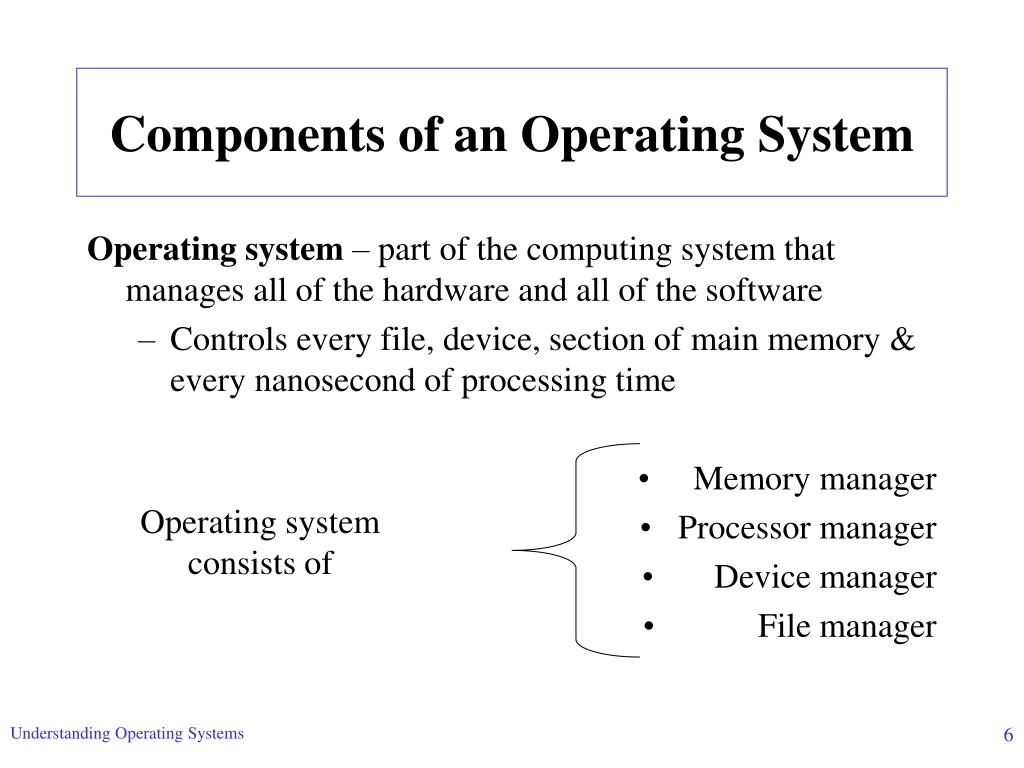

Components of an Operating System

Operating system – part of the computing system that manages all of the hardware and all of the software

    • Controls every file, device, section of main memory & every nanosecond of processing time
  • Memory manager
  • Processor manager
  • Device manager
  • File manager

Operating system consists of

Understanding Operating Systems

what is an os a pictorial view

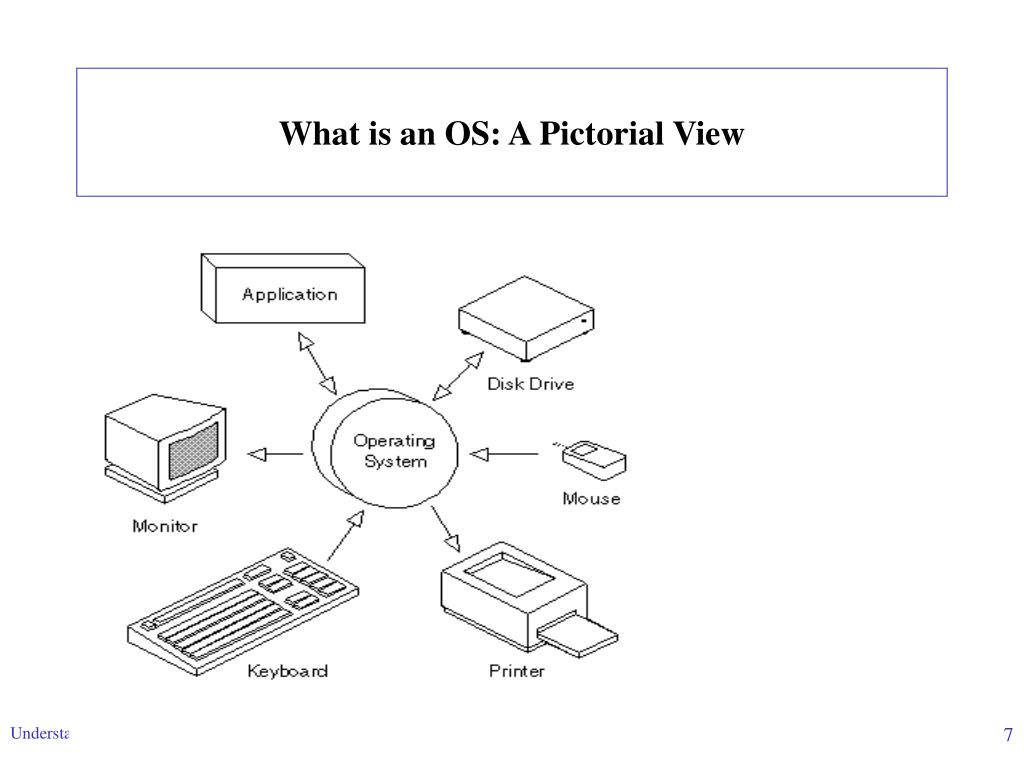

What is an OS: A Pictorial View

Understanding Operating Systems

tasks performed by each subsystem
Tasks Performed by Each Subsystem
  • Monitor its resources continuously
  • Enforce the policies that determine who gets what, when and how much
  • Allocate the resource when appropriate
  • Deallocate the resource (reclaim it) when appropriate

Understanding Operating Systems

machine hardware

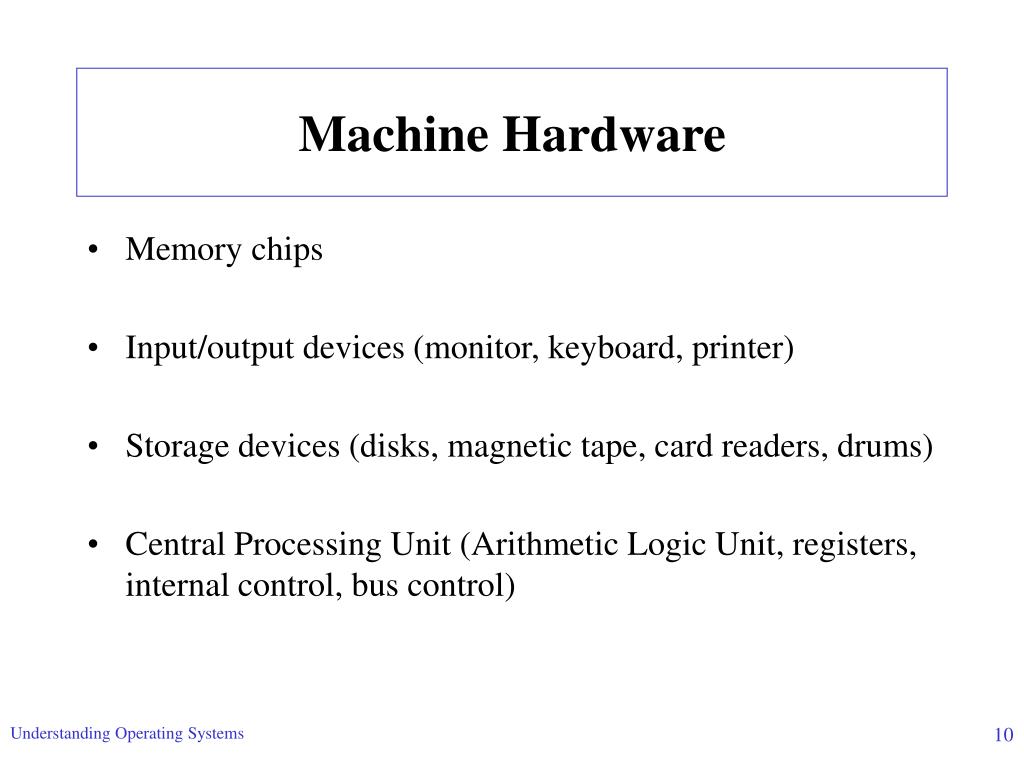

Machine Hardware
  • Memory chips
  • Input/output devices (monitor, keyboard, printer)
  • Storage devices (disks, magnetic tape, card readers, drums)
  • Central Processing Unit (Arithmetic Logic Unit, registers, internal control, bus control)

Understanding Operating Systems

types of operating systems

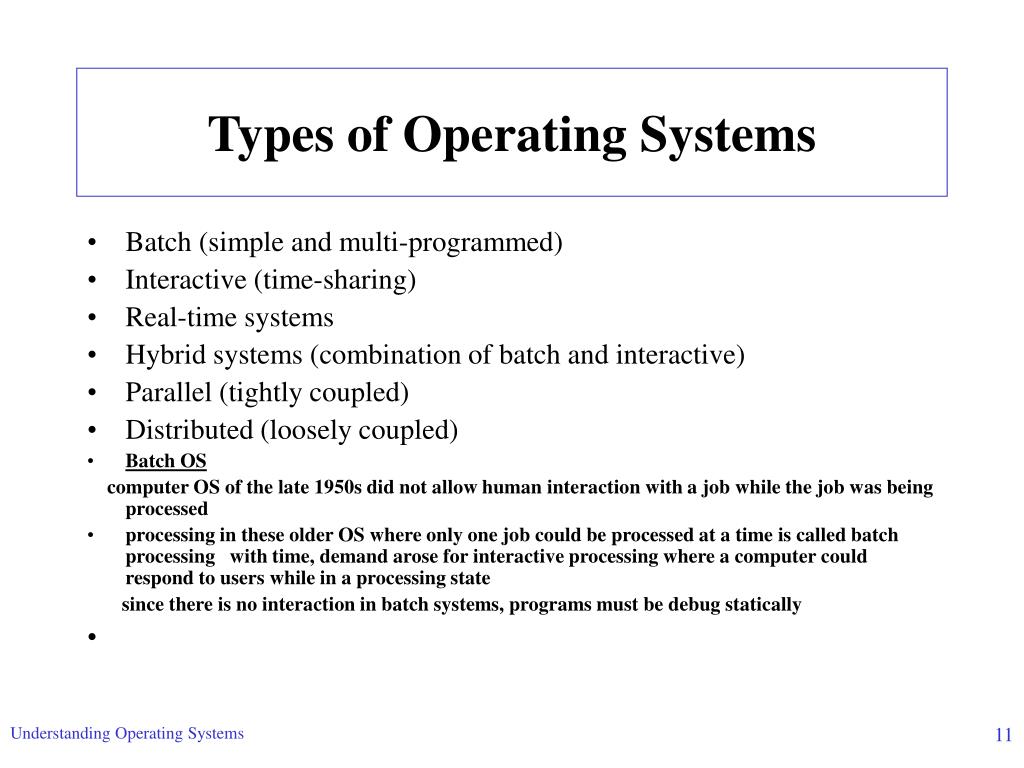

Types of Operating Systems
  • Batch (simple and multi-programmed)
  • Interactive (time-sharing)
  • Real-time systems
  • Hybrid systems (combination of batch and interactive)
  • Parallel (tightly coupled)
  • Distributed (loosely coupled)
  • Batch OS

computer OS of the late 1950s did not allow human interaction with a job while the job was being processed

  • processing in these older OS where only one job could be processed at a time is called batch processing with time, demand arose for interactive processing where a computer could respond to users while in a processing state

since there is no interaction in batch systems, programs must be debug statically

Understanding Operating Systems

types of os

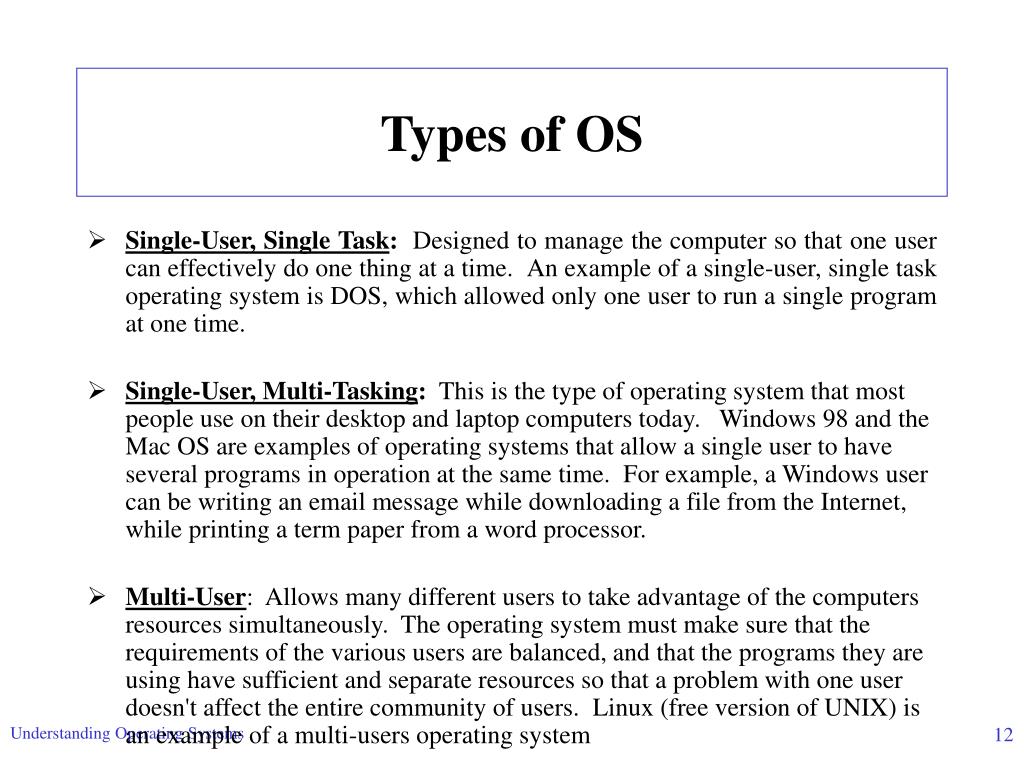

Types of OS
  • Single-User, Single Task:  Designed to manage the computer so that one user can effectively do one thing at a time.  An example of a single-user, single task operating system is DOS, which allowed only one user to run a single program at one time.
  • Single-User, Multi-Tasking:  This is the type of operating system that most people use on their desktop and laptop computers today.   Windows 98 and the Mac OS are examples of operating systems that allow a single user to have several programs in operation at the same time.  For example, a Windows user can be writing an email message while downloading a file from the Internet, while printing a term paper from a word processor.
  • Multi-User:  Allows many different users to take advantage of the computers resources simultaneously.  The operating system must make sure that the requirements of the various users are balanced, and that the programs they are using have sufficient and separate resources so that a problem with one user doesn't affect the entire community of users.  Linux (free version of UNIX) is an example of a multi-users operating system
  • Real-Time Operating System:  Real-time operating systems are used to control machinery, scientific instruments, and industrial systems.   A real-time operating system typically has very little user interface capability and no end-user utilities.  A very important part of a real-time operating system is managing the resources of the computer so that a particular operation executes in precisely the same amount of time every time it occurs.

Understanding Operating Systems

multi user os scheduling
Multi-User OS & Scheduling
  • A multi-user OS consists of two main software components called the scheduler and the dispatcher
  • The scheduler arranges the order in which commands are executed on the computer. The dispatcher gives control of the CPU to a job already scheduled by the scheduler
  • Scheduling is the process of selecting a program from the ready queue that will take control of the CPU
  • In other words, a scheduling algorithm determines access to the CPU
  • Clearly, there are many possible job scheduling arrangements e.g., Allowing every job to execute to completion before the next job starts. Is there a potential problem with this scheme?
  • A preemptive algorithm allows a job to be stopped after executing for some time or because a higher priority job has arrived. A Nonpreemptive algorithm does not allow such stoppage.
  • Example Algorithms: FIFO, priority (e.g., shortest-job-first (SJF))

Understanding Operating Systems
