proliant ml110 g5 product overview
ProLiant ML110 G5Product Overview

The ML110 G5 Entry-level, single processor server solution for budget-conscious businesses

Ideal Applications

•File and print

•Web Messaging

•Small vertical applications or databases

•Shared internet access and LAN infrastructure

HP Confidential - NDA Required

what s good about what s new
What’s Good About What’s New?

HP Confidential - NDA Required

ml110 g5 product highlights
Performance

Quad-Core Intel® Xeon 3200 Series Processors,

Dual-Core Intel® Xeon 3000 Series Processors,

Dual-Core Intel® Pentium D Series Processors,

Single-Core Intel® Celeron D Series Processors,

Up to 8 GB of DDR2 800, Un-Buff ECC

BCM5722 Gigabit NC105i

1 PCI 32-bit/33 MHz Slot

3 PCIe Slots (1x8, 2x1)

HP Embeded SATA RAID 0,1,1+0

Management

Standard

In-band IPMI 2.0 features (through the OS)

Host access to IPMI environment HW status

Supported by IPMI aware OSes

Will be validated with SIM and MOM (WS-Management)

Options

SSL & SSH security

SMASH CLP and browser access to remote power, SEL, HW status, and setup

Security – IPMI 2.0, SSH, SSL setup in the factory

KVM/IP and virtual media (CD/DVD & floppy) support which can be accessed through browser or CLP

ISO 9660

ML110 G5 Product Highlights

The ideal server for small businesses looking to create an IT infrastructure utilizing HP quality.

HP Confidential - NDA Required

product overview

Before Remote Management SW

With Remote Management SW

Product Overview
  • HP Lights Out 100 Remote Management
    • Cost-effective, entry level remote management solution for the ProLiant 100 series servers
    • If something goes wrong with a server, IT can connect w/o having to drive or walk to the site. Control is from the comfort of one’s own location.
  • What’s new in firmware version 3.0?
  • Support for new servers: ML110 G5
    • Does not support previous server generations
  • Virtual DVD-ROM support
  • USB 2.0 support for faster virtual media
  • User interface improvements
  • Licenses for Flatpacks and Electronic Key Distribution
  • Future optional upgrade licenses

HP Confidential - NDA Required

proliant ml310 g5 product overview
ProLiant ML310 G5Product Overview

The ML310 G5 is an enterprise tower server

at an entry level price.

Key Benefits

Affordable performance

Enterprise class management and monitoring

Flexible storage offerings

HP Confidential - NDA Required

what s new
What’s New?
  • Support for Quad, Dual and Single-Core 64-bit Intel Processors
    • Kentsfield-Xeon X3220 QC (2.4GHz/8MB cache/1066MHz FSB)
    • Kentsfield-Xeon X3210 QC * (2.13GHz/8MB cache/1066MHz FSB)
    • Conroe-Xeon X3075 DC* (2.66GHz/4MB cache/1333MHz FSB)
    • Conroe-Xeon X3065 DC*  (2.33GHz/4MB cache/1333MHz FSB)
    • Core2Duo E4400 DC (2.0GHz/2MB cache/800MHz FSB)
    • Conroe-L 2160 DC   (1.80GHz/1MB cache/800MHz FSB)
    • Celeron C420 SC   (1.60GHz/512KB cache/800MHz FSB)
  • New Intel® 3210 Chipsetwith faster 1333 MHz Front Side Bus
  • Support for PC2-6400 DDR2 800MHz memory
  • New HP SC40Ge SAS HBA for SAS models
    • PCI-Express
    • RAID 0,1
    • No cache
    • 1x4 internal/0 external connections
  • Embedded Gigabit NIC now with shared iLO2 functionality
  • ATI-RN50 video controller with 32MB of memory

* BTO models available

HP Confidential - NDA Required

what s changed
What’s Changed?
  • Half-height SATA optical devices supported
    • DVD-ROM drive standard
    • DVD-RW optional
  • Fans are different w/ G5
    • Active heat sink w/ fan
    • Optional fan required when PCI-X Extender Board included
  • New PCI I/O configuration:
    • Standard: (1) x8 PCI Express, (3) x1 PCI Express
    • Optional: PCI-X Extender Board for (1) 64-bit/100MHz PCI-X
  • Optional parallel port and second serial port
    • Parallel port no longer standard
  • Dimensions (HxDxW)
    • Without bezel: 17.0in x 22.8in x 7.9in (43.2cm x 58.0cm x 20.0cm)
    • With bezel: 17.0in x 24.0in x 7.9in (43.2cm x 61.0cm x 20.0cm)

HP Confidential - NDA Required

continued support
Continued support
  • Dedicated iLO2 port
  • Power supply options – 1 NHP or 2 HP, redundant power supplies. Same power supplies as G4 but there is a new NHP kit with a longer cable (power supply is the same as G4).
  • Six USB ports – 2 front, 1 internal, 2 rear, 1 dedicated for internal tape

HP Confidential - NDA Required

ml310 g5 highlights

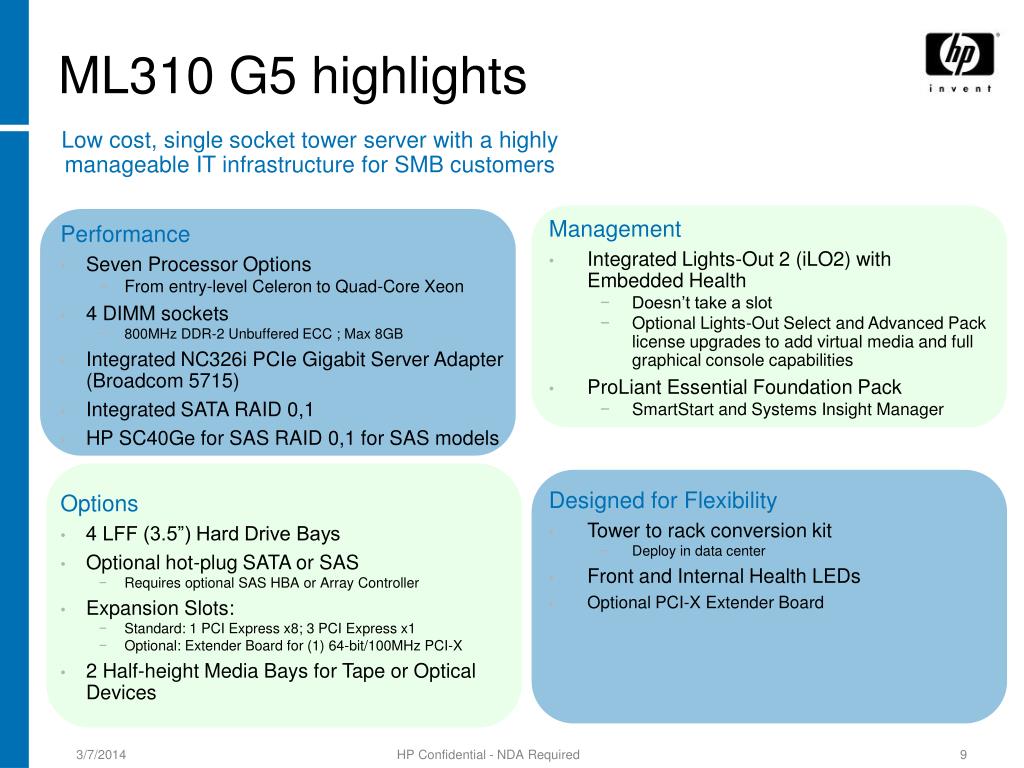

ML310 G5 highlights

Low cost, single socket tower server with a highly manageable IT infrastructure for SMB customers

Management

  • Integrated Lights-Out 2 (iLO2) with Embedded Health
    • Doesn’t take a slot
    • Optional Lights-Out Select and Advanced Pack license upgrades to add virtual media and full graphical console capabilities
  • ProLiant Essential Foundation Pack
    • SmartStart and Systems Insight Manager

Designed for Flexibility

  • Tower to rack conversion kit
    • Deploy in data center
  • Front and Internal Health LEDs
  • Optional PCI-X Extender Board

Performance

  • Seven Processor Options
    • From entry-level Celeron to Quad-Core Xeon
  • 4 DIMM sockets
    • 800MHz DDR-2 Unbuffered ECC ; Max 8GB
  • Integrated NC326i PCIe Gigabit Server Adapter (Broadcom 5715)
  • Integrated SATA RAID 0,1
  • HP SC40Ge for SAS RAID 0,1 for SAS models

Options

  • 4 LFF (3.5”) Hard Drive Bays
  • Optional hot-plug SATA or SAS
    • Requires optional SAS HBA or Array Controller
  • Expansion Slots:
    • Standard: 1 PCI Express x8; 3 PCI Express x1
    • Optional: Extender Board for (1) 64-bit/100MHz PCI-X
  • 2 Half-height Media Bays for Tape or Optical Devices

HP Confidential - NDA Required

what s new for ml350 g5
What’s new for ML350 G5?
  • ML350 G5 will support new Intel Harpertown Quad-Core Xeon 5400 series processor offerings (1333 FSB 80W 12MB L2 cache)
  • Support SATA optical drives on models with Quad-Core Intel Xeon 5400 series processors
  • System memory increased to 2GB as standard on Base Models with Harpertown Quad-Core Intel Xeon 5400 series

HP Confidential - NDA Required

what s new for ml370 g5

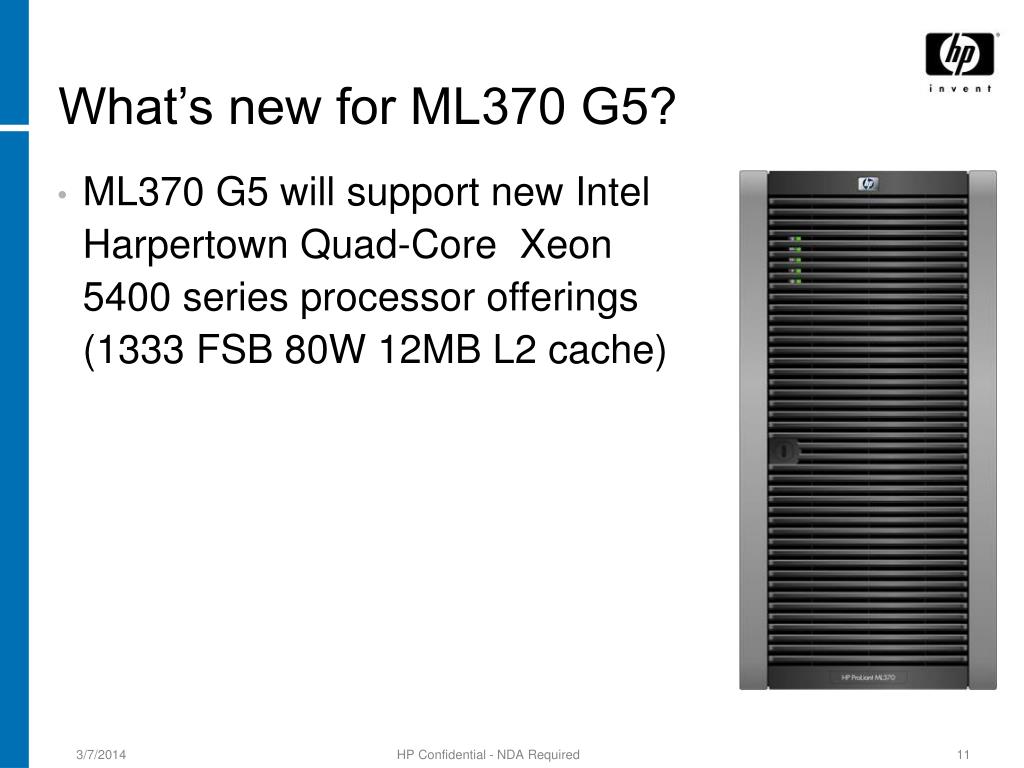

What’s new for ML370 G5?
  • ML370 G5 will support new Intel Harpertown Quad-Core Xeon 5400 series processor offerings (1333 FSB 80W 12MB L2 cache)

HP Confidential - NDA Required
