geology field guide

Geology Field Guide

By: Carolyn Langdon

and

Istana Thumser

slide2

Our High Schools

Mesozoic Basin

Battlefield Haymarket, VA

Osbourn Park Manassas, VA

general piedmont and mesozoic basin description
General Piedmont and Mesozoic Basin Description
  • The Piedmont region of Virginia was exposed after Gondwana collided with North America in the Paleozoic 310 million years ago creating the Alleghanian Orogeny.
piedmont
Piedmont
  • During the opening of the Atlantic ocean (DCM) that started approximately 230 million years ago, sediments from the eroding mountains started collecting in the geographic region now known as the Piedmont.
slide11

Transgression and Deposition

http://csmres.jmu.edu/geollab/Fichter/Wilson/StageC.html

piedmont in detail
Piedmont in Detail
  • Alleghanian Orogeny cooked rock
    • folded, twisted faulted
  • Igneous and sedimentary rock turned to metamorphic rock from immense pressure
    • Faults formed from broken rock
    • Landscape wore down to almost sea level
  • Deep red clayey soils present
    • Indicates chemical weathering; high in FeOx

http://www.nps.gov/archive/mana/pphtml/subenvironmentalfactors13.html

faults
Faults
  • Reverse and strike-slip faults can also be found in this area, running in the northeast southwest direction
    • Created by tension between N. America & Africa’s separation

Piedmont

Fault line

C. M. Bailey, College of William & Mary

mesozoic basin
Mesozoic Basin
  • Low basins in the Piedmont where sediments collect in grabens between faults are Triassic and Jurassic in age.
  • The largest basin in Virginia is the Culpeper Basin.
culpeper basin newark supergroup
Culpeper BasinNewark Supergroup
  • Borders eastern front of Appalachian Mountains from Culpeper, VA into MD
  • Low, gentle rolling to flat topography
  • Sediment filled grabens & half grabens
  • Stage “O” of Wilson Cycle
    • Formed by rifting; separation of Africa from N. Am
  • Aligned in NE-SW orientation
  • Sedimentary and igneous rocks (Jurassic & Triassic)
    • Basalt flows
    • Most common rock type= diabase as dikes & sills

http://www.nps.gov/archive/mana/pphtml/subenvironmentalfactors13.html

slide17

Day 2

Haymarket, Manassas, Quarry

Day 1

USGS; Great Falls

WPWestern Piedmont

                  Mz Mesozoic Basins

Early Paleozoic meta- sedimentary and igneous rocks associated with the suture zone between Blue Ridge (Laurentian) rocks and terrains of the Piedmont.

Triassic sedimentary rocks deposited in half grabens & grabens during rifting that produced the Atlantic Ocean.

rock garden scavenger hunt
Rock Garden Scavenger Hunt
  • Examples of rock units in Piedmont
    • Show sedimentary, structural, mineralogical and weathering features

http://www.usgs.gov/visitors/rocks.html

great falls western piedmont virginia and maryland
Great Falls: Western Piedmont Virginia and Maryland
  • Major attraction= Potomac River
    • Formed by uplift of Piedmont Plateau & Appalachian Highlands
    • Slope of land increased; streams deepened their valleys & coalesced into the Potomac
  • Great Falls formed during Ice Age
    • Occupies broad valley
    • Thick metamorphosed sandstone layers
    • River flows into Mather Gorge below falls
      • Excavated ~ 2 MYA (Pleistocene glaciation)

www.cr.nps.gov/history/online_books/grfa/sec4.htm

guided inquiry incomplete trail log
Guided Inquiry: Incomplete Trail Log
  • Walking tour with notable geological features seen from park trails
    • Virginia and Maryland sides
    • Describe and discuss rock features
    • Use hand lens to identify minerals
    • Include geologic time chart
rocks of mather gorge formation late proterozoic and precambrian
Rocks of Mather Gorge Formation(Late Proterozoic and Precambrian)

Buried & metamorphosed by heat/pressure

Precambrian rock!!

  • Mica Schist
  • Metagraywacke
  • Amphibolite: intruded ~550-600 mya (zircon)
  • Granite: intruded ~425 mya
  • Lamprophyre: mostly mica; ~360 mya
  • Pegmatite
  • Granodiorite (jd)~470 mya

http://www.cr.nps.gov/history/online_books/grfa/sec5.htm

slide23

Geologic Time Chart

http://www.cr.nps.gov/history/online_books/grfa/sec5.htm

metamorphosed sed ig rocks
Metamorphosed Sed/Ig Rocks
  • Deformed during collisions of continental plates
    • Resulted in Alleghanian Orogeny
    • Sedimentary and Igneous rocks metamorphosed to schist and gneiss (CZms) & migmatite (CZmm)
  • Tightly folded; layered w/ foliation planes of mica
    • Contain closely-spaced fractures

http://geology.er.usgs.gov/eespteam/Greatfalls/INDEX.HTML

mather gorge formation
Mather Gorge Formation
  • Made of metamorphosed sedimentary rocks
    • ~600 mya (Precambrian)
    • Originally deposited as sand, mud, silt in Iapetus Ocean (before Atlantic)
    • Eroded from an ultramafic igneous rock
    • Biotite, muscovite, staurolite, kyanite & garnet crystals grew as rocks cooled

http://geology.er.usgs.gov/eespteam/Greatfalls/INDEX.HTML

after granite intrusions
After Granite Intrusions
  • Crust rose & overlying rocks eroded
    • Rock temps declined; rocks fractured
    • Molten material formed lamprophyre dykes
  • Gorge cut along several faults (Triassic)
    • Contain siliceous white quartz veins; some native gold

** Have same orientation as Triassic age faults close by (~200mya)

http://www.cr.nps.gov/history/online_books/grfa/sec5.htm

current landscape
Current Landscape
  • Results from erosion of Potomac River
  • River follows cracks & faults in Mather Gorge
  • Terraces (level surfaces) cut into bedrock by river = remnants of flood plains
  • 6 recognized terrace levels
    • Down-cutting created islands, islets, oxbows, potholes and more
    • Exposures of Piedmont bedrock

http://geology.er.usgs.gov/eespteam/Greatfalls/INDEX.HTML

metagraywacke and schist folded beds
Metagraywacke and Schist (folded beds )

http://geology.er.usgs.gov/eespteam/Greatfalls/INDEX.HTML

amphibole dark plagioclase light crystals in amphibolite
Amphibole (dark) & plagioclase (light) crystals in amphibolite

Vein quartz intrudes all Mather Gorge Formation

http://geology.er.usgs.gov/eespteam/Greatfalls/INDEX.HTML

haymarket
Haymarket
  • Extrusive igneous rock layered with sedimentary rock layers
  • Vesicular basalt from Jurassic indicates tectonic activity
  • Aphanitic rock shows it cooled very quickly

Randy Korntev, WUStL

manassas battlefield park part of culpeper basin
Manassas Battlefield ParkPart of Culpeper Basin
  • Composed of sedimentary rock matrix (i.e., siltstone & sandstone)
  • Igneous diabase forms intrusive dikes & sills
  • Eastern park soil from parent siltstone
  • Western park soil from diabase
    • Progressed up through siltstone during upheaval of Alleghanian Orogeny

http://www.nps.gov/archive/mana/pphtml/subenvironmentalfactors13.html

soils
Soils
  • 79% from siltstone
    • Strongly acidic, well-drained silt loam
  • 19% from diabase
    • Loamy, clay minerals, fragipan layers limit permeability
  • 2% alluvial (carried/deposited by stream action)

http://www.nps.gov/archive/mana/pphtml/subenvironmentalfactors13.html

siltstone and diabase collision
Siltstone and Diabase Collision
  • Heat of emerging diabase melted siltstone
    • Created narrow metamorphic rock bands
      • Contained epidote, pyroxene, garnet, cordierite minerals

http://www.nps.gov/archive/mana/pphtml/subenvironmentalfactors13.html

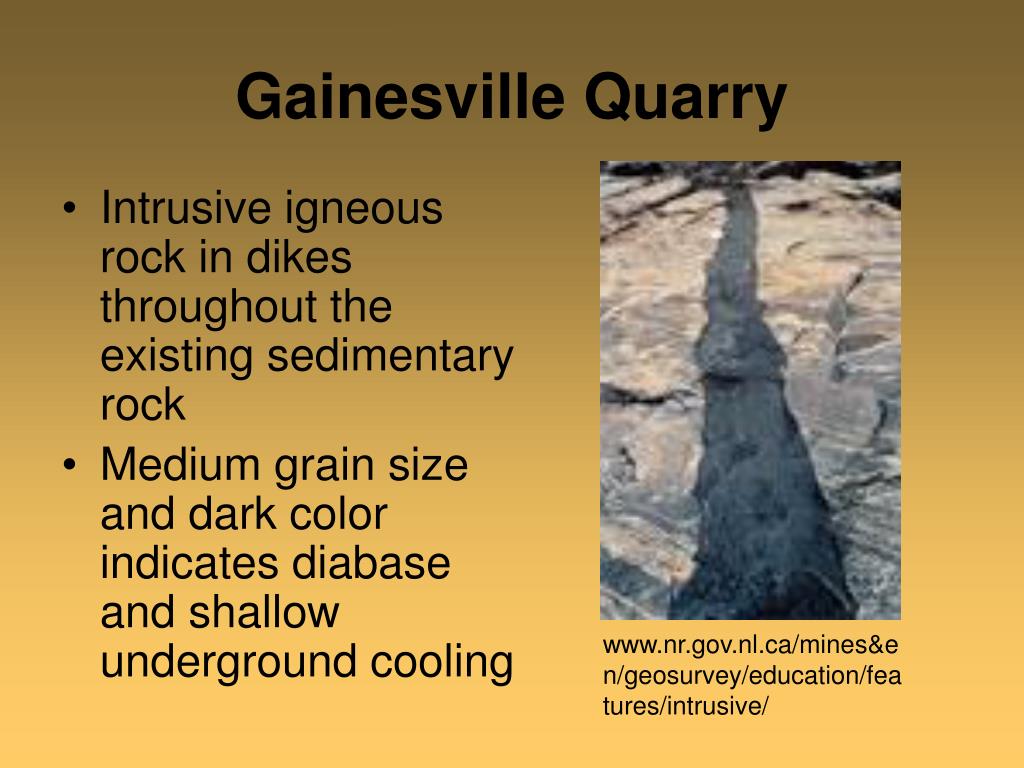

gainesville quarry
Gainesville Quarry
  • Intrusive igneous rock in dikes throughout the existing sedimentary rock
  • Medium grain size and dark color indicates diabase and shallow underground cooling

www.nr.gov.nl.ca/mines&en/geosurvey/education/features/intrusive/

post lesson inquiry activity
Post Lesson Inquiry Activity

Discovering The Wilson Cycle

By: Dr. Lynn Fichter http://csmres.jmu.edu/geollab/fichter/Wilson/platbnd2.html
