  1. The Frontiers of HCI Jim Warrenderived from lots of places and with thanks to Beryl Plimmer Haptics, Smell and Brain Interaction

  2. Learning Outcomes • Describe haptics in terms of • Human perception • Applications • Devices • Describe application of eye tracking and visual gesture recognition • Describe the exploration of • Olfactory detection and production • Brain wave detection

  3. The Human Perceptual System • Physical Aspects of Perception • Touch (tactile/cutaneous) • Located in the skin, enables us to feel • Texture • Heat • Pain • Movement (kinesthetic/proprioceptive) • The location of your body and its appendages • The direction and speed of your movements

  4. Physical Aspects of Perception • Proprioception • We use sensation from our joints (e.g. their angles) and our muscles (e.g. strain) to determine the position of our limbs and perceive body position • Combine with vestibular system (inner ear, balance) to perceive motion, orientation and acceleration • This combination is sometimes called the kinaesthetic sense.

  5. Mobile devices • Phone output • Vibrate – silent alert. • These can be used like earcons – different signals for different events • Does your phone have different alerts? • Can you tell the difference?

  6. Mobile devices • Phone input • Touch screens • See previous lecture • Accelerometer - shaking actions • Inconsistent interactions, high error rates • Passive input • GPS • Altimeter, Temperature, Humidity • Specialised fitness or medical monitors Fitbit Flex with sleep tracker

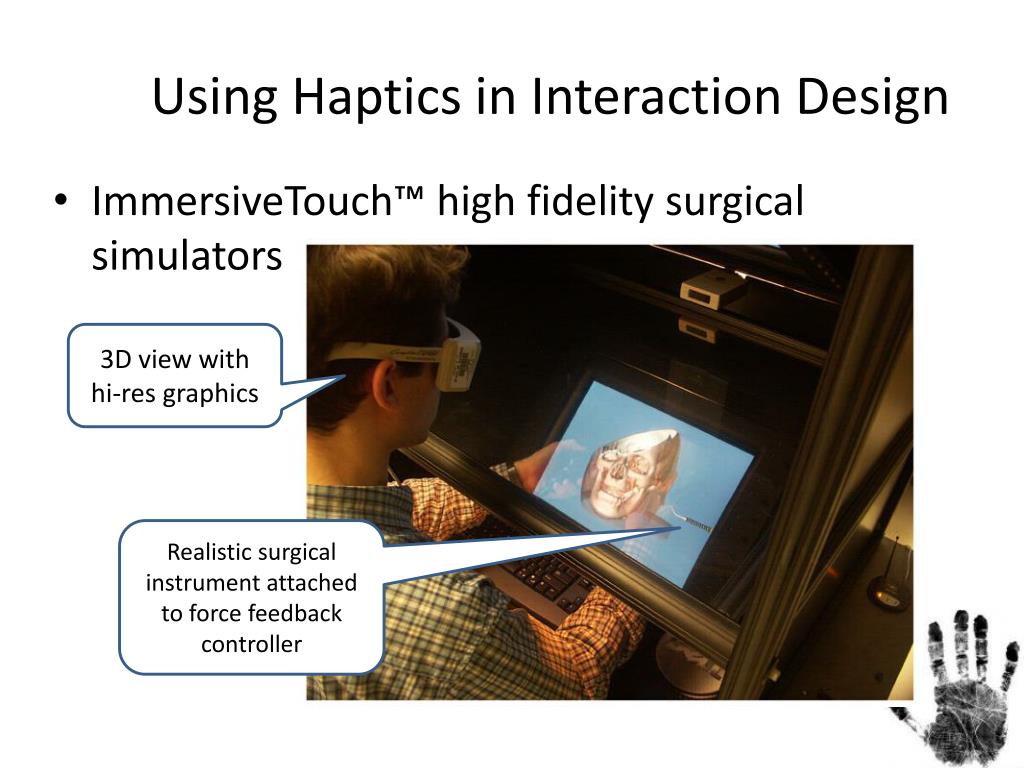

  7. Using Haptics in Interaction Design • ImmersiveTouch™ high fidelity surgical simulators 3D view with hi-res graphics Realistic surgical instrument attached to force feedback controller

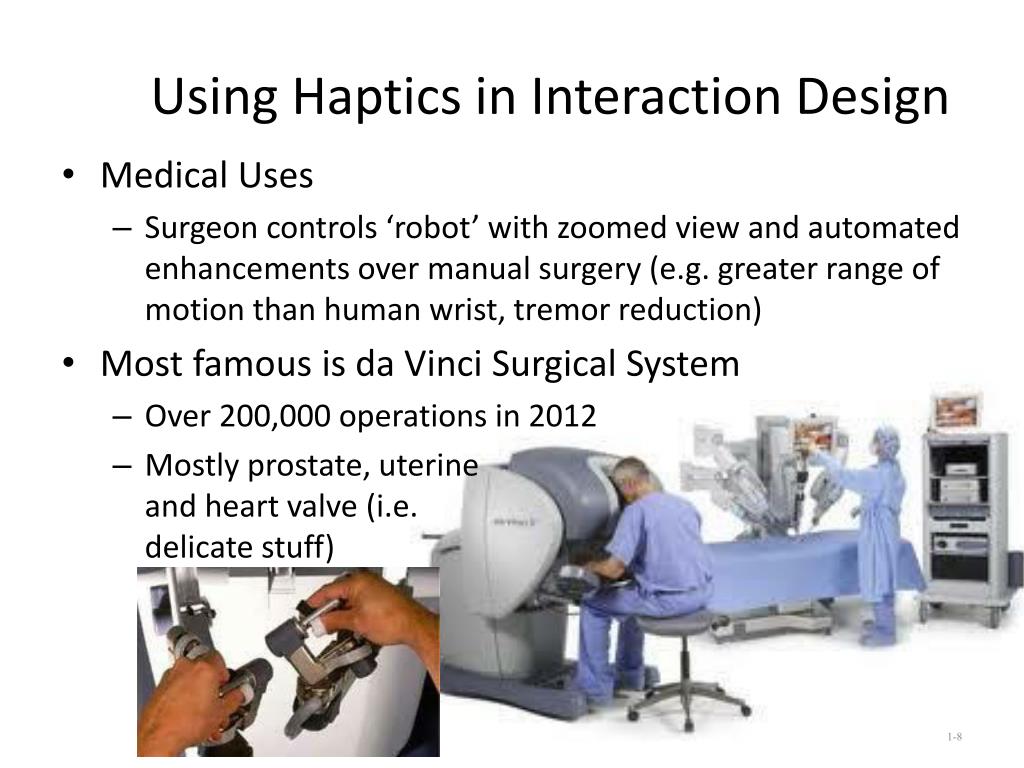

  8. Using Haptics in Interaction Design • Medical Uses • Surgeon controls ‘robot’ with zoomed view and automated enhancements over manual surgery (e.g. greater range of motion than human wrist, tremor reduction) • Most famous is da Vinci Surgical System • Over 200,000 operations in 2012 • Mostly prostate, uterineand heart valve (i.e.delicate stuff)

  9. Using Haptics in Interaction Design • The GuideCane (Ulrich and Borenstein, 2001)

  10. Force Feedback Displays Force feedback – can ‘hang your hand’ on a virtual steeringwheel • Manipulator Gloves Motion capture Feel size and shape of virtual object CyberGlove II CyberGrasp CyberForce

  11. Desktop Haptic Devices • SensAble PHANTOM (now by GeoMagic) • Closest to a commodity force feedback tool PHANTOM Premium 6-degrees (3 translational,3 rotational) McSig – Beryl’s work with visually impaired http://dl.acm.org.ezproxy.auckland.ac.nz/citation.cfm?id=1993060.1993067&coll=DL&dl=ACM&CFID=333467105&CFTOKEN=52399920

  12. Eye tracking • Most consumer-friendly modern method uses infrared (IR) light reflected off of different parts of the eye to detect angle of gaze • 1st-4th Purkinje images are from outer and inner surfaces of cornea (1, 2) and outer and inner surfaces of lens (3, 4) • Measures of these angles from multiple locations,combined with measure of head position,allow estimation of gaze point on screen* * Chi Jian-nan ; Zhang Peng-yi ; Zheng Si-yi ; Zhang Chuang ; Huang Ying, Key Techniques of Eye Gaze Tracking Based on Pupil Corneal Reflection, IEEE Intelligent Systems, 2009 GP3 eye tracker by Gazepoint

  13. Eye tracking applications • Using eye tracking to estimate gaze point over time provides rich insight into how users consume a visual presentation • E.g. what do they look at on a Web page and for how long? • Rather more limited as an input method • Careful control of eye gazeto act as pointer can resultin eye strain* • But still useful for peoplewith disabilities • Can use dwell time toindicate click, but error-prone • Room for further research incombining with other inputmethods *http://www-edc.eng.cam.ac.uk/~pb400/Papers/4_pbiswas_JAT11a.pdf

  14. Visual gesture recognition • OpenKinect – sort of pirate community making API to use Xbox Kinect hardware widely • Makes skeleton from video and learns gestures for control • OK with broad gestures and good contrast to background • Kinect reasonably well received as a video game enhancer • Other apps being explored (e.g.surgeon to work computerwith sterile hands) http://support.xbox.com/en-NZ/xbox-one/kinect/common-gestures

  15. Olfactory - Odour/ Smell • Smell is essentially our ability to detect specific chemical particles in the air • We can detect about 4000 different smells • And they can be combined in millions of different ways • Smell is very deep in our animal brain

  16. Smell – current research • Using sounds and smellsignatures to aid recallof and affinity withindividuals • A wire in the glassesheats 8 perfumes torelease a scent • Yongsoon Choi, Rahul Parsani, Xavier Roman, Anshul Vikram Pandey, and Adrian David Cheok. 2012. Sound perfume: building positive impression during face-to-face communication. In SIGGRAPH Asia 2012 Emerging Technologies (SA '12). ACM, New York, NY, USA, , Article 22 , 3 pages. DOI=10.1145/2407707.2407729 http://doi.acm.org.ezproxy.auckland.ac.nz/10.1145/2407707.2407729 • Read http://www.newscientist.com/article/mg21228415.800-glasses-emit-personal-sound-and-smell.html#.Uz4nzI3HlSF • See video: https://www.youtube.com/watch?v=4-UTFNaesTc

  17. Technology of Odour • Input • Detecting particular chemicals is possible • Drug/ explosive sniffers • Detecting the range of smells in anything like human terms is extremely difficult task • Output • Manufacturing particular smells possible (e.g. ‘freshly baked cookies’ • Active generation of a range of smells very difficult, but choosing a single smell to assert branding and positive association for a retail outlet or such is already done (see http://www.scentair.com/why-scentair-news-press/smells-sell-as-hard-nosed-traders-discover/) • Actually not that different than the conventional use of perfume to create an almost-subliminal association for one’s partner • Also similar to branding with corporate colours

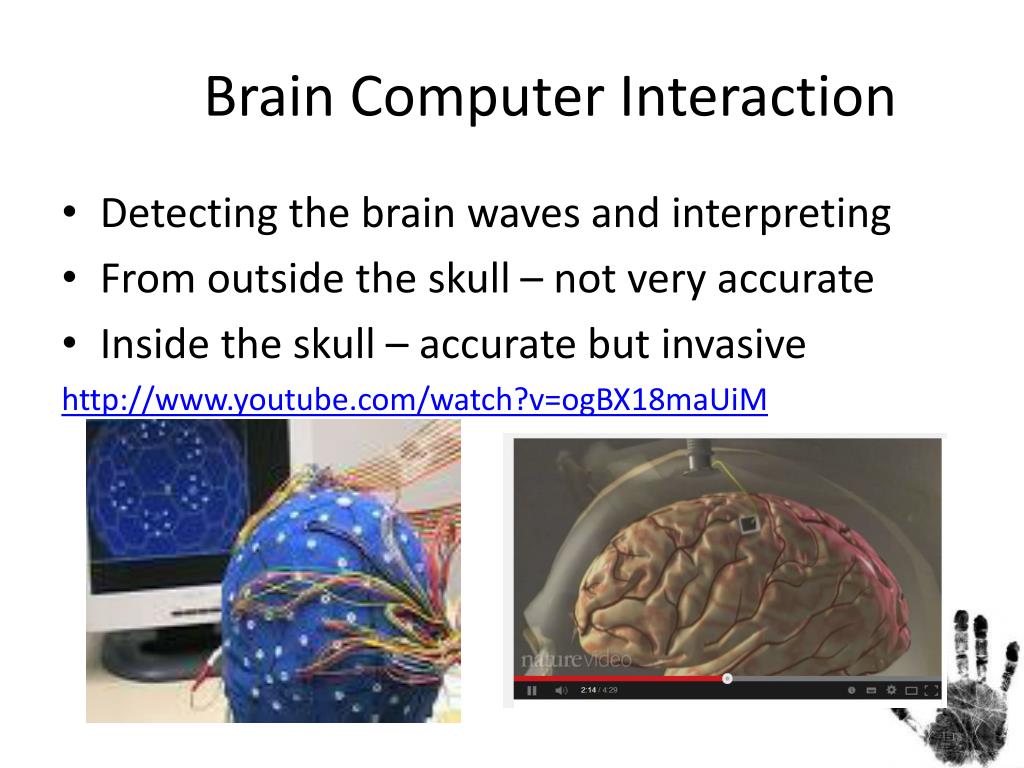

  18. Brain Computer Interaction • Detecting the brain waves and interpreting • From outside the skull – not very accurate • Inside the skull – accurate but invasive http://www.youtube.com/watch?v=ogBX18maUiM

  19. Reading nerve signals from brain to muscles • Application: Motor Disabilities • HAL-5 (Hybrid Assistive Limb), CYBERDYNE Inc. www.cyberdyne.jp

  20. EEG and Visually Evoked Potentials (VEP) • Electroencephalography (EEG) is the recording of electrical activity along the scalp • Patterns (in shape, or as strobing) coming into the eye can translate to measurable signals on the EEG (VEP) • However, there are many sources of noise, including blinking • And it’s not a rapid-response thing (usually analyse period 200-500ms following onset of visual stimulus) • See http://webvision.med.utah.edu/book/electrophysiology/visually-evoked-potentials/

  21. Summary • Describe haptics in terms of • Human perception • Touch, proprioception, kinaesthetics • Applications • Surgery (training or actual), assistive technology • Describe applications of eye tracking and visual gesture recognition • Eye tracking: user studies, assistive; Visual gesture: games • Describe the exploration of • Olfactory detection and production • Detection of specific chemicals possible • Production of a limited range of scents • Brain wave detection • Awkward set up and use through EEG, but a boon to those who need it • Fairly limited interaction without surgery
