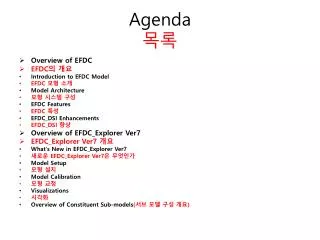

Agenda 목록. Overview of EFDC EFDC 의 개요 Introduction to EFDC Model EFDC 모형 소개 Model Architecture 모형 시스템 구성 EFDC Features EFDC 특성 EFDC_DSI Enhancements EFDC_DSI 향상 Overview of EFDC_Explorer Ver7 EFDC_Explorer Ver7 개요 What’s New in EFDC_Explorer Ver7
E N D
Agenda목록 • Overview of EFDC • EFDC의 개요 • Introduction to EFDC Model • EFDC 모형 소개 • Model Architecture • 모형 시스템 구성 • EFDC Features • EFDC 특성 • EFDC_DSI Enhancements • EFDC_DSI 향상 • Overview of EFDC_Explorer Ver7 • EFDC_Explorer Ver7 개요 • What’s New in EFDC_Explorer Ver7 • 새로운 EFDC_Explorer Ver7은 무엇인가 • Model Setup • 모형 설치 • Model Calibration • 모형 교정 • Visualizations • 시각화 • Overview of Constituent Sub-models(서브 모델 구성 개요)
Hydrodynamic Modeling Tool유체 모형 도구 Environmental 환경적 Fluid 유체 Dynamics 역학 Code 코드 EFDC_DSI
The EFDC Model • The Environmental Fluid Dynamics Code(EFDC) is a general-purpose modeling package • 환경유체역학 코드(EFDC)는 페키지 모델링이 일반적인 목적이다. • Simulates 1,2&3-D flow, transport, and biogeochemical processes in surface water systems(rivers, streams, lakes, estuaries, coastal waters and open ocean) • 물 표면 계(강, 하천, 호수, 하구, 연안바다, 대양)에서의 1,2&3-D 흐름, 수송, 생화학적 진행을 시뮬레이션한다. • EFDC model was originally developed at the Virginia Institute of Marine Science • EFDC 모형은 원래 Virginia Institute of Marine Science에서 개발됬다. • EFDC is a public domain model • EFDC 는 공공영역 모형이다. • EFDC_DSI isDynamic Solutions-International’s enhanced and optimized version • EFDC_DSI 는 Dynamic Solutions-International의 향상되고 최대한 좋게 만든 버전이다.
EFDC StructureEFDC 구조 수송 물의 염색과나이 퇴적물 독성 수질 Lagrangian입자 추적 유체역학 역학 (E,u,v,w, 혼합) 온도 염분 근처의 유체기둥
EFDC StructureEFDC 구조 • EFDC’s hydrodynamics are based on the 3D hydrostatic equations formulated in curvilinear-orthogonal horizontal coordinates and a sigma or stretched vertical coordinate system. • EFDC의 유체역학은 3D 수압 방정식의 공식화(곡선 직교 수평좌표와 시그마 또는 늘어난 수직좌표 시스템)에 기초한다. • EFDC is a coupled model eliminating model linkage issues • EFDC는 문제와 연결된 제거된 모형의 연결모형이다.
EFDC FeaturesEFDC의특성 • Wetting & drying(습윤&건조) • Vegetation resistance (식물 저항) • Boundary Conditions : (경계조건) • Flow( in and/or out)(흐름( 유입/유출)) • Open/pressure (개방/압력) • Hydraulic structures(유압구조) • Withdrawal/Return (취소/복구) • Wind speed/direction (바람의 속도/방향) • Multiple Stations (여러가지 스테이션) • Atmospheric Conditions (heat transport) • 대기조건(열수송) • Multiple Stations(여러가지 스테이션)
EFDC_DSI EnhancementsEFDC_DSI 향상 Dynamic Solutions-International (DSI) has developed an enhanced version the code (EFDC_DSI) which includes : (EFDC_DSI) 코드의향상된 버전을 개발한 역학 해답-국제(DSI) 는 다음을 포함한다: • Lagrangian Particle Tracking • Lagrangian입자 추적 • Dynamic Memory Allocation • 역학 메모리 할당 • Improved/Simplified External Wave Model Linkage • 외부의 웨이브 모델 연결의 향상/단순화 • Internal Windwave Generation • 내부의 Windwave생성 • Improved Water Quality Model with Dynamic Timestepping • 수질모형과 역학 단계적 시간의 향상 • Rooted Plant and Epiphyte Model (RPEM) • 뿌리식물과 착생식물 모형 • Age of Water/Residence Times • 물의 시기와 체류 시간 • OpenMP- Multi-Threading • MO개방-멀티 스레딩
The Graphical User Interface for EFDC EFDC_Explorer EFDC_Explorer를 위한 그래픽컬 유저 인터페이스
What is EFDC_Explorer?EFDC Explore는 무엇인가? • EFDC_Explorer (EE) is a pre-and post-processing tool developed by DSI for two versions of EFDC: • EE는 EFDC의 2 버전을 위해 DSI 를 개발한 사전 사후 처리 도구이다. • EFDC_DSI(Primary model) • EFDC_ DSI(최초 모형) • EFDC_GVC/EFDC/EPA (Legacy applications) • EFDC_GVC/EFDC/EPA (레거시 응용프로그램) • EE7 significantly streamlines the modeling process: • EE7은 모델링 진행이 상당히 간소화 됬다. • Model Input Preparation • 모형입력 준비 • Use of 2D GIS type information to define and edit model inputs • 편집모형의 입력과 정의를 위해 2D GIS 종류의 정보를 사용한다. • Context Sensitive Point & Click access to cell properties and BC assignments • 상황에 맞는 세심한 점과 BC 할당과 셀 속성의 접근 클릭 • EE7 provides a significantly enhanced yet simpler interface than previous versions of EE • EE7은 이전 버전인 EE보다 크게 향상된 간단한 인터페이스를 제공한다.
