  1. In the next slides, I look at some variables (possible cut variables) in real data (day109 – the light root file from this production) and pure data (power law pt) Since I used the pico file from this production, the real data distributions reflect the cuts we used (eg. Only +ve decay lengths)

  2. Transverse DCA to PV PureD0 Kaon Pion Real Data Kaon Pion

  3. σDCAXY PureD0 Kaon Pion Real Data Pion Kaon

  4. DCAXY/σDCAXY PureD0 Real Data Kaon Pion Motivation: http://www.star.bnl.gov/~bouchet/TCFIT/L_over_dl_cut_mix.ppt.htm

  5. DCAXY after cut |DCAXY/σDCAXY|>1 PureD0 Real Data Kaon Pion With a cut on DCAXY/σDCAXY > 1, entries with low DCAXY are removed.

  6. Decay Length with no offline cuts PureD0 Real Data We have cut slength>0 in the pico file

  7. Error of decay Length PureD0 Real Data

  8. dL/σdL PureD0 Real Data

  9. dL with a cut dL/σdL > 1 PureD0 Real Data With a cut dL/σdL > 1 the low values (~ below 100μm) of slength is removed.

  10. Probability of TcFit PureD0 Real Data Probability Vs TrackDcaKpi

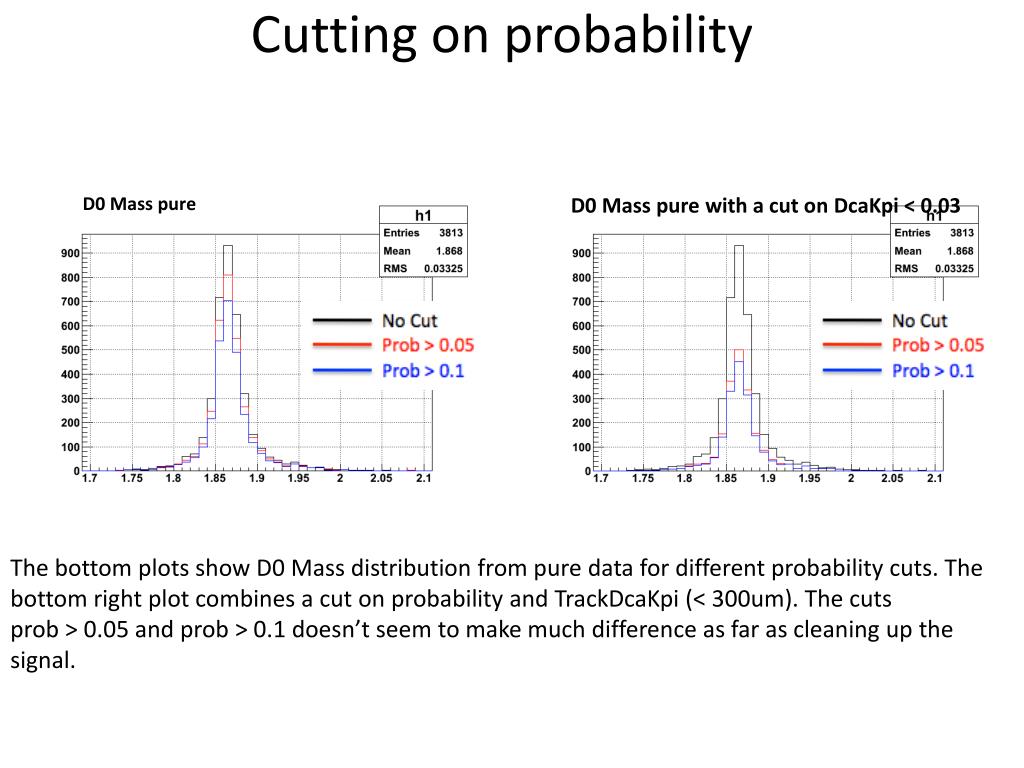

  11. Cutting on probability D0 Mass pure with a cut on DcaKpi < 0.03 D0 Mass pure The bottom plots show D0 Mass distribution from pure data for different probability cuts. The bottom right plot combines a cut on probability and TrackDcaKpi (< 300um). The cuts prob > 0.05 and prob > 0.1 doesn’t seem to make much difference as far as cleaning up the signal.

  12. Eta of the Parent (D0) PureD0 Real Data |EtaD0|<1.85 may be tried as we did with last production

  13. dEdx Pion Kaon With a cut |ndEdx|<2 With a cut |ndEdx|<2 K and π bands with |nσ| < 1.5 With the new momentum dependent cut on dEdx we are retaining much more candidates. I think the current cut |nSigma|<2 would be good enough.

  14. Eta of the Parent (D0) PureD0 Real Data |EtaD0|<1.85 may be tried as we did with last production

  15. Possible cuts to use in pico file * New/changed cuts • Create a pico file with: • |Cos(θ*)|<0.6 • |EtaD0|<1.85 • |ndEdx|K < 2, |ndEdx|π < 2 • |RapidityD0| < 0.5 • Probability > 0.05 • ChargeK*ChargePi <0

  16. Back-Up

  17. DCAXY Vs probability

  18. Probability and DCAXY/σDCAXY
