Omni Canister - Compact Design with Low Visual Impact

omni Canister is a is a four port Psudo-Omni antenna covering 3300-4200MHz in a 14.6"" diameter canister housing. This enables 4x4 MIMO in an Omni antenna. Designed for high capacity CBRS sites where high gain is important.<br>

jerianasmith
Download Presentation

Omni Canister - Compact Design with Low Visual Impact

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

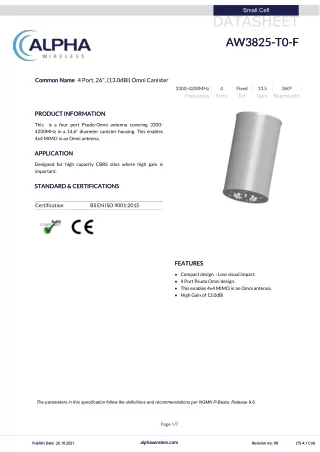

  1. Small Cell DATASHEET AW3825-T0-F AW3825-T0-F Common Name Common Name 4 Port, 26", (13.0dBi) Omni Canister 3300-4200MHz Frequency 4 Fixed Tilt 13.5 Gain 360⁰ Ports Beamwidth PRODUCT INFORMATION PRODUCT INFORMATION This is a four port Psudo-Omni antenna covering 3300- 4200MHz in a 14.6" diameter canister housing. This enables 4x4 MIMO in an Omni antenna. APPLICATION APPLICATION Designed for high capacity CBRS sites where high gain is important. STANDARD & CERTIFICATIONS STANDARD & CERTIFICATIONS Certification BS EN ISO 9001:2015 FEATURES FEATURES Compact design - Low visual impact. 4 Port Psudo Omni design. This enables 4x4 MIMO in an Omni antenna. High Gain of 13.0dBi The parameters in this specification follow the definitions and recommendations per NGMN P-Basta, Release 9.6. Page 1/7 alphawireless.com alphawireless.com Publish Date: Publish Date: 26.10.2021 26.10.2021 Revision no: Revision no: 08 08 (TS-4.1 Col) (TS-4.1 Col)

  2. Small Cell AW3825-T0-F AW3825-T0-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Electrical Specifications Electrical Specifications 4000-4200 Frequency Range Polarisation Gain MHz Degree dBi dBi Degree Degree Degree Degree< Ohms < dB> dB> dB> dB dBc< dB> 3300-3600 3600-3800 3800-4000 +/-45⁰ Basta Max 12.6 ±0.5 13.1 360⁰ 7.6⁰ 12.7 ±0.5 13.2 360⁰ 6.8⁰ 12.9 ±0.5 13.4 360⁰ 6.5⁰ 13.0 ±0.5 13.5 360⁰ 6.2⁰ Azimuth Beamwidth Elevation Beamwidth Electrical Downtilt Electrical Downtilt Deviation Impedance VSWR Return Loss Isolation Network to Network Isolation T0⁰ 1⁰ 50 1.5 14 N/A 25 N/A 145 15 Intraband Interband Passive Intermodulation Upper Sidelobe Suppression, Peak to 20° Cross-Polar Discrimination Maximum Effective Power Per Port dB> W Typ: 10 50 Sample Text Sample Text Representative Pattern Files Representative Pattern Files Sample Text Sample Text Elevation Elevation Azimuth Azimuth For radiation pattern files, please login at www.alphawireless.com Page 2/7 alphawireless.com alphawireless.com Publish Date: Publish Date: 26.10.2021 26.10.2021 Revision no: Revision no: 08 08 (TS-4.1 Col) (TS-4.1 Col)

  3. Small Cell AW3825-T0-F AW3825-T0-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Mechanical Specifications Mechanical Specifications Dimensions Packing Size (LxWxD) Net Weight (antenna) Shipping Weight Connector Type (Female) mm (in) mm (in) kg (lb) kg (lb) - 660.5 (26) x 370.8 (14.6) - (L x Ø) 735 (28.9) x 447 (17.6) x 447 (17.6) 7.4 (16.3) 8.1 (17.8) 4.3-10 Bottom 4 200 (48) 200 (48) 200 (125) ASA capped ABS 7035 8011 Connector Position Connector Quantity Windload Frontal (at Rated Wind Speed: 150km/h) Windload Lateral (at Rated Wind Speed: 150km/h) Survival Wind Speed Radome Material Radome Colour - - N (Ibf) N (Ibf) km/h (mph) - RAL RAL RAL - - - - Celsius (Fahrenheit) Celsius (Fahrenheit) Product Compliance Environmental Lightning Protection Cold Temperature Survival Hot Temperature Survival RoHS DC Grounded -40 (-40) 70 (158) Page 3/7 alphawireless.com alphawireless.com Publish Date: Publish Date: 26.10.2021 26.10.2021 Revision no: Revision no: 08 08 (TS-4.1 Col) (TS-4.1 Col)

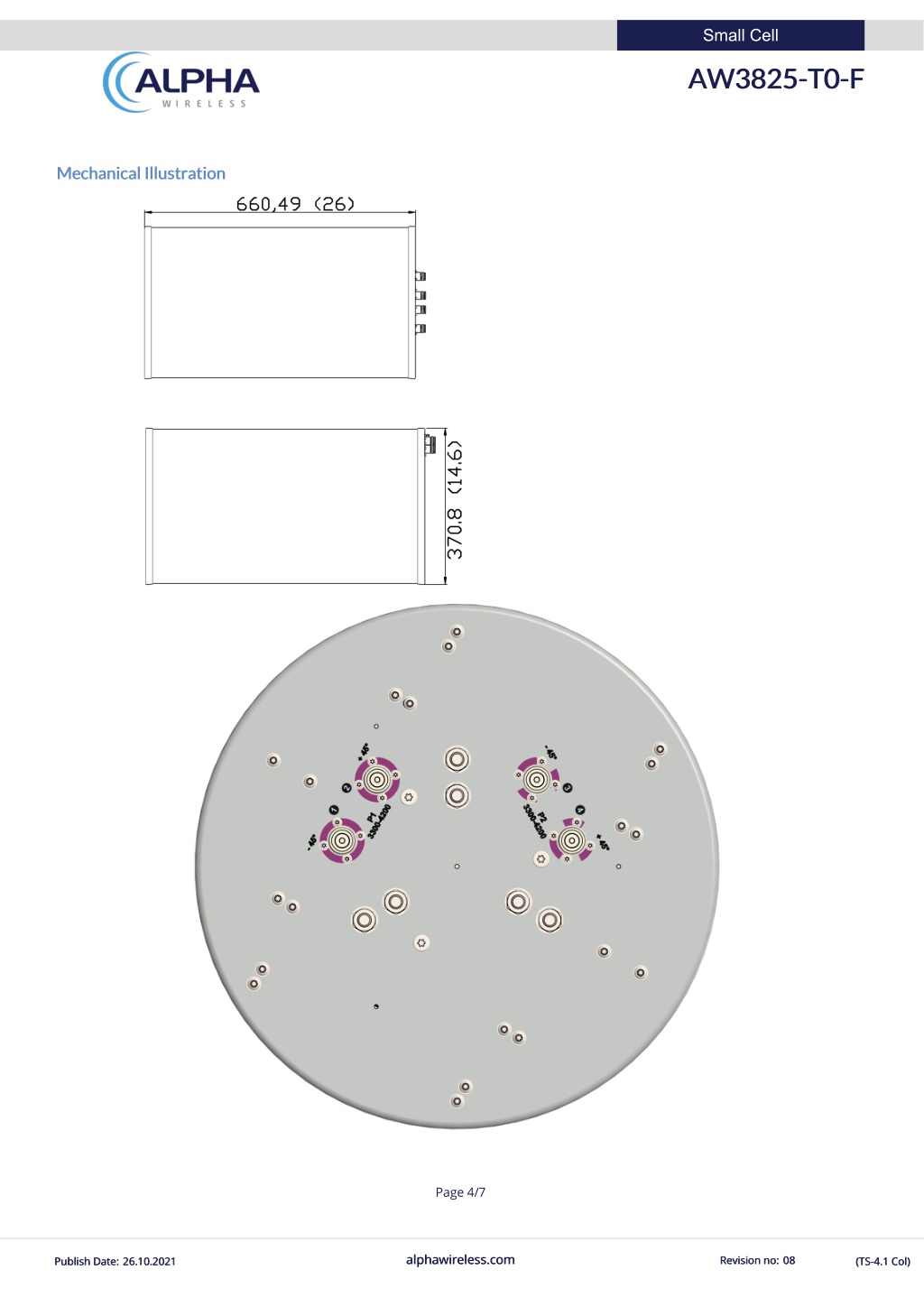

  4. Small Cell AW3825-T0-F AW3825-T0-F Mechanical Illustration Mechanical Illustration Page 4/7 alphawireless.com alphawireless.com Revision no: Revision no: 08 08 Publish Date: Publish Date: 26.10.2021 26.10.2021 (TS-4.1 Col) (TS-4.1 Col)

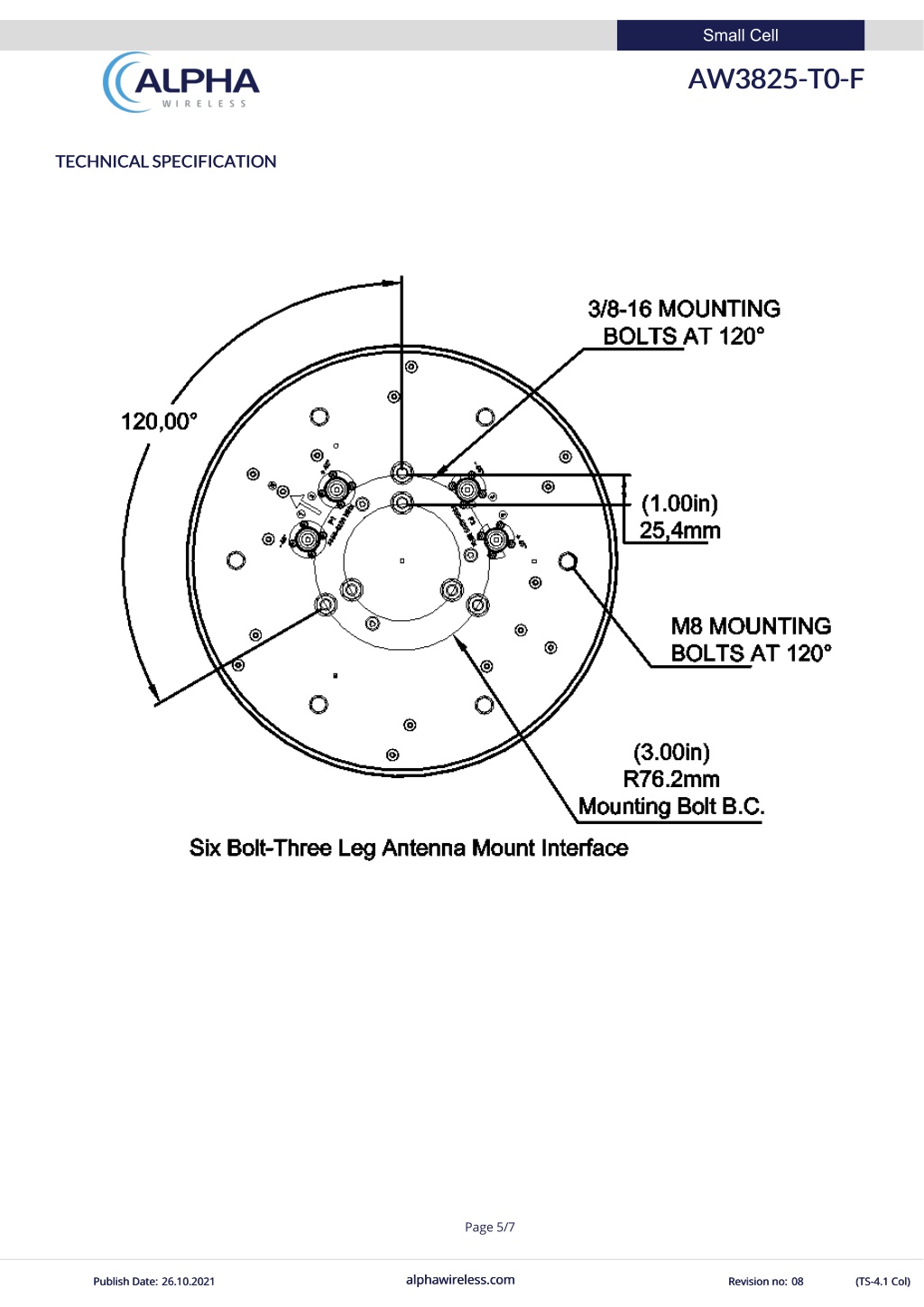

  5. Small Cell AW3825-T0-F AW3825-T0-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Page 5/7 alphawireless.com alphawireless.com Publish Date: Publish Date: 26.10.2021 26.10.2021 Revision no: Revision no: 08 08 (TS-4.1 Col) (TS-4.1 Col)

  6. Small Cell AW3825-T0-F AW3825-T0-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Mounting Bracket Kit Mounting Bracket Kit CL-V-159 (Mounting Kit Included with Antenna) Mounting Kit Tilt Range N/A Mounting Kit Material Stainless Steel Mounting Kit Pole Diameter 80-330mm (3.5" - 13.0") Mounting Bracket Kit Mounting Bracket Kit CL-V-169 Tri-Leg Pole Top Mounting Bracket for 14.4" (CL-V-169 is not included with antenna and must be ordered separately) Mounting Kit Tilt Range N/A Mounting Kit Material Stainless Steel Mounting Kit Pole Diameter 80-330mm (3.5" - 13.0") Page 6/7 alphawireless.com alphawireless.com Publish Date: Publish Date: 26.10.2021 26.10.2021 Revision no: Revision no: 08 08 (TS-4.1 Col) (TS-4.1 Col)

  7. Small Cell AW3825-T0-F AW3825-T0-F Ordering Info Ordering Info Order Code - Antenna Order Code - Antenna AW3825-T0-F Order Code - Accessories Order Code - Accessories AW1012-2-FM-FM AW1012-2-FM-NM AW1014-2-FM-TM Description Description Zero degrees Fixed tilt with 4.3-10 connectors. Description Description RF Jumper Cable, connector types 4.3-10 (m) / 4.3-10 (m), length 2 metres (6'6") RF Jumper Cable, connector types 4.3-10 (m) / N-Type (m), length 2 metres (6'6") RF Jumper Cable, connector types 4.3-10 (m) / Nex10 (m), length 2 metres (6'6") Enquiries Enquiries Global Headquarters Global Headquarters Ashgrove Business Centre, Ballybrittas, Portlaoise, Ireland Post code: R32 DT0A sales@alphawireless.com +353 57 86 33847 North America North America 7301 W. 129th Street, Suite 150 Overland Park, KS 66213, USA sales@alphawireless.com +1 913 279 0008 Australia Australia 3/76 Regentville Rd, Jamisontown NSW 2750 AUSTRALIA sales@alphawireless.com + 61 2 4504 8212 Alpha Wireless Alpha Wireless DISCLAIMER The information in this document is provided solely regarding Alpha Wireless products. The information is not a guarantee of performance or characteristics. Alpha Wireless reserves the right to modify, change, amend, improve or make corrections to this document and its products, at any time and its sole discretion without prior written consent or notice. No license to any intellectual property rights is granted or implied under this document. Alpha Wireless disclaims warranties and liabilities of any kind including non-infringement of intellectual property rights of any third party. Page 7/7 © Alpha Wireless Limited 2021 alphawireless.com alphawireless.com Publish Date: Publish Date: 26.10.2021 26.10.2021 (TS-4.1 Col) (TS-4.1 Col) Revision no: Revision no: 08 08
