Understanding Voltage Divider Circuits with a Voltmeter Reading

This explanation details a voltage divider circuit with given resistances and voltage. The circuit has resistances of 1000Ω and 9000Ω, and a voltage reading of 48.0V. Using Ohm's Law (V = IR), we calculate the current (I) and the voltage across one of the resistors. By applying the formula I = V/R, we find the current to be 0.00480A. Using the current value, we then derive the voltage across the 1000Ω resistor, resulting in a voltage of 4.80V. This process illustrates the working principle of voltage dividers.

jeanne
Download Presentation

Understanding Voltage Divider Circuits with a Voltmeter Reading

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

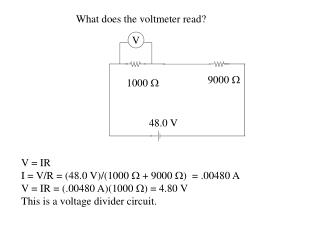

  1. What does the voltmeter read? V 9000  1000  48.0 V V = IR I = V/R = (48.0 V)/(1000  + 9000 ) = .00480 A V = IR = (.00480 A)(1000 ) = 4.80 V This is a voltage divider circuit.
