  1. Computational Steering on the GRIDUsing a 3D model to Interact with a Large Scale DistributedSimulation in Real-Time Michael Grønager, PhD UNI-C / Virtual Reality Center Present: Niels Bohr Institute

  2. Overview • The GRID in 7 minutes… • Computational Steering • Examples: • Interactive Molecular Dynamics • Interactive Fluid Dynamics • OpenLB – an open source Lattice-Boltzmann solver

  3. A quick example • Use Private Certificate to generate a time limited “Proxy” • Log in to the Grid • Define a job: • /bin/echo “Hallo Grid” • (demo) • Wait for completion…

  4. The GRID • What is: “The Grid”?- except for a Buzz word… • Analogy: “The Electrical Power Grid” • The Globus Toolkit

  5. Quoted from globus.org The Grid refers to an infrastructure that enables the integrated, collaborative use of high-end computers, networks, databases, and scientific instruments owned and managed by multiple organizations. Grid applications often involve large amounts of data and/or computing and often require secure resource sharing across organizational boundaries, and are thus not easily handled by today’s Internet and Web infrastructures.

  6. CERN

  7. Storage – Raw recording rate 0.1 – 1 GBytes/sec Accumulating at 5-8 PetaBytes/year 10 PetaBytes of disk Processing – 200,000 of today’s fastest PCs

  8. NorduGrid • A Scandinavianproduction Grid • More than 2200CPUs • More than 30 sites • (Grid monitor demo)

  9. Computational Steering • The ability to interact with a simulated physical model by changing border conditions, parameters or state. • This means: • Fast interaction times < 10s • Intuitive user interface • Physical representation of the data • And to get this we need: • Interactive parallel algorithms • Lots of computers with fast network • A lot of money or… • …resource sharing • The perfect candidate for the GRID!

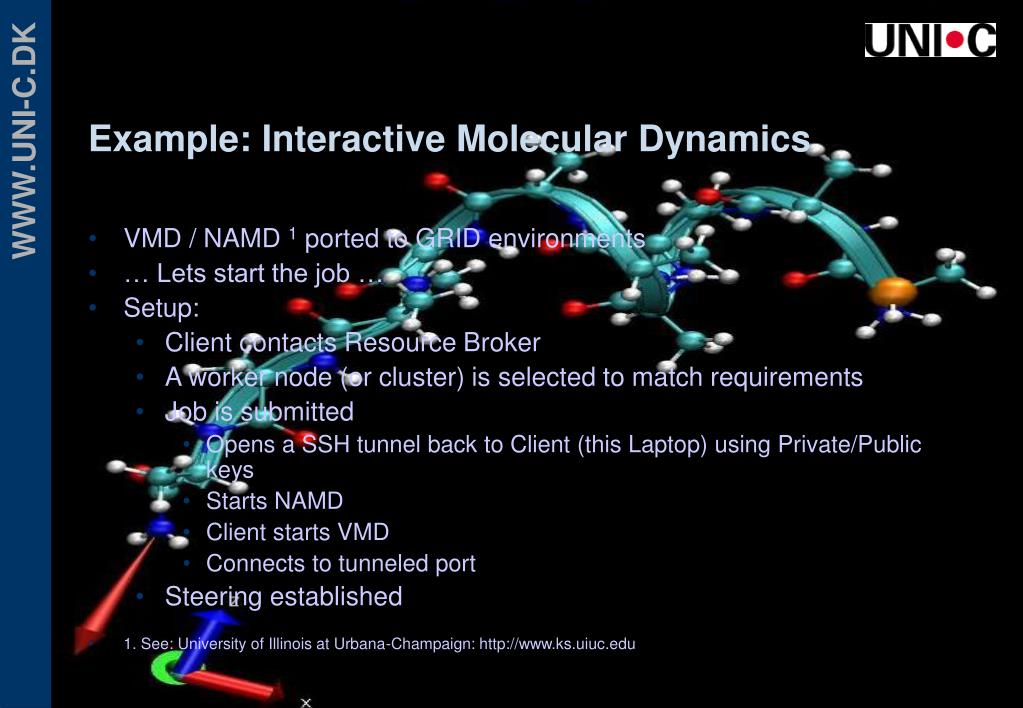

  10. Example: Interactive Molecular Dynamics • VMD / NAMD 1 ported to GRID environments • … Lets start the job … • Setup: • Client contacts Resource Broker • A worker node (or cluster) is selected to match requirements • Job is submitted • Opens a SSH tunnel back to Client (this Laptop) using Private/Public keys • Starts NAMD • Client starts VMD • Connects to tunneled port • Steering established • 1. See: University of Illinois at Urbana-Champaign: http://www.ks.uiuc.edu

  11. Interactive Fluid Dynamics • Traditional Navier-Stokes solvers not meant for interaction: • Important (manual) preprocessing step building an optimal mesh. • Hard to parallelize • No Open Source code available • The alternative: Lattice-Boltzmann Method • Easy to change border conditions on the fly • Easy to parallelize • No Open Source code available – yet … • … easy to implement • OpenLB • True 3D Lattice Boltzmann solver • Uses ParaView for interaction and data visualization • Uses OpenSceneGraph for Virtual Reality interface • Aim is to run OpenLB interactively on the GRID on more than 1000CPUs

  12. Questions? • Sign up for a hands on Grid tutorial Tuesday the 8th of June 15.30-18.00 at the Niels Bohr Institute.Mail to: mpg@uni-c.dk / waananen@nbi.dk
