state of louisiana project 25 network

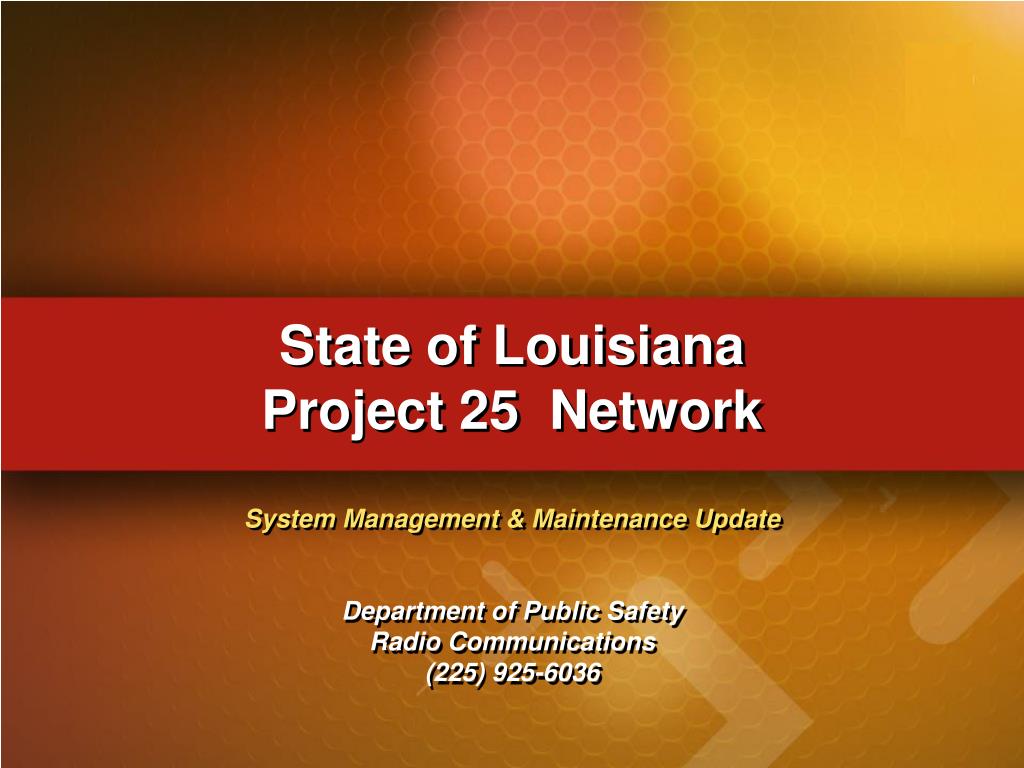

State of LouisianaProject 25 Network

System Management & Maintenance Update

Department of Public Safety

Radio Communications

(225) 925-6036

site summary 55 operational sites 51 tower sites 4 mobile trailer sites

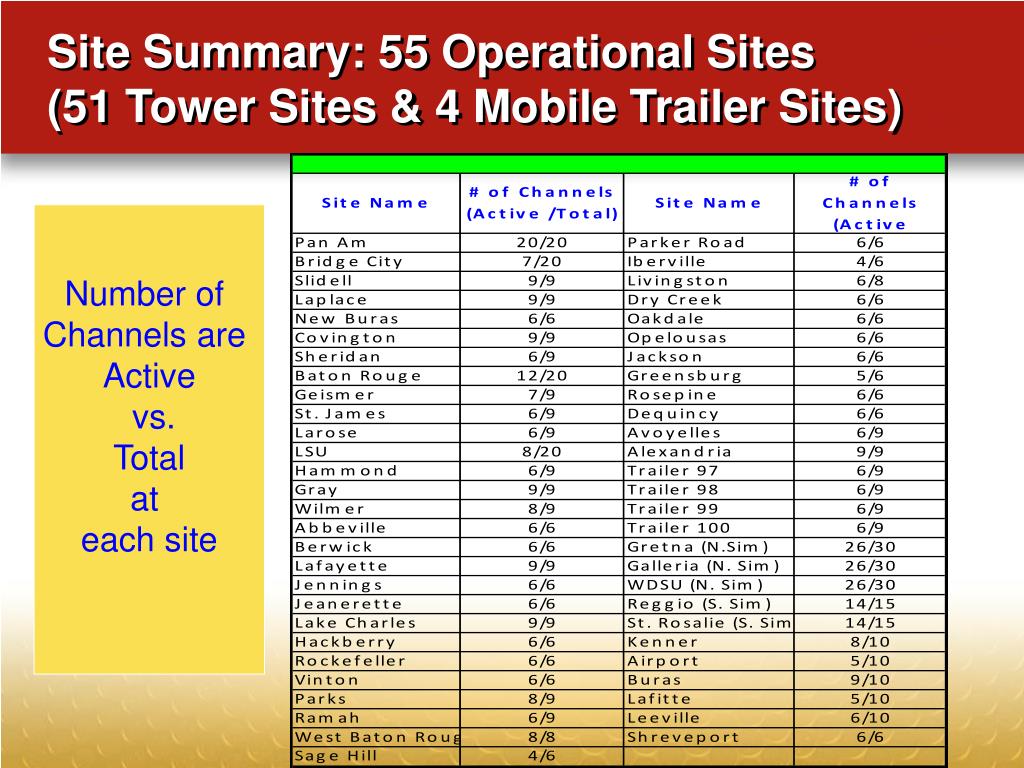

Site Summary: 55 Operational Sites(51 Tower Sites & 4 Mobile Trailer Sites)

Number of

Channels are

Active

vs.

Total

at

each site

site summary 28 planned tower sites

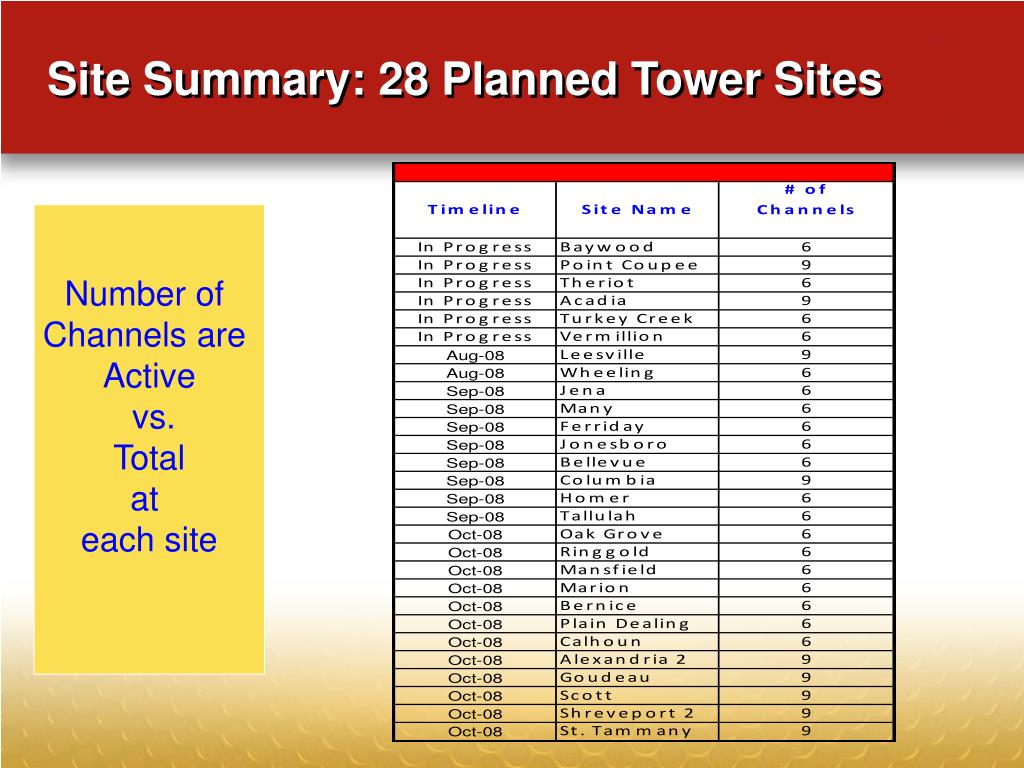

Site Summary: 28 Planned Tower Sites

Number of

Channels are

Active

vs.

Total

at

each site

system tower site summary
System Tower Site Summary

OPERATIONAL

IN

PROGRESS

PLANNED

site telco issues
Site & Telco Issues
  • December 2007
    • 5 site issues
    • 1 Telco issue
  • January 2008
    • 1 site issues
    • 0 Telco issue
  • February 2008
    • 5 site issues
    • 3 Telco issue
  • March 2008
    • 2 site issues
    • 1 Telco issue
  • April 2008
    • 2 site issues
    • 1 Telco issue
  • May 2008
    • 1 site issue
    • 3 Telco issues
  • June 2008
    • 2 site issues
    • 2 Telco issues
p25 system access coordination
P25 System Access Coordination

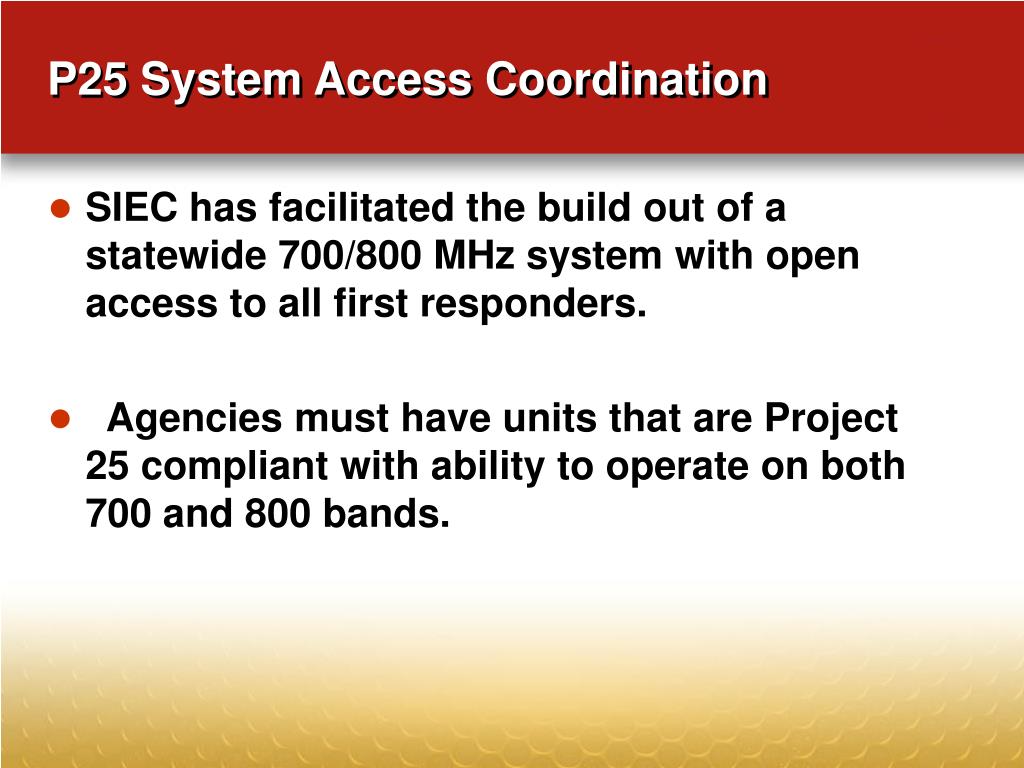

  • SIEC has facilitated the build out of a statewide 700/800 MHz system with open access to all first responders.
  • Agencies must have units that are Project 25 compliant with ability to operate on both 700 and 800 bands.
user agency access guidelines
USER AGENCY ACCESS GUIDELINES

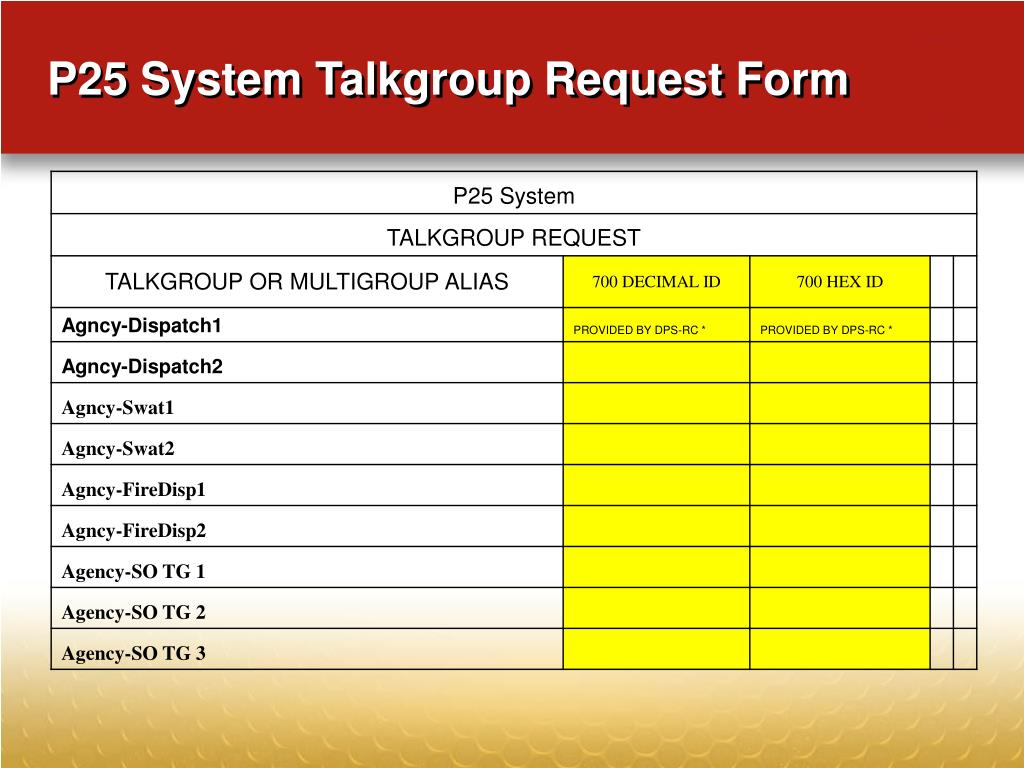

  • Submit Agency Information form.
  • Submit Talkgroup Request

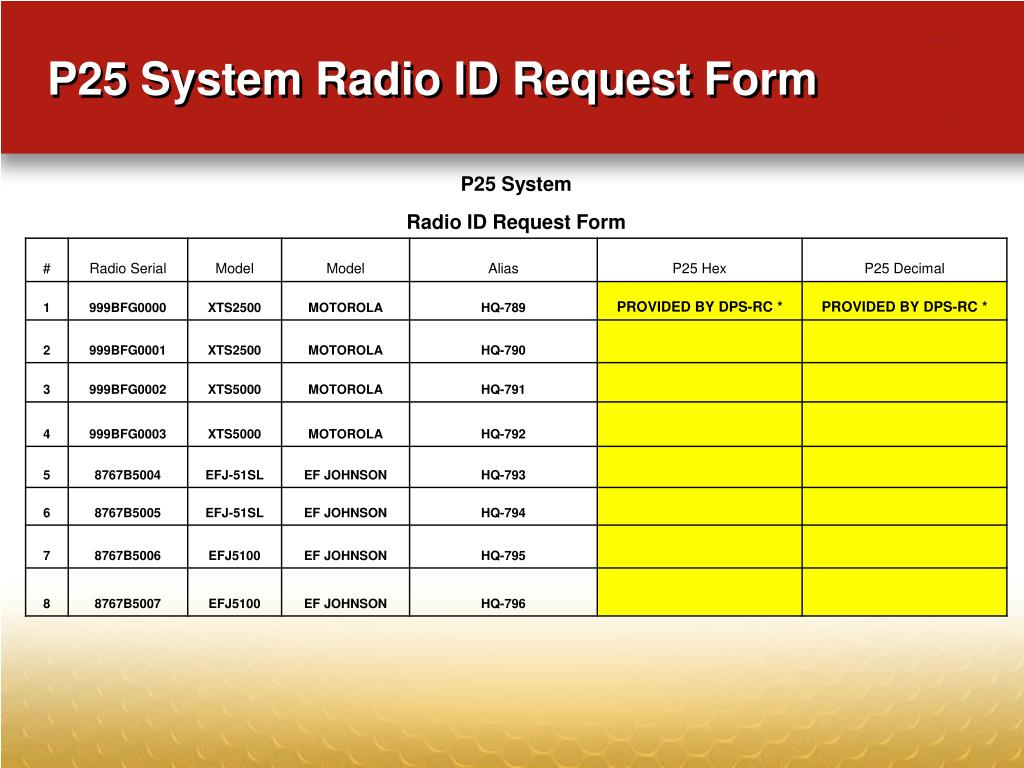

  • Submit Radio Serial #s / Aliases

SYSTEM USER FORMS ONLINE

http://siec.la.gov

p25 system user information form
P25 System User Information Form

SYSTEM USER

FORMS ONLINE

http://siec.la.gov

state of louisiana regional map

W

W

MOREHOUSE

MOREHOUSE

E

E

CLAIBORNE

CLAIBORNE

WEST

WEST

EAST

EAST

UNION

UNION

BOSSIER

BOSSIER

B

B

S

S

CARROLL

CARROLL

T

T

Region 8

Troop F

E

E

LINCOLN

LINCOLN

R

R

CADDO

CADDO

Region 7

Troop G

OEP Region 1

OEP Region 1

OEP Region 2

OEP Region 2

RICHLAND

RICHLAND

OUACHITA

OUACHITA

MADISON

MADISON

JACKSON

JACKSON

BIENVILLE

BIENVILLE

OEP Region 3

OEP Region 3

OEP Region 4

OEP Region 4

FRANKLIN

FRANKLIN

RED

RED

CALDWELL

CALDWELL

TENSAS

TENSAS

N

N

DESOTO

DESOTO

RIVER

RIVER

A

A

OEP Region 5

OEP Region 5

OEP Region 6

OEP Region 6

T

T

WINN

WINN

C

C

H

H

CATAHOULA

CATAHOULA

I

I

Region 6

Troop E

T

T

OEP Region 7

OEP Region 7

OEP Region 8

OEP Region 8

C

C

LASALLE

LASALLE

O

O

O

O

SABINE

SABINE

C

C

GRANT

GRANT

N

N

H

H

C

C

E

E

OEP Region 9

OEP Region 9

O

O

S

S

R

R

D

D

I

I

T

T

A

A

RAPIDES

RAPIDES

VERNON

VERNON

AVOYELLES

AVOYELLES

Region 9

Troop L

T

T

WEST

WEST

EAST

EAST

A

A

FELICIANA

FELICIANA

WASHINGTON

WASHINGTON

SAINT

SAINT

FELICIANA

FELICIANA

N

N

Region 2

Troop A

HELENA

HELENA

G

G

EVANGELINE

EVANGELINE

I

I

BEAUREGARD

BEAUREGARD

P

P

Region 5

Troop D

POINTE

POINTE

SAINT

SAINT

A

A

ALLEN

ALLEN

COUPEE

COUPEE

LANDRY

LANDRY

EAST

EAST

SAINT

SAINT

H

H

BATON

BATON

TAMMANY

TAMMANY

O

O

WEST

WEST

ROUGE

ROUGE

BATON

BATON

A

A

LIVINGSTON

LIVINGSTON

ROUGE

ROUGE

Region 4

Troop I

ACADIA

ACADIA

SAINT

SAINT

JEFFERSON

JEFFERSON

LAFAYETTE

LAFAYETTE

CALCASIEU

CALCASIEU

MARTIN

MARTIN

DAVIS

DAVIS

ASCENSION

ASCENSION

IBERVILLE

IBERVILLE

SAINT

SAINT

Region 3

Troop C

ORLEANS

ORLEANS

JOHN

JOHN

Region 1

Troop B

ST.

ST.

JAM ES

JAM ES

J

J

SAINT

SAINT

IBERIA

IBERIA

ASSUMPTION

ASSUMPTION

E

E

CHARLES

CHARLES

CAMERON

CAMERON

VERMILION

VERMILION

F

F

SAINT BERNARD

SAINT BERNARD

ST.

ST.

F

F

P

P

L

L

MARTIN

MARTIN

E

E

L

L

A

A

R

R

SAINT

SAINT

A

A

F

F

S

S

MARY

MARY

Q

Q

O

O

O

O

N

N

U

U

U

U

E

E

VER

VER

R

R

M

M

C

C

TERREBONNE

TERREBONNE

I

I

H

H

N

N

E

E

E

E

S

S

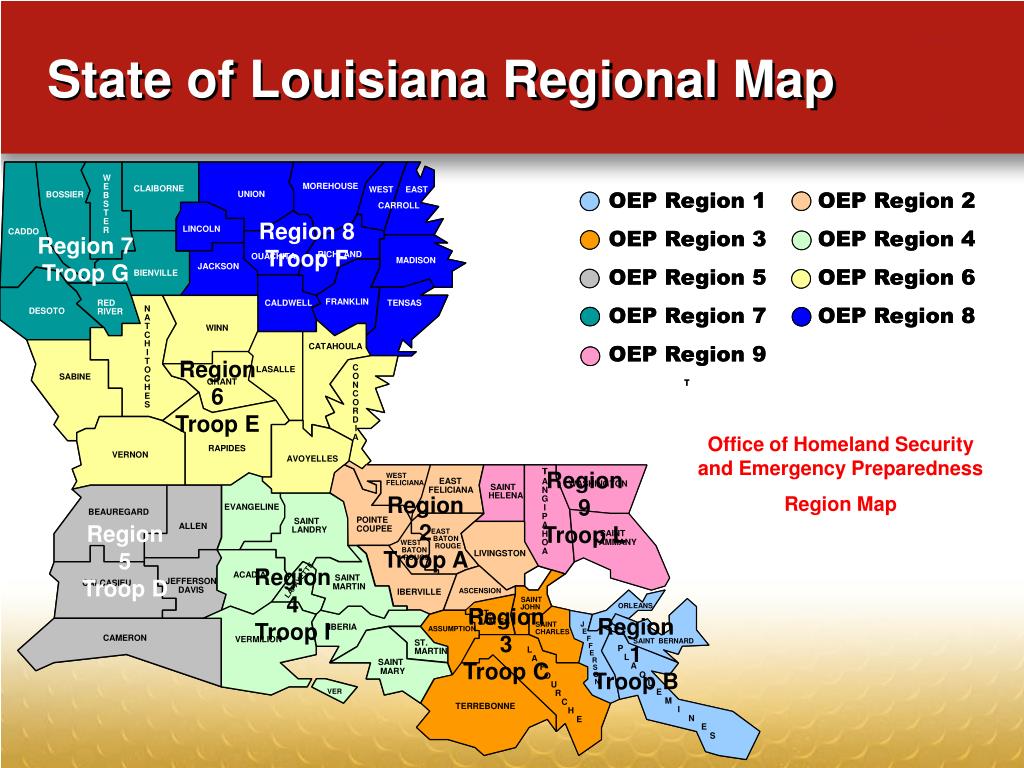

State of Louisiana Regional Map

Office of Homeland Security and Emergency Preparedness

Region Map

programming

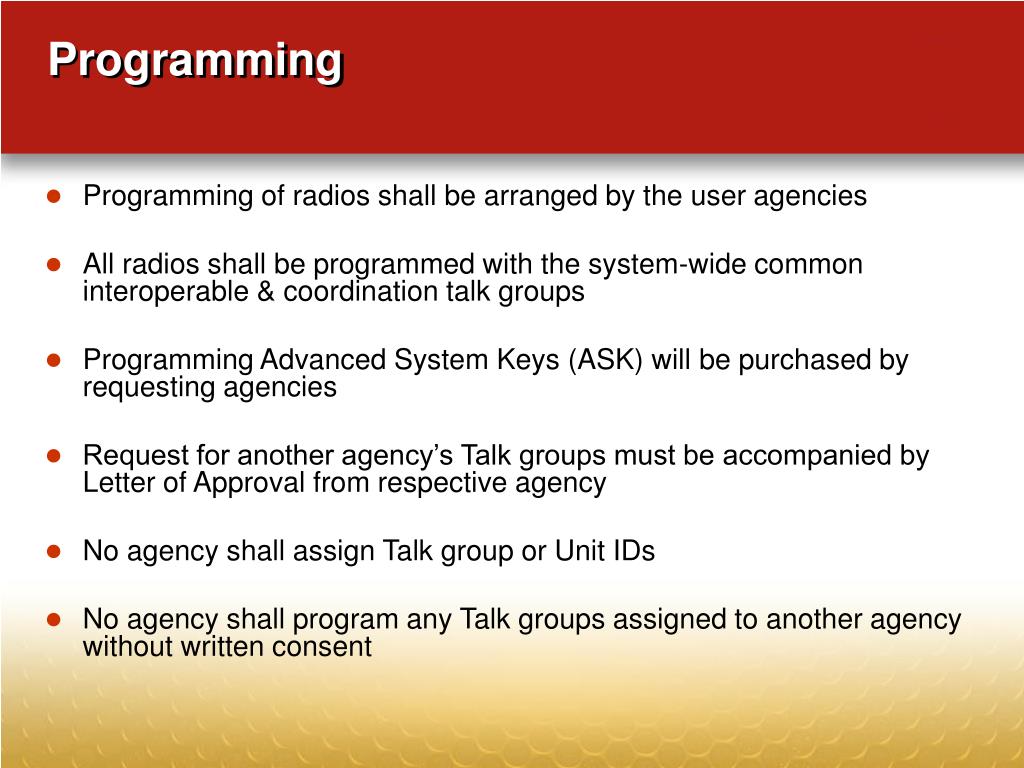

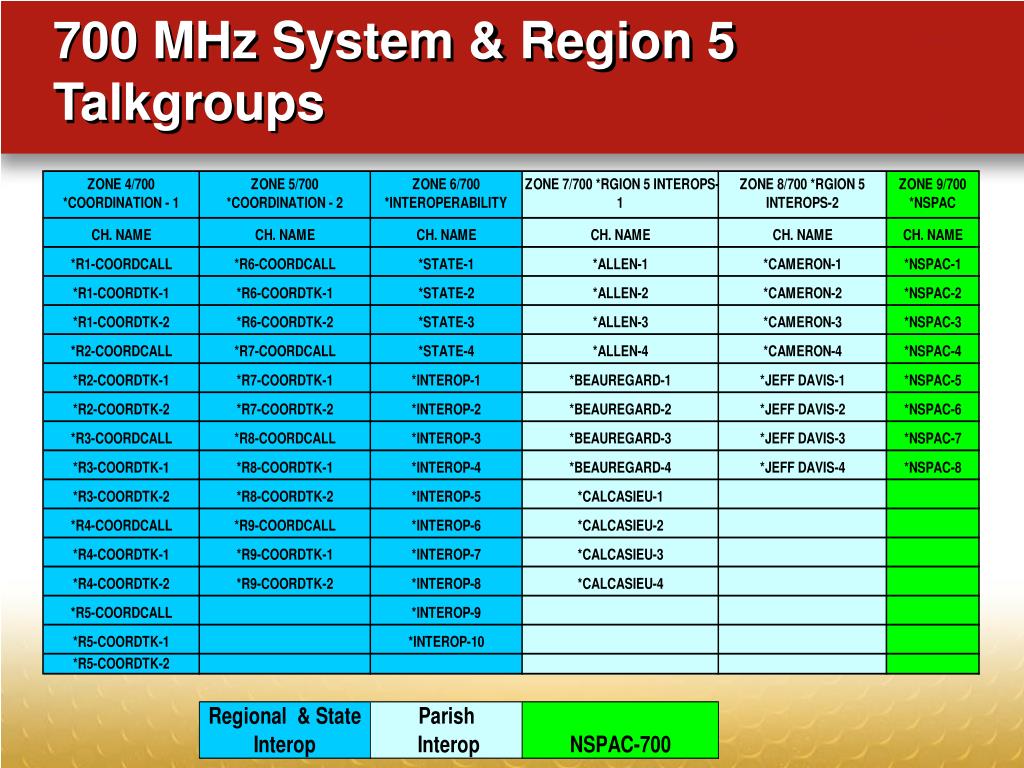

Programming
  • Programming of radios shall be arranged by the user agencies
  • All radios shall be programmed with the system-wide common interoperable & coordination talk groups
  • Programming Advanced System Keys (ASK) will be purchased by requesting agencies
  • Request for another agency’s Talk groups must be accompanied by Letter of Approval from respective agency
  • No agency shall assign Talk group or Unit IDs
  • No agency shall program any Talk groups assigned to another agency without written consent
dps radio communications will provide fleet mapping

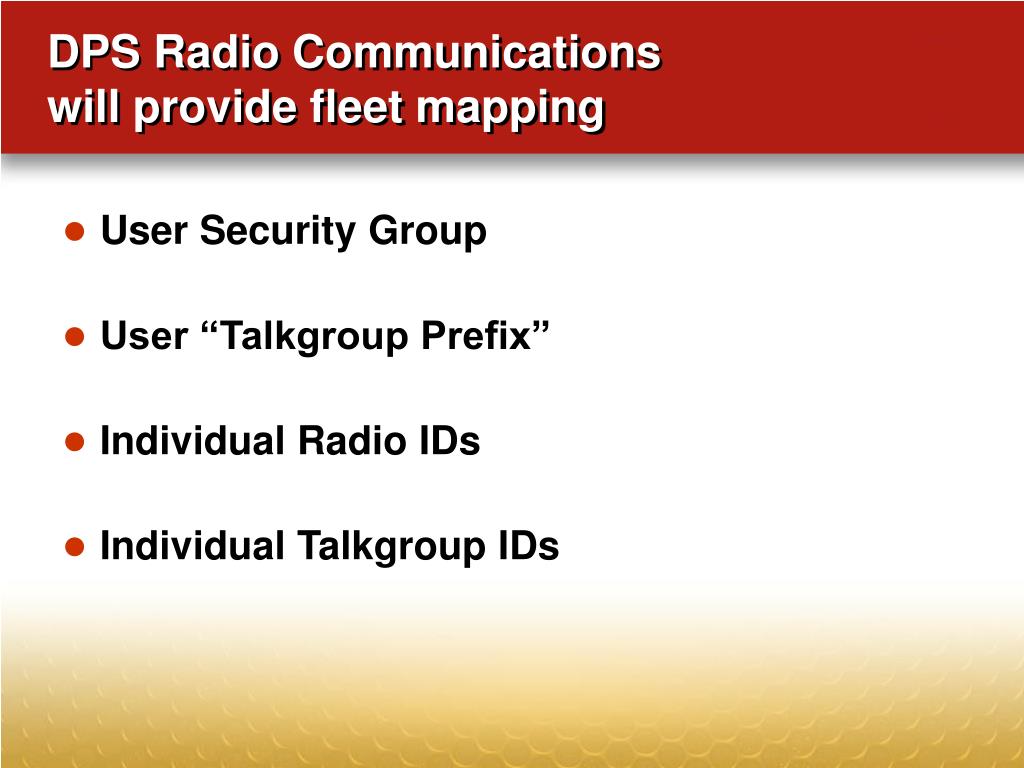

DPS Radio Communicationswill provide fleet mapping
  • User Security Group
  • User “Talkgroup Prefix”
  • Individual Radio IDs
  • Individual Talkgroup IDs
siec lsp mobile communications equipment trailer 3 total

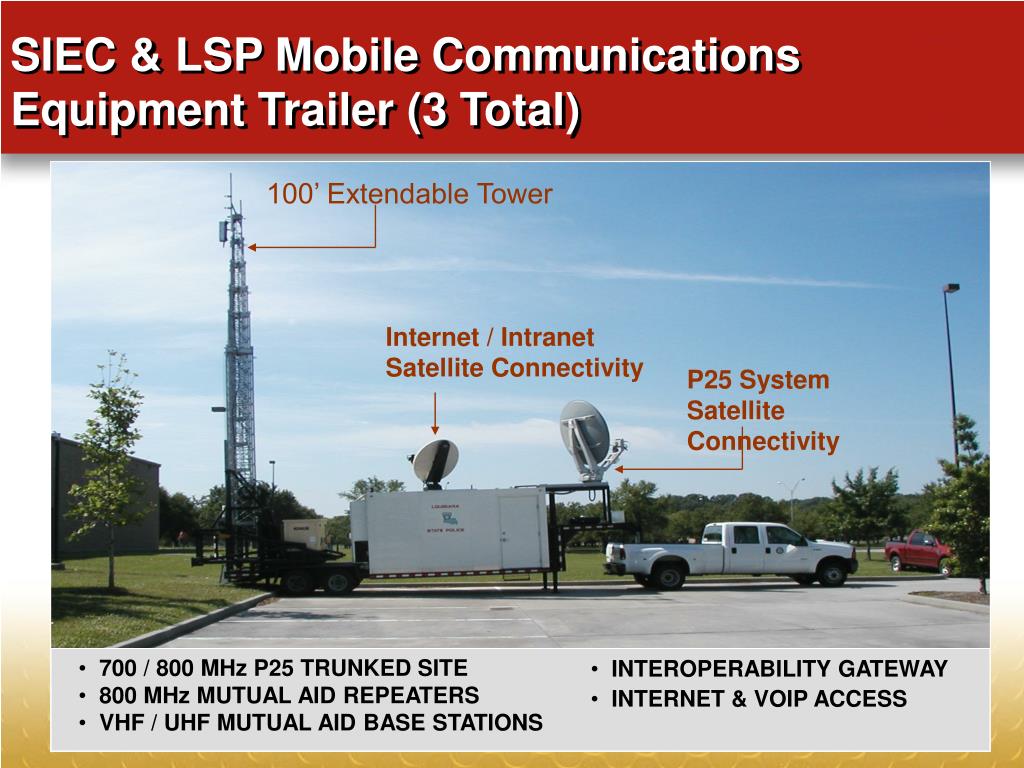

SIEC & LSP Mobile Communications Equipment Trailer (3 Total)

100’ Extendable Tower

Internet / Intranet

Satellite Connectivity

P25 System

Satellite Connectivity

  • 700 / 800 MHz P25 TRUNKED SITE
  • 800 MHz MUTUAL AID REPEATERS
  • VHF / UHF MUTUAL AID BASE STATIONS
  • INTEROPERABILITY GATEWAY
  • INTERNET & VOIP ACCESS
slide24

Louisiana Interoperability

Strategic Technology Reserve

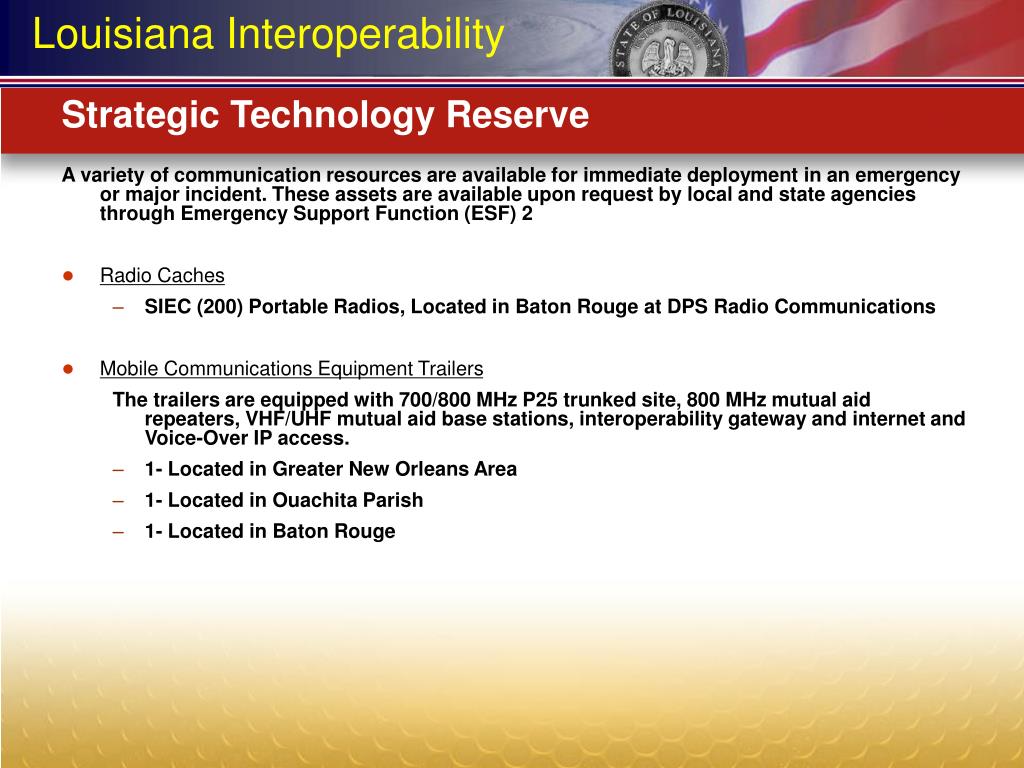

A variety of communication resources are available for immediate deployment in an emergency or major incident. These assets are available upon request by local and state agencies through Emergency Support Function (ESF) 2

  • Radio Caches
    • SIEC (200) Portable Radios, Located in Baton Rouge at DPS Radio Communications
  • Mobile Communications Equipment Trailers

The trailers are equipped with 700/800 MHz P25 trunked site, 800 MHz mutual aid repeaters, VHF/UHF mutual aid base stations, interoperability gateway and internet and Voice-Over IP access.

    • 1- Located in Greater New Orleans Area
    • 1- Located in Ouachita Parish
    • 1- Located in Baton Rouge
