Presentation Transcript
Solubility l.jpg
Solubility

Crystallize

Solute + Solvent  Solution

Dissolve

  • Unsaturated Solution – Additional solute will still dissolve

  • Saturated Solution – No additional solute will dissolve, equilibrium between solution and undissolved solute

  • Supersaturated Solution – Beyond the point of saturation


Salt solubility and health l.jpg
Salt Solubility and Health

  • Sodium urate is formed from uric acid, a natural chemical in the body. Uric acid can also come from foods.

  • Uric acid in normal amounts remains dissolved in the blood, easily passes through the kidneys and leaves the body as waste. Uric acid in high amounts, however, makes a person more likely to develop gout.

    • Uric acid crystals deposit in the joints

  • The amount of uric acid in your blood can change depending on:

    • What you eat: red meats and internal organs (such as liver and kidneys), some shellfish and anchovies

    • Your overall health

    • How much alcohol you drink

    • What medicines you are taking

    • Sudden illnesses

    • The kidneys' ability to rid the body of uric acid (heredity).


Solubility3 l.jpg
Solubility

Crystallize

Solute + Solvent  Solution

Dissolve

  • Factors Affecting Solubility

    • Energy Requirements

      • Solvent-Solute interactions (like dissolves like)

      • Temperature Effects

    • Pressure Effects (Henry’s Law)


Slide4 l.jpg

The Solution Process

Energy Changes and Solution Formation


Slide5 l.jpg

The Solution Process

Energy Changes and Solution Formation

CaCl2 example

NH4Cl example


Slide6 l.jpg

The Solution Process

Energy Changes and Solution Formation

  • Breaking attractive intermolecular forces is always endothermic.

  • Forming attractive intermolecular forces is always exothermic.

  • To determine whether Hsoln is positive or negative, we consider the strengths of all solute-solute and solute-solvent interactions:

    • H1 and H2 are both positive.

    • H3 is always negative.

    • It is possible to have either H3 > (H1 + H2) or H3 < (H1 + H2).


Slide7 l.jpg

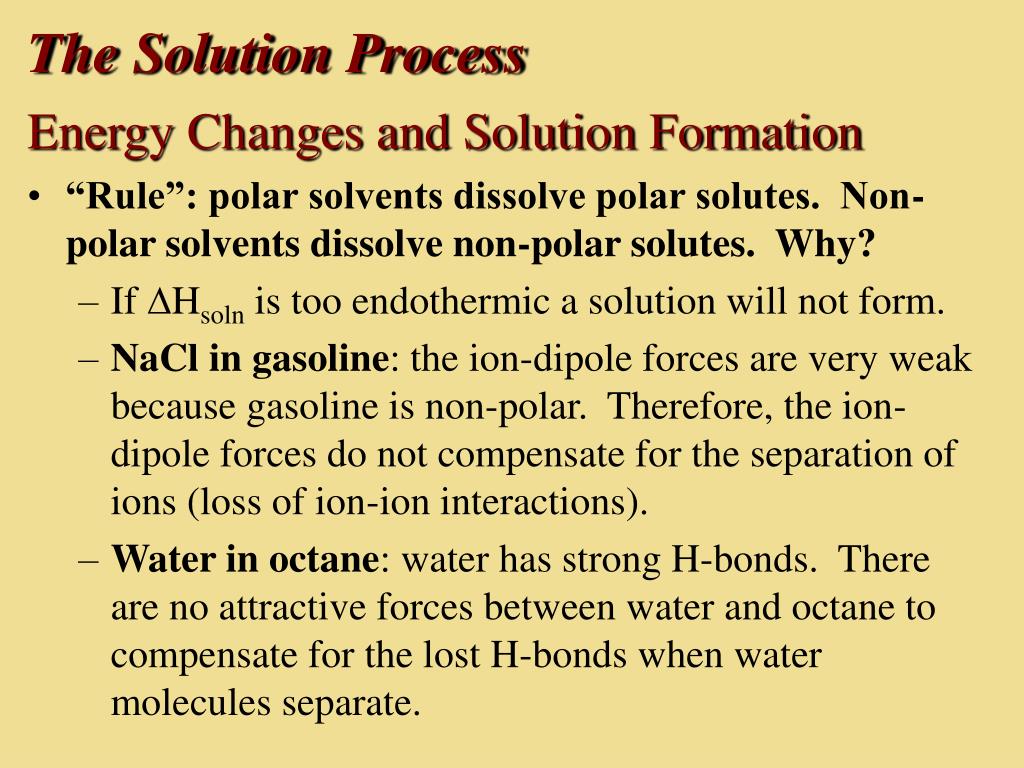

The Solution Process

Energy Changes and Solution Formation

  • “Rule”: polar solvents dissolve polar solutes. Non-polar solvents dissolve non-polar solutes. Why?

    • If Hsoln is too endothermic a solution will not form.

    • NaCl in gasoline: the ion-dipole forces are very weak because gasoline is non-polar. Therefore, the ion-dipole forces do not compensate for the separation of ions (loss of ion-ion interactions).

    • Water in octane: water has strong H-bonds. There are no attractive forces between water and octane to compensate for the lost H-bonds when water molecules separate.


Salt solubility examples l.jpg
Salt Solubility Examples

  • Some salts have very low solubility in water and reach saturation right away

These salts are often referred to as “Insoluble” salts

Ion-ion interaction are too strong to be separated by water


Temperature affects on solubility l.jpg
Temperature Affects on Solubility

  • Most solids increase solubility in a liquid with increasing temperature

  • Most gases decrease solubility in a liquid with increasing temperature


Pressure affects on solubility l.jpg
Pressure Affects on Solubility

  • Solubility of liquids and solids not greatly affected by pressure

  • Solubility of gases greatly affected by pressure (Henry’s Law)

    • Increase pressure = Increase solubility

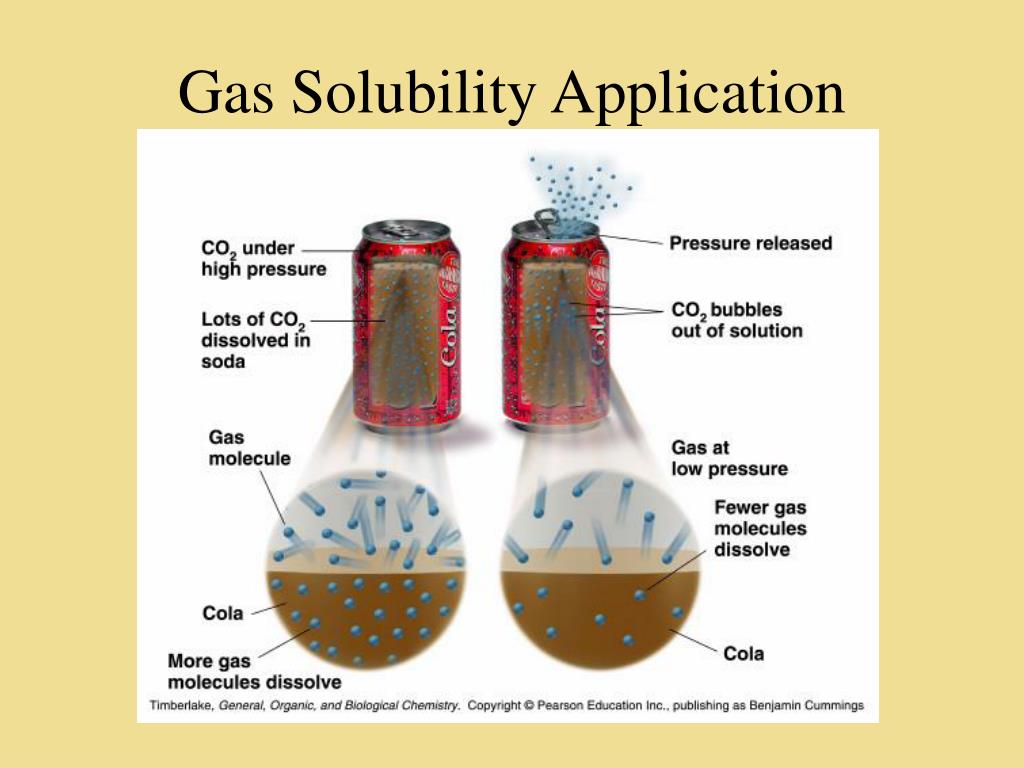

    • Coca-cola example



Bends and scuba diving henry s law in action l.jpg
Bends and Scuba Diving“Henry’s Law in Action”

  • Pressure on the body increases at the divers goes deeper

  • Increased pressure = increased gas in blood

  • Air is mostly nitrogen so more nitrogen than normal dissolved in our blood

  • As the diver ascends, the gases come out (pressure decreases)

    • Fast ascends = lots of bubbles (BAD for our organs and joints!)


Altitude illness mountain sickness form of hypoxia l.jpg
Altitude Illness- Mountain Sickness (Form of Hypoxia)

  • Most likely to be affected are mountain climbers, pilots and persons living at high altitudes above 8,000 feet.

  • High altitude = low pressure = low oxygen concentration dissolved in blood

  • In a healthy person at sea level, blood is 95% saturated with oxygen. At 18,000 feet it is only 71% saturated.


Slide14 l.jpg

Ways of Expressing Concentration

  • All methods involve quantifying amount of solute per amount of solvent (or solution).

  • Generally amounts are measures are masses, moles or liters.

  • Qualitatively solutions are dilute or concentrated.

  • Definitions:


Slide15 l.jpg

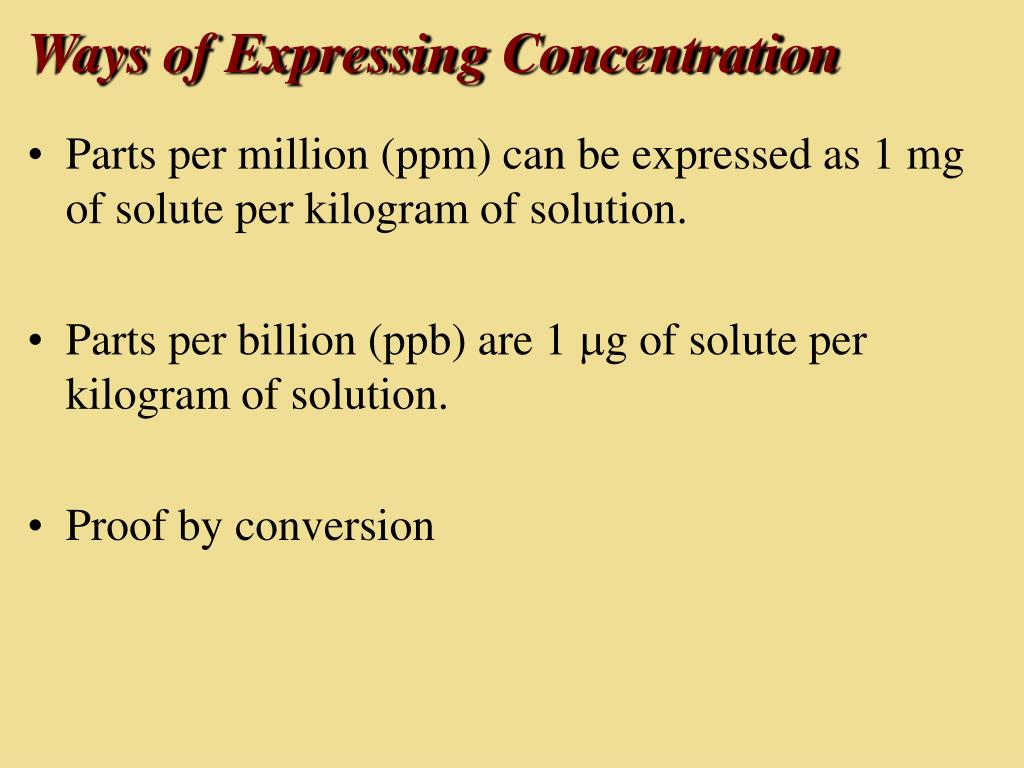

Ways of Expressing Concentration

  • Parts per million (ppm) can be expressed as 1 mg of solute per kilogram of solution.

  • Parts per billion (ppb) are 1 g of solute per kilogram of solution.

  • Proof by conversion


Slide16 l.jpg

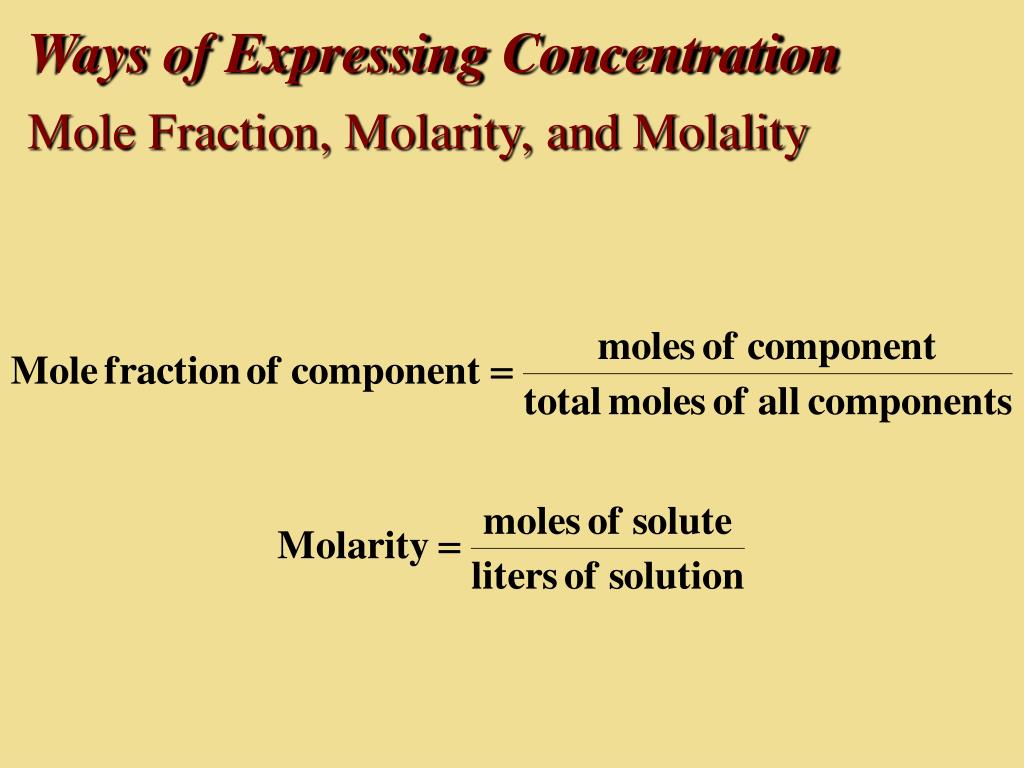

Ways of Expressing Concentration

Mole Fraction, Molarity, and Molality


Slide17 l.jpg

Ways of Expressing Concentration

Mole Fraction, Molarity, and Molality

  • Converting between molarity (M) and molality (m) requires density of solution

    • L of solutions to kg of solution

    • kg of solution = kg solvent + kg solute

moles of solute

kg of solvent

molality =


Slide18 l.jpg

Colligative Properties

  • Colligative properties depend on quantity of solute molecules.

    • Freezing point depression

    • Boiling point elevation


Slide19 l.jpg

Lowering the Vapor Pressure

  • Non-volatile solvents reduce the ability of the surface solvent molecules to escape the liquid.

  • Therefore, vapor pressure is lowered.

  • The amount of vapor pressure lowering depends on the amount of solute.


Slide20 l.jpg

Boiling-Point Elevation

  • Non-volatile solute lowers the vapor pressure.

  • Higher Temperature needed to achieve 1 atm of vapor pressure

    Freezing-Point Depression

  • Non-volatile solute lowers the vapor pressure, and shift triple point to lower temperature

  • Lower temperature of triple point produces lower phase change temperature


Slide21 l.jpg

Colligative Properties

Boiling-Point Elevation

  • At 1 atm (normal boiling point of pure liquid) there is a lower vapor pressure of the solution. Therefore, a higher temperature is required to reach a vapor pressure of 1 atm for the solution (Tb).

  • Molal boiling-point-elevation constant, Kb, expresses how much Tb changes with molality of particles, m:


Slide22 l.jpg

Colligative Properties

Freezing-Point Depression

  • The solution freezes at a lower temperature (Tf) than the pure solvent.

  • Decrease in freezing point (Tf) is directly proportional to molality of particles (Kfis the molal freezing-point-depression constant):
