Audio ADC/DACs Primer

1. Audio ADC/DACsPrimer David Hossack

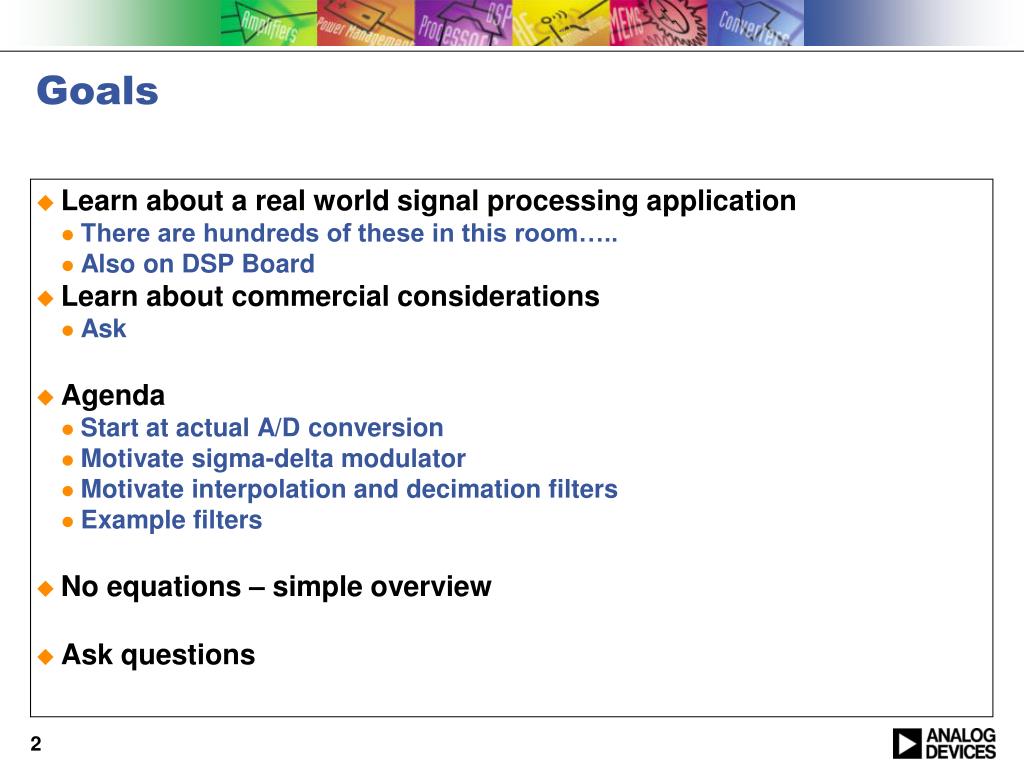

2. Goals • Learn about a real world signal processing application • There are hundreds of these in this room….. • Also on DSP Board • Learn about commercial considerations • Ask • Agenda • Start at actual A/D conversion • Motivate sigma-delta modulator • Motivate interpolation and decimation filters • Example filters • No equations – simple overview • Ask questions

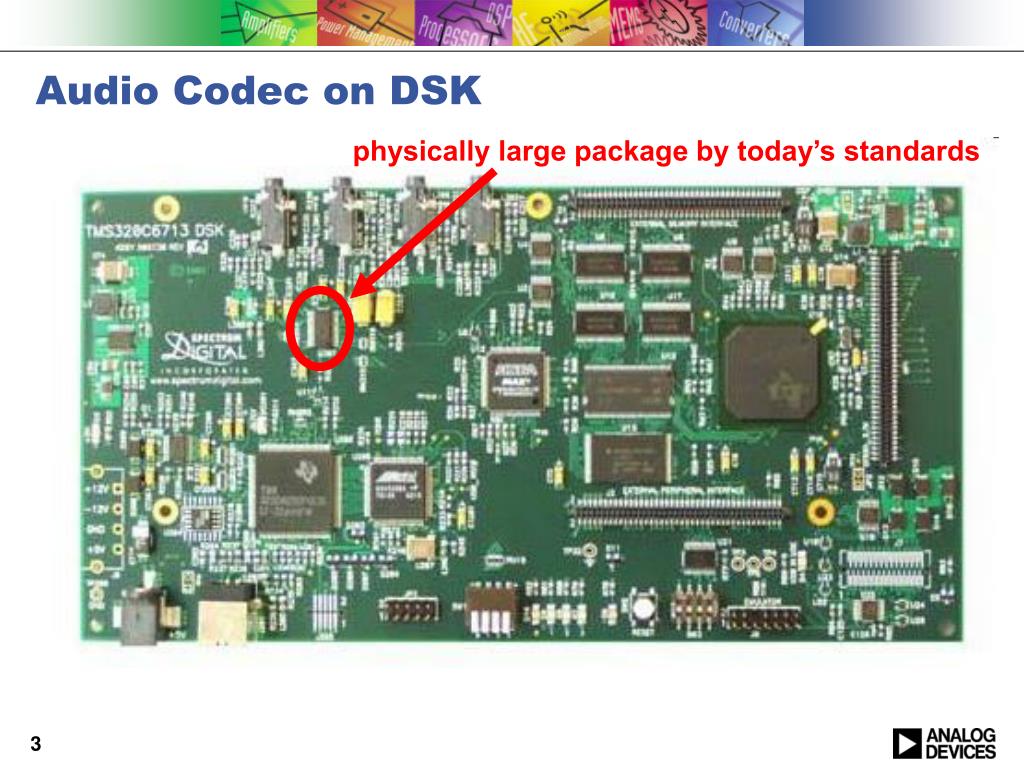

3. Audio Codec on DSK physically large package by today’s standards

4. Analog/Digital Signal Conversion • Converting two things: • Continuous Time <-> Discrete Time • Sampling • Sample rate – samples/s or “Hz” – eg 44.1kHz or 48kHz • Need clock for discrete time • Concern on clock jitter at interface between discrete-to-continuous • Continuous Value <-> Discrete Value • Quantization • Number of levels or number of bits – eg 16bit or 24bit • These conversions can happen separately • Eg Switched capacitor DAC • Digital (discrete time, discrete value) • -> analog, discrete time • Continuous time, but still sampled • -> analog, continuous time • Not necessarily a one-to-one transformation between input samples and output samples

5. Typical Specs for Audio Converters • SNR – measure of additive noise • 90-120dB • “A-weighted” • Bandwidth • 20-20kHz • THD – measure of errors at harmonics of input – nonlinearity • 80-110dB • These are “AC” Specs • “Traditional” converter specs not appropriate • Absolute accuracy • Integral non-linearity • Differential non-linearity • Conversion Time

6. What does 100dB mean? • “CD quality” • N= 16 bits => approx 6N + 2 => 98dB • With assumptions regarding the signal and error pdfs • Flat weighting, full bandwidth • 1 part in 100000 0.001% • Component matching on silicon • 1% easy, with care : 0.1% • >12 bits usually requires calibration or signal processing • Need to be careful to determine how errors manifest • For audio: • Absolute accuracy is not important • Linearity fairly important • Noise very important • Hard to design audio converter using only component matching • Sigma-Delta Modulation is a signal processing method to solve this • Introduces its own problems • Oversampling • Out of Band Noise • Non-linear system that is hard to fully analyze • Errors Specs: • Offset • Gain • Linearity • Noise

7. Sigma Delta Modulation • Method for obtaining high resolution signal conversion without requiring high component matching • Quantizes input to small number of levels • Signal detail is preserved and obtaining by filtering • Requires signal processing • Requires oversampling, requires sample rate conversion filters • ADC – decimation (downsampling with filtering) • DAC – interpolation (upsampling with filtering) • Economics limited adoption until approx 1990 • Moore’s law allowed the DSP implementation to be cost effective • In engineering, the “rules” and constraints are always changing • Implementations have changed significantly over the years

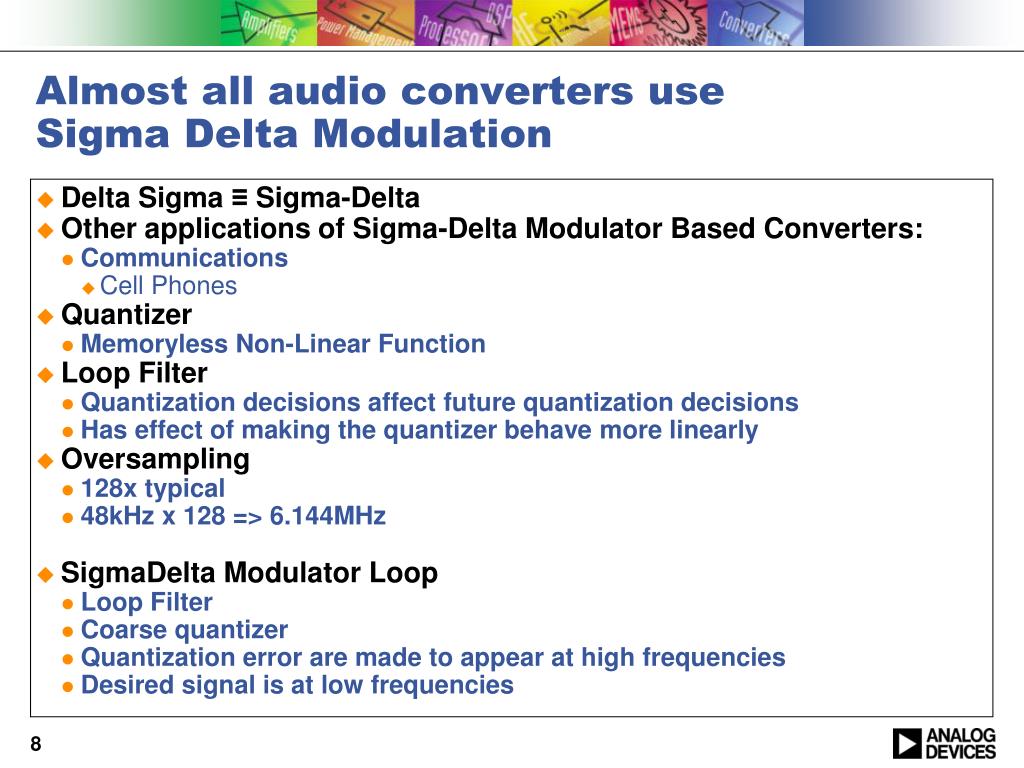

8. Almost all audio converters useSigma Delta Modulation • Delta Sigma ≡ Sigma-Delta • Other applications of Sigma-Delta Modulator Based Converters: • Communications • Cell Phones • Quantizer • Memoryless Non-Linear Function • Loop Filter • Quantization decisions affect future quantization decisions • Has effect of making the quantizer behave more linearly • Oversampling • 128x typical • 48kHz x 128 => 6.144MHz • SigmaDelta Modulator Loop • Loop Filter • Coarse quantizer • Quantization error are made to appear at high frequencies • Desired signal is at low frequencies

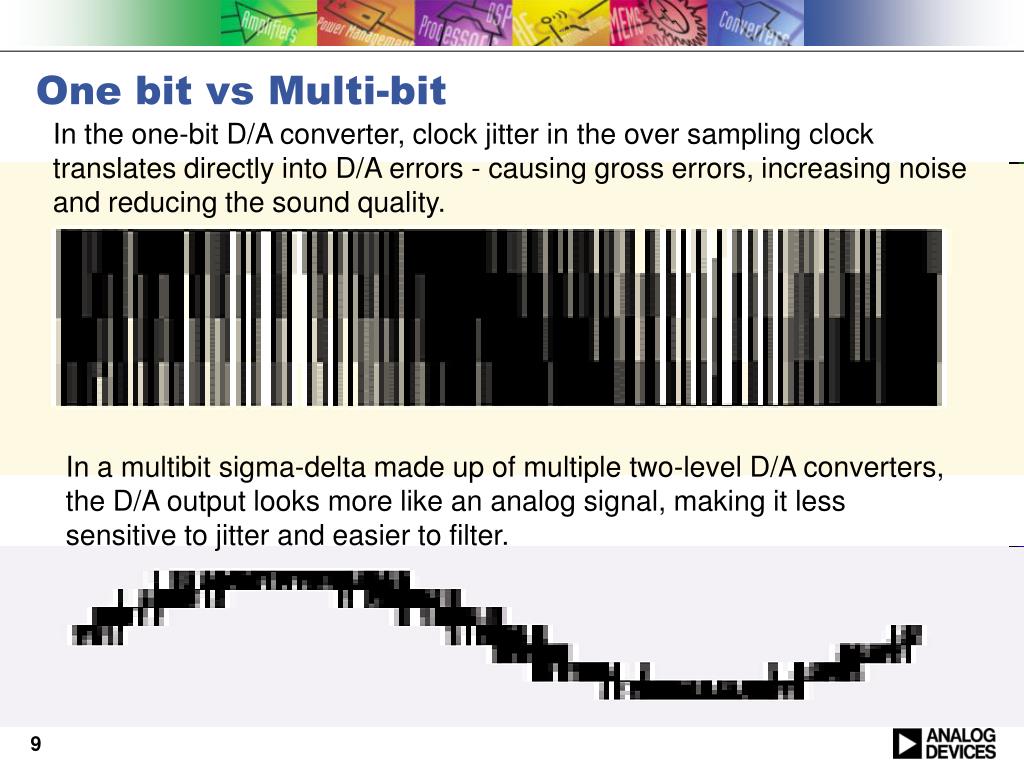

9. One bit vs Multi-bit In the one-bit D/A converter, clock jitter in the over sampling clock translates directly into D/A errors - causing gross errors, increasing noise and reducing the sound quality. In a multibit sigma-delta made up of multiple two-level D/A converters, the D/A output looks more like an analog signal, making it less sensitive to jitter and easier to filter.

10. Linear Signal Processing Model of SDM • Replace quantiser by a linear gain • What gain value for two level quantizer • Noise Transfer Function (NTF) • The shape of the quantization noise • Most of the energy is at high frequencies • Signal Transfer Function (STF) • The transfer function from the input to the putput • Can be flat (delay or no delay) • See books, Matlab SDM Toolbox

11. Sigma-Delta DAC • Two Level DAC • No matching problems • Errors are gain, offset • Horrible out of band noise • Non-linearities due to inter symbol interference and slew rate limiting • Multilevel DAC • Implementations • Switched Capacitor • Continuous amplitude, discrete time filter • Current Source

12. Multi Level DAC

13. SDM DAC Stages • Digital Interpolation • 2x Interpolator • Upsample by 2 • Halfband (FIR) • Allpass based structure (IIR) • 2x Interpolator • Upsample by 2 • Halfband (FIR) • Allpass based structure (IIR) • CIC Interpolator • Often Linear Interpolator Sinc2 • Also need CIC compensation filter • Digital Sigma Delta Modulator • Digital Dynamic Element Matching • Also designed using sigma-delta techniques • Analog DAC 1x → 2x 2x → 4x 4x → 128x → 17 levels 128x → 16 of 2 level

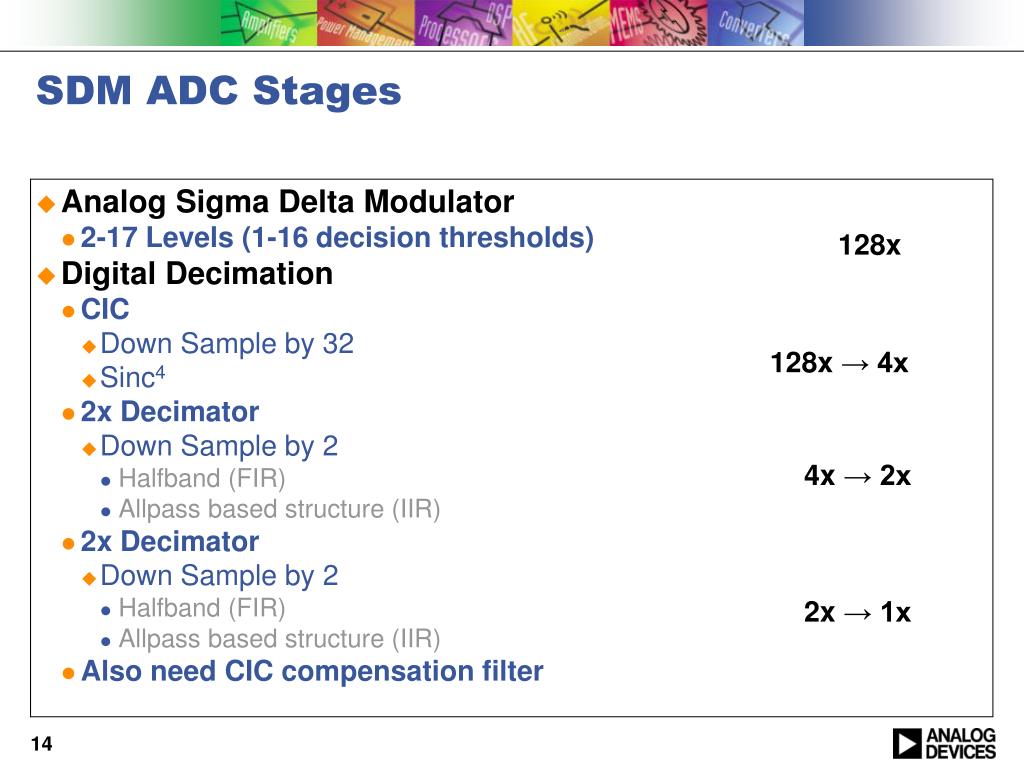

14. SDM ADC Stages • Analog Sigma Delta Modulator • 2-17 Levels (1-16 decision thresholds) • Digital Decimation • CIC • Down Sample by 32 • Sinc4 • 2x Decimator • Down Sample by 2 • Halfband (FIR) • Allpass based structure (IIR) • 2x Decimator • Down Sample by 2 • Halfband (FIR) • Allpass based structure (IIR) • Also need CIC compensation filter 128x 128x → 4x 4x → 2x 2x → 1x

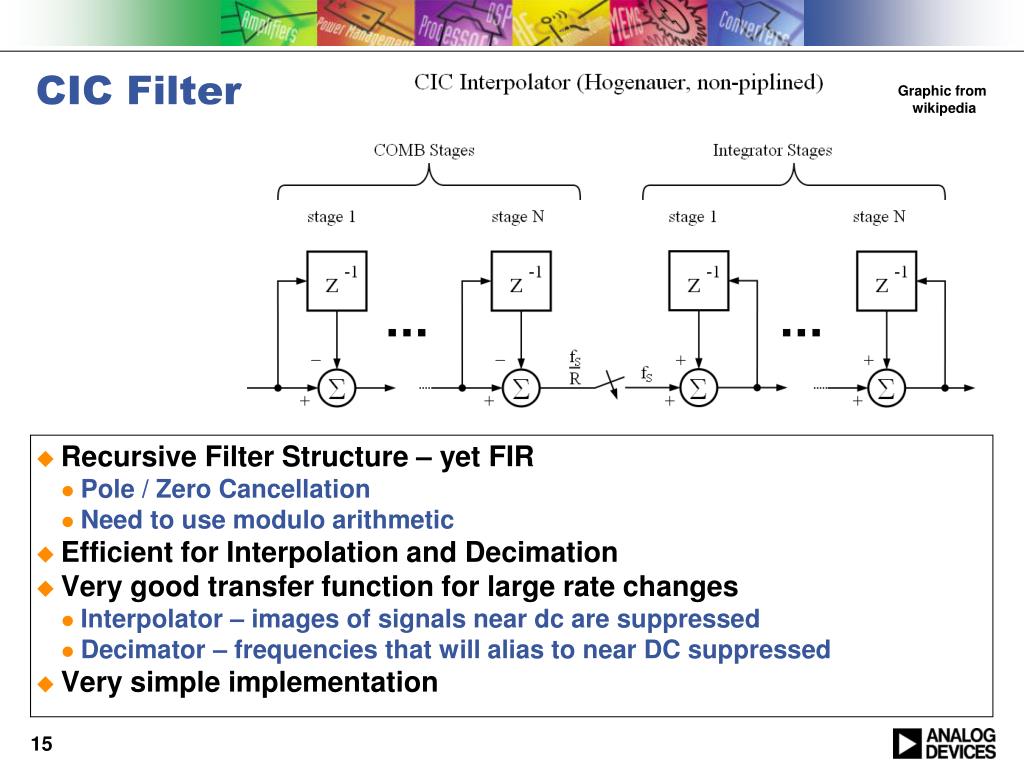

15. CIC Filter Graphic from wikipedia • Recursive Filter Structure – yet FIR • Pole / Zero Cancellation • Need to use modulo arithmetic • Efficient for Interpolation and Decimation • Very good transfer function for large rate changes • Interpolator – images of signals near dc are suppressed • Decimator – frequencies that will alias to near DC suppressed • Very simple implementation

16. Many diagrams taken from this paper:

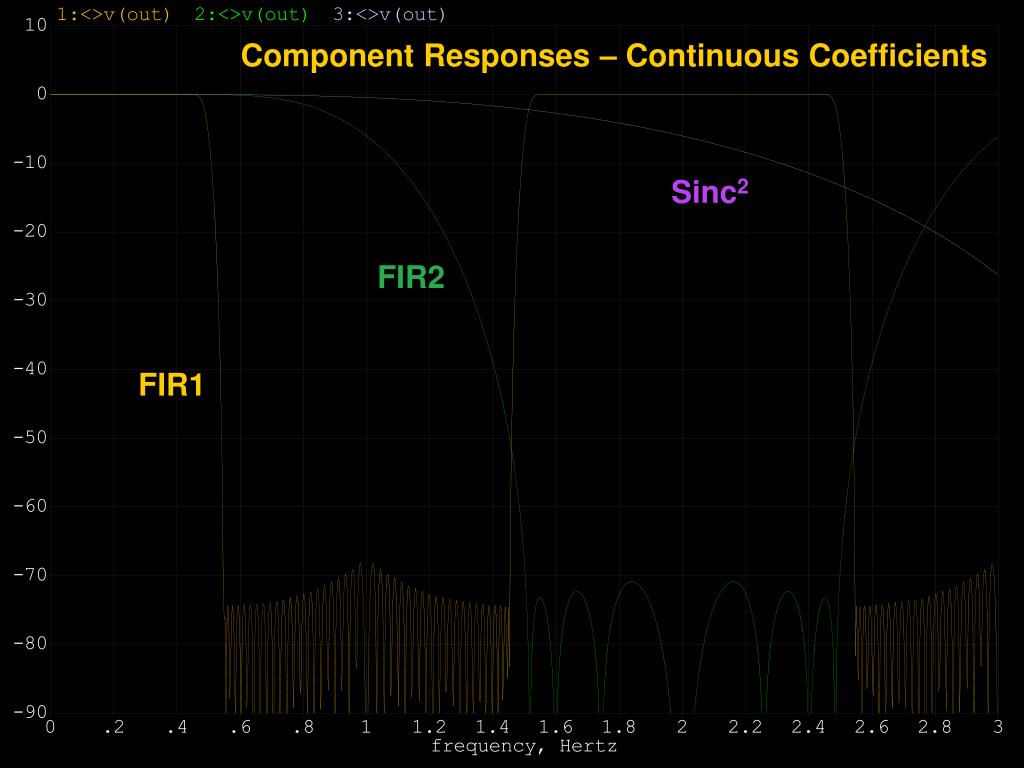

20. Component Responses – Continuous Coefficients Sinc2 FIR2 FIR1

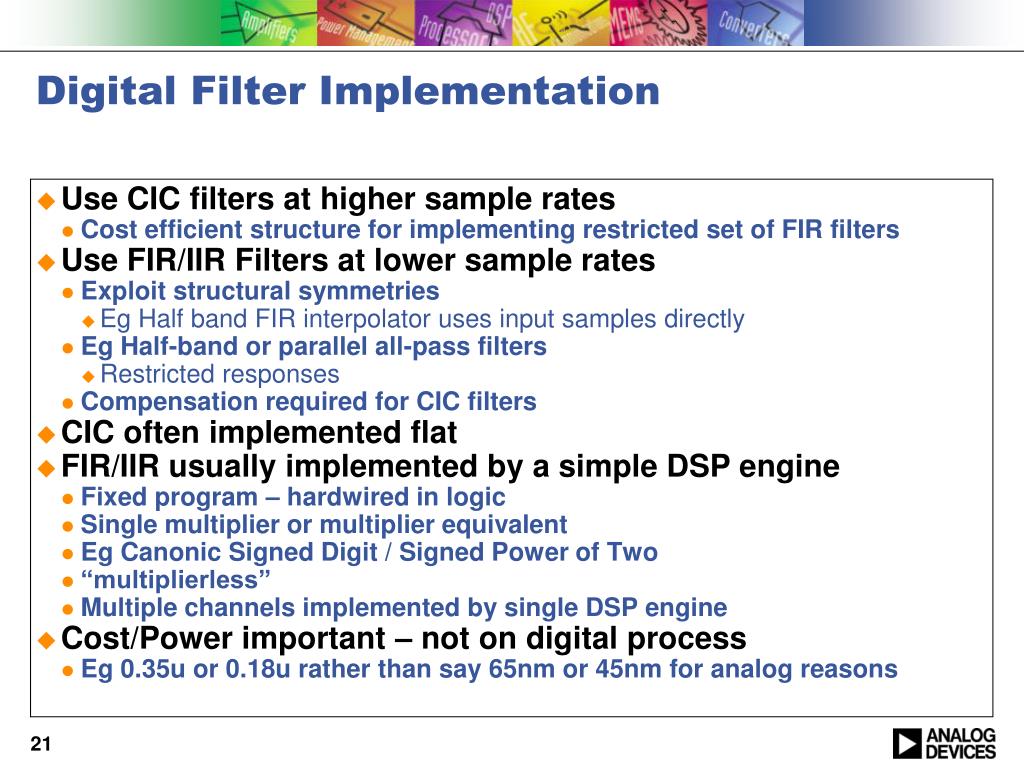

21. Digital Filter Implementation • Use CIC filters at higher sample rates • Cost efficient structure for implementing restricted set of FIR filters • Use FIR/IIR Filters at lower sample rates • Exploit structural symmetries • Eg Half band FIR interpolator uses input samples directly • Eg Half-band or parallel all-pass filters • Restricted responses • Compensation required for CIC filters • CIC often implemented flat • FIR/IIR usually implemented by a simple DSP engine • Fixed program – hardwired in logic • Single multiplier or multiplier equivalent • Eg Canonic Signed Digit / Signed Power of Two • “multiplierless” • Multiple channels implemented by single DSP engine • Cost/Power important – not on digital process • Eg 0.35u or 0.18u rather than say 65nm or 45nm for analog reasons

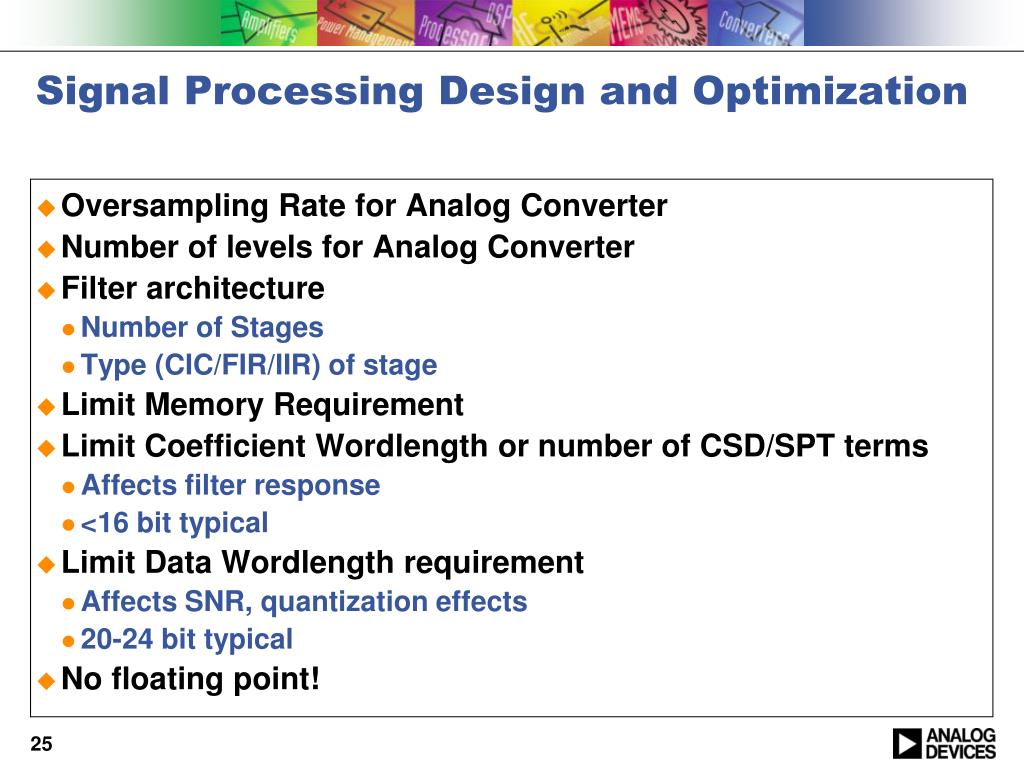

25. Signal Processing Design and Optimization • Oversampling Rate for Analog Converter • Number of levels for Analog Converter • Filter architecture • Number of Stages • Type (CIC/FIR/IIR) of stage • Limit Memory Requirement • Limit Coefficient Wordlength or number of CSD/SPT terms • Affects filter response • <16 bit typical • Limit Data Wordlength requirement • Affects SNR, quantization effects • 20-24 bit typical • No floating point!

26. Signed Power of Two Coefficients • Digitally “easy” coefficients • 0 • +1, -1 • +1/2, -1/2 • +1/4, -1/4 • … • Sums of these • Eg • +1/2 – 1/16 + 1/128 • Compare with Booth encoding used in multipliers • Only need a fixed set of coefficients • Less general – opportunity to optimize

28. A very simple DSP 24 bit Two’s complement One FIR tap calculated per clock cycle - Already have higher clock rate available 24 bit Two’s complement 24 bit Two’s complement Two’s complement or SPT

29. Component Responses – Continuous Coefficients Sinc2 FIR2 FIR1

30. Full Response with Continuous Coefficients

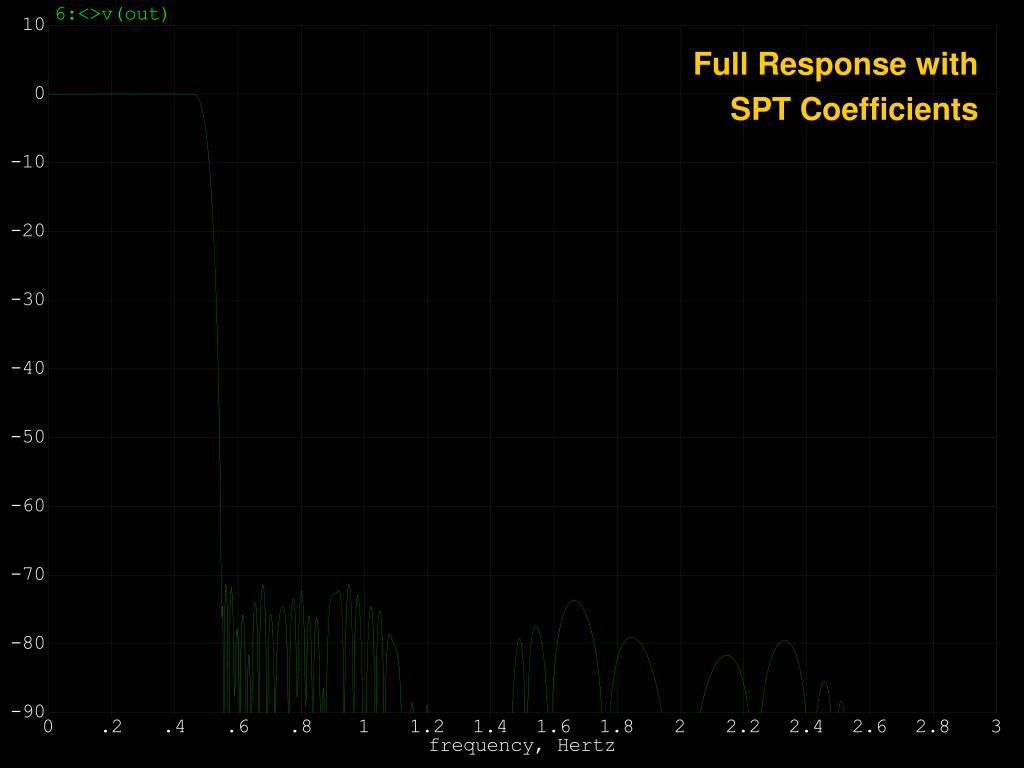

31. Full Response with SPT Coefficients

33. Gentler Frequency ResponseRequires higher sampling rate

34. Summary • Audio ADC and DAC is a rich example of real world signal processing • System / Architectural Level Design • Use digital technology to overcome weaknesses in analog • Filter Architectural Design • CIC vs FIR vs IIR • Filter Optimization • Structure • Word lengths of coefficients and data

35. Presented By:David Hossack Analog Devices, Inc. 804 Woburn Street Wilmington MA 01887 david.hossack@analog.com
