Assignment (1/2) • Read Chapter 5 • Problem: Consider a swing weight governor similar to the one shown below

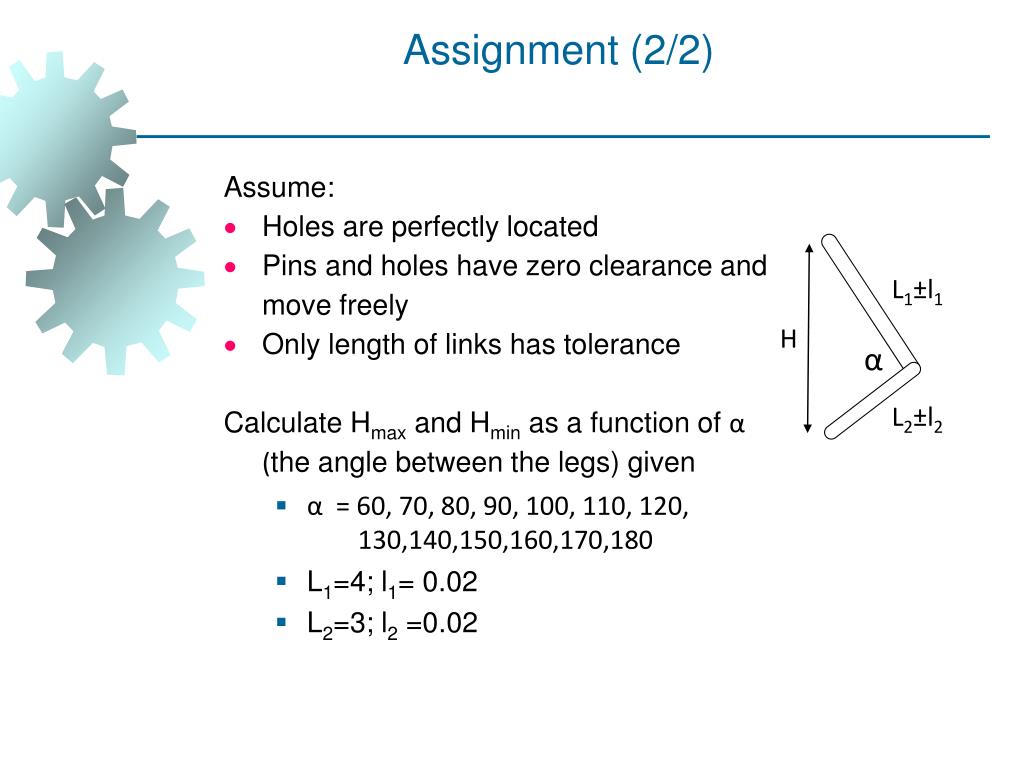

L1±l1 H L2±l2 Assignment (2/2) Assume: • Holes are perfectly located • Pins and holes have zero clearance and move freely • Only length of links has tolerance Calculate Hmax and Hmin as a function of α (the angle between the legs) given • α = 60, 70, 80, 90, 100, 110, 120, 130,140,150,160,170,180 • L1=4; l1= 0.02 • L2=3; l2 =0.02 α
