Presentation Transcript
slide2

Agenda

  • Fiscal Year (FY) 2011 Accomplishments
  • FY11 Planned Activities
  • Service-Oriented Architecture (SOA) Governance
  • Cloud Computing
  • Single European Sky Air Traffic Management (ATM) Research Joint Undertaking (SESAR JU)
  • Common Terminology
fy11 accomplishments
FY11 Accomplishments

Corridor Integrated Weather System (CWIS)

SWIM CWIS capability became operational in December 2010

Integrated Terminal Weather System (ITWS)

SWIM ITWS capability became operational in January 2011

Aeronautical Information Management (AIM)

AIM demonstrated SWIM-compliant Special Use Airspace (SUA) Automated Data Exchange Initial Operating Capability (IOC) in December 2010

slide4

Planned FY 11 Activities

  • En Route Automation Modernization (ERAM) re-plan
  • Network Clock Design Review for Network Time Protocol (NTP)
  • Developing Domain Name Service (DNS) prototype
      • Developing Compliance Test Kit (CTK)
      • Developing Open Authorization (oAuth)
      • Developing Enterprise Service Management (ESM)
  • Testing Aircraft Access to SWIM (AAtS) at the FAA Florida NextGen Test Bed (FTB)
    • Human-in-the-Loop (HITL)
    • Notices to Airmen (NOTAMs)
    • Temporary Flight Restrictions (TFRs)
    • Weather data

4

planned fy 11 activities
Planned FY 11 Activities

Developing SWIM Enterprise Messaging System (SEMS) messaging infrastructure

  • Working from Harris DEX (Data Exchange)
  • Is a network-centric core services enabling information providers and consumers to exchange information within the National Airspace System (NAS) as well as to external customers
  • Supports publish/subscribe information exchange via Java Message Service (JMS) Application Program Interfaces (API) and request/response information exchange via Web Services (WS) utilizing Simple Object Access Protocol (SOAP) messages
    • The Messaging API provides request/response and publish/subscribe messaging capabilities
    • Publish/subscribe messaging is provided using primarily JMS
    • Request/response messaging is provided using WS
soa governance

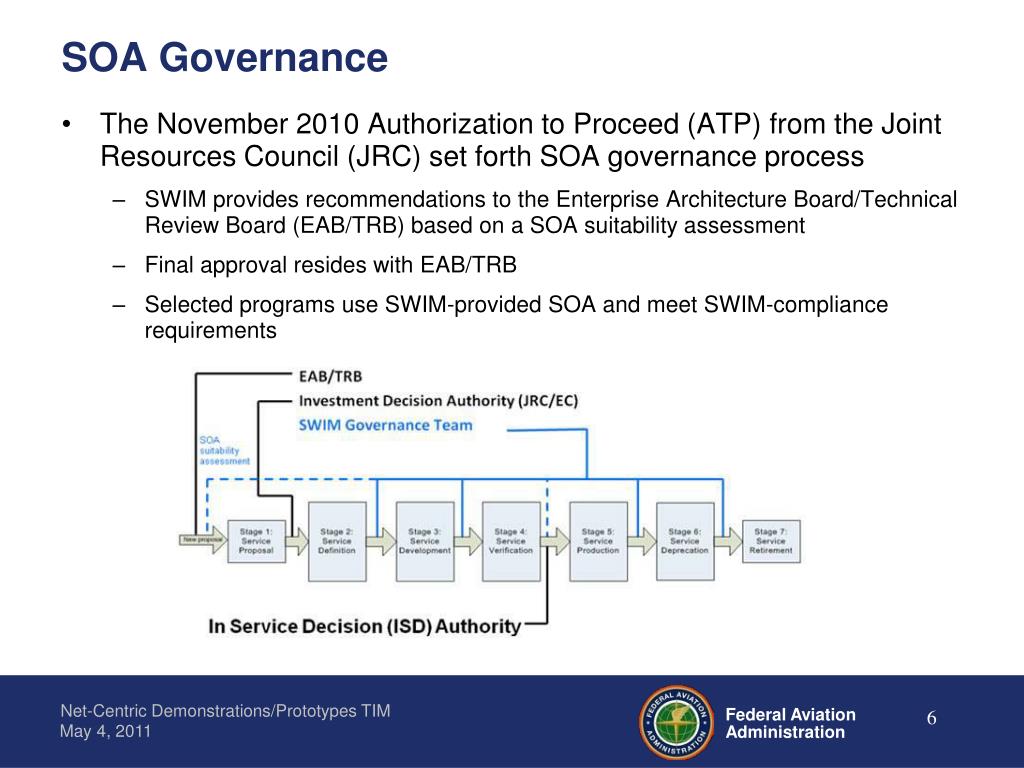

SOA Governance

The November 2010 Authorization to Proceed (ATP) from the Joint Resources Council (JRC) set forth SOA governance process

SWIM provides recommendations to the Enterprise Architecture Board/Technical Review Board (EAB/TRB) based on a SOA suitability assessment

Final approval resides with EAB/TRB

Selected programs use SWIM-provided SOA and meet SWIM-compliance requirements

cloud computing
Cloud Computing

SWIM to identify which FAA IT services to move and when

Identify sources of value for cloud migrations:

efficiency

agility

innovation

Determine cloud readiness:

security

market availability

government readiness

technology lifecycle
