preliminary applications of the hl rdhm within the colorado basin river forecast center

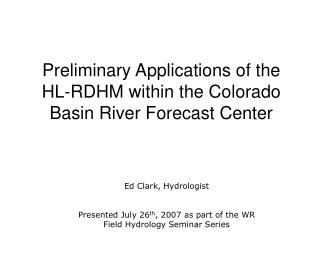

Preliminary Applications of the HL-RDHM within the Colorado Basin River Forecast Center

Ed Clark, Hydrologist

Presented July 26th, 2007 as part of the WR Field Hydrology Seminar Series

nws distributed model s
NWS Distributed Model(s)

RDHM: Research Distributed Hydrologic ModelObject oriented with SAC-SMA, Snow17, API, Frozen Ground, Channel Shape, and Routing Curve sub-routines

Output:

Grids -- Any parameters states

Time Series: Basin Average (any parameter) and Outlet Discharge.

DHM: NWSRFS OperationRequires RDHM to setup parameter grids. Limited to SAC-SMA model and routing via the connectivity file. Delivered to the RFC’s in build 8.2.

Output:

Discharge time-series for display within NWSRFS

model structure
Model Structure
  • Divides the basin of interest into ~4 km2 grids. (HRAP)
  • Requires gridded Surface Temperature and Precipitation (xmrg’s from MPE).
  • Runs modules the existing models Snow17, Sacramento Soil Moisture Accounting Model (SAC-SMA) to generate runoff.
  • Runoff is routed by solving the Kinematic Wave Equations.
slide5

Snow Pack

Water content in Soil tanks, ET

Rain +melt

FRZ (Sac-HT)

SAC-SMA

Water Contents at Depth

Kinematic Wave Routing

Discharge Hydrograph

Model Concept: The HL-RDHM is an object oriented modeling system consisting of Snow Melt, Rainfall Runoff, Frozen Ground models and routing methods. Individual modules are called from within the RDHM architecture. Invoking any of the modules allows their parameters and states to be access by other modules from the three dimensional array or PixGraph.

Snow17

Surface and subsurface flow

Runoff

evapotranspiration
Evapotranspiration
  • Mean Monthly PE and PE_adj grids.
  • Mean Daily PE grids derived from point data and:
  • PE_adj grids derived from Green Vegetation Fraction (NCEP global data set) and derived through the an empirical relationship with the calibration process.
channel and hill slope routing
Channel and Hill-slope routing

Real HRAP

Cell

Hillslope

model

Cell-to-cell channel routing

From Yu Zhang, OHD

control and calibration
Control and Calibration
  • Input card is passed to the model. Defines location of data, simulation period, and calibration parameters.
  • Parameters grids can be calibrated by multiplying the by a scalar.

>1

Gridded Parameter

<1

model parameterization
Model Parameterization
  • Snow17 MFMax and MFMin based on DEM analysis, provided by OHD.
  • SAC-SMA grids provided by OHD and based on STATSGO data.
  • Routing grids are generated from USGS field measurements by defining a relationship between channel shape and discharge.
  • Other grids written out from the calibrated lumped model.
evolution to a fully distributed model
Evolution to a Fully Distributed Model

Sac_LZTWM

  • Lumped Model. Extensively calibrated for the CBRFC with a great deal of forecaster skill.
  • Lumped parameter values distributed by elevation zone. Used to check the mechanics of the model, and increase forecast skill with high intensity, convective events.
  • Fully Distributed. Parameters based on Statsgo data, calibrated by applying a scalar multiplier, High Spatial Variability

past

Future

application demonstration basins
Comparison w/ RTi SNOWDAS.

Gridded Snow17 Investigation

Demonstration of gridded soil moisture “norms” and QPE driven small basin hydrograph. [Verde, Santa Cruz and San Pedro basins.]

Application/Demonstration Basins
rapid surface runoff and near surface soil moisture
Rapid surface-runoff and near surface soil moisture
  • Does spatially distributing convective precipitation help improve our ability to simulate hydrographs in arid portions of the Southwest?
  • Can the gridded Sac-SMA model be used to qualify the current conditions of near-surface soil moisture?
qpe driven small basin hydrograph flash flooding quantification
QPE driven small basin hydrograph – flash flooding quantification.

MPE xmrgs and scaled (calibrated lumped to a-priori basin mean) OHD a-priori sac-sma grids

normalized soil moisture
Normalized Soil Moisture
  • Generate mean upper and lower tension water contents from the lumped model calibration.
  • Compare the RDHM output tension water contents to this day’s normal conditions.
  • Asks, where are we today compared to where we are “usually?”
slide16

Upper Zone Percent of Model Mean

Lower Zone Percent of Model Mean

July 28th, 2007

August 1st, 2007

August 7th, 2007

August 14th, 2007

August 20th, 2007

Seasonal Soil Moisture Simulation in the Upper Verde River

April 1st, 2007

May 1st, 2007

June 1st, 2007

July 1st, 2007

July 14th, 2007

July 21st, 2007

soil moisture percent of normal
Soil Moisture Percent of Normal

July 1, 2006

Upper Zone

Lower Zone

soil moisture percent of normal18
Soil Moisture Percent of Normal

July 25, 2006

Upper Zone

Lower Zone

contents at depth
Contents at Depth
  • Utilizes Victor Koren’s Sacramento Heat Transfer (SAC-HT) model.
  • Calculates frozen and liquid contents in a set of computational layers at specified depths.
  • Outputs as outlet time-series or individual grids.
proposed soil moisture probes in the san pedro near tombstone and bobacomari basins
NOAA’s ESRL has proposed to place 6 sensors within the Bobacomari/San Pedro Tombstone Areas.

Strengths: Existing Soil Moisture studies in Walnut Gulch. Bobacomari can be treated as headwater.

Will cluster 3 sensors in one HRAP cell to better under stand variability.

Other three will be placed on a cross section of the basin.

Proposed Soil Moisture Probes in the San Pedro near Tombstone and Bobacomari Basins.
continued study
Continued Study
  • Increase the number of calibrated basins.
  • Increase the region over which soil moisture modeling is computed.
  • Work with our customers (WFO’s, regional scientists and land managers) to better publish soil moisture simulations and observations.
questions
Questions?

Available at:

http://www.cbrfc.noaa.gov/present/present2007.cgi
