Sbir phase ii ipr 1 26 06

SBIR Phase II IPR - 1/26/06

Paul Gustavson (Principle Investigator)

Ben Sisson (Principle Engineer)

Karl Crosson (BAF Developer)

Matt Morgan (BARN Developer)

Tram Chase (Developer)

SimVentions

Mike Haddad

PEOSTRI – SBIR POC


Topics
Topics

  • Agg/Deagg Projects / Funding

    • Army

    • Navy

  • Task Overview

  • BAF Spec Work

  • BARN / AAXE

  • Discussion

    • Projects

      • WARSIM

      • ONESAF

    • Future Demos

  • Financial Picture

2



Phase ii baf task overview
Phase II BAF Task Overview

Identify and Establish DoD and Commercial Partners

Maintain Community Involvement

Schedule and Conduct IPRs

4









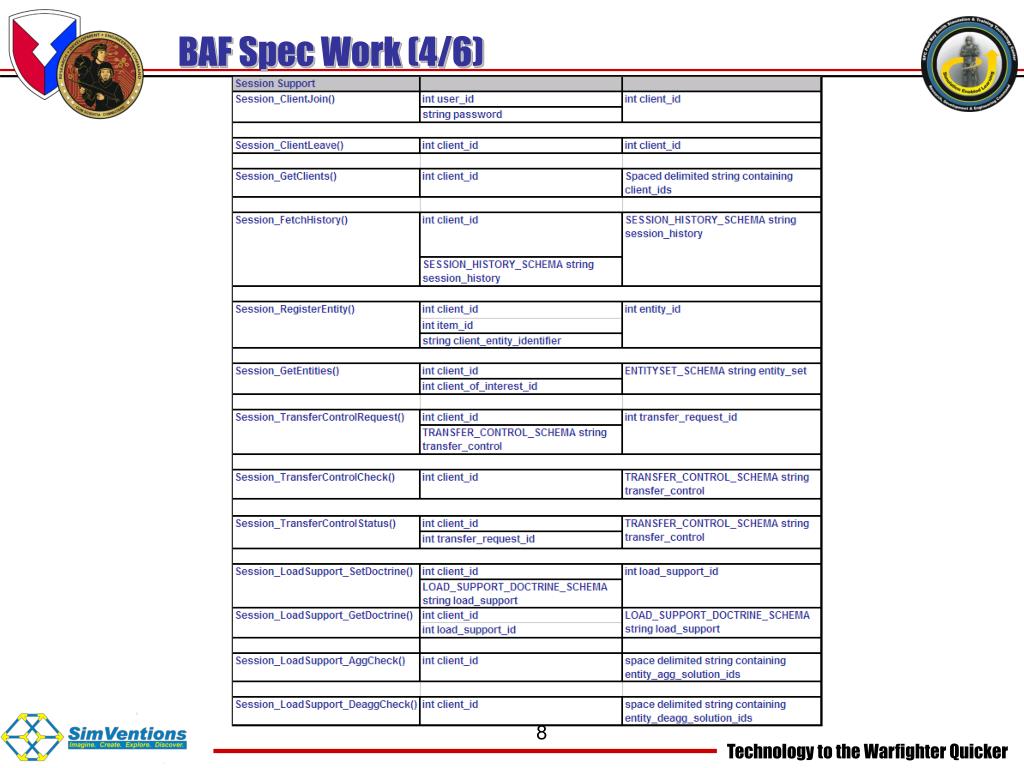

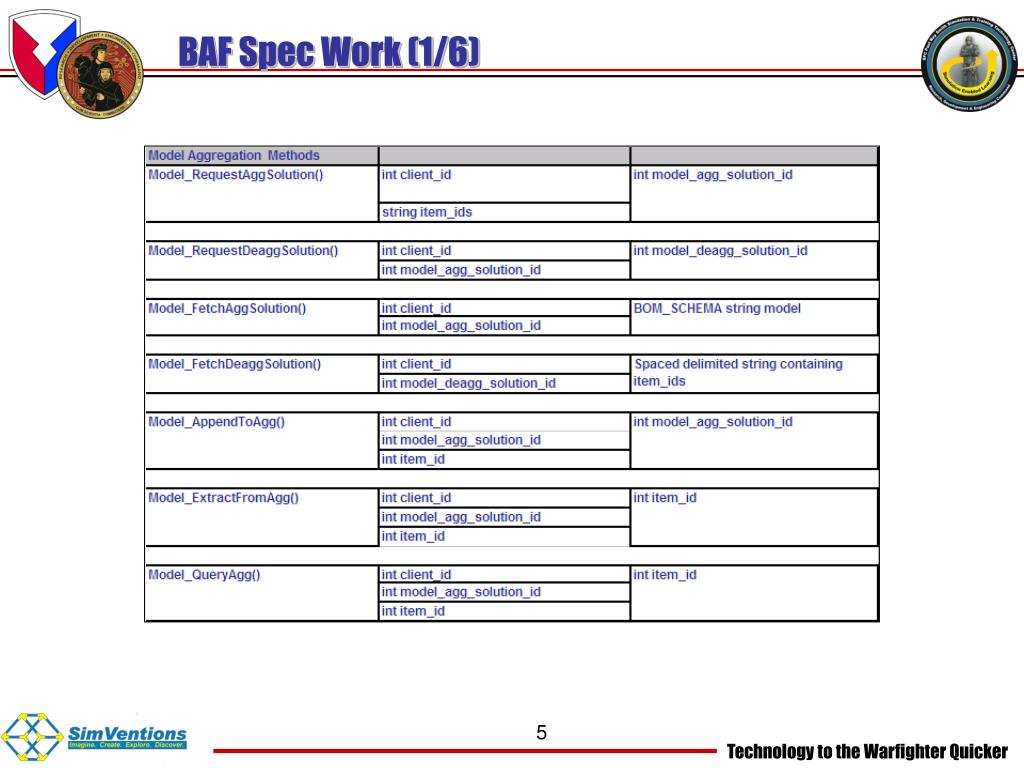

Spec work sequence diagrams
Spec Work – Sequence Diagrams

See separate PPT

12

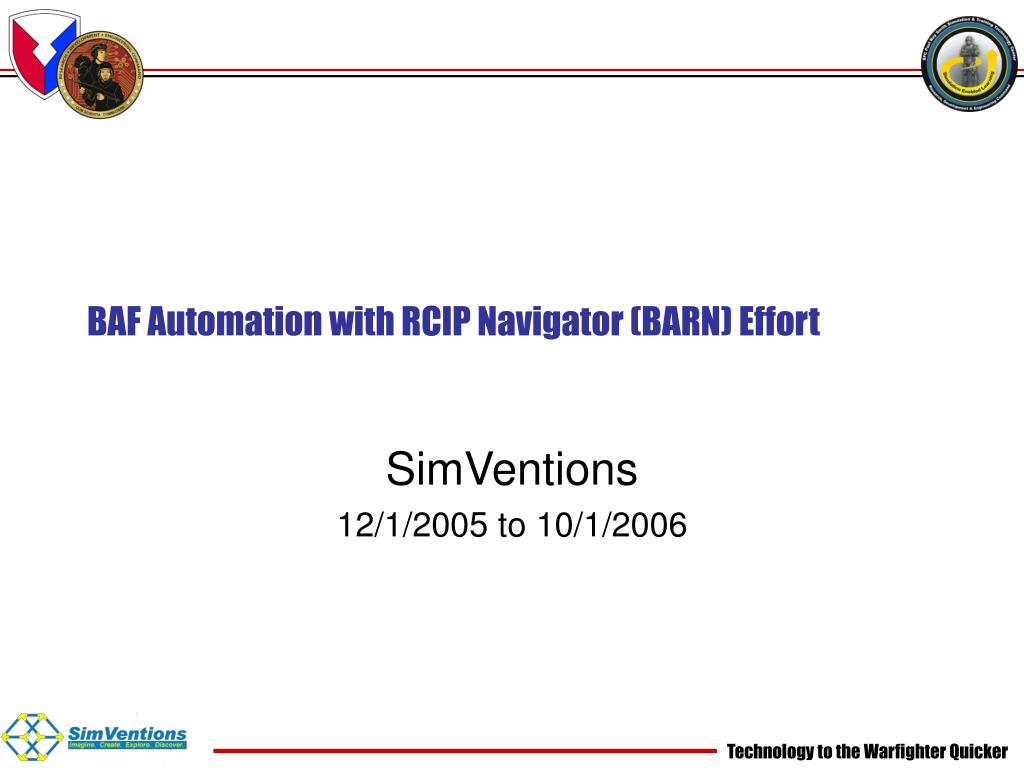

Baf automation with rcip navigator barn effort

BAF Automation with RCIP Navigator (BARN) Effort

SimVentions

12/1/2005 to 10/1/2006

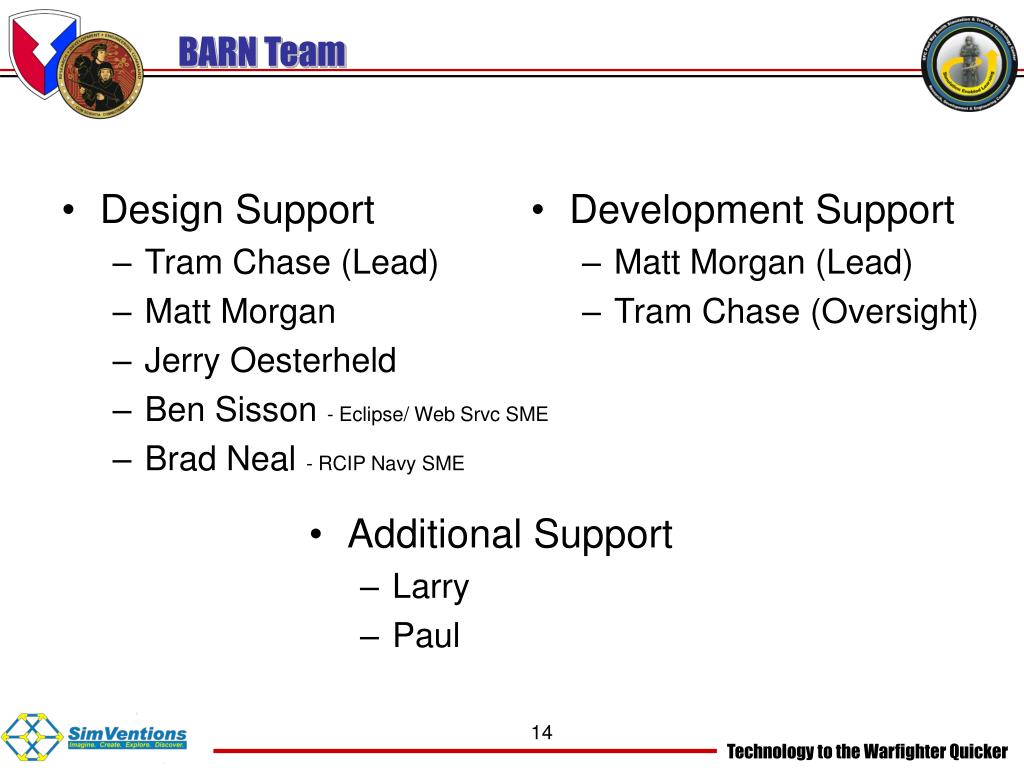

Barn team

Design Support

Tram Chase (Lead)

Matt Morgan

Jerry Oesterheld

Ben Sisson - Eclipse/ Web Srvc SME

Brad Neal - RCIP Navy SME

Development Support

Matt Morgan (Lead)

Tram Chase (Oversight)

BARN Team

  • Additional Support

    • Larry

    • Paul

14


Barn overview

What is RCIP

Rapid Capability Insertion Process

the overarching process for rapidly introducing new capabilities and technologies to warfighters

Uses

open architecture and

spiral evolutionary development.

Differs from traditional military acquisition since the emphasis is on hardware / software independence and attempts to maximize software reuse.

What is the RCIP Navigator

Represents a wizard-style approach to assisting Program Managers, PEOs, OPNAV and other users in navigating their efforts through the RCIP.

Also provides web-accessible views of all programs within the RCIP, allowing high-level monitoring and status reporting as needed.

What integration is required for BAF Automation of the RCIP Navigator

RCIP Navigator will utilize Base Object Models (BOMs) to support the RCIP process

Provide capability (via BOMs) to determine/evaluate proposed and existing capabilities and systems.

Leverage and use BAF accordingly

BARN Overview

Related work –

  • N-053 - Modeling the Impact of Technology Transition on Ship Capabilities

  • DMSO Composability

15


Barn overview1
BARN Overview

DMSOComposabilityEffort

RCIPNav

BAFAutomationw/ RCIP Nav(BARN)

Modeling the Impact of Technology Transition on Ship Capabilities (N-05-053)

BAF

16


Baf automation of the rcip navigator barn
BAF Automation of the RCIP Navigator (BARN)

  • Tool = Automation and Extraction Agent (AAXE)

    • prototype tool

    • Java-based, so that it is available on multiple platforms

    • Can integrate / wrap-around any client application

      • E.g. RCIP Nav

    • Will leverage BAF web services & BOMs

  • How does it interact with the RCIP Navigator?

    • Capable of automating the execution process of the model

    • Able to extract/write BOM info from the model’s execution output

    • Can be retooled as a component instead of a standalone application

  • Where is it at this moment in time?

    • Queries for a script file name

    • Executes script read in from file or manually entered

  • Next Step

    • BAF (BASS) Integration

Scripts exist already to execute the model in ProcessModel (i.e. RCIP Nav) and force export the data to an Excel spreadsheet.

17


Barn task

General

Community involvement - SIW, Papers, I/ITSEC

maintain and populate a web-based repository

Extend Selected BOMs and BOM Assemblies with Behavior Descriptions

BOM Component Implementations

Mature the Capture of BOM Meta-Data from Users

User friendly capture process of metadata

pre-fill all possible information based on already known details (such as user information, project information, etc.),

limit the use of keyboard entry for the collection of information

Web service search / candidate list of BOMs

recommend and/or allow use of other BOMs as a pattern template if an exact match cannot be found,

provide pertinent graphical representation when at all possible,

maximum the use of color to quickly reflect status and interest points to the user.

NOTE: feature not restricted only to RCIP Navigator

Demonstrate RCIP Navigator Access to the BOM Component Repository (

to be used by AAXE

Create a reusable component that can provide the access needed to interact appropriately with the BOM Component Repository.

Demonstrate the use and application of this component with RCIP Navigator – show “smart” access to the repository

Make use of rule-sets, access-mechanism, UDDI, etc…

Design and Prototype a BOM supported Script Language

Script Language to be used by AAXE

Leverage metadata in BOMs to establish first-generation test scenario.

Use for a quick-check of the validity of the BOM-mix

SG capability may be represented as a web-service, such that BOMs and/or BOM-sets can be submitted and the first-order scenario returned.

The representation of the scenario would most likely be in an XML-based language set like the Military Scenario Definition Language (MSDL).

Design and Prototype a BOM-based Component Simulation Environment

a “quick-look” simulation of the RCIP candidate capability

formulate the set of BOMs into an executable model,

ensure that the behavior has been appropriately described for the model,

generate first-order scenario, and then

execute the “quick-look” simulation.

The results from this simulation would then be delivered to the RCIP Navigator.

Possible candidates for this include

Simulation Reference Markup Language (SRML),

OneSAF Objective System (OOS) Java Beans, or even

Macromedia’s Flash.

This environment could also be stood-up as a “BOM Evaluator” such that the results would be used to grade the completeness-level and complexity-level of the BOM, BOM Assembly, or BOM Aggregate.

BARN Task

Overall Objective – Add BOM-level functionality to RCIP Navigator so that BOMs can be used to perform a “quick-look” simulation analysis of “as-is” and “to-be” capabilities.

18


Discussion questions

Discussion / Questions?

  • Projects

    • WARSIM

    • ONESAF

  • Future Demos

Paul Gustavson

pgustavson@simventions.com

540 372-7727 (work)

540 429-2550 (cell)

www.simventions.com/sbir_agg

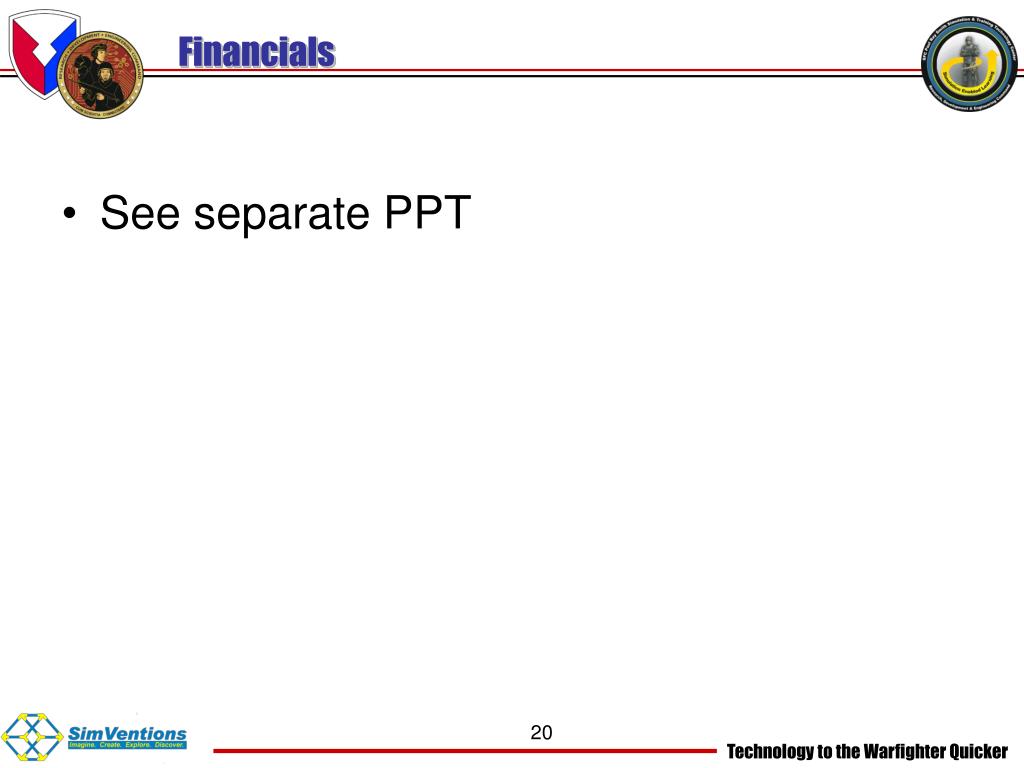

Financials
Financials

  • See separate PPT

20



How are we using boms

radar

Humveeplatform

gun

BOM

BOMs

vehicle

Composite

pattern

soldier

RPR FOM

RPR

BOMs

Subsystem

models

OneSAF Objective System

<<tank BOM>>

M1A - 1403

<<container BOM>>

agg -123

<<tank BOM>>

M1A - 1404

Flyweight

pattern

<<helo BOM>>

Apache - 132

entities

How are we using BOMs?

  • Data exchange interface elements

  • Model Aggregations

  • Entity Instance Aggregations

22

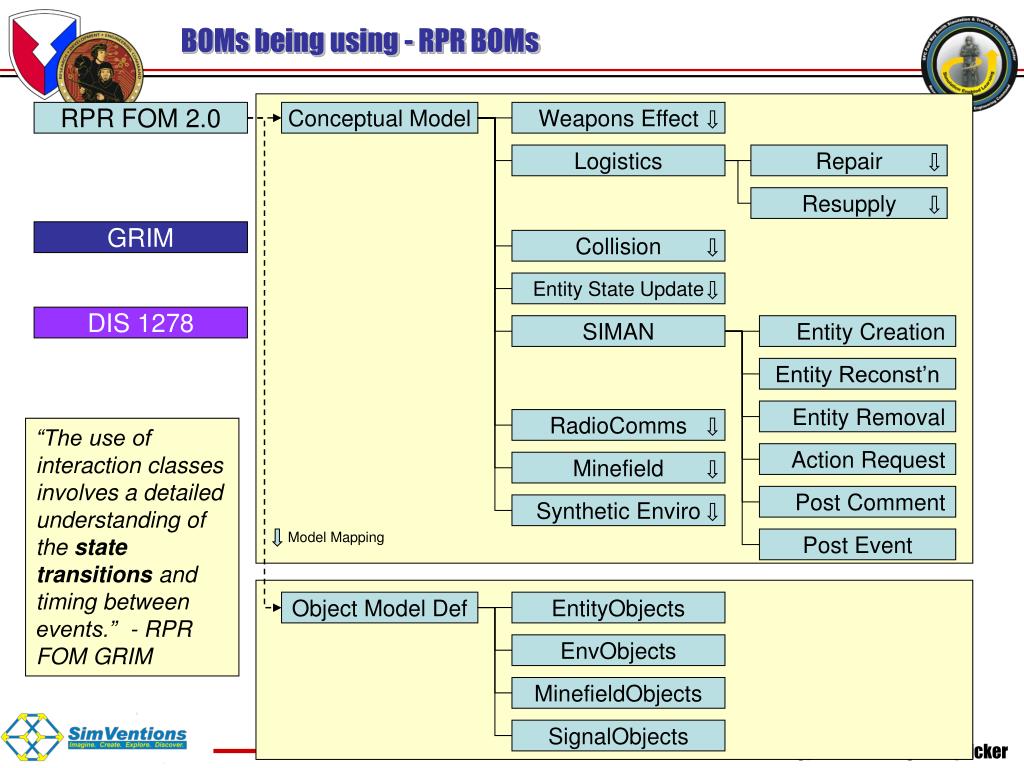

Boms being using rpr boms

Weapons Effect

Logistics

Repair

Resupply

Collision

Entity State Update

SIMAN

Entity Creation

Entity Reconst’n

Entity Removal

RadioComms

Action Request

Minefield

Post Comment

Synthetic Enviro

Post Event

EntityObjects

EnvObjects

MinefieldObjects

SignalObjects

BOMs being using - RPR BOMs

RPR FOM 2.0

Conceptual Model

GRIM

DIS 1278

“The use of interaction classes involves a detailed understanding of the state transitions and timing between events.” - RPR FOM GRIM

Model Mapping

Object Model Def

23

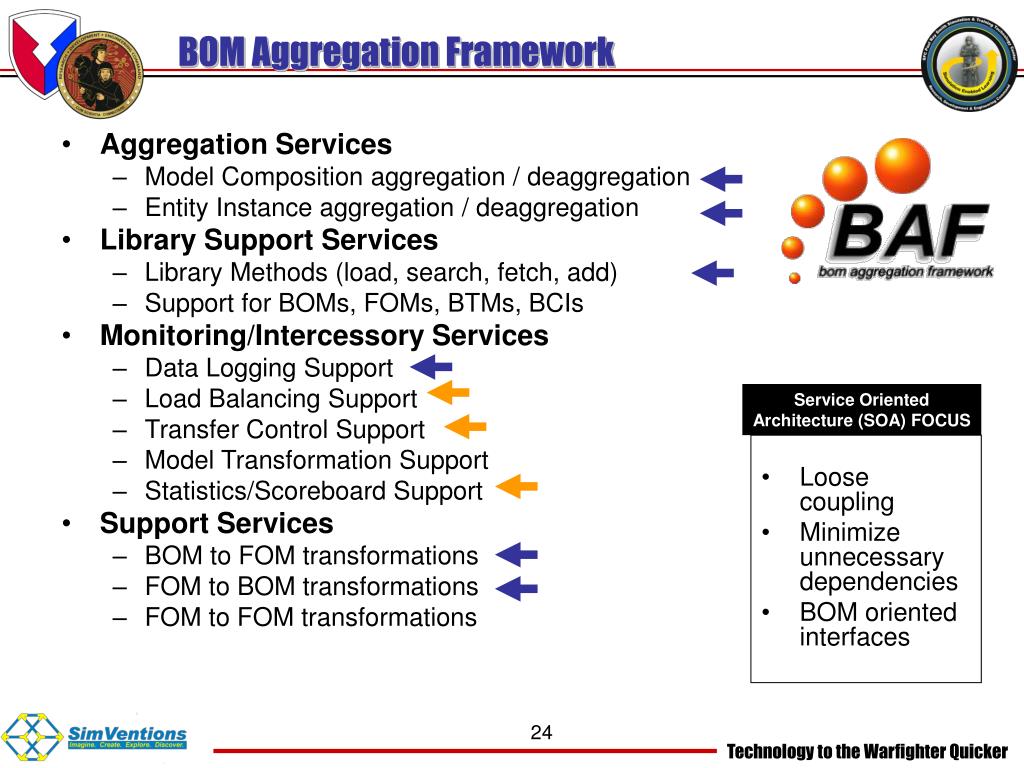

Bom aggregation framework
BOM Aggregation Framework

  • Aggregation Services

    • Model Composition aggregation / deaggregation

    • Entity Instance aggregation / deaggregation

  • Library Support Services

    • Library Methods (load, search, fetch, add)

    • Support for BOMs, FOMs, BTMs, BCIs

  • Monitoring/Intercessory Services

    • Data Logging Support

    • Load Balancing Support

    • Transfer Control Support

    • Model Transformation Support

    • Statistics/Scoreboard Support

  • Support Services

    • BOM to FOM transformations

    • FOM to BOM transformations

    • FOM to FOM transformations

Service Oriented Architecture (SOA) FOCUS

Loose coupling

Minimize unnecessary dependencies

BOM oriented interfaces

24


Bom aggregation support server
BOM Aggregation Support Server

  • BAF Implementation

    • Java (Eclipse)

    • Web Services

    • Independent WSDLsfor each service group

    • Not dependent on dedicated server

    • Uses and generates BOMs

    • Apache

25


Sbir background objectives
SBIR Background/Objectives

  • Develop a common framework for aggregating and deaggregating entities in simulations exercises to:

    • Facilitate interoperability between models at different levels of fidelity (allowing agg-level sims to interact with entity-level sims)

    • Improve system performance for distributed exercises

      • Reduce memory load

      • Reduce CPU load

      • Reduce network load

    • Manage entity count depending upon system load

    • Preserve simulation behavior validity throughout the aggregation levels

Aggregation - the coupling of multiple models/entities into a single inclusive group

26

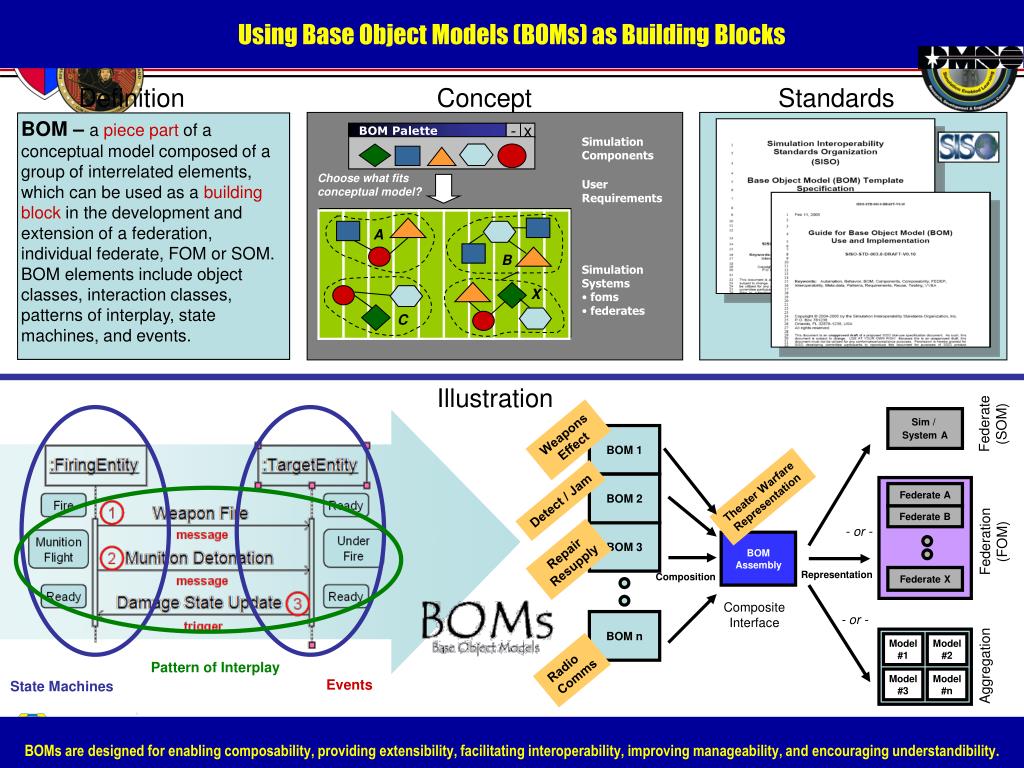

Using Base Object Models (BOMs) as Building Blocks

Pattern of Interplay

Events

State Machines

Definition

Concept

Standards

BOM – a piece part of a conceptual model composed of a group of interrelated elements, which can be used as a building block in the development and extension of a federation, individual federate, FOM or SOM. BOM elements include object classes, interaction classes, patterns of interplay, state machines, and events.

BOM Palette

-

x

Simulation Components

Choose what fits conceptual model?

User Requirements

A

B

Simulation Systems

  • foms

  • federates

X

C

Illustration

Federate(SOM)

Sim / SystemA

WeaponsEffect

BOM 1

BOM 2

Theater WarfareRepresentation

Federate A

Detect / Jam

Federate B

- or -

Federation(FOM)

BOM 3

BOMAssembly

RepairResupply

Representation

Composition

Federate X

CompositeInterface

- or -

BOM n

Model#1

Model#2

RadioComms

Aggregation

Model#3

Model#n

27

BOMs are designed for enabling composability, providing extensibility, facilitating interoperability, improving manageability, and encouraging understandibility.

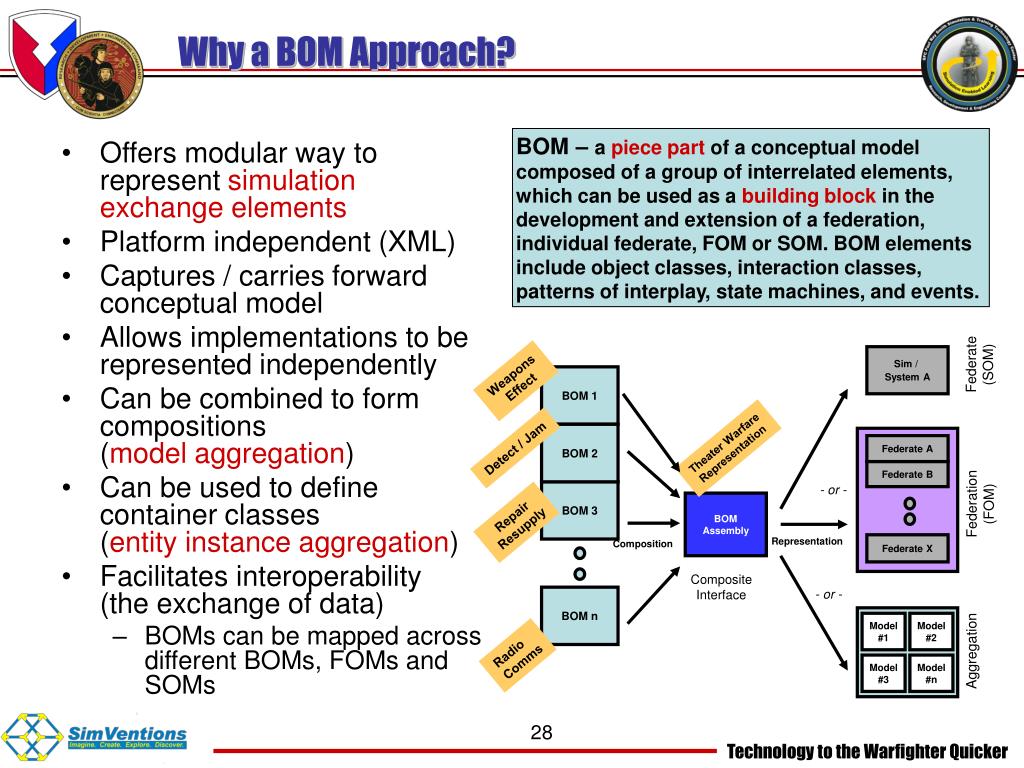

Why a bom approach
Why a BOM Approach?

BOM – a piece part of a conceptual model composed of a group of interrelated elements, which can be used as a building block in the development and extension of a federation, individual federate, FOM or SOM. BOM elements include object classes, interaction classes, patterns of interplay, state machines, and events.

  • Offers modular way to represent simulation exchange elements

  • Platform independent (XML)

  • Captures / carries forward conceptual model

  • Allows implementations to be represented independently

  • Can be combined to form compositions (model aggregation)

  • Can be used to define container classes(entity instance aggregation)

  • Facilitates interoperability(the exchange of data)

    • BOMs can be mapped across different BOMs, FOMs and SOMs

Federate(SOM)

Sim / SystemA

WeaponsEffect

BOM 1

BOM 2

Theater WarfareRepresentation

Detect / Jam

Federate A

Federate B

- or -

Federation(FOM)

BOM 3

BOMAssembly

RepairResupply

Representation

Composition

Federate X

CompositeInterface

- or -

BOM n

Model#1

Model#2

RadioComms

Aggregation

Model#3

Model#n

28


Bom elements

a component-based standard describing reusable piece parts of a simulation or simulation space.

BOMs can be used to document one or more of the following piece part elements:

Conceptual Model

Patterns of interplay

State machines

Entities

Events

Interface Description

Object classes / attributes

Interaction classes / parameters

Mapping between Conceptual Model and Interface Description

Used as a building block in the development and extension of a simulation and/or a federation of simulations.

Provides developers and users a modular approach

for defining and adding new capabilities to a federate or federation,

for quickly composing object models such as HLA FOMs and SOMs through BOM Assemblies.

Model Identification (Metadata)

Conceptual Model Definition

Pattern of Interplay

State Machine

Entity Type

Event Type

Model Mapping

Entity Type Mapping

Event Type Mapping

Object Model Definition

HLA Object Classes

HLA Object Classes

HLA Object Class Attributes

HLA Interaction Classes

HLA Interaction Classes

HLA Interaction Class Parameters

HLA Data Types

Notes

Lexicon (definitions)

BOM Elements

29


Automation and Extraction Agent (AAXE)

PLANNED OR IN PROGRESS

  • Rebuild the interface to be more “production friendly”

  • Add a file dialog to allow easy selection of scripts

  • Add a list of common commands for easy reference (help section)

  • Revamp the command language (low priority)

  • Add support for BOM extraction from Process Model Excel spreadsheet export

  • Modify and generate scripts as needed

    UNDER CONSIDERATION

  • Create a script building tool to assist in script generation

    Process Model (i.e. RCIP Nav) Export Data

    PLANNED OR IN PROGRESS

  • Analyzing exported data for identification of BOMs

  • Generate unique filename for export to individual runs are not overwritten

30


What are the rcip navigator features

Focus on Open Architecture (OA) and Spiral Technology Insertion

Assist in the management and reporting of a capability that is moving through the various stages of the insertion process

Identify the RCIP steps the capability must step through - based on program ACAT level (SHIPMAIN impact), number of interfaces (testing impact), weapons involvement (WSERB impact) and complexity (Sea Trial impact)

Assist in the packaging of capabilities that can be rolled-up into the Navy’s planned bi-annual introduction of new warfighter technology into fleet programs

Automate the generation of technology roadmaps which will enable users to perform capability roll-ups by date, warfighter gap, major program and insertion platform

Automate the generation of capability “Quad Charts” used by the Program Managers to brief their programs

Identify capability inter-dependencies to ensure that the bi-annual introduction packages contain all of the technology required to support the insertion

Wizard support

Web Accessible

Ability to leverage BOM repositories, BOM tools, and BOM-based simulation environments to assist in the required analysis <- extensions required

What are the RCIP Navigator Features?

31


Integration into oa ct3 program
Integration into OA CT3 Program Insertion

  • NSWCDD desires to improve its methods for the ‘eXchange of Knowledge’ (XK) for both technical and programmatic

  • XK efforts include:

    • efforts within current and emerging DoD systems and systems-of-systems; and,

    • efforts within existing Science & Technology (S&T) activities [i.e., SBIRs, Advanced Concept Technology Demonstrations (ACTDs), Rapid Technology Transitions (RTTs)].

  • NSWCDD is initially interested in those S&T activities that have been identified by the Capability Technology Transition Team (CT3) as candidates for the Rapid Capability Insertion Process (RCIP).

  • XK needs

    • Provide analysis / RCIP insight

    • Assist in the determination of capability and/or program candidates.

    • Used as a decision-support aides

    • Potential adopters –

      • could be used by the Navy to support spiral technology insertion decisions and development planning for new ship designs and existing ship modernizations.

  • RCIP currently an emerging process that will require refinement and modification as it moves forward.

  • NSWCDD desires that the processes and technologies used to help move this forward will also contribute to better and more effective ways of providing and monitoring the RCIP, and perhaps provide Joint applicability.

32

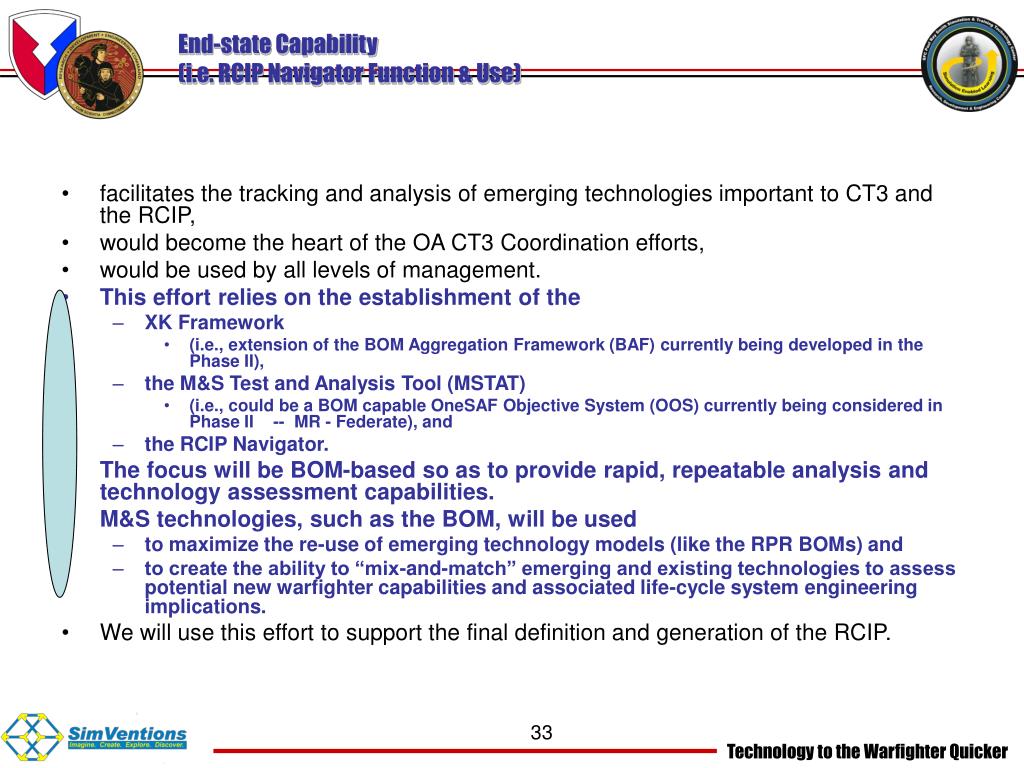

End state capability i e rcip navigator function use
End-state Capability Insertion(i.e. RCIP Navigator Function & Use)

  • facilitates the tracking and analysis of emerging technologies important to CT3 and the RCIP,

  • would become the heart of the OA CT3 Coordination efforts,

  • would be used by all levels of management.

  • This effort relies on the establishment of the

    • XK Framework

      • (i.e., extension of the BOM Aggregation Framework (BAF) currently being developed in the Phase II),

    • the M&S Test and Analysis Tool (MSTAT)

      • (i.e., could be a BOM capable OneSAF Objective System (OOS) currently being considered in Phase II -- MR - Federate), and

    • the RCIP Navigator.

  • The focus will be BOM-based so as to provide rapid, repeatable analysis and technology assessment capabilities.

  • M&S technologies, such as the BOM, will be used

    • to maximize the re-use of emerging technology models (like the RPR BOMs) and

    • to create the ability to “mix-and-match” emerging and existing technologies to assess potential new warfighter capabilities and associated life-cycle system engineering implications.

  • We will use this effort to support the final definition and generation of the RCIP.

33


Original schedule now moved earlier to start 1 dec 2005
Original Schedule Insertion(now moved earlier to start 1 Dec 2005)

34

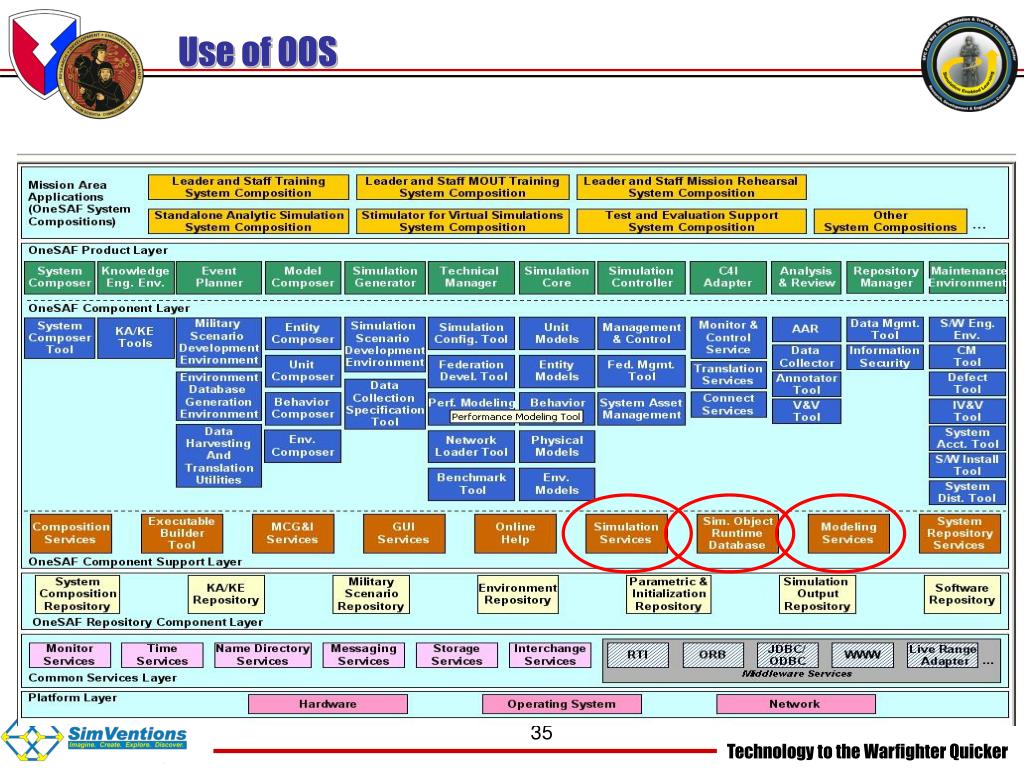

Use of oos
Use of OOS Insertion

35

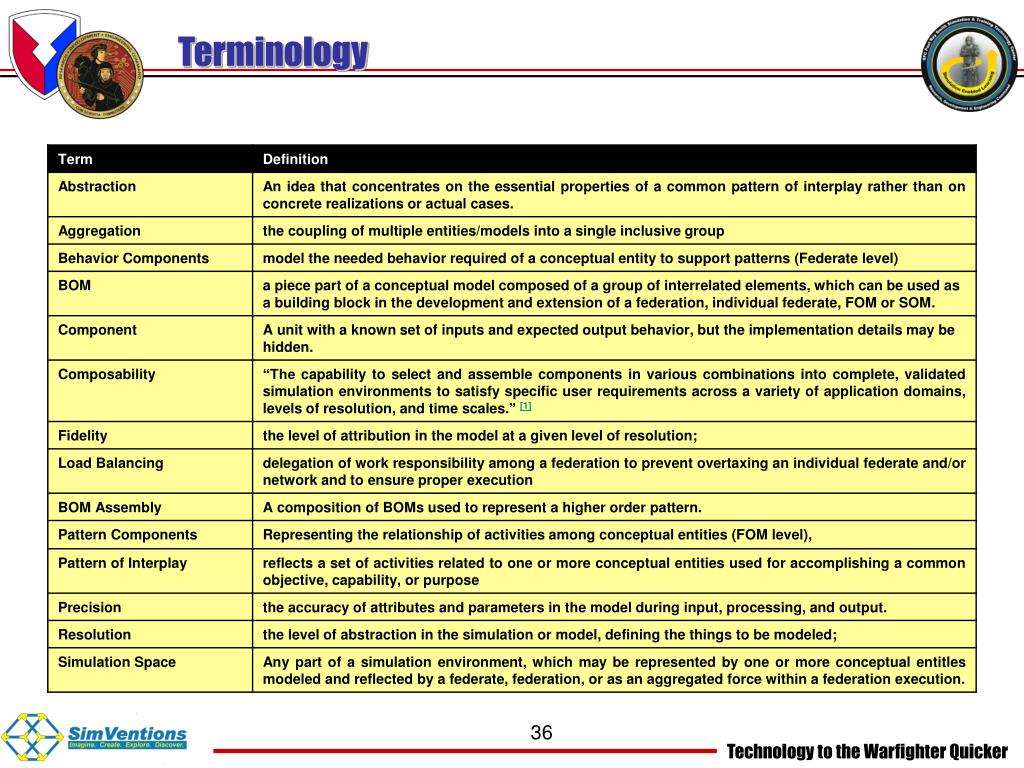

Terminology
Terminology Insertion

36

[1]M. D. Petty and E. W. Weisel, “A Composability Lexicon”, Proceedings of the Spring 2003 Simulation Interoperability Workshop, Orlando FL, March 30-April 4 2003, 03S-SIW-023.


Some details bom aggregation types

Model Aggregations Insertion

Interface Groupings

Non-exercise specific (class based)

Examples

Car(Engine / Wheels / Suspension / Braking System / Frame)

Ship(Weapon System / Radar / CIC)

Equipment Pack(Ammo / Weapon / Grenade / Water / First Aid Kit / MRE)

First Aid Kit(Gauze / Wrap / Ointment / Knife / Aspirin / Blood Clot (kitty litter))

Human Anatomy(Heart / Liver / Kidney / Digestion system, Epidermis, etc…)

Entity Instance Aggregations

Entity Groupings

Exercise specific (object driven)

Examples

Battalion (Collection of Individual Soldiers)

Air Squadron

Battle group

Weather(Storm Cells / Wind / Temperature / Atmospheric Pressure/ Bathymetry)

Close Air Support(Forward Air Controller / Aircraft / Target / Target Locater / Designator)

Crowds

Some Details – BOM Aggregation Types

Composite Pattern

Flyweight Pattern

37


Aggregate triggers criteria
Aggregate Triggers/Criteria Insertion

  • Proximity to a specific obstacle, entity or feature in the synthetic battlespace;

  • A change in the level of interest or significance regarding the specific domain a model supports; or

  • An increase (or decrease) in the physical entity load by the system and/or over the entire federation.

38


Baf design architecture view

Federate Insertion

Federate

discovery

messaging

Federates

services

Interface elements

BOMs

BAFWebServices

BAF Design – Architecture View

Service Oriented Architecture (SOA) FOCUS

  • The common interface must be leveraged by all participating software agents (i.e. federates)

  • That the interfaces must be accessible and understood by all providers and consumers

  • Interfaces serve as the framework for the messages that are to be exchanged

  • Minimal system behavior is provided by these interfaces (or messages)

  • An XML schema should be applied to define the vocabulary and structure

  • Additional services should be able to be added without impairing the common interface.

  • Service-oriented Architecture (SOA)

  • Loosely Coupled Approach

  • Minimize Unnecessary dependencies among systems and software

  • Maintain functionality / individuality

  • Potential Technologies

    • XML

    • WSDL

    • SOAP / XML-RPC

    • UDDI

    • BOMs

    • XSLT (FOM Mappings, BTMs

    • BOM Impl (Java Beans)

  • Other Technologies (not SOA)

    • Network Distribution (RTI)

    • Federation Agreements (FOM)

http://www.informit.com/articles/article.asp?p=336265&seqNum=1

39
