  1. Asynchronous Serial I/O Unite 10 - Part 2

  2. SCI Registers – Channel 0 • SCI0BDH – SCI Baud Rate Register High Byte • SCI0BDL – SCI Baud Rate Register Low Byte • SCI0CR1 – SCI Control Register 1 • SCI0CR2 – SCI Control Register 2 • SCI0SR1 – SCI Status Register 1 • SCI0SR2 – SCI Status Register 2 • SCI0DRH – SCI Data Register High Byte • SCI0DRL – SCI Data Register Low Byte

  3. SCI Register DefinitionsChannel 0 #define SCI0BDH _P(0xC8) #define SCI0BDL _P(0xC9 #define SCI0CR1 _P(0xCA) #define SCI0CR2 _P(0xCB) #define SCI0SR1 _P(0xCC) #define SCI0SR2 _P(0xCD) #define SCI0DRH _P(0xCE) #define SCI0DRL _P(0xCF)

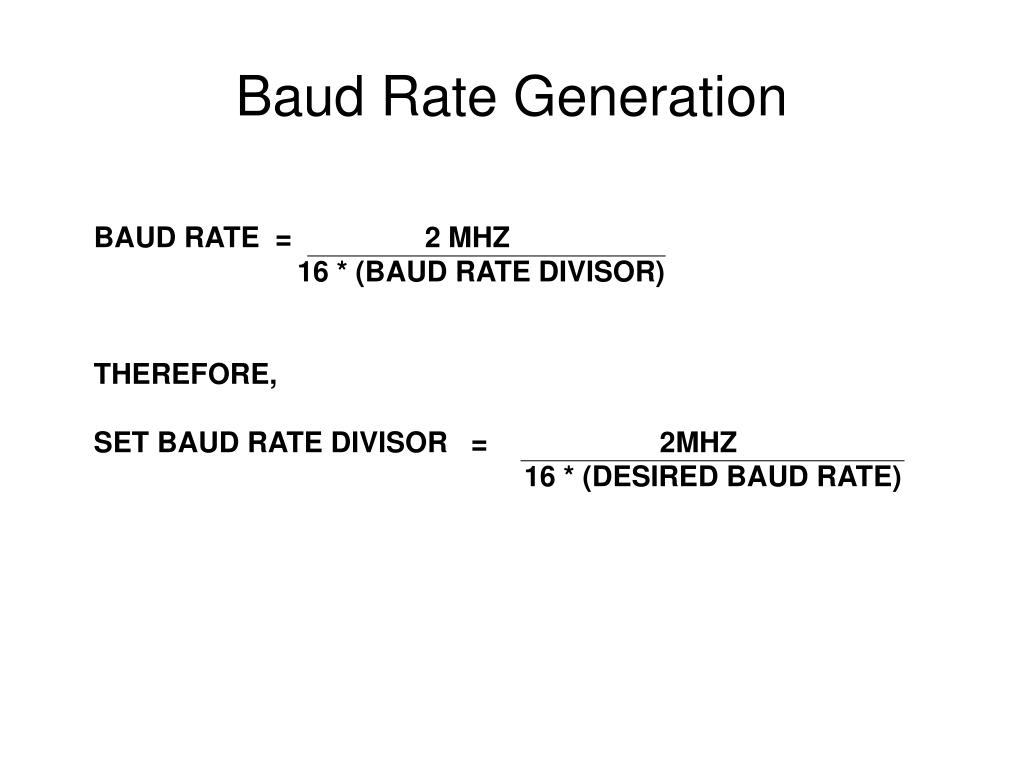

  4. Baud Rate Generation BAUD RATE = 2 MHZ 16 * (BAUD RATE DIVISOR) THEREFORE, SET BAUD RATE DIVISOR = 2MHZ 16 * (DESIRED BAUD RATE)

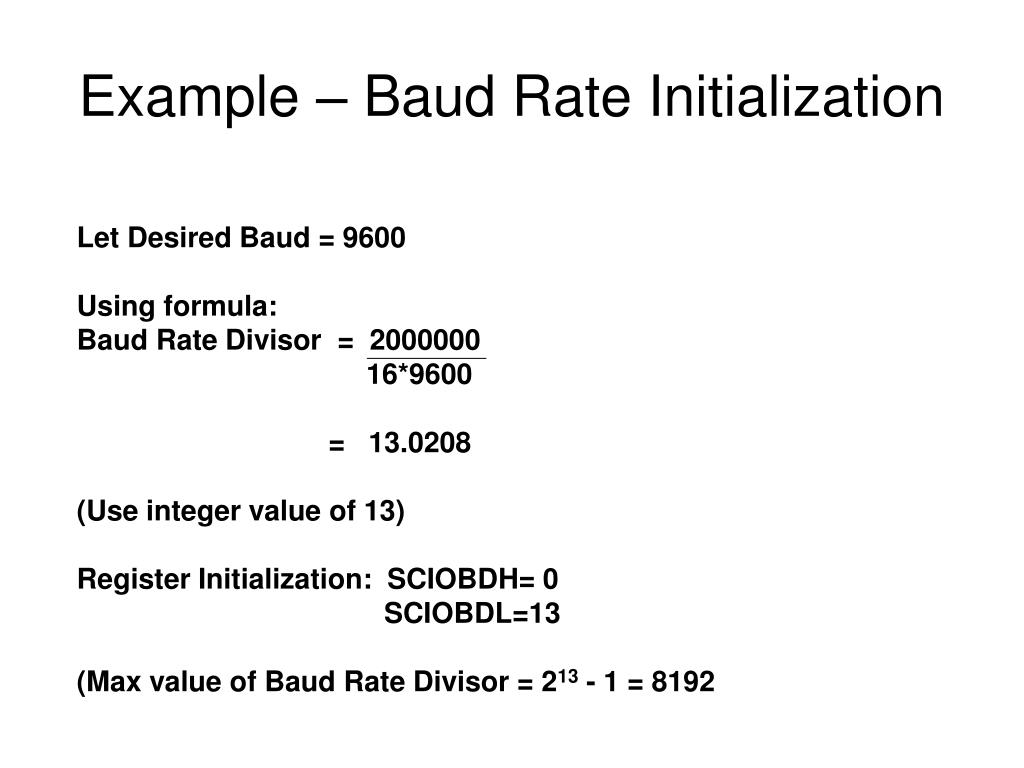

  5. Example – Baud Rate Initialization Let Desired Baud = 9600 Using formula: Baud Rate Divisor = 2000000 16*9600 = 13.0208 (Use integer value of 13) Register Initialization: SCIOBDH= 0 SCIOBDL=13 (Max value of Baud Rate Divisor = 213 - 1 = 8192

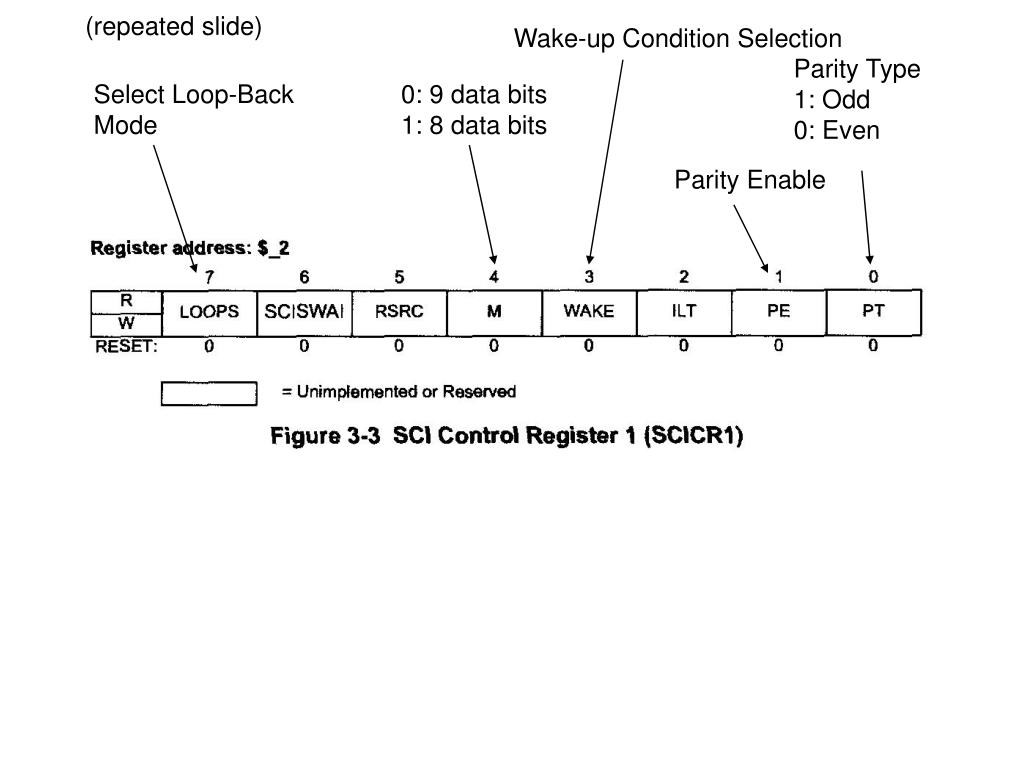

  6. Wake-up Condition Selection Parity Type 1: Odd 0: Even Select Loop-Back Mode 0: 9 data bits 1: 8 data bits Parity Enable

  7. Interrupt Enables Transmitter and Receiver Enables Enter Sleep Mode Send Break Character

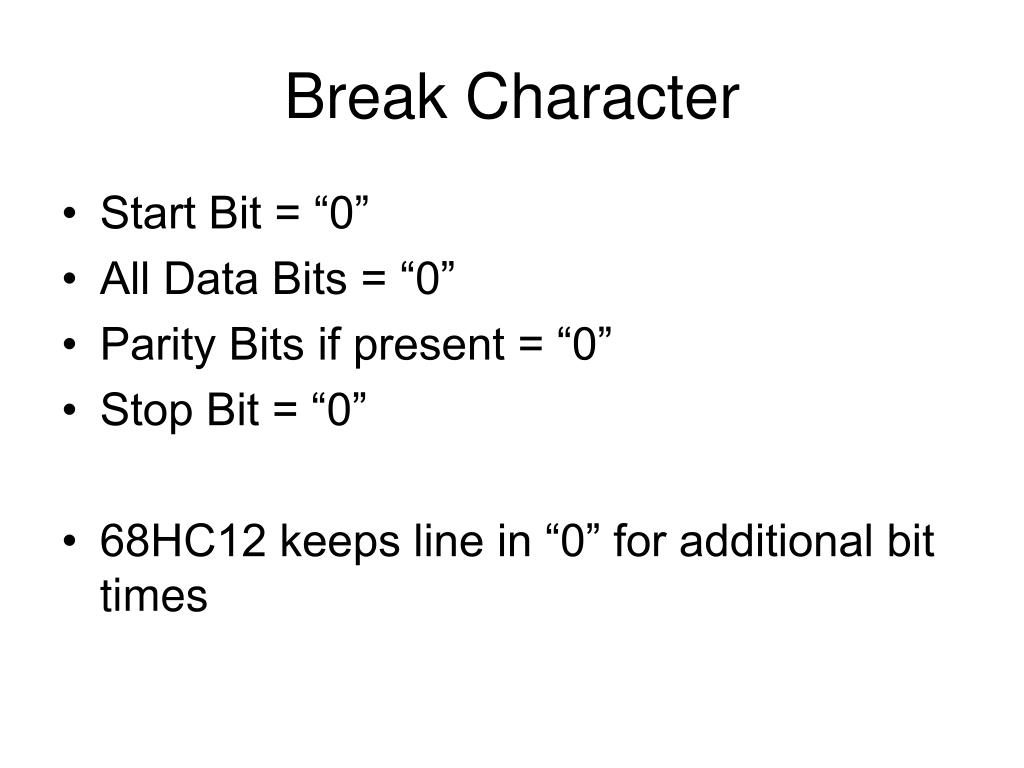

  8. Break Character • Start Bit = “0” • All Data Bits = “0” • Parity Bits if present = “0” • Stop Bit = “0” • 68HC12 keeps line in “0” for additional bit times

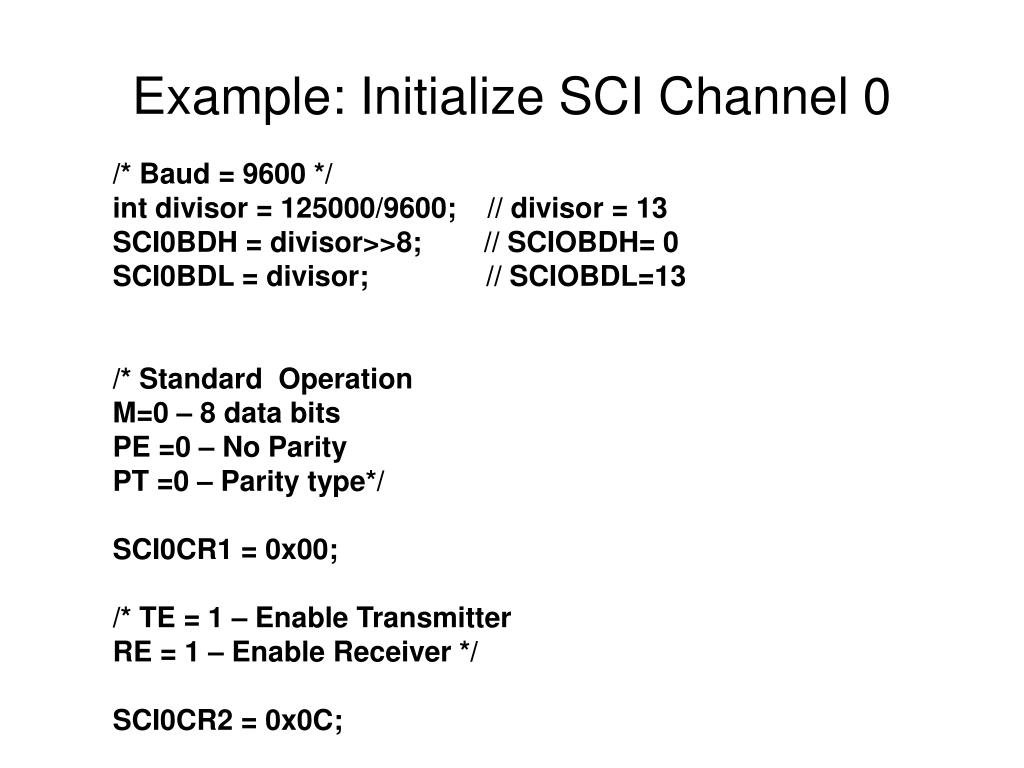

  9. Example: Initialize SCI Channel 0 /* Baud = 9600 */ int divisor = 125000/9600; // divisor = 13 SCI0BDH = divisor>>8; // SCIOBDH= 0 SCI0BDL = divisor; // SCIOBDL=13 /* Standard Operation M=0 – 8 data bits PE =0 – No Parity PT =0 – Parity type*/ SCI0CR1 = 0x00; /* TE = 1 – Enable Transmitter RE = 1 – Enable Receiver */ SCI0CR2 = 0x0C;

  10. (repeated slide) Wake-up Condition Selection Parity Type 1: Odd 0: Even Select Loop-Back Mode 0: 9 data bits 1: 8 data bits Parity Enable

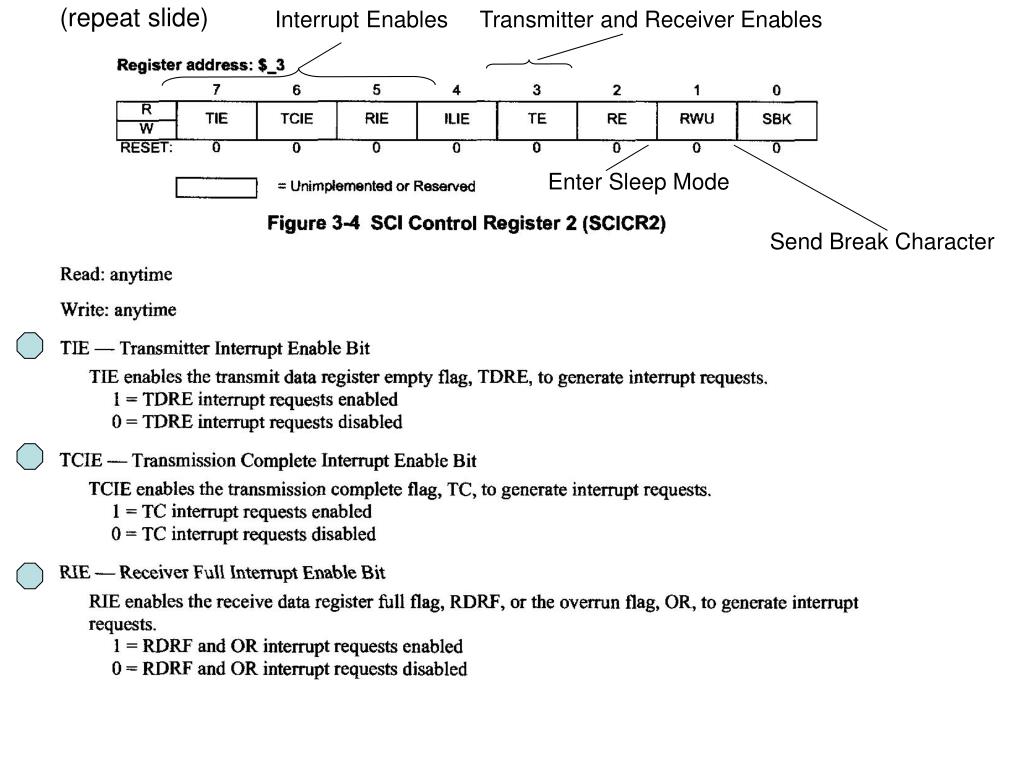

  11. (repeat slide) Interrupt Enables Transmitter and Receiver Enables Enter Sleep Mode Send Break Character

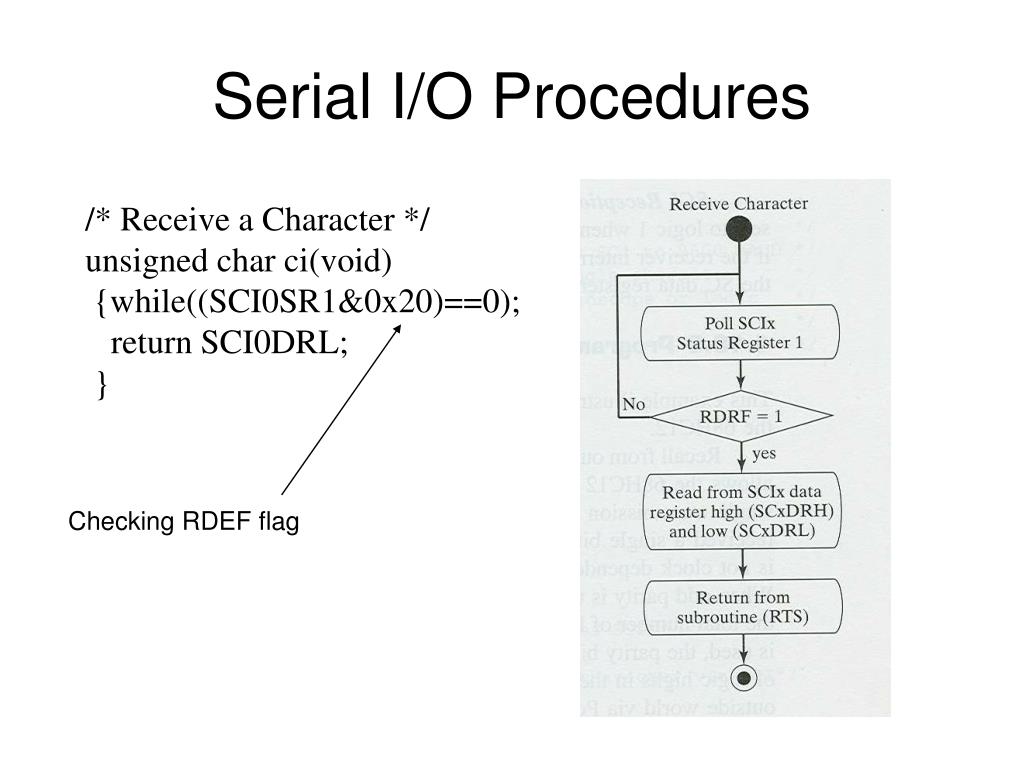

  12. Serial I/O Procedures /* Receive a Character */ unsigned char ci(void) {while((SCI0SR1&0x20)==0); return SCI0DRL; } Checking RDEF flag

  13. (repeated slide)

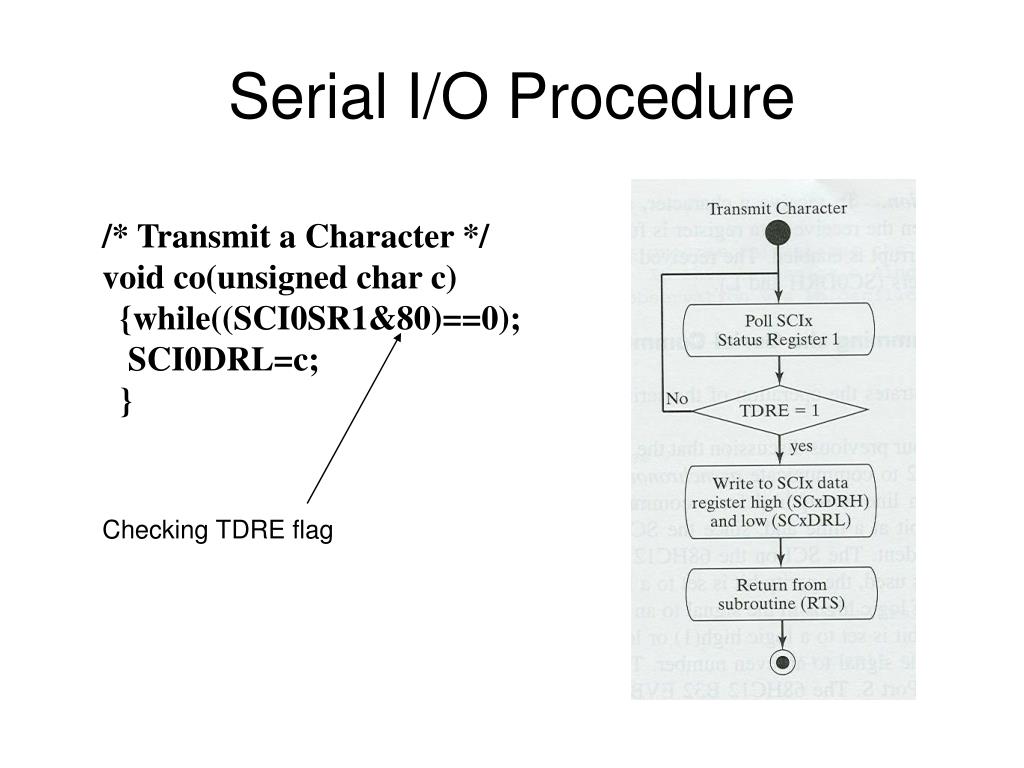

  14. Serial I/O Procedure /* Transmit a Character */ void co(unsigned char c) {while((SCI0SR1&80)==0); SCI0DRL=c; } Checking TDRE flag
