  1. D. Seckel, Univ. of Delaware

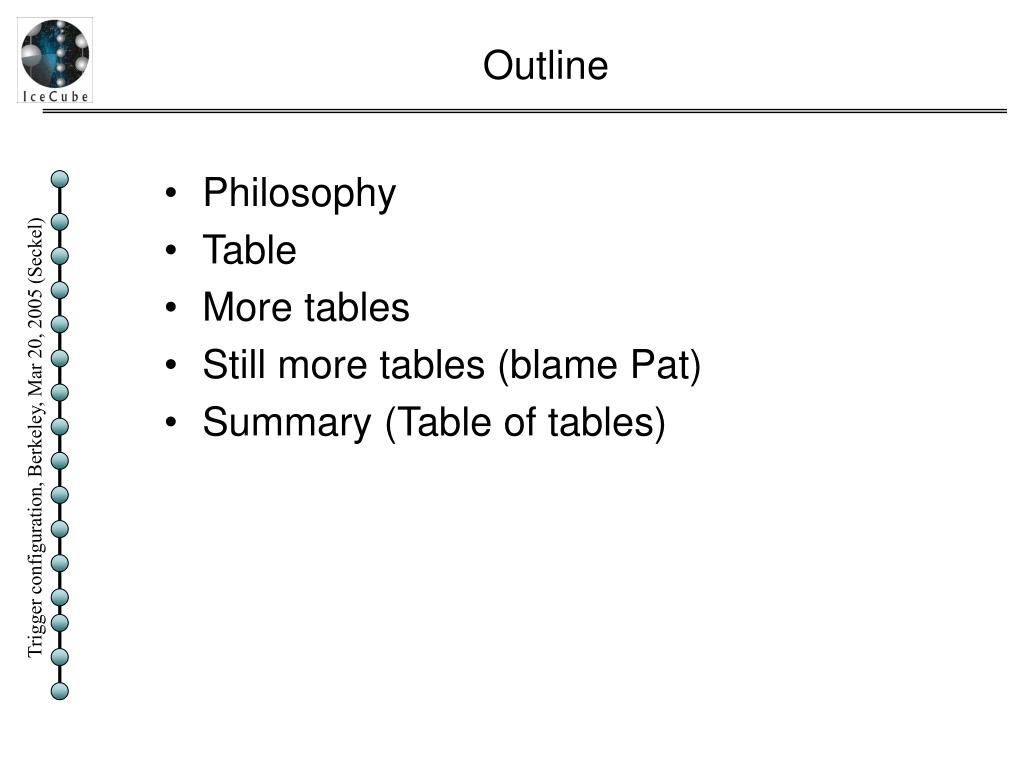

  2. Outline • Philosophy • Table • More tables • Still more tables (blame Pat) • Summary (Table of tables)

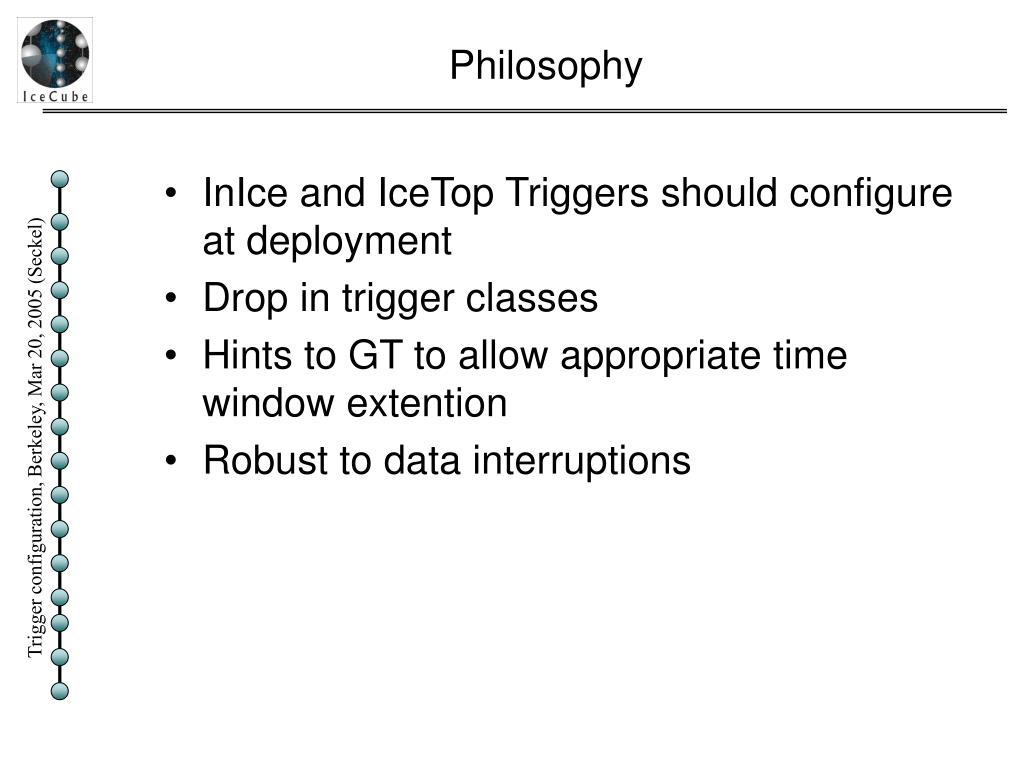

  3. Philosophy • InIce and IceTop Triggers should configure at deployment • Drop in trigger classes • Hints to GT to allow appropriate time window extention • Robust to data interruptions

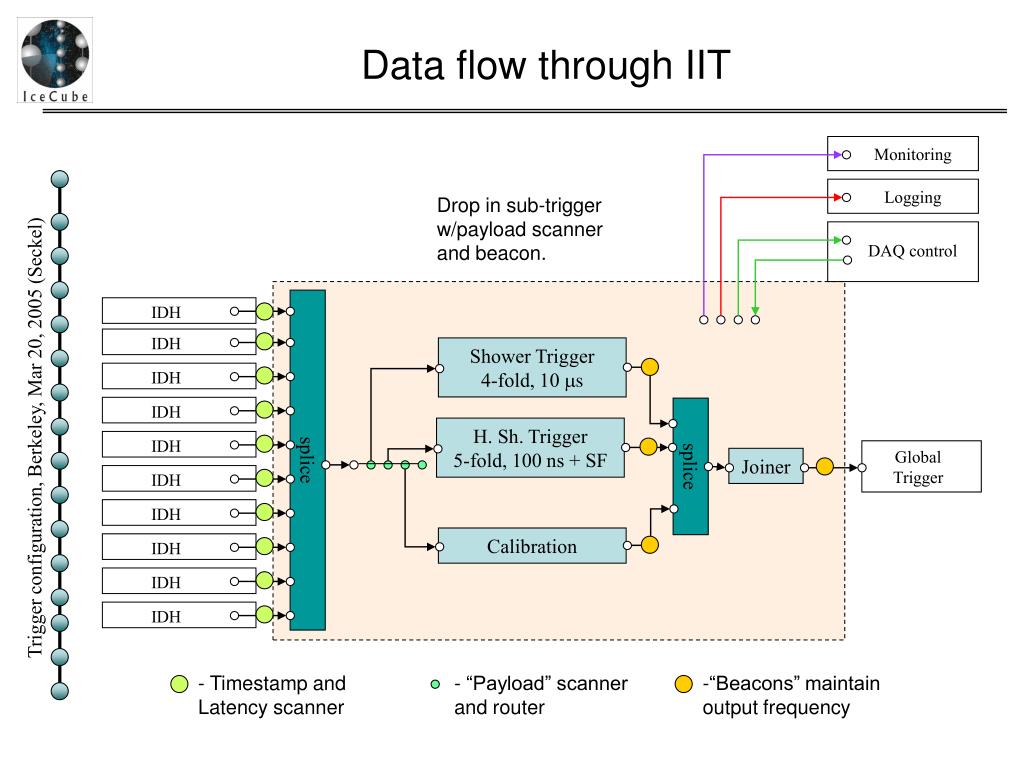

  4. Monitoring Logging Shower Trigger 4-fold, 10 ms H. Sh. Trigger 5-fold, 100 ns + SF Calibration IDH IDH IDH IDH IDH IDH IDH IDH IDH IDH Data flow through IIT Drop in sub-trigger w/payload scanner and beacon. DAQ control Global Trigger splice Joiner splice - Timestamp and Latency scanner - “Payload” scanner and router • “Beacons” maintain • output frequency

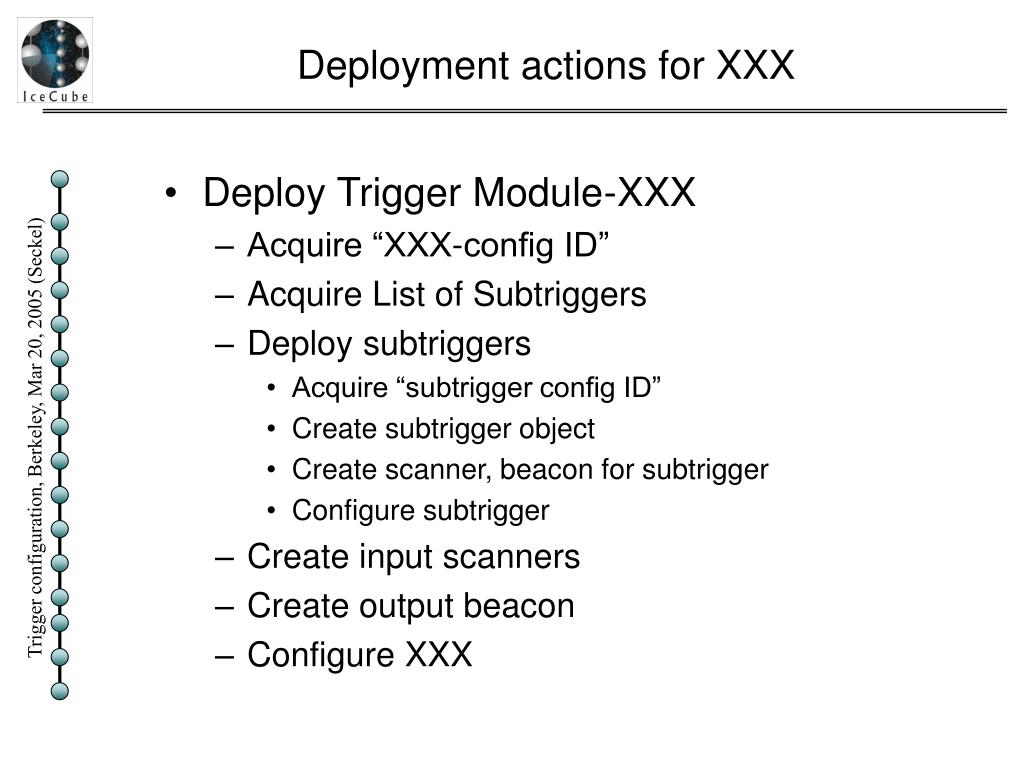

  5. Deployment actions for XXX • Deploy Trigger Module-XXX • Acquire “XXX-config ID” • Acquire List of Subtriggers • Deploy subtriggers • Acquire “subtrigger config ID” • Create subtrigger object • Create scanner, beacon for subtrigger • Configure subtrigger • Create input scanners • Create output beacon • Configure XXX

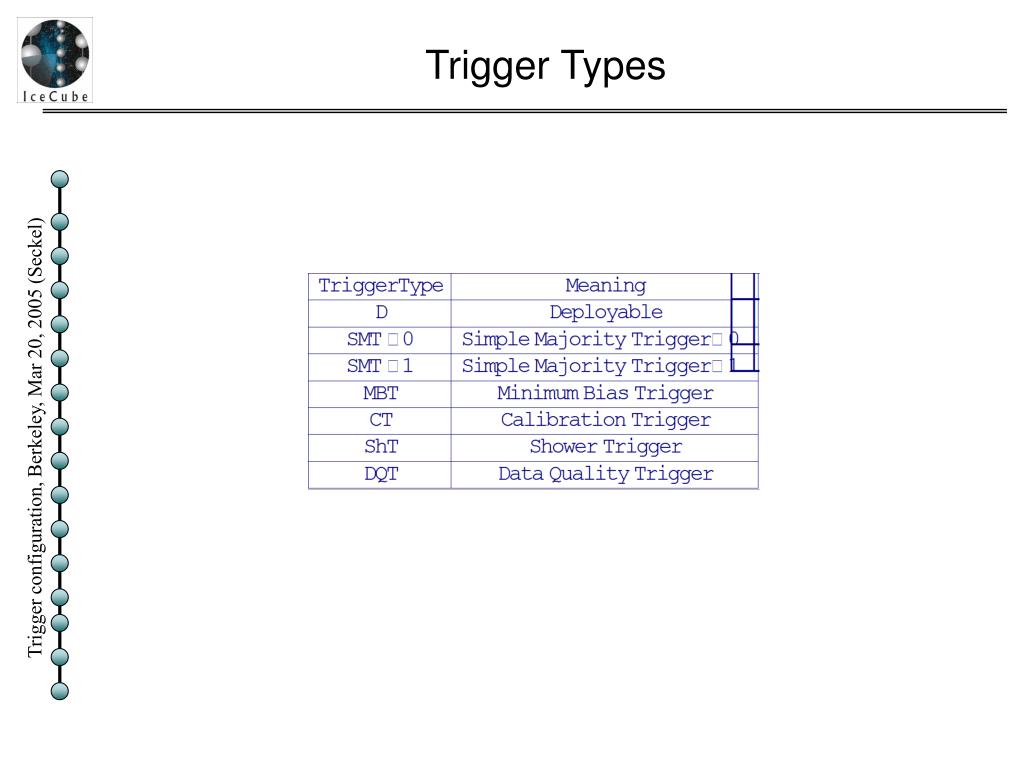

  6. Trigger Types

  7. Table of trigger configurations

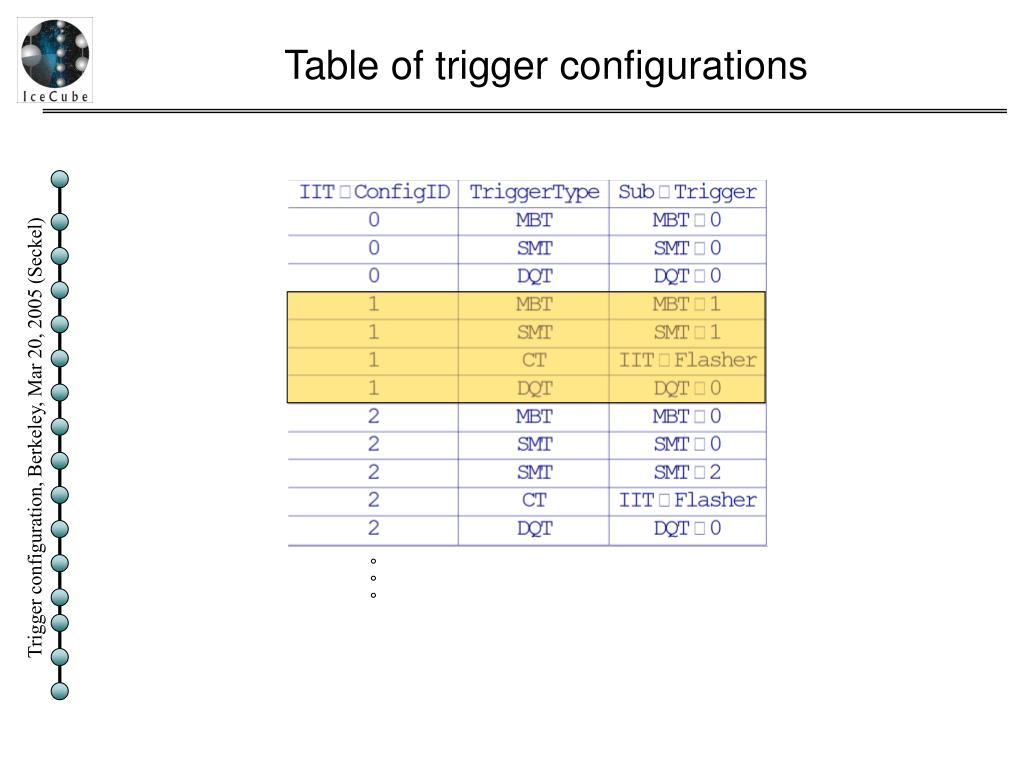

  8. SMT sub-trigger configurations

  9. Trigger Data Sources

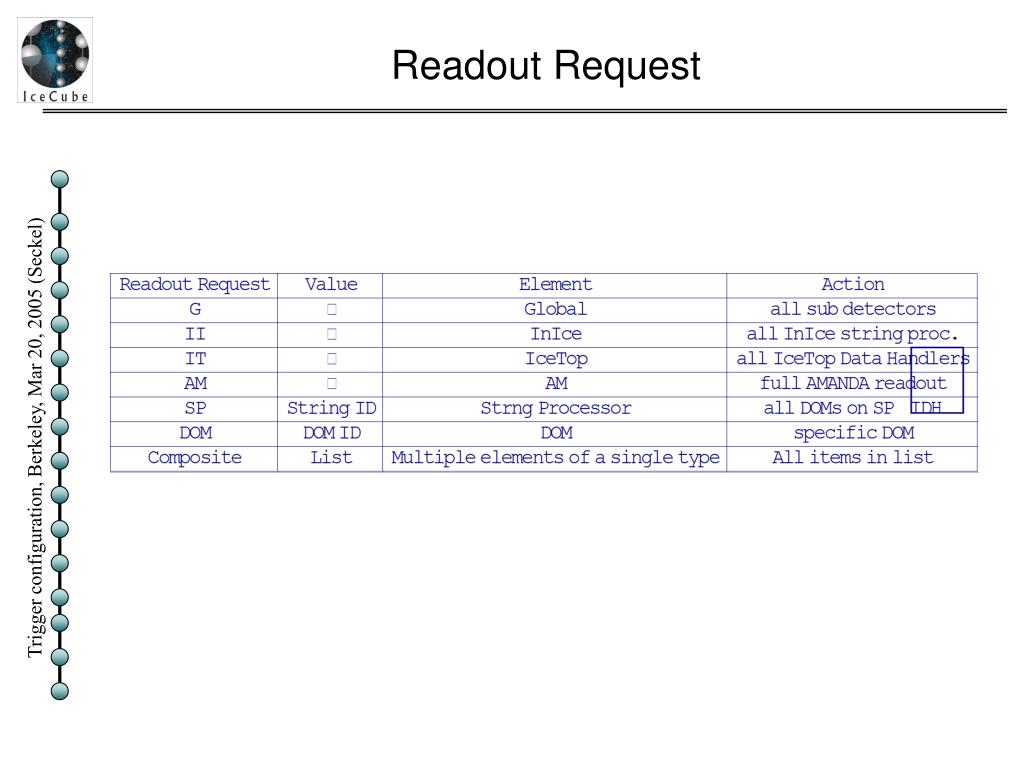

  10. Readout Request

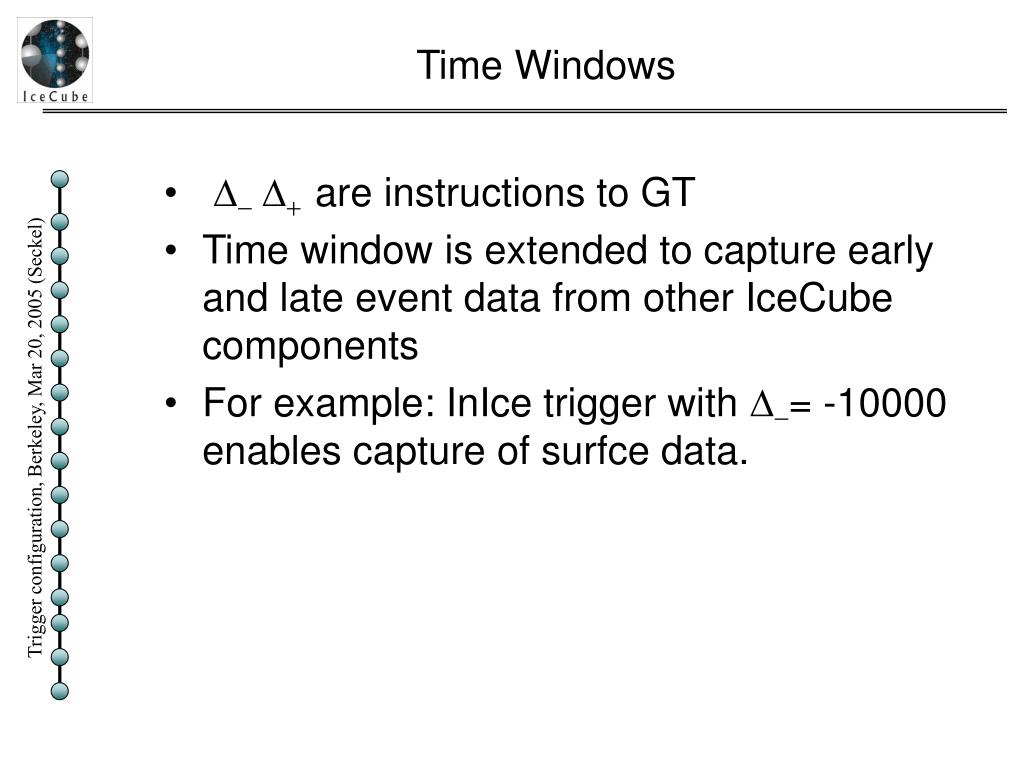

  11. Time Windows • D- D+ are instructions to GT • Time window is extended to capture early and late event data from other IceCube components • For example: InIce trigger with D-= -10000 enables capture of surfce data.

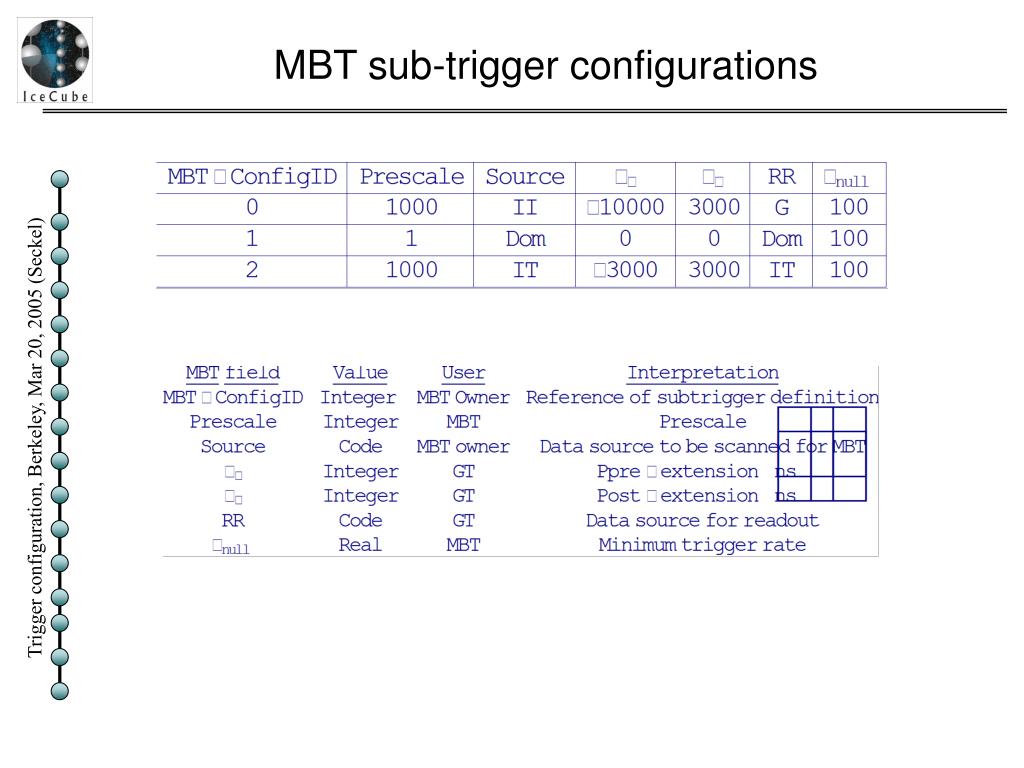

  12. MBT sub-trigger configurations

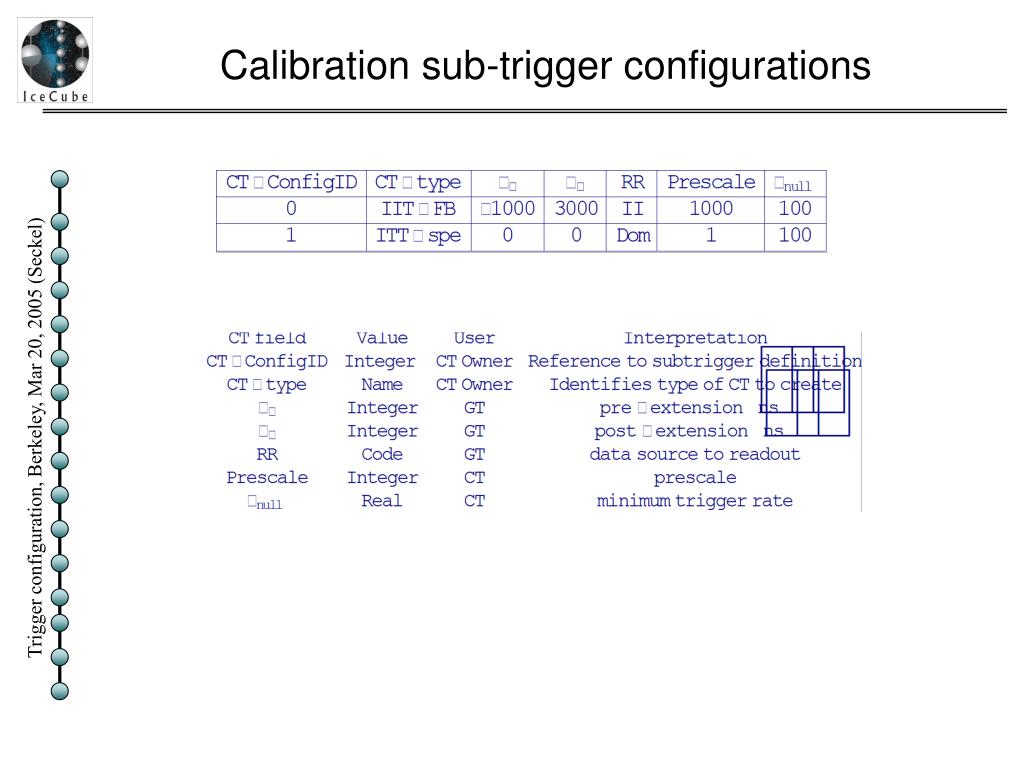

  13. Calibration sub-trigger configurations

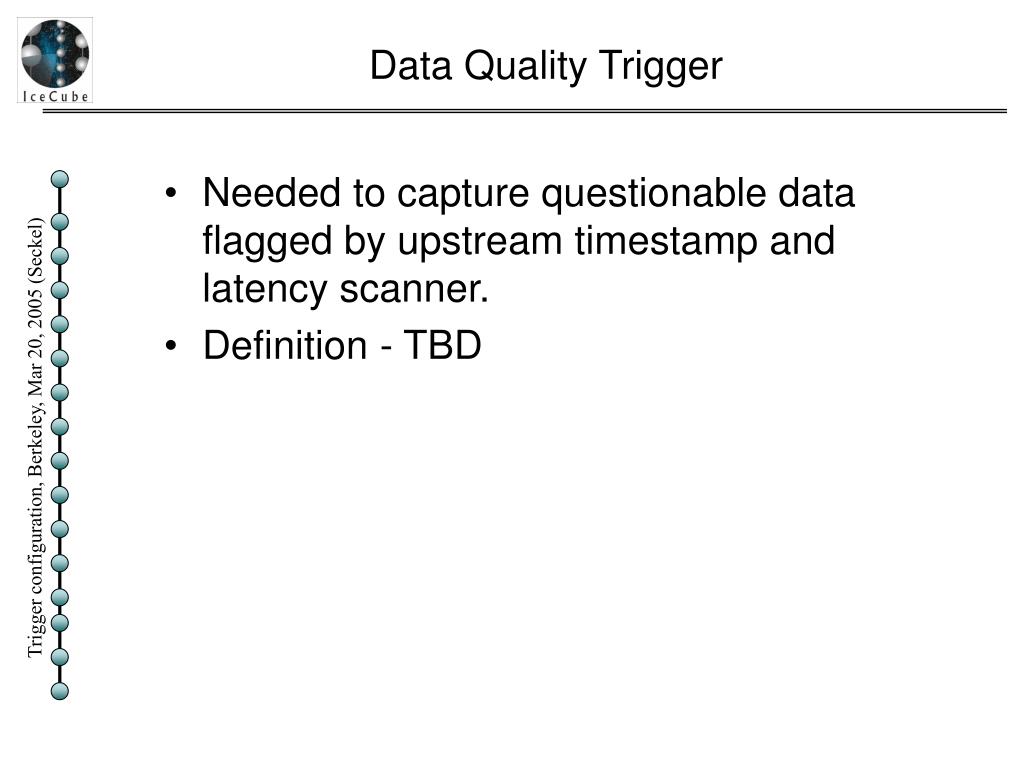

  14. Data Quality Trigger • Needed to capture questionable data flagged by upstream timestamp and latency scanner. • Definition - TBD

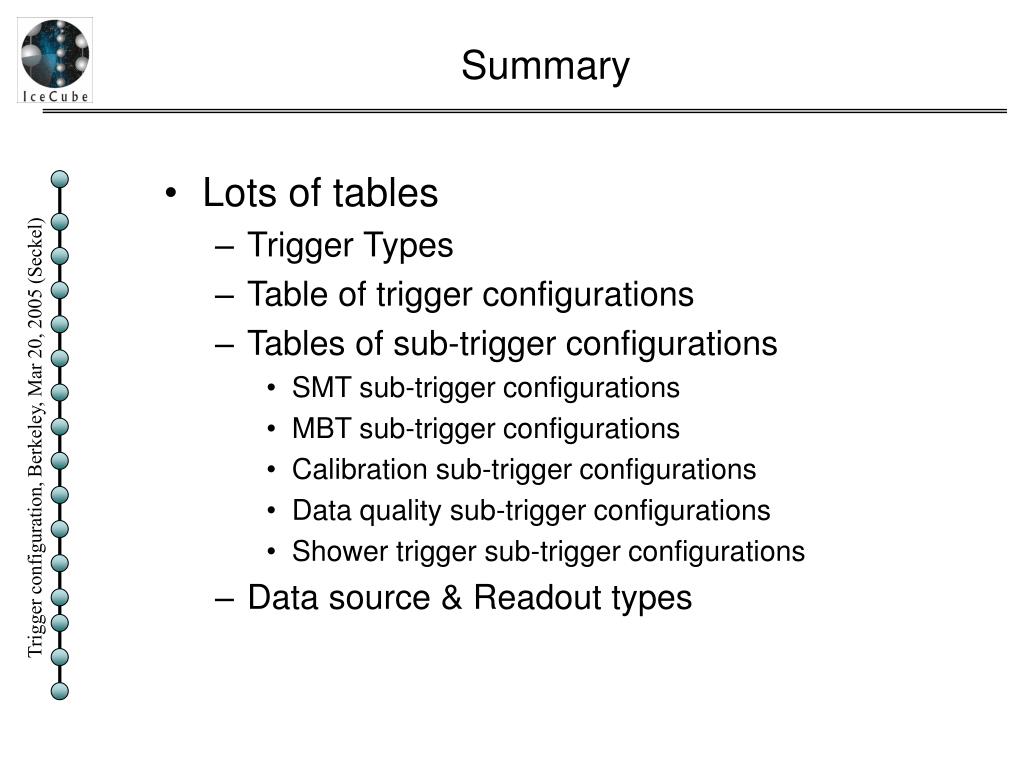

  15. Summary • Lots of tables • Trigger Types • Table of trigger configurations • Tables of sub-trigger configurations • SMT sub-trigger configurations • MBT sub-trigger configurations • Calibration sub-trigger configurations • Data quality sub-trigger configurations • Shower trigger sub-trigger configurations • Data source & Readout types
