Presentation Transcript
bios and cmos

BIOS and CMOS

Chapter 5

overview
Overview
  • In this chapter, you will learn to
    • Explain the function of BIOS
    • Distinguish among various CMOS setup utility options
    • Describe option ROM and device drivers
    • Troubleshoot the power-on self test (POST)
bridge introduction
Bridge Introduction
  • Data flows through the computer
    • Between CPU and RAM
    • Between CPU and video
    • Between CPU and other devices
  • Bridges are used to connect the pieces
    • Northbridge
      • Bridge closest to the CPU
    • Southbridge
      • The farther bridge
northbridge southbridge
Northbridge

Chip or chips that connect the CPU to video and/or memory

Southbridge

Handles all of the inputs and outputs to the many devices in the PC

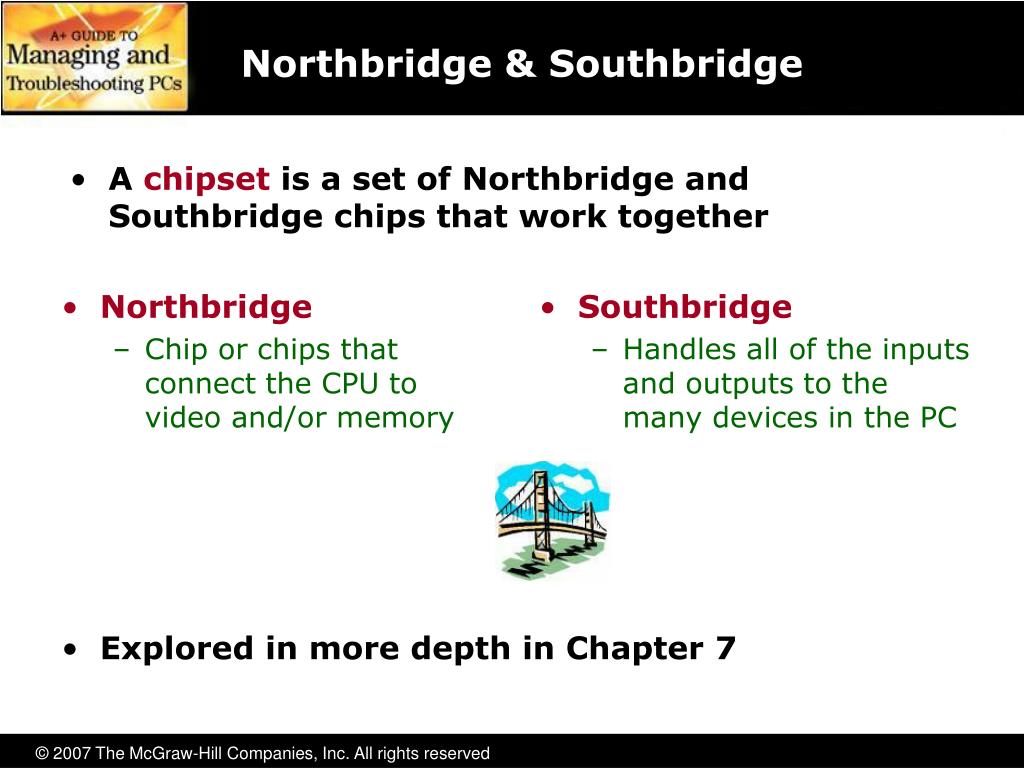

Northbridge & Southbridge
  • A chipset is a set of Northbridge and Southbridge chips that work together
  • Explored in more depth in Chapter 7
data flow

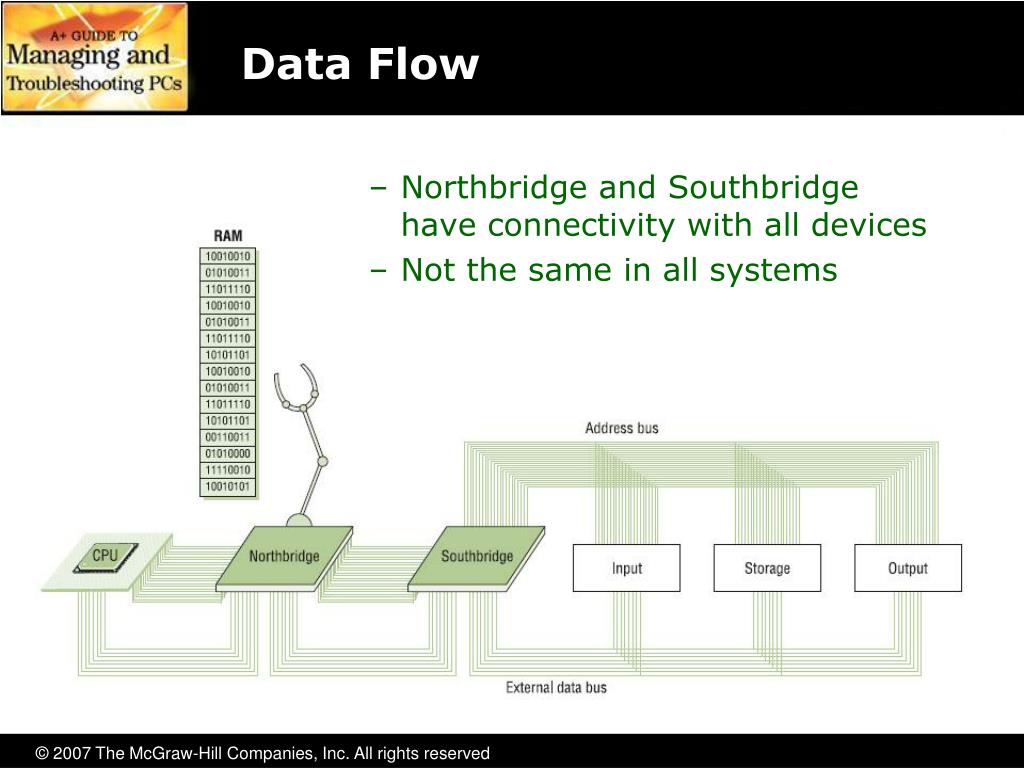

Data Flow
  • Northbridge and Southbridgehave connectivity with all devices
  • Not the same in all systems
chipset

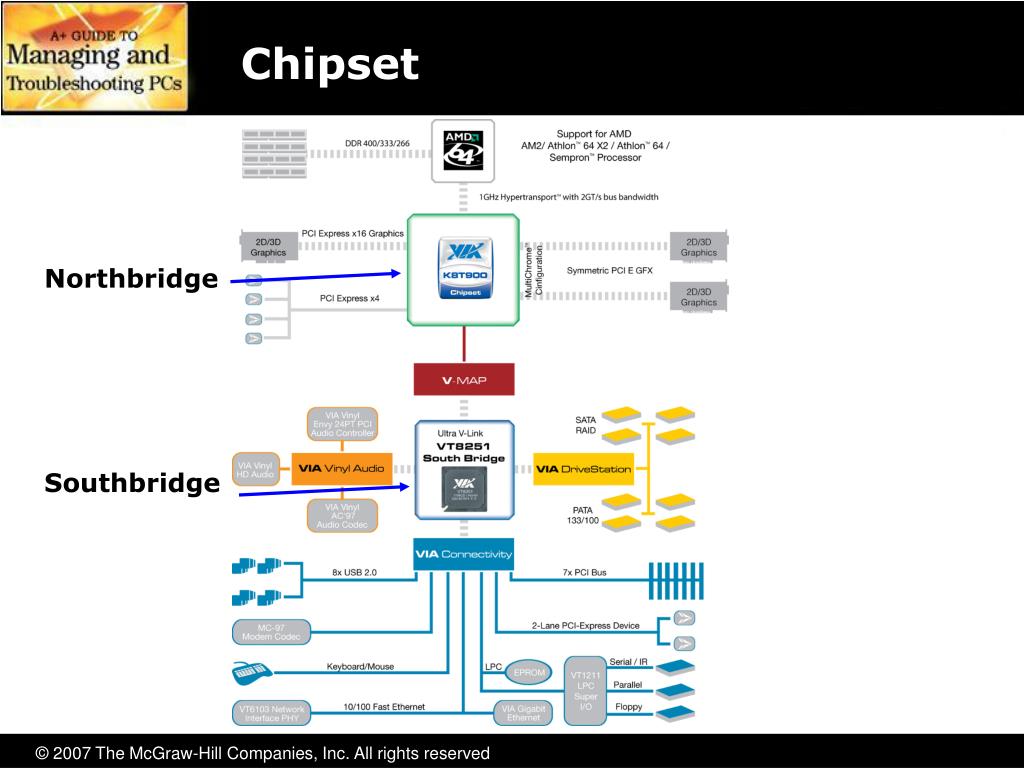

Chipset

Northbridge

Southbridge

basic input output system bios

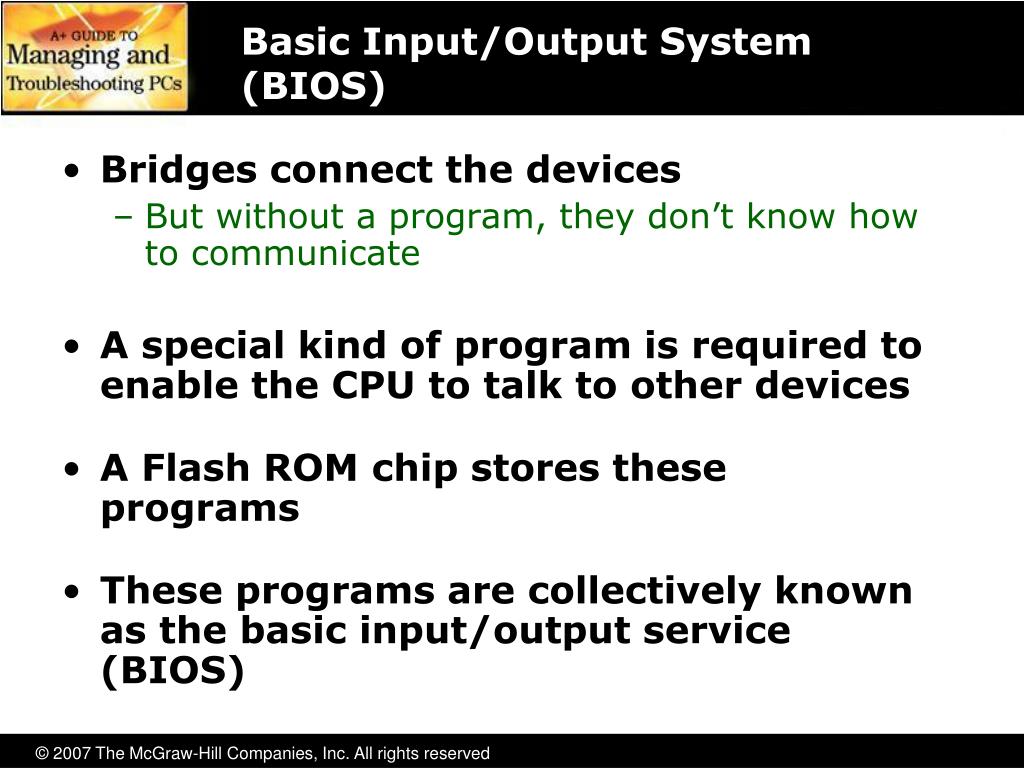

Basic Input/Output System (BIOS)
  • Bridges connect the devices
    • But without a program, they don’t know how to communicate
  • A special kind of program is required to enable the CPU to talk to other devices
  • A Flash ROM chip stores these programs
  • These programs are collectively known as the basic input/output service (BIOS)
talking to the keyboard

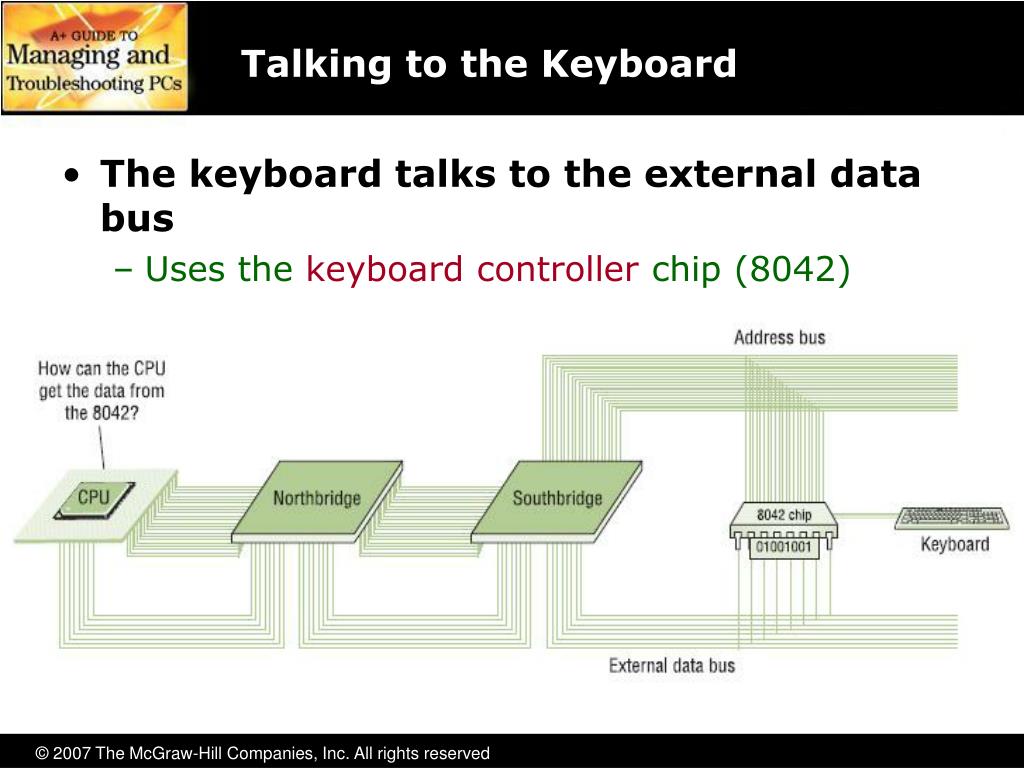

Talking to the Keyboard
  • The keyboard talks to the external data bus
    • Uses the keyboard controller chip (8042)
slide10
BIOS
  • Each program is called a service
  • Programs stored on Flash ROM chips are known as firmware
  • Programs stored on erasable media are called software

Keyboard controller chip

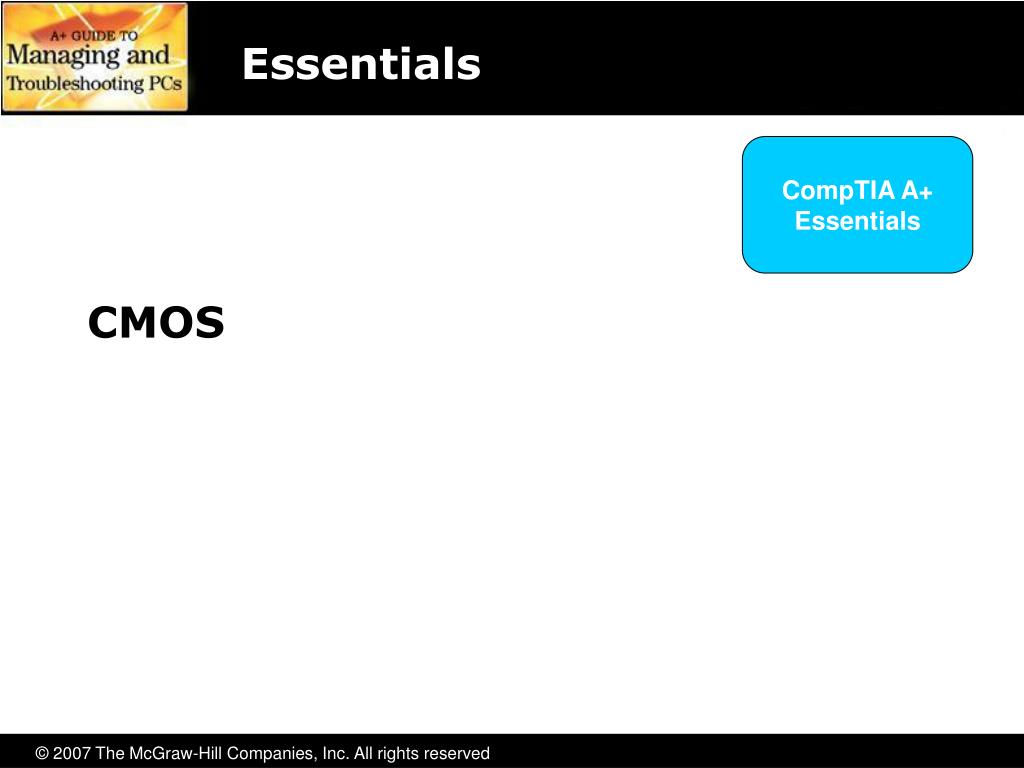

slide11

Essentials

CompTIA A+Essentials

CMOS

slide12
CMOS
  • Separate chip from ROM BIOS
  • Volatile (kept alive by battery)
  • Stores only changeable data
    • Not programs
    • Acts as clock to keep data current
  • Customizable via SETUP program
  • Often on Southbridge
bios vs cmos
BIOS

Programs

Non-volatile (stays same after power off)

Can be changed by “flashing”

Typically 64 K of programs (though Flash ROM is much bigger)

Often a separate chip

CMOS

Data

Volatile (kept alive with battery)

Changed via CMOS setup

Typically 128 K of data (though chip size is typically 64 K)

Often on Southbridge

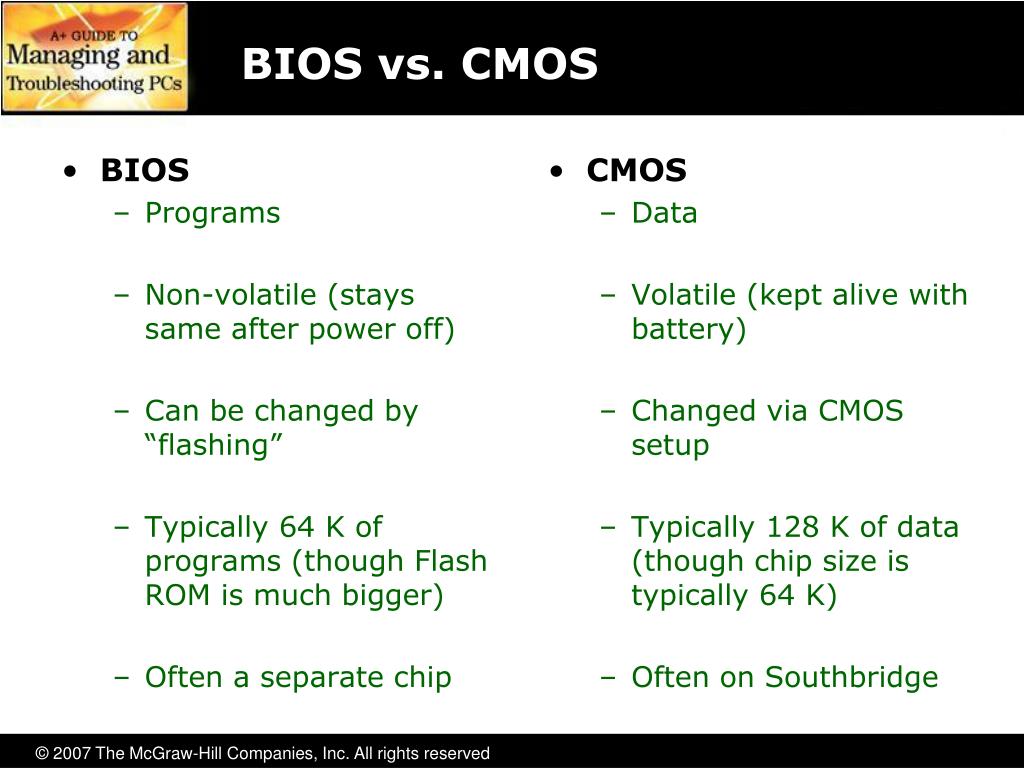

BIOS vs. CMOS
slide14

Updating CMOS

  • Updated via BIOS program
  • Three primary BIOS brands
    • American Megatrends (AMI), Award, Phoenix
    • To enter setup, press key combination(may be Del, ESC, F1, F2, CTRL-ALT-ESC, CTRL-ALT-INS, CTRL-ALT-Enter, or CTRL-S)
cmos setup
CMOS Setup
  • Main menu
    • Access to all submenus
standard cmos features
Standard CMOS Features
  • Clock, hard drives, floppy drives

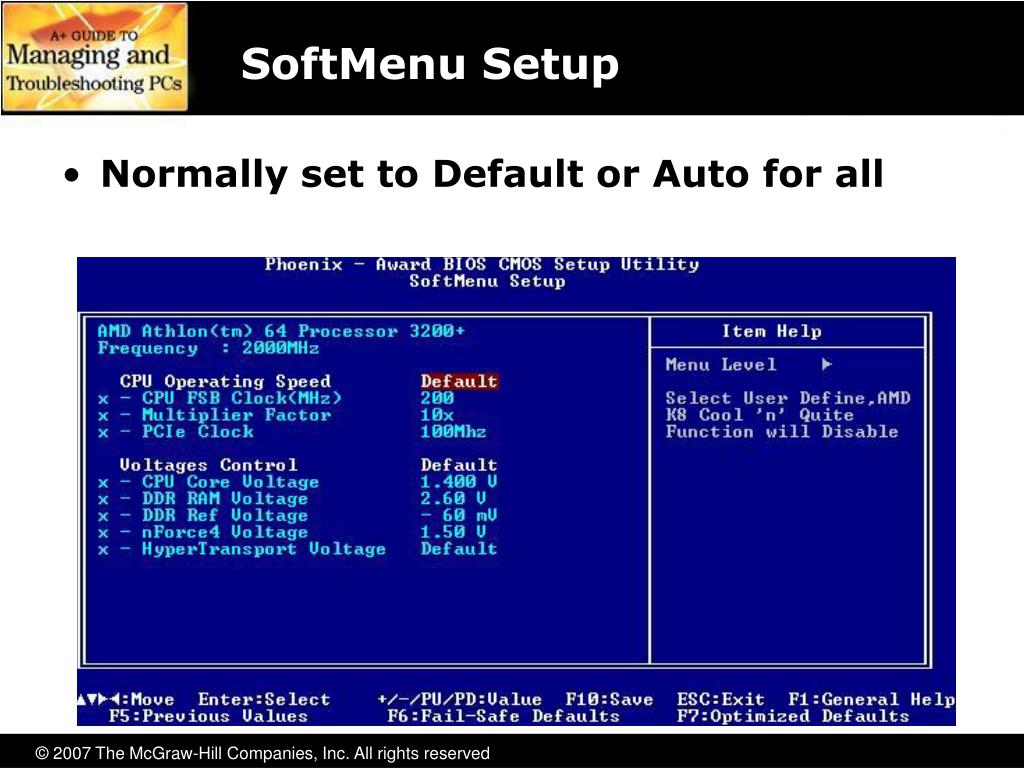

softmenu setup
SoftMenu Setup
  • Normally set to Default or Auto for all
advanced features
Advanced Features
  • POST, boot order
power management

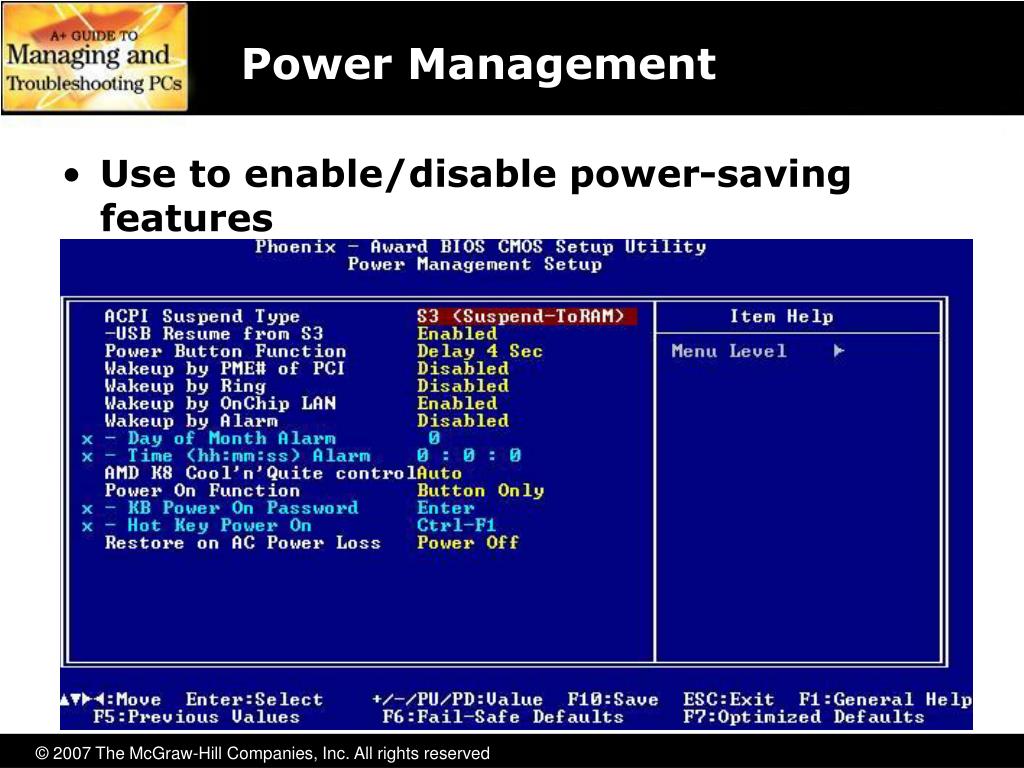

Power Management
  • Use to enable/disable power-saving features
pnp pci

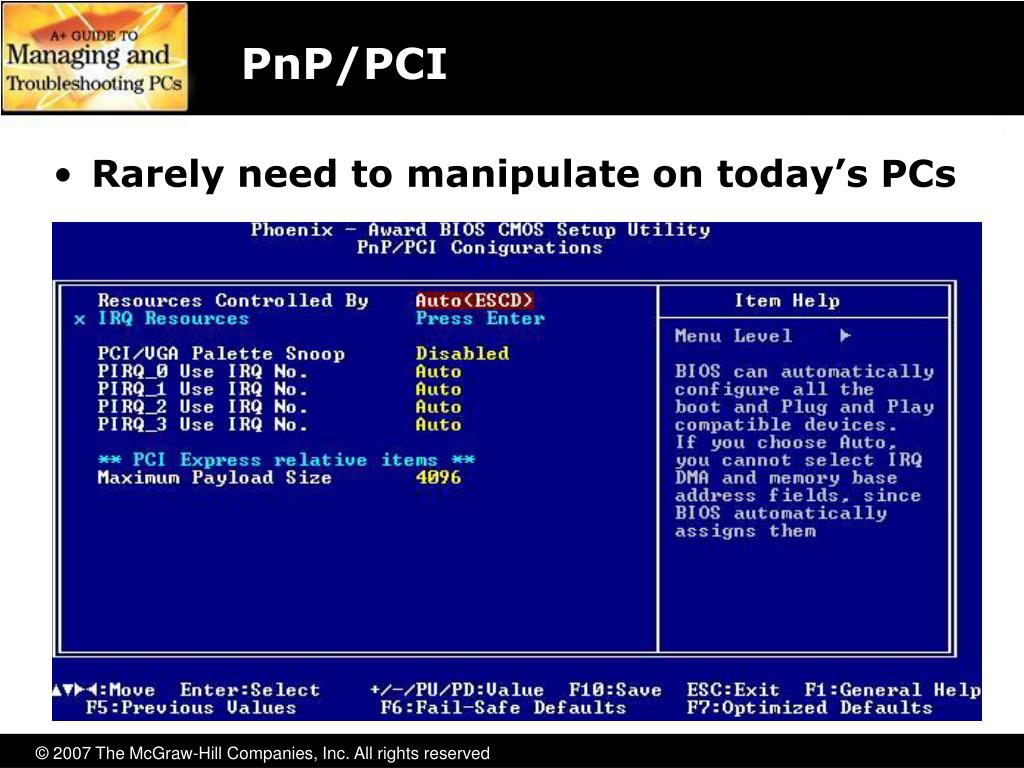

PnP/PCI
  • Rarely need to manipulate on today’s PCs
set password
Set Password
  • Locks access to CMOS settings
    • Prevents non-techs from changing key settings
slide23
BYOB
  • Computer makers could not predict all the new types of hardware
  • Ways to bring your own BIOS (BYOB) were invented:
    • Option ROM is a BIOS chip embedded on the adapter card itself – (i.e., video cards)
    • Most new hardware devices use device drivers to tell the BIOS how to talk to the CPU
    • Most devices with onboard BIOS use it only for internal needs (internal function) and use a device driver to talk to the CPU

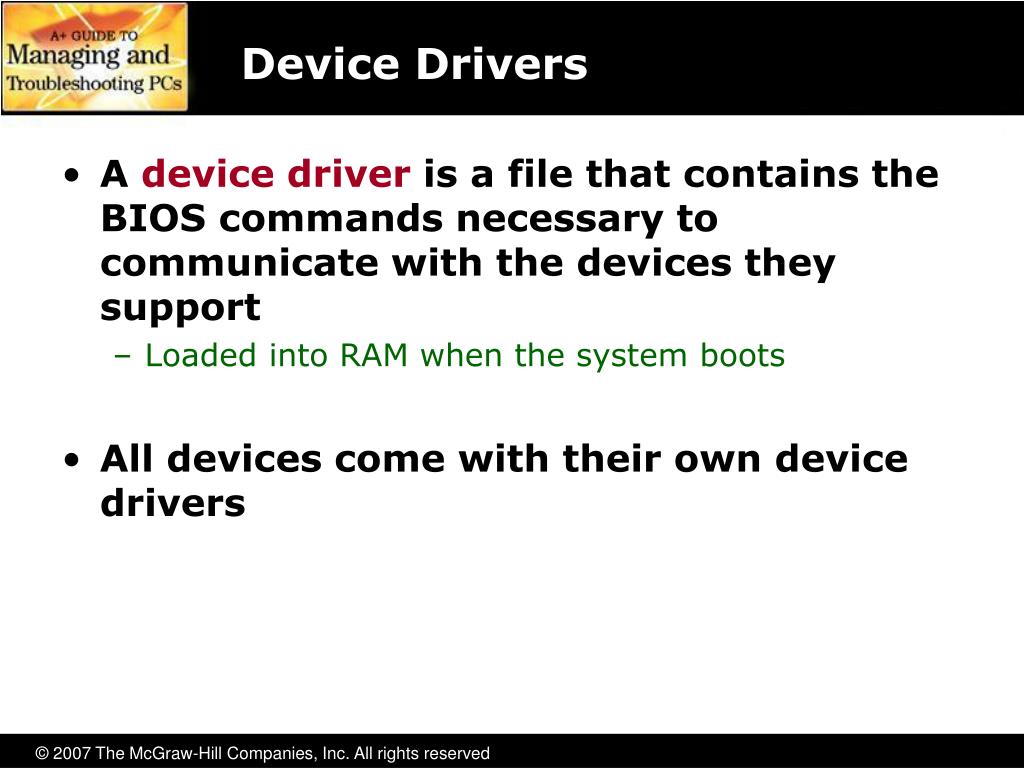

device drivers
Device Drivers
  • A device driver is a file that contains the BIOS commands necessary to communicate with the devices they support
    • Loaded into RAM when the system boots
  • All devices come with their own device drivers
bios bios everywhere
BIOS, BIOS, Everywhere
  • All hardware needs a program to allow CPU to communicate with it
    • Could be on motherboard ROM
    • Could be on PC card ROM
    • Could be loaded via a driver
    • Could be loaded into RAM at boot
power on self test post27
Power-On Self Test (POST)
  • The power-on self test (POST) is a special program stored on the ROM chip
    • Initiated when the computer is turned on or is reset
    • Checks out the system every time the computer boots
  • Communicates errors
    • Beep codes
    • Text errors
beep codes
Beep Codes
  • If video is determined to be missing or faulty
    • One long beep followed by three short beeps
  • If everything checks out
    • One or two short beeps
  • If RAM is missing or faulty
    • Buzzing noise that repeats until power turned off
  • More complicated beep codes may be found in legacy computers
    • Check motherboard manual for meaning
post cards

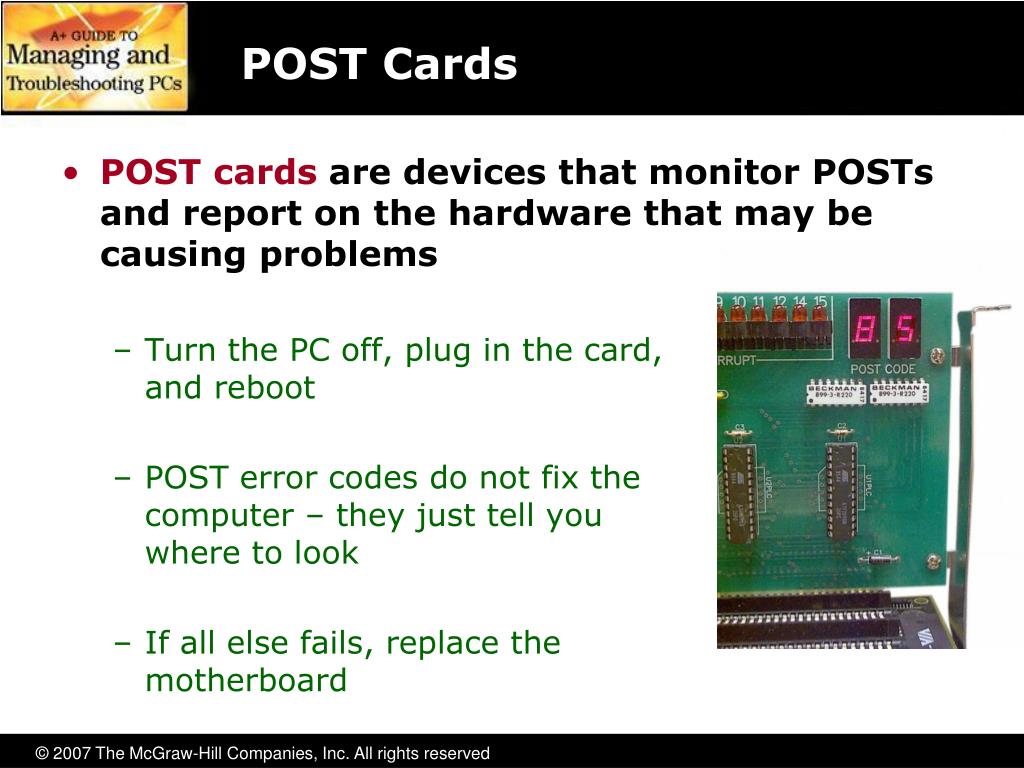

POST Cards
  • POST cards are devices that monitor POSTs and report on the hardware that may be causing problems
    • Turn the PC off, plug in the card, and reboot
    • POST error codes do not fix the computer – they just tell you where to look
    • If all else fails, replace the motherboard
the boot process
The Boot Process
  • The CPU is the first component initialized when the computer is turned on
  • It reads a special wire called power good once the power supply provides the proper voltage to the CPU
  • Every CPU has a built-in memory address with the first line of the POST program on the system ROM

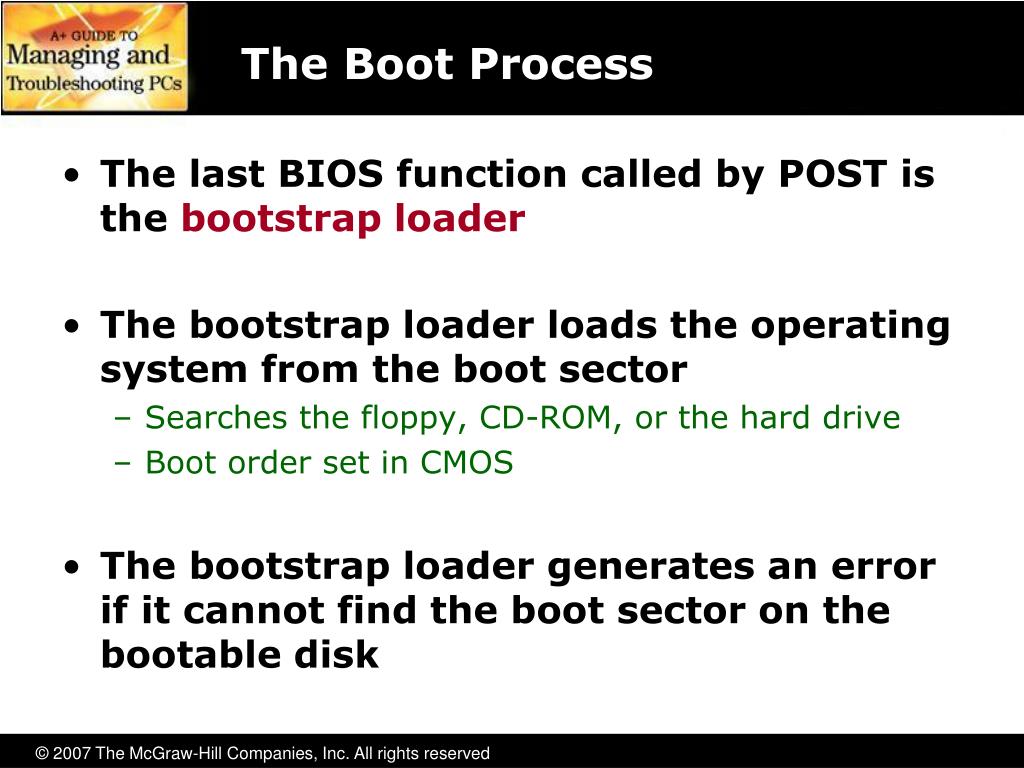

the boot process32
The Boot Process
  • The last BIOS function called by POST is the bootstrap loader
  • The bootstrap loader loads the operating system from the boot sector
    • Searches the floppy, CD-ROM, or the hard drive
    • Boot order set in CMOS
  • The bootstrap loader generates an error if it cannot find the boot sector on the bootable disk

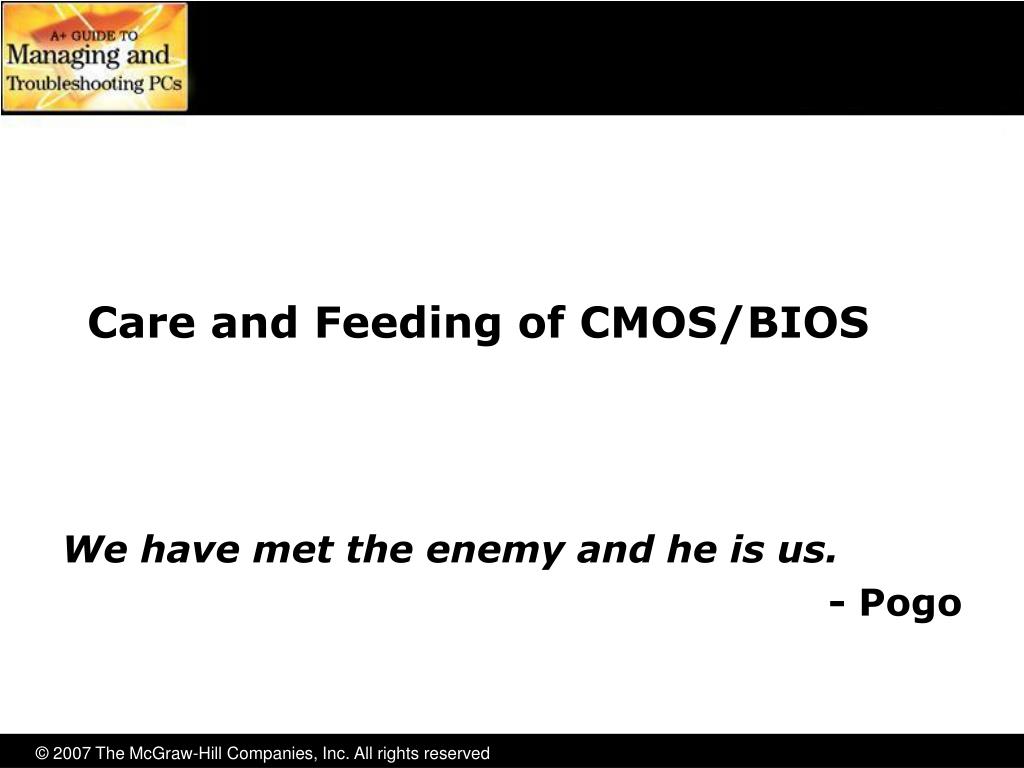

care and feeding of cmos bios

Care and Feeding of CMOS/BIOS

We have met the enemy and he is us.

- Pogo

losing cmos settings
Losing CMOS Settings
  • Common errors
    • CMOS configuration mismatch
    • CMOS date/time not set
    • No boot device available
    • CMOS battery state low
  • Common reasons for losing CMOS data
    • Jiggling the battery while doing other work
    • Dirt on the motherboard
    • Electrical surges
    • Faulty power supplies
    • Chip creep

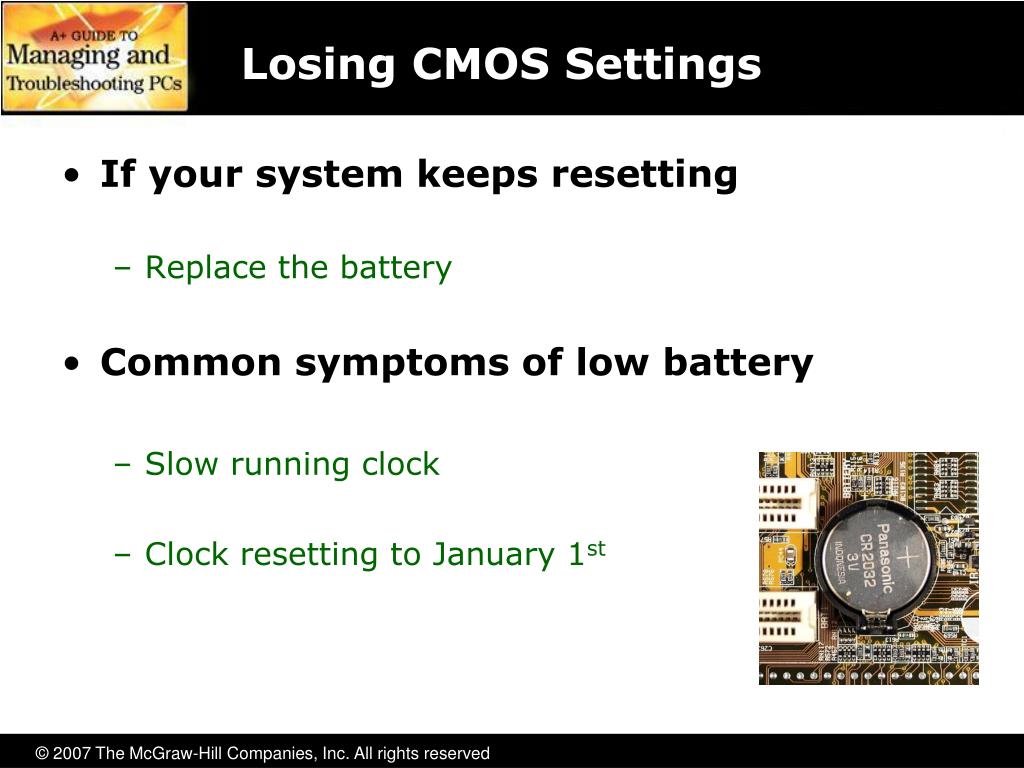

losing cmos settings35
Losing CMOS Settings
  • If your system keeps resetting
    • Replace the battery
  • Common symptoms of low battery
    • Slow running clock
    • Clock resetting to January 1st
clearing cmos settings

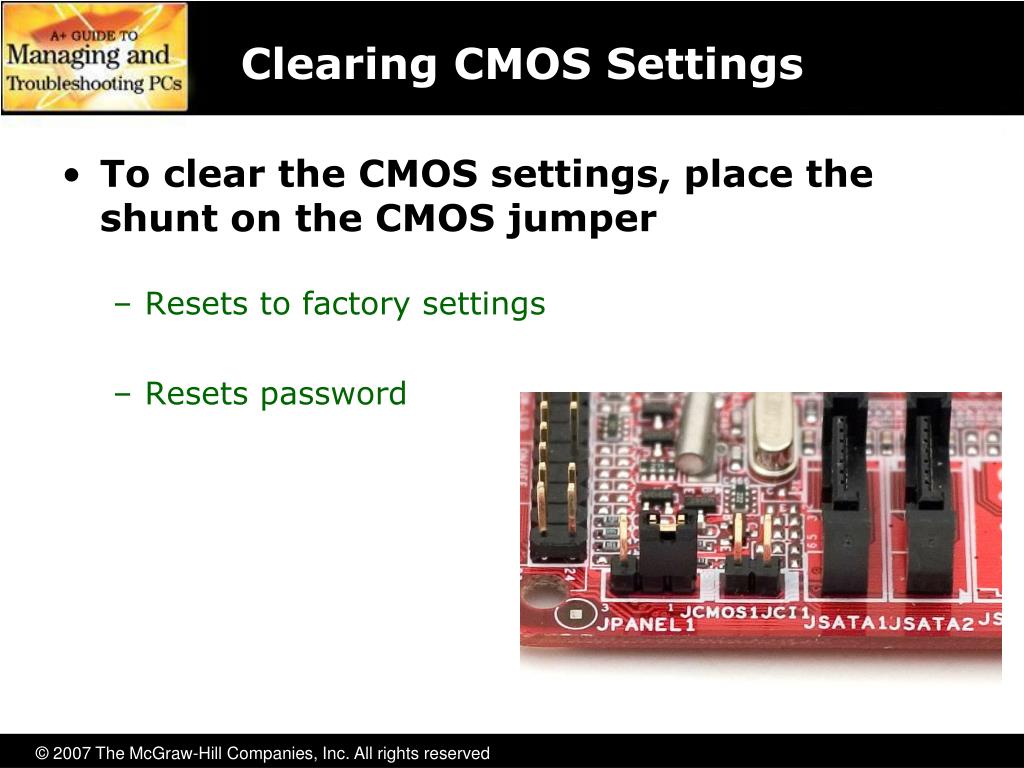

Clearing CMOS Settings
  • To clear the CMOS settings, place the shunt on the CMOS jumper
    • Resets to factory settings
    • Resets password
flashing rom
Flashing ROM
  • Flash ROM chips can be reprogrammed
  • Download program from manufacturer
  • Copy program to floppy
    • Some programs will run within Windows
  • Boot to floppy and run program
