Presentation Transcript


Slide5 l.jpg

Courtesy of ASUS USA

PCI-X

Chipset

CPU

Socket

Battery

SATA

RAM

Power


Things to know about the slots l.jpg

PCI-X and AGP – (Advanced Graphics Port) - Special slots for graphics cards

PCI – (Peripheral Component Interconnect) – Most common on newer PCs. Used for Graphics, Network, Firewire, and any other add-on card for a newer PC. Roughly 10 times faster than ISA

ISA – (Industry Standard Architecture ) – Common on older PCs (Over 8 yrs old) – Slower Bus speed than PCI

Things to know about the slots


Riding the bus l.jpg

Lines of communication within the PC for graphics cards

Capability measured in speed and width

Modern PCs usually have a bus speed of 133-533 MHz – Older PCs have 66 or 133 MHz

Important when buying additional RAM, RAM must run at the same speed as the Motherboard

Main Bus vs. Front side Bus

Bus width – amount of data that can be sent over the same wire at the same time

Modern PCs – Maximum 64 Bits Bus Width

Riding the Bus


Internal and external bus l.jpg
Internal and External Bus for graphics cards

  • Internal Bus – On the board itself (Processor, RAM)

  • External Bus – leads outside of the box (USB, Keyboard connections, PCI etc)

  • Can have different speeds


Pc card speeds l.jpg
PC Card Speeds for graphics cards

  • AGP – usually 32 Bits

  • PCI – 32 or 64 Bits

  • ISA – 8 or 16 Bits


Cmos battery l.jpg
CMOS Battery for graphics cards

  • Lithium Battery that backs up the System BIOS

  • Needs replacing every so often

  • Signs it needs to be replaced

    • Clock does not keep time between reboots

    • Computer “loses” hard drives, floppies, and other devices that are installed on the computer

    • Other assorted weirdness


Bios basic input output system l.jpg
BIOS (Basic Input Output System) for graphics cards

  • A power-on self-test (POST) for all of the different hardware components in the system to make sure everything is working properly

  • Activating other BIOS chips on different cards installed in the computer - For example, SCSI and graphics cards often have their own BIOS chips.

  • Providing a set of low-level routines that the operating system uses to interface to different hardware devices - It is these routines that give the BIOS its name. They manage things like the keyboard, the screen, and the serial and parallel ports, especially when the computer is booting.

  • Managing a collection of settings for the hard disks, clock, etc.

    • Thanks Howstuffworks.com

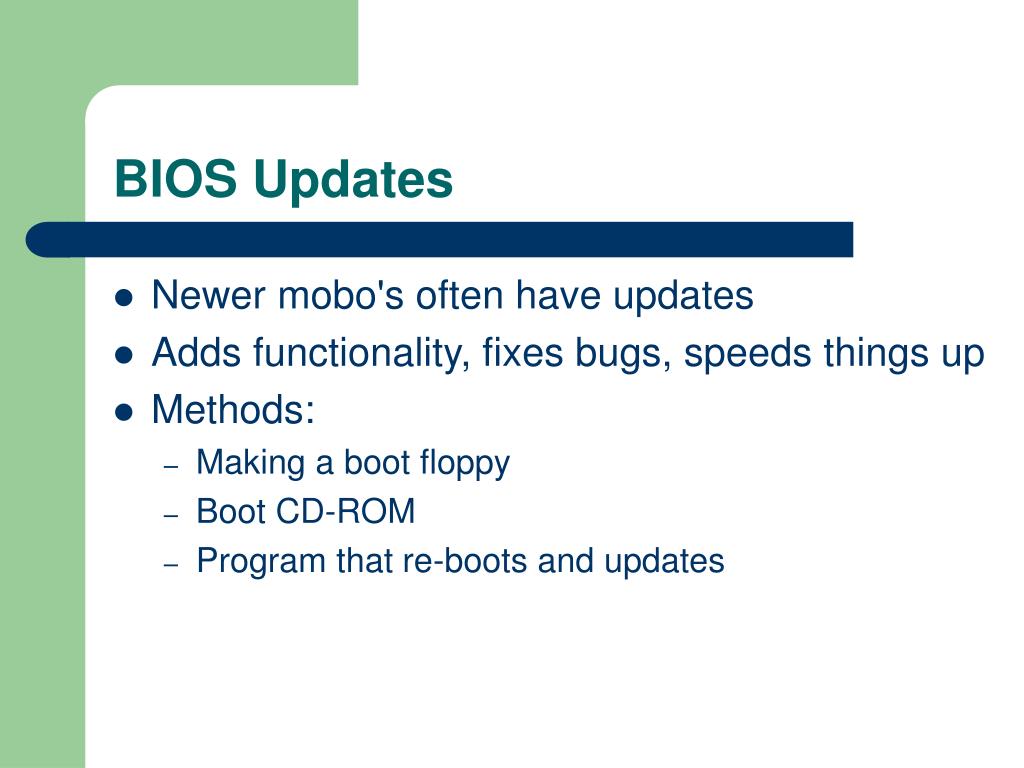

Bios updates l.jpg
BIOS Updates for graphics cards

  • Newer mobo's often have updates

  • Adds functionality, fixes bugs, speeds things up

  • Methods:

    • Making a boot floppy

    • Boot CD-ROM

    • Program that re-boots and updates


Cooling l.jpg
Cooling for graphics cards

  • Enemy #1: Heat

  • Active cooling

  • Passive cooling

  • Moving parts wear out


Active cooling l.jpg
Active Cooling for graphics cards

  • Fans

  • Heat Exchanger

  • Liquid


Passive cooling l.jpg
Passive Cooling for graphics cards

  • Heat Sinks

  • Heat Exchanger
