a translation from typed assembly language to certified assembly programming

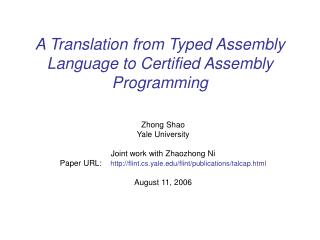

A Translation from Typed Assembly Language to Certified Assembly Programming

Zhong Shao

Yale University

Joint work with Zhaozhong Ni

Paper URL: http://flint.cs.yale.edu/flint/publications/talcap.html

August 11, 2006

research objective of the flint group

certified L5 SW

certified L4 SW

certified L3 SW

certified L2 SW

Research objective(of the FLINT group)

To build a certified software platform with real guarantee of reliability & security !

legacy SW layer4

legacy SW layer3

legacy SW layer2

legacy SW layer1

certified L1 software

Hardware

the lowest sw layer is the key

certified L5 SW

certified L4 SW

certified L3 SW

certified L2 SW

The lowest SW layer is the key!

A buggy L1 software can take over the machine easily!

infected L5 SW

legacy SW layer4

infected L4 SW

legacy SW layer3

infected L3 SW

legacy SW layer2

infected L2 SW

legacy SW layer1

buggy L1 software (or VM)

Hardware

structure of our certified framework

CPU

Safety Policy

No

Proof Checker

Proof

Yes

machine code

Must be Trusted!

Structure of our certified framework
  • certified code (proof + machine code)
  • machine model
  • safety policy
  • mechanized meta-logic
  • proof checker
what makes a good mechanized meta logic
What makes a good mechanized meta logic?

You’d better be very paranoid!

  • The logic must be “rock-solid”, i.e., consistent!
  • The logic must be expressive

to express everything a hacker wants to say

  • Support explicit, machine-checkable proof objects
  • The logic must be simple

so that the proof checker can be hand-verified

  • Can serve as logical framework and meta-logical framework

to allow one to prove using specialized logics

  • Compatible with “automated proof construction”
how to scale
How to scale?

Modularity, modularity, modularity!

specification S1

specification S2

binary code C1

binary code C2

formal proof P1

formal proof P2

specification S

specification S3

specification S4

Linking

binary code C

formal proof P

binary code C3

binary code C4

formal proof P3

formal proof P4

specification S5

specification S6

binary code C5

binary code C6

formal proof P5

formal proof P6

another form of modularity

Must accurately specify & certify all these interfaces!

Another form of modularity

Software is often organized as a vertical stack of abstractions!

Not everything is certified at the assembly level!

certified L5 SW

certified L4 SW

certified L3 SW

certified L2 SW

certified L1 software

Hardware

a really juicy research area
A really “juicy” research area …

Many interesting & exciting problems:

  • How to certify each standard language and OS abstraction?
    • general code pointers
    • procedure call/return
    • general stack-based control abstraction
    • mutable data structures (& malloc/free …)
    • self-modifying code (& OS boot loader …)
    • interrupt/signal handling
    • device drivers and IO managers
    • thread libraries and synchronization
    • multiprocessor and memory model
    • OS kernel/user abstraction
    • …………
  • How to combine proof assistant with general-purpose programming?
  • Other exciting interplays btw machine-checked proofs & computation
related research projects at yale
Related research projects at Yale

Certifying different language & OS abstractions:

  • certified assembly programming [CAP ESOP’02]
  • embedded code pointers [XCAP POPL’06]
  • non-preemptive threads [CCAP ICFP’04 & CMAP ICFP’05]
  • stack-based control abstractions [SCAP PLDI’06]
  • self-modifying code & local reasoning [Cai et al GCAP on-going]
  • thread libraries and synchronizations [Ni et al on-going]
  • interrupts & multiprocessors [Ferreira et al on-going]
  • open framework for interoperability [Feng et al OCAP on-going]
  • boot-loaders & preemptive threads [Feng et al on-going]
  • memory management using malloc/free [CAP ESOP’02]
  • garbage collector & mutator [McCreight et al on-going]
features of a cap style system
Features of a CAP-style system
  • All built on a mechanized meta logic (e.g., Coq)
  • Both the machine-level program and the property are specified by formulas in the meta logic
      • Like TLA except our meta logic is mechanized
  • Hoare-style assertions & inference rules enforce both the correctness & type safety properties
      • No need of a separate type system; not a “refinement”
  • Assertion languages can vary:
      • Borrow those from Coq (shallow embedding) --- CAP
      • Hybrid: Coq assertions + a thin layer of syntax --- XCAP
tal vs cap
TAL vs. CAP
  • Type-based Approach
    • TAL [Morrisett98]
    • Touchstone PCC [Colby00]
    • Syntactic FPCC[Hamid02]
    • FTAL [Crary03]
    • LTAL[Chen03]
    • Modular
    • Generate proof easily
    • Type safety
  • Logic-based Approach
    • Original PCC [Necula98]
    • CAP [Yu03]
    • CCAP/CMAP [Yu04, Feng05]
    • XCAP [Ni & Shao 06]
    • SCAP [Feng et al 06]
    • Expressive
    • Advanced properties
    • Good interoperability
can we have the best of both worlds

SCAP [Feng et al PLDI’06]

XCAP [Ni & Shao POPL’06]

This talk! We also show how to embed TAL into our new XCAP!

Can we have the best of both worlds?
  • Can a Hoare-style CAP system support:
    • embedded code pointers?
    • closures?
    • exceptions?
    • runtime stacks?
    • general references w. weak update?
    • recursive data structures?
mechanized meta logic
Mechanized meta logic

All implemented in the Coq proof assistant!

validity rules for propx
Validity rules for PropX

[P] = ¢` P

memory mutation in xcap
Memory mutation in XCAP?
  • Strong update!
    • special conjunction (p * q) in separation logic
    • directly definable in Prop and PropX
    • explicit alias control, popular in system level
  • Weak update (general reference)?
    • mutable reference (int ref) in ML
    • managed data pointers (int __gc*) in .NET
    • rely on GC to recycle memory
recursive specification in xcap
Recursive specification in XCAP?
  • Simple recursive data structures!
    • linked list, queue, stack, tree, etc.
    • supported via inductive definition of Prop
  • Complex recursive structures with ECP?
    • object (self refers to the entire object)
    • threading invariant (each thread assumes others)
tal to xcap translation
TAL-to-XCAP translation

Step #1: we build a “logic-based” TAL that uses semantic subtyping

Step #2: translating regular TAL into “logic-based” TAL

(this is fairly straight-forward!)

Step #3: translating “logic-based” TAL into XCAP

tal to xcap other translations
TAL-to-XCAP: other translations
  • translation of preconditions
  • translation of code heap types
  • translation of data heap types
conclusion

TAL

userapplication

library

devicedriver

OSkernel

XCAP

firmware

Conclusion

XCAP can be extended to support general reference, weak update, and recursive specification !

We give a direct embedding of TAL into XCAP.
