Presentation Transcript
assembly language programming

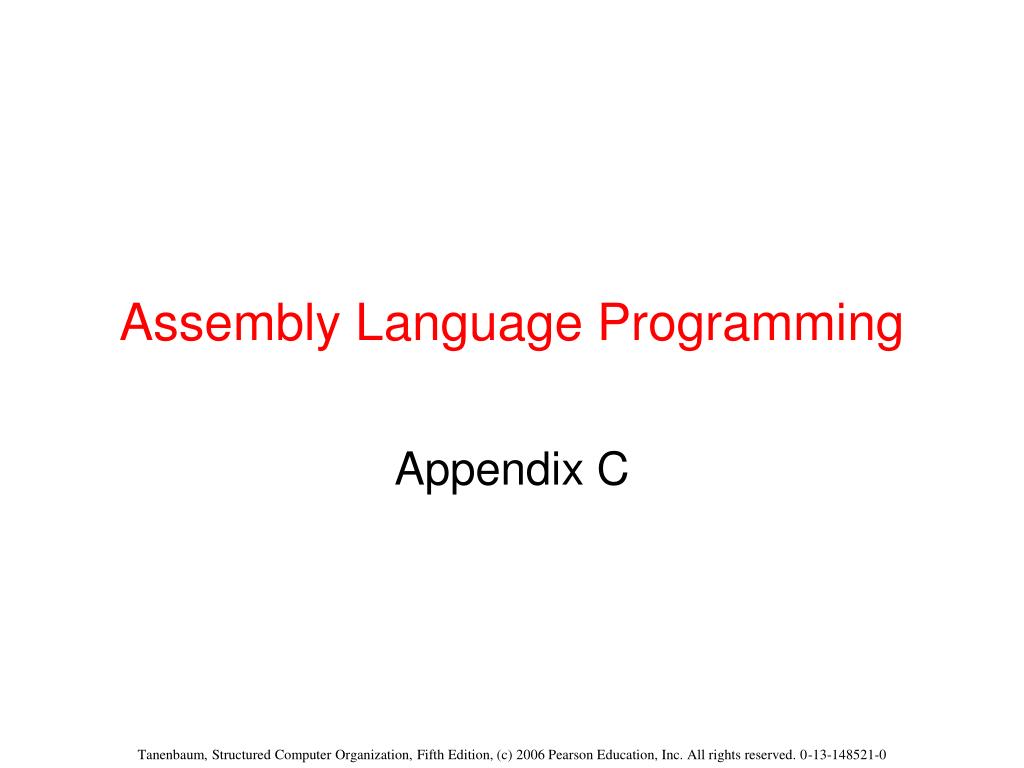

Assembly Language Programming

Appendix C

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

a small assembly language program
A Small Assembly Language Program

(a) An assembly language program.

(b) The corresponding tracer display.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the general registers
The General Registers

The 8088 registers.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

addressing 1
Addressing (1)

Operand addressing modes. The symbol # indicates a numerical value or label.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

addressing 2
Addressing (2)

Operand addressing modes. The symbol # indicates a numerical value or label.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the 8088 instruction set 1
The 8088 Instruction Set (1)

Some of the most important 8088 instructions.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the 8088 instruction set 2
The 8088 Instruction Set (2)

Some of the most important 8088 instructions.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the 8088 instruction set 3
The 8088 Instruction Set (3)

Some of the most important 8088 instructions.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

conditional jumps
Conditional Jumps

Conditional jumps.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

subroutine calls
Subroutine Calls

An example stack.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

system calls and system subroutines
System Calls and System Subroutines

Some UNIX system calls and subroutines available in the interpreter.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the ack based assembler as88 1
The ACK-Based Assembler, as88 (1)

The as88 pseudoinstructions.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the ack based assembler as88 2
The ACK-Based Assembler, as88 (2)

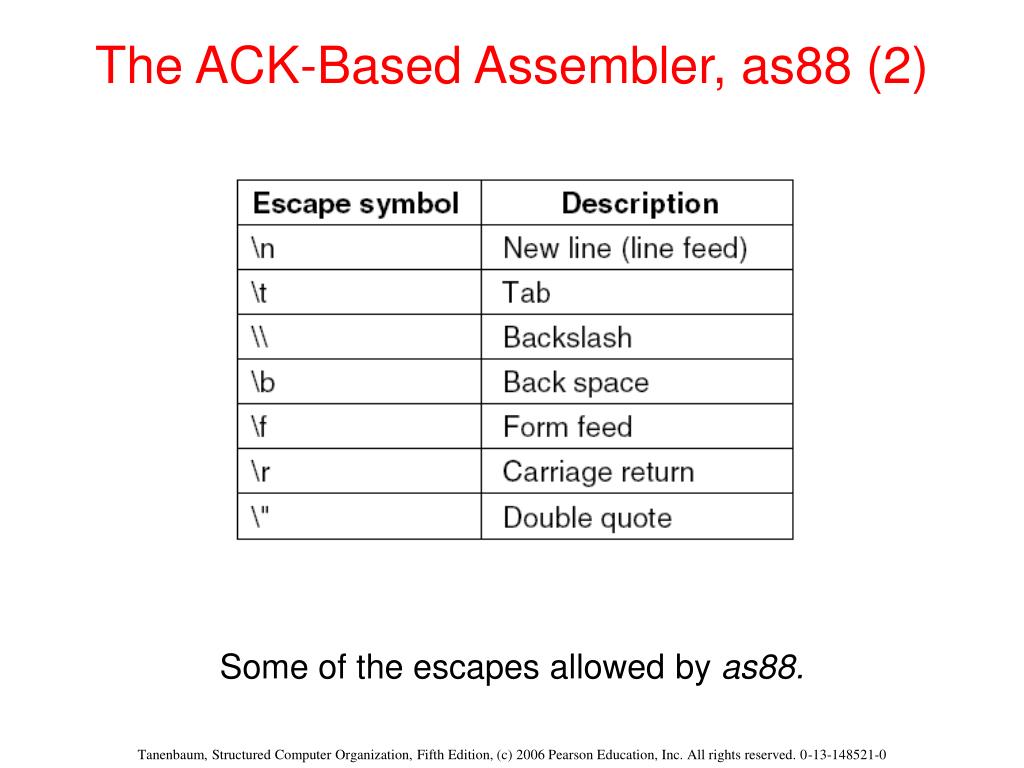

Some of the escapes allowed by as88.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

the tracer
The Tracer

The tracer’s windows.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

tracer commands 1
Tracer Commands (1)

The tracer commands. Each command must be followed by a carriage

return (the Enter key). An empty box indicates that just a carriage return

is needed. Commands with no Address field listed above have no

address. The # symbol represents an integer offset.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

tracer commands 2
Tracer Commands (2)

The tracer commands. Each command must be followed by a carriage

return (the Enter key). An empty box indicates that just a carriage return

is needed. Commands with no Address field listed above have no

address. The # symbol represents an integer offset.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

hello world example
Hello World Example

(a) HlloWrld.s.

(b) The corresponding tracer window.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

general registers example
General Registers Example

(a) Part of a program.

(b) The tracer register window after line 7 has been executed.

(c) The registers.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program 1
Example Program (1)

The program vecprod.s.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program 2
Example Program (2)

The program vecprod.s.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program 3
Example Program (3)

The program vecprod.s.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program 4
Example Program (4)

Execution of vecprod.s when it reaches line 28 for the first time.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program arrayprt
Example Program arrayprt

The program arrayprt before debugging.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program strngcpy s
Example Program strngcpy.s

Copy a string.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

example program reverspr s
Example Program reverspr.s

Print a string backwards.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

dispatch tables 1
Dispatch Tables (1)

A program demonstrating a multiway branch using a dispatch table.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

dispatch tables 2
Dispatch Tables (2)

A program demonstrating a multiway branch using a dispatch table.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

dispatch tables 3
Dispatch Tables (3)

A program demonstrating a multiway branch using a dispatch table.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

buffered and random file access 1
Buffered and Random File Access (1)

A program with buffered read and random file access.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

buffered and random file access 2
Buffered and Random File Access (2)

A program with buffered read and random file access.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0

buffered and random file access 3
Buffered and Random File Access (3)

A program with buffered read and random file access.

Tanenbaum, Structured Computer Organization, Fifth Edition, (c) 2006 Pearson Education, Inc. All rights reserved. 0-13-148521-0
