  1. Advanced Energy Vehicle Topics: Introduction, Design Review Phases, AEV Components, & Mission Concept Review

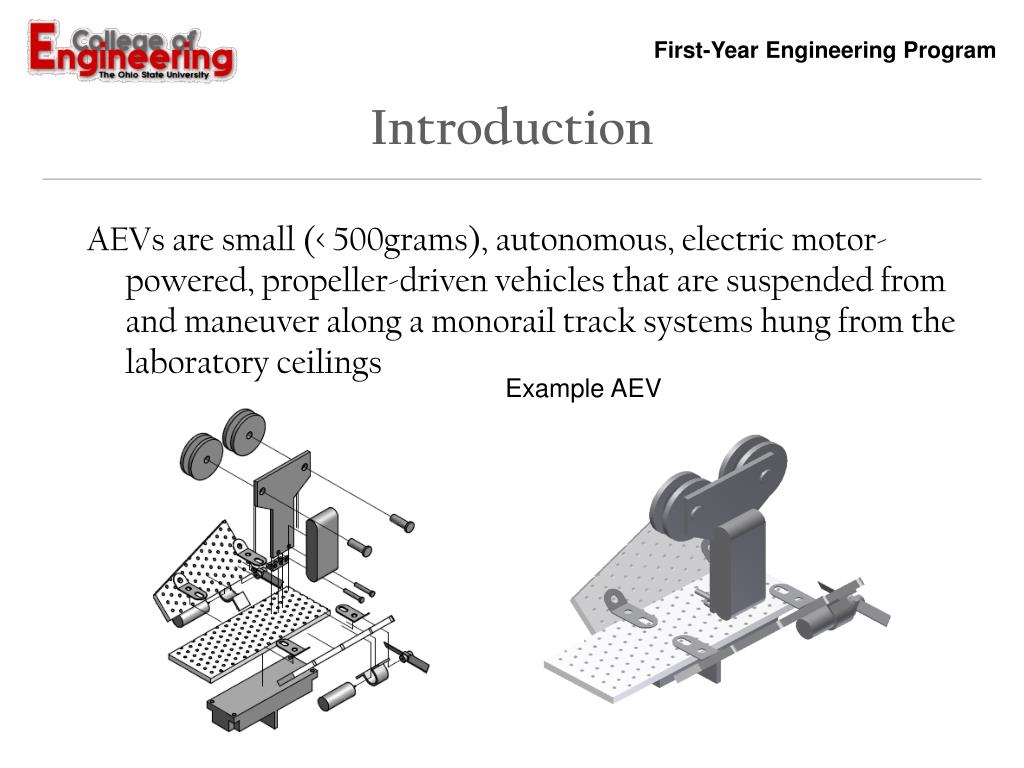

  2. Introduction AEVs are small (< 500grams), autonomous, electric motor-powered, propeller-driven vehicles that are suspended from and maneuver along a monorail track systems hung from the laboratory ceilings Example AEV

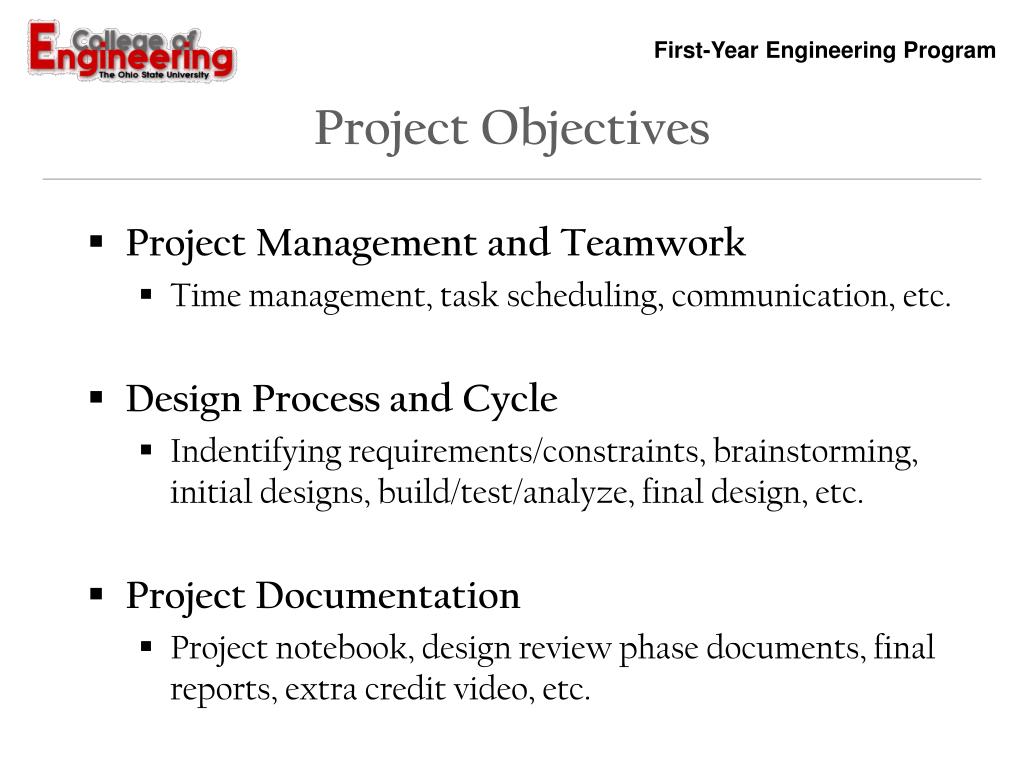

  3. Project Objectives • Project Management and Teamwork • Time management, task scheduling, communication, etc. • Design Process and Cycle • Indentifying requirements/constraints, brainstorming, initial designs, build/test/analyze, final design, etc. • Project Documentation • Project notebook, design review phase documents, final reports, extra credit video, etc.

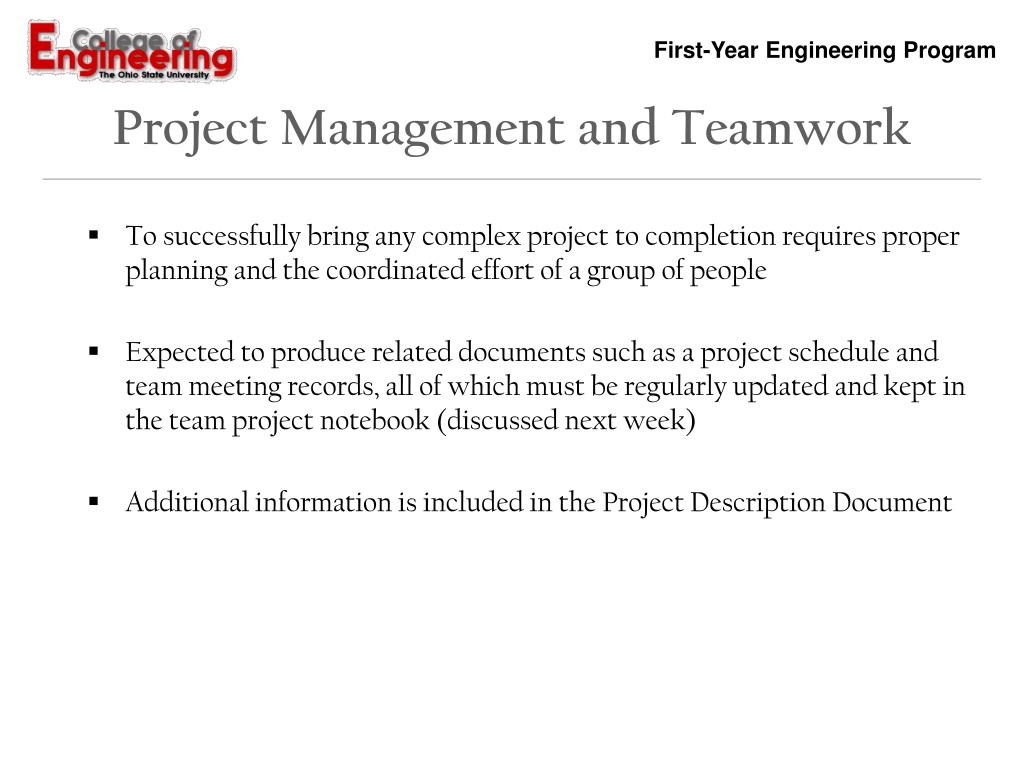

  4. Project Management and Teamwork • To successfully bring any complex project to completion requires proper planning and the coordinated effort of a group of people • Expected to produce related documents such as a project schedule and team meeting records, all of which must be regularly updated and kept in the team project notebook(discussed next week) • Additional information is included in the Project Description Document

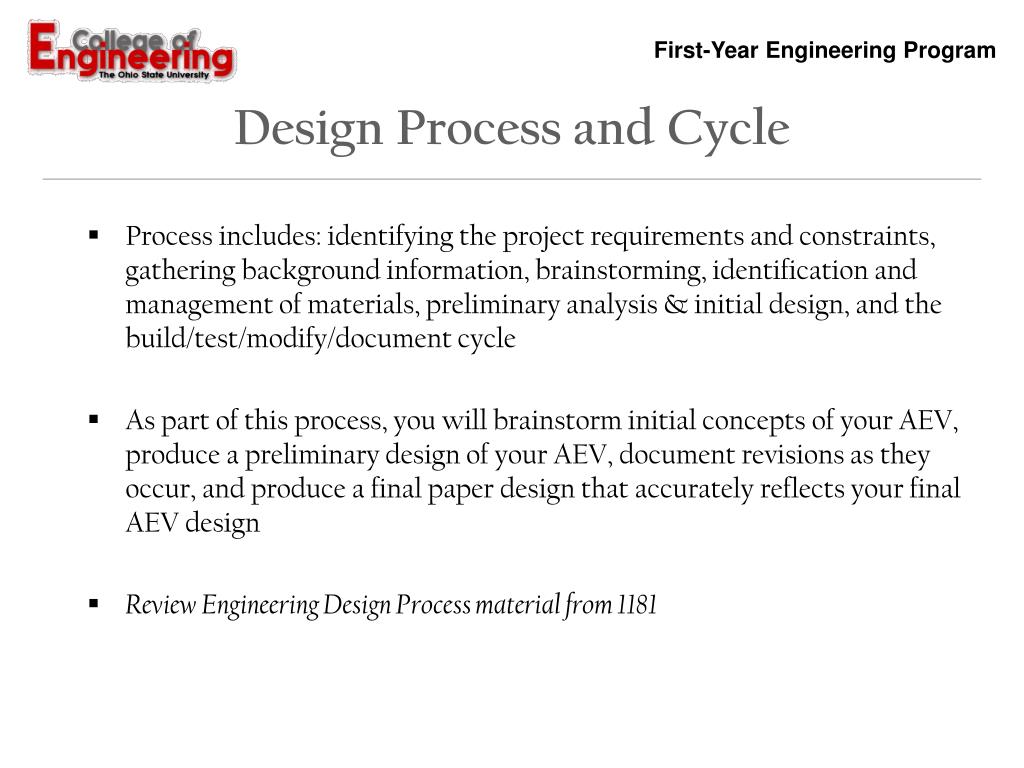

  5. Design Process and Cycle • Process includes: identifying the project requirements and constraints, gathering background information, brainstorming, identification and management of materials, preliminary analysis & initial design, and the build/test/modify/document cycle • As part of this process, you will brainstorm initial concepts of your AEV, produce a preliminary design of your AEV, document revisions as they occur, and produce a final paper design that accurately reflects your final AEV design • Review Engineering Design Process material from 1181

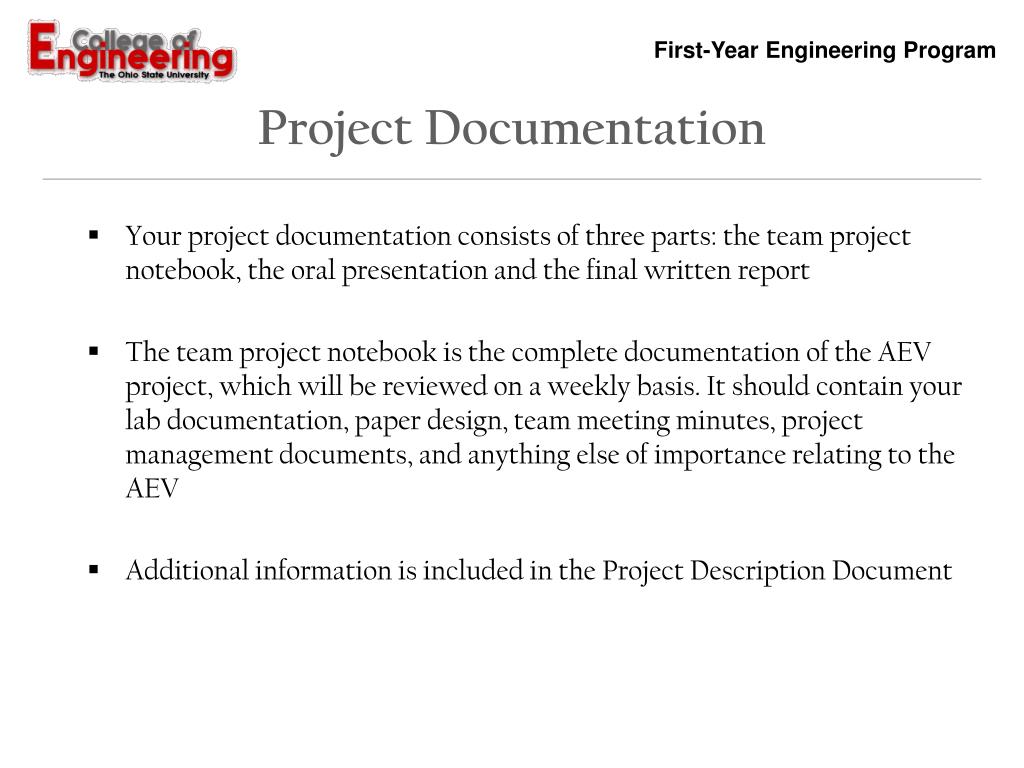

  6. Project Documentation • Your project documentation consists of three parts: the team project notebook, the oral presentation and the final written report • The team project notebook is the complete documentation of the AEV project, which will be reviewed on a weekly basis. It should contain your lab documentation, paper design, team meeting minutes, project management documents, and anything else of importance relating to the AEV • Additional information is included in the Project Description Document

  7. AEV Video • In addition to the required documentation components, an AEV Video can be completed for up to 2% extra credit on your overall grade • Here is a short example video

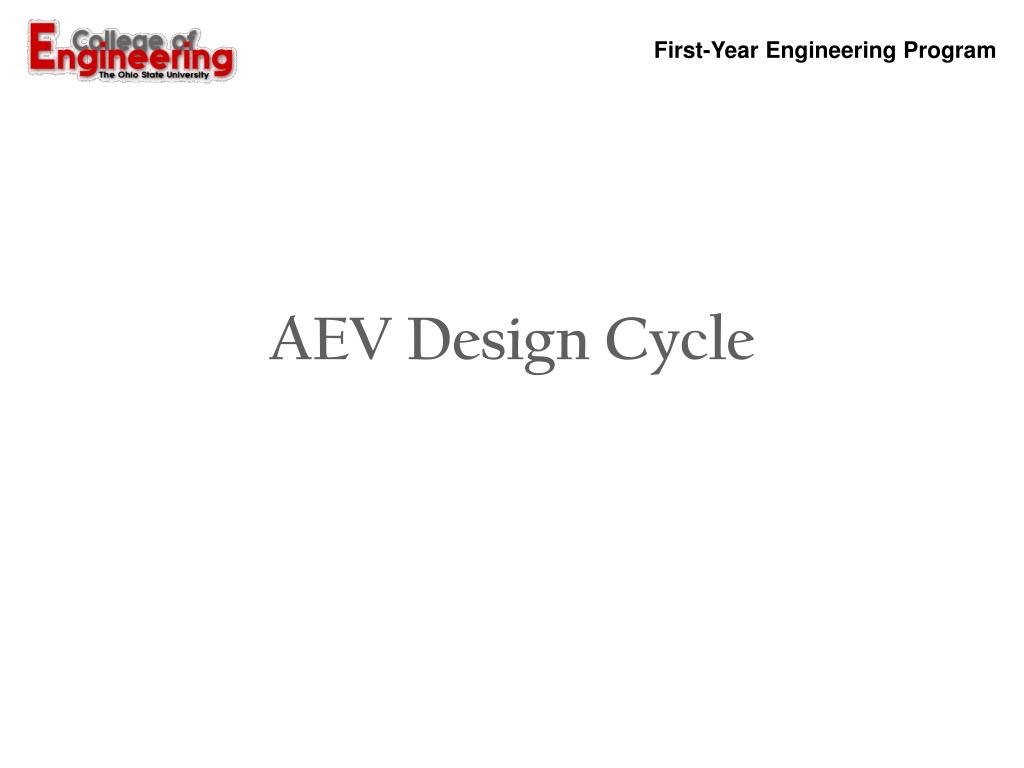

  8. AEV Design Cycle

  9. FINAL DESIGN AEV Project Objective (Problem Definition) Initial Concepts (Brainstorming) experimental Research (Programming) (System Analysis) PT 1 PT 2 PT 3 PT 4 Present AEV Design

  10. Design Review Phases

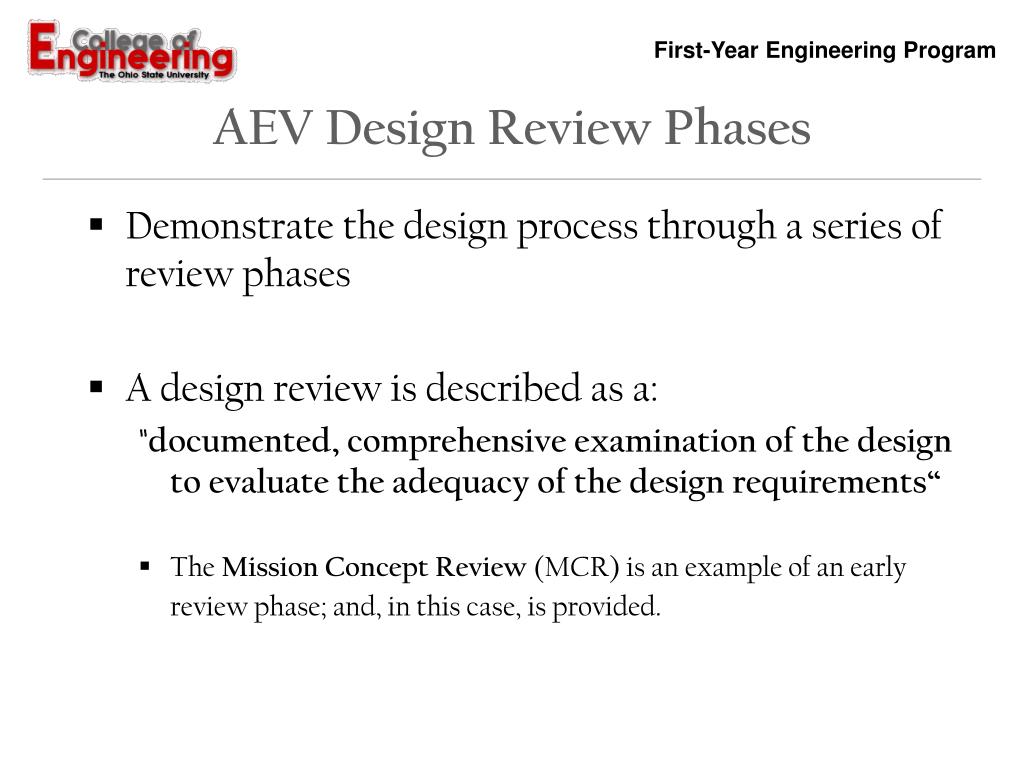

  11. AEV Design Review Phases • Demonstrate the design process through a series of review phases • A design review is described as a: "documented, comprehensive examination of the design to evaluate the adequacy of the design requirements“ • The Mission Concept Review (MCR) is an example of an early review phase; and, in this case, is provided.

  12. AEV Design Review Phases Procedure • AEV design teams will demonstrate the design by: • Developing Test Readiness Review Documents to demonstrate that the team is prepared to meet the Performance Test Objectives • Developing a Preliminary Design Review Documentfrom laboratory tests and Performance Test 1 • Developing a Critical (Final) Design Review Documentfrom detailed investigations in design, including the PDR, and Performance Tests 2-4

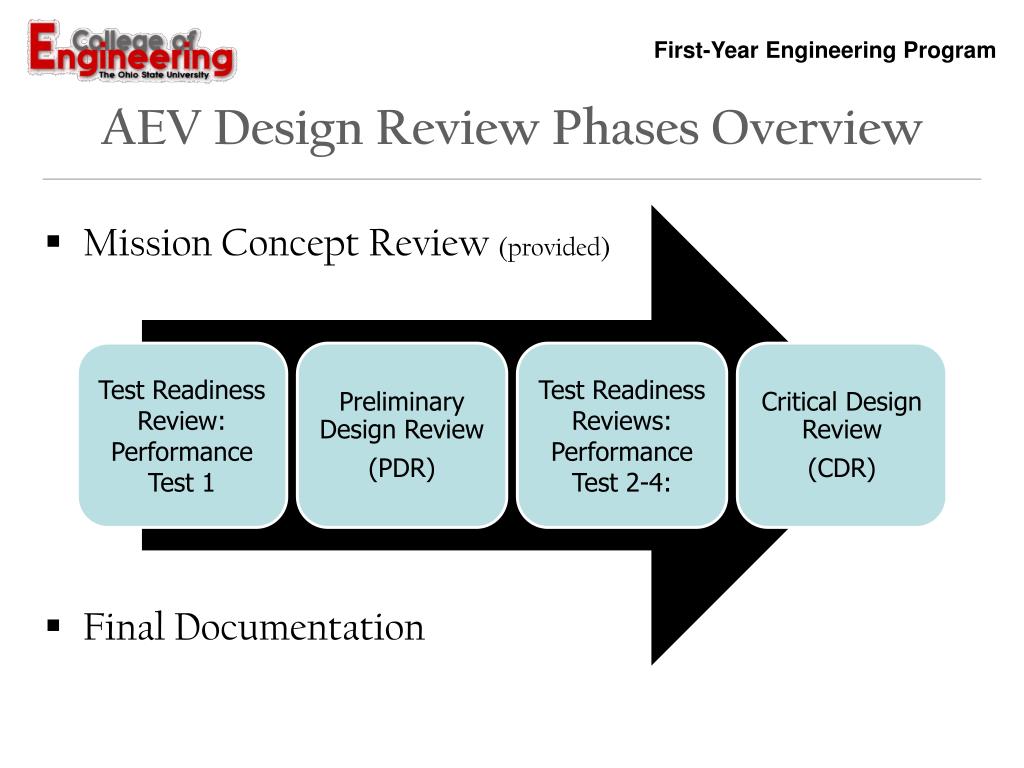

  13. AEV Design Review Phases Overview • Mission Concept Review (provided) • Final Documentation

  14. AEV Components Handout: • AEV Kits • DISCLAIMERfor replacement of lost or damaged kits

  15. AEV Components • Classroom Components • Desktop Tracks • Li-PO Battery and Chargers • Kit Components • AEV-Kit • Automatic Control System • Structure Pieces • Hardware • Electric Motors • Propellers • Monorail wheels • Hand Tools • The classroom components are to stay in the classroom at ALL times

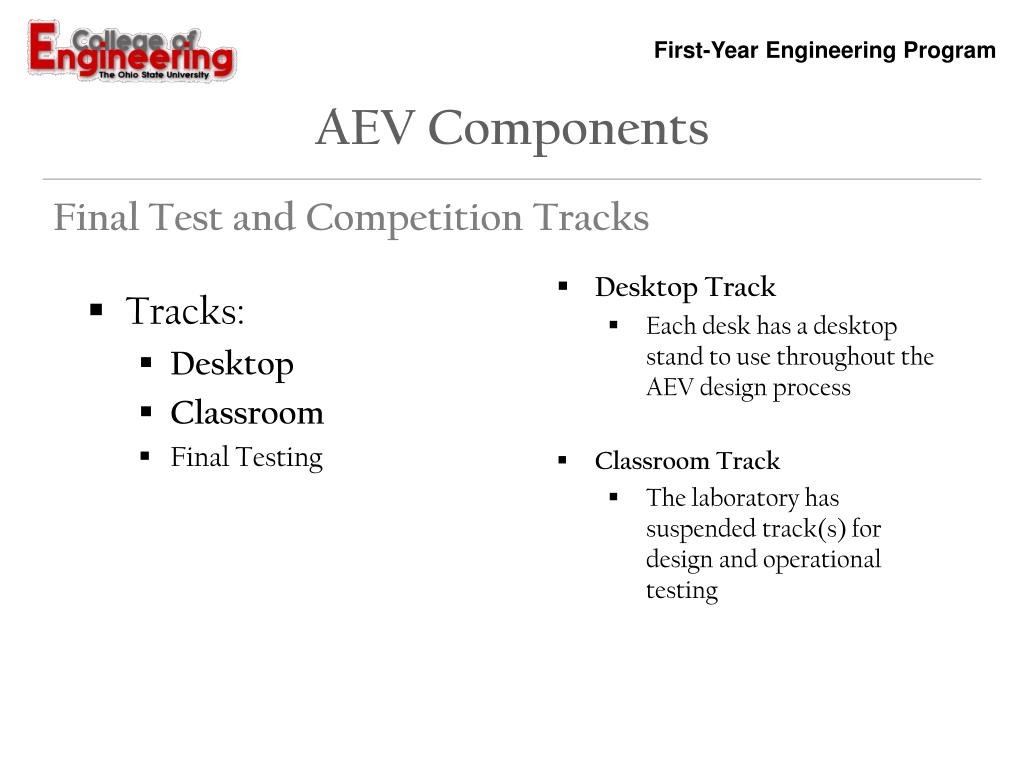

  16. AEV Components Final Test and Competition Tracks • Tracks: • Desktop • Classroom • Final Testing • Desktop Track • Each desk has a desktop stand to use throughout the AEV design process • Classroom Track • The laboratory has suspended track(s) for design and operational testing

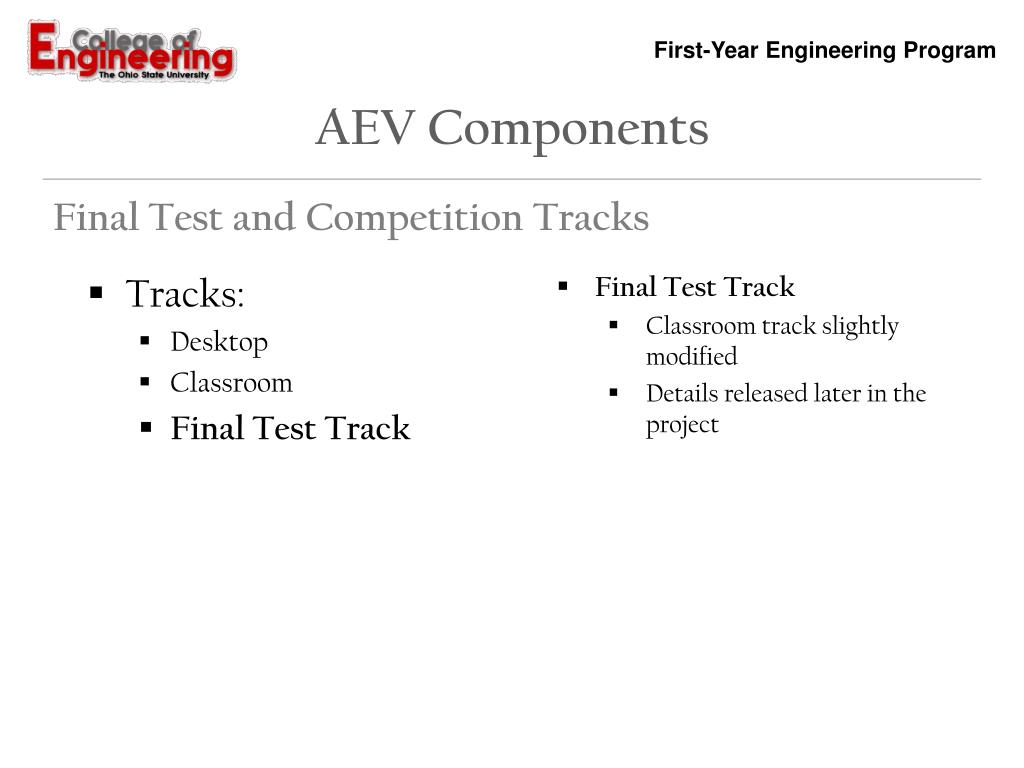

  17. AEV Components Final Test and Competition Tracks • Tracks: • Desktop • Classroom • Final Test Track • Final Test Track • Classroom track slightly modified • Details released later in the project

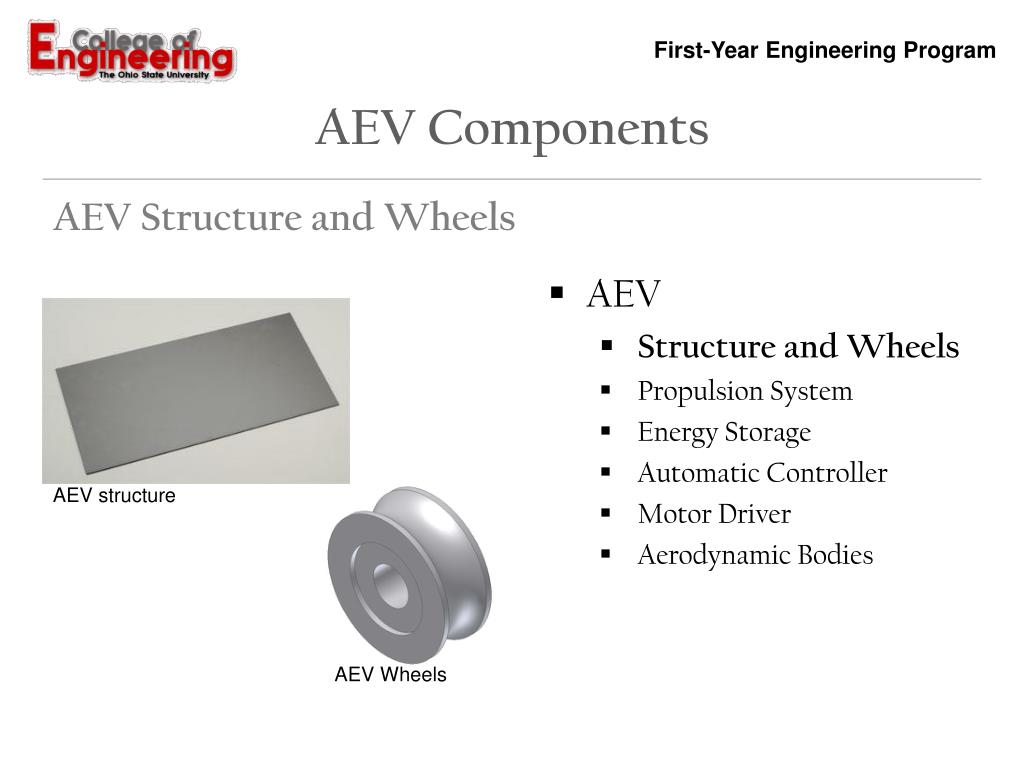

  18. AEV Components AEV Structure and Wheels • AEV • Structure and Wheels • Propulsion System • Energy Storage • Automatic Controller • Motor Driver • Aerodynamic Bodies AEV structure AEV Wheels

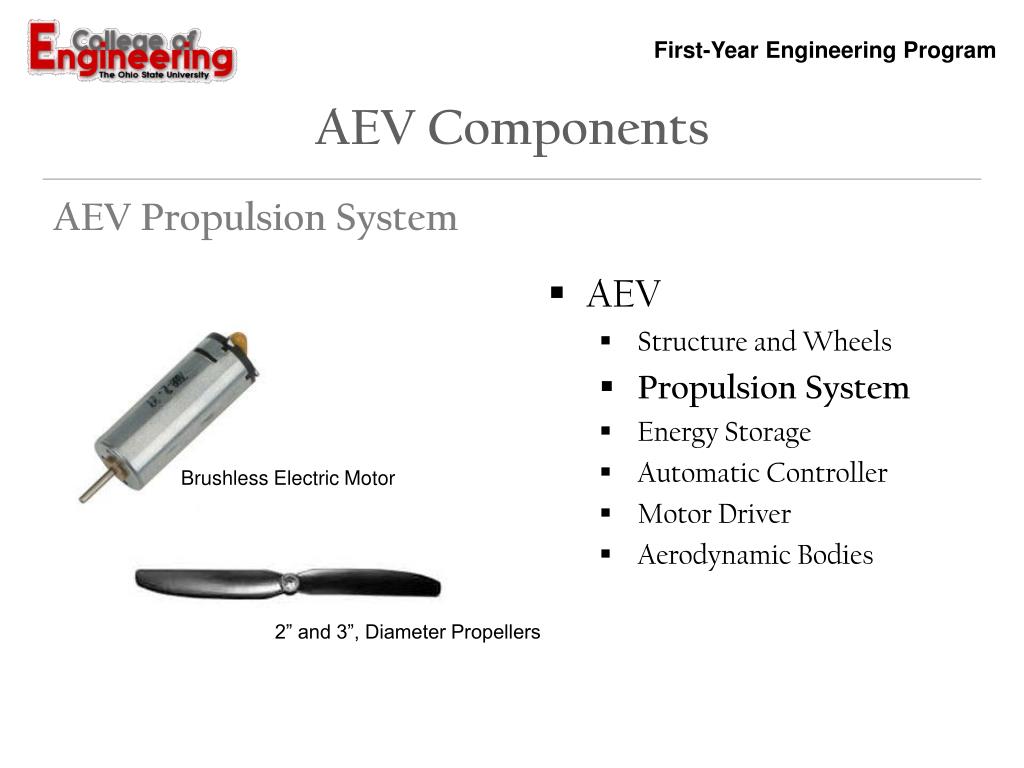

  19. AEV Components AEV Propulsion System • AEV • Structure and Wheels • Propulsion System • Energy Storage • Automatic Controller • Motor Driver • Aerodynamic Bodies Brushless Electric Motor 2” and 3”, Diameter Propellers

  20. AEV Components AEV Energy Storage • AEV • Structure and Wheels • Propulsion System • Energy Storage • Automatic Controller • Motor Driver • Aerodynamic Bodies 2-Cell Lithium-Polymer Battery Capacity: 800mAh Voltage: 7.4V (nominal)

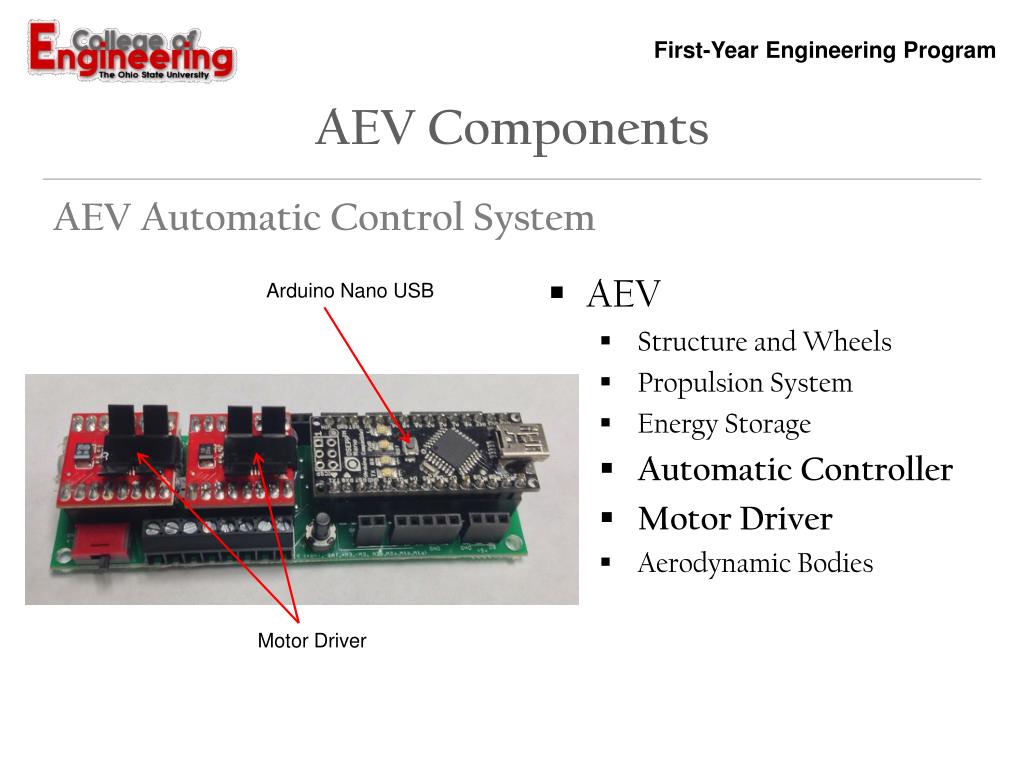

  21. AEV Components AEV Automatic Control System • AEV • Structure and Wheels • Propulsion System • Energy Storage • Automatic Controller • Motor Driver • Aerodynamic Bodies ArduinoNano USB Motor Driver

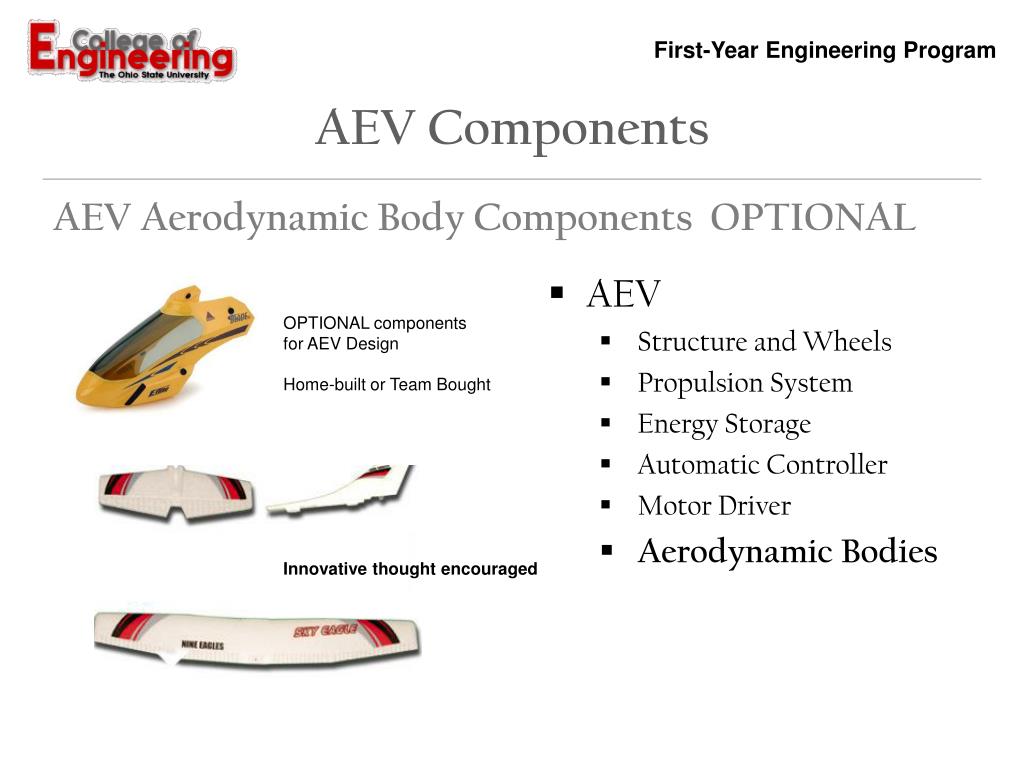

  22. AEV Components AEV Aerodynamic Body Components OPTIONAL • AEV • Structure and Wheels • Propulsion System • Energy Storage • Automatic Controller • Motor Driver • Aerodynamic Bodies OPTIONAL components for AEV Design Home-built or Team Bought Innovative thought encouraged

  23. Mission Concept Review Definition (see Project Description Document) The Mission Concept Review examines the proposed mission's objectives and the concept for meeting those objectives. • The Mission Concept is provided and includes: • Mission Statement • Mission Objectives • Mission Goals • Overall Operational Guidelines Review Mission ConceptWord Document
