Presentation Transcript
slide2
Life Cycle Assessment (LCA) of ICT equipment, networks and services: General methodology and common requirements

© 2011 – Proprietary and Information of ETSI

introduction problems addressed
Introduction – Problems addressed
  • ISO 14040, ISO 14044 and the ILCD Handbook are recognized as normative LCA knowledge documents for “any” application
  • Based on the ISO standards, numerous LCA results for ICT with different quality and inconsistent result presentations have been provided – EU requirement on improvement
  • Standardization of LCA of ICT IS DEFINATELY NEEDED!
  • ETSI has responded to the gap
  • Work started in 2008-2009 and will finish in 2011
  • The ETSI standard for ICT LCA is intended to be more specific than ISO 14040/ISO 14044, but less specific than, e.g., Japanese Product Category Rules for, e.g., notebooks

© 2011 – Proprietary and Information of ETSI

features of the new etsi lca standard
Features of the new ETSI LCA standard

Based on ISO 14040, ISO 14044 and the ILCD Handbook

Lifetimes – Defined

Functional units (f.u.) – Basic f.u. defined

System boundaries – Life Cycle Stages and Unit Processes Identified and Classified as Mandatory or Optional

-The level of detail is relativelely high  good guidance for users

Rules for Cut–off if they cannot be avoided

Data quality evalution – Qualitative requirements defined for all life cycle stages and unit processes

Allocation methods – Specified. E.g., 50/50 allocation prefereed between Raw Matr. Aquisition and Metal recycling.

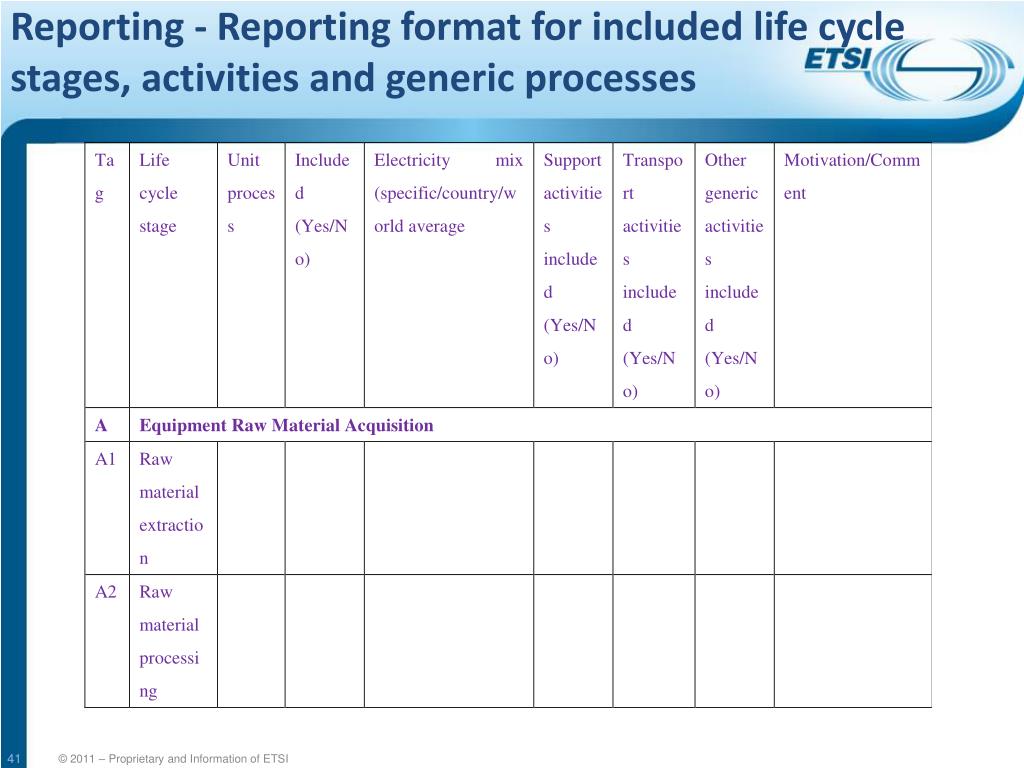

Detailed reporting instructions (diagrams, tables) ...will help, e.g., 3rd party reviewers

4

© 2011 – Proprietary and Information of ETSI

general requirements life cycle stages
General requirements - Life cycle stages

A. Equipment Raw material acquisition which is composed by

Raw material extraction (A1)

Raw material processing (A2)

B. Production which is composed by

ICT Equipment production (B1)

Support Equipment production (B2)

C. Use which is composed by

ICT Equipment Use (C1)

Support Equipment Use (C2)

Operator activities (C3)

Service Provider Activities (C4)

D. Equipment End of Life Treatment

Re–use (D1)

ICT specific EoLT (D2)

Other EoLT (D3)

7 categories of

Re-occuring Generic

Unit Processes, e.g.,

Transportation, Energy

supply

5

© 2011 – Proprietary and Information of ETSI

general requirements lifetime

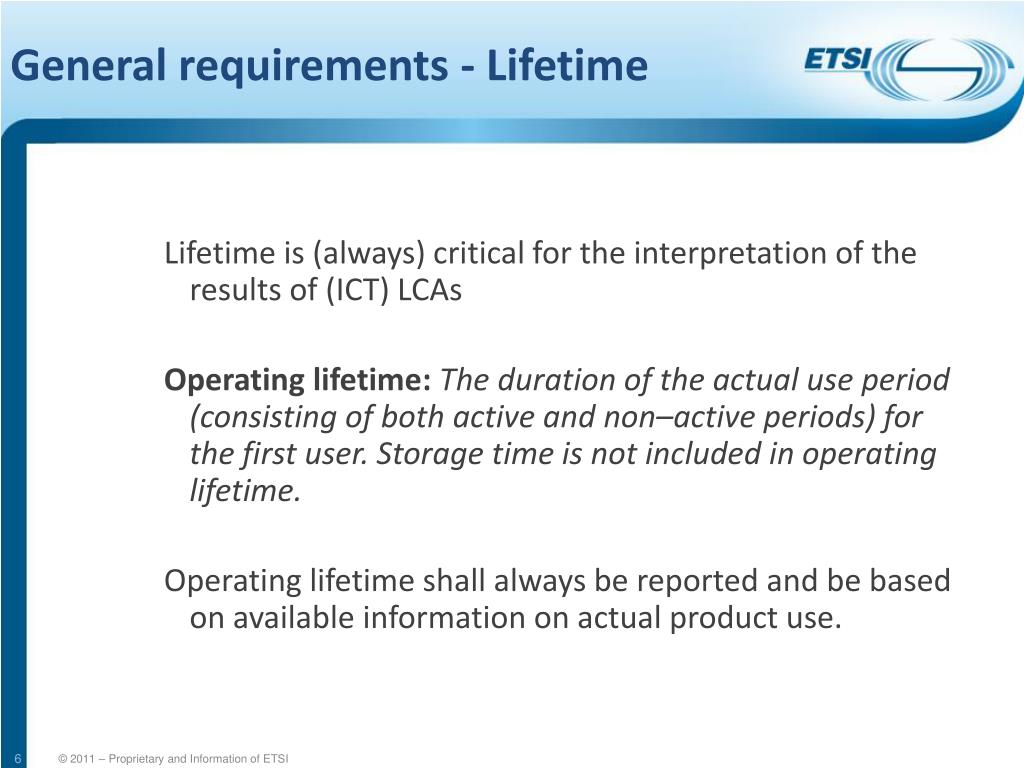

General requirements - Lifetime

Lifetime is (always) critical for the interpretation of the results of (ICT) LCAs

Operating lifetime: The duration of the actual use period (consisting of both active and non–active periods) for the first user. Storage time is not included in operating lifetime.

Operating lifetime shall always be reported and be based on available information on actual product use.

6

© 2011 – Proprietary and Information of ETSI

goal scope definition intro
Goal&Scope Definition - Intro

Any ICT Equipment which can be part of a Network delivering voice and/or data lies within the scope of the ETSI LCA standard.

7

© 2011 – Proprietary and Information of ETSI

goal scope definition functional unit
Goal&Scope Definition – Functional Unit

The number of users/subscribers supported shall be specified and the traffic profile shall be considered where applicable.

MANDATORY BASIC FUNCTIONAL UNITS

Annual ICT Equipment use (per one year of ICT Equipment use) or Total ICT Equipment use per lifetime of ICT Equipment.

Annual Network use

Annual Service use.

8

© 2011 – Proprietary and Information of ETSI

goal scope definition system boundaries
Goal&Scope Definition – System Boundaries
  • A: EQUIPMENT RAW MATERIAL ACQUISITION
    • A1. Raw material extraction
    • A2. Raw material processing

G1. TRANSPORTS&TRAVEL

  • B: PRODUCTION
    • B1. ICT Equipment production
    • B1.1 Parts production
    • B1.2 Assembly
    • B1.3 ICT manufacturer support activities
    • B2. Support Equipment production
    • B2.1 Support Equipment manufacturing
    • B2.2 Site construction

G2. ELECTRICITY SUPPLY

G3. FUEL SUPPLY

G4. OTHER ENERGY SUPPLY

G5. RAW MATERIAL AQUISTION

G5.1. Raw material extraction

G5.2. Raw material processing

  • C: USE
    • C1. ICT Equipment use
    • C2. Support Equipment use
    • C3. Operator activities
    • C4. Service provider activities

G6. END-OF-LIFE TREATMENT

G6.1 EHW treatment

G6.2 Other waste treatment

  • D: EQUIPMENT END-OF-LIFE TREATMENT
    • D1. Re–use of ICT Equipment
    • D2. ICT specific EoLT
    • D2.1 Disassembly/Dismantling/Shredding
    • D2.2 Recycling
    • D3. Other EoLT

G7. RAW MATERIAL RECYCLING

System boundary

9

© 2011 – Proprietary and Information of ETSI

goal scope definition system boundaries classification table 1 within your product system

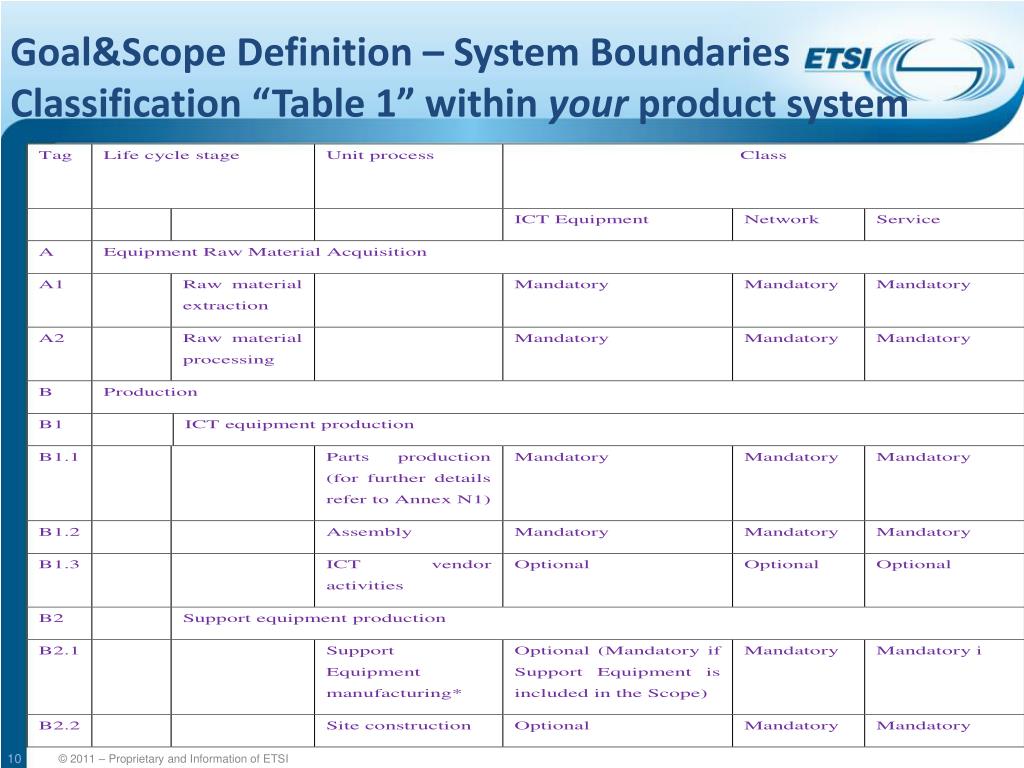

Goal&Scope Definition – System BoundariesClassification “Table 1” within your product system

10

© 2011 – Proprietary and Information of ETSI

goal scope definition system boundaries1
Goal&Scope Definition – System Boundaries

11

© 2011 – Proprietary and Information of ETSI

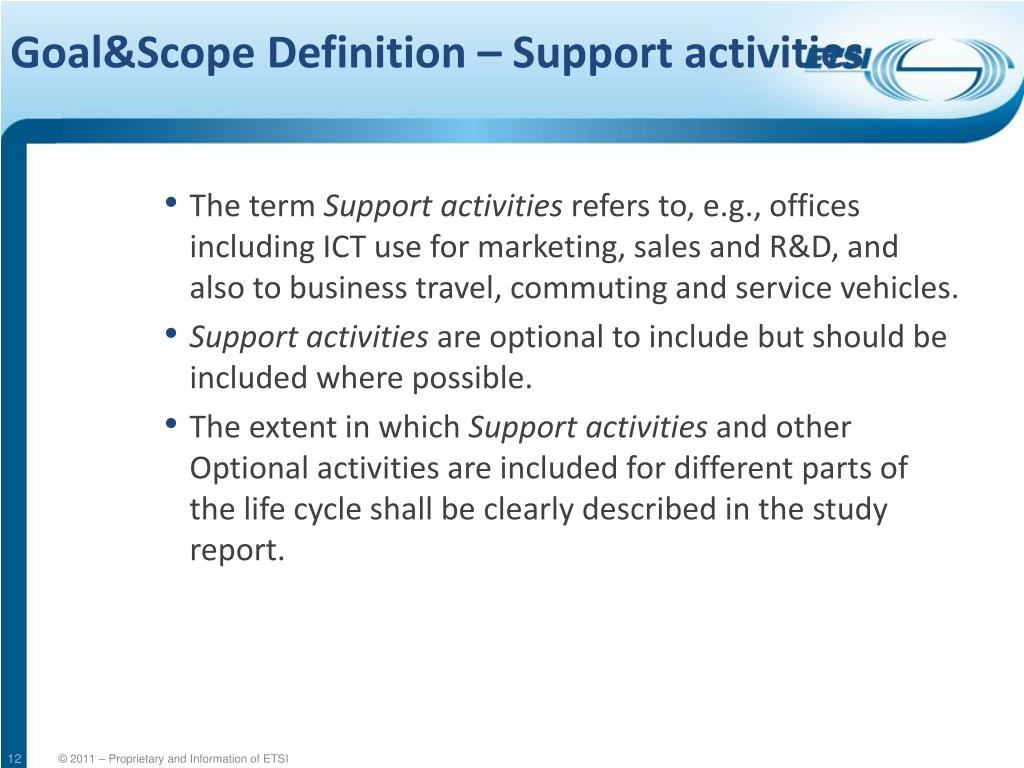

goal scope definition support activities
Goal&Scope Definition – Support activities

The term Support activities refers to, e.g., offices including ICT use for marketing, sales and R&D, and also to business travel, commuting and service vehicles.

Support activities are optional to include but should be included where possible.

The extent in which Support activities and other Optional activities are included for different parts of the life cycle shall be clearly described in the study report.

12

© 2011 – Proprietary and Information of ETSI

goal scope definition raw material acquisition

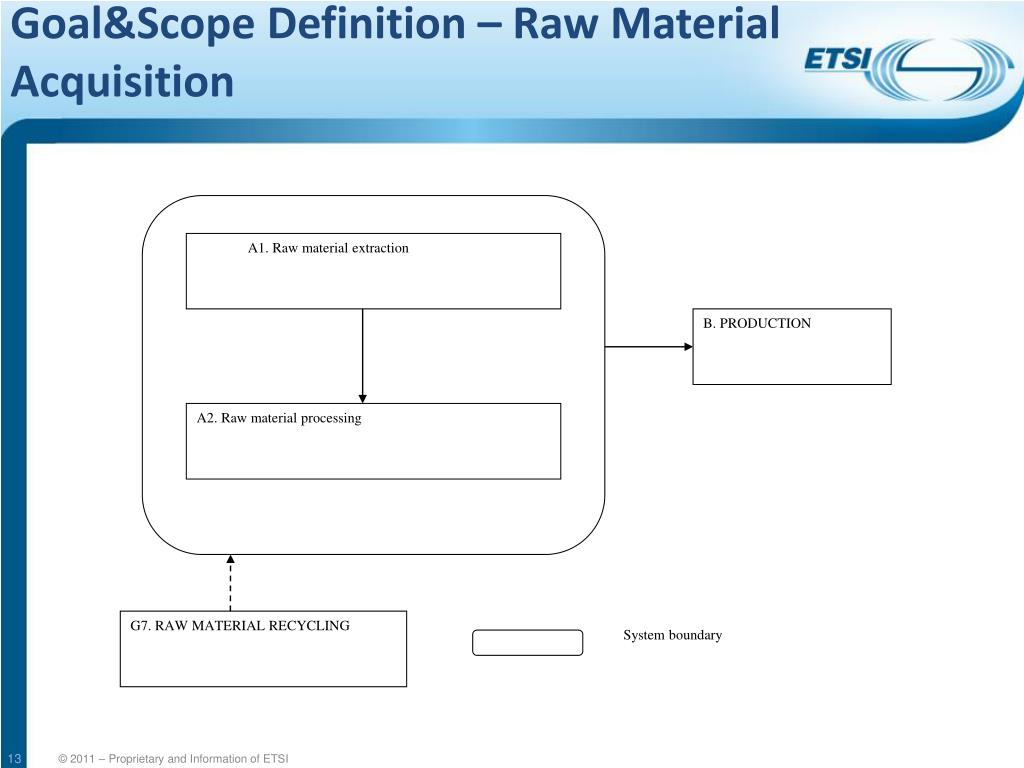

Goal&Scope Definition – Raw Material Acquisition
  • A1. Raw material extraction

B. PRODUCTION

A2. Raw material processing

G7. RAW MATERIAL RECYCLING

System boundary

13

© 2011 – Proprietary and Information of ETSI

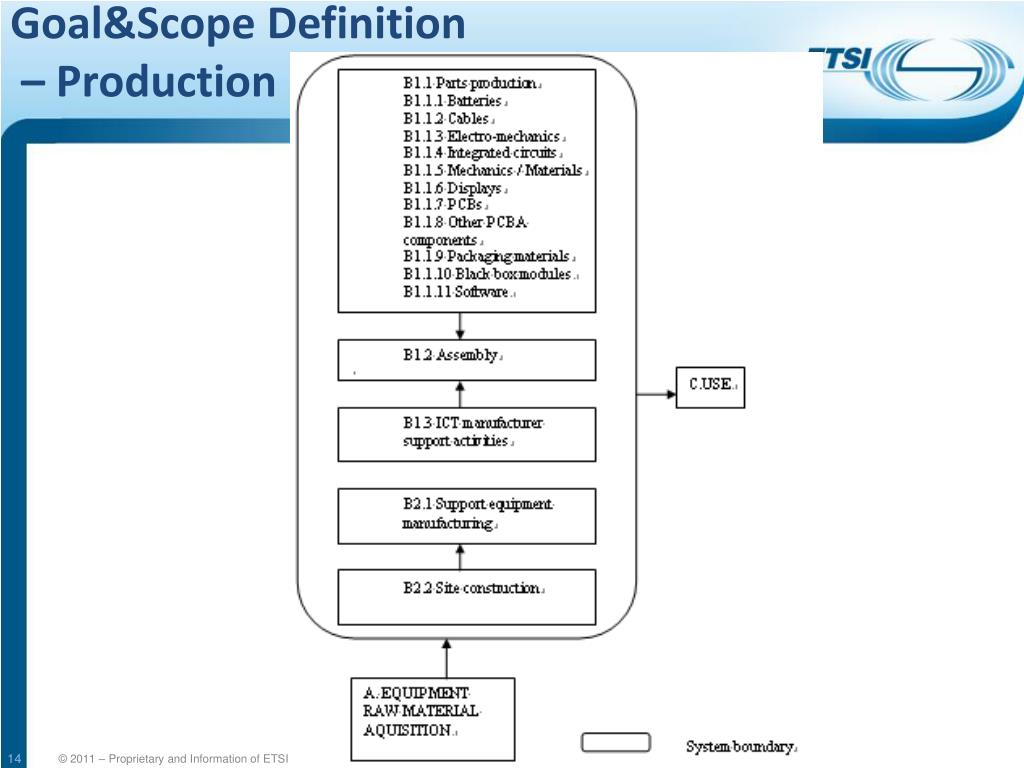

goal scope definition production
Goal&Scope Definition – Production

14

© 2011 – Proprietary and Information of ETSI

goal scope definition use

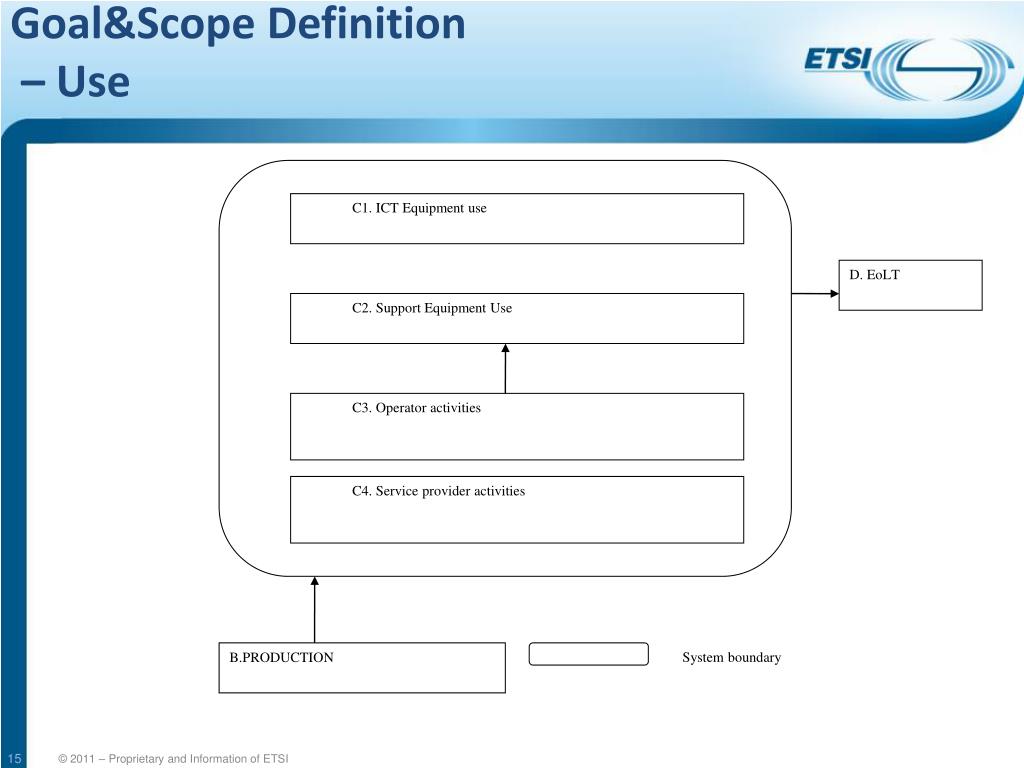

Goal&Scope Definition – Use
  • C1. ICT Equipment use

D. EoLT

  • C2. Support Equipment Use
  • C3. Operator activities
  • C4. Service provider activities

B.PRODUCTION

System boundary

15

© 2011 – Proprietary and Information of ETSI

goal scope definition end of life
Goal&Scope Definition – End-of-Life

D1 Re–use of ICT Equipment

D2 ICT specific EoLT

D2.1 Storage/Disassembly/Dismantling/Shredding

D2.2 Recycling

D2.2.1 Battery recycling

ICT specific metal/mechanical parts/fractions EoLT

D2.2.2 PCBA recycling

D2.2.3 Cable recycling

D2.2.4 Mechanics recycling

D2.2.5 Other ICT recycling

G7. RAW MATERIAL RECYCLING

  • D3. Other EoLT

System boundary

C. USE

16

© 2011 – Proprietary and Information of ETSI

goal scope definition networks system boundaries
Goal&Scope Definition – Networks System Boundaries
  • For the Network under study applicable types of nodes and infrastructure, as well as amounts of these, shall be defined.
  • Functional Block diagrams (HW and SW) essential for showing study scope
  • The impact from software development shall be included.
  • The Network shall be defined in terms of ICT equipment, Support Equipment and infrastructure.
  • Operator activities (mainly installation, maintenance and de-installation) shall always be included

17

© 2011 – Proprietary and Information of ETSI

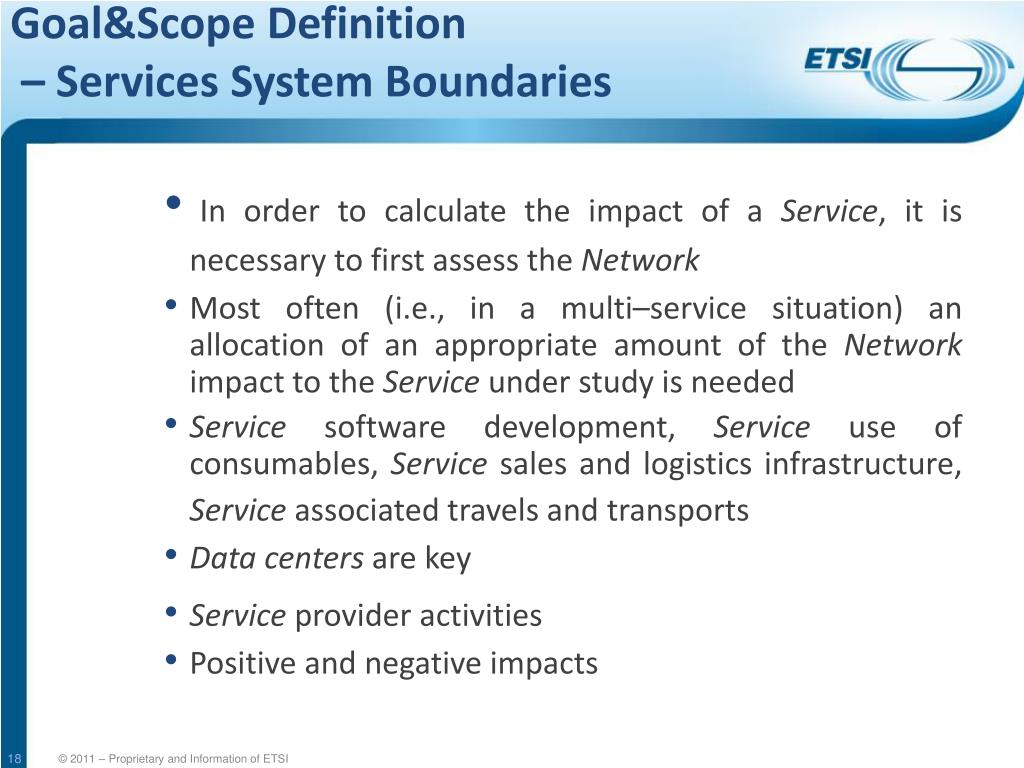

goal scope definition services system boundaries
Goal&Scope Definition – Services System Boundaries
  • In order to calculate the impact of a Service, it is necessary to first assess the Network
  • Most often (i.e., in a multi–service situation) an allocation of an appropriate amount of the Network impact to the Service under study is needed
  • Service software development, Service use of consumables, Service sales and logistics infrastructure, Service associated travels and transports
  • Data centers are key
  • Service provider activities
  • Positive and negative impacts

18

© 2011 – Proprietary and Information of ETSI

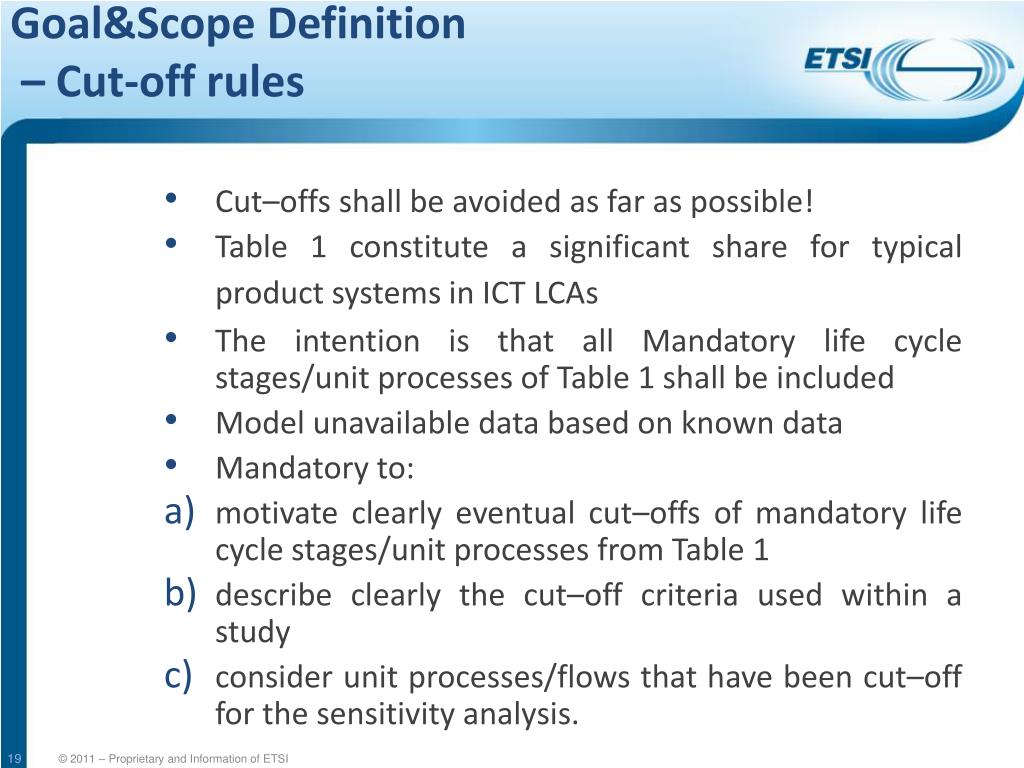

goal scope definition cut off rules
Goal&Scope Definition – Cut-off rules
  • Cut–offs shall be avoided as far as possible!
  • Table 1 constitute a significant share for typical product systems in ICT LCAs
  • The intention is that all Mandatory life cycle stages/unit processes of Table 1 shall be included
  • Model unavailable data based on known data
  • Mandatory to:
  • motivate clearly eventual cut–offs of mandatory life cycle stages/unit processes from Table 1
  • describe clearly the cut–off criteria used within a study
  • consider unit processes/flows that have been cut–off for the sensitivity analysis.

19

© 2011 – Proprietary and Information of ETSI

goal scope definition data quality requirements
Goal&Scope Definition – Data quality requirements
  • Generic data: Data from any relevant data source which need not be specific for ICT applications and processes. Generic data is always secondary.
  • Specific data: Data emerging from, in this case, ICT specific applications and processes. This data could be either primary or secondary.
  • Primary data:Data collected/estimated/measured by a researcher, specifically for the LCA project; for example, pilot studies or customer or producer surveys.
  • Secondary data: Data that has been collected for another purpose, but can be analyzed again in a subsequent study; for example, LCA estimates by academia, government, or industry organizations.

20

© 2011 – Proprietary and Information of ETSI

goal scope definition data quality requirements ontable 1
Goal&Scope Definition – Data quality requirements onTable 1

21

© 2011 – Proprietary and Information of ETSI

goal scope definition data quality requirements on table 1 cont
Goal&Scope Definition – Data quality requirements on Table 1 cont

22

© 2011 – Proprietary and Information of ETSI

life cycle inventory data collection
Life Cycle Inventory – Data collection
  • The LCA practitioner shall report for which processes transports/energy supplies have been added separately and for which they are “hidden”.
  • For many products (especially end–user equipment), periods of idling and power off are important to model the usage profile and shall be considered.

23

© 2011 – Proprietary and Information of ETSI

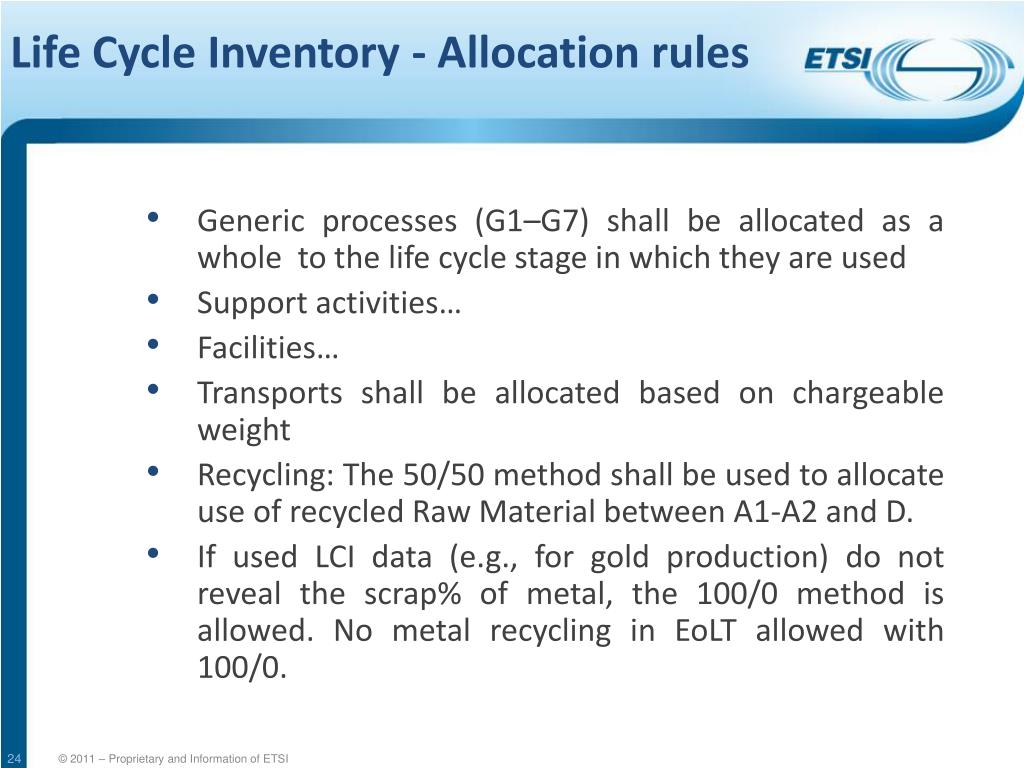

life cycle inventory allocation rules
Life Cycle Inventory - Allocation rules
  • Generic processes (G1–G7) shall be allocated as a whole to the life cycle stage in which they are used
  • Support activities…
  • Facilities…
  • Transports shall be allocated based on chargeable weight
  • Recycling: The 50/50 method shall be used to allocate use of recycled Raw Material between A1-A2 and D.
  • If used LCI data (e.g., for gold production) do not reveal the scrap% of metal, the 100/0 method is allowed. No metal recycling in EoLT allowed with 100/0.

24

© 2011 – Proprietary and Information of ETSI

life cycle inventory allocation rules 50 50
Life Cycle Inventory – Allocation rules – 50/50

25

© 2011 – Proprietary and Information of ETSI

life cycle inventory allocation rules 100 0

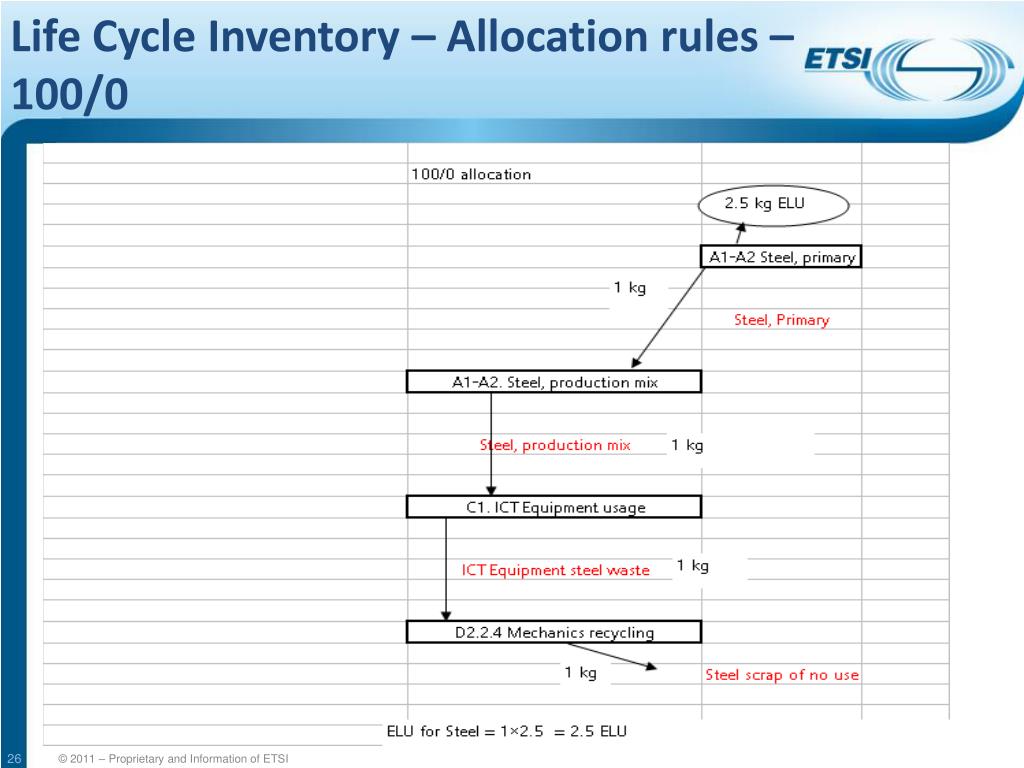

Life Cycle Inventory – Allocation rules – 100/0

26

© 2011 – Proprietary and Information of ETSI

life cycle inventory allocation rules for equipment data to networks
Life Cycle Inventory - Allocation rules for Equipment data to Networks
  • End–user equipment (e.g., PCs, smart phones) which is accessing more than one Network (e.g. 3G, WLAN) shall be allocated to these Networks based on use time
  • Impact from shared Network resources (e.g., transmission equipment, core nodes and data centers) shall be allocated to an access network based on data traffic

27

© 2011 – Proprietary and Information of ETSI

life cycle inventory allocation rules for network data to services
Life Cycle Inventory - Allocation rules for Network data to Services
  • Data for End–users– and home/CPE equipment:
      • to be allocated based on active use time of the Service
  • Data for transport equipment:
      • to be allocated based on data traffic
  • The data center(s), where the Service is operated, as well as the Service provider activities shall be allocated based on number of subscriptions and Service users

28

© 2011 – Proprietary and Information of ETSI

life cycle impact assessment

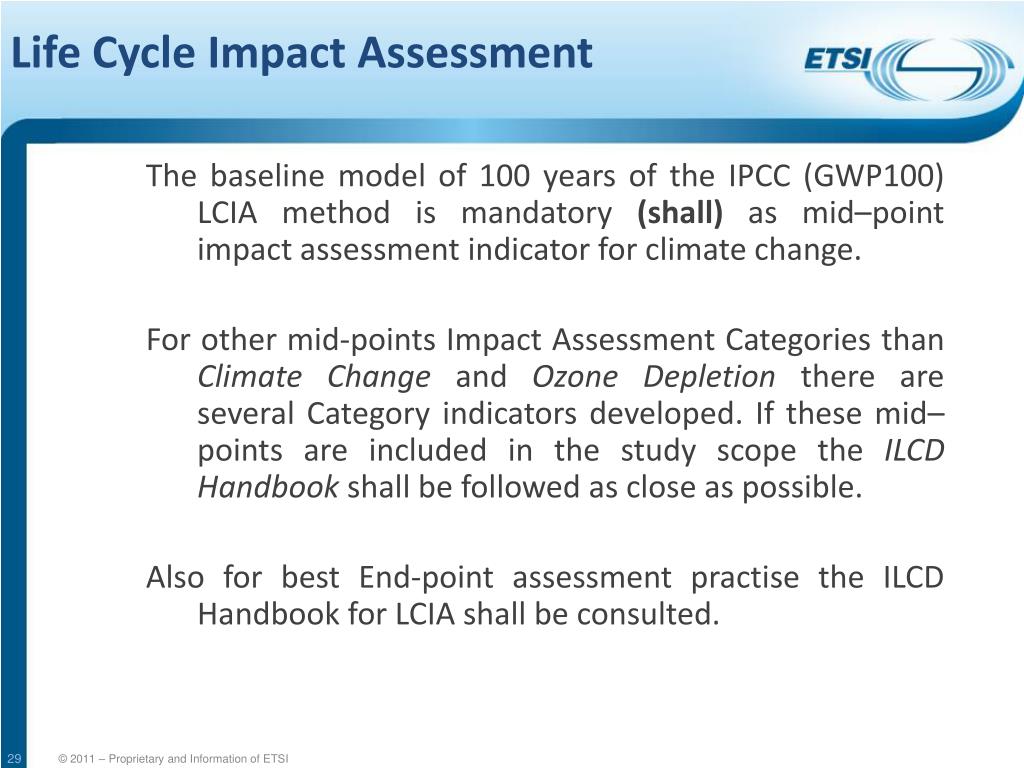

Life Cycle Impact Assessment

The baseline model of 100 years of the IPCC (GWP100) LCIA method is mandatory (shall) as mid–point impact assessment indicator for climate change.

For other mid-points Impact Assessment Categories than Climate Change and Ozone Depletion there are several Category indicators developed. If these mid–points are included in the study scope the ILCD Handbook shall be followed as close as possible.

Also for best End-point assessment practise the ILCD Handbook for LCIA shall be consulted.

29

© 2011 – Proprietary and Information of ETSI

life cycle interpretation how robust are the results and conclusions
Life Cycle Interpretation - how robust are the results and conclusions?

The challenge of the completeness check is to overcome the paradox of evaluating the degree of completeness of the product system when not knowing 100% of it.

If two or more ICT Equipment, Networks or Services LCA results do not differ significantly there is a risk of erroneous interpretations.

The significance is determined for instance by magnitude in difference, modeling assumptions, and LCA software program calculation algorithm.

30

© 2011 – Proprietary and Information of ETSI

comparative lca between ict and business as usual bau systems reduction potential
Comparative LCA between ICT and business as usual (BAU) systems - reduction potential

LCAs with the same goal&scope, system boundaries and functional unit need to be performed for both the ICT Service and the BAU Service it replaces

Especially as identical as possible system boundaries for the Raw Material Acquisition and Production Phases.

For the BAU Service the associated environmental impacts shall be estimated according to travel and infrastructure first order effects. The first order effects are those directly attributable to the Services. The reduction potential is the second order effect. Rebound effects are outside the scope.

31

© 2011 – Proprietary and Information of ETSI

comparative lca between ict and business as usual bau systems example
Comparative LCA between ICT and business as usual (BAU) systems - Example

32

© 2011 – Proprietary and Information of ETSI

reporting

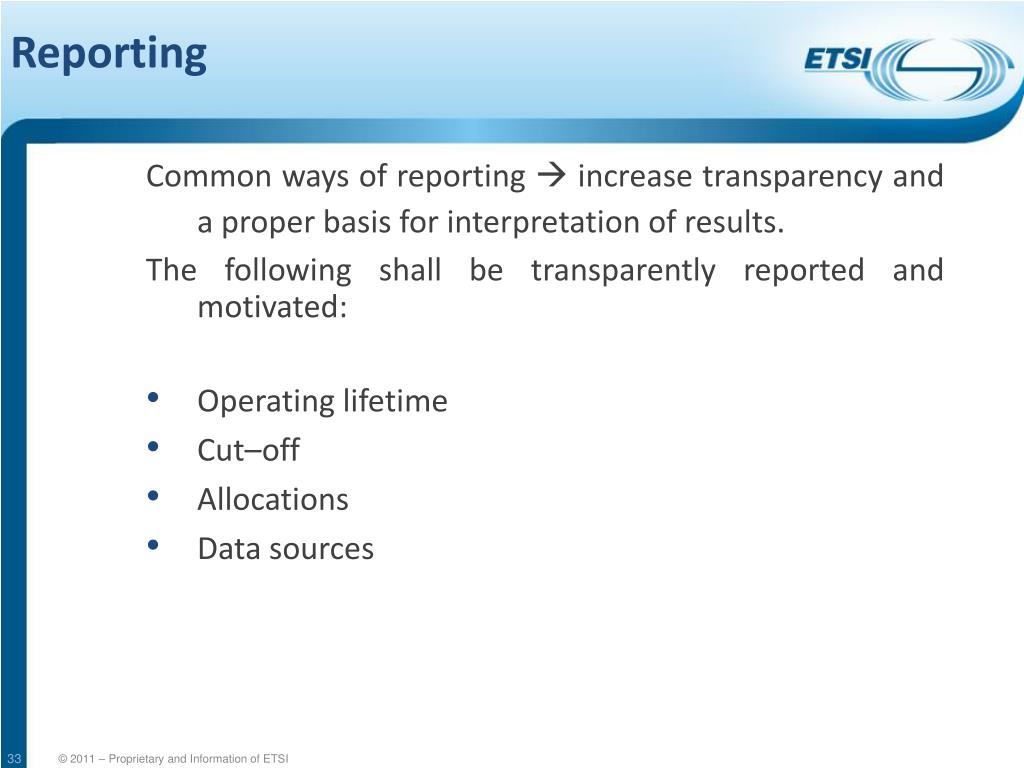

Reporting

Common ways of reporting  increase transparency and a proper basis for interpretation of results.

The following shall be transparently reported and motivated:

  • Operating lifetime
  • Cut–off
  • Allocations
  • Data sources

33

© 2011 – Proprietary and Information of ETSI

reporting ict equipment
Reporting – ICT Equipment

34

© 2011 – Proprietary and Information of ETSI

reporting ict equipment1
Reporting – ICT Equipment

35

© 2011 – Proprietary and Information of ETSI

reporting networks

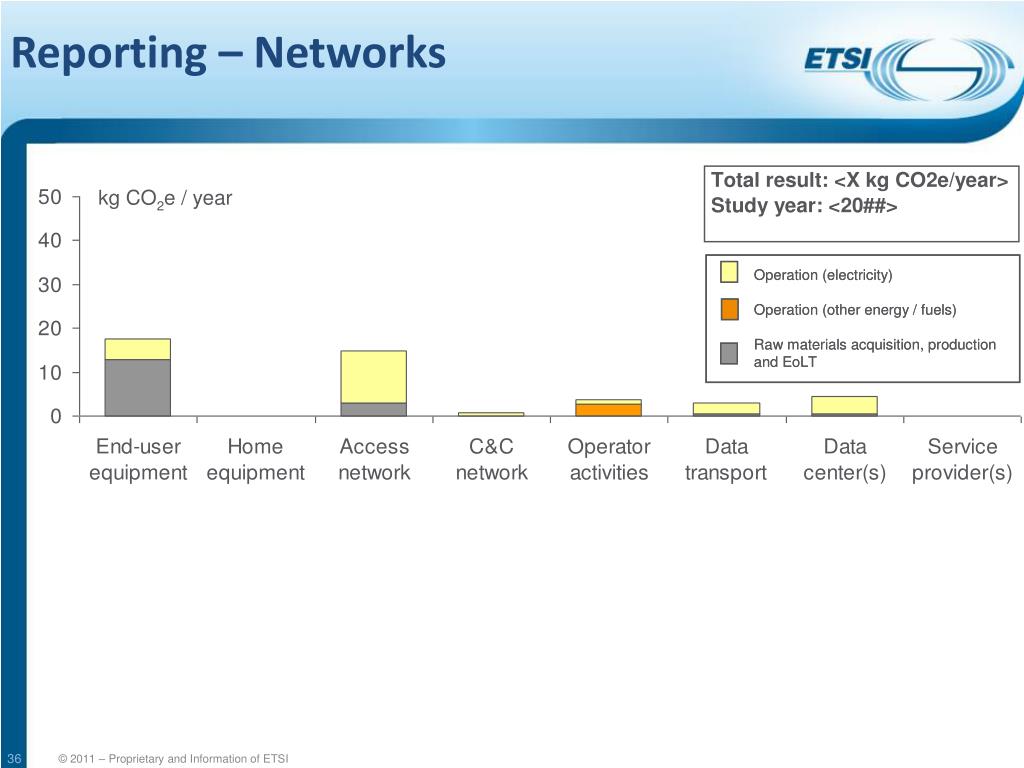

Reporting – Networks

36

© 2011 – Proprietary and Information of ETSI

reporting networks1
Reporting – Networks

37

© 2011 – Proprietary and Information of ETSI

reporting ict equipment network and service
Reporting – ICT Equipment, Network and Service

38

© 2011 – Proprietary and Information of ETSI

reporting mandatory set of parts for lca of ict equipment
Reporting - Mandatory set of parts for LCA of ICT equipment.

39

© 2011 – Proprietary and Information of ETSI

reporting mandatory set of parts for lca of ict equipment ics

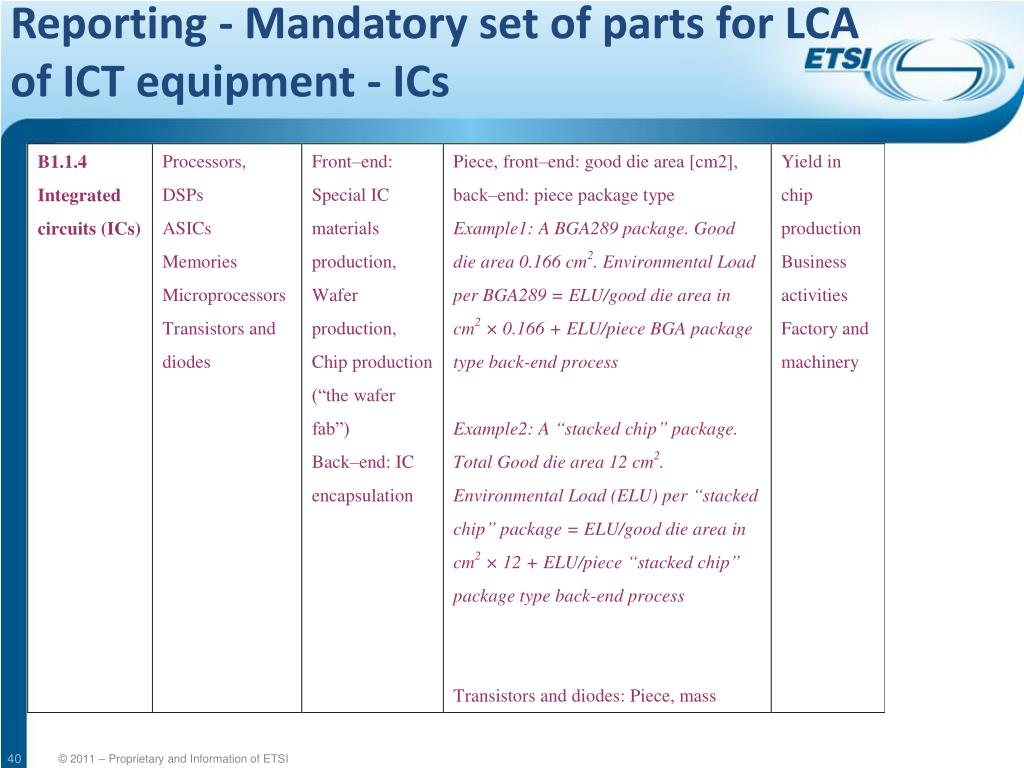

Reporting - Mandatory set of parts for LCA of ICT equipment - ICs

40

© 2011 – Proprietary and Information of ETSI

reporting reporting format for included life cycle stages activities and generic processes
Reporting - Reporting format for included life cycle stages, activities and generic processes

41

© 2011 – Proprietary and Information of ETSI

reporting reporting format for raw materials

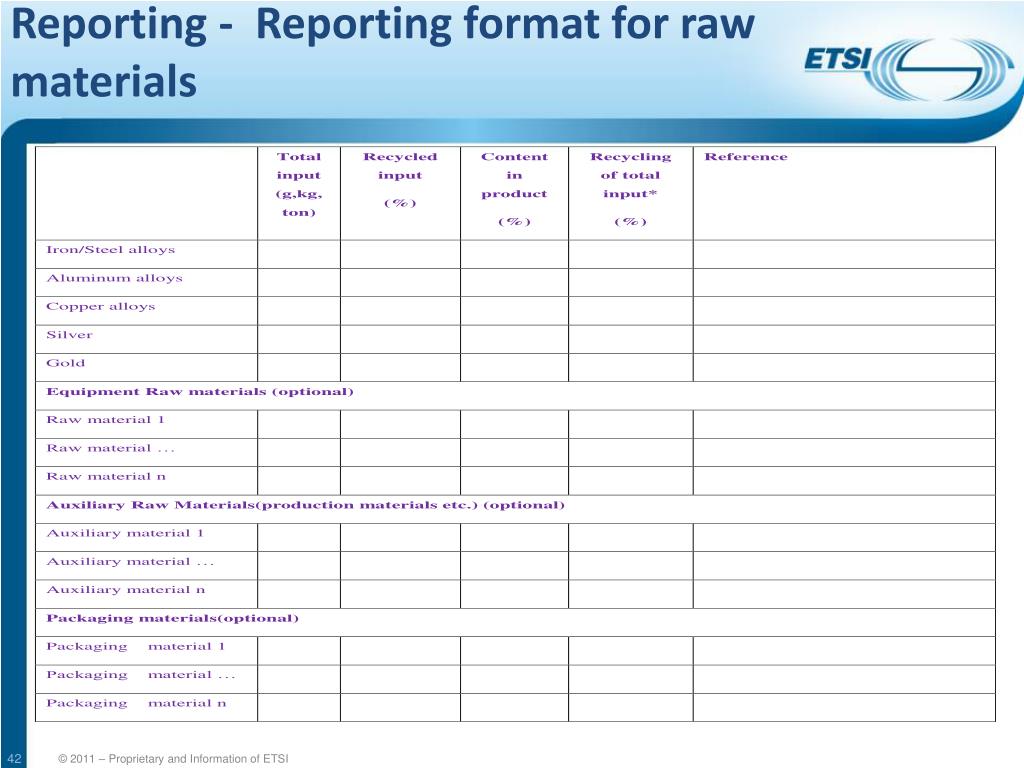

Reporting - Reporting format for raw materials

42

© 2011 – Proprietary and Information of ETSI

reporting reporting format for parts production
Reporting - Reporting format for Parts production

43

© 2011 – Proprietary and Information of ETSI

contact
Contact

[email protected]

© 2011 – Proprietary Information of ETSI

ad
