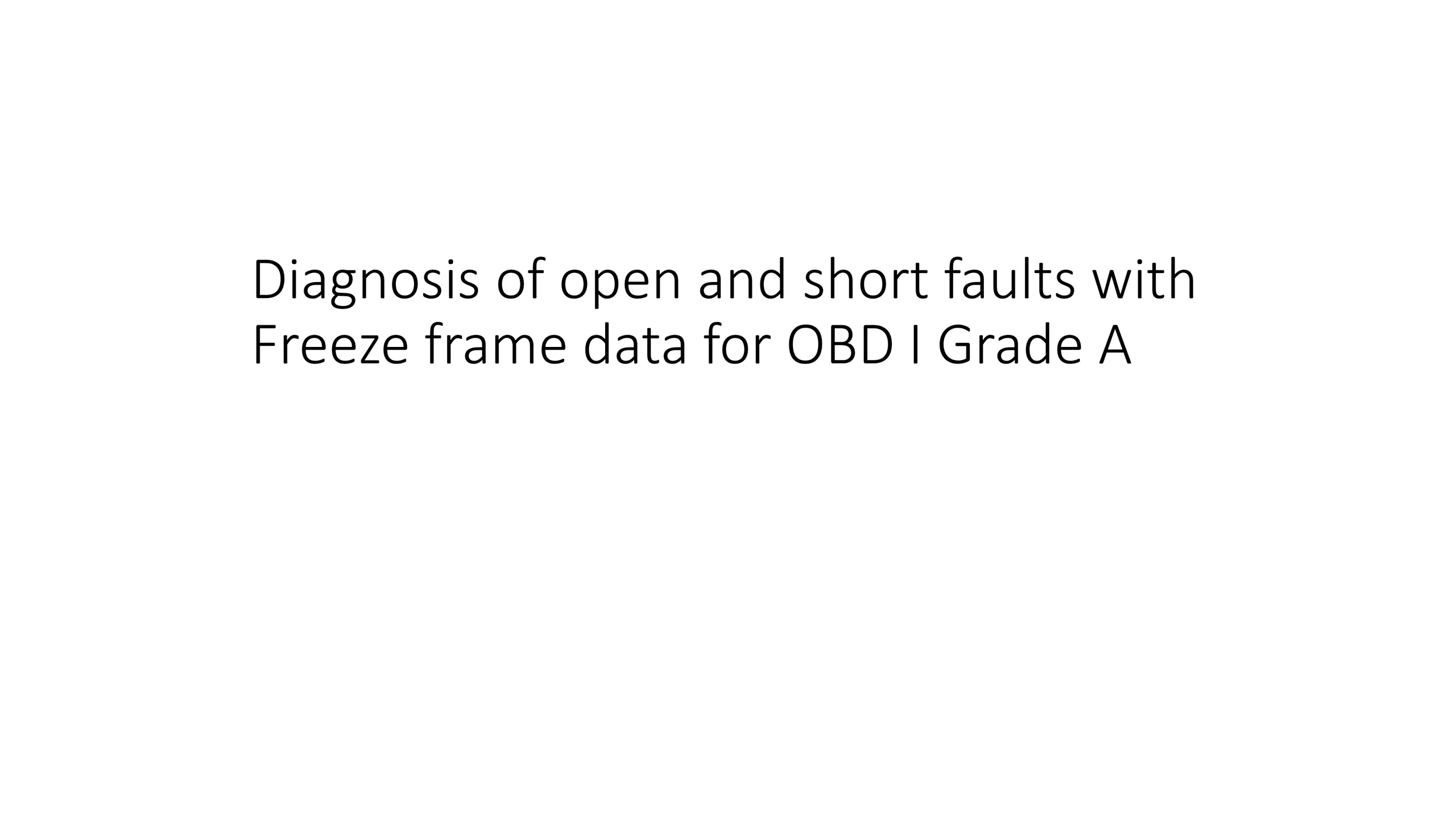

  1. Diagnosis of open and short faults with Freeze frame data for OBD I Grade A

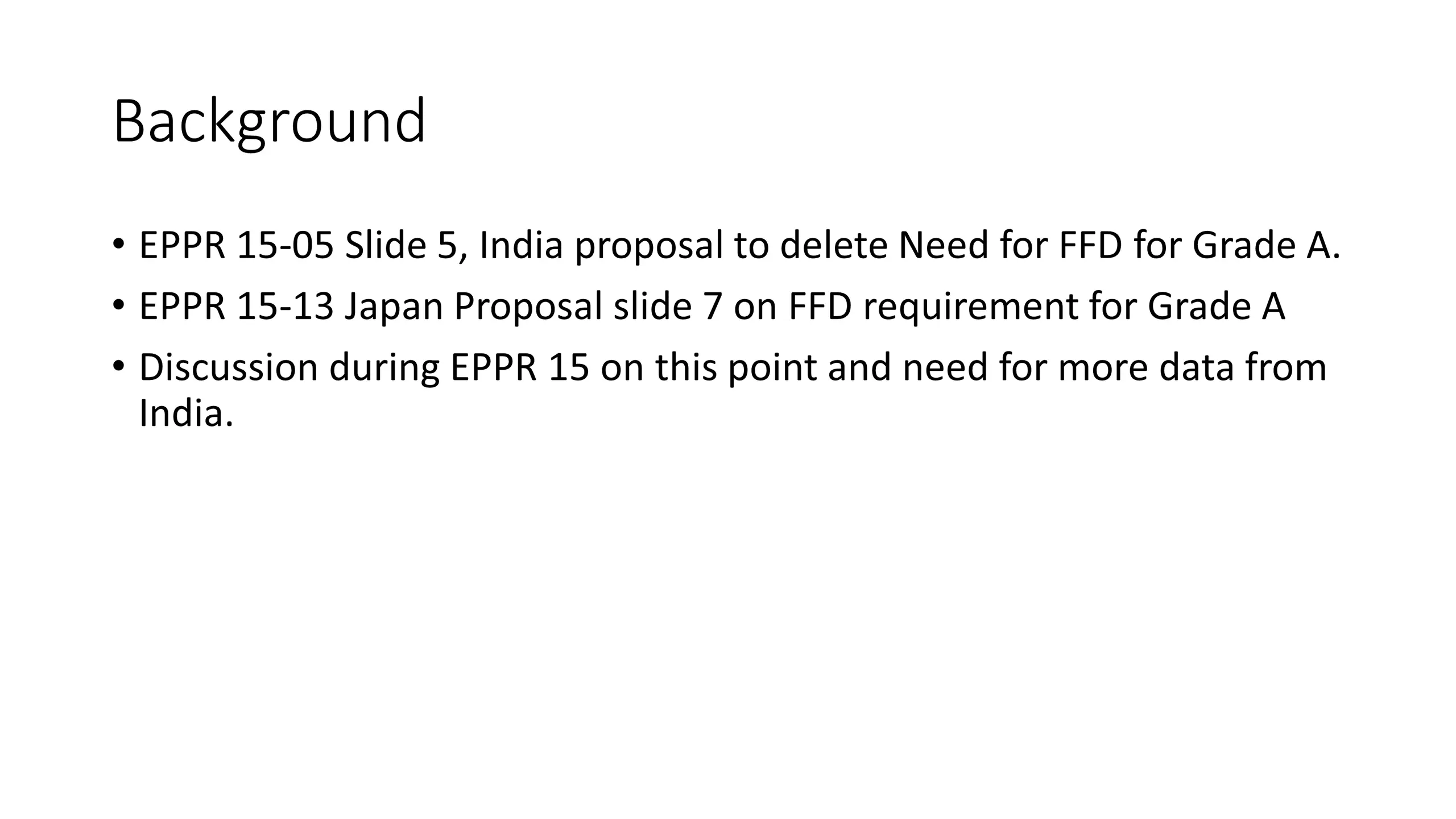

  2. Background • EPPR 15-05 Slide 5, India proposal to delete Need for FFD for Grade A. • EPPR 15-13 Japan Proposal slide 7 on FFD requirement for Grade A • Discussion during EPPR 15 on this point and need for more data from India.

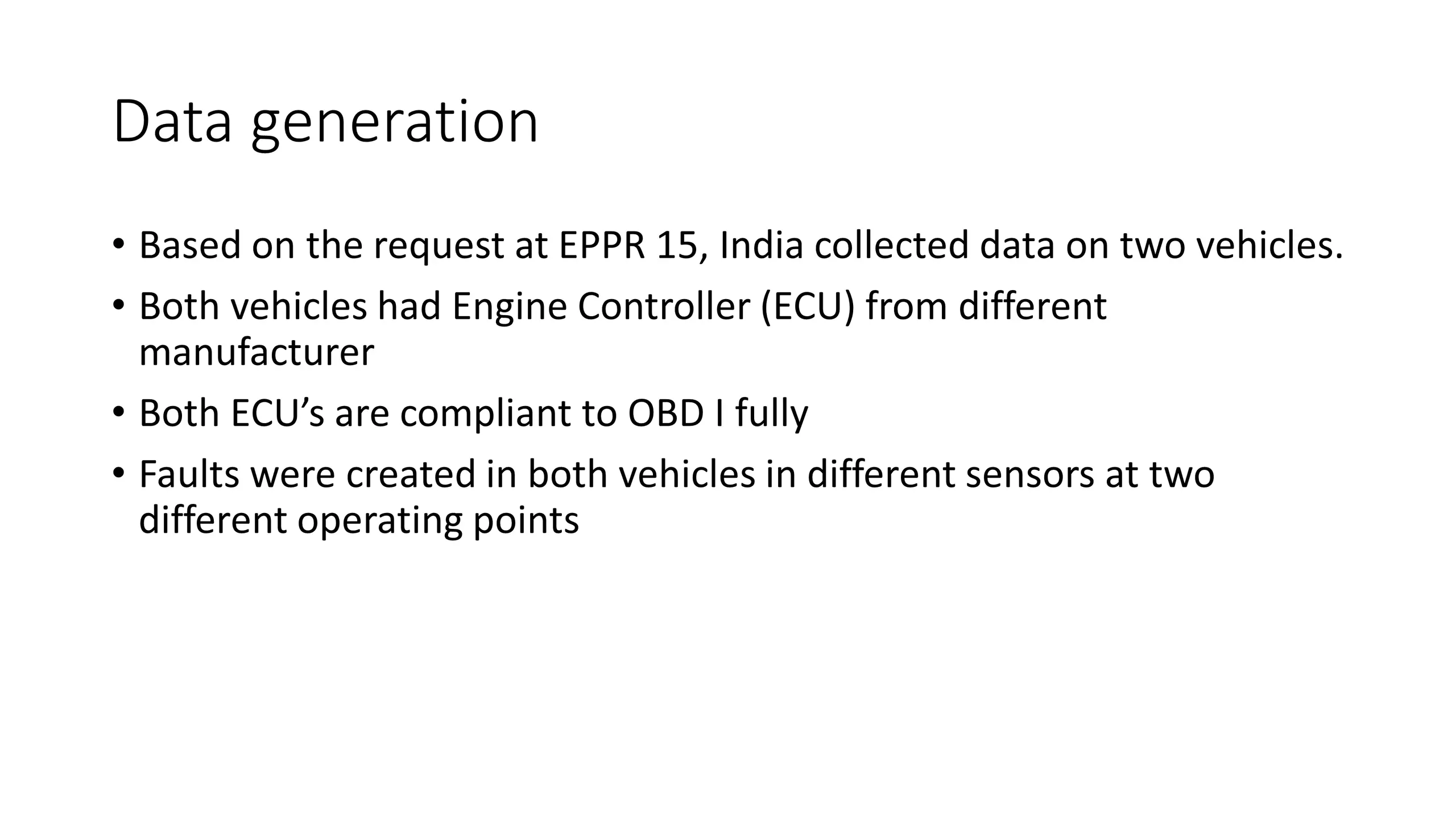

  3. Data generation • Based on the request at EPPR 15, India collected data on two vehicles. • Both vehicles had Engine Controller (ECU) from different manufacturer • Both ECU’s are compliant to OBD I fully • Faults were created in both vehicles in different sensors at two different operating points

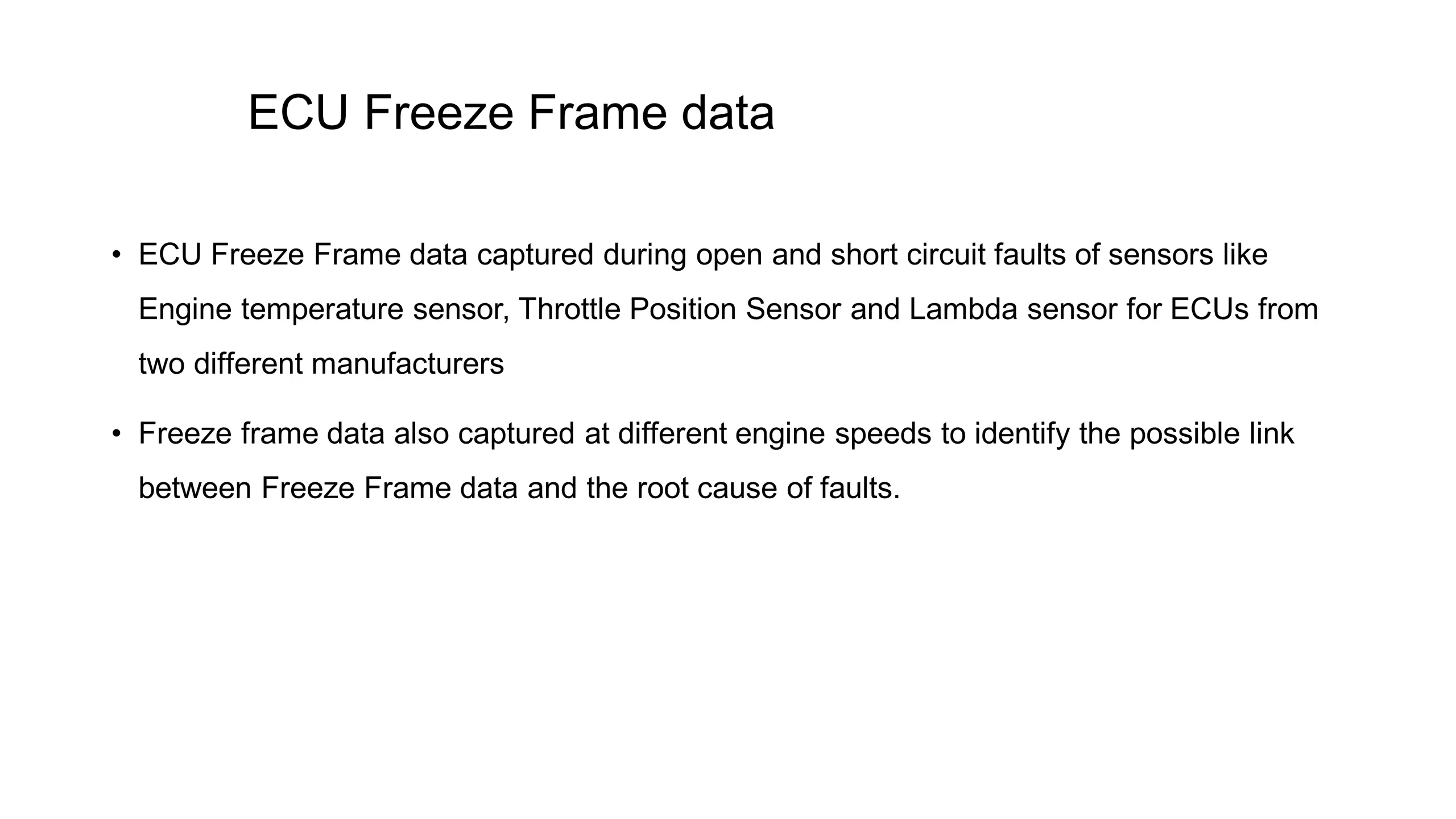

  4. ECU Freeze Frame data • ECU Freeze Frame data captured during open and short circuit faults of sensors like Engine temperature sensor, Throttle Position Sensor and Lambda sensor for ECUs from two different manufacturers • Freeze frame data also captured at different engine speeds to identify the possible link between Freeze Frame data and the root cause of faults.

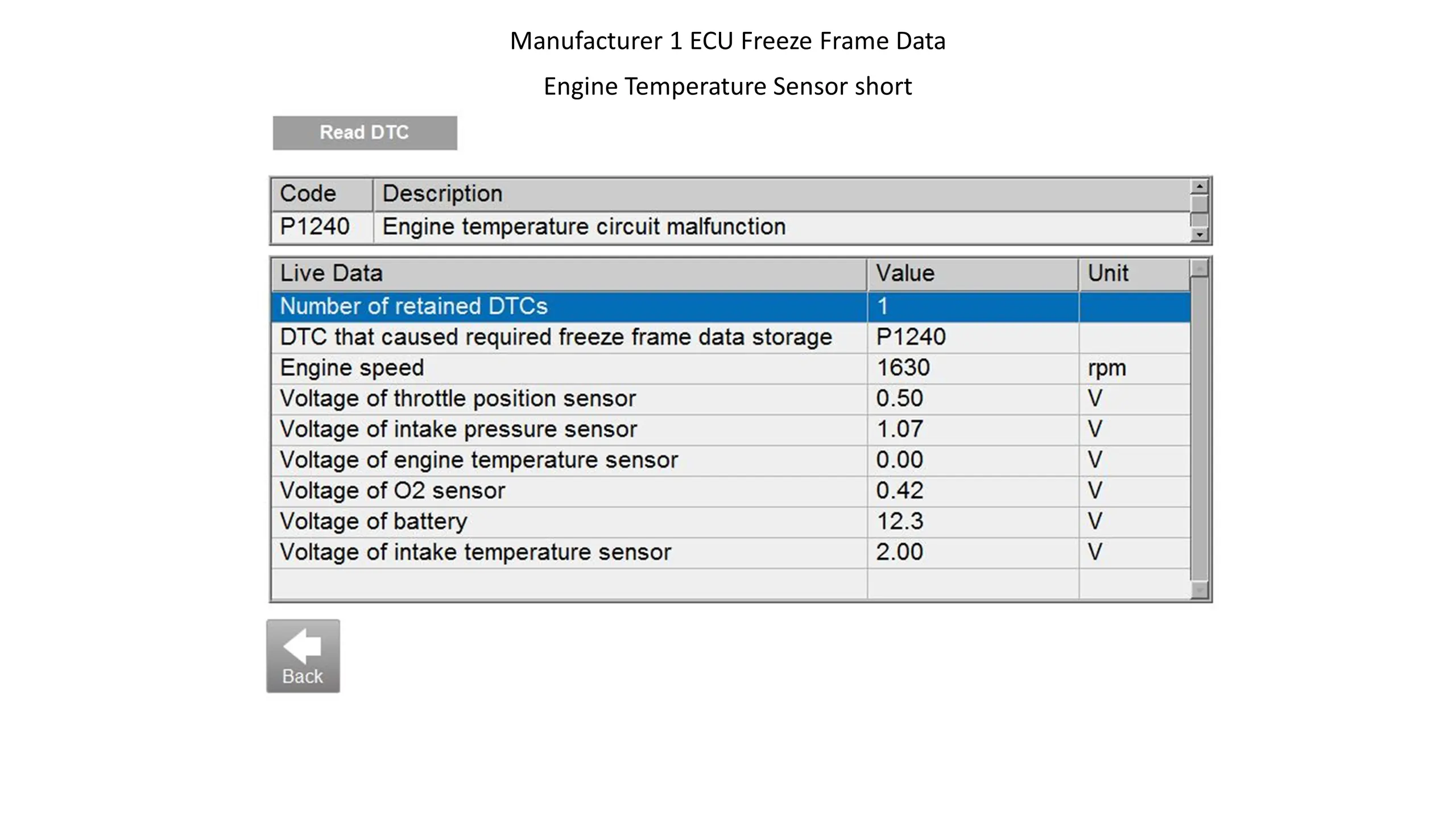

  5. Manufacturer 1 ECU Freeze Frame Data Engine Temperature Sensor short

  6. Manufacturer 1 ECU Freeze Frame Data Engine Temperature Sensor short

  7. Manufacturer 1 ECU Freeze Frame Data Engine Temperature Sensor open

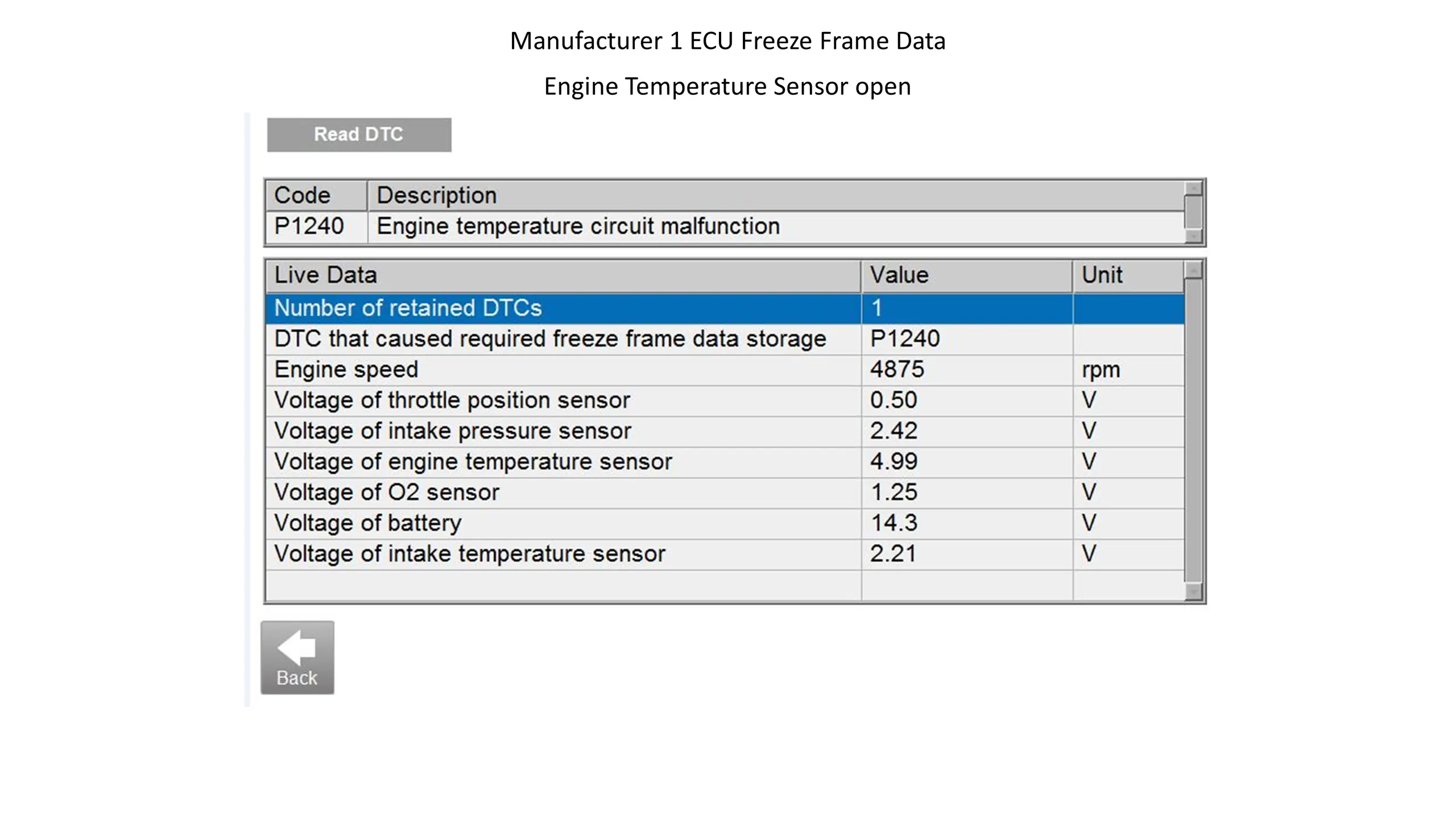

  8. Manufacturer 1 ECU Freeze Frame Data Engine Temperature Sensor open

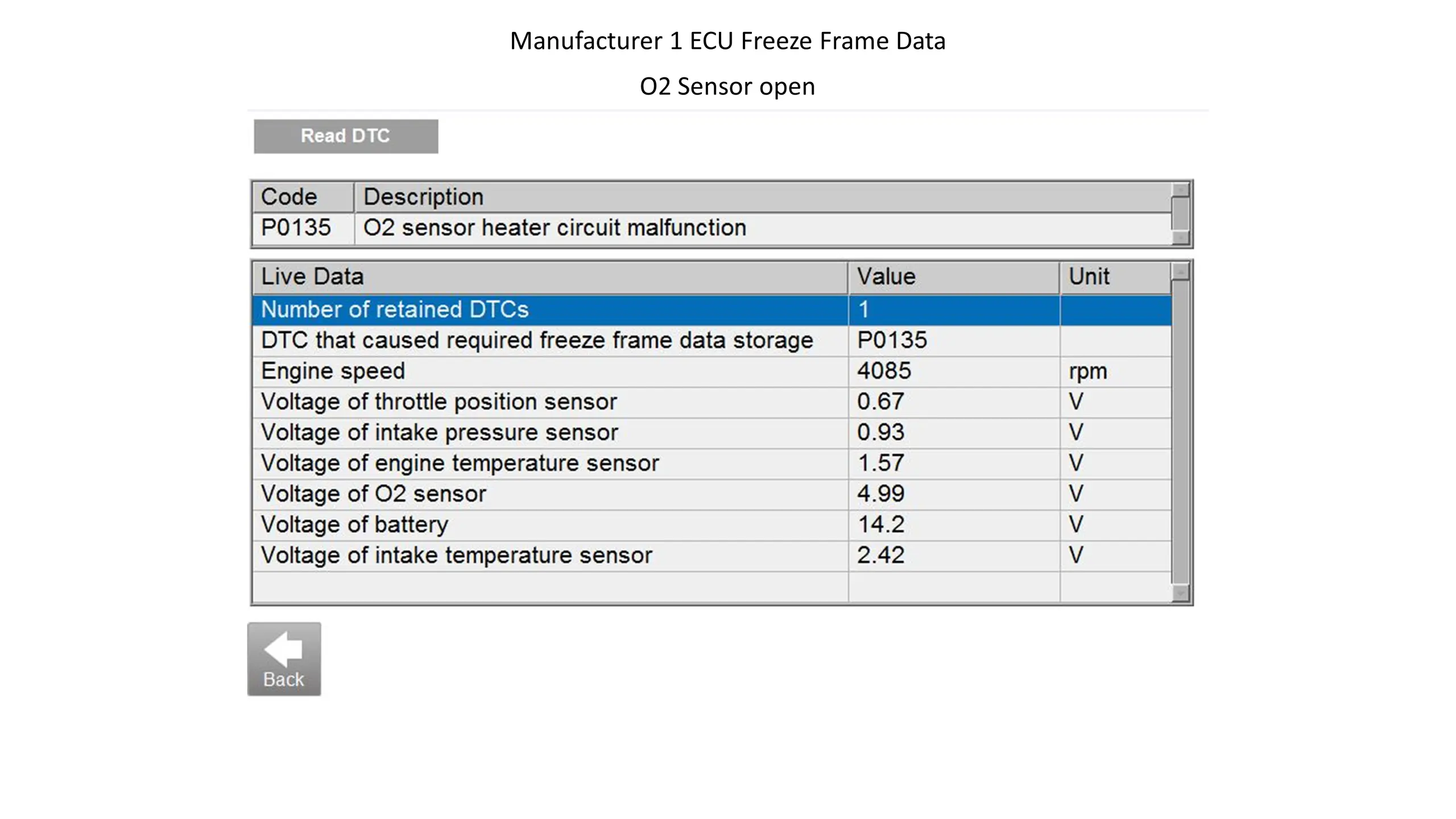

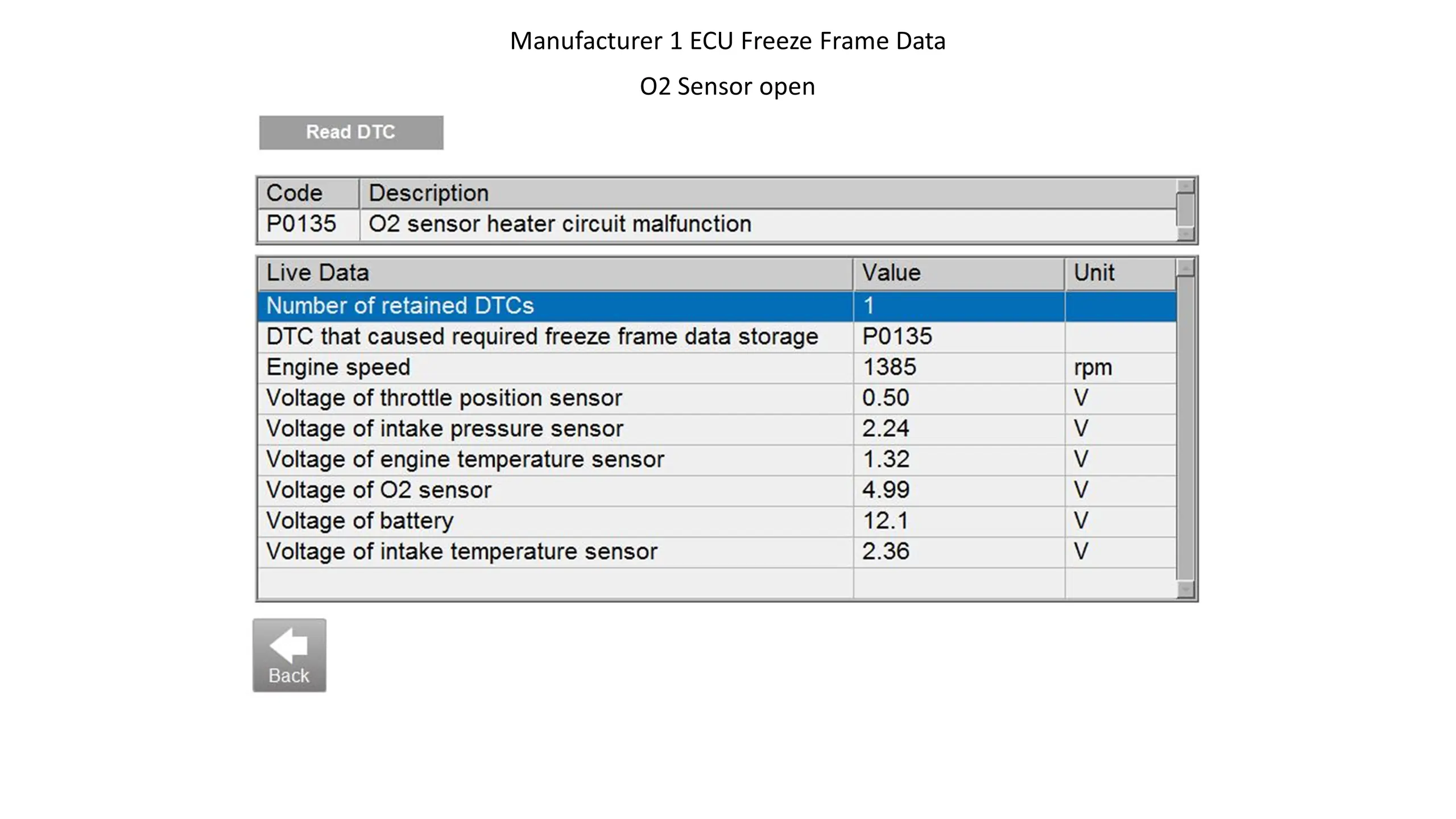

  9. Manufacturer 1 ECU Freeze Frame Data O2 Sensor open

  10. Manufacturer 1 ECU Freeze Frame Data O2 Sensor open

  11. Manufacturer 1 ECU Freeze Frame Data O2 Sensor heater short

  12. Manufacturer 1 ECU Freeze Frame Data O2 Sensor heater short

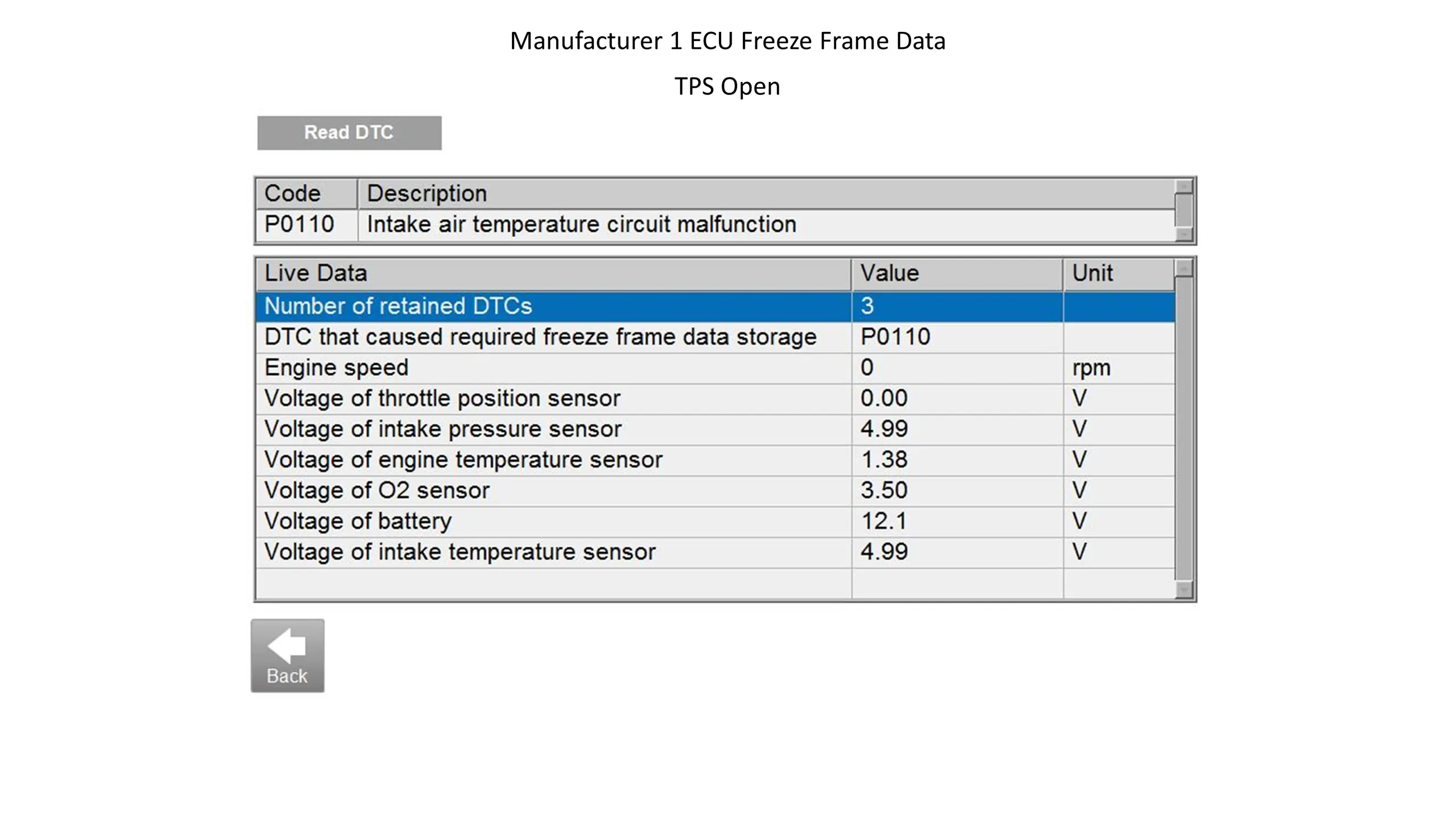

  13. Manufacturer 1 ECU Freeze Frame Data TPS Open

  14. Manufacturer 1 ECU Freeze Frame Data TPS Open

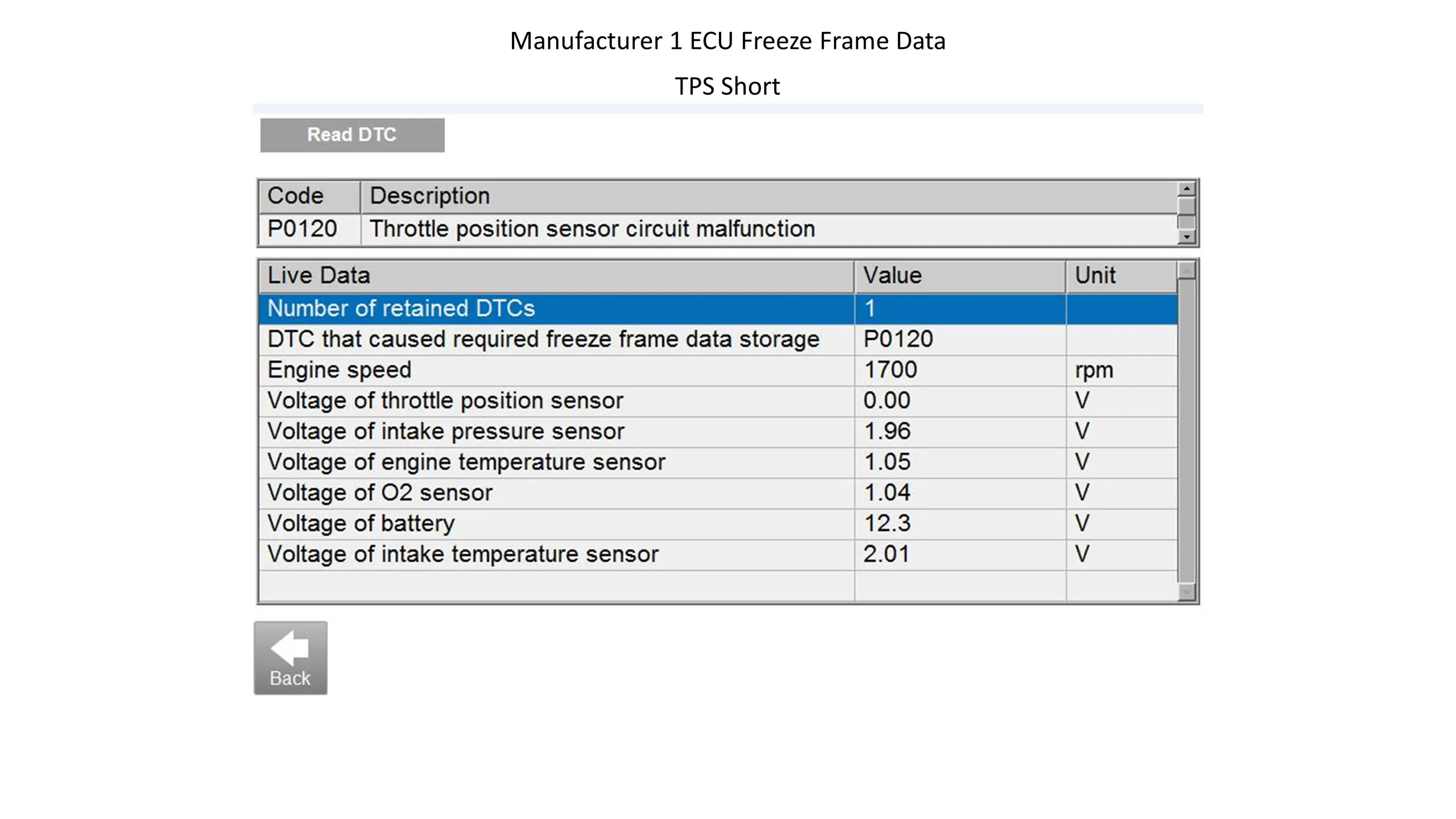

  15. Manufacturer 1 ECU Freeze Frame Data TPS Short

  16. Manufacturer 1 ECU Freeze Frame Data TPS Short

  17. Manufacturer 1 ECU Freeze Frame Data Injector Open

  18. Manufacturer 1 ECU Freeze Frame Data Injector Open

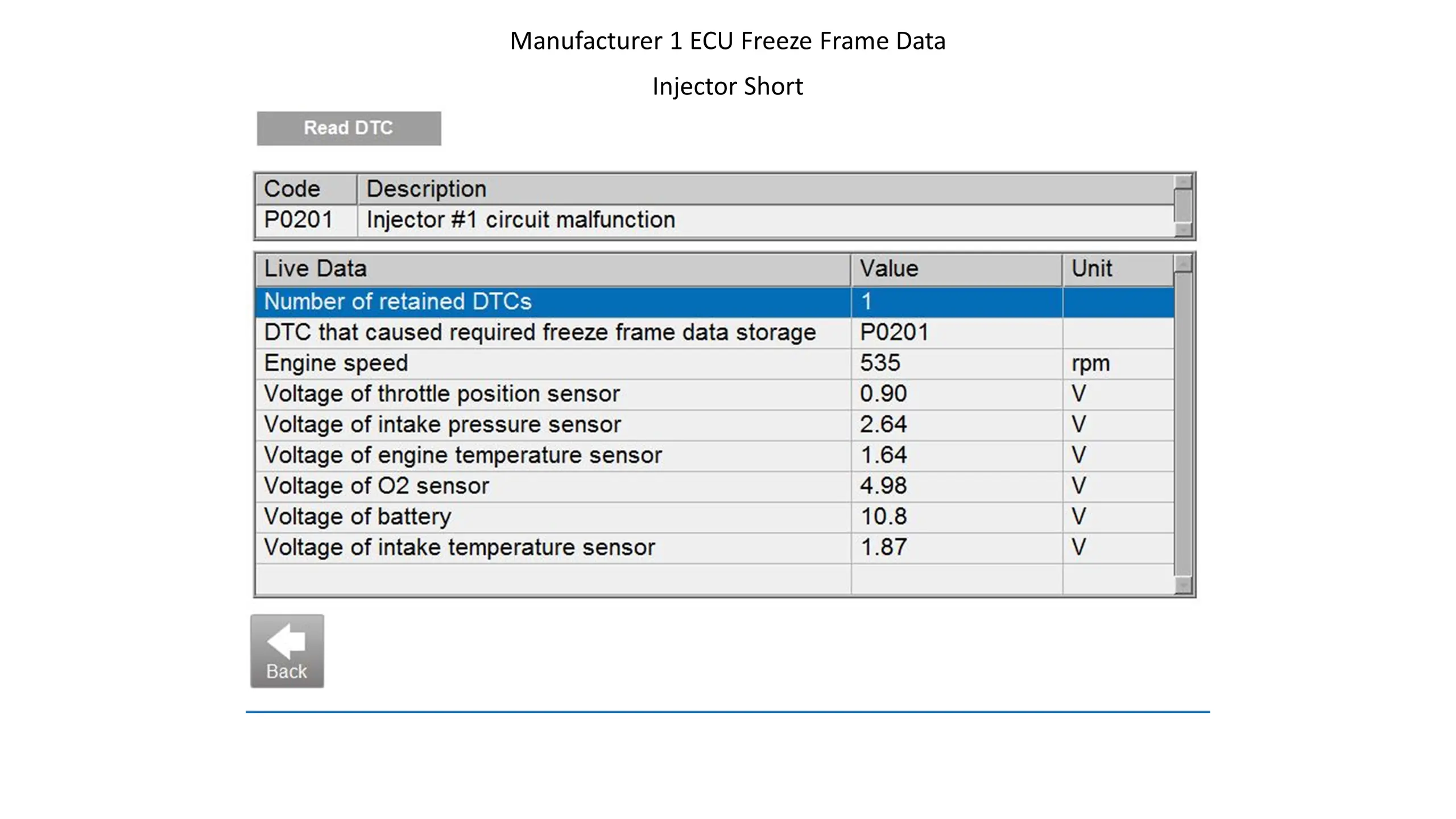

  19. Manufacturer 1 ECU Freeze Frame Data Injector Short

  20. Manufacturer 1 ECU Freeze Frame Data Injector Short

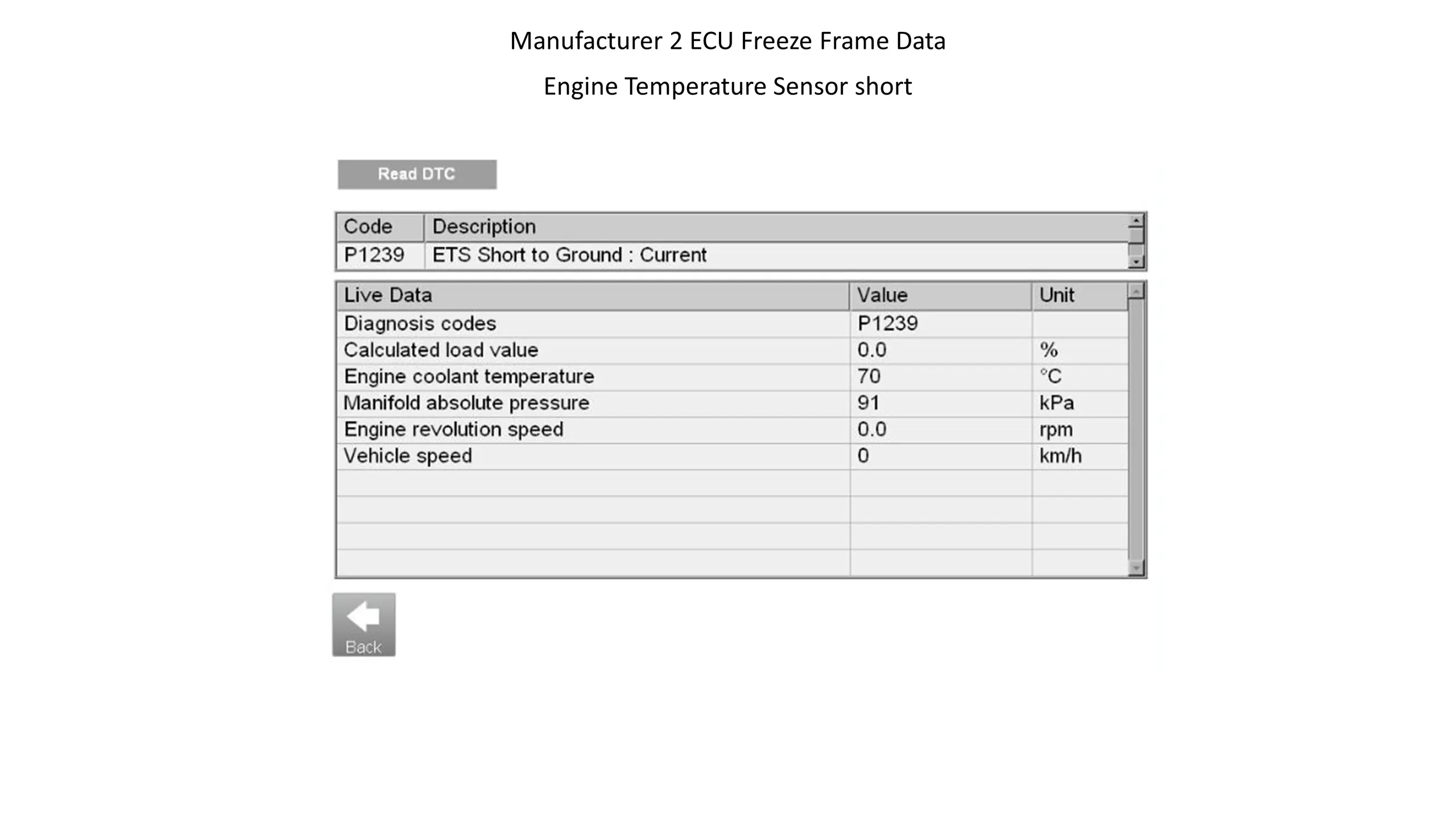

  21. Manufacturer 2 ECU Freeze Frame Data Engine Temperature Sensor short

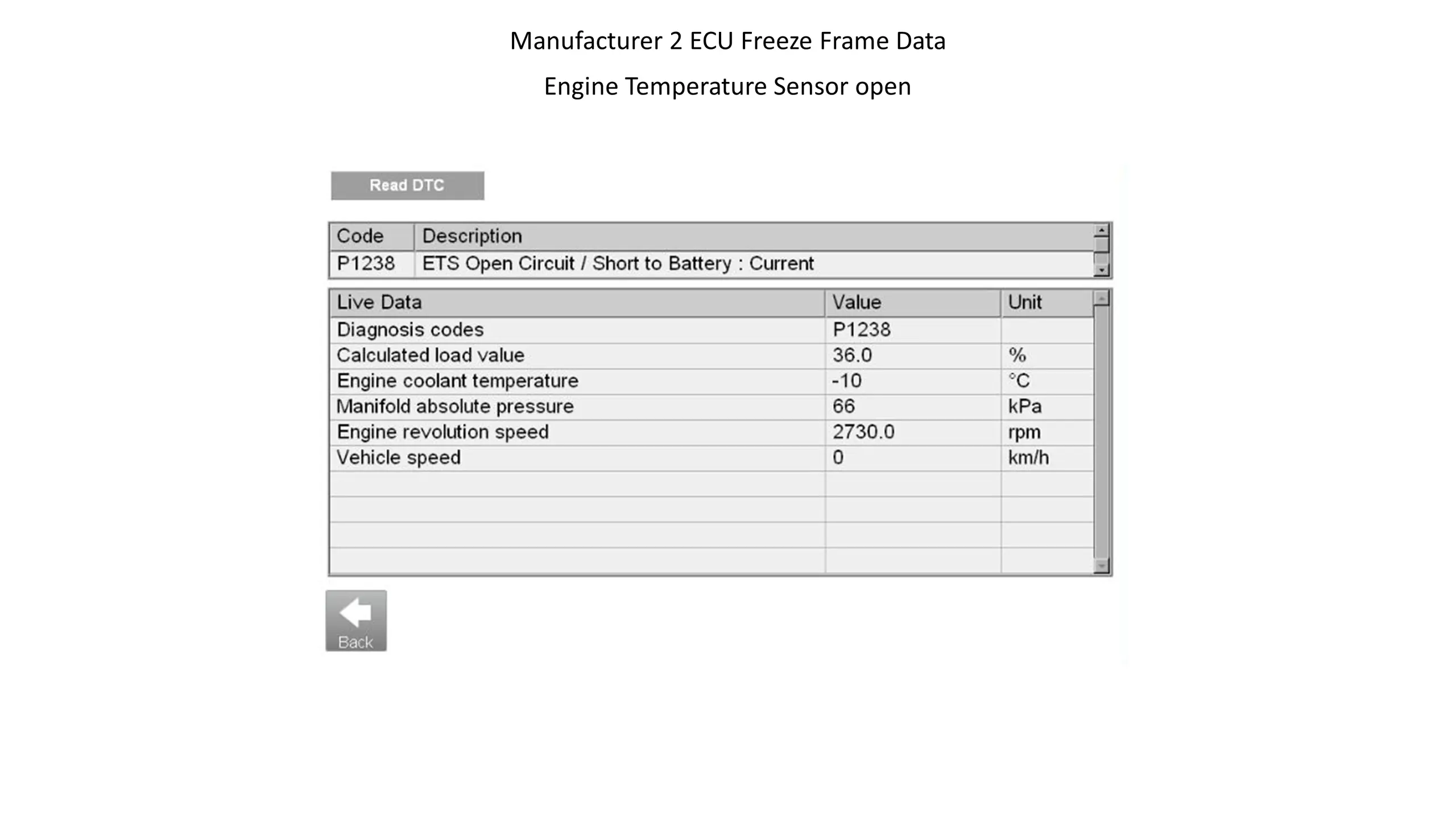

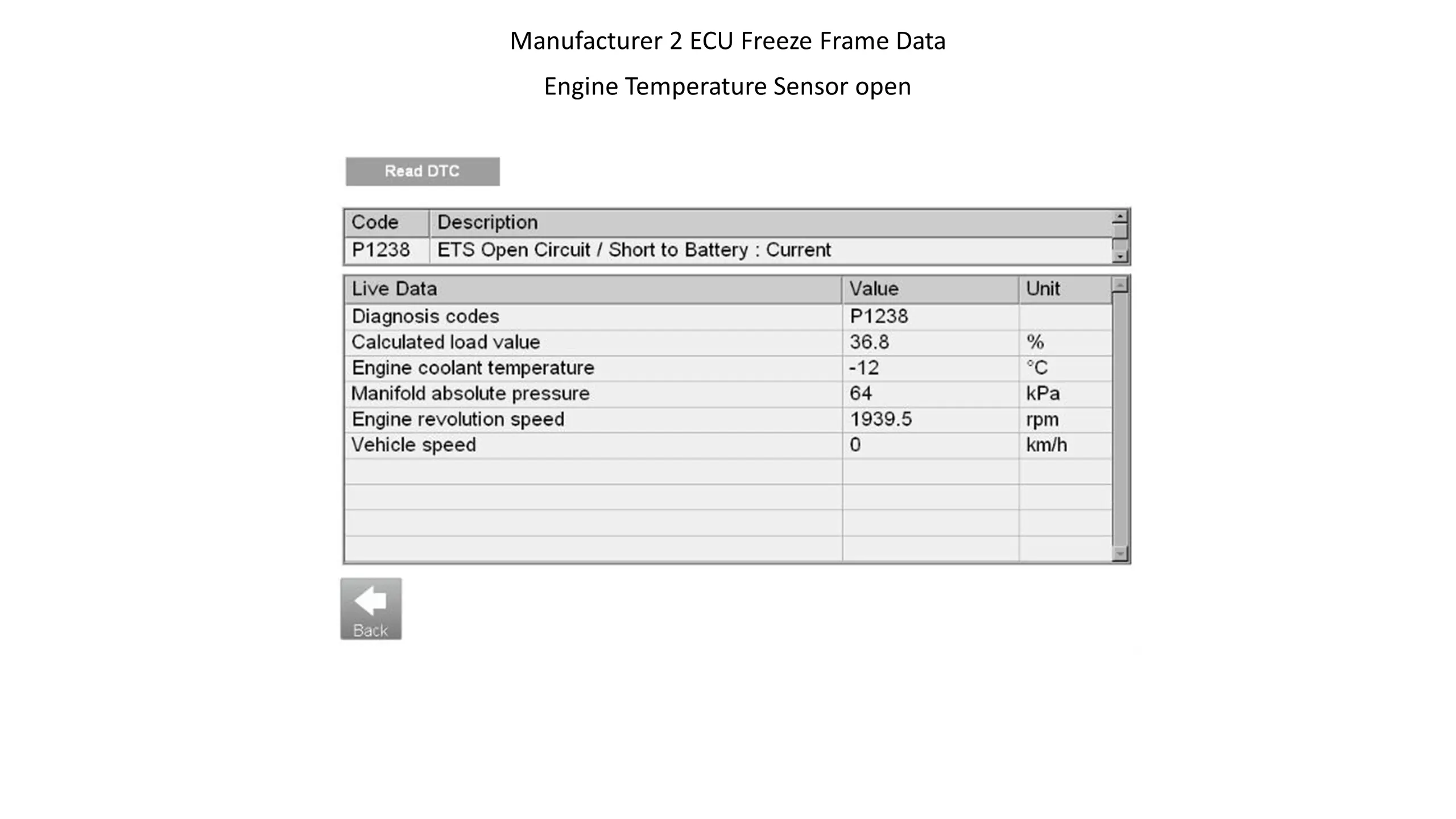

  22. Manufacturer 2 ECU Freeze Frame Data Engine Temperature Sensor open

  23. Manufacturer 2 ECU Freeze Frame Data Engine Temperature Sensor open

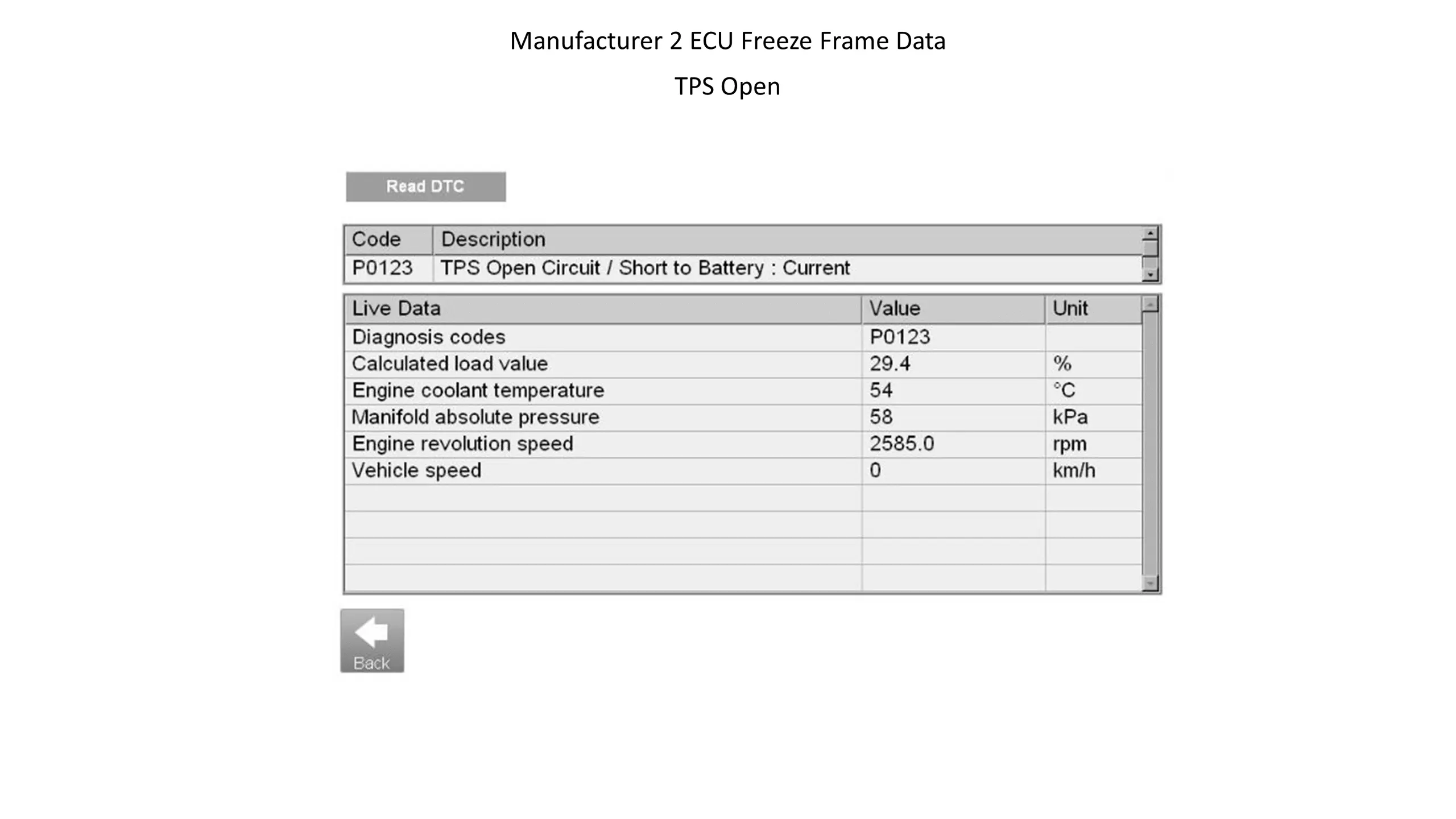

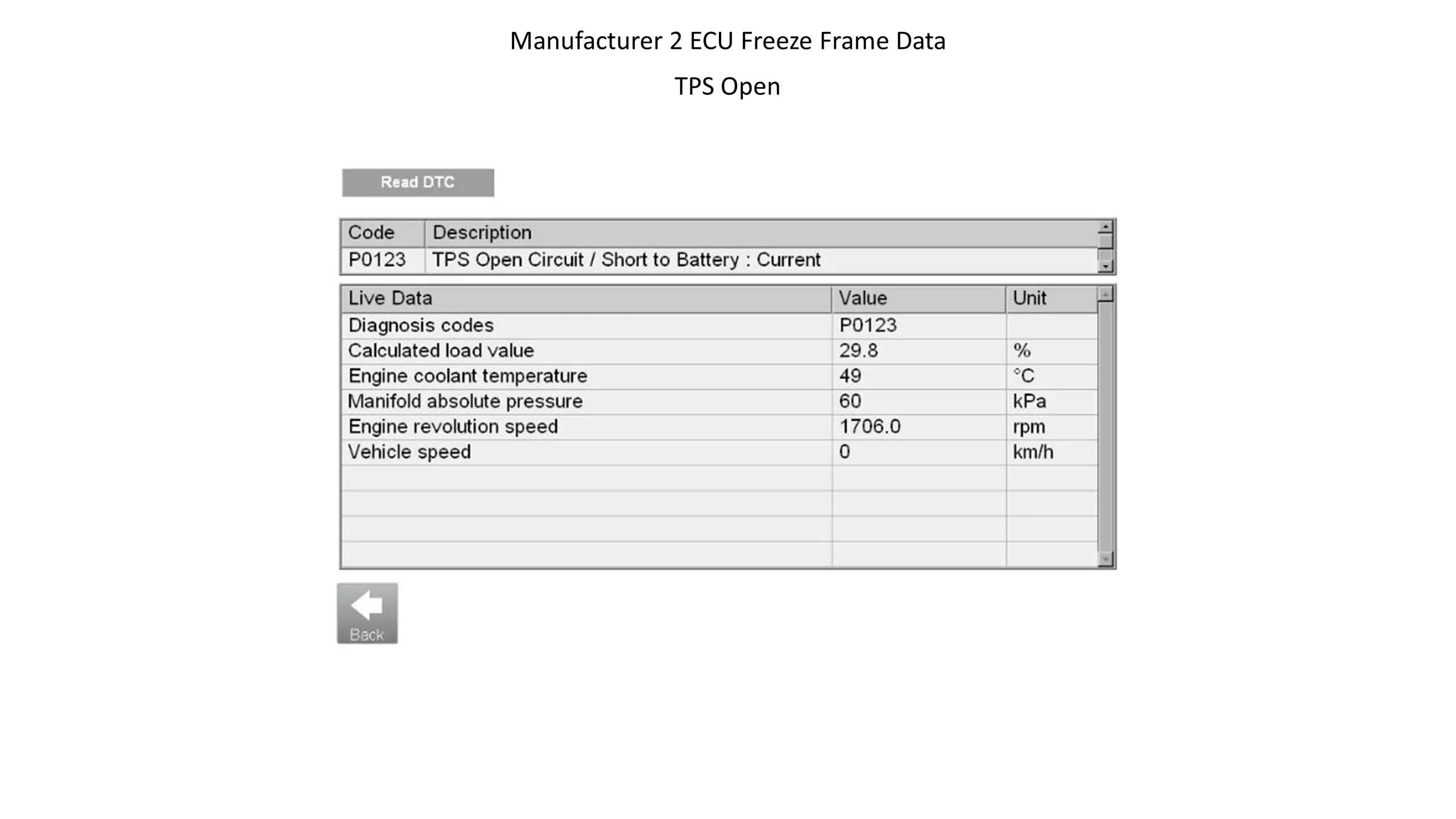

  24. Manufacturer 2 ECU Freeze Frame Data TPS Open

  25. Manufacturer 2 ECU Freeze Frame Data TPS Open

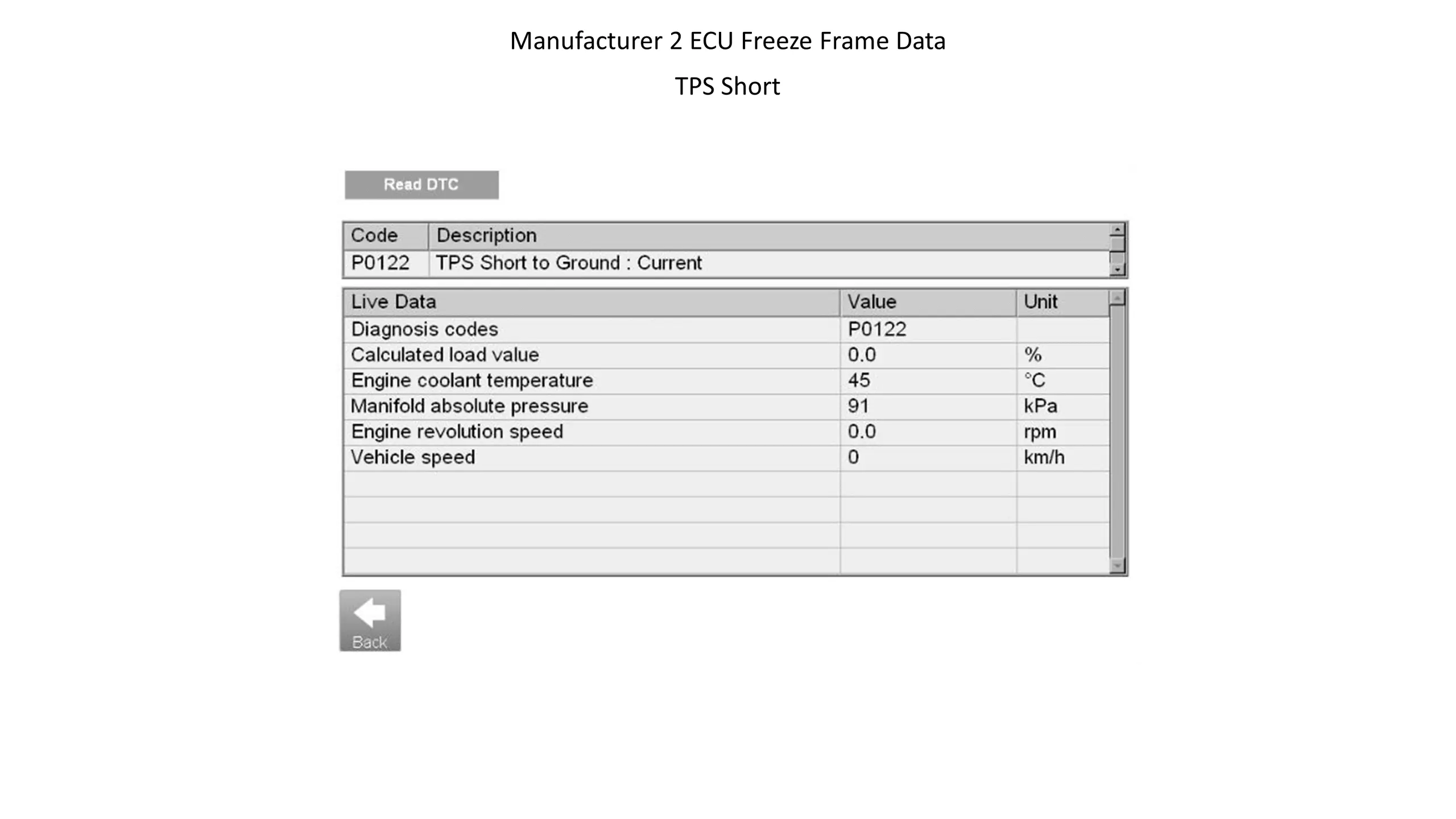

  26. Manufacturer 2 ECU Freeze Frame Data TPS Short

  27. Manufacturer 2 ECU Freeze Frame Data Injector Open

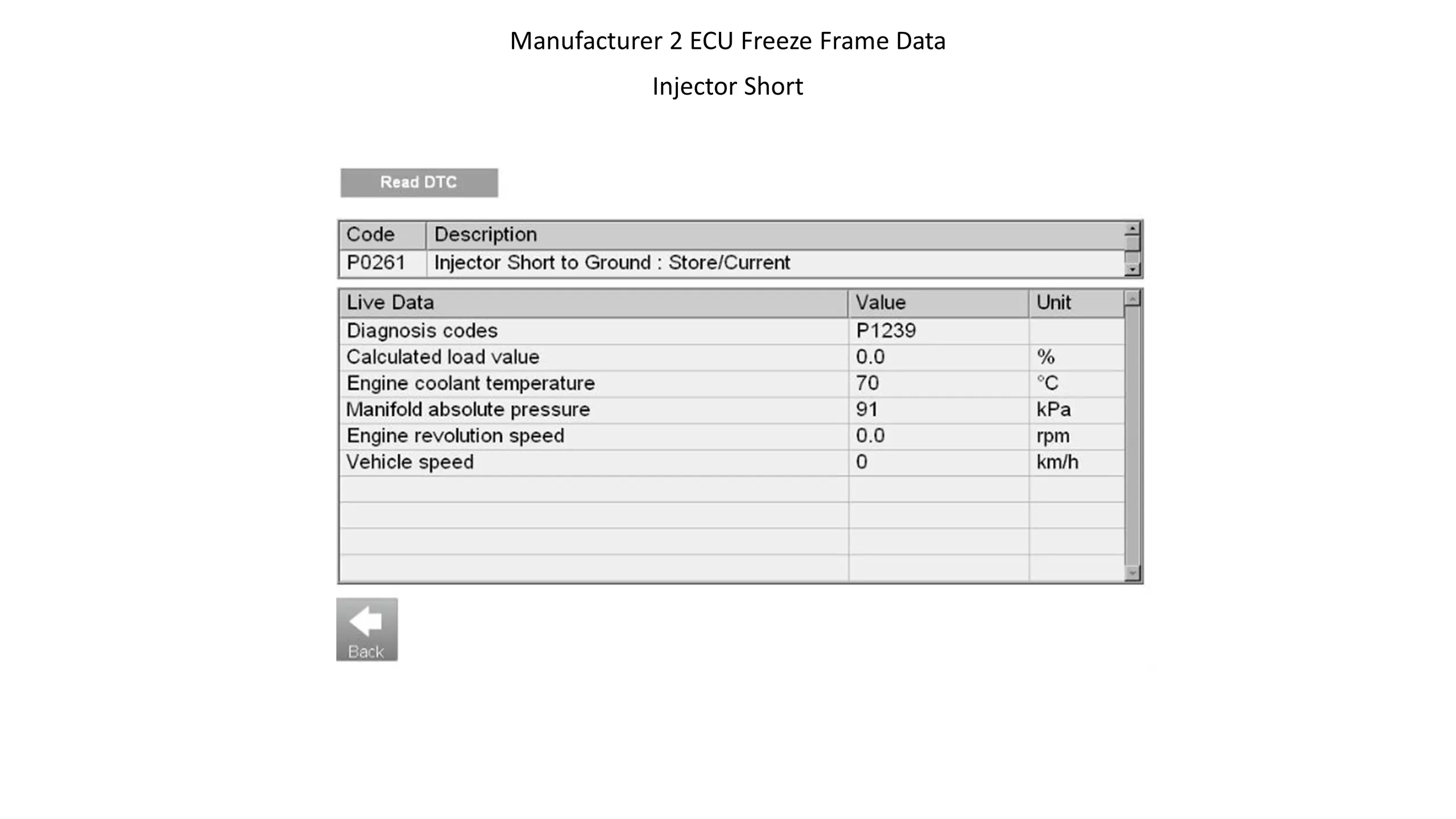

  28. Manufacturer 2 ECU Freeze Frame Data Injector Short

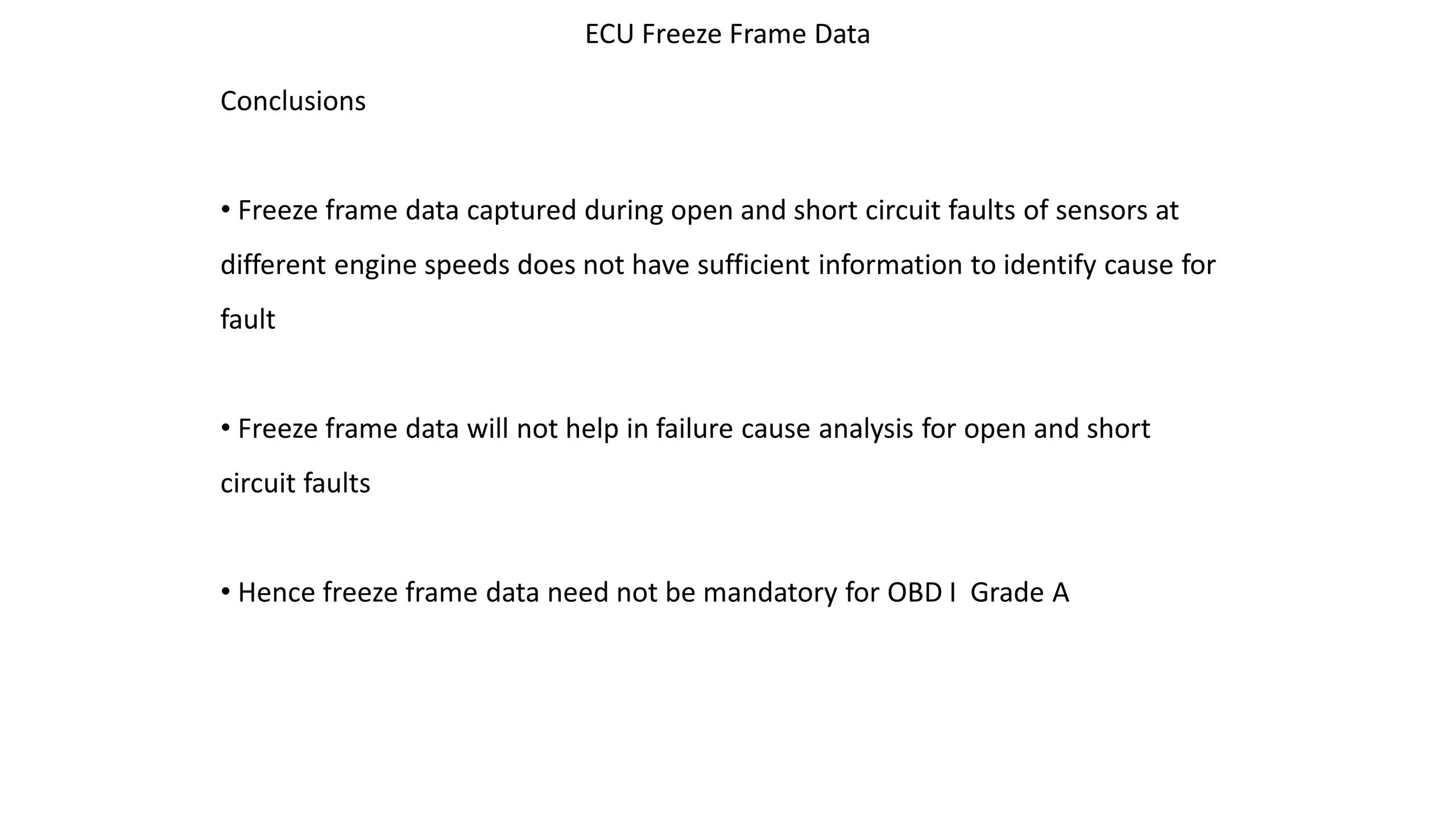

  29. ECU Freeze Frame Data Conclusions • Freeze frame data captured during open and short circuit faults of sensors at different engine speeds does not have sufficient information to identify cause for fault • Freeze frame data will not help in failure cause analysis for open and short circuit faults • Hence freeze frame data need not be mandatory for OBD I Grade A
