  1. Evolving "elementary sight" strategies in predatorsviaGenetic programming ICBV Project 20.2.07 Lior Becker

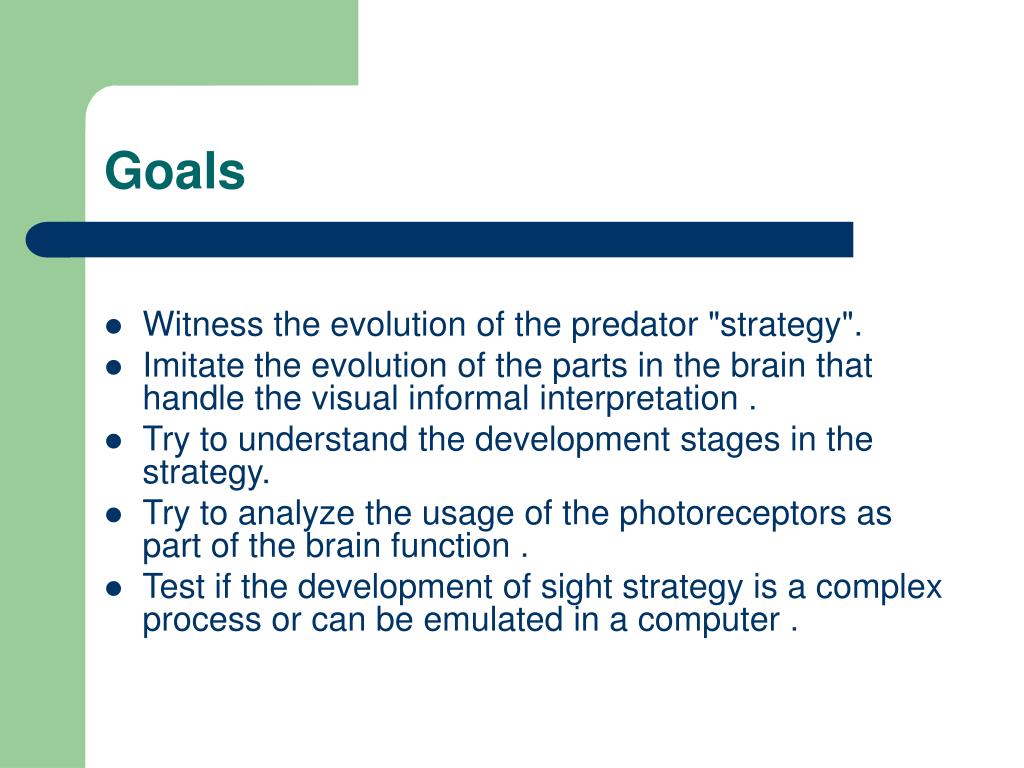

  2. Goals • Witness the evolution of the predator "strategy". • Imitate the evolution of the parts in the brain that handle the visual informal interpretation. • Try to understand the development stages in the strategy. • Try to analyze the usage of the photoreceptors as part of the brain function. • Test if the development of sight strategy is a complex process or can be emulated in a computer.

  3. What is Genetic programming ? • Bio-Inspired • Inspired by Darwin’s evolutionary principles • J.Koza style.

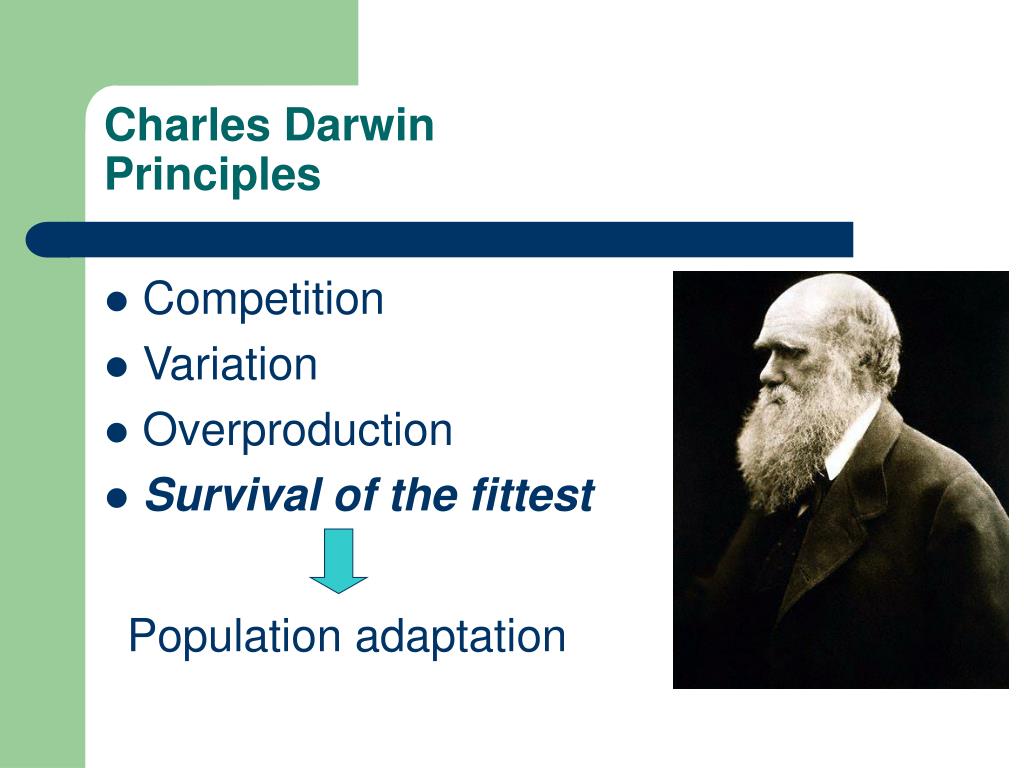

  4. Charles DarwinPrinciples • Competition • Variation • Overproduction • Survival of the fittest Population adaptation

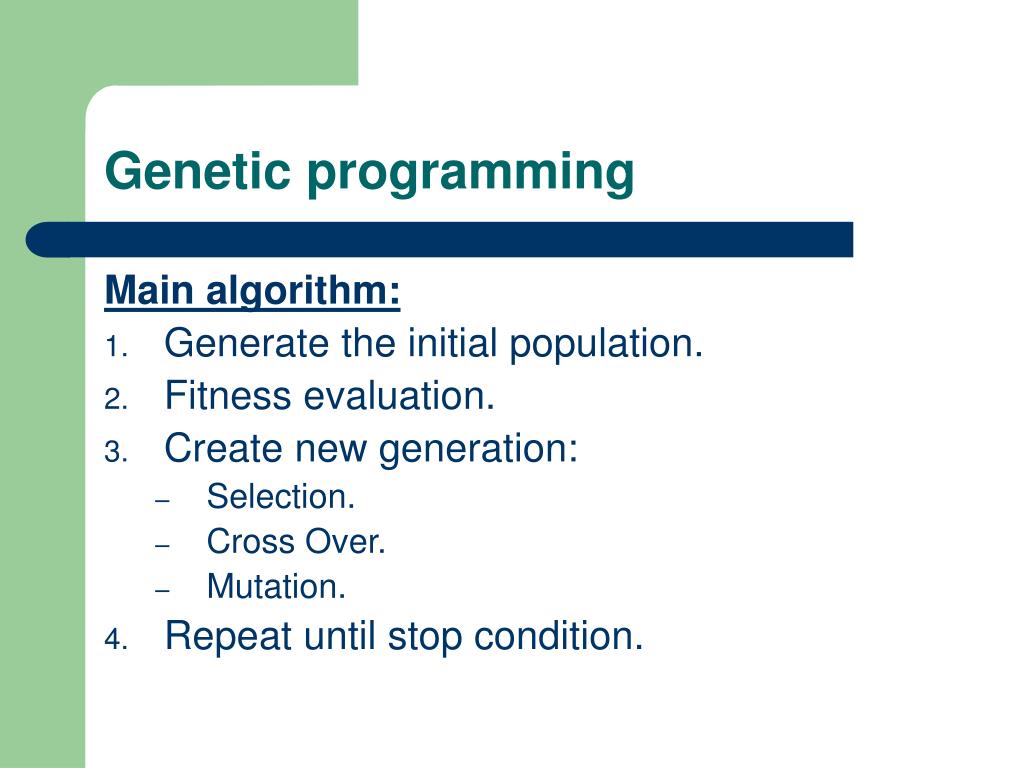

  5. Genetic programming Main algorithm: • Generate the initial population. • Fitness evaluation. • Create new generation: • Selection. • Cross Over. • Mutation. • Repeat until stop condition.

  6. Genetic programming Individual Representation • Individual is a Scheme-Like Function • Represented as a tree (AST).

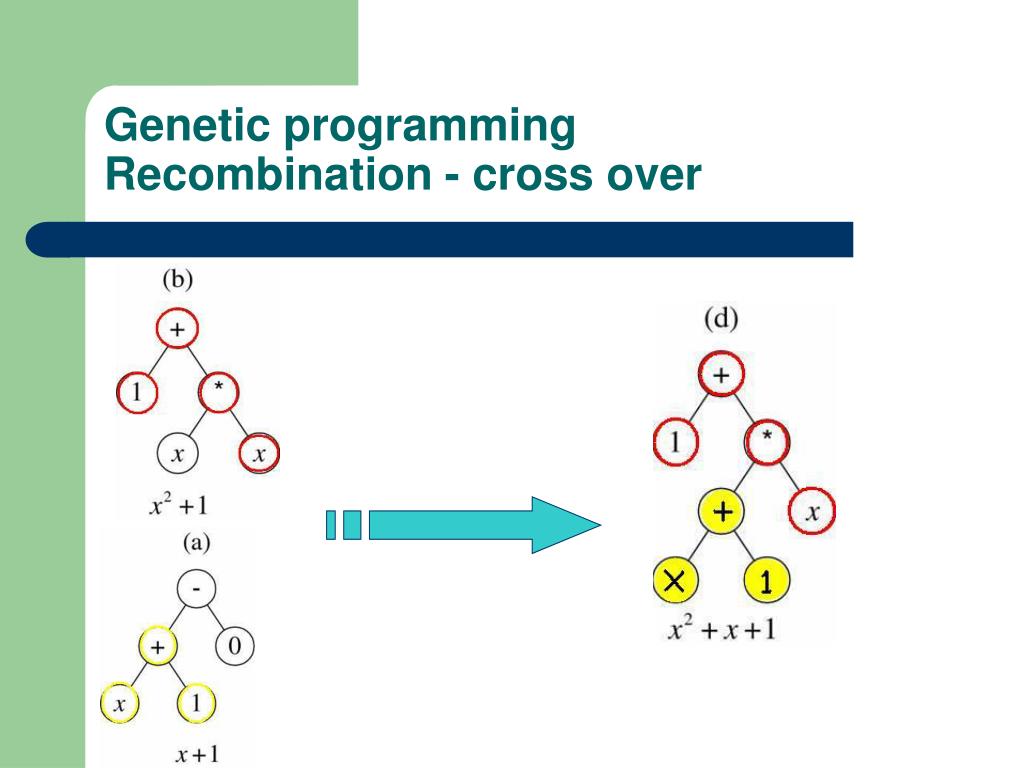

  7. Genetic programmingRecombination - cross over

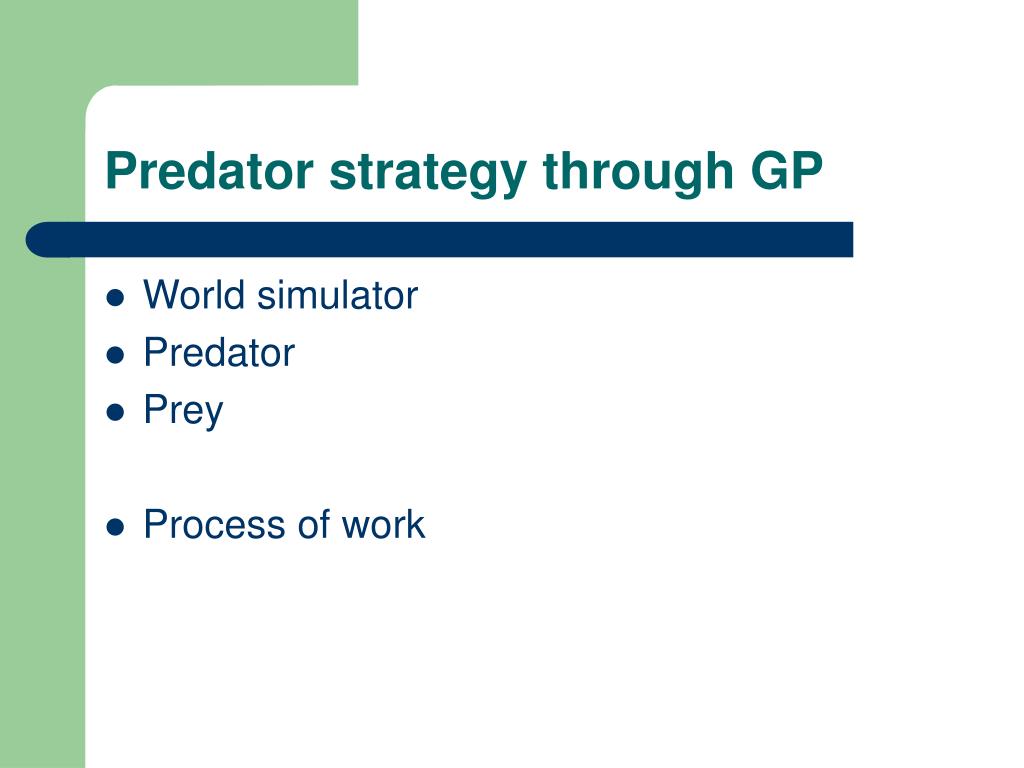

  8. Predator strategy through GP • World simulator • Predator • Prey • Process of work

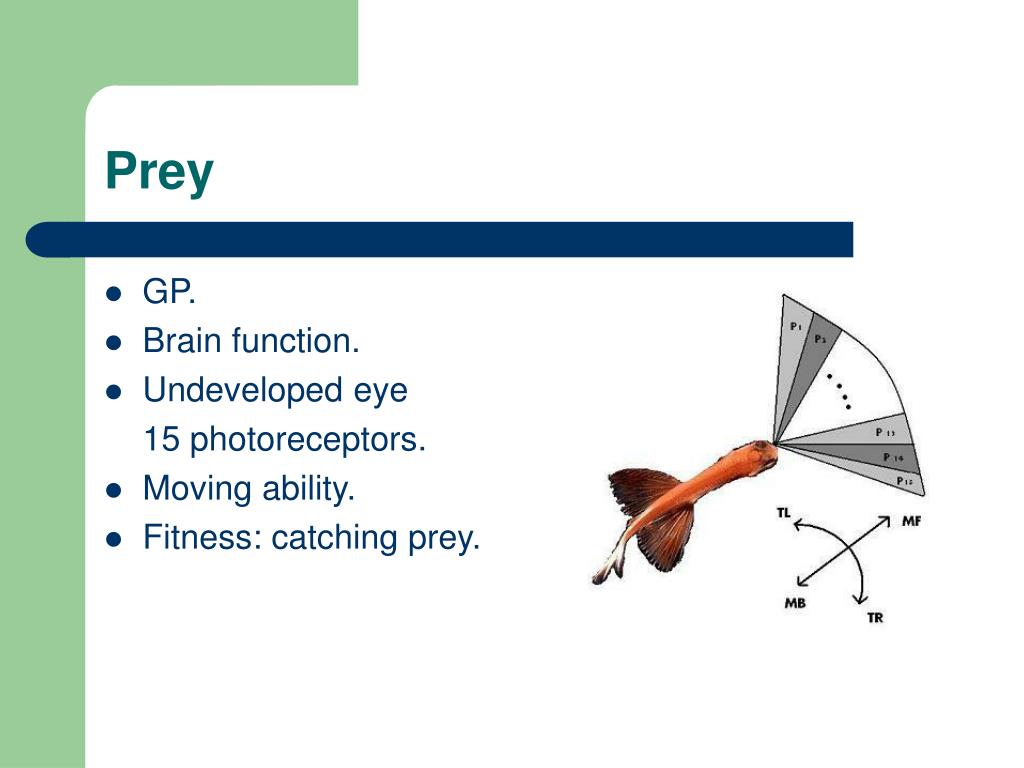

  9. Prey • GP. • Brain function. • Undeveloped eye 15 photoreceptors. • Moving ability. • Fitness: catching prey.

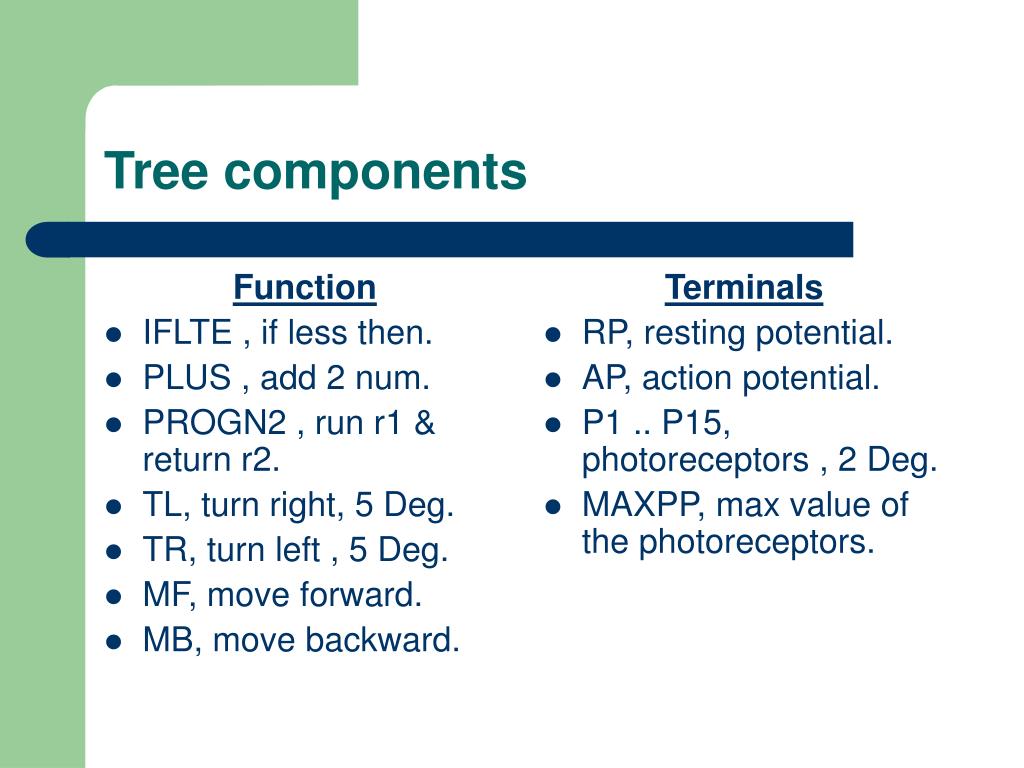

  10. Function IFLTE , if less then. PLUS , add 2 num. PROGN2 , run r1 & return r2. TL, turn right, 5 Deg. TR, turn left , 5 Deg. MF, move forward. MB, move backward. Terminals RP, resting potential. AP, action potential. P1 .. P15, photoreceptors , 2 Deg. MAXPP, max value of the photoreceptors. Tree components

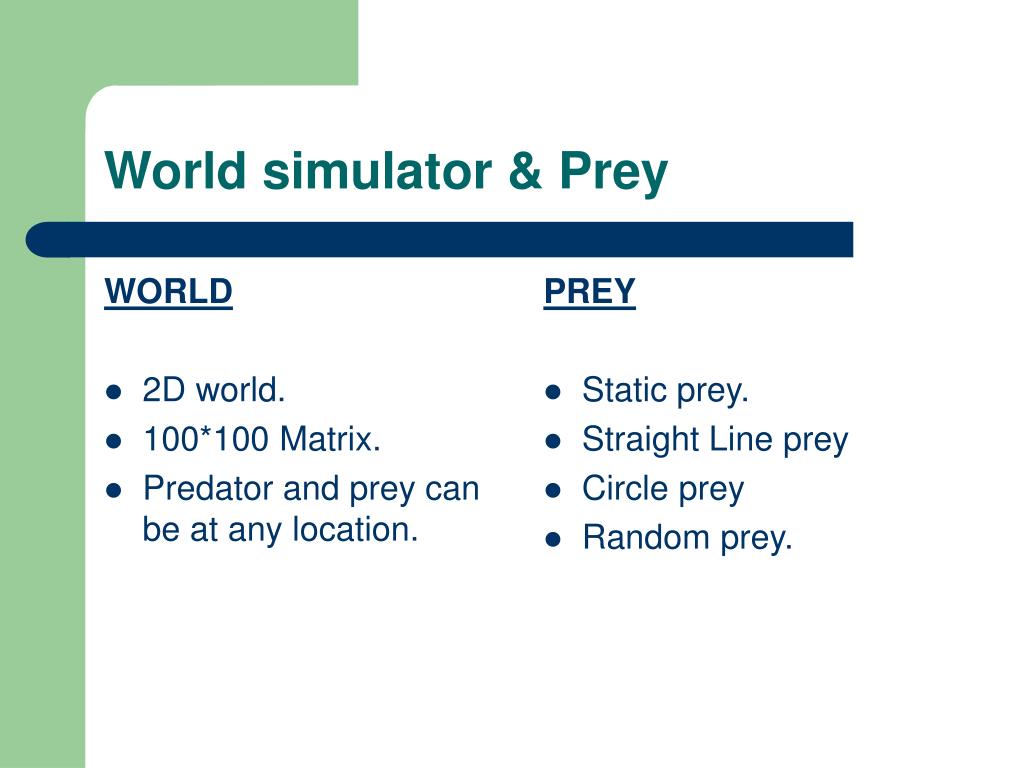

  11. WORLD 2D world. 100*100 Matrix. Predator and prey can be at any location. PREY Static prey. Straight Line prey Circle prey Random prey. World simulator & Prey

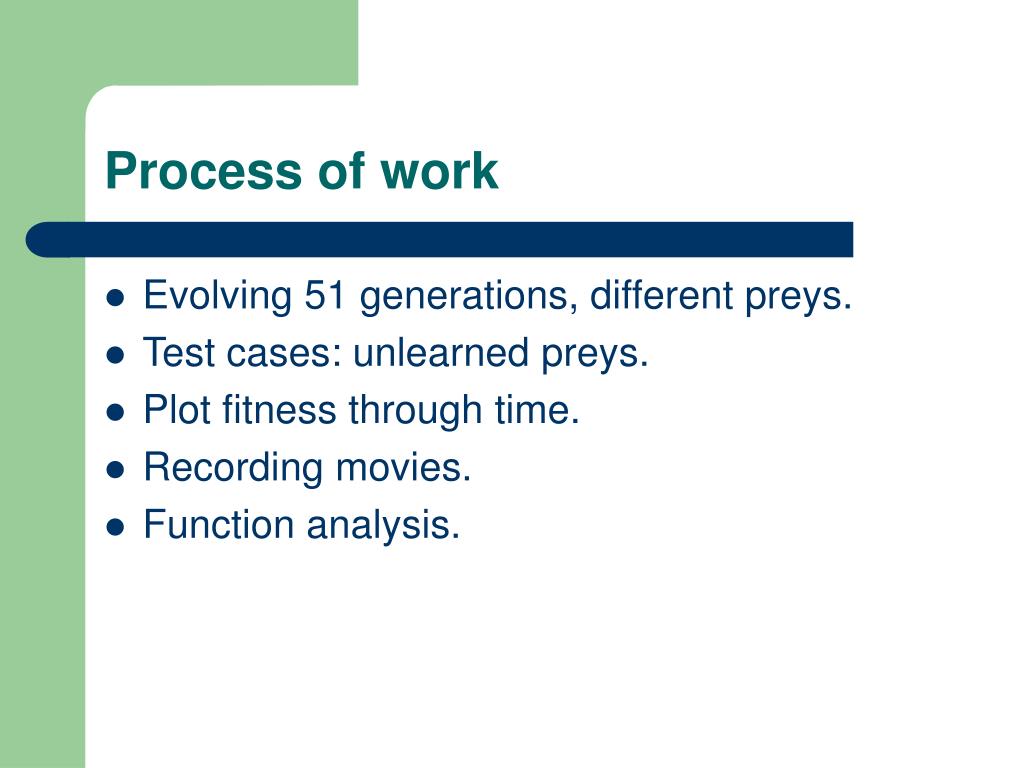

  12. Process of work • Evolving 51 generations, different preys. • Test cases: unlearned preys. • Plot fitness through time. • Recording movies. • Function analysis.

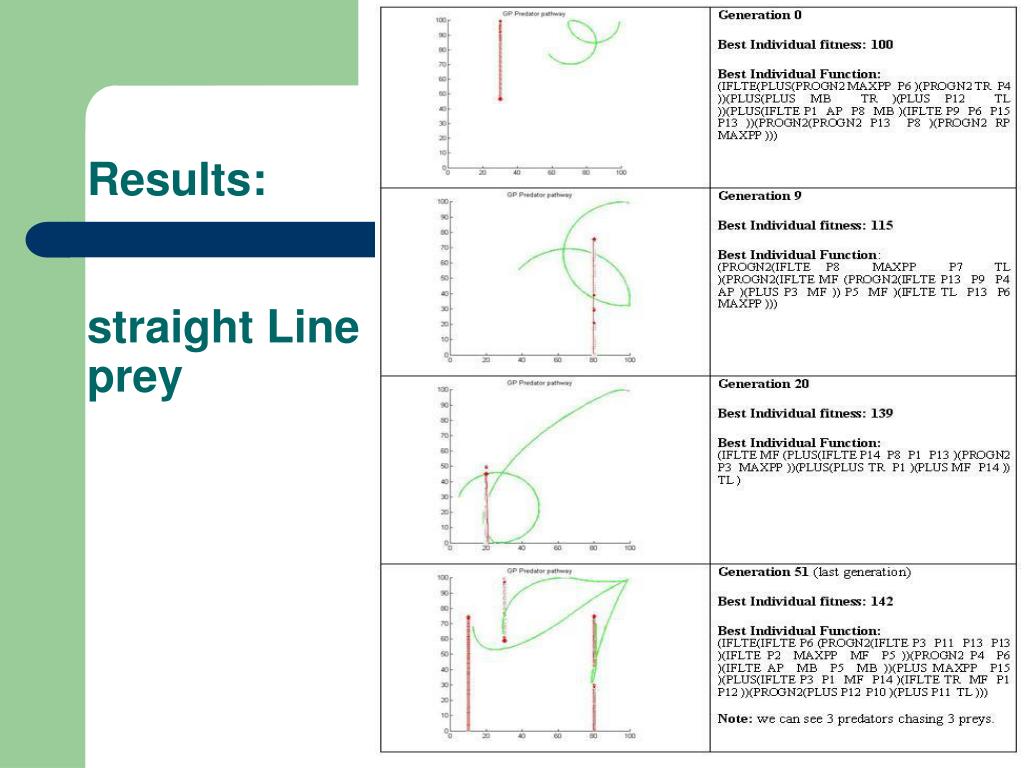

  13. Results: straight Line prey

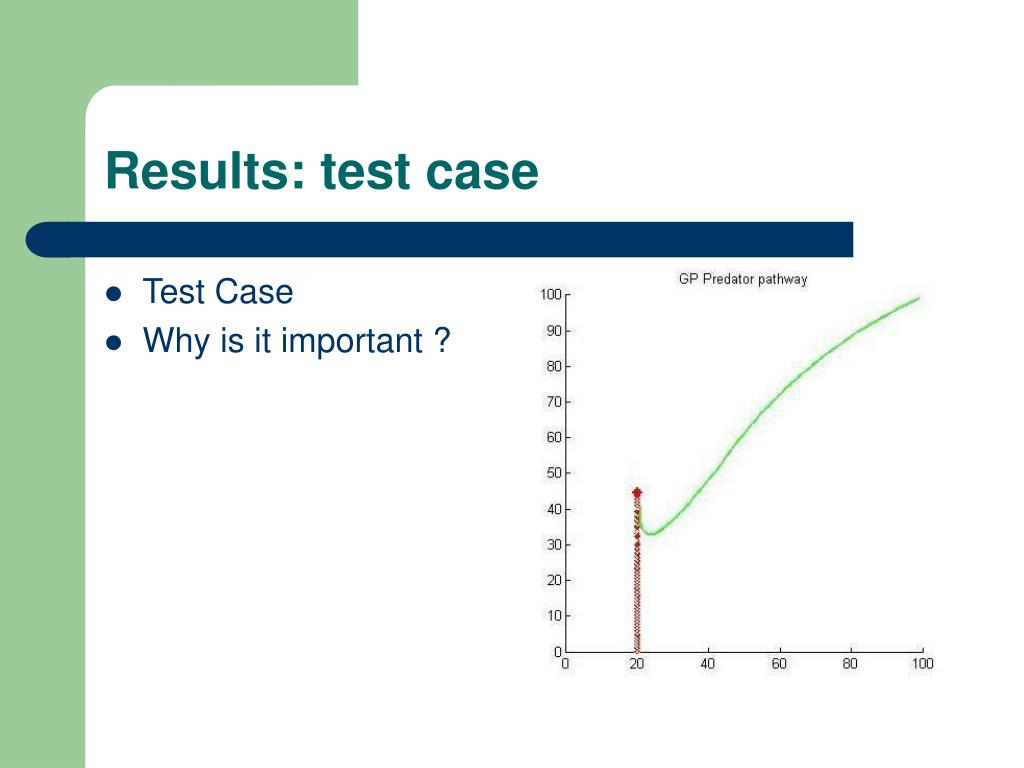

  14. Results: test case • Test Case • Why is it important ?

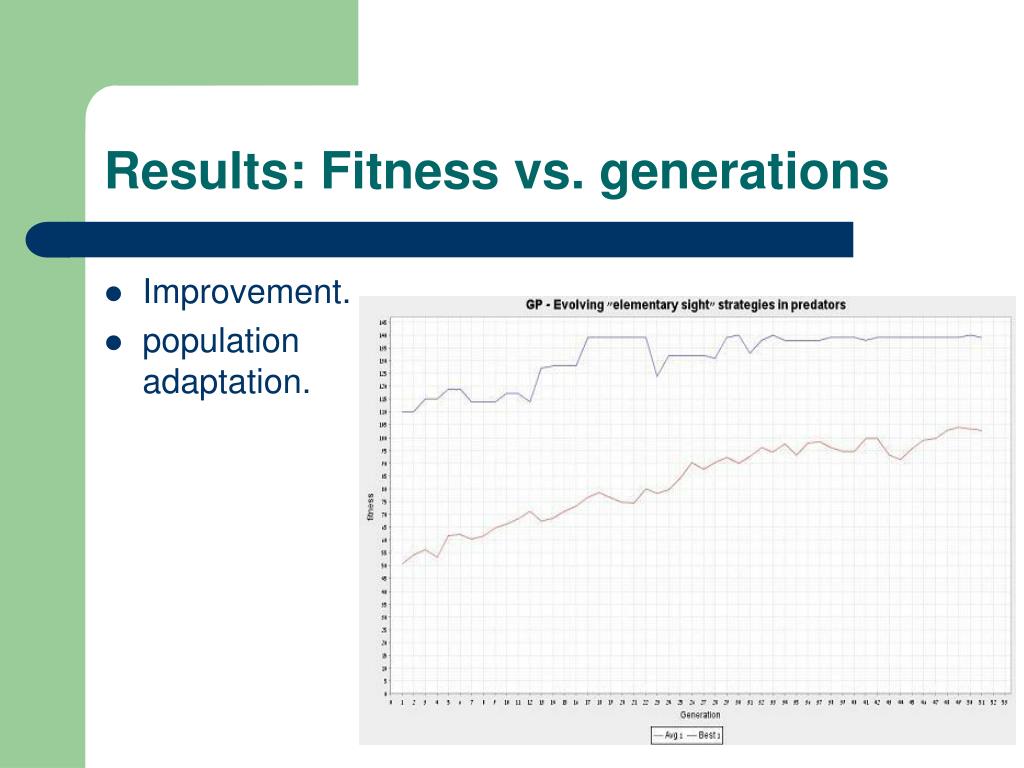

  15. Results: Fitness vs. generations • Improvement. • population adaptation.

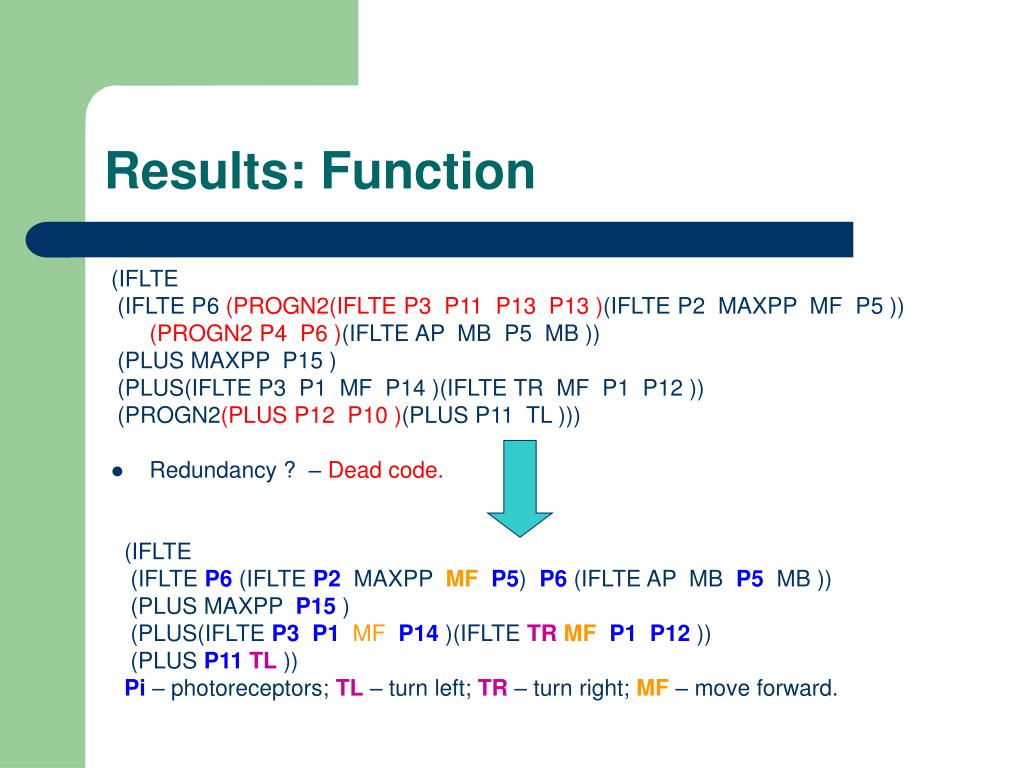

  16. Results: Function (IFLTE (IFLTE P6 (PROGN2(IFLTE P3 P11 P13 P13 )(IFLTE P2 MAXPP MF P5 )) (PROGN2 P4 P6 )(IFLTE AP MB P5 MB )) (PLUS MAXPP P15 ) (PLUS(IFLTE P3 P1 MF P14 )(IFLTE TR MF P1 P12 )) (PROGN2(PLUS P12 P10 )(PLUS P11 TL ))) • Redundancy ? – Dead code. (IFLTE (IFLTE P6 (IFLTE P2 MAXPP MFP5) P6 (IFLTE AP MB P5 MB )) (PLUS MAXPP P15 ) (PLUS(IFLTE P3P1MFP14 )(IFLTE TR MFP1P12 )) (PLUS P11TL )) Pi – photoreceptors; TL – turn left; TR – turn right; MF – move forward.

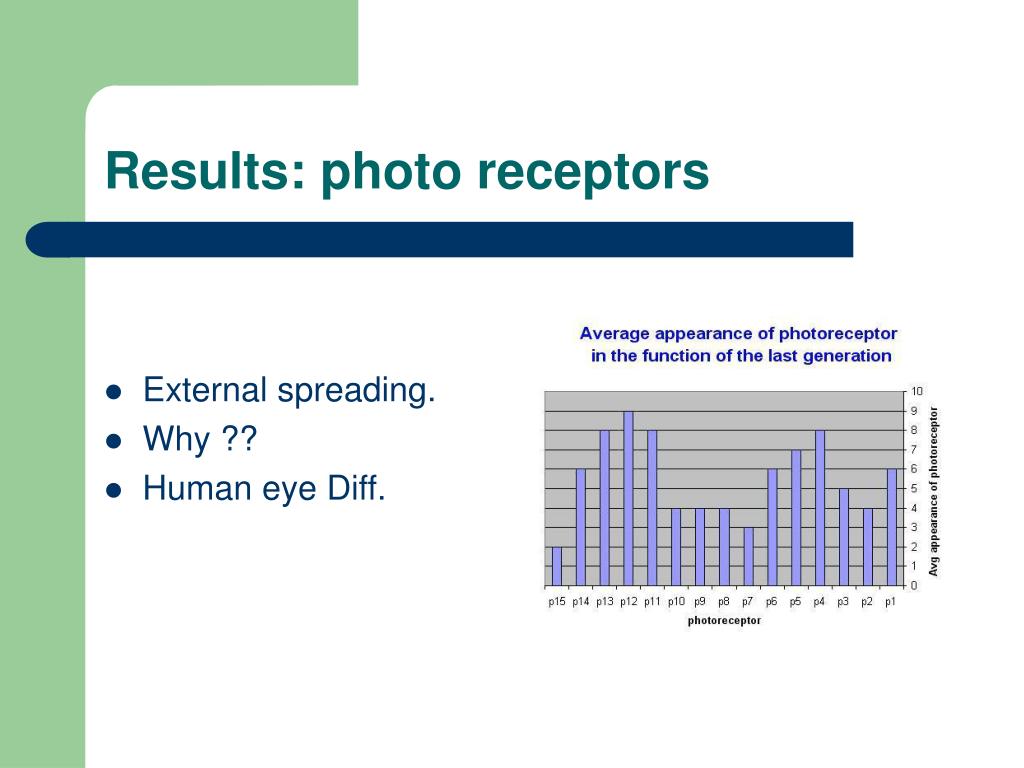

  17. Results: photo receptors • External spreading. • Why ?? • Human eye Diff.

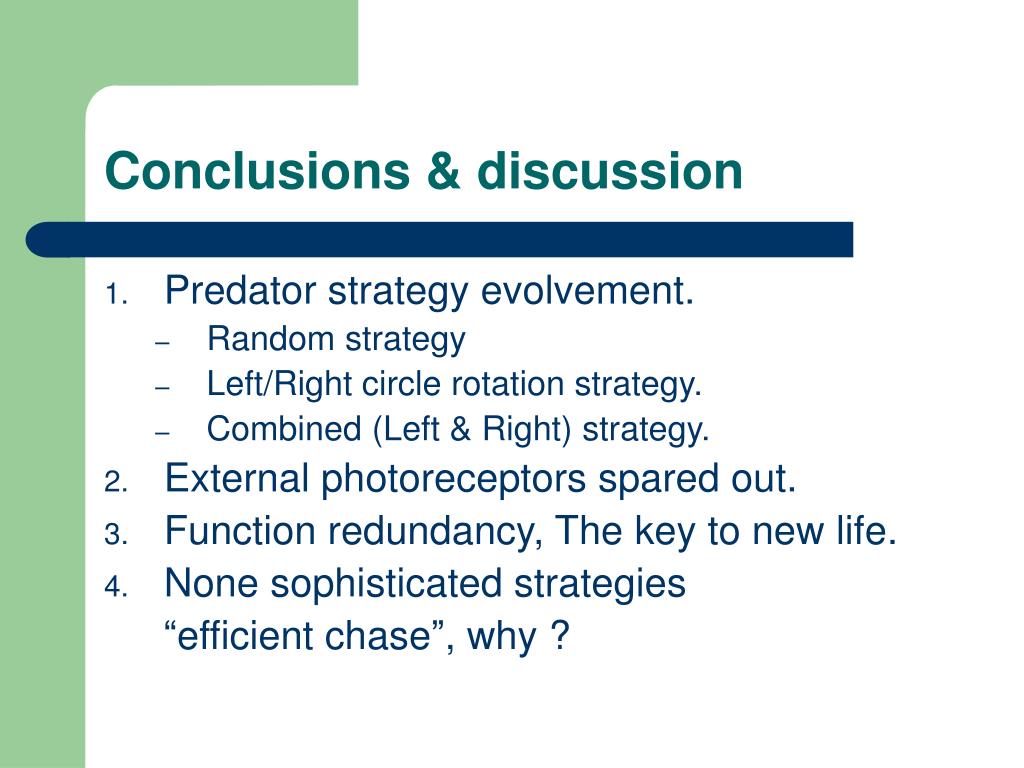

  18. Conclusions & discussion • Predator strategy evolvement. • Random strategy • Left/Right circle rotation strategy. • Combined (Left & Right) strategy. • External photoreceptors spared out. • Function redundancy, The key to new life. • None sophisticated strategies “efficient chase”, why ?

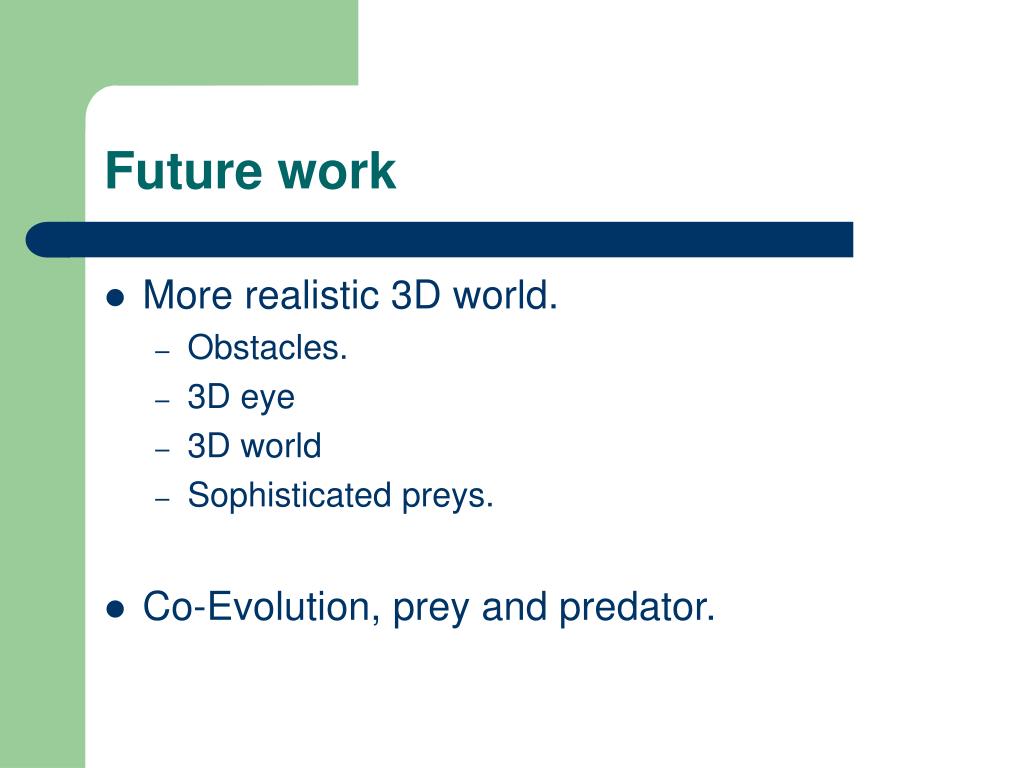

  19. Future work • More realistic 3D world. • Obstacles. • 3D eye • 3D world • Sophisticated preys. • Co-Evolution, prey and predator.

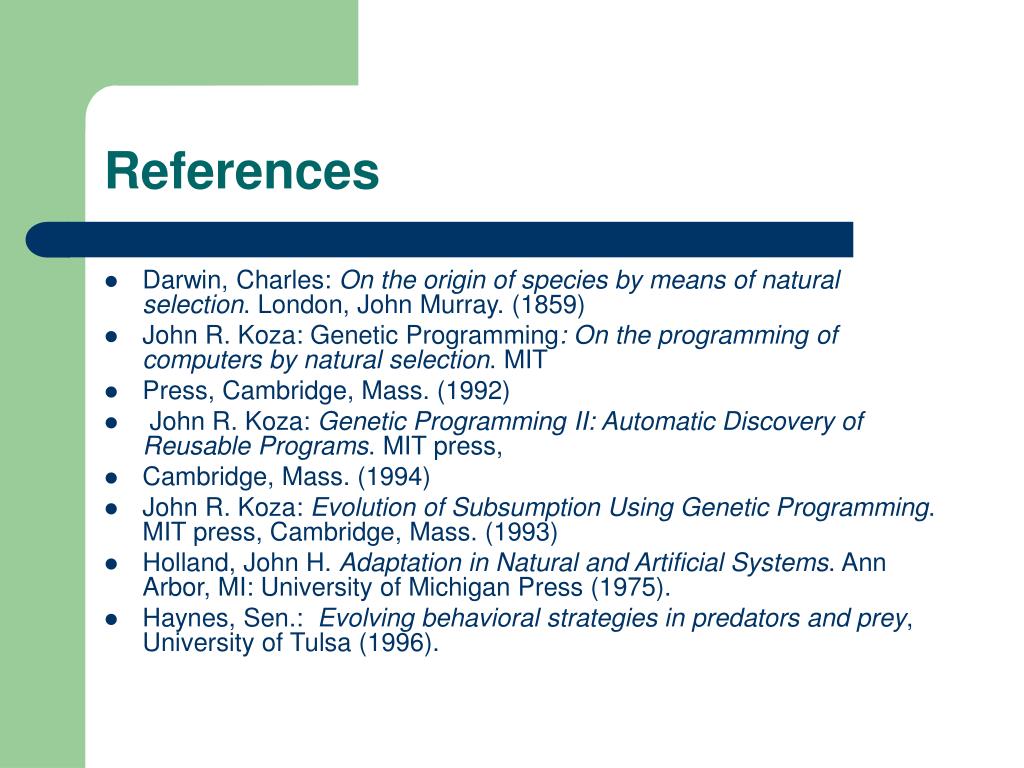

  20. References • Darwin, Charles: On the origin of species by means of natural selection. London, John Murray. (1859) • John R. Koza: Genetic Programming: On the programming of computers by natural selection. MIT • Press, Cambridge, Mass. (1992) • John R. Koza: Genetic Programming II: Automatic Discovery of Reusable Programs. MIT press, • Cambridge, Mass. (1994) • John R. Koza: Evolution of Subsumption Using Genetic Programming. MIT press, Cambridge, Mass. (1993) • Holland, John H. Adaptation in Natural and Artificial Systems. Ann Arbor, MI: University of Michigan Press (1975). • Haynes, Sen.: Evolving behavioral strategies in predators and prey, University of Tulsa (1996).

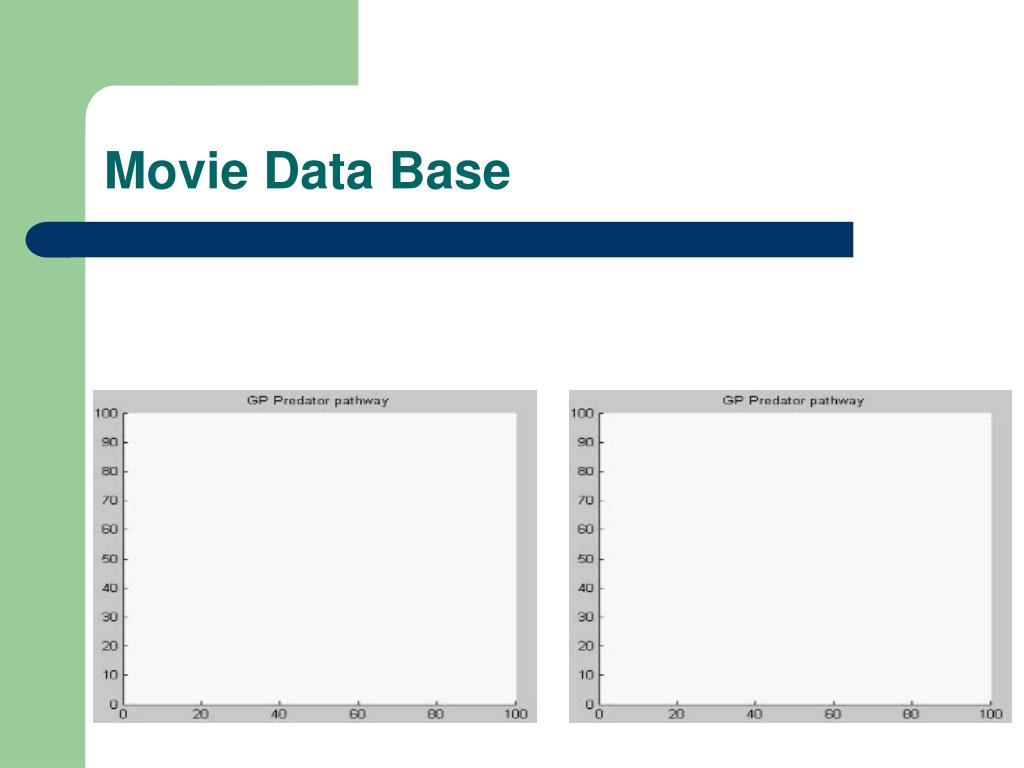

  21. Movie Data Base
