link layer motivation
Problem: Given a message M at a node A consisting of several packets, how do you send the packets to a “neighbor” node B

Neighbor: A node attached to the same link

Link can be point-to-point or broadcast

Link can be guided media (a copper, coax, fiber wire) or unguided media (wireless)

Link Layer: Motivation

B

A

Message M

link and physical layers
This communication problem is handled by 2 protocols

A Link Layer (LL) that sits on top of the physical layer (PL) and deals with

Packet Encapsulation, Mux/Demux

Framing – Detecting frame boundaries

Error Detection/Recovery – Detecting corrupt frames

Media Access Control (if the link is multi-access or broadcast)

Reliable delivery, flow control? – Optional

A Physical Layer (PL)

deals with encoding/decoding bits of a frame to/from the link

Message M

A

B

link

physical

link

physical

Link and Physical Layers
network interface card nic
LL in part, PL in total are implemented in NIC

Ethernet card, 802.11 card, …

NIC is semi-autonomous

Listens to the link independent of the CPU

Talks to CPU after reception of a new frame

CPU talks to the card to send a frame

Has connectivity to both the I/O bus and the network link

Link

Interface

CPU

Link

interface

Bus

interface

cache

NIC

Memory

I/O Bus Interface

PCI

Link

I/O Bus

Link

Interface

Network Interface Card (NIC)
link layer service interface
Link Layer Service Interface
  • Every Link Layer must export a service interface to the layers on top of it
    • Unreliable frame service
      • Corrupt frames are not recovered, frame sending order may not be preserved
      • OK when error rate is low so packet recovery is left to upper layers – Most wired links are of this type
    • Reliable, unordered frame service
      • Corrupt frames are recovered, frame sending order may not be preserved, also duplicate packets possible?
      • Good for links where the error rate is high such as wireless links
    • Reliable, ordered frame service
      • Corrupt frames are recovered, frames are delivered in the order they were sent, no duplicate frames possible.
      • Very restrictive! X.25 links used this model
steps in transmission of a datagram to a neighbor

Bit error prone link

Steps in Transmission of a Datagram to a Neighbor

Datagram

H

Datagram

Datagram

Y

All

bits in D’

OK?

LL

N

H

Datagram

Detected error

LL

D’

EDC‘

H

Datagram

EDC

Decode Bits

from the Link

Encode Bits

to the Link

PL

PL

general ll frame format

Error

Detection

Correction

Code

Network Layer

Added

during

encapsulation

LL Header

Network Layer Datagram

EDC

Data link layer frame

Source

MAC

Dest MAC

Control

Type

General LL Frame Format
  • All LL headers must contain a mux/demux key (Type)
    • Type field in LL header specifies upper layer protocol
      • IP is one of many upper layer protocols (IPX, AppleTalk, ARP, …)
    • Each LL defines its own protocol type numbering for upper layers
  • LL header might also contain some control fields
    • Does the LL require reliable delivery, flow control…
  • In a broadcast link, header contains the source and destination MAC addresses
upper layer protocol numbers in ethernet
Upper layer protocol numbersin Ethernet
  • http://www.cavebear.com/CaveBear/Ethernet/type.html
  • Some Ethernet protocol types
    • 0800 DOD Internet Protocol (IP)
    • 0806 Address Resolution Protocol (ARP)
    • 8037 IPX (Novell Netware)
    • 80D5 IBM SNA Services
    • 809B EtherTalk (AppleTalk over Ethernet)
maximum transfer unit mtu
Maximum Transfer Unit (MTU)
  • Each LL has a limit on the max. LL frame size
    • This limit is called the “Maximum Transfer Unit”MTU of the link
    • MTU is the maximum frame size including the LL header, trailer etc.
    • If a higher layer protocol such as IP wants to send a datagram bigger than the LL MTU, it has to break the datagram into smaller pieces (fragments), so that each fragment is smaller than the MTU
    • This is called fragmentation (at the sender) and de-fragmentation (at the receiver)
error detection correction
Error Detection/Correction
  • Errors caused by signal attenuation, electrical interference or thermal noise.
  • Receiver detects presence of errors, take an action
  • Possible actions
    • Correct bit errors if possible and continue
    • Signal sender for retransmission (X.25)
    • Drops frame: Most common (PPP, Ethernet, …)
error detection correction general idea
Error Detection/Correction: General Idea
  • To detect and correct errors, we add extra error detection and correction bits (EDC) to the frame
  • D = “Data protected by error checking” may include header fields
  • Error detection not 100% reliable!
    • protocol may miss some errors, but rarely
    • larger EDC field yields better detection and correction
error detection correction1
Error detection/correction

Error Detection/Correction

Parity Checks

Checksum

Cyclic Redundancy Checks

checksums
Receiver:

compute checksum of received segment

check if computed checksum equals checksum field value:

NO: error detected

YES: no error detected. But maybe errors nonetheless?

Mis-ordered words

Checksums

Sender:

  • treat segment contents as sequence of 16-bit integers
  • checksum: addition (1’s complement sum) of segment contents
  • Why use checksum?
    • simple to implement in software
    • Typically used by upper layer protocols: TCP, UDP, IP..
    • Found to be enough in ARPANET by experience
ip checksum algorithm
unsigned short IPCheckSum(unsigned short *buf, int count){

register unsigned long sum = 0;

while (count--){

sum += *buf++;

if (sum & 0xFFFF0000){

/* carry occured, so wrap around */

sum &= 0xFFFF;

sum++;

} //end-if

} //end-while

return unsigned short(~(sum & 0xFFFF));

} //end-IPCheckSum

IP Checksum Algorithm
parity checking
Parity checking
  • Single Bit Parity:
  • Add an extra bit to a 7-bit code to balance the # of 1s in a byte
  • Odd parity: sets the 8th bit to 1 to give an odd # of 1s in the byte
  • Even parity: sets the 8th bit to 1 to give an even # of 1s in the byte
  • Detect single bit errors

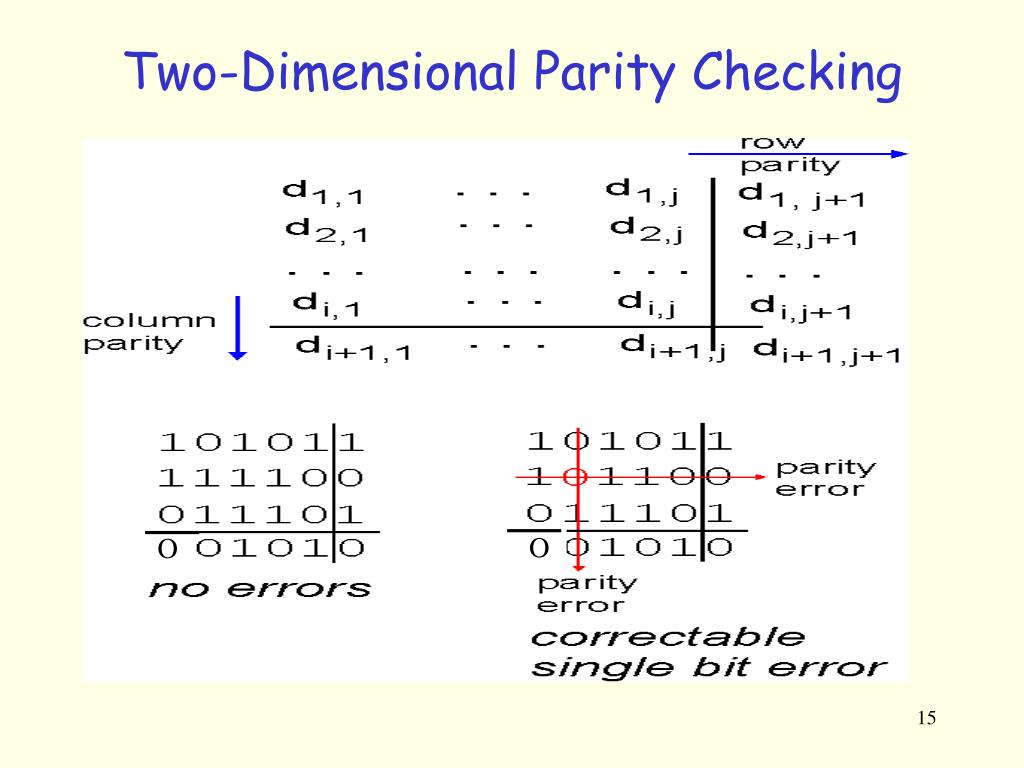

  • Two Dimensional Bit Parity:
  • Computes parity for each bit position across each of the bytes contained in the frame
  • This results in an extra byte for the entire frame in addition to a parity bit for each byte
  • Detect and correct single bit errors

parity

bit

7 data bits

parity

bit

1

0 1 0 1 0 0 1

7 data bits

0

1 1 0 1 0 0 1

Data

1

0 1 0 1 0 0 1

1

1 0 1 1 1 1 0

Even parity example

1

0 0 0 1 1 1 0

Parity Byte

1

0 0 1 0 0 0 0

cyclic redundancy checks crc
Cyclic Redundancy Checks (CRC)
  • Idea:
    • We have a n-bit message M to send
    • Treat message bits as coefficients of n-bit polynomial (n-1 degree polynomial) – M(x)
    • Append “r” bits called the CRC-bits to the end of the message such that the new message M’ of length “n+r”-bits is divisible by a generator polynomial G(x)
    • G(x) is well known and agreed upon in advance
      • CRC-16 = x16 + x15 + x2+ 1 (used in HDLC)
      • CRC-CCITT = x16 + x12 + x5 + 1
      • CRC-32 = x32 + x26 + x23 + x22 + x16 + x12 + x11 + x10 + x8 + x7 + x5 + x4 + x2 + x + 1 (used in Ethernet)
    • Send M’(x), which is divisible by G(x), to the receiver
cyclic redundancy checks crc1
Cyclic Redundancy Checks (CRC)
  • Given n-bit message M, how to compute M’ of length n+r-bits?
    • Think of n-bit message M as being represented by a n-1 degree polynomial, where the value of each bit (0 or 1) is the coefficient for each term in the polynomial.
      • E.g., the message M(x) = 10011010 corresponds to the polynomial x^7 + x^4 + x^3 + x
    • Consider the generator polynomial G(x) of degree “k”
      • Suppose G(x) = x^3 + 1. In this case k = 3.
    • Multiply M(x) by x^k to obtain P(x) of degree n-1+k
    • Do polynomial division of P(x) by G(x) to obtain remainder R(x)
    • Add R(x) to P(x) to obtain M’(x)
    • Notice that M’(x) is divisible by G(x), i.e., the remainder is 0
example crc computation
Example CRC Computation

Data:

101110

Generator Polynomial:

x3 + 1 (1001)

Send:

101110011

Data

R

crc receiver algorithm
CRC - Receiver Algorithm
  • Assume that the receiver received T(x) of length n+k-1 bits. What does the receiver do with this message?
    • Assume T(x) = M’(x) + E(x)
    • Divide T(x) by G(x) to obtain the remainder R(x)
    • If R(x) is 0, two things are possible
      • There is no error in the message, i.e., E(x) = 0
      • E(x) is divisible by G(x)
    • A clever choice of G(x) can make the second case extremely rare so that we can safely conclude that an R(x) = 0 result means that the message is error free and non-zero means that an error has occurred
forward error correction
Forward error correction
  • FEC
    • Use error correcting codes to repair losses
    • Add redundant information which allows receiver to correct bit errors
    • Requires knowledge at information and coding theory and is out of the scope of this course
framing

Datagram

LL Frame

H

Datagram

H

Datagram

EDC

Add Framing

Information

LL

Encode Bits

to the Link

PL

Link

Framing
  • Up until now, we have added LL header to the data and appended a EDC to the end to form a LL frame
  • This frame will be transmitted to the destination (receiver)
  • Problem: How would the receiver determine where the frame bits start and where they end as the adapter is receiving a sequence of bits from the link?
    • Called the framing problem
    • Idea: Add some extra framing information before sending the frame
framing1
Framing
  • Several solutions exist to solve the framing problem. We will look at a few
    • Byte counting Approach – DDCMP
      • Before sending the frame bits, send # of bytes in the frame first
    • Sentinel Approach - BISYNC, IMP-IMP, HDLC, PPP
      • Denote the end (and maybe the beginning) of the frame by a special char, called the sentinel char or flag
      • Q: What if the sentinel char appears in the data?
        • Byte stuff the control chars
        • Bit stuff data sequence
    • Physical Layer Coding Violations – Ethernet, 802 LANs
      • Make use of physical layer. Use an encoding sequence that is not used for encoding data to mark the end of a frame
      • Requires a dependence between LL & PL
byte counting approach ddcmp

Header

SYN

SYN

Class

Count

CRC

Byte-Counting Approach: DDCMP
  • Count specifies the size of the frame body
  • Problem: What if a transmission error corrupts the count field?
    • Solution:
      • Collect as much data as the count field, do a CRC. If the CRC is bad, then discard the frame and wait until the next SYN char to start collecting the bytes for the next frame
      • Resynchronization can fail if start of frame character is inside packets as well BUT will eventually sync up
    • Not a very popular technique

8

8

8

42

16

14

Body (variable size)

DDCMP frame format

sentinel approach ppp

0x7e

PPP Header Fields

0x7e

CRC

Sentinel Approach: PPP

8

16

8

  • Each frame starts and ends with the sentinel char 0x7e
  • Uses “byte-stuffing” to solve the problem of 0x7e appearing inside the body
    • Sender:
      • Adds (“stuffs”) extra < 01111101> = 0x7d byte before each <01111110> = 0x7e data byte
      • 0x7d is also escaped with a 0x7d
    • Receiver:
      • Two 01111101 = 0x7d bytes in a row: discard first byte, continue data reception
      • 0x7d followed by 0x7e: discard first byte, continue data reception
      • Single 01111110 = 0x7e: flag byte – End of frame

Body (variable size)

PPP frame format

byte stuffing in ppp example

flag byte

pattern

in data

to send

flag byte pattern plus

stuffed byte in transmitted data

Byte Stuffing in PPP: Example
hdlc bit stuffing

Header

CRC

HDLC – Bit Stuffing
  • Each frame starts and ends with the sentinel char 0x7e (0x01111110)
  • When the link is idle, 0x7e is transmitted to keep the clocks synchronized
  • Uses “bit-stuffing” to solve the problem of 0x7e appearing inside the body
    • Sender:
      • A 0 bit is stuffed after any 5 consecutive 1’s, i.e., 11111
    • Receiver:
      • After reception of 5 consecutive 1’s, examine the 6th bit
        • If 6th bit is 0, remove it (stuffed bit)
        • If 6th bit is 1 and 7th bit is 0 (end of frame)
        • If 6th bit is 1 and 7th bit is 1 (sender is indicating an abort condition)

Body (variable size)

0x7e

0x7e

HDLC frame format

physical layer coding violations
Physical Layer Coding Violations
  • Make use of physical layer encoding scheme.
    • Use an encoding sequence that is not used for encoding data to mark the end of a frame
  • Only applicable to links in which the encoding on the physical medium contains some redundancy
  • Used by Ethernet and IEEE 802 LANs
  • No need for byte/bit stuffing (not even length field!)
    • More efficient use of link bandwidth
  • But, requires a dependence between LL & PL
    • LL requires a specific PL to run.
    • That’s why Ethernet and IEEE LAN specs combine LL and PL specs together
recap

Datagram

LL Frame

H

Datagram

H

Datagram

EDC

Add Framing

Information

LL

Encode Bits

to the Link

PL

Link

Recap
  • Up until now, we have a NL datagram coming into to LL
    • LL adds LL header (H)
      • Done in software
    • LL computes EDC
      • Hardware (Ethernet) or Software (PPP)
    • LL adds framing info (if necessary)
      • Hardware or Software (PPP)
    • PL encodes the bits to the link
      • Hardware
  • This algorithm is enough for a point-to-point link.
  • What about broadcast links?
      • Next
