Presentation Transcript

  1. Course Overview PART I: overview material 1 Introduction 2 Language processors (tombstone diagrams, bootstrapping) 3 Architecture of a compiler PART II: inside a compiler 4 Syntax analysis 5 Contextual analysis 6 Runtime organization 7 Code generation PART III: conclusion • Interpretation • Review

  2. Systematic Development of Rec. Descent Parser (1) Express grammar in EBNF (2) Grammar Transformations: Left factorization and Left recursion elimination (3) Create a parser class with • private variable currentToken • methods to call the scanner: accept and acceptIt (4) Implement a public method for main function to call: • public parsemethod that • fetches the first token from the scanner • calls parseS (where S is start symbol of the grammar) • verifies that scanner next produces the end–of–file token (5) Implement private parsing methods: • add private parseN method for each non terminal N

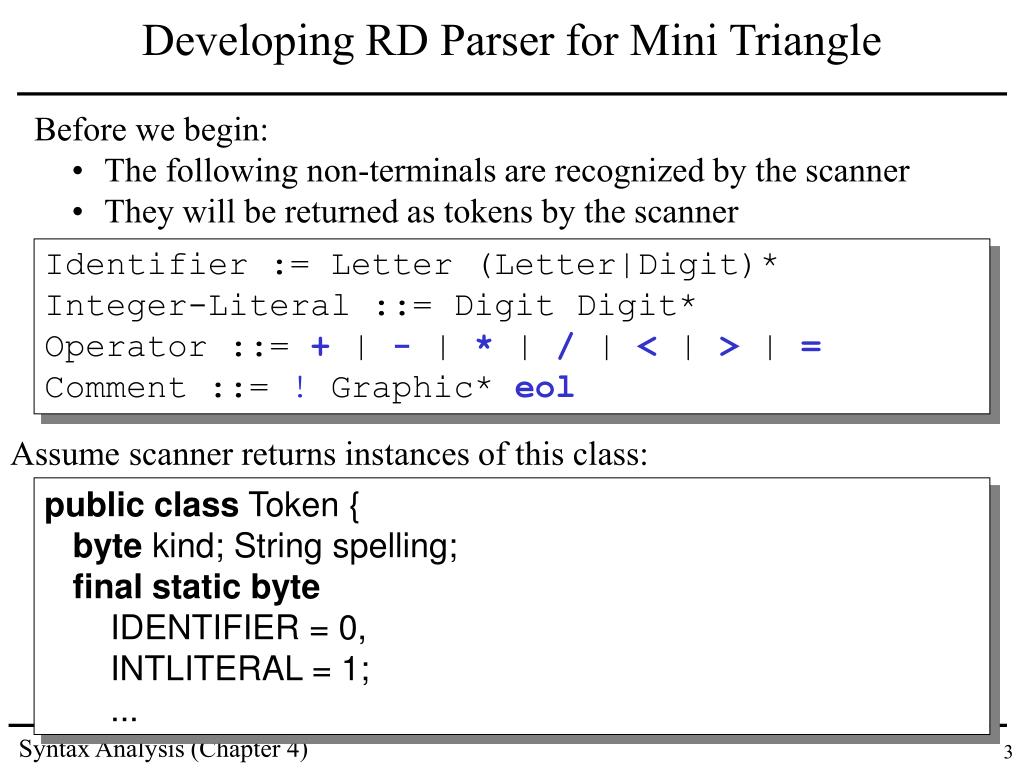

  3. Developing RD Parser for Mini Triangle • Before we begin: • The following non-terminals are recognized by the scanner • They will be returned as tokens by the scanner Identifier := Letter (Letter|Digit)* Integer-Literal ::= Digit Digit* Operator ::= + | - | * | / | < | > | = Comment ::= ! Graphic* eol Assume scanner returns instances of this class: public class Token { byte kind; String spelling; final static byte IDENTIFIER = 0, INTLITERAL = 1; ...

  4. Left recursion elimination needed Left factorization needed (1)&(2) Developing RD Parser for Mini Triangle Program ::= single-Command Command ::= single-Command | Command ; single-Command single-Command ::= V-name :=Expression | Identifier ( Expression ) | ifExpression thensingle-Command elsesingle-Command | while Expression dosingle-Command | letDeclaration insingle-Command | beginCommandend V-name ::= Identifier ...

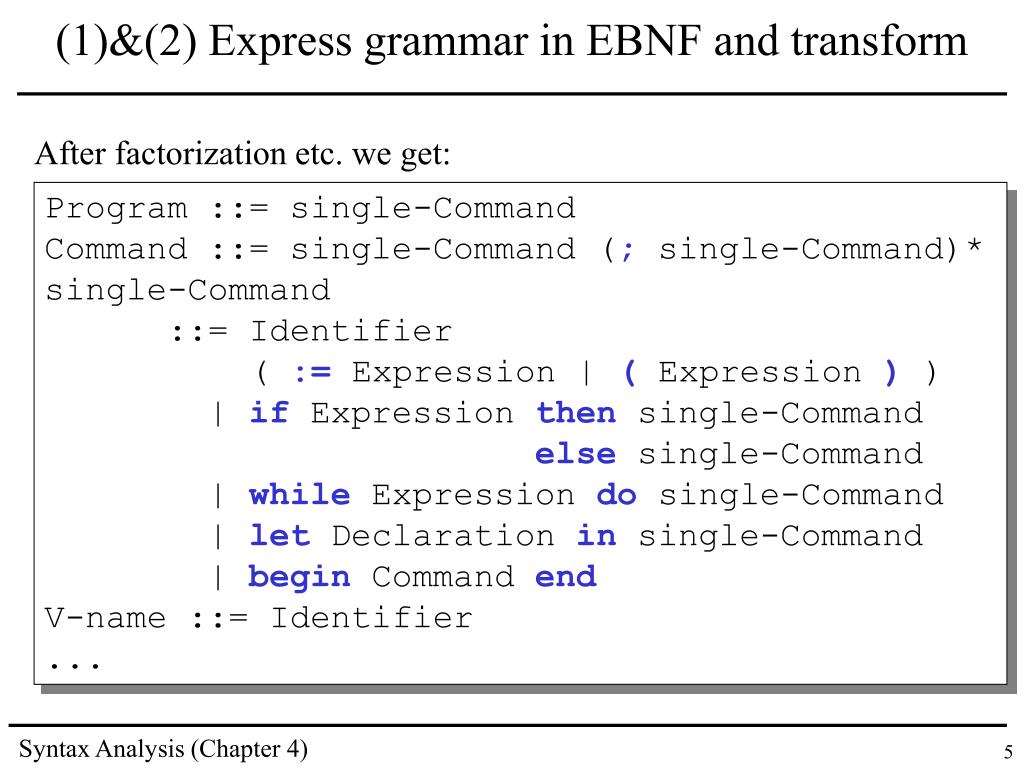

  5. (1)&(2) Express grammar in EBNF and transform After factorization etc. we get: Program ::= single-Command Command ::= single-Command (; single-Command)* single-Command ::= Identifier ( :=Expression | ( Expression ) ) | ifExpression thensingle-Command elsesingle-Command | while Expression dosingle-Command | letDeclaration insingle-Command | beginCommandend V-name ::= Identifier ...

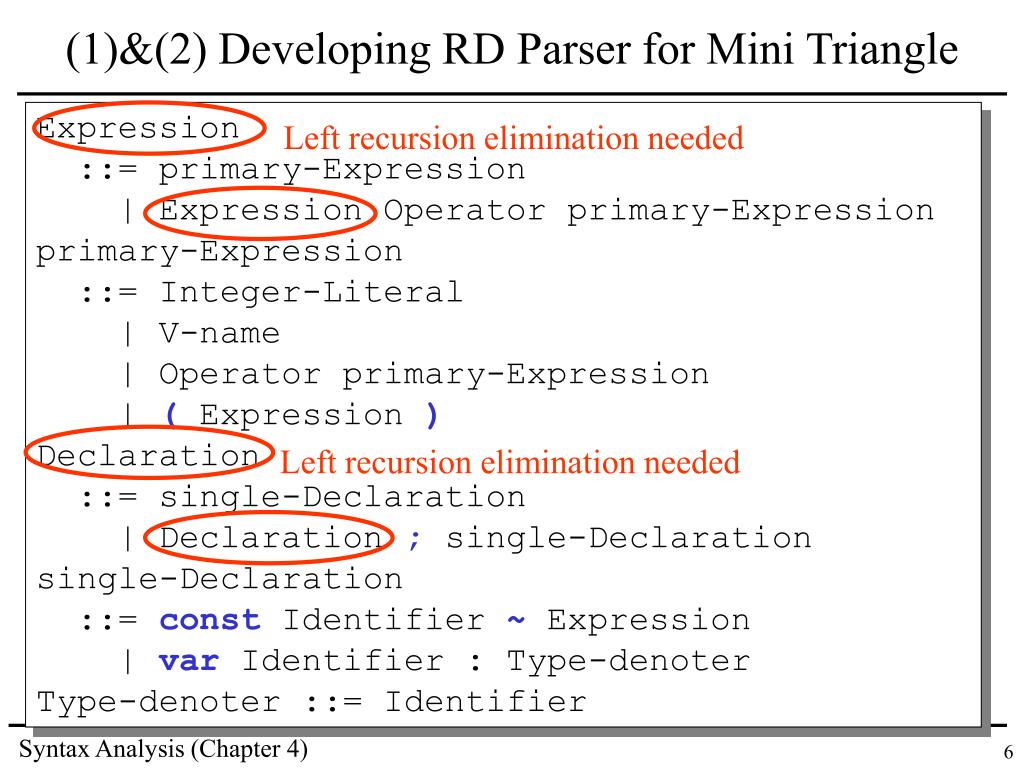

  6. (1)&(2) Developing RD Parser for Mini Triangle Expression ::= primary-Expression | Expression Operator primary-Expression primary-Expression ::= Integer-Literal | V-name | Operator primary-Expression | ( Expression ) Declaration ::= single-Declaration | Declaration ;single-Declaration single-Declaration ::= constIdentifier ~ Expression | var Identifier : Type-denoter Type-denoter ::= Identifier Left recursion elimination needed Left recursion elimination needed

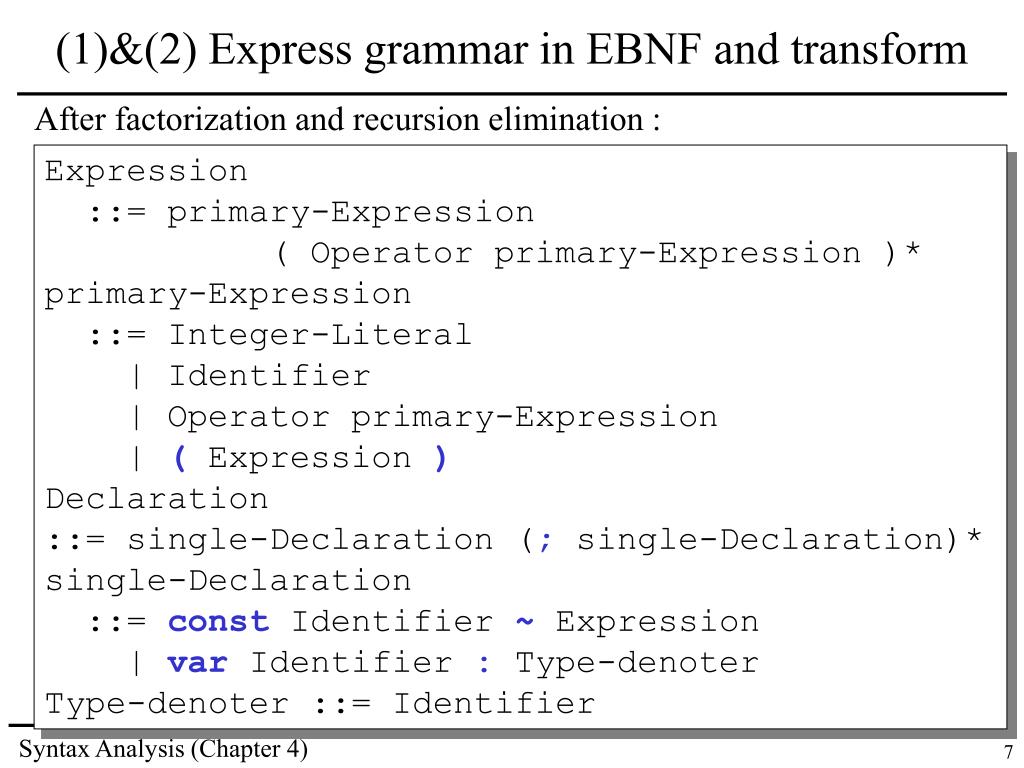

  7. (1)&(2) Express grammar in EBNF and transform After factorization and recursion elimination : Expression ::= primary-Expression ( Operator primary-Expression )* primary-Expression ::= Integer-Literal | Identifier | Operator primary-Expression | ( Expression ) Declaration ::= single-Declaration (; single-Declaration)* single-Declaration ::= constIdentifier ~ Expression | var Identifier :Type-denoter Type-denoter ::= Identifier

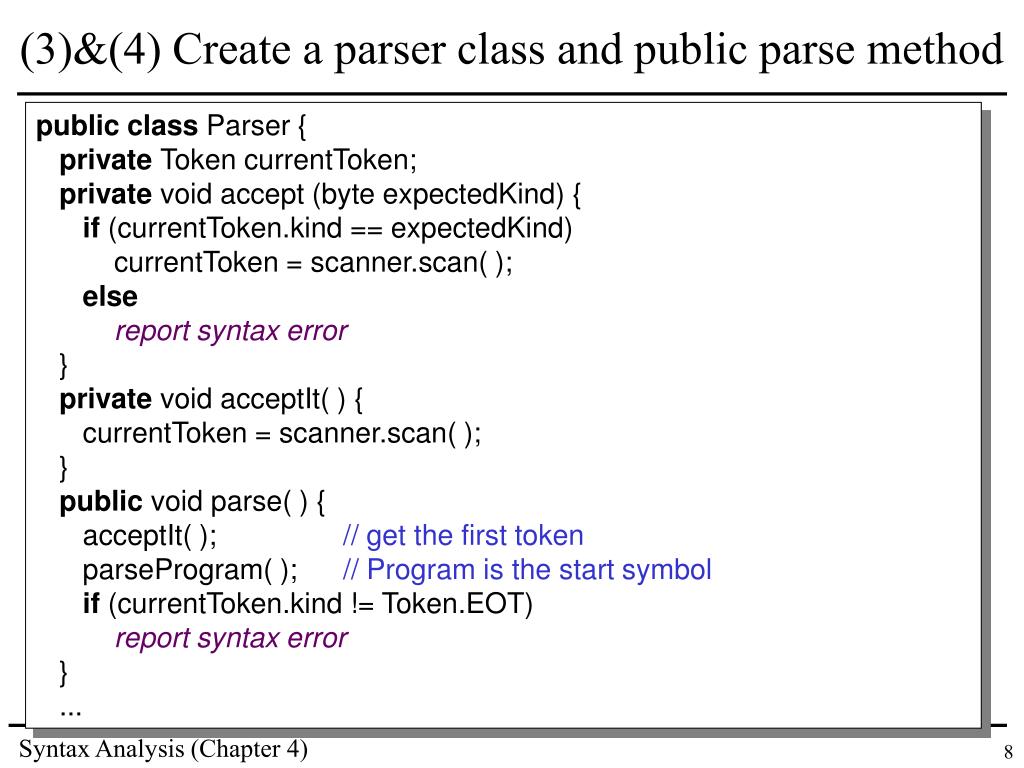

  8. (3)&(4) Create a parser class and public parse method public class Parser { private Token currentToken; private void accept (byte expectedKind) { if (currentToken.kind == expectedKind) currentToken = scanner.scan( ); else report syntax error } private void acceptIt( ) { currentToken = scanner.scan( ); } public void parse( ) { acceptIt( ); // get the first token parseProgram( ); // Program is the start symbol if (currentToken.kind != Token.EOT) report syntax error } ...

  9. (5) Implement private parsing methods Program ::= single-Command private void parseProgram( ) { parseSingleCommand( ); }

  10. (5) Implement private parsing methods single-Command ::= Identifier ( :=Expression | ( Expression ) ) | ifExpression thensingle-Command elsesingle-Command | ... other alternatives ... private void parseSingleCommand( ) { switch (currentToken.kind) { case Token.IDENTIFIER : ... case Token.IF : ... ... other cases ... default: report a syntax error } }

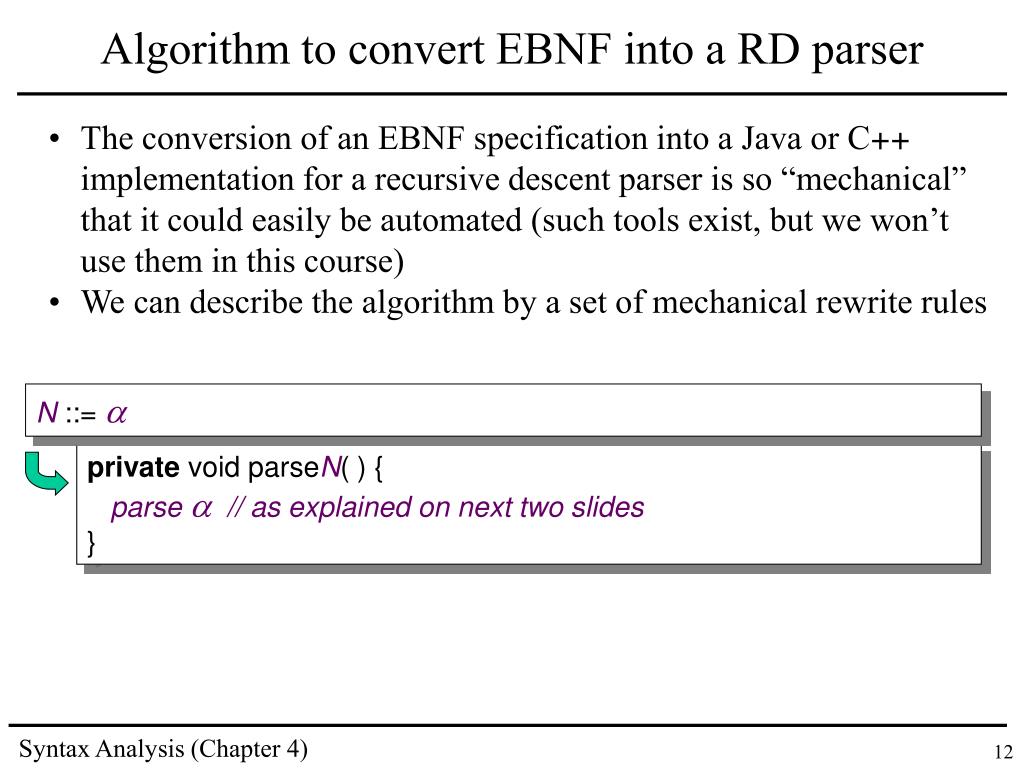

  11. N ::=  private void parseN( ) { parse  // as explained on next two slides } Algorithm to convert EBNF into a RD parser • The conversion of an EBNF specification into a Java or C++ implementation for a recursive descent parser is so “mechanical” that it could easily be automated (such tools exist, but we won’t use them in this course) • We can describe the algorithm by a set of mechanical rewrite rules

  12. parsetwhere t is a terminal accept(t); parseNwhere N is a non-terminal parseN( ); parsee // a dummy statement parseX Y parseX parseY Algorithm to convert EBNF into a RD parser

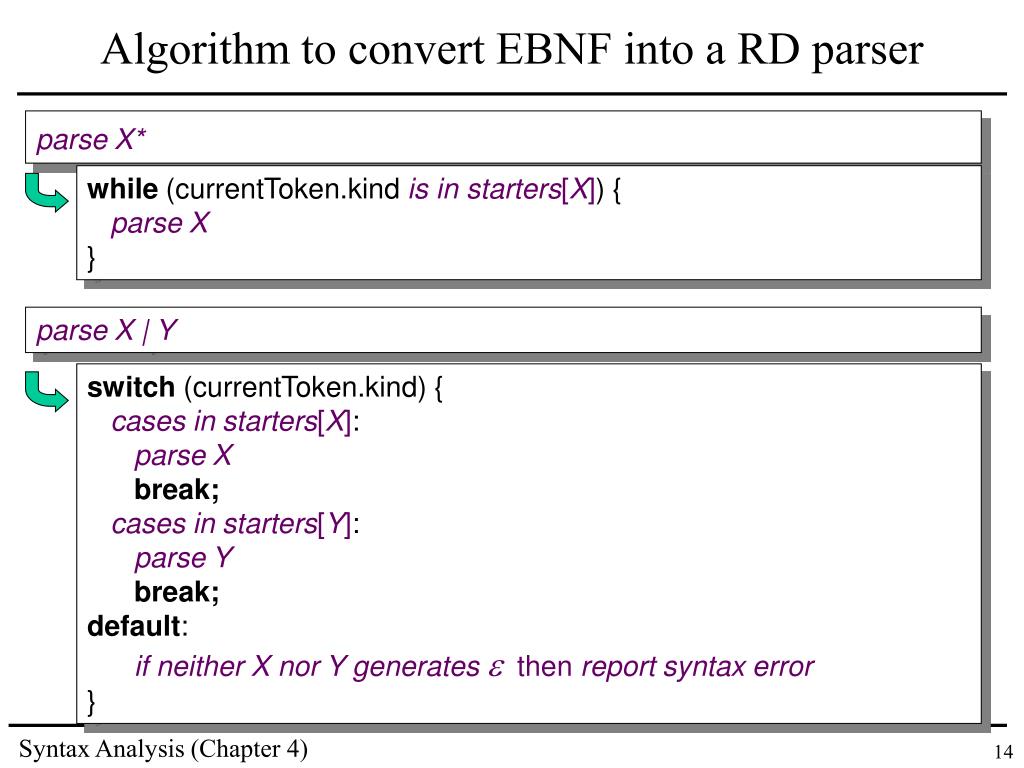

  13. parseX* while (currentToken.kind is in starters[X]) { parseX } parseX | Y switch (currentToken.kind) { cases instarters[X]: parseX break; cases instarters[Y]: parseY break; default: if neither X nor Y generates  thenreport syntax error } Algorithm to convert EBNF into a RD parser

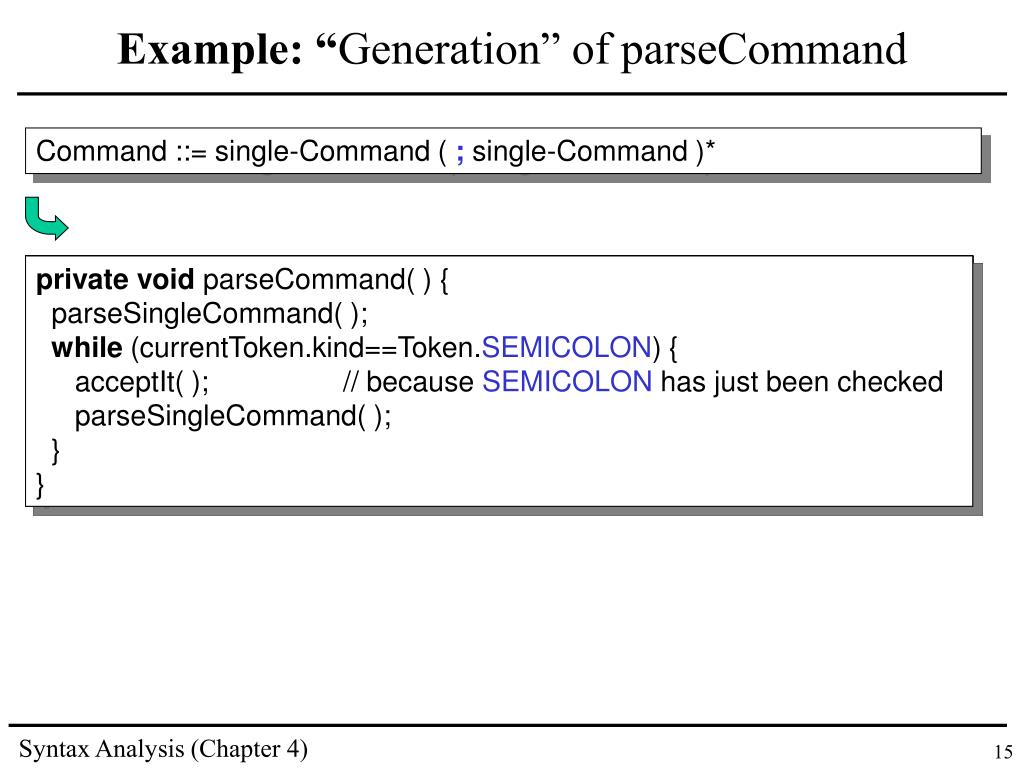

  14. Example: “Generation” of parseCommand Command ::= single-Command ( ;single-Command )* private void parseCommand( ) { parse single-Command (;single-Command )* } private void parseCommand( ) { parse single-Command parse (;single-Command )* } private void parseCommand( ) { parseSingleCommand( ); parse (;single-Command )* } private void parseCommand( ) { parseSingleCommand( ); while (currentToken.kind==Token.SEMICOLON) { parse;single-Command } } private void parseCommand( ) { parseSingleCommand( ); while (currentToken.kind==Token.SEMICOLON) { parse; parse single-Command } } private void parseCommand( ) { parseSingleCommand( ); while (currentToken.kind==Token.SEMICOLON) { acceptIt( );// because SEMICOLON has just been checked parseSingleCommand( ); } }

  15. Example: Generation of parseSingleDeclaration single-Declaration ::= const Identifier ~Expression | varIdentifier : Type-denoter private void parseSingleDeclaration( ) { switch (currentToken.kind) { case Token.CONST: acceptIt( ); parseIdentifier( ); accept(Token.IS); parseExpression( ); case Token.VAR: acceptIt( ); parseIdentifier( ); accept(Token.COLON); parseTypeDenoter( ); default: report syntax error } } private void parseSingleDeclaration( ) { switch (currentToken.kind) { case Token.CONST: parse const parse Identifier parse ~ parse Expression case Token.VAR: parse var Identifier : Type-denoter default: report syntax error } } private void parseSingleDeclaration( ) { switch (currentToken.kind) { case Token.CONST: acceptIt( ); parseIdentifier( ); accept(Token.IS); parseExpression( ); case Token.VAR: parse var Identifier : Type-denoter default: report syntax error } } private void parseSingleDeclaration( ) { parse const Identifier ~ Expression | var Identifier : Type-denoter } private void parseSingleDeclaration( ) { switch (currentToken.kind) { case Token.CONST: parse const Identifier ~ Expression case Token.VAR: parse var Identifier : Type-denoter default: report syntax error } }

  16. LL 1 Grammars • The presented algorithm to convert EBNF into a parser does not work for all possible grammars. • It only works for so called “LL 1” grammars. • Basically, an LL 1 grammar is a grammar which can be parsed with a top-down parser with a lookahead (in the input stream of tokens) of one token. • What grammars are LL 1? How can we recognize that a grammar is (or is not) LL 1? => We can deduce the necessary conditions from the parser generation algorithm.

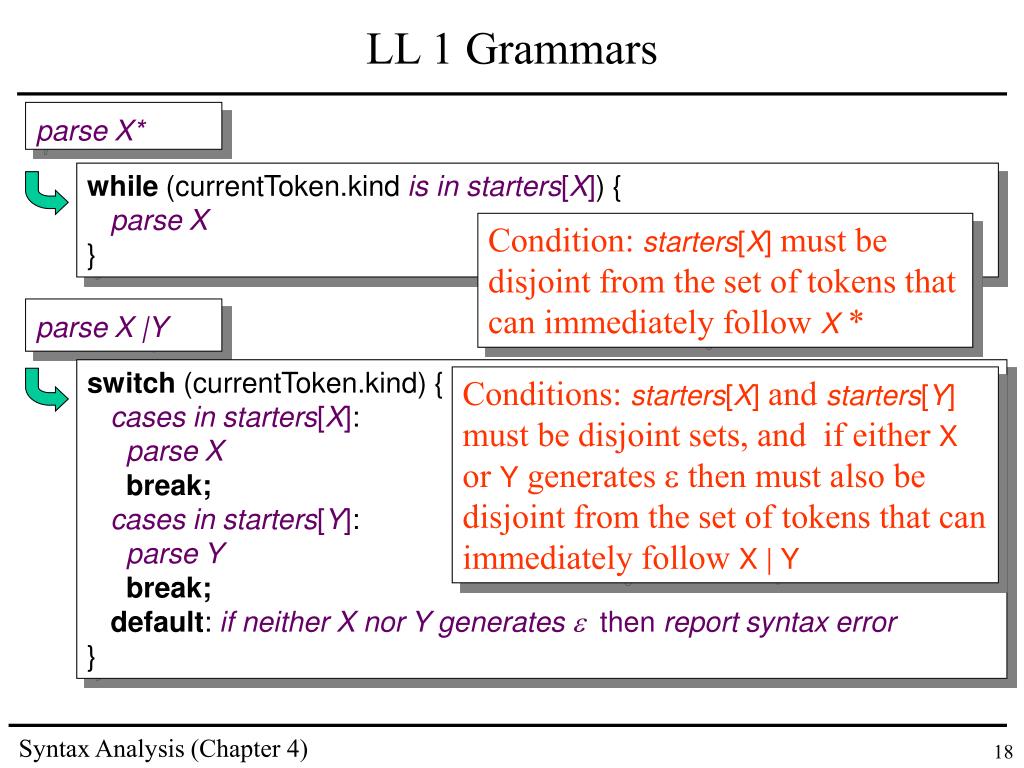

  17. LL 1 Grammars parseX* while (currentToken.kind is in starters[X]) { parseX } Condition: starters[X] must be disjoint from the set of tokens that can immediately follow X * parseX |Y switch (currentToken.kind) { cases instarters[X]: parseX break; cases instarters[Y]: parseY break; default: if neither X nor Y generates  thenreport syntax error } Conditions: starters[X] and starters[Y] must be disjoint sets, and if either X or Y generates  then must also be disjoint from the set of tokens that can immediately follow X | Y

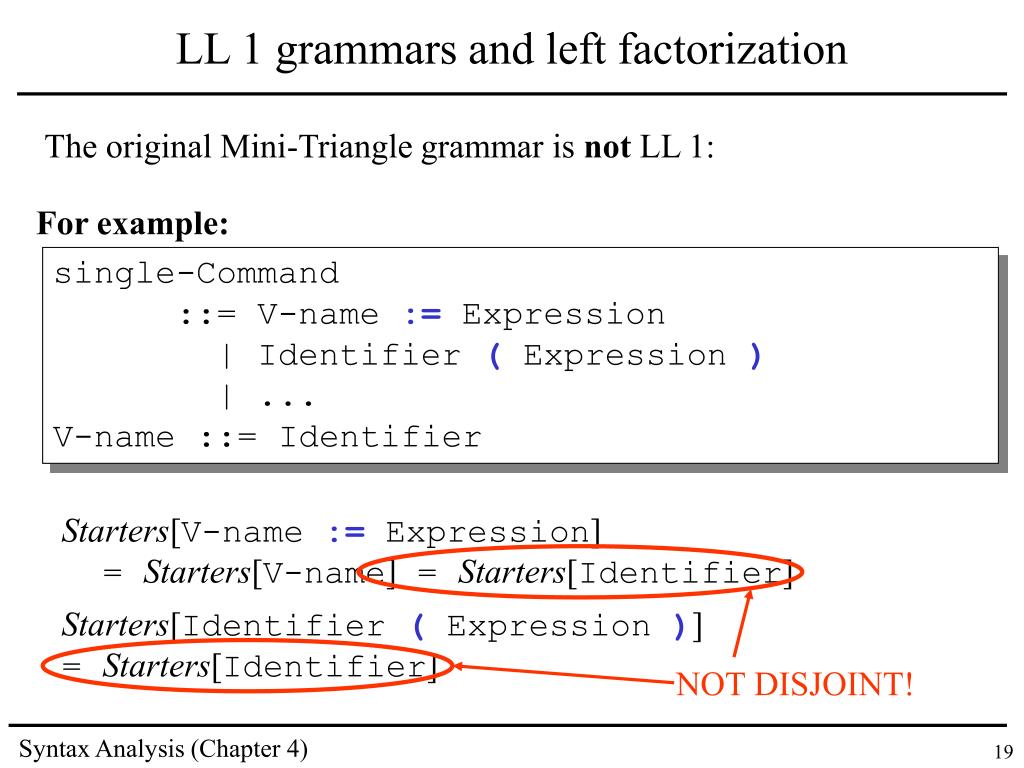

  18. LL 1 grammars and left factorization The original Mini-Triangle grammar is not LL 1: For example: single-Command ::= V-name :=Expression | Identifier ( Expression ) | ... V-name ::= Identifier Starters[V-name :=Expression] = Starters[V-name] = Starters[Identifier] Starters[Identifier ( Expression )] = Starters[Identifier] NOT DISJOINT!

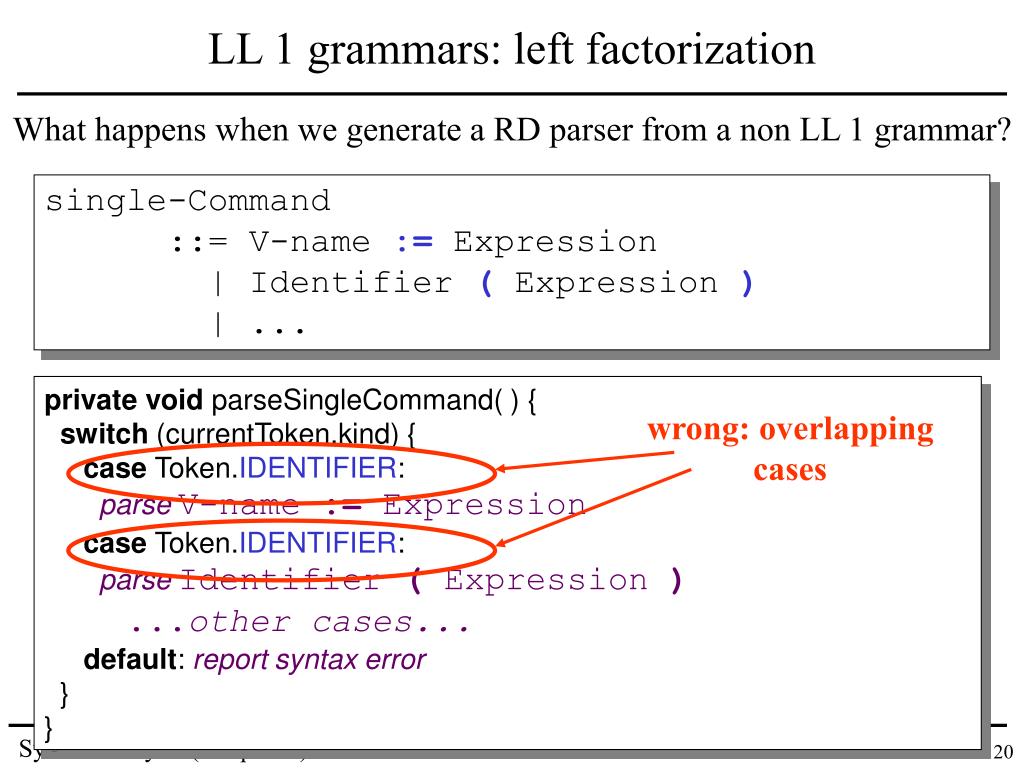

  19. wrong: overlapping cases LL 1 grammars: left factorization What happens when we generate a RD parser from a non LL 1 grammar? single-Command ::= V-name :=Expression | Identifier ( Expression ) | ... private void parseSingleCommand( ) { switch (currentToken.kind) { case Token.IDENTIFIER: parse V-name := Expression case Token.IDENTIFIER: parse Identifier ( Expression ) ...other cases... default: report syntax error } }

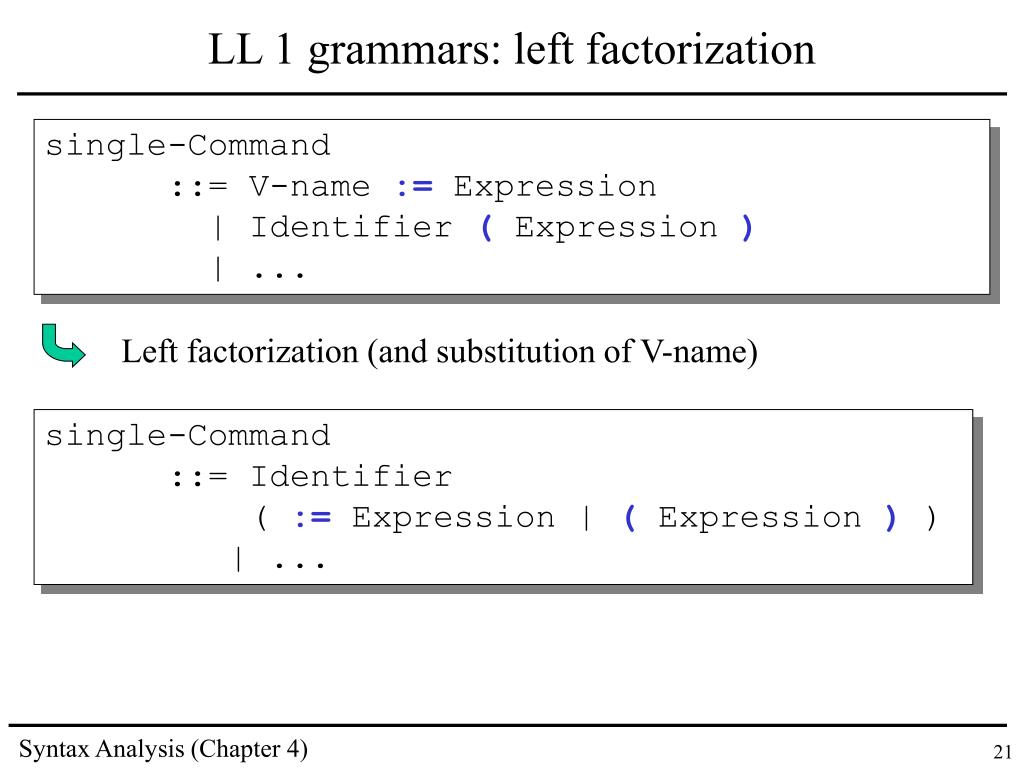

  20. Left factorization (and substitution of V-name) LL 1 grammars: left factorization single-Command ::= V-name :=Expression | Identifier ( Expression ) | ... single-Command ::= Identifier ( :=Expression | ( Expression ) ) | ...

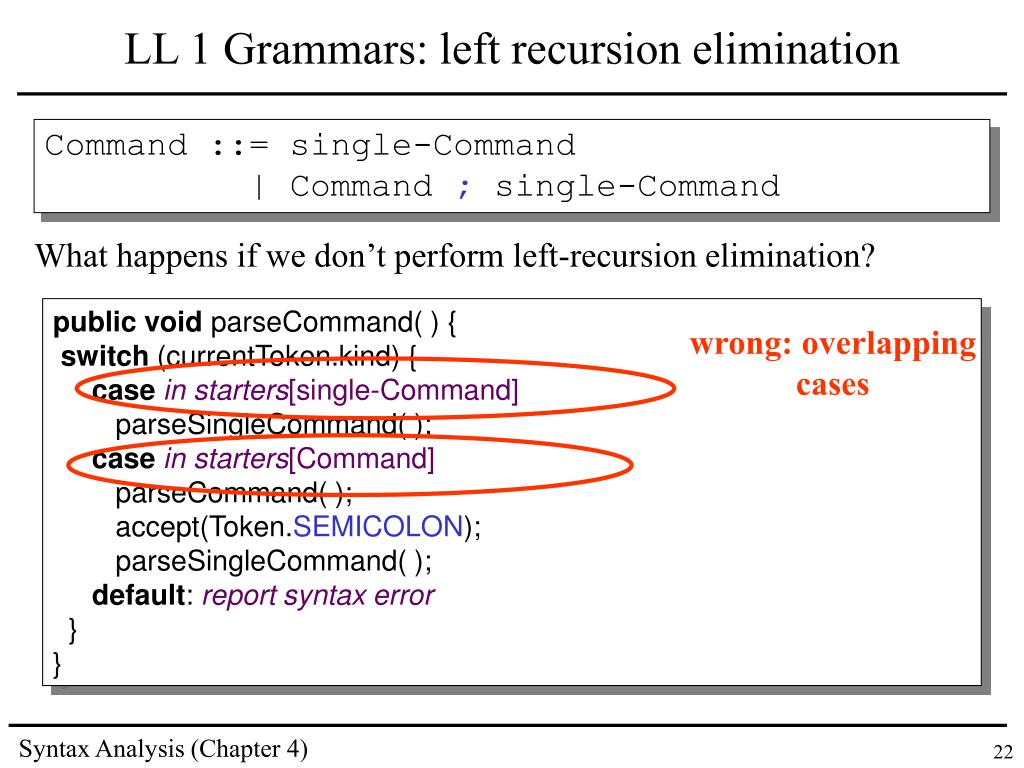

  21. LL 1 Grammars: left recursion elimination Command ::= single-Command | Command ;single-Command What happens if we don’t perform left-recursion elimination? public void parseCommand( ) { switch (currentToken.kind) { case in starters[single-Command] parseSingleCommand( ); case in starters[Command] parseCommand( ); accept(Token.SEMICOLON); parseSingleCommand( ); default: report syntax error } } wrong: overlapping cases

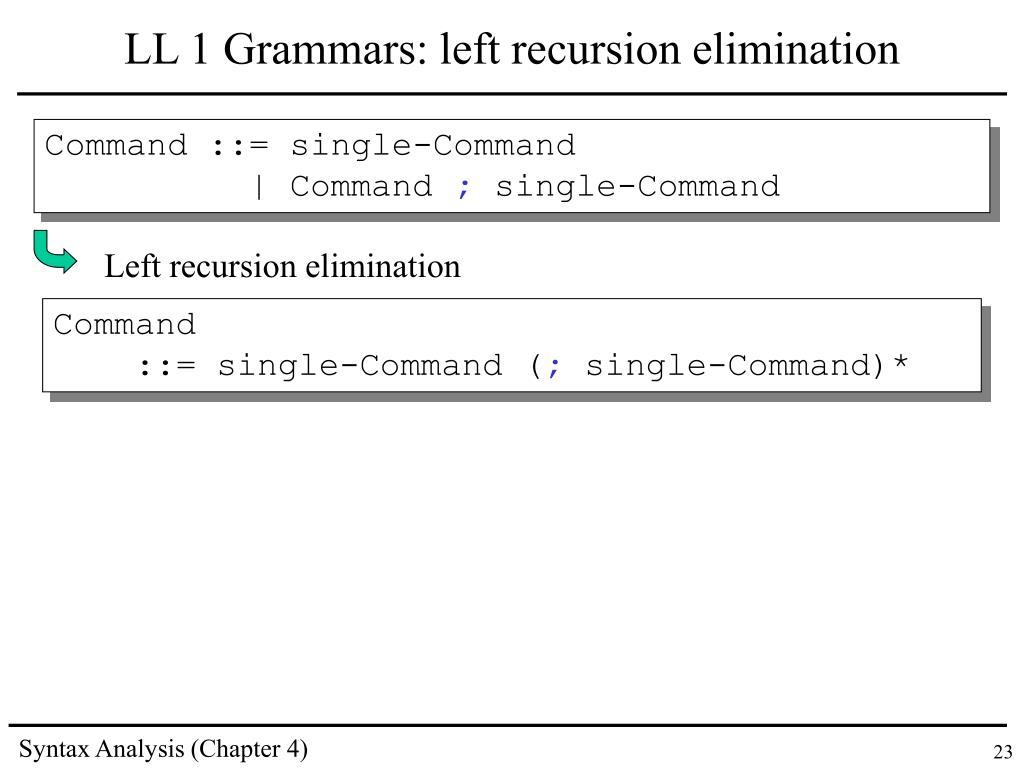

  22. LL 1 Grammars: left recursion elimination Command ::= single-Command | Command ;single-Command Left recursion elimination Command ::= single-Command (;single-Command)*

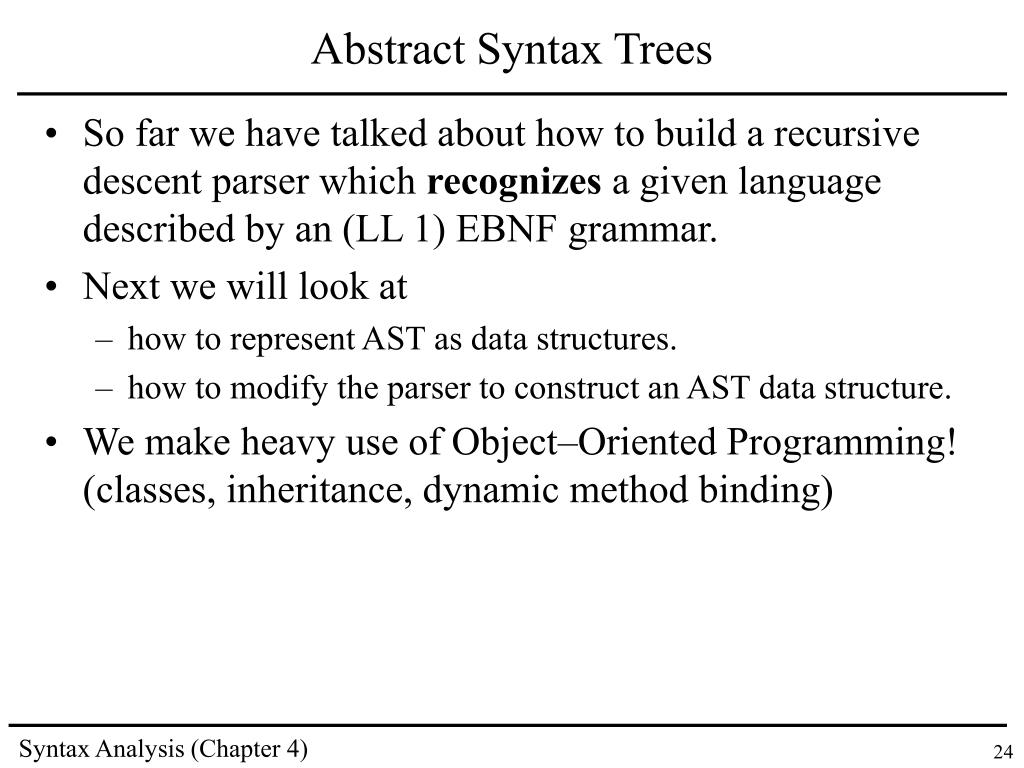

  23. Abstract Syntax Trees • So far we have talked about how to build a recursive descent parser which recognizes a given language described by an (LL 1) EBNF grammar. • Next we will look at • how to represent AST as data structures. • how to modify the parser to construct an AST data structure. • We make heavy use of Object–Oriented Programming! (classes, inheritance, dynamic method binding)
