  1. Astrophotography for Beginners Interactive Workshop Neil Morley Thanks also to Nigel Evans, Mike Harlow, James Appleton, Ric Pecce, and Nigel Golfin

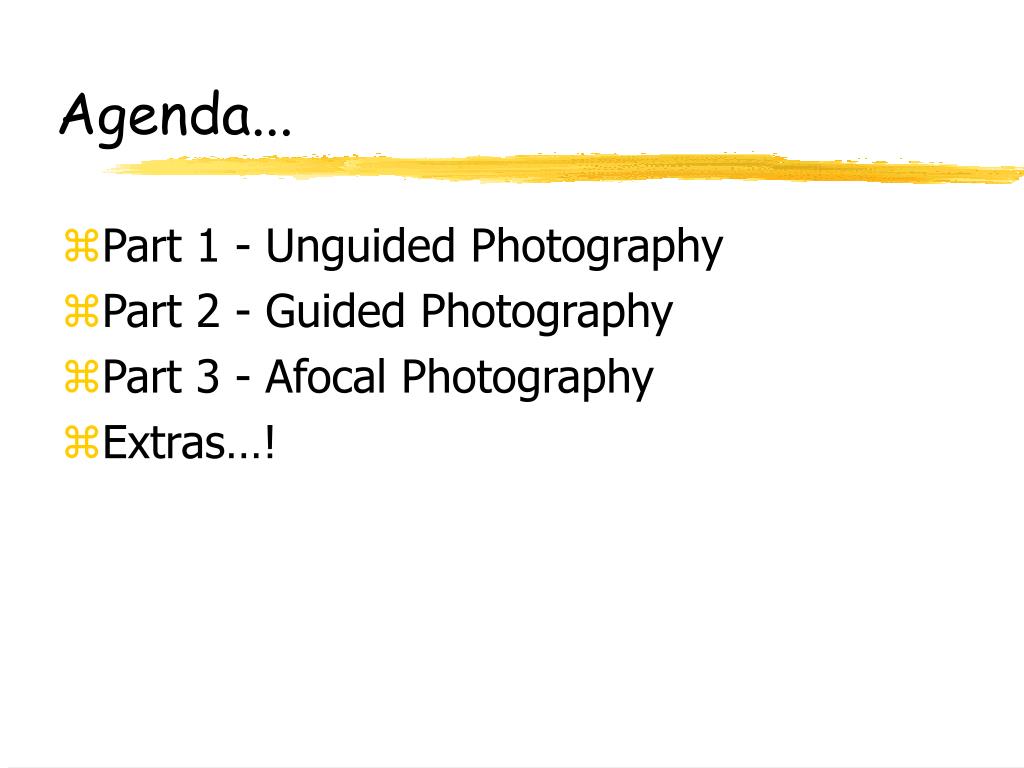

  2. Agenda... • Part 1 - Unguided Photography • Part 2 - Guided Photography • Part 3 - Afocal Photography • Extras…!

  3. Whats Covered... • Equipment • Processing and developing hints • Unguided and guided camera shots • Afocal shots using a telescope • Other hints and tips • Mistakes!

  4. Not Covered…! • Advanced processing techniques Film Doping (no drugs!) Push Processing • CCD imaging • Advanced telescope photography Eyepiece Projection Prime Focus

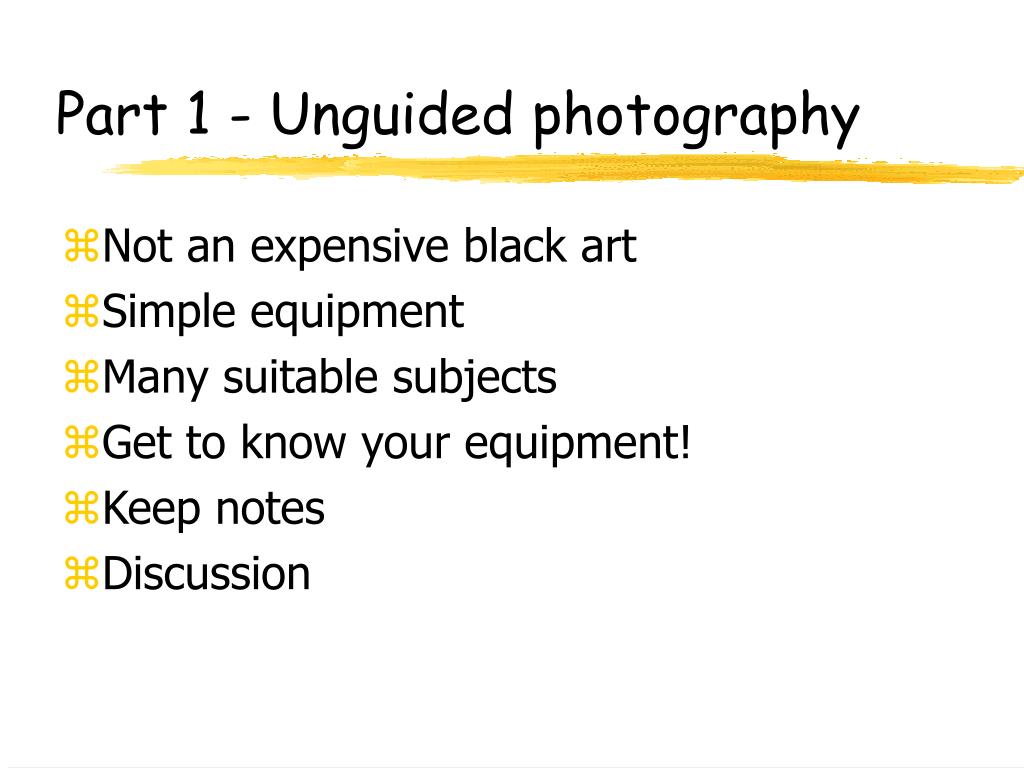

  5. Part 1 - Unguided photography • Not an expensive black art • Simple equipment • Many suitable subjects • Get to know your equipment! • Keep notes • Discussion

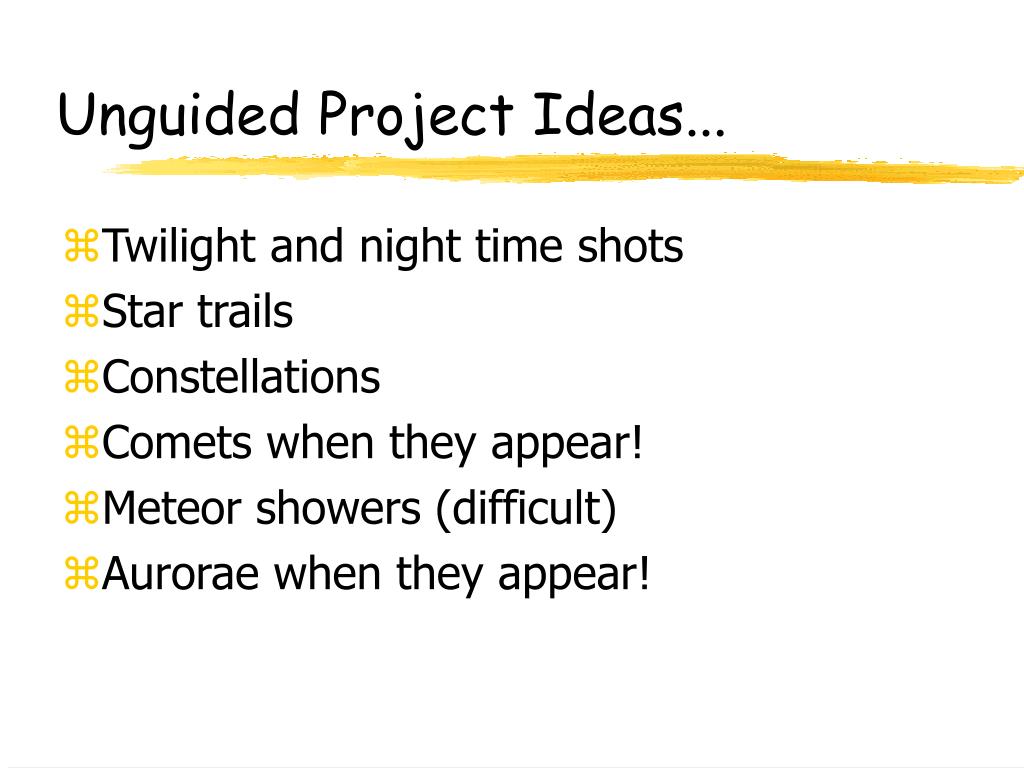

  6. Unguided Project Ideas... • Twilight and night time shots • Star trails • Constellations • Comets when they appear! • Meteor showers (difficult) • Aurorae when they appear!

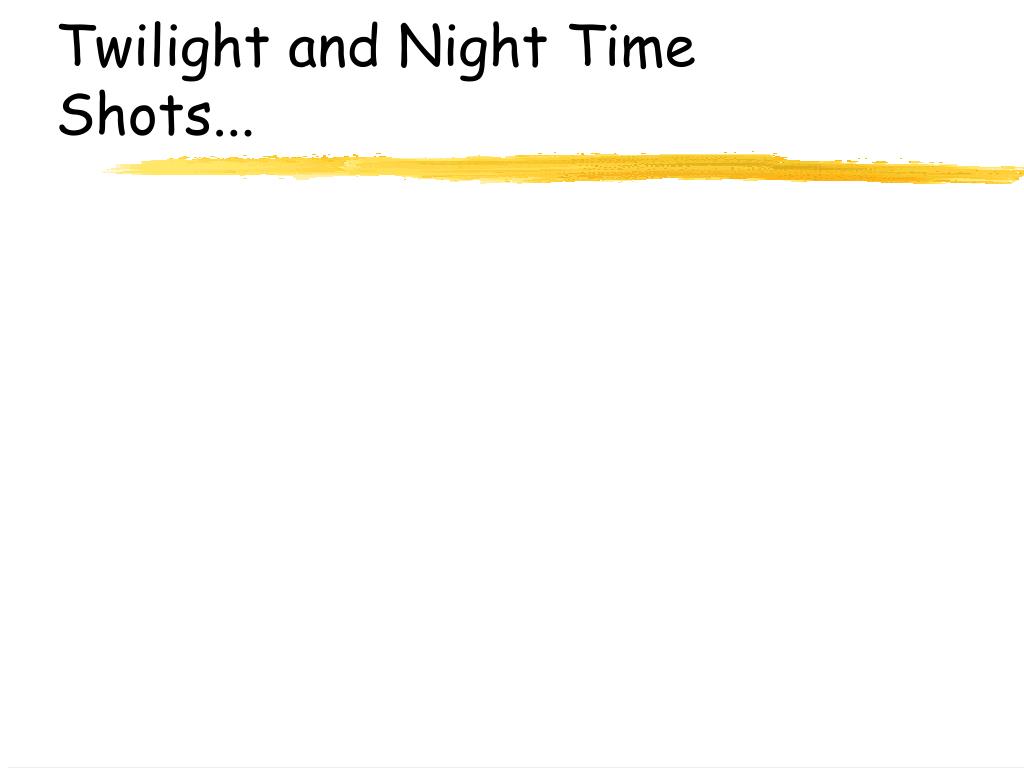

  7. Twilight and Night Time Shots...

  8. Shotley Peninsula58 mm, F2, 2 sec, Kodak Gold ASA 200

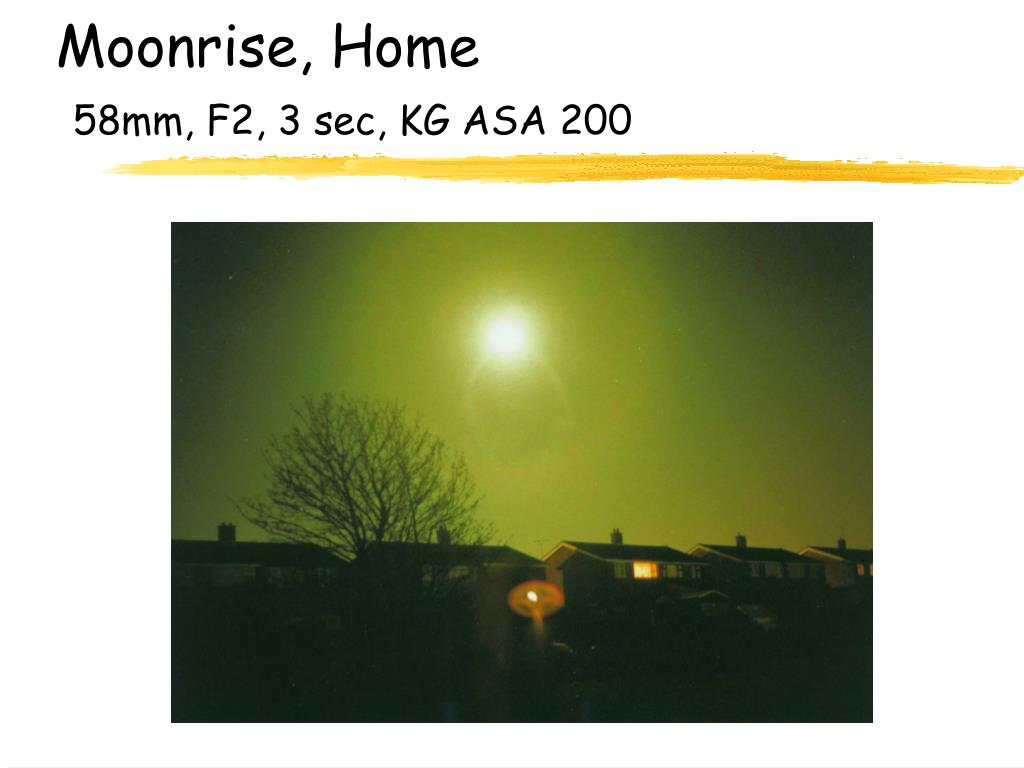

  9. Moonrise, Home58mm, F2, 3 sec, KG ASA 200

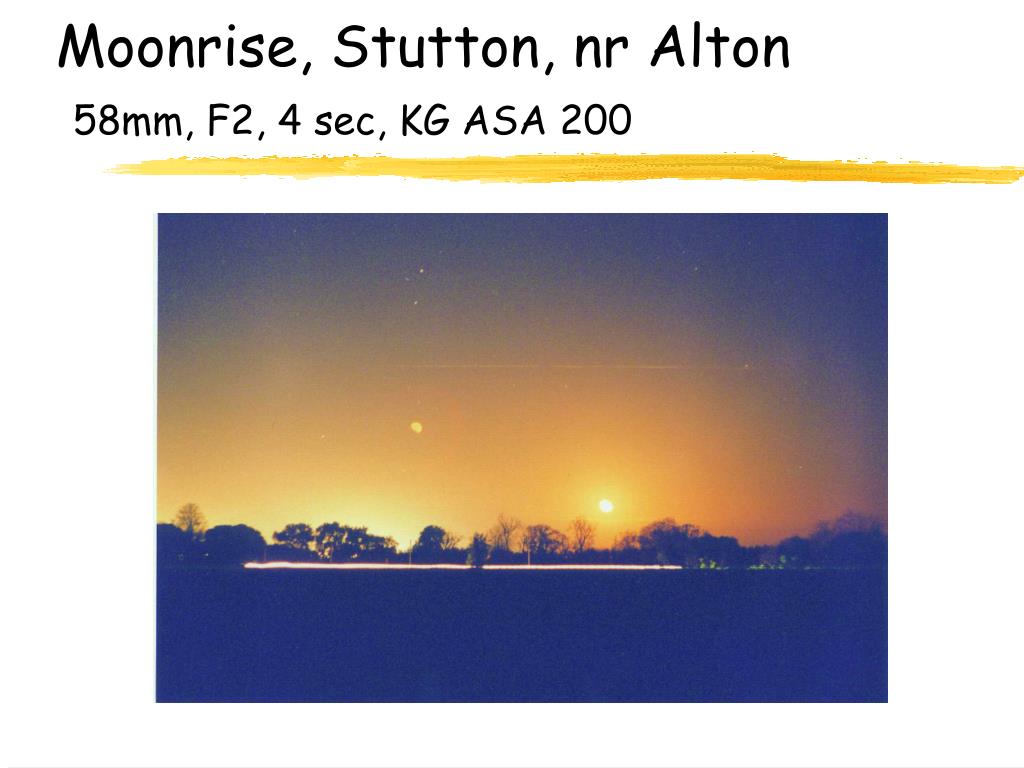

  10. Moonrise, Stutton, nr Alton58mm, F2, 4 sec, KG ASA 200

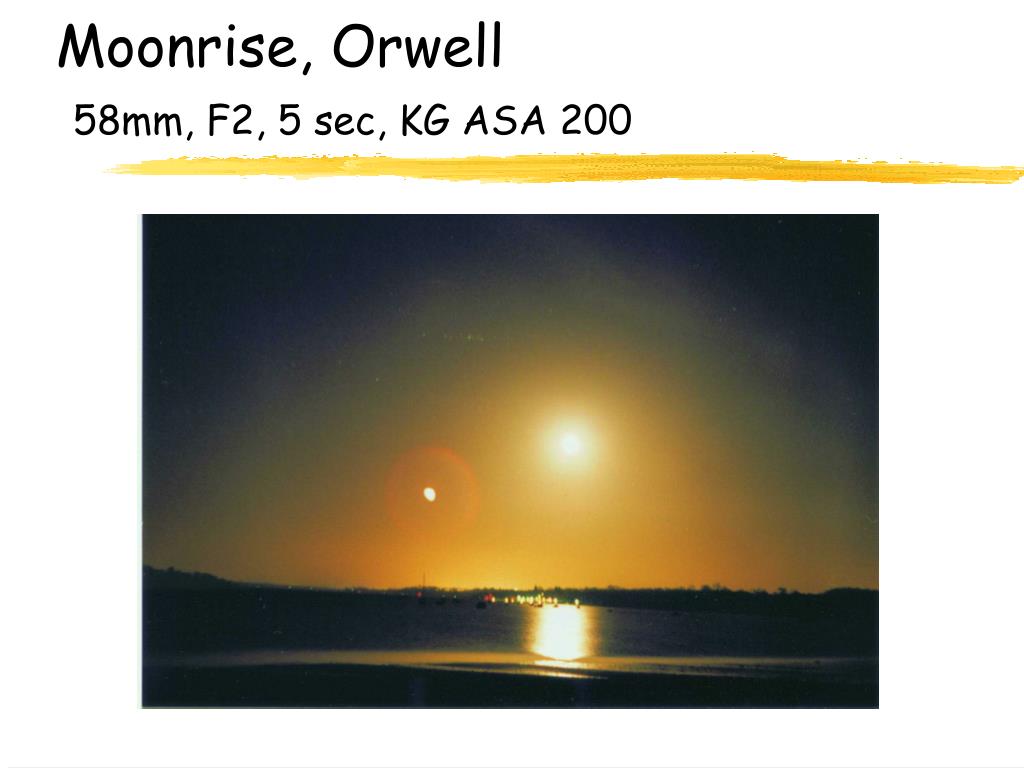

  11. Moonrise, Orwell58mm, F2, 5 sec, KG ASA 200

  12. Orwell Bridge58mm, F2, 20 sec, KG ASA 200

  13. Nice piccy Ted?

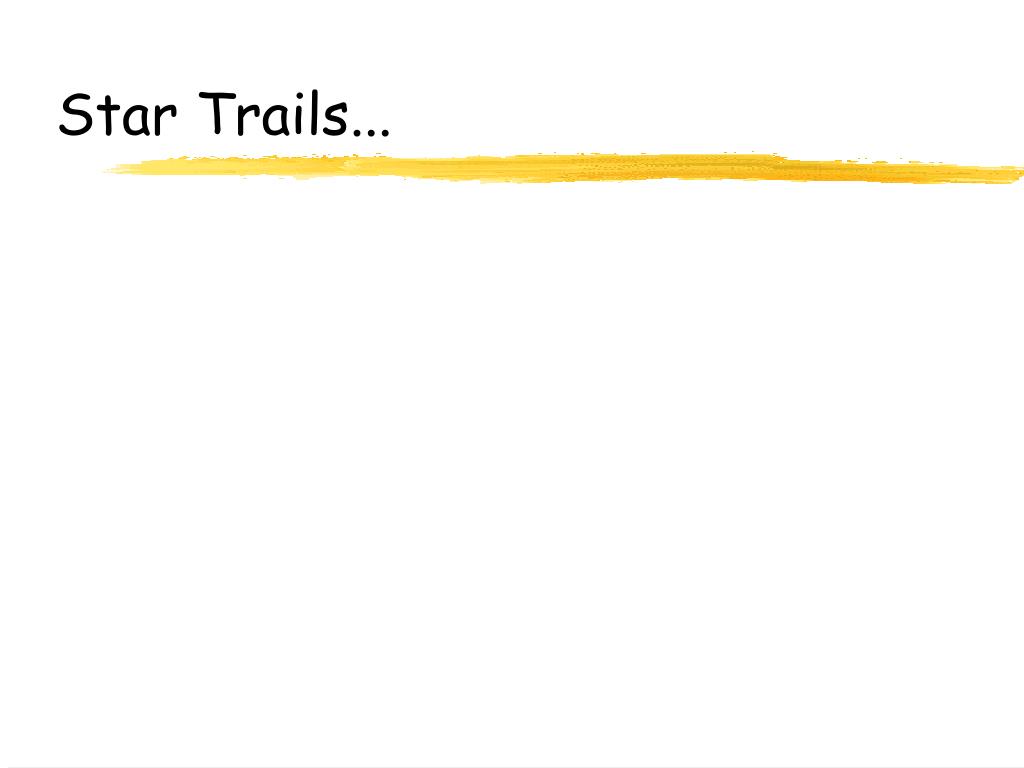

  14. Star Trails...

  15. Pleiades 1SLR 135mm, F2.8, 22 sec, ASA 1000 KRG

  16. Pleiades 2SLR 135mm, F2.8, 2 min, ASA 1000 KRG

  17. Pleiades 3SLR 135mm, F2.8, 10 min, ASA 1000 KRG

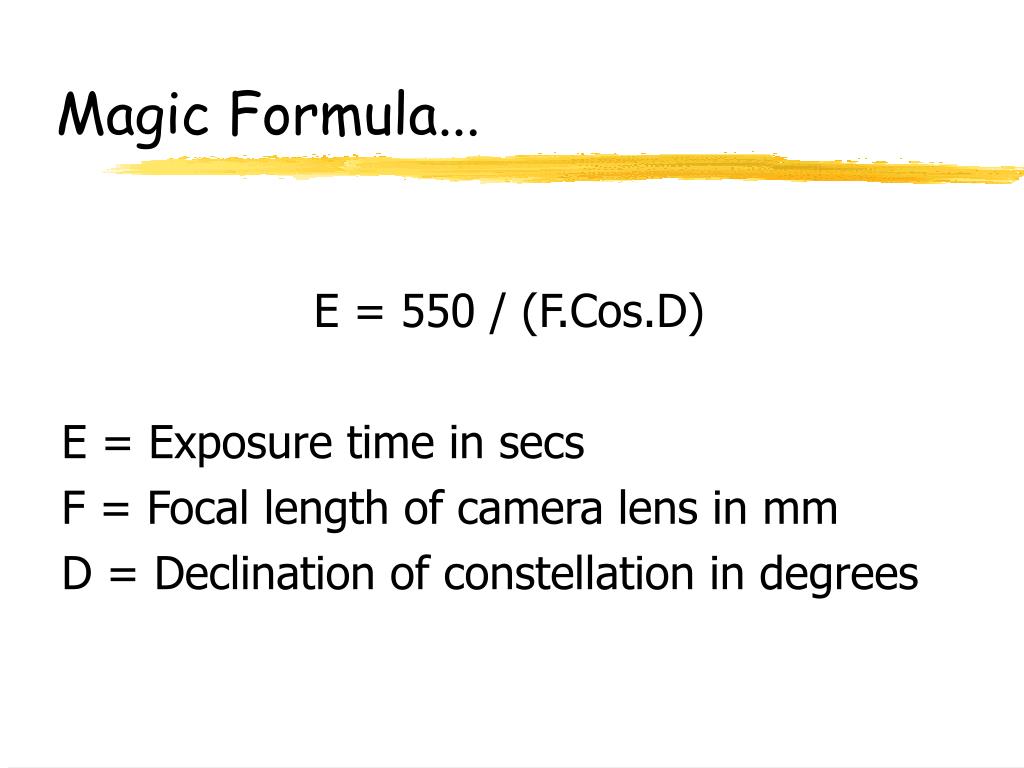

  18. Magic Formula... E = 550 / (F.Cos.D) E = Exposure time in secs F = Focal length of camera lens in mm D = Declination of constellation in degrees

  19. Examples... Using 58 mm lens… Dec Max exposure time before trailing 10o 9 sec 30o 11 sec 50o 14 sec 70o 27 sec 90o Infinity!

  20. Comets...

  21. Hale Bopp, Dryden Rd58mm, F2, 2 min, KG ASA 200

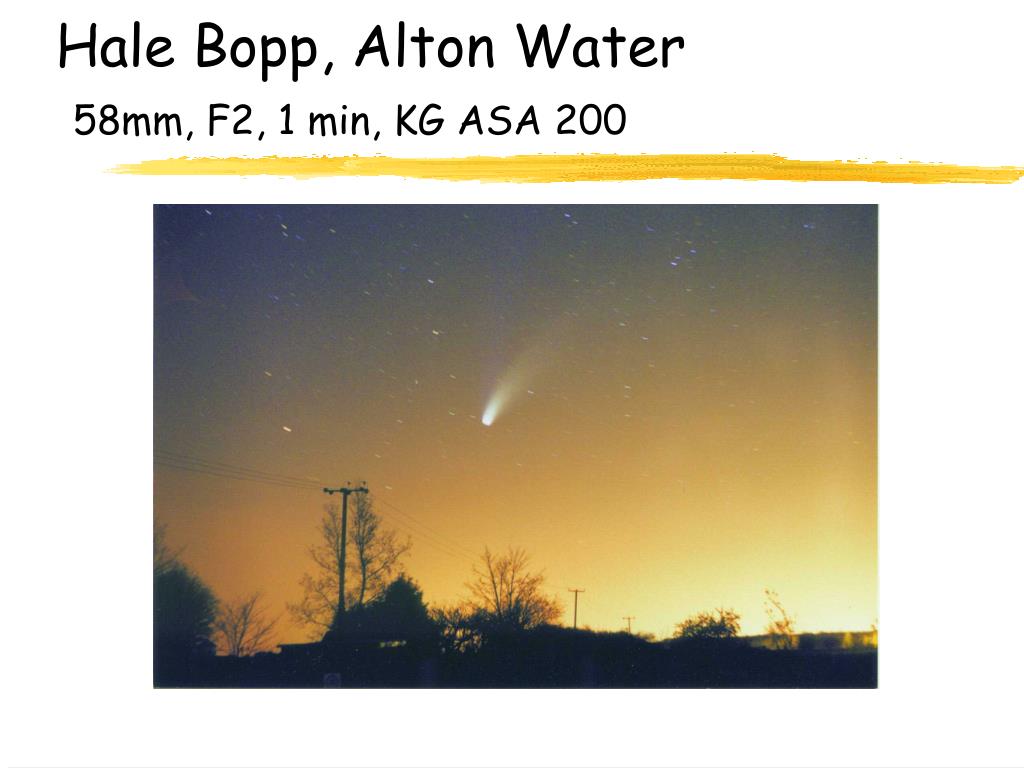

  22. Hale Bopp, Alton Water58mm, F2, 1 min, KG ASA 200

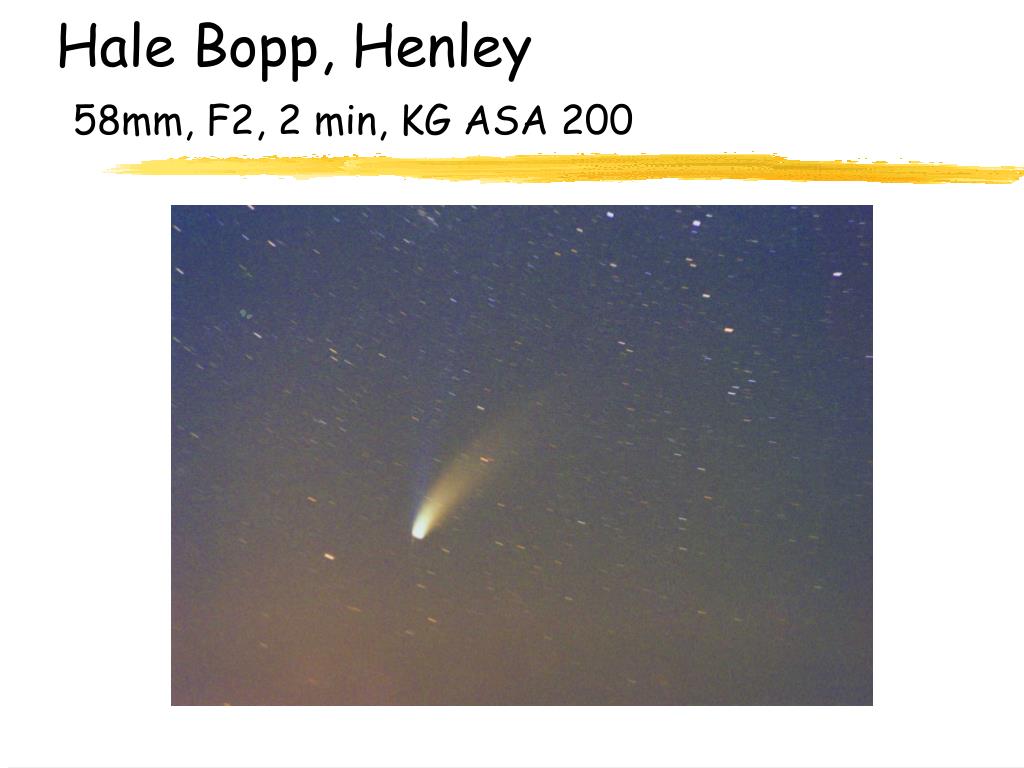

  23. Hale Bopp, Henley58mm, F2, 2 min, KG ASA 200

  24. Hyukatake, N. Ipswich

  25. Meteor Showers...

  26. Wot - No Chips!!...

  27. Leonids 1999 50mm 01:54:45 18.11.99 Up to 14 meteors are visible!

  28. Leonids 1999 16mm 23:47:30 17.11.99 A fine bright leonid under Gemini. Leo has not yet cleared the mountain to the east of the site. Sinai Desert location.

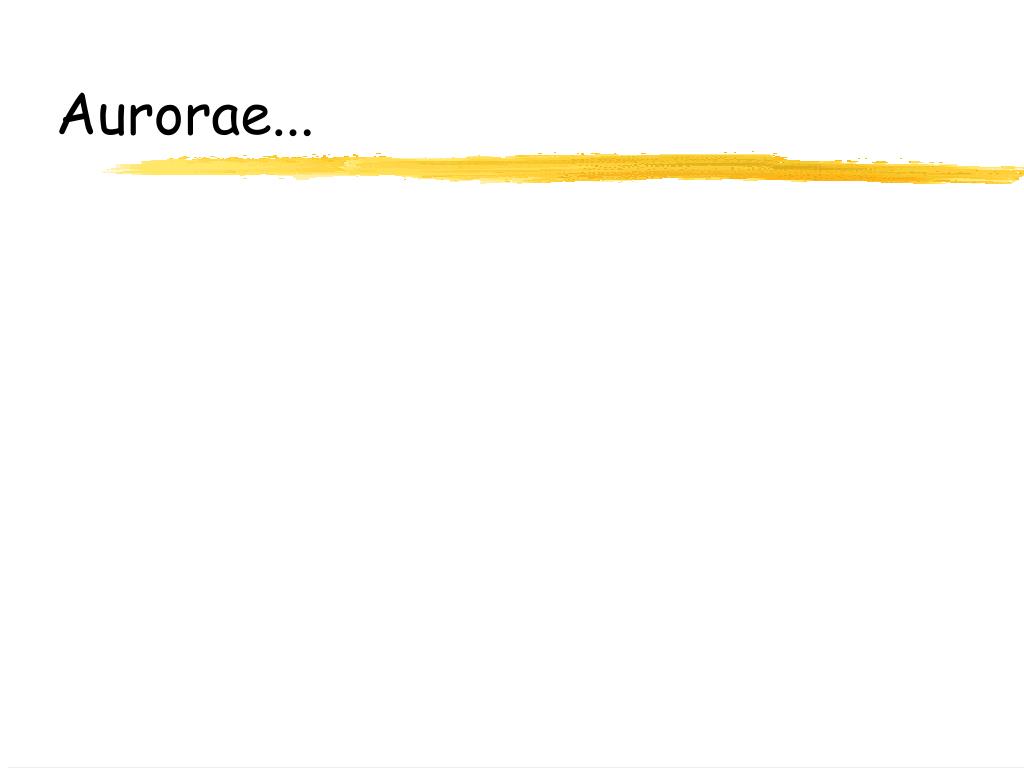

  29. Aurorae...

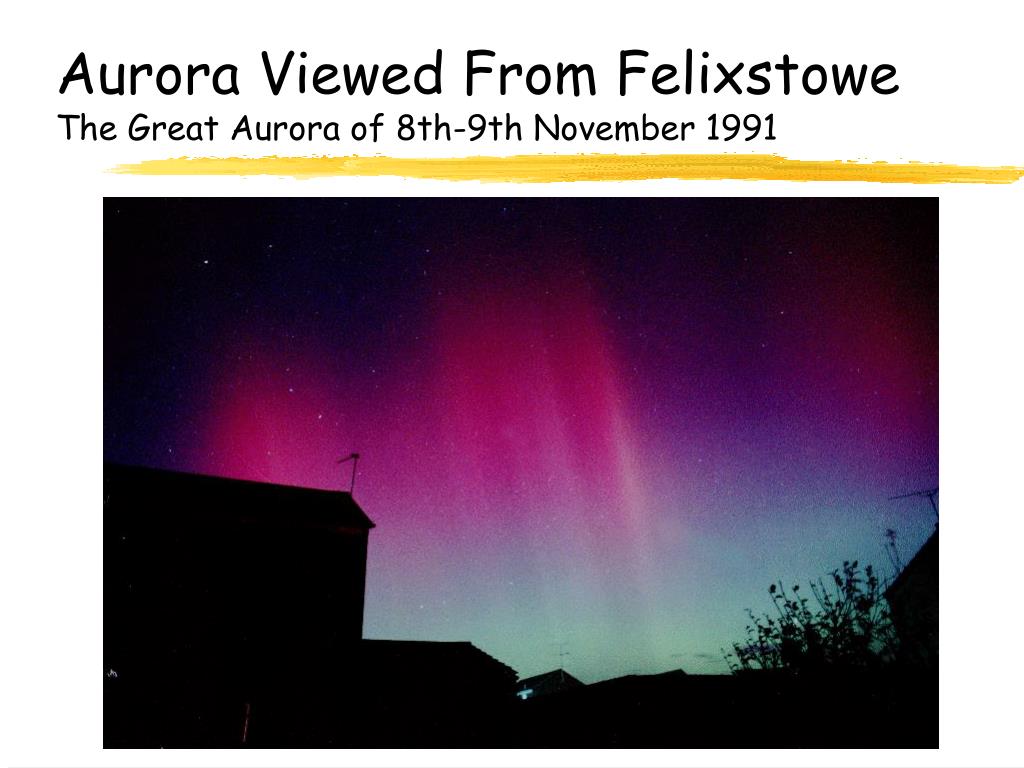

  30. Aurora Viewed From Felixstowe The Great Aurora of 8th-9th November 1991

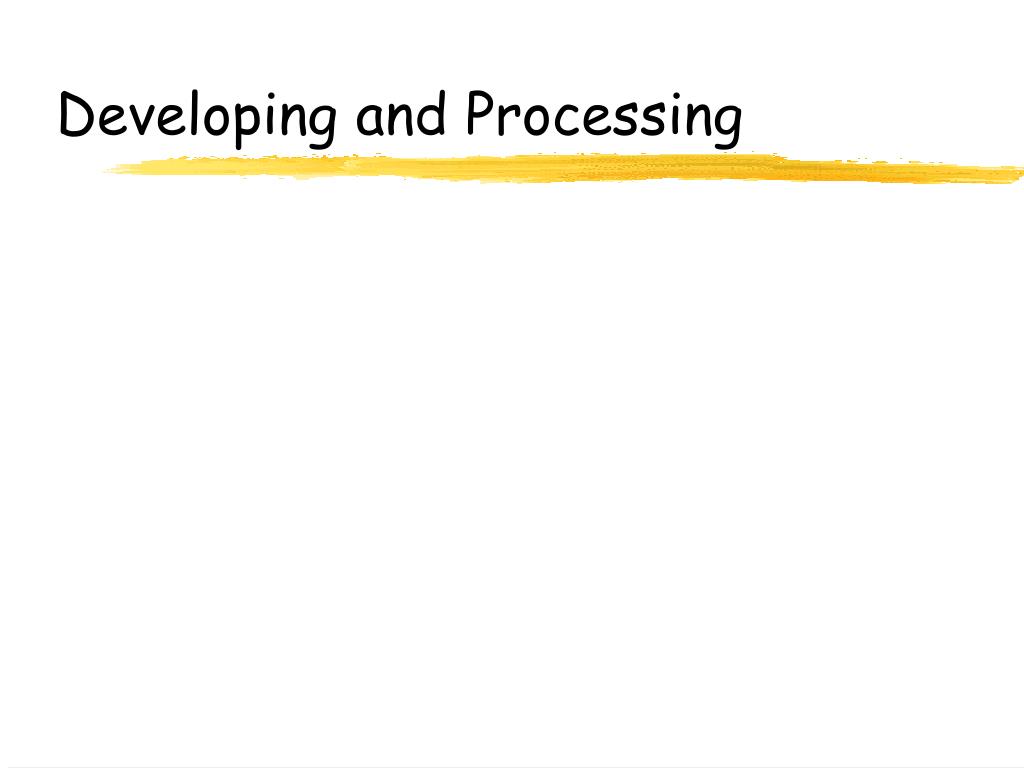

  31. Developing and Processing

  32. Nice piccy Ken?Dorset Steam Fair, Tarrant Hinton

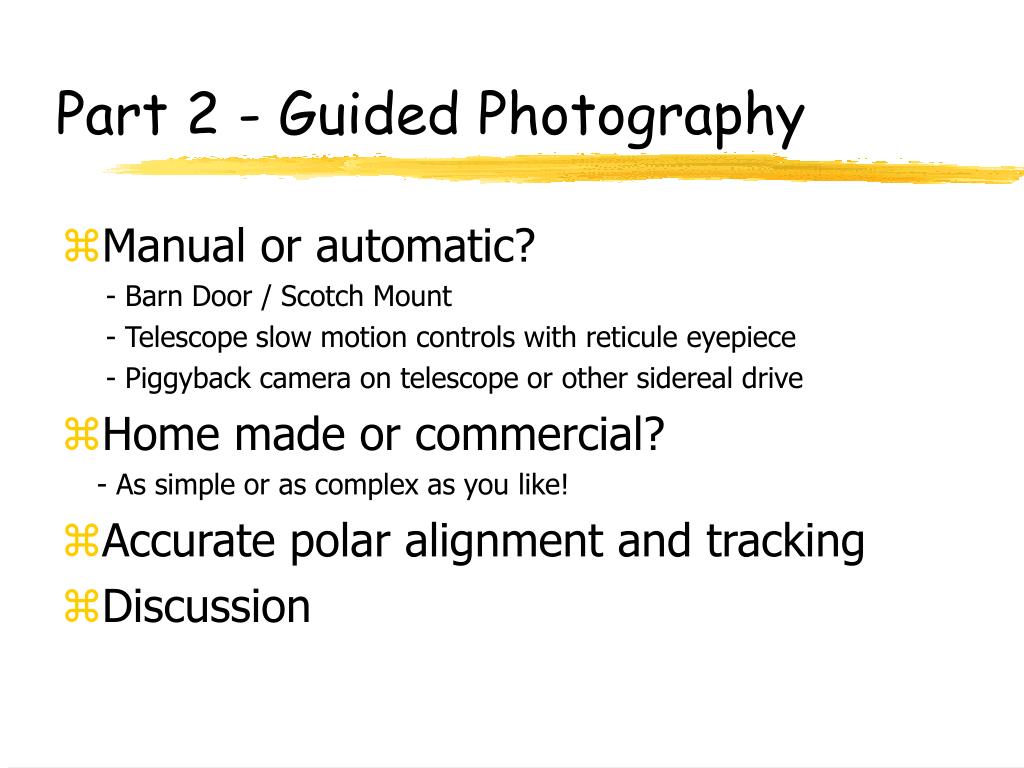

  33. Part 2 - Guided Photography • Manual or automatic? - Barn Door / Scotch Mount - Telescope slow motion controls with reticule eyepiece - Piggyback camera on telescope or other sidereal drive • Home made or commercial? - As simple or as complex as you like! • Accurate polar alignment and tracking • Discussion

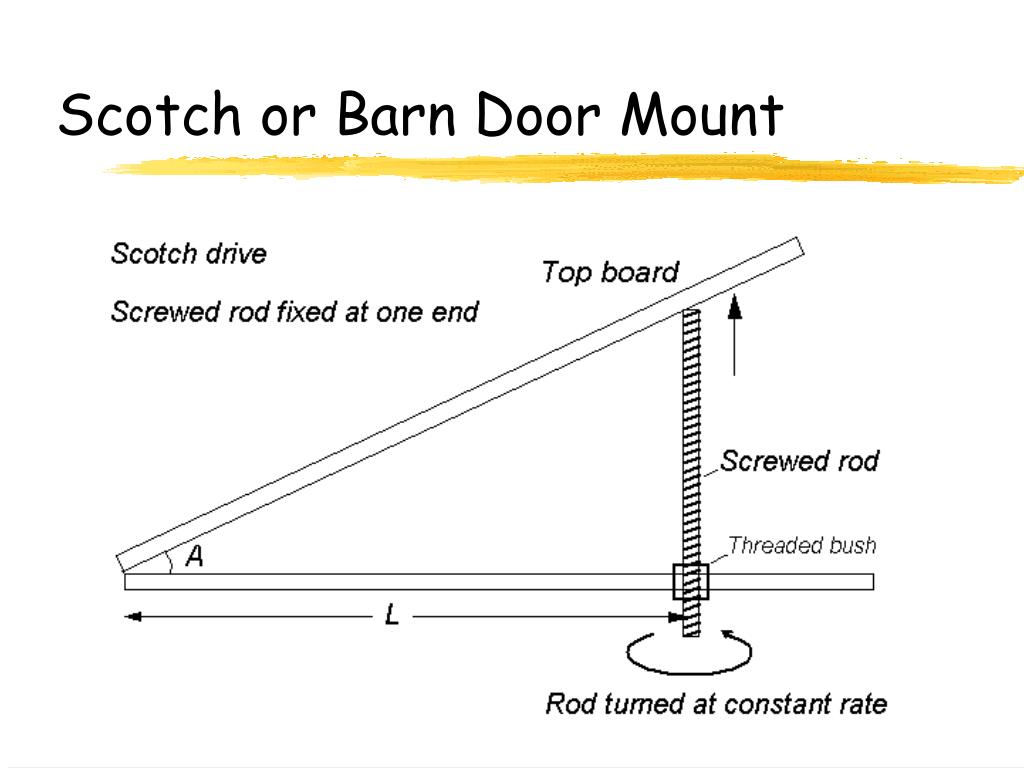

  34. Scotch or Barn Door Mount

  35. Alternative Scotch Mount

  36. Orion ConstellationHuman powered, 45 min, Kodak Gold 400 film

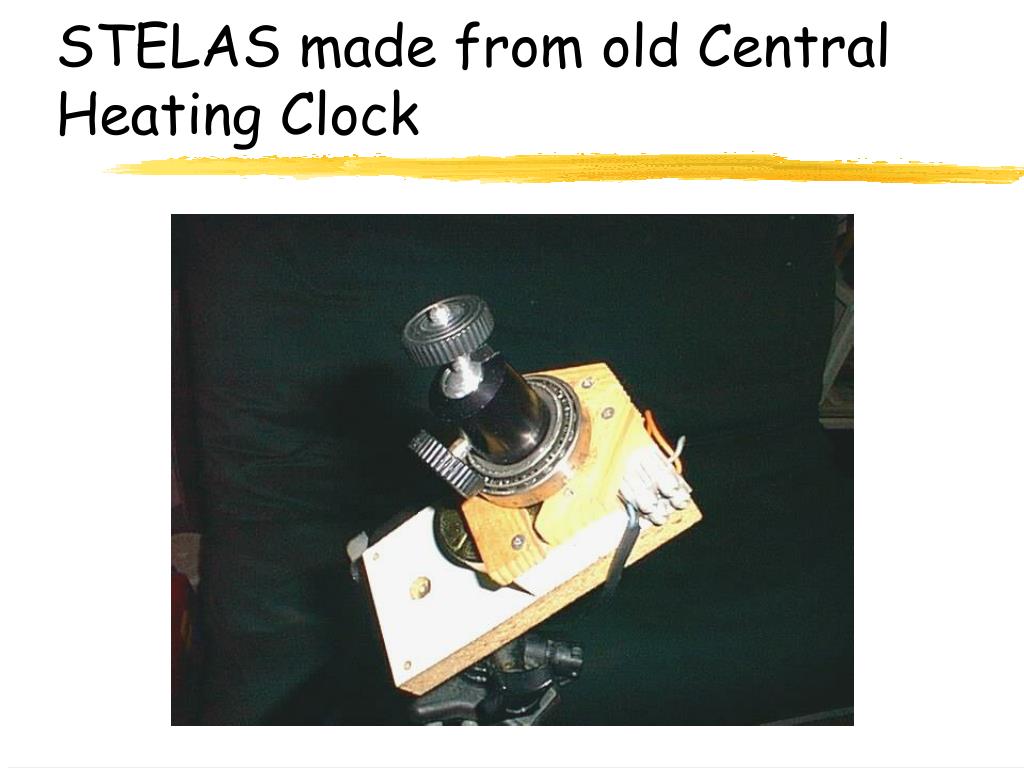

  37. STELAS made from old Central Heating Clock

  38. STELAS Deep Sky Shot 50mm, F1.7, 40 min

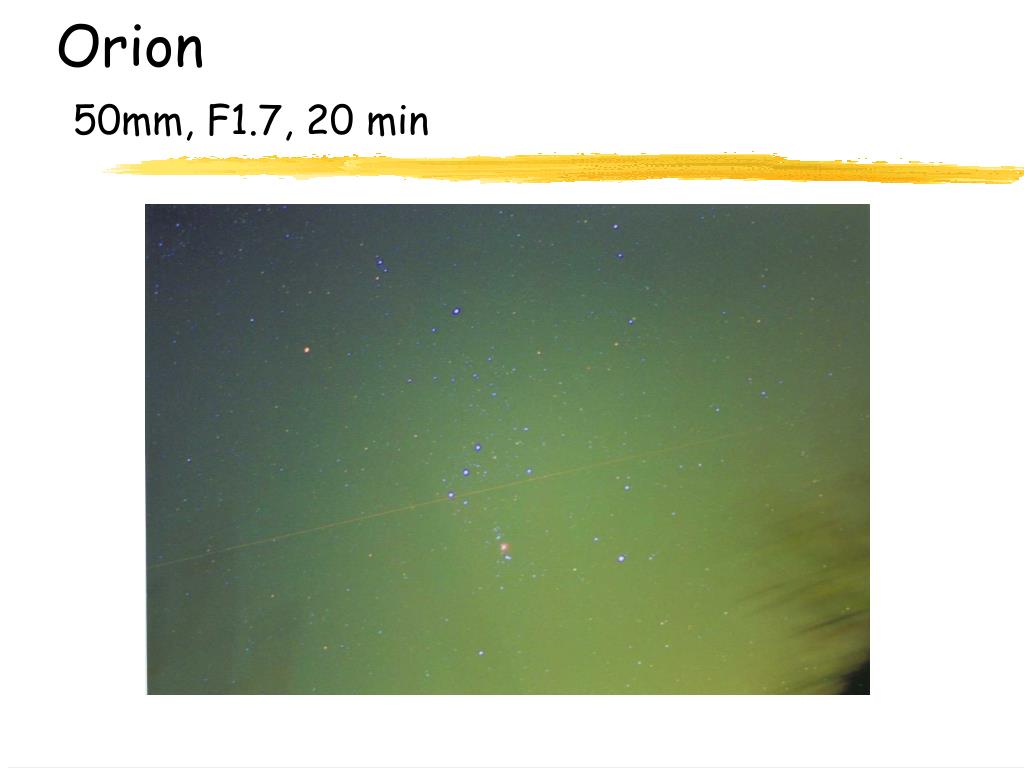

  39. Orion50mm, F1.7, 20 min

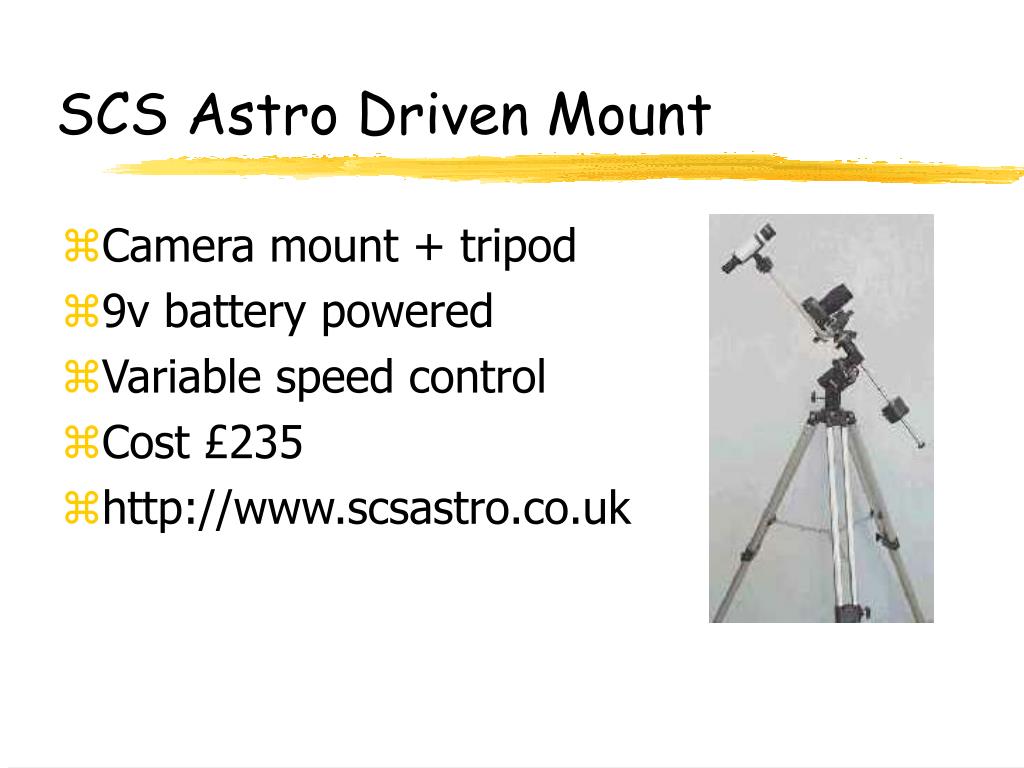

  40. SCS Astro Driven Mount • Camera mount + tripod • 9v battery powered • Variable speed control • Cost £235 • http://www.scsastro.co.uk

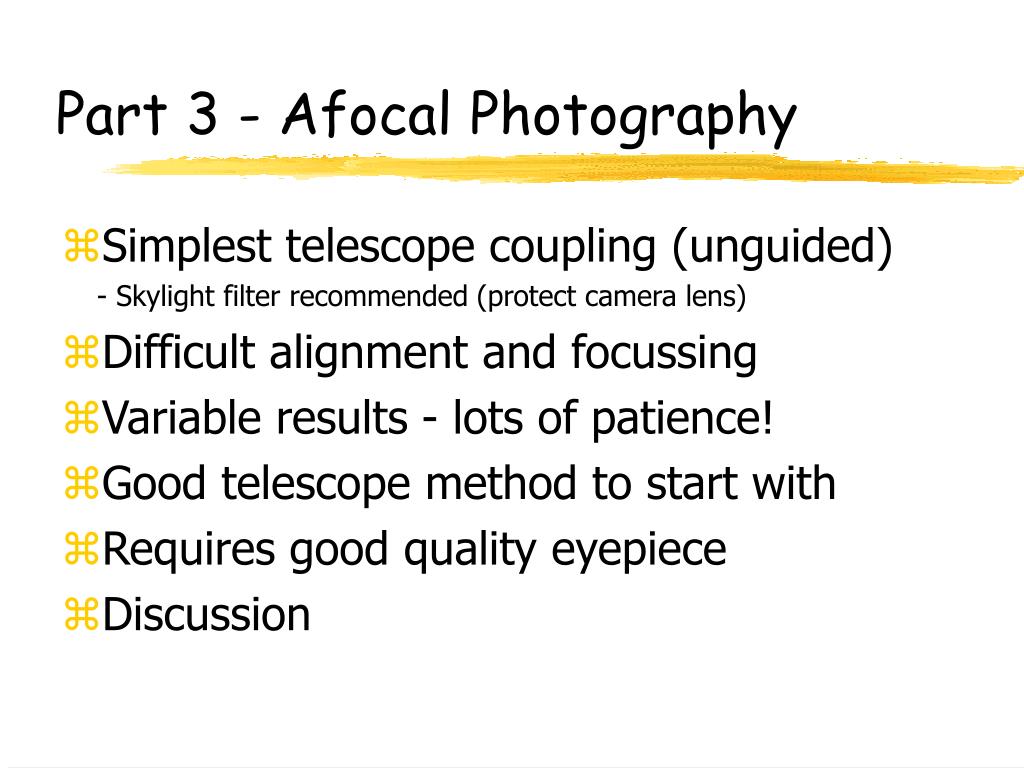

  41. Part 3 - Afocal Photography • Simplest telescope coupling (unguided) - Skylight filter recommended (protect camera lens) • Difficult alignment and focussing • Variable results - lots of patience! • Good telescope method to start with • Requires good quality eyepiece • Discussion

  42. Here’s how it works...

  43. Telescope PhotographyLX200 - Afocal and Piggyback methods

  44. Afocal Moon ShotSLR 135mm, F2.8, 1 sec, LX200, 18mm EP

  45. Afocal focussing issuesSLR 135mm, F2.8, 3 sec, LX200, 26mm EP

  46. Afocal Shot of SaturnSLR 135mm, F2.8, 10 sec, LX200, 18mm EP

  47. Extras…!

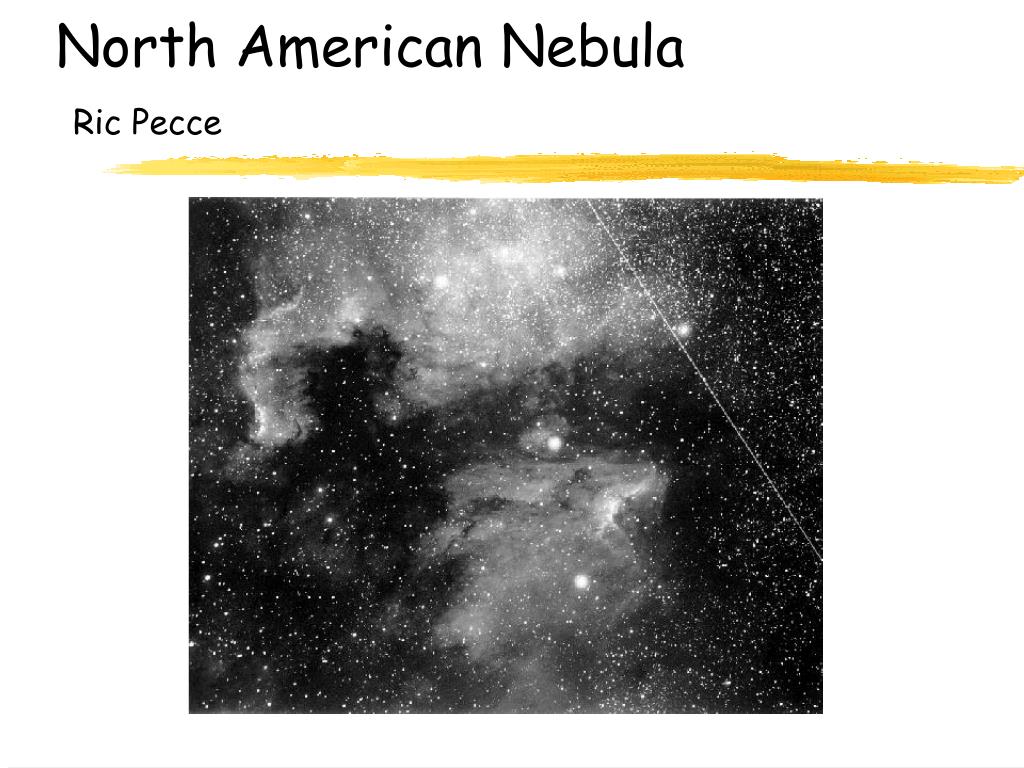

  48. North American NebulaRic Pecce

  49. 80mm Short Tube RefractorOrion, Celestron, Helios, Konus Vista etc...

  50. Piggyback Shot of M42400mm F5 Telephoto (Prime Focus), 5.5 mins, Kodak Elite 200 Slide
