Common Applications of a Clamp Meter

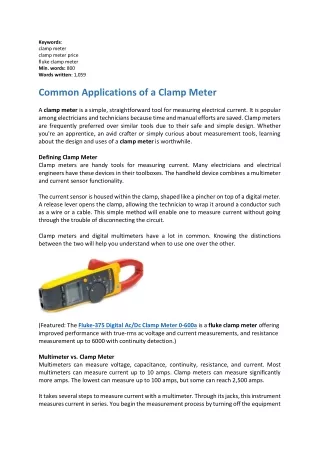

1. Keywords: clamp meter clamp meter price fluke clamp meter Min. words: 800 Words written: 1,059 Common Applications of a Clamp Meter A clamp meter is a simple, straightforward tool for measuring electrical current. It is popular among electricians and technicians because time and manual efforts are saved. Clamp meters are frequently preferred over similar tools due to their safe and simple design. Whether you're an apprentice, an avid crafter or simply curious about measurement tools, learning about the design and uses of a clamp meter is worthwhile. Defining Clamp Meter Clamp meters are handy tools for measuring current. Many electricians and electrical engineers have these devices in their toolboxes. The handheld device combines a multimeter and current sensor functionality. The current sensor is housed within the clamp, shaped like a pincher on top of a digital meter. A release lever opens the clamp, allowing the technician to wrap it around a conductor such as a wire or a cable. This simple method will enable one to measure current without going through the trouble of disconnecting the circuit. Clamp meters and digital multimeters have a lot in common. Knowing the distinctions between the two will help you understand when to use one over the other. (Featured: The Fluke-375 Digital Ac/Dc Clamp Meter 0-600a is a fluke clamp meter offering improved performance with true-rms ac voltage and current measurements, and resistance measurement up to 6000 with continuity detection.) Multimeter vs. Clamp Meter Multimeters can measure voltage, capacitance, continuity, resistance, and current. Most multimeters can measure current up to 10 amps. Clamp meters can measure significantly more amps. The lowest can measure up to 100 amps, but some can reach 2,500 amps. It takes several steps to measure current with a multimeter. Through its jacks, this instrument measures current in series. You begin the measurement process by turning off the equipment

2. that will be measured. This allows you to connect the multimeter to the circuitry safely. You re-energize the multimeter once it is properly connected. You should be able to read the electrical current measurement on the multimeter. Although having the option to measure current with a multimeter is convenient, these extra steps are time-consuming. It obstructs the workflow and reduces efficiency. Many people pick a clamp meter when measuring current for this reason alone. There's also the issue of safety. Opening a circuit can be hazardous. Electrical shock can occur whenever you make physical contact with a test point. A clamp meter is a much safer and simpler option because it can read the electrical current without opening the circuit. Many technicians prefer them for the same reason. You can quickly read a current when you have a clamp meter in your toolbox. You only need to clamp the device around a conductor to get your reading. There is no need to waste time or energy on unnecessary steps. In addition to reading current, modern clamp meters have many other features similar to those found in a multimeter. Many can measure resistance, voltage, and continuity. Many electricians prefer clamp meters because of their flexibility and convenience. They are safer to use and can read a broader range of currents. Eee-Tech M-266 Digital Ac Clamp Meter 1000 A 750 V How Does Clamp Meter Function? A clamp meter detects and measures the magnetic field produced by a current. The clamps are made of ferrite iron and are surrounded on the outside by a safe, hard plastic. The ferrite iron combines with the magnetic field to provide the current measurement when the instrument is clamped around a conductor. The majority of current clamp meters are digital. The measurement reading will be displayed on the digital display when the tool is clamped around the conductor. For your convenience, many instruments have a button that will freeze the measurement on the screen. If that isn't possible, you can hold the device with your non-dominant hand while writing down the reading with your dominant hand.

3. Clamp meters were initially designed only to measure electrical current. However, manufacturers began to optimize clamp meters by adding more features because of their accuracy, simplicity, and convenience. Applications of a Clamp Meter Clamp meters come in handy whenever a project requires testing the current of a circuit. This opens up a wide range of potential applications. Some common ones are listed below. ●Troubleshooting: A clamp meter is a must-have piece of testing equipment. Electricians must keep up with changes as electrical equipment advances year after year. That includes knowing how to troubleshoot quickly and safely using testing procedures. A clamp meter's quick functionality and safety are ideal for testing a plant or a piece of machinery. An operator often needs to be able to test the electrical current and the voltage when troubleshooting something like this. A modern clamp meter's versatility is ideal for this situation, as it can read both measurements. ●Electrical Installations: Electrical current measurement and monitoring is, of course, critical in electrical work. As a result, a clamp meter is used in a variety of contexts in electrical installation. They are involved in the installation of residential, commercial, and industrial electrical systems. They're also useful for building and repairing industrial machinery and equipment. ●Supervise apprentice electricians: A new electrician must be aware of all conditions on the job site while in training. A clamp meter is frequently used to monitor the system and supervise the apprentice while installing or updating equipment. The meter supports for a quick and final circuit test at the end of an installation. ●Maintenance and repairs: A clamp meter is a common tool in the toolbox of an HVAC technician. These experts spend a considerable amount of time performing routine maintenance and inspections on HVAC systems. It is critical in this process to obtain quick and accurate readings on electrical current, resistance, and volt. The right meter is an excellent all-in-one tool for this purpose. Conclusion Clamp meters are important tools in the field of electricity. Many types of meters are available in the market, but clamp meters are the most popular ones. It is very easy to use and is as safe as a pocket knife. You can use it to measure multiple parameters with its ability to change settings. You can get a clamp meter online at a very cheap rate. Get the best deals on clamp meter price only at www.industrybuying.com, a marketplace for buyers and sellers with over 1.2 lakh industrial products. Keywords -clamp meter, clamp meter price, fluke clamp meter
