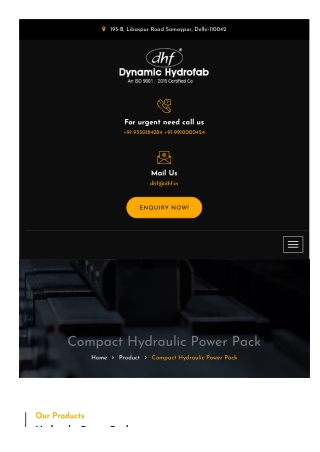

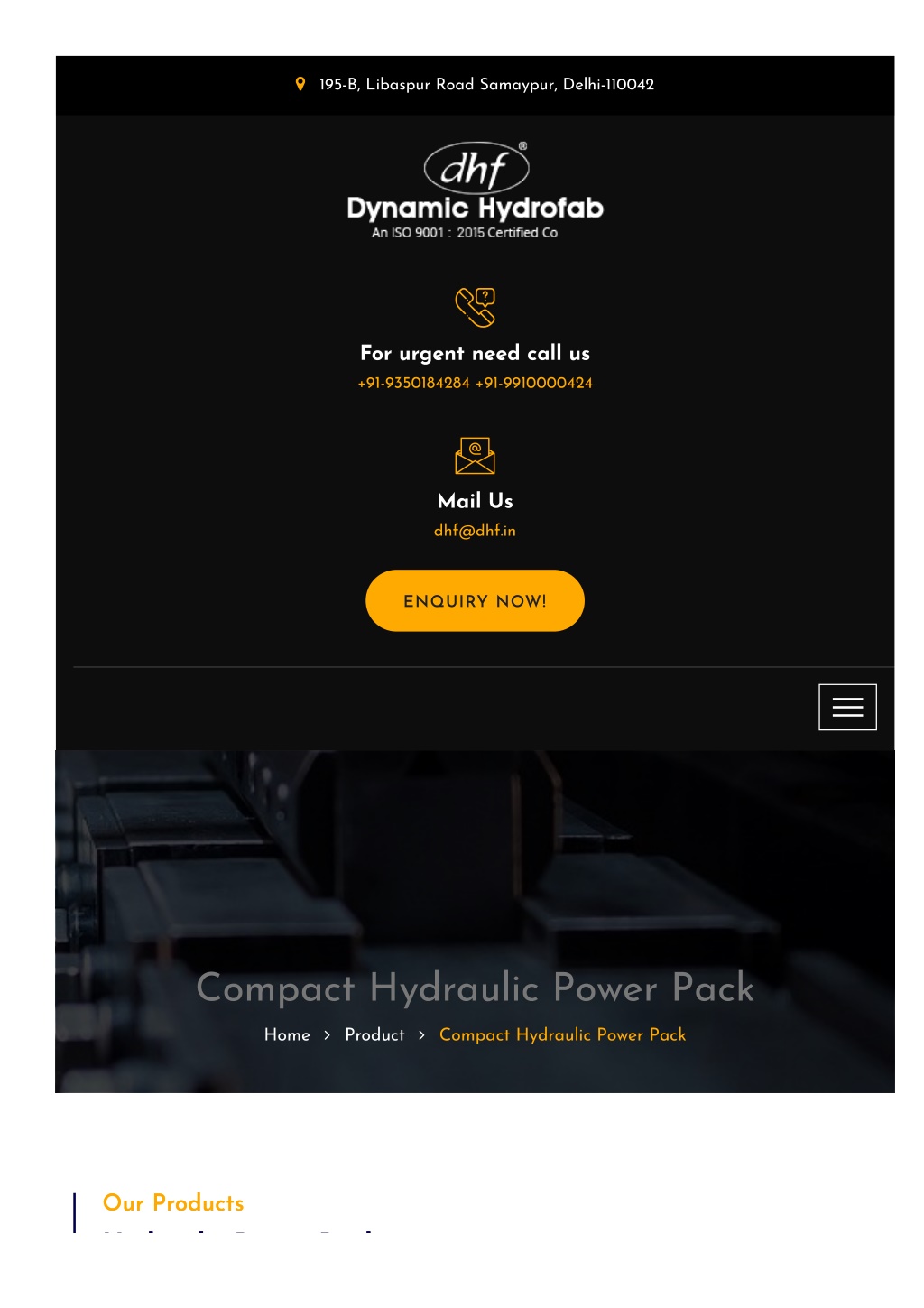

  1. 195-B, Libaspur Road Samaypur, Delhi-110042  For urgent need call us +91-9350184284 +91-9910000424  Mail Us dhf@dhf.in ENQUIRY NOW! Compact Hydraulic Power Pack Home  Product  Compact Hydraulic Power Pack Our Products Our Products H d H d l l P P P P k k

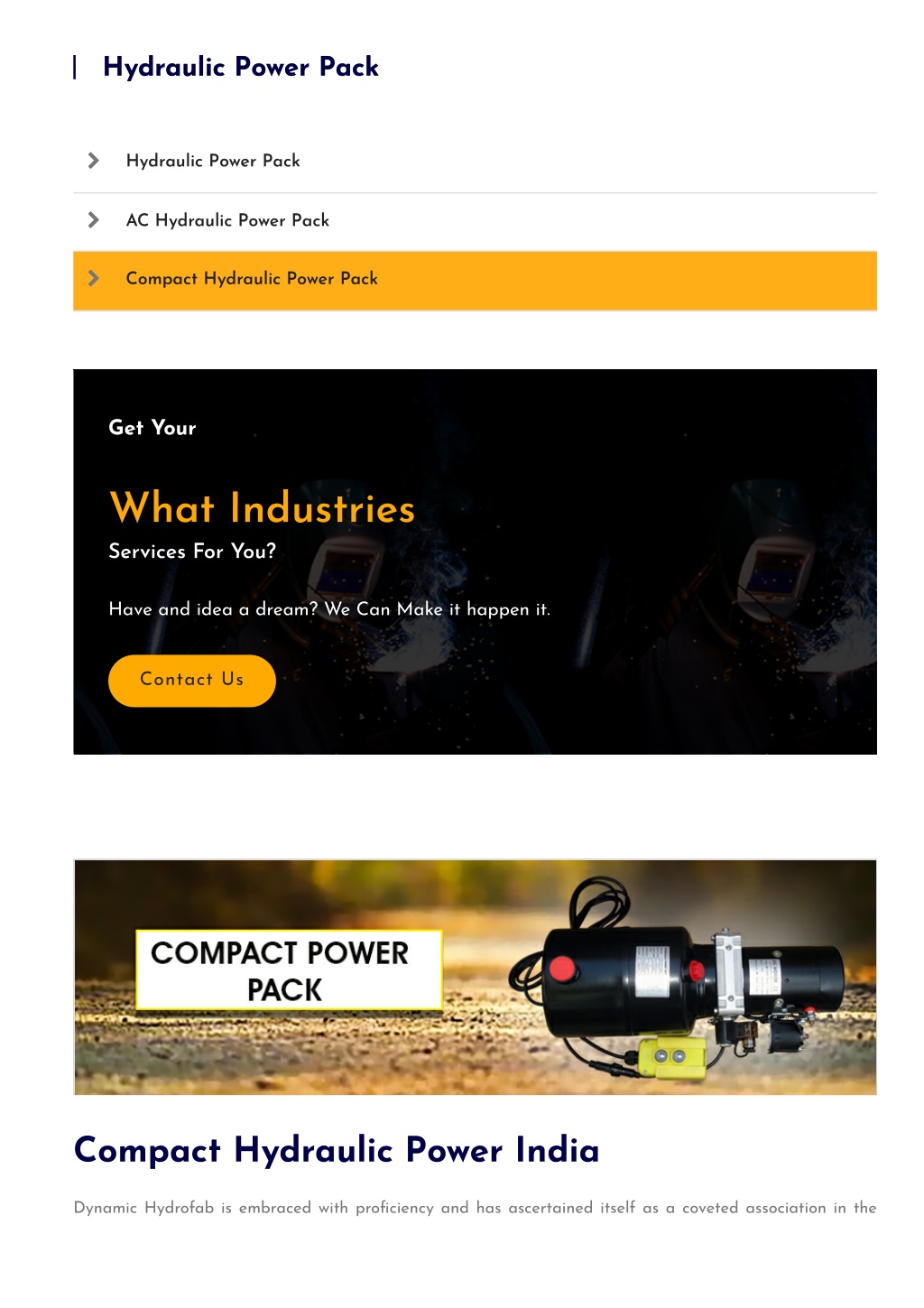

  2. Hydraulic Power Pack Hydraulic Power Pack  Hydraulic Power Pack  AC Hydraulic Power Pack  Compact Hydraulic Power Pack Get Your What Industries Services For You? Have and idea a dream? We Can Make it happen it. Contact Us Compact Hydraulic Power India Dynamic Hydrofab is embraced with pro?ciency and has ascertained itself as a coveted association in the

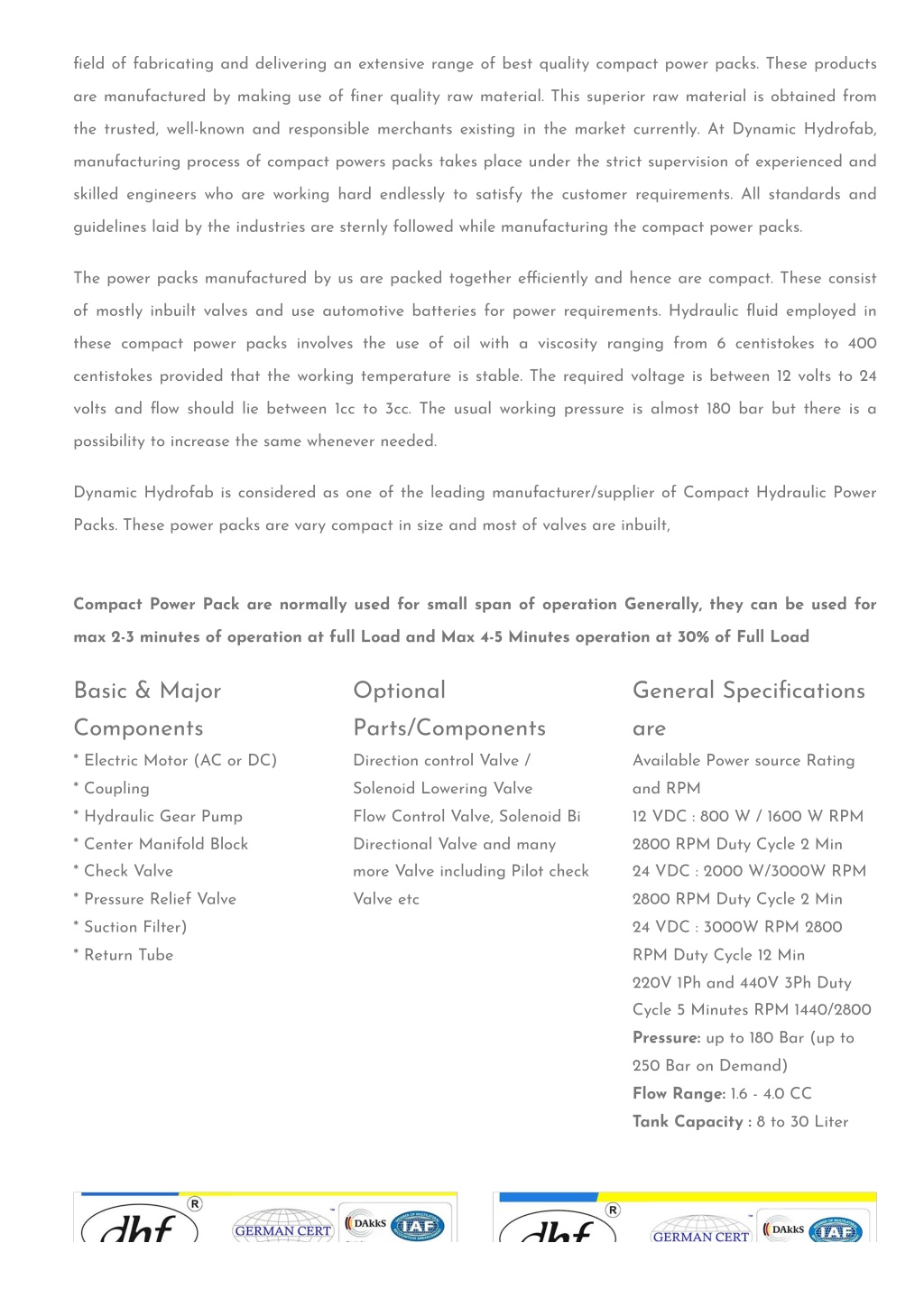

  3. ?eld of fabricating and delivering an extensive range of best quality compact power packs. These products are manufactured by making use of ?ner quality raw material. This superior raw material is obtained from the trusted, well-known and responsible merchants existing in the market currently. At Dynamic Hydrofab, manufacturing process of compact powers packs takes place under the strict supervision of experienced and skilled engineers who are working hard endlessly to satisfy the customer requirements. All standards and guidelines laid by the industries are sternly followed while manufacturing the compact power packs. The power packs manufactured by us are packed together e?ciently and hence are compact. These consist of mostly inbuilt valves and use automotive batteries for power requirements. Hydraulic ?uid employed in these compact power packs involves the use of oil with a viscosity ranging from 6 centistokes to 400 centistokes provided that the working temperature is stable. The required voltage is between 12 volts to 24 volts and ?ow should lie between 1cc to 3cc. The usual working pressure is almost 180 bar but there is a possibility to increase the same whenever needed. Dynamic Hydrofab is considered as one of the leading manufacturer/supplier of Compact Hydraulic Power Packs. These power packs are vary compact in size and most of valves are inbuilt, Compact Power Pack are normally used for small span of operation Generally, they can be used for max 2-3 minutes of operation at full Load and Max 4-5 Minutes operation at 30% of Full Load Basic & Major Optional General Speci?cations Components Parts/Components are * Electric Motor (AC or DC) Direction control Valve / Available Power source Rating * Coupling Solenoid Lowering Valve and RPM * Hydraulic Gear Pump Flow Control Valve, Solenoid Bi 12 VDC : 800 W / 1600 W RPM * Center Manifold Block Directional Valve and many 2800 RPM Duty Cycle 2 Min * Check Valve more Valve including Pilot check 24 VDC : 2000 W/3000W RPM * Pressure Relief Valve Valve etc 2800 RPM Duty Cycle 2 Min * Suction Filter) 24 VDC : 3000W RPM 2800 * Return Tube RPM Duty Cycle 12 Min 220V 1Ph and 440V 3Ph Duty Cycle 5 Minutes RPM 1440/2800 Pressure: up to 180 Bar (up to 250 Bar on Demand) Flow Range: 1.6 - 4.0 CC Tank Capacity : 8 to 30 Liter

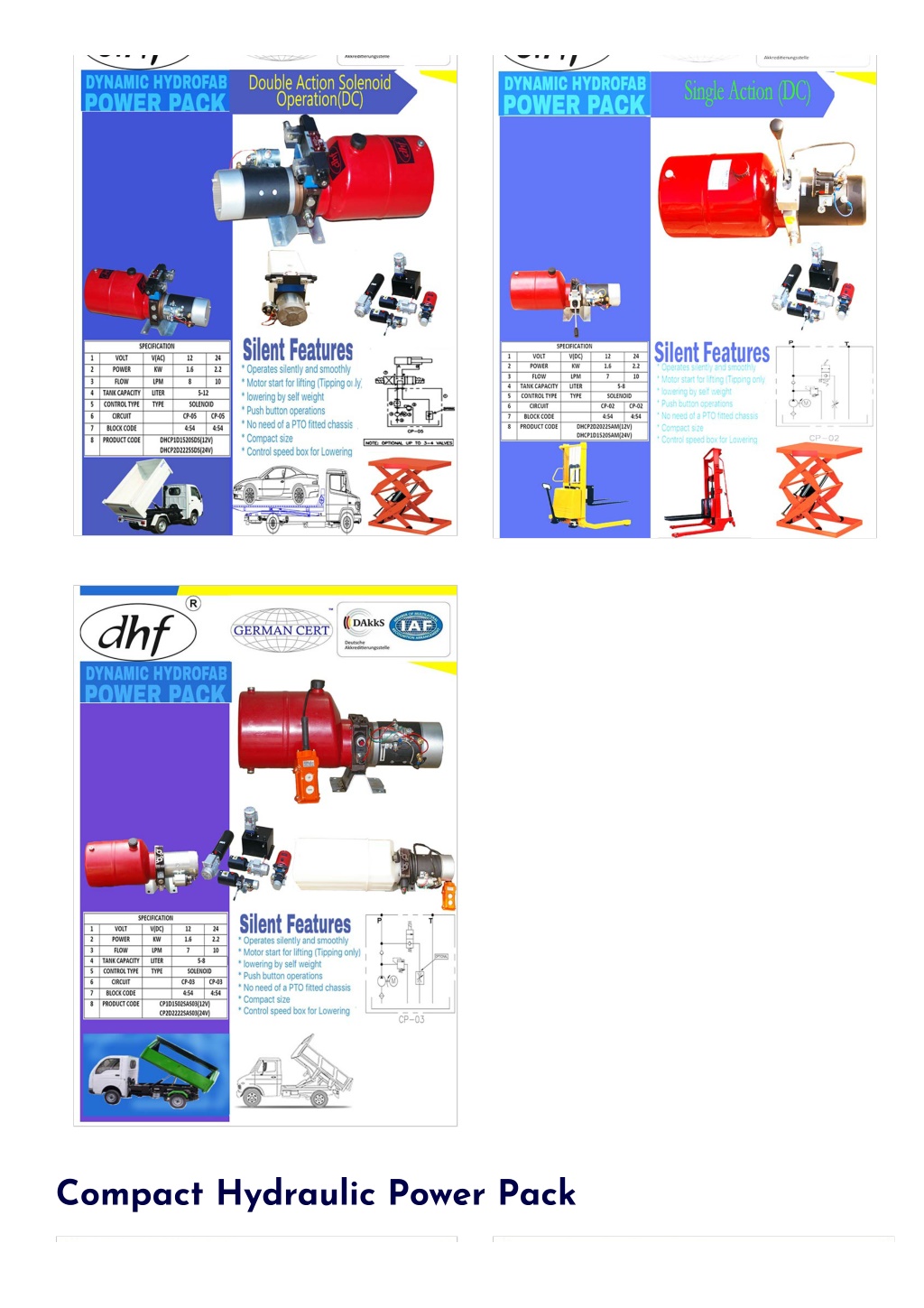

  4. Compact Hydraulic Power Pack

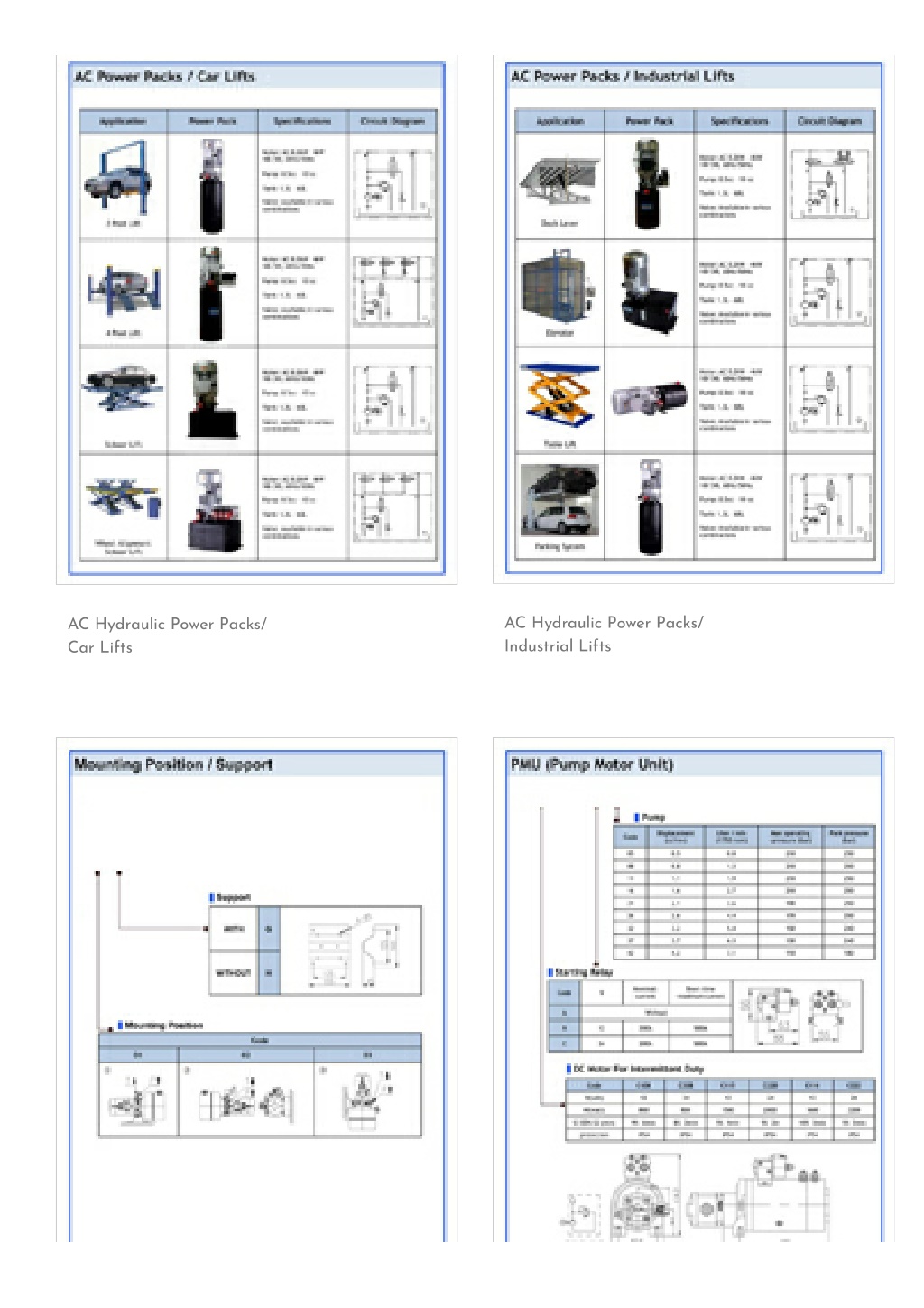

  5. AC Hydraulic Power Packs/ Industrial Lifts AC Hydraulic Power Packs/ Car Lifts

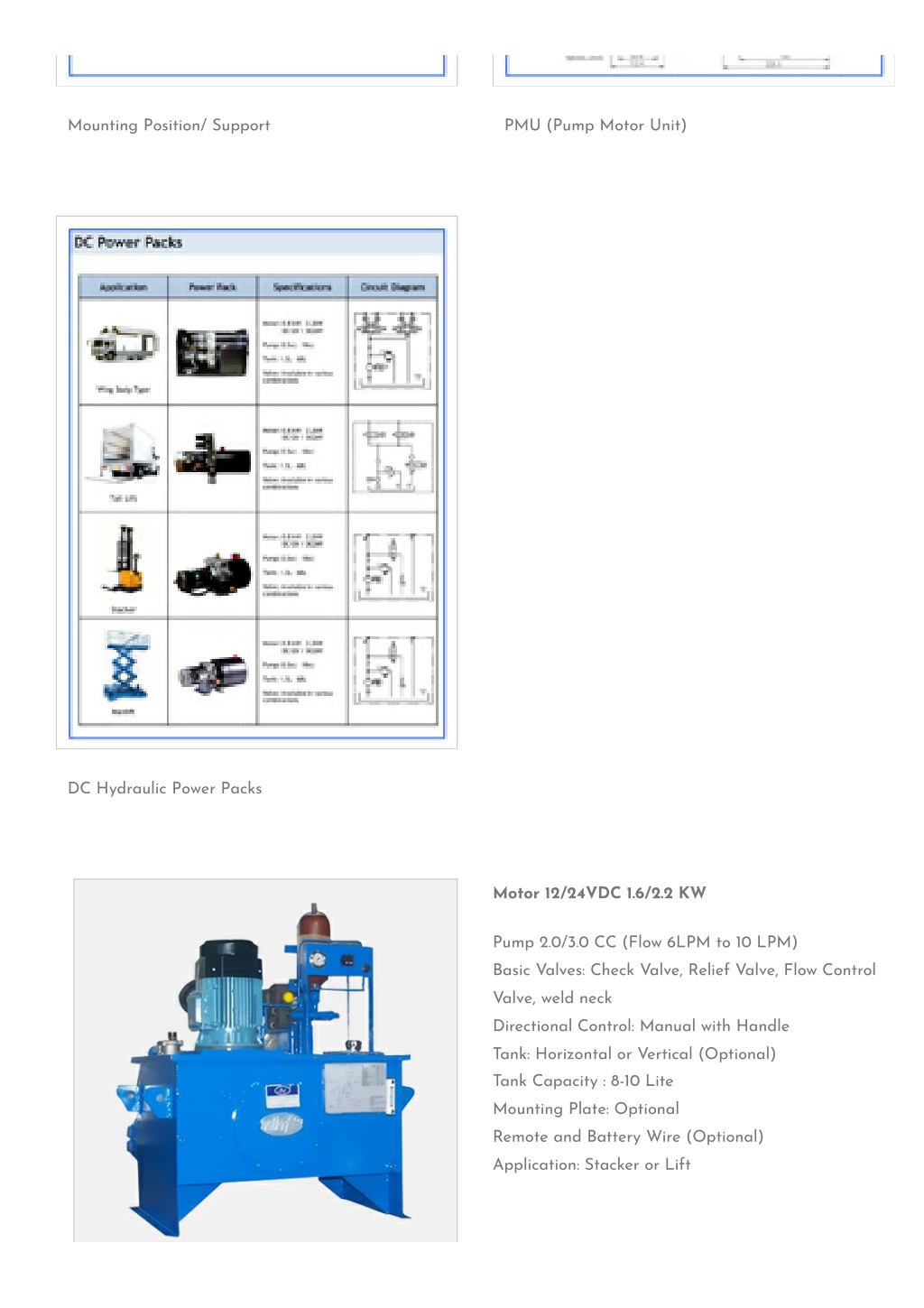

  6. Mounting Position/ Support PMU (Pump Motor Unit) DC Hydraulic Power Packs Motor 12/24VDC 1.6/2.2 KW Pump 2.0/3.0 CC (Flow 6LPM to 10 LPM) Basic Valves: Check Valve, Relief Valve, Flow Control Valve, weld neck Directional Control: Manual with Handle Tank: Horizontal or Vertical (Optional) Tank Capacity : 8-10 Lite Mounting Plate: Optional Remote and Battery Wire (Optional) Application: Stacker or Lift

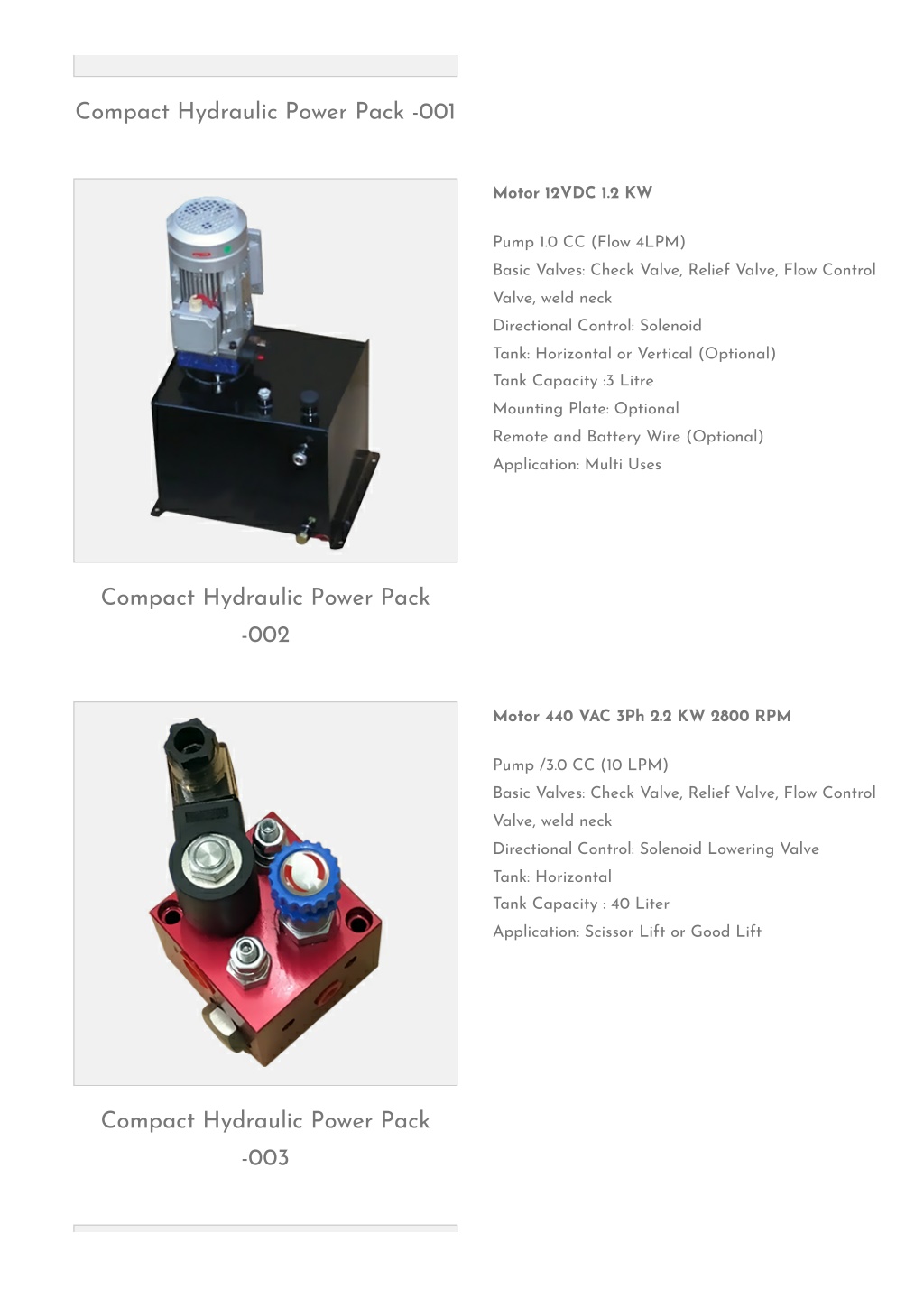

  7. Compact Hydraulic Power Pack -001 Motor 12VDC 1.2 KW Pump 1.0 CC (Flow 4LPM) Basic Valves: Check Valve, Relief Valve, Flow Control Valve, weld neck Directional Control: Solenoid Tank: Horizontal or Vertical (Optional) Tank Capacity :3 Litre Mounting Plate: Optional Remote and Battery Wire (Optional) Application: Multi Uses Compact Hydraulic Power Pack -002 Motor 440 VAC 3Ph 2.2 KW 2800 RPM Pump /3.0 CC (10 LPM) Basic Valves: Check Valve, Relief Valve, Flow Control Valve, weld neck Directional Control: Solenoid Lowering Valve Tank: Horizontal Tank Capacity : 40 Liter Application: Scissor Lift or Good Lift Compact Hydraulic Power Pack -003

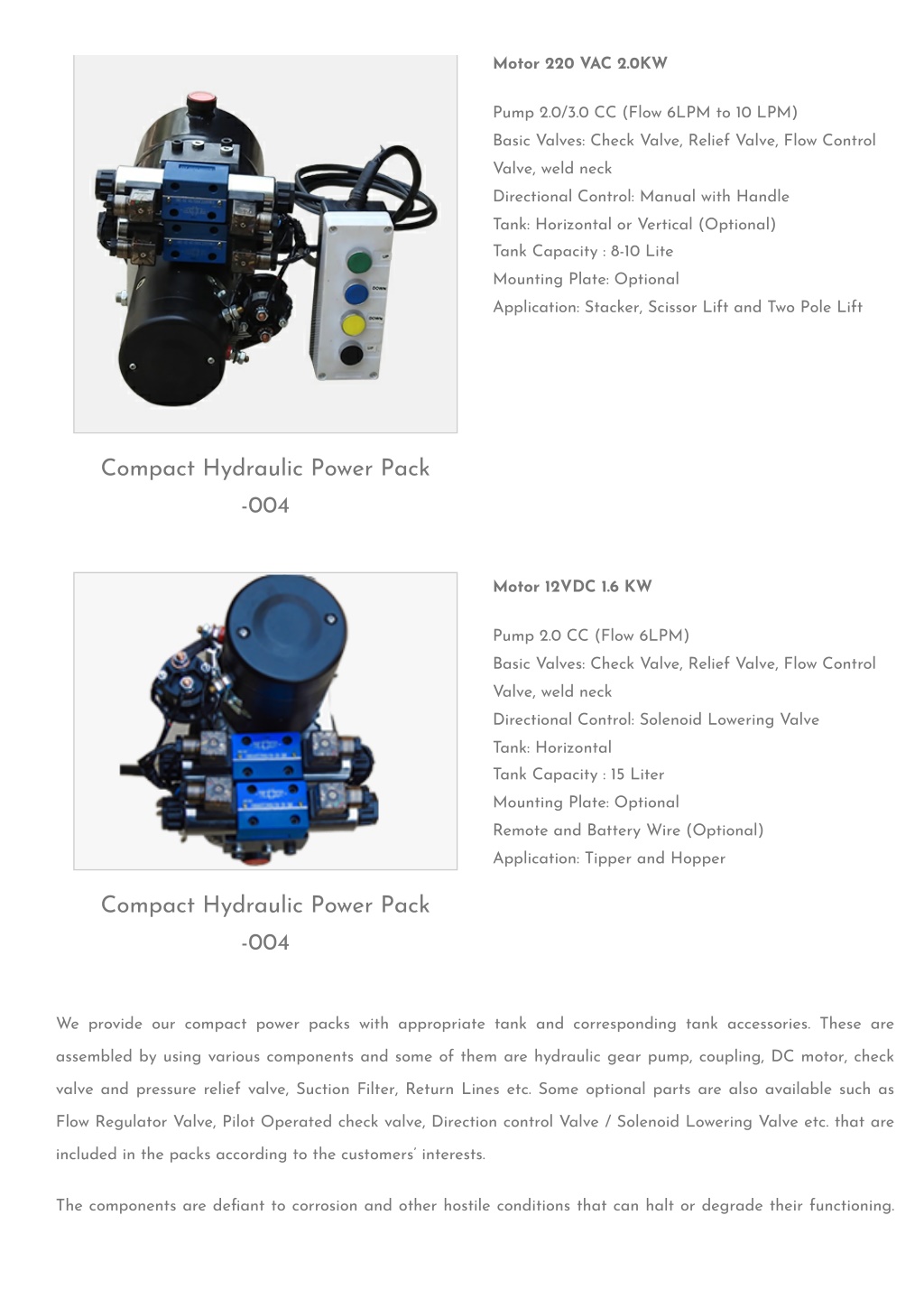

  8. Motor 220 VAC 2.0KW Pump 2.0/3.0 CC (Flow 6LPM to 10 LPM) Basic Valves: Check Valve, Relief Valve, Flow Control Valve, weld neck Directional Control: Manual with Handle Tank: Horizontal or Vertical (Optional) Tank Capacity : 8-10 Lite Mounting Plate: Optional Application: Stacker, Scissor Lift and Two Pole Lift Compact Hydraulic Power Pack -004 Motor 12VDC 1.6 KW Pump 2.0 CC (Flow 6LPM) Basic Valves: Check Valve, Relief Valve, Flow Control Valve, weld neck Directional Control: Solenoid Lowering Valve Tank: Horizontal Tank Capacity : 15 Liter Mounting Plate: Optional Remote and Battery Wire (Optional) Application: Tipper and Hopper Compact Hydraulic Power Pack -004 We provide our compact power packs with appropriate tank and corresponding tank accessories. These are assembled by using various components and some of them are hydraulic gear pump, coupling, DC motor, check valve and pressure relief valve, Suction Filter, Return Lines etc. Some optional parts are also available such as Flow Regulator Valve, Pilot Operated check valve, Direction control Valve / Solenoid Lowering Valve etc. that are included in the packs according to the customers’ interests. The components are de?ant to corrosion and other hostile conditions that can halt or degrade their functioning.

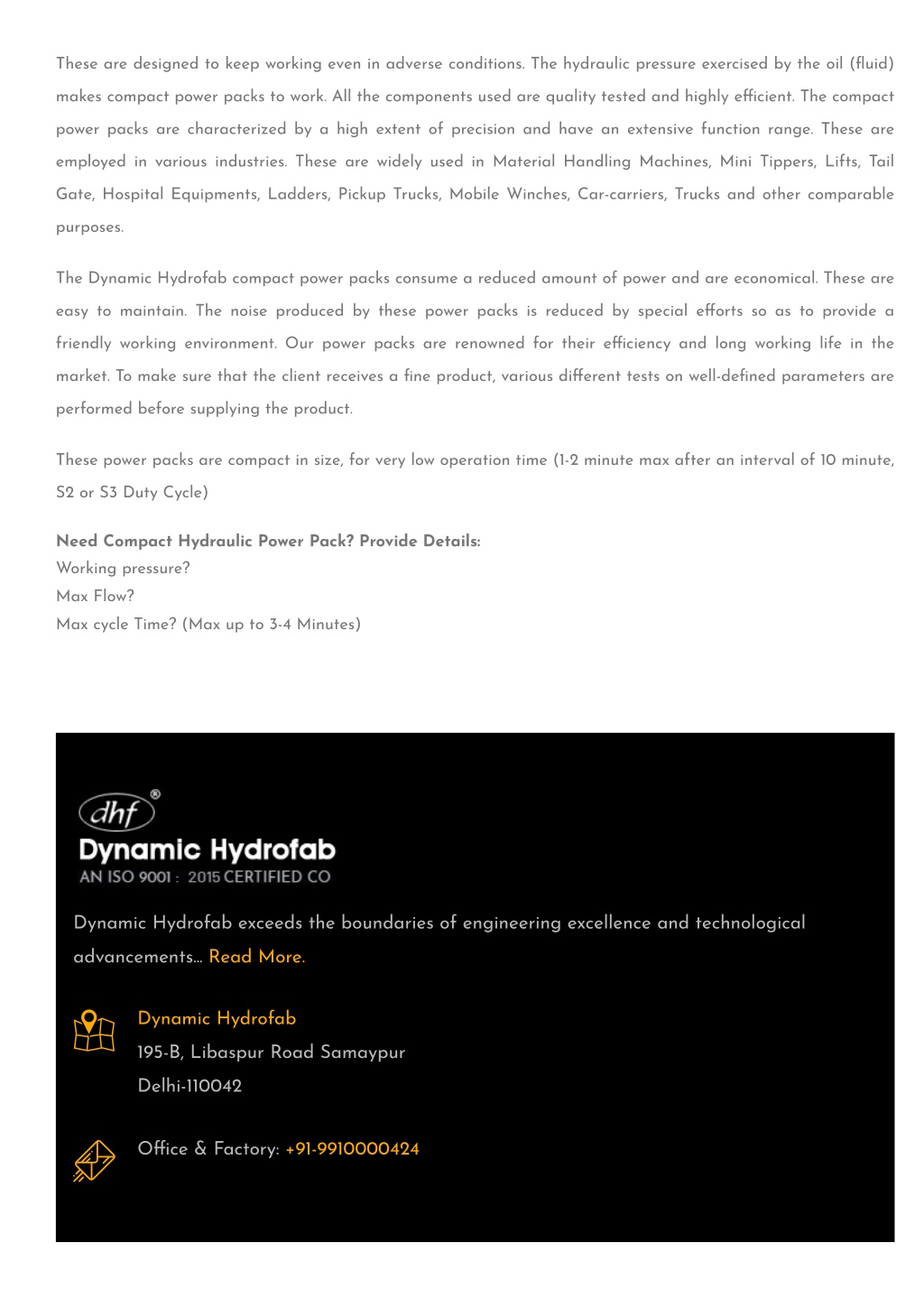

  9. These are designed to keep working even in adverse conditions. The hydraulic pressure exercised by the oil (?uid) makes compact power packs to work. All the components used are quality tested and highly e?cient. The compact power packs are characterized by a high extent of precision and have an extensive function range. These are employed in various industries. These are widely used in Material Handling Machines, Mini Tippers, Lifts, Tail Gate, Hospital Equipments, Ladders, Pickup Trucks, Mobile Winches, Car-carriers, Trucks and other comparable purposes. The Dynamic Hydrofab compact power packs consume a reduced amount of power and are economical. These are easy to maintain. The noise produced by these power packs is reduced by special e?orts so as to provide a friendly working environment. Our power packs are renowned for their e?ciency and long working life in the market. To make sure that the client receives a ?ne product, various di?erent tests on well-de?ned parameters are performed before supplying the product. These power packs are compact in size, for very low operation time (1-2 minute max after an interval of 10 minute, S2 or S3 Duty Cycle) Need Compact Hydraulic Power Pack? Provide Details: Working pressure? Max Flow? Max cycle Time? (Max up to 3-4 Minutes) Dynamic Hydrofab exceeds the boundaries of engineering excellence and technological advancements... Read More.  Dynamic Hydrofab 195-B, Libaspur Road Samaypur Delhi-110042  O?ce & Factory: +91-9910000424

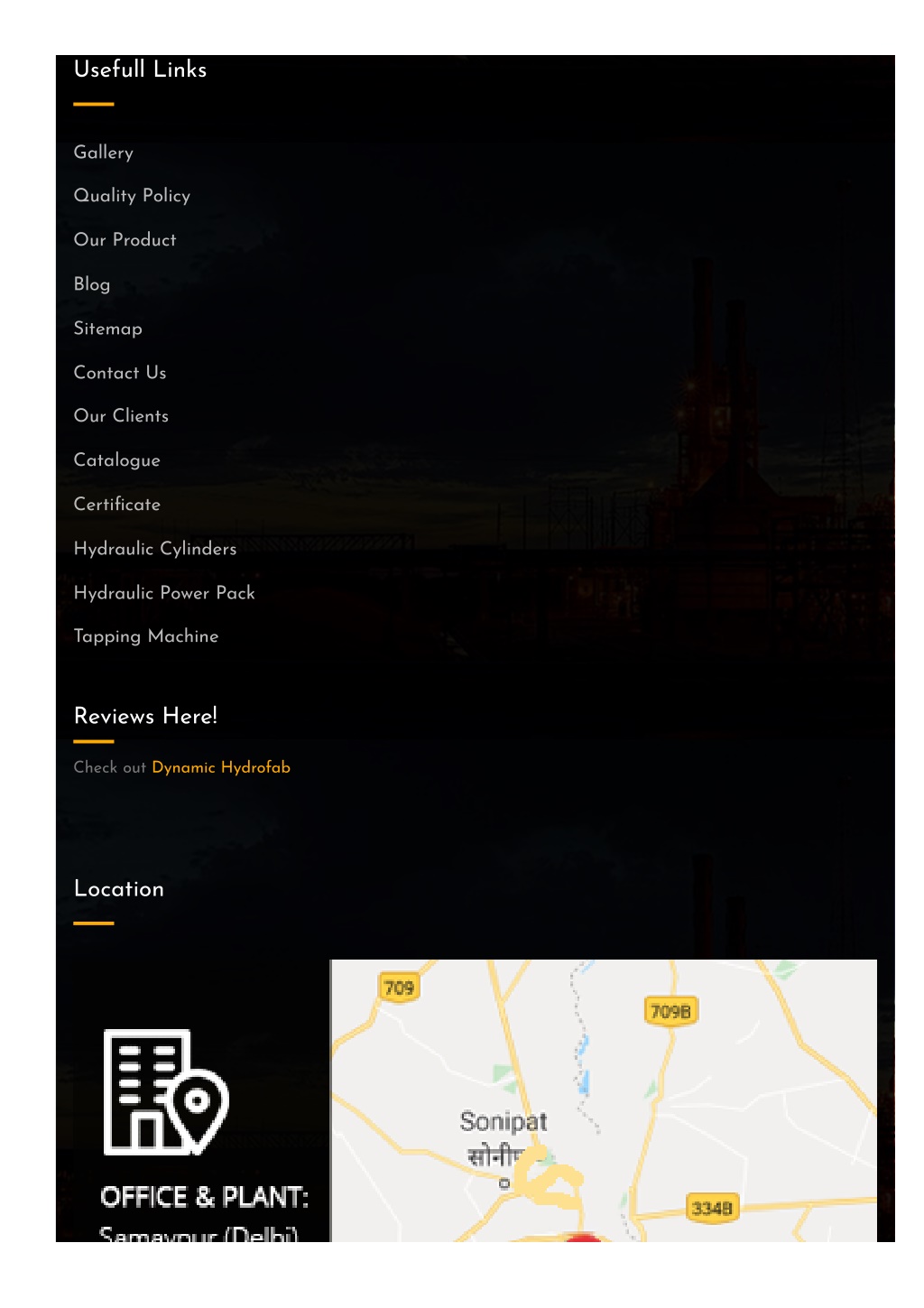

  10. Usefull Links Gallery Quality Policy Our Product Blog Sitemap Contact Us Our Clients Catalogue Certi?cate Hydraulic Cylinders Hydraulic Power Pack Tapping Machine Reviews Here! Check out Dynamic Hydrofab Location

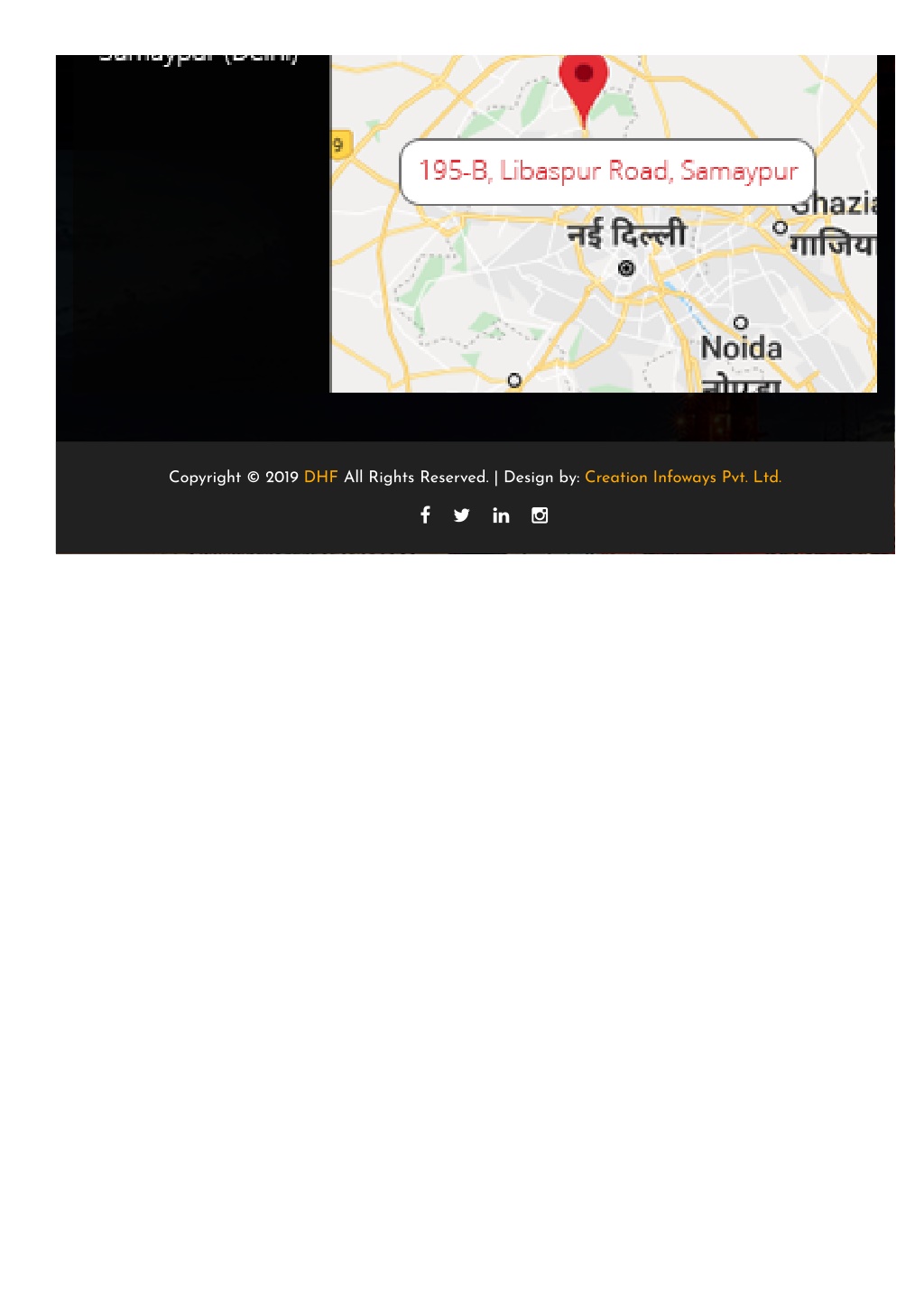

  11. Copyright © 2019 DHF All Rights Reserved. | Design by: Creation Infoways Pvt. Ltd.    
