Presentation Transcript
pascal s law

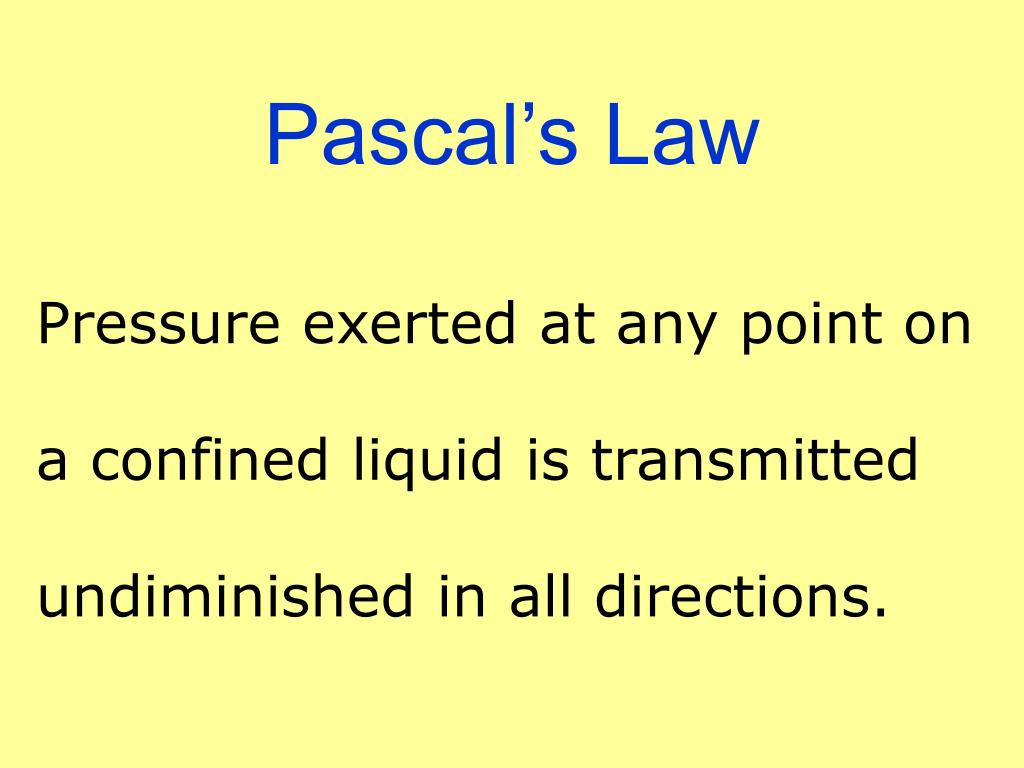

Pascal’s Law

Pressure exerted at any point on

a confined liquid is transmitted

undiminished in all directions.

hydraulic
Hydraulic

Tool or equipment powered by the movement of fluid under pressure. Examples are brakes, jacks & tractor lifts.

pneumatic
Pneumatic

Tool or equipment powered or supported by the movement of compressed air.

slide6
PSI

Pounds per Square Inch

determines amount of force

GPM

Gallons per Minute

determines speed of action

slide7

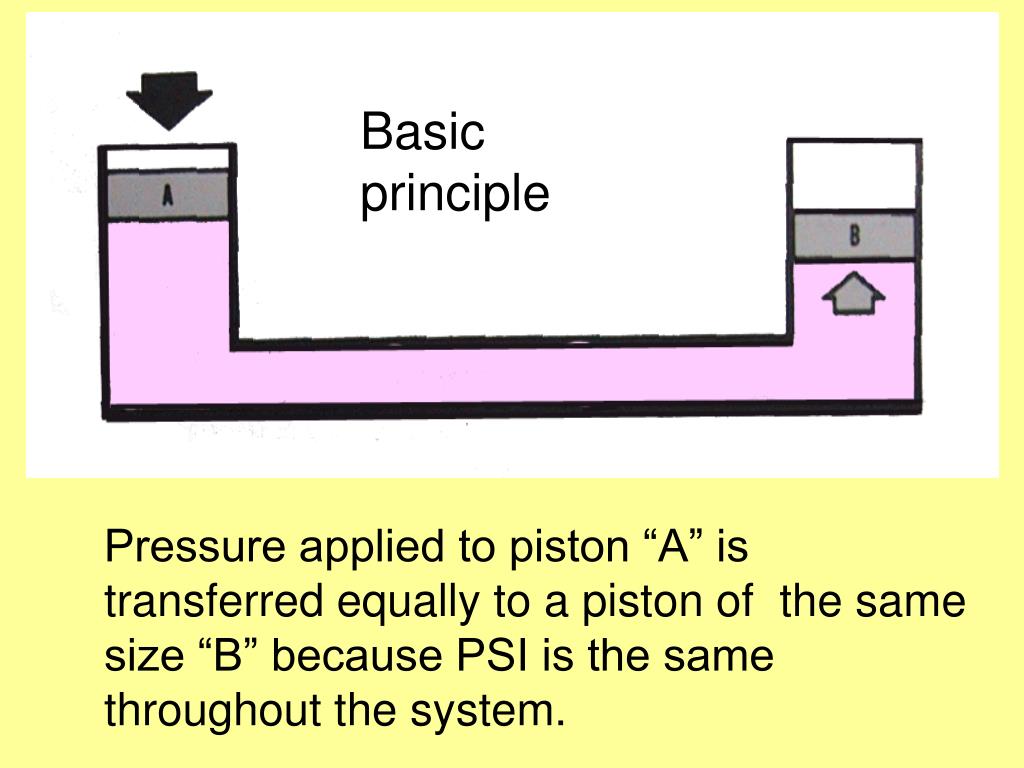

Basic principle

Pressure applied to piston “A” is transferred equally to a piston of the same size “B” because PSI is the same throughout the system.

slide8

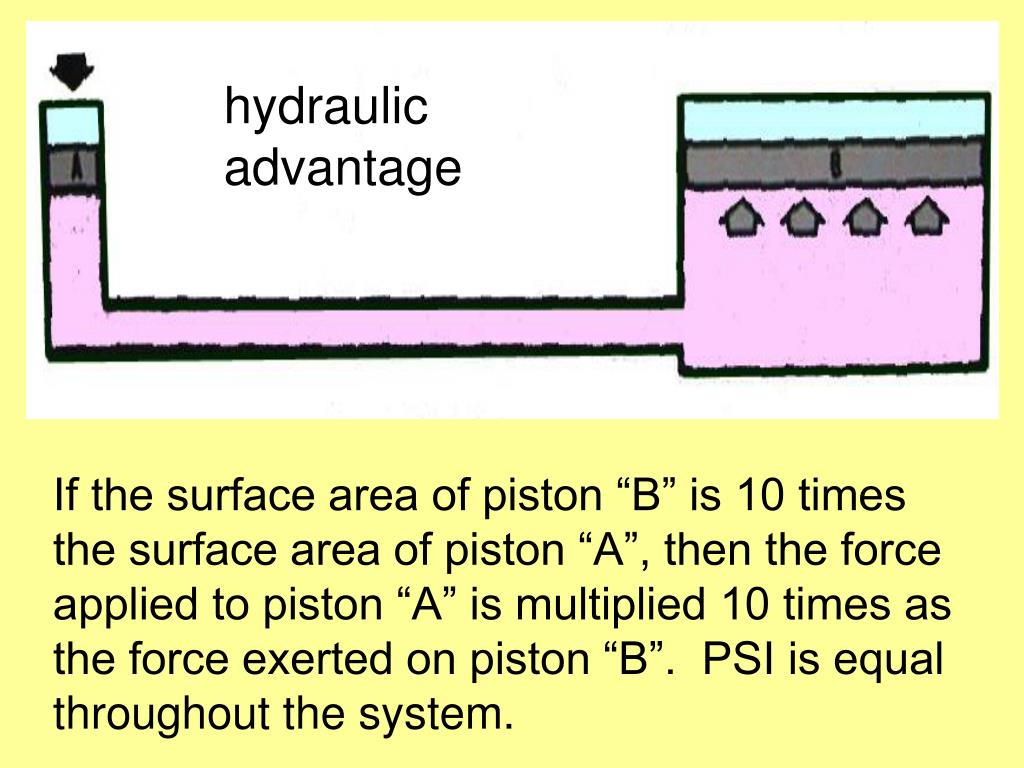

hydraulic advantage

If the surface area of piston “B” is 10 times the surface area of piston “A”, then the force applied to piston “A” is multiplied 10 times as the force exerted on piston “B”. PSI is equal throughout the system.

input output
Input / Output

Force input on a hydraulic system or component results in transfer of power to output of force by the system or component.

slide10

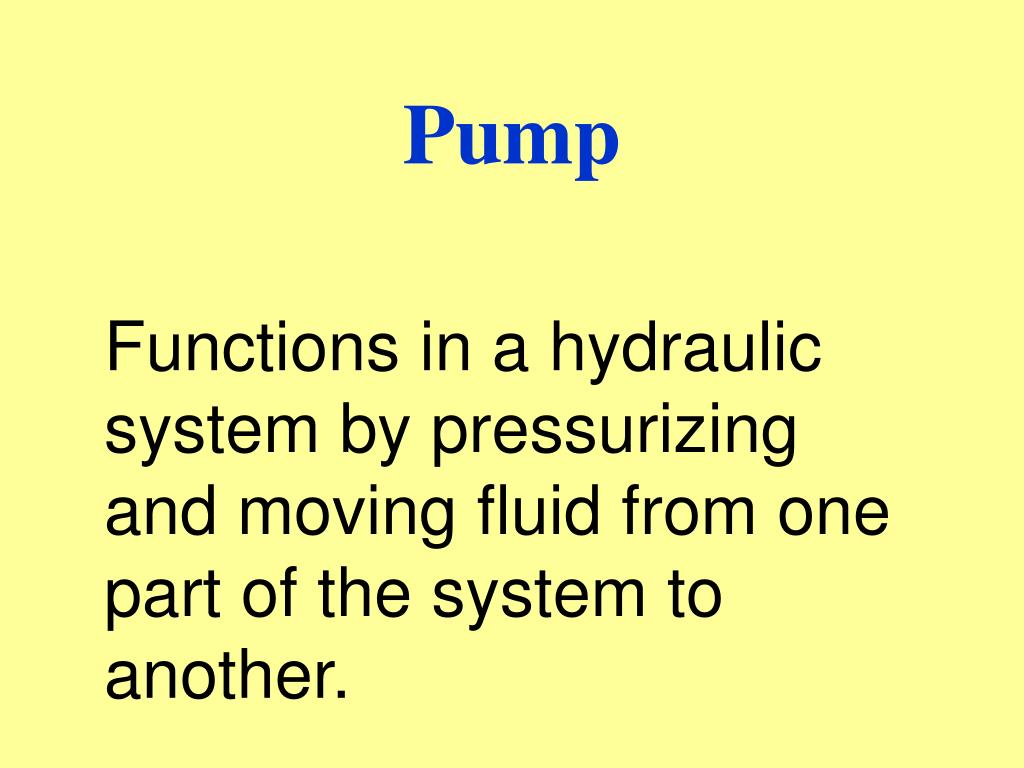

Pump

Functions in a hydraulic system by pressurizing and moving fluid from one part of the system to another.

hydraulic pumps are usually one of four types piston gear vane internal rotor
Hydraulic pumps are usually one of four types:PISTONGEARVANEINTERNAL ROTOR
piston pumps

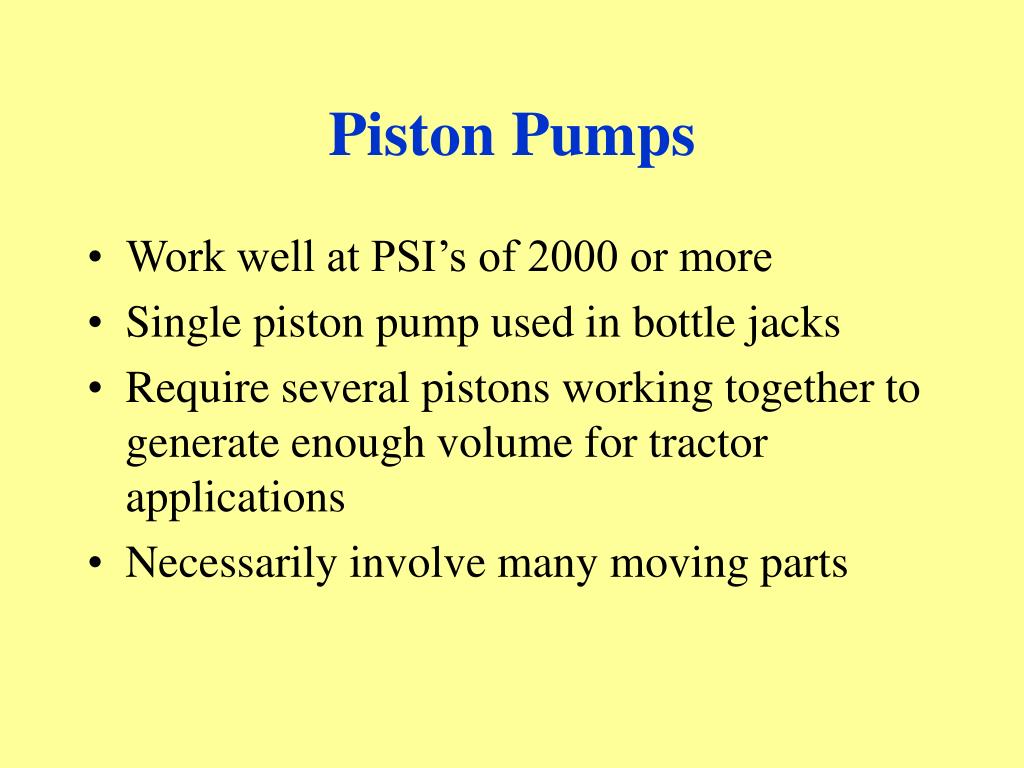

Piston Pumps
  • Work well at PSI’s of 2000 or more
  • Single piston pump used in bottle jacks
  • Require several pistons working together to generate enough volume for tractor applications
  • Necessarily involve many moving parts
gear pumps

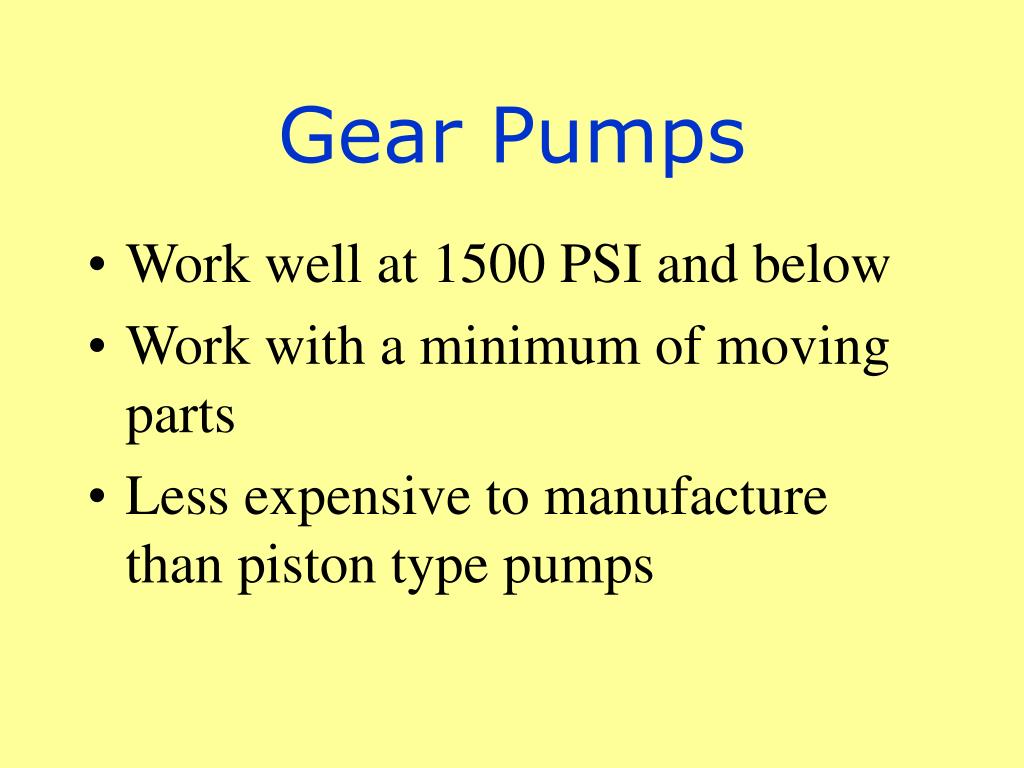

Gear Pumps
  • Work well at 1500 PSI and below
  • Work with a minimum of moving parts
  • Less expensive to manufacture than piston type pumps
slide14

Gear Pump

driven gear

idler gear

hydraulic motor

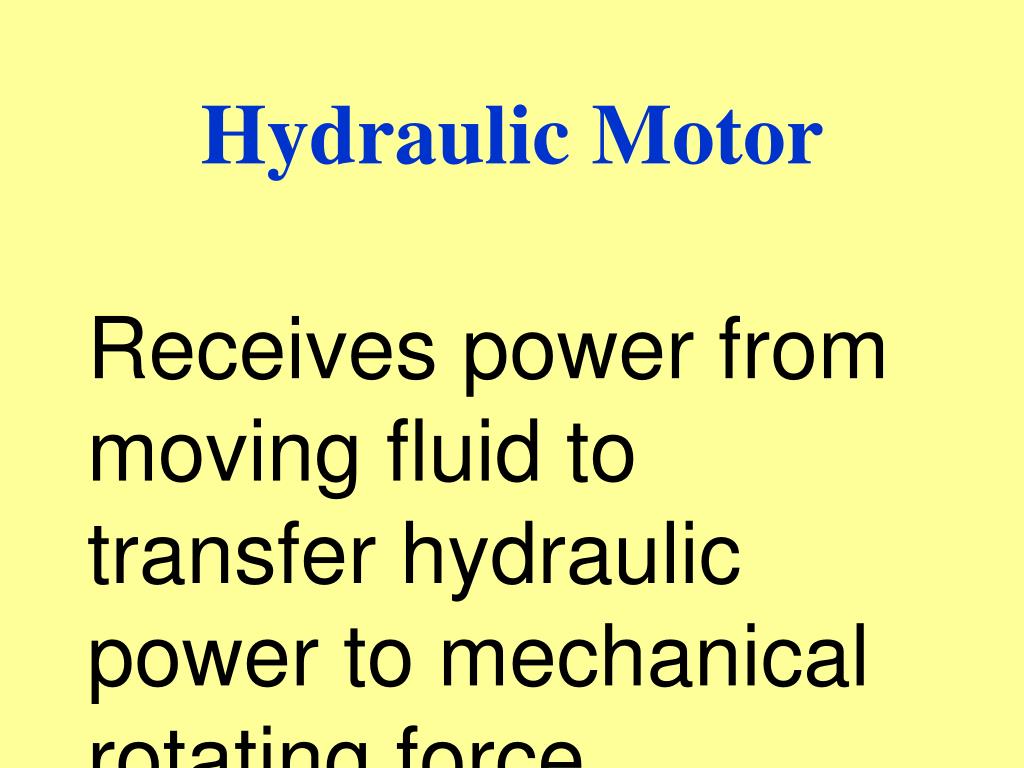

Hydraulic Motor

Receives power from moving fluid to transfer hydraulic power to mechanical rotating force.

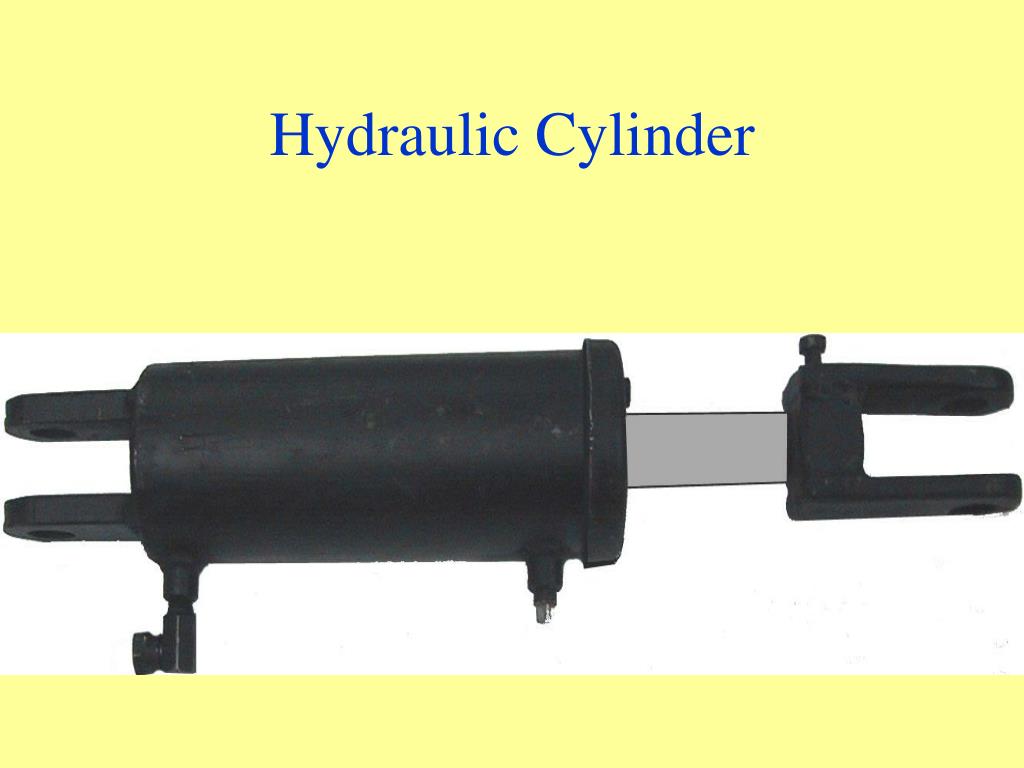

cylinder
Cylinder

Piece of equipment that transfers hydraulic power into mechanical movement in one or two directions only.

single acting

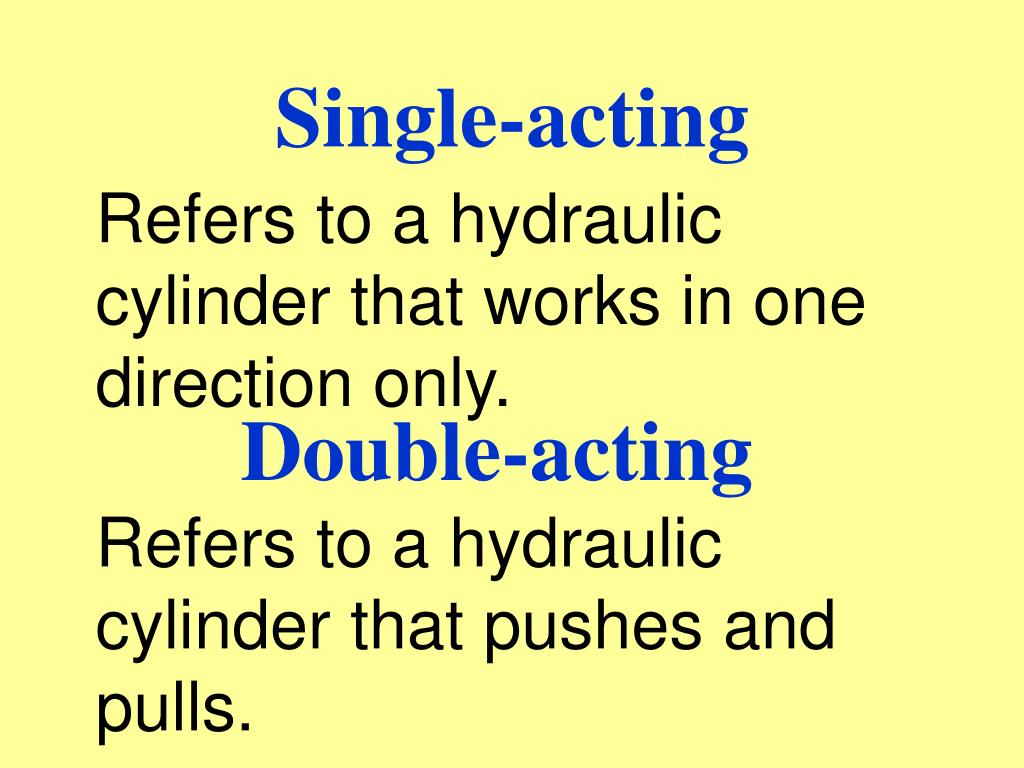

Single-acting

Refers to a hydraulic cylinder that works in one direction only.

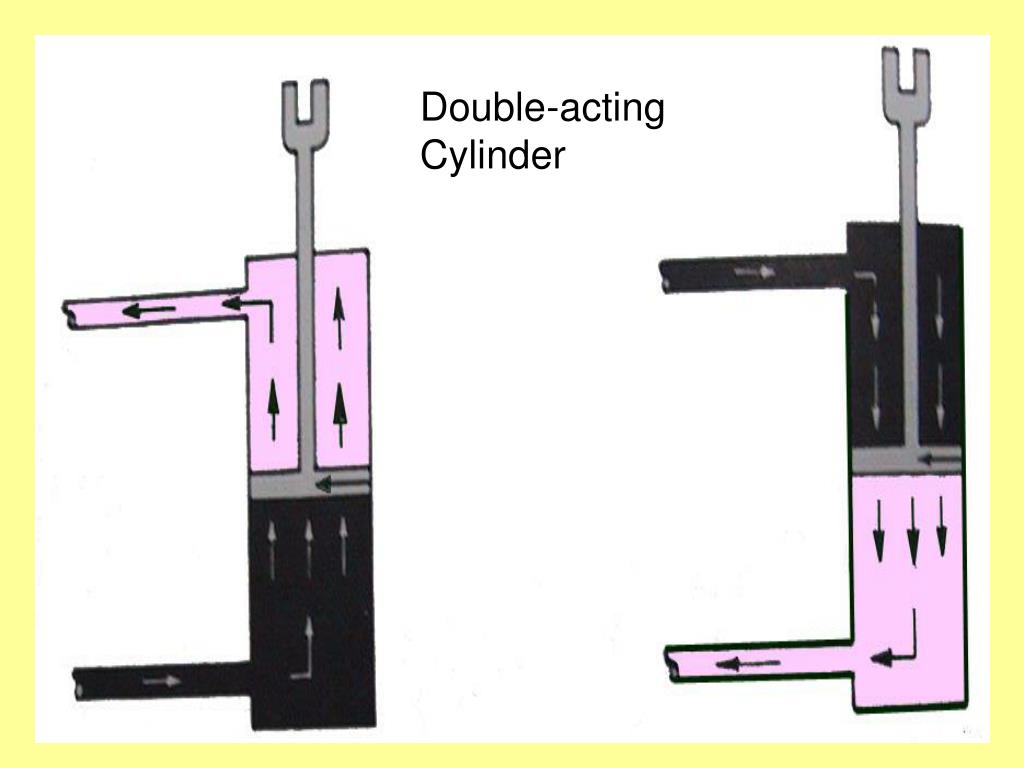

Double-acting

Refers to a hydraulic cylinder that pushes and pulls.

piston

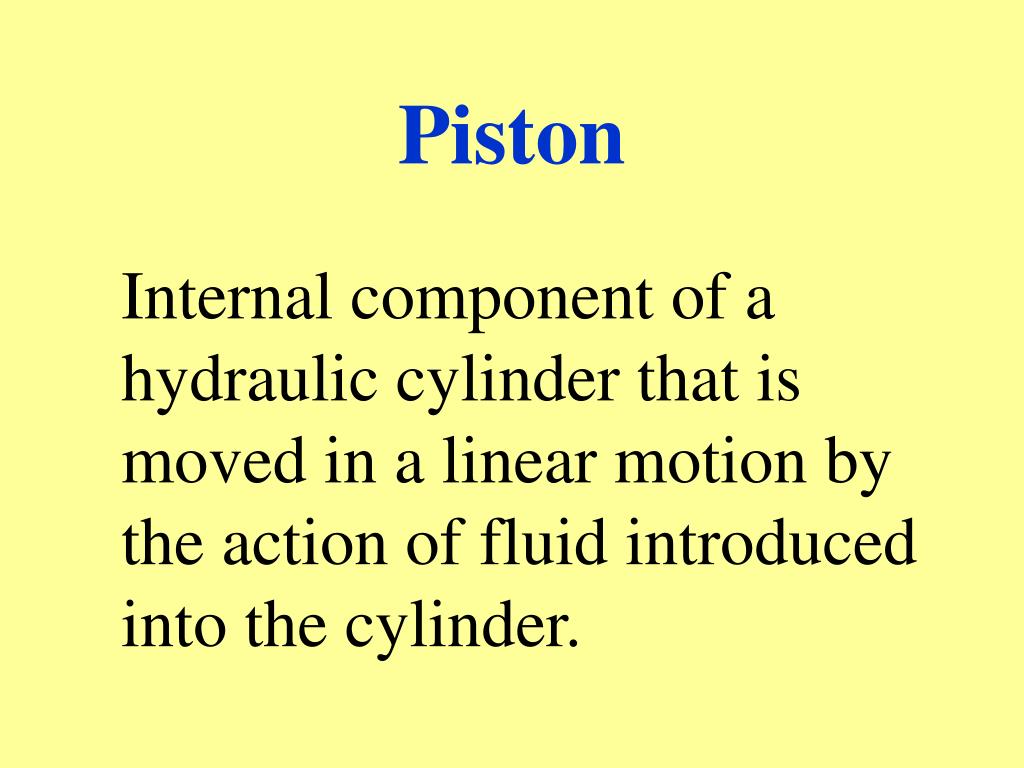

Piston

Internal component of a hydraulic cylinder that is moved in a linear motion by the action of fluid introduced into the cylinder.

shaft
Shaft

The polished round bar that is extended from and retracted into a hydraulic cylinder.

stroke
Stroke

The length of movement that a hydraulic cylinder is capable of producing.

slide24
Seal

Found in hydraulic components; function is to keep fluid from leaking between moving and non-moving parts

check valve
Check Valve

Restricts flow of fluid to only one direction; allows pressure to build up or be maintained.

spool valve
Spool Valve

Controls direction of flow of fluid in a hydraulic system to cause the different parts of the system to function.

slide29

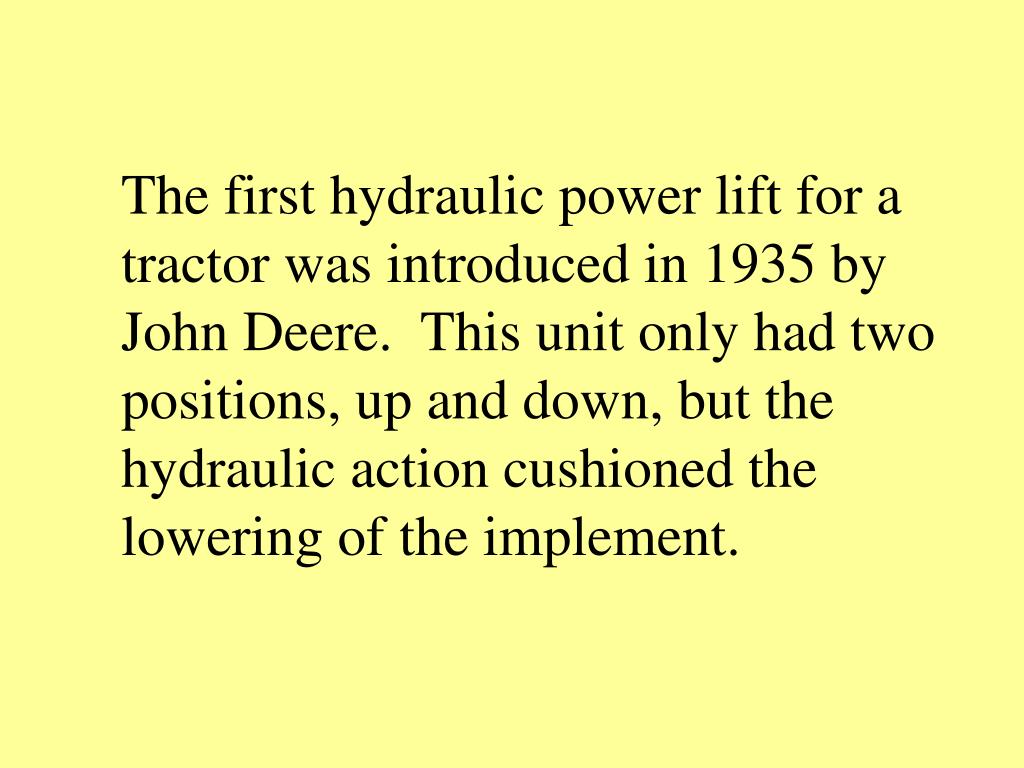

The first hydraulic power lift for a tractor was introduced in 1935 by John Deere. This unit only had two positions, up and down, but the hydraulic action cushioned the lowering of the implement.

rockshaft

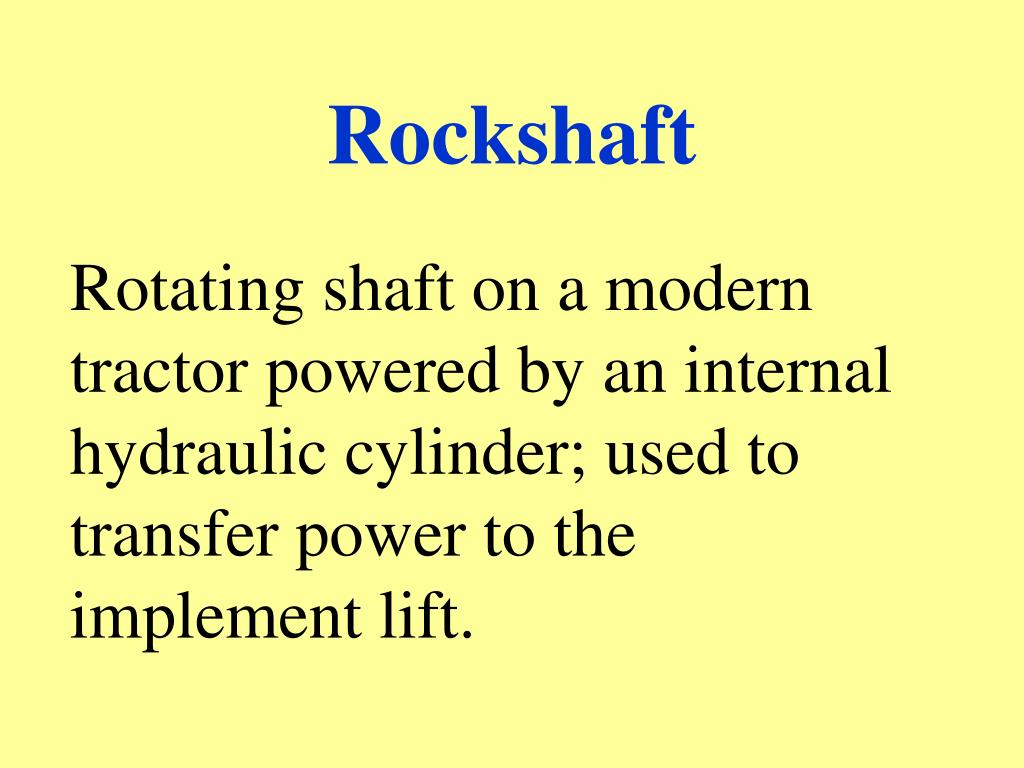

Rockshaft

Rotating shaft on a modern tractor powered by an internal hydraulic cylinder; used to transfer power to the implement lift.
