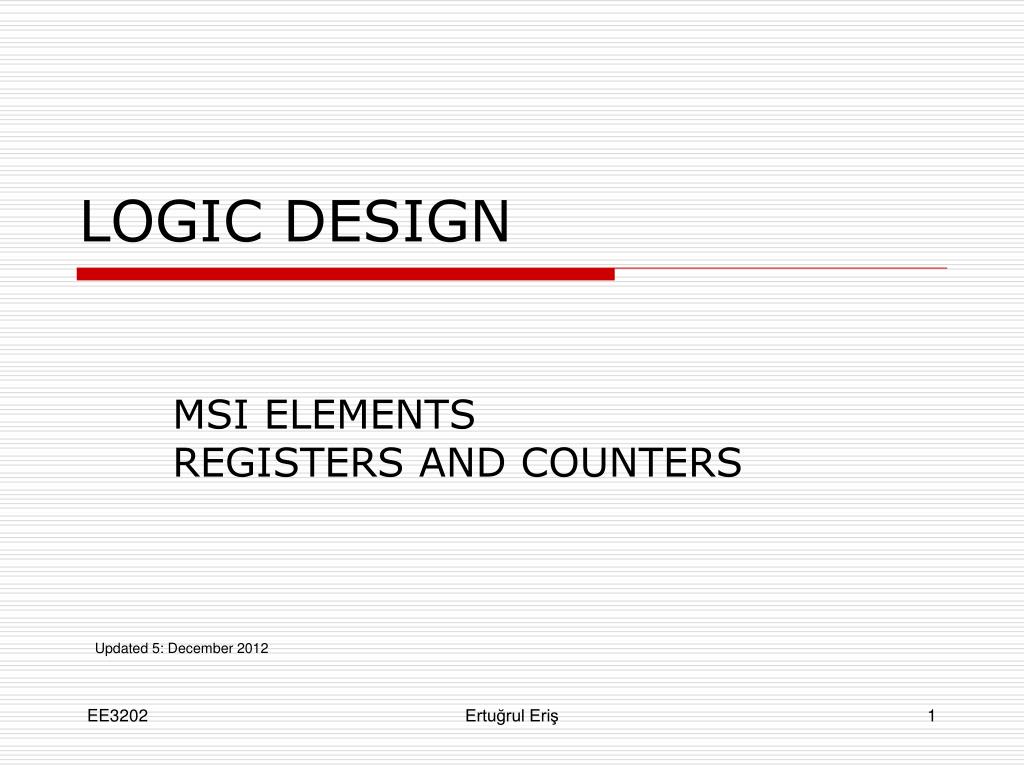

  1. LOGIC DESIGN MSI ELEMENTSREGISTERS AND COUNTERS Updated 5: December 2012 Ertuğrul Eriş

  2. EE33201 COURSE ASSESMENT MATRIX

  3. SEQUENTIAL MSI ELEMENTS • SSI, SINGLE SCALE INTEGRATED CIRCUITS • GATES,FFS • MSI, MEDIUM SCALE INTEGRATED CIRCUITS • COUNTERS, REGISTERS • LSI, LARGESCALE INTEGRATED CIRCUITS • PROGRAMABLE LOGIC DEVICES Ertuğrul Eriş

  4. REGISTERS (YAZMAÇLAR) • Three types • Parallel Load (Paralel yüklemeli ) • Shift register (Sağ sol Ötelemeli ) • Universal (Üniversal) • Applications • Storing input and output data • Seril/paralel data application • Will be used in serial adder Ertuğrul Eriş

  5. FOUR-BIT REGISTER (YAZMAÇ) WITH PARALLEL LOAD Ertuğrul Eriş

  6. FOUR – BIT REGISTER Ertuğrul Eriş

  7. SHIFT REGISTER (ÖTELEMELİ YAZMAÇ) Serial/parallel? Ertuğrul Eriş

  8. SERIAL TRANSFER ‘what is the shift control? Ertuğrul Eriş

  9. SERIAL ADDITION-1 How we could see input/output data at the same time? Ertuğrul Eriş

  10. STATE TABLE FOR SERIAL ADDER Ertuğrul Eriş

  11. SERIAL ADDITION-2 Ertuğrul Eriş

  12. FOUR-BIT UNIVERSAL SHIFT REGISTER An application example: serial adder Ertuğrul Eriş

  13. COUNTERS (SAYICILAR) • Two types • Ripple, asynchronous counters (Asenkron sayıcılar) • Binary • Binary Coded Decimal (BCD) • Synchronous Counters (Senkron sayıcılar) • Binary • Binary Coded Decimal (BCD) Ertuğrul Eriş

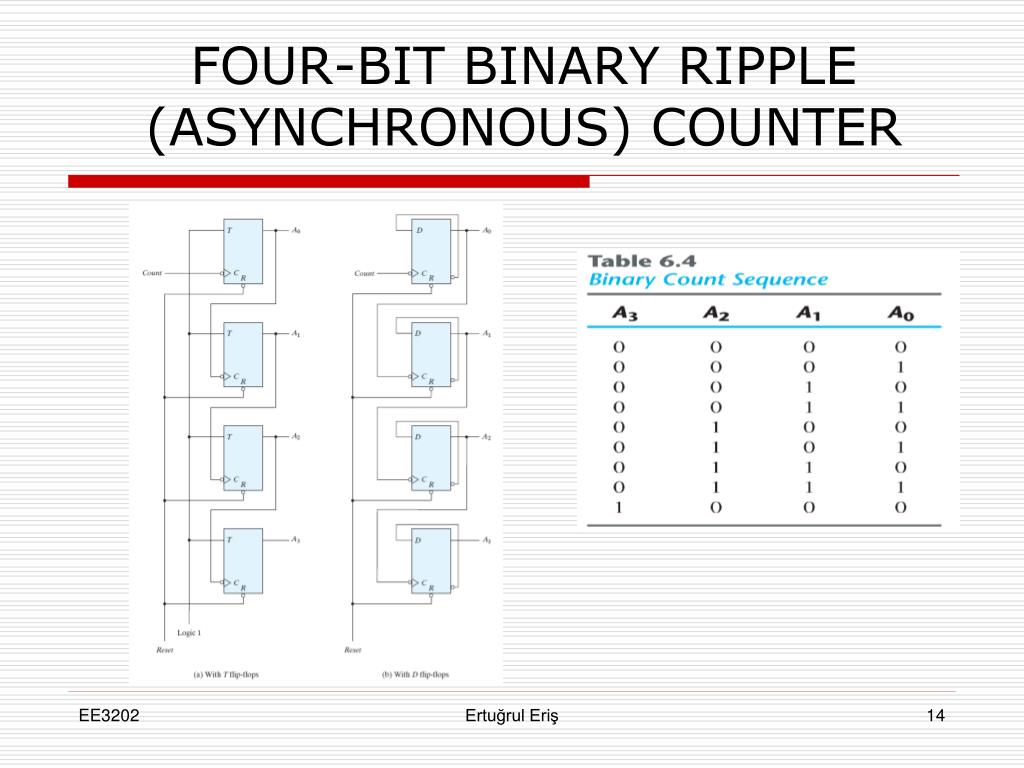

  14. FOUR-BIT BINARY RIPPLE (ASYNCHRONOUS) COUNTER Ertuğrul Eriş

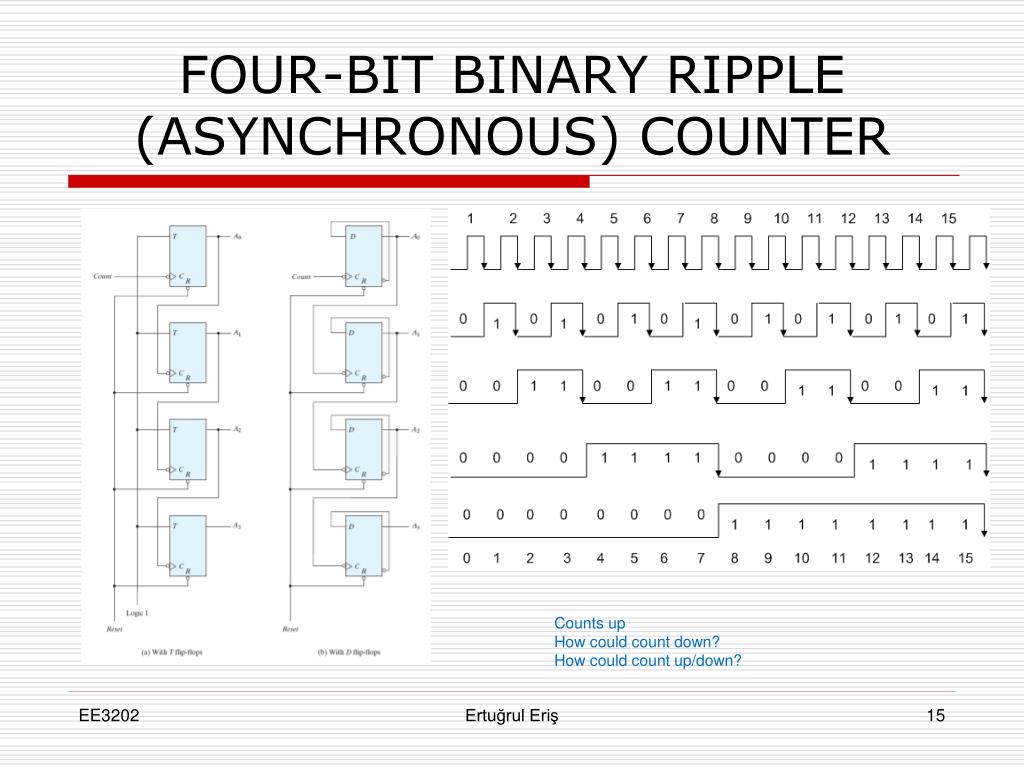

  15. FOUR-BIT BINARY RIPPLE (ASYNCHRONOUS) COUNTER Counts up How could count down? How could count up/down? Ertuğrul Eriş

  16. STATE DIAGRAM OF A DECIMAL BCD COUNTER Ertuğrul Eriş

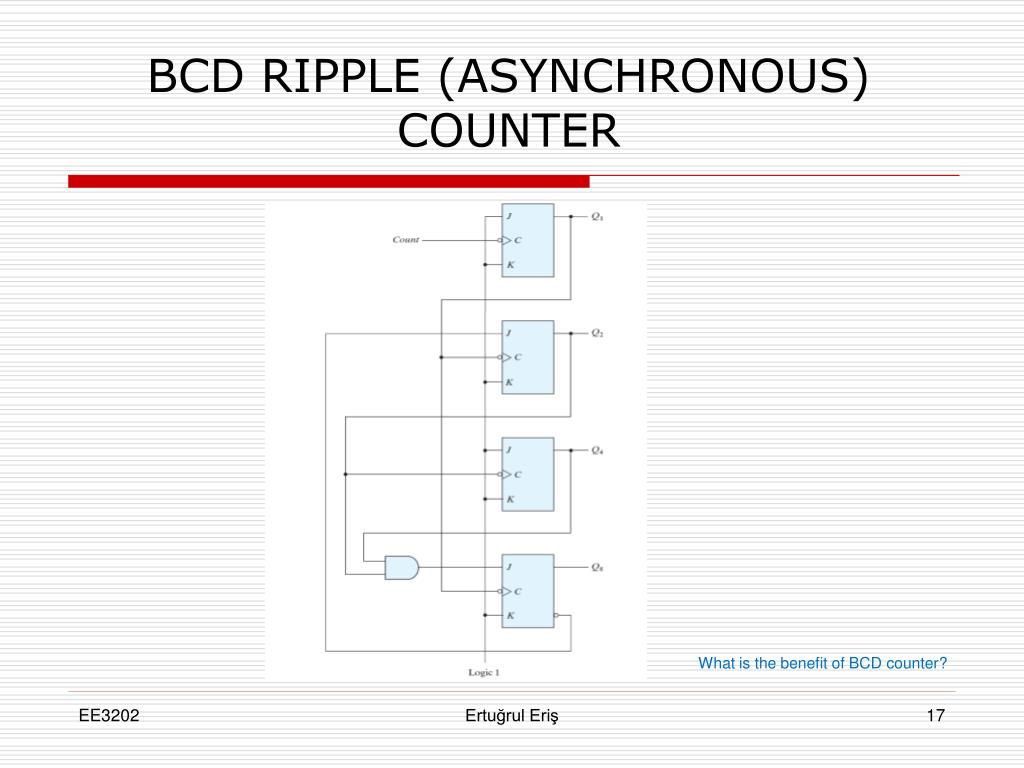

  17. BCD RIPPLE (ASYNCHRONOUS) COUNTER What is the benefit of BCD counter? Ertuğrul Eriş

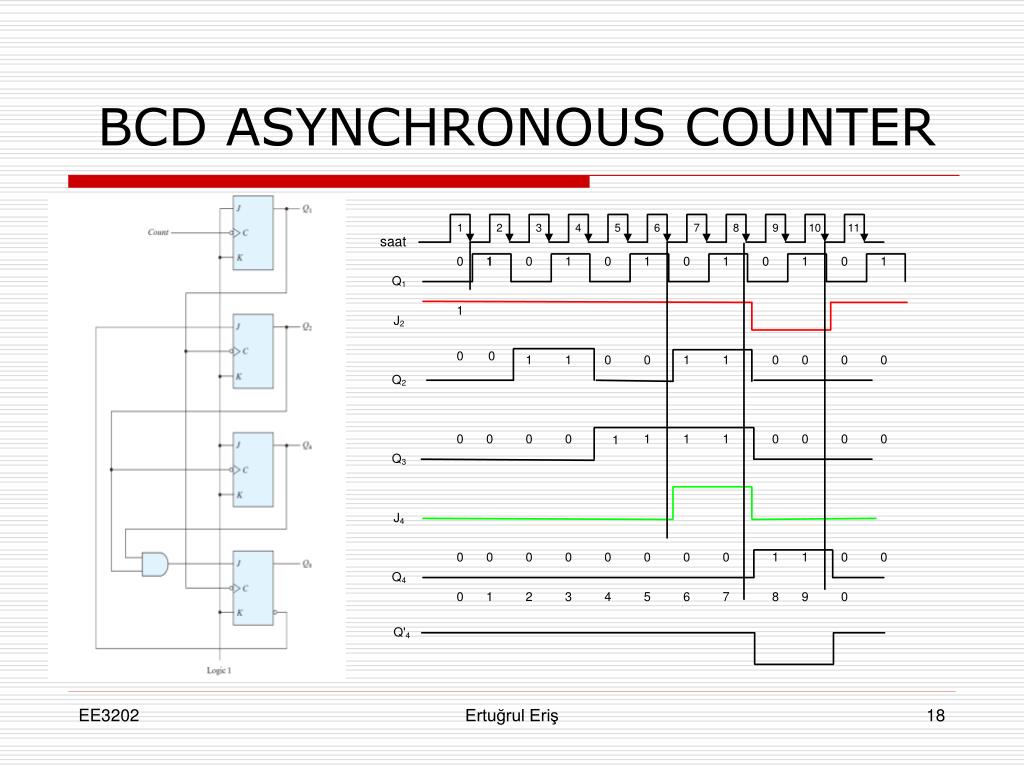

  18. BCD ASYNCHRONOUS COUNTER Ertuğrul Eriş

  19. THREE-DECADE DECIMAL BCD COUNTER Ertuğrul Eriş

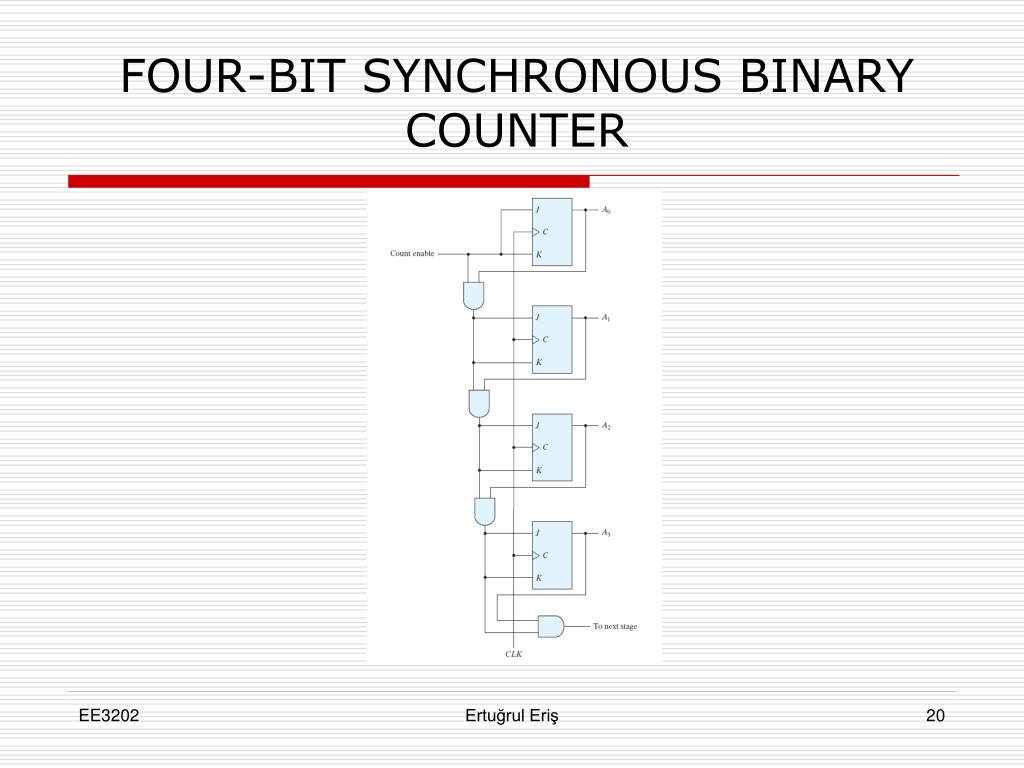

  20. FOUR-BIT SYNCHRONOUS BINARY COUNTER Ertuğrul Eriş

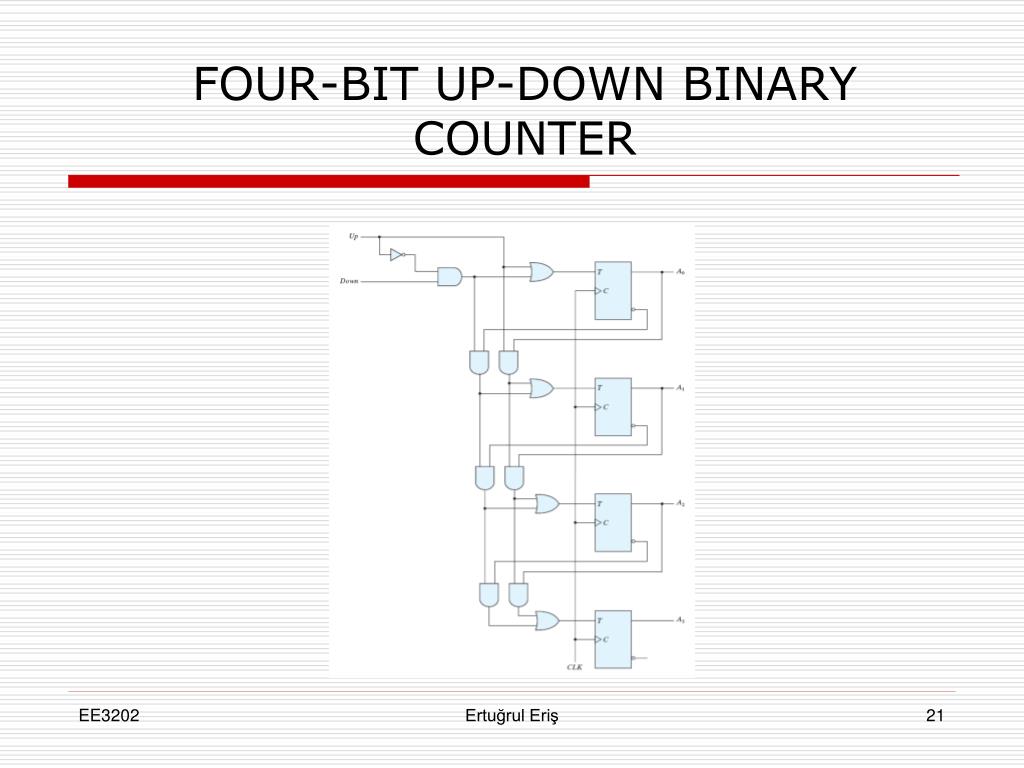

  21. FOUR-BIT UP-DOWN BINARY COUNTER Ertuğrul Eriş

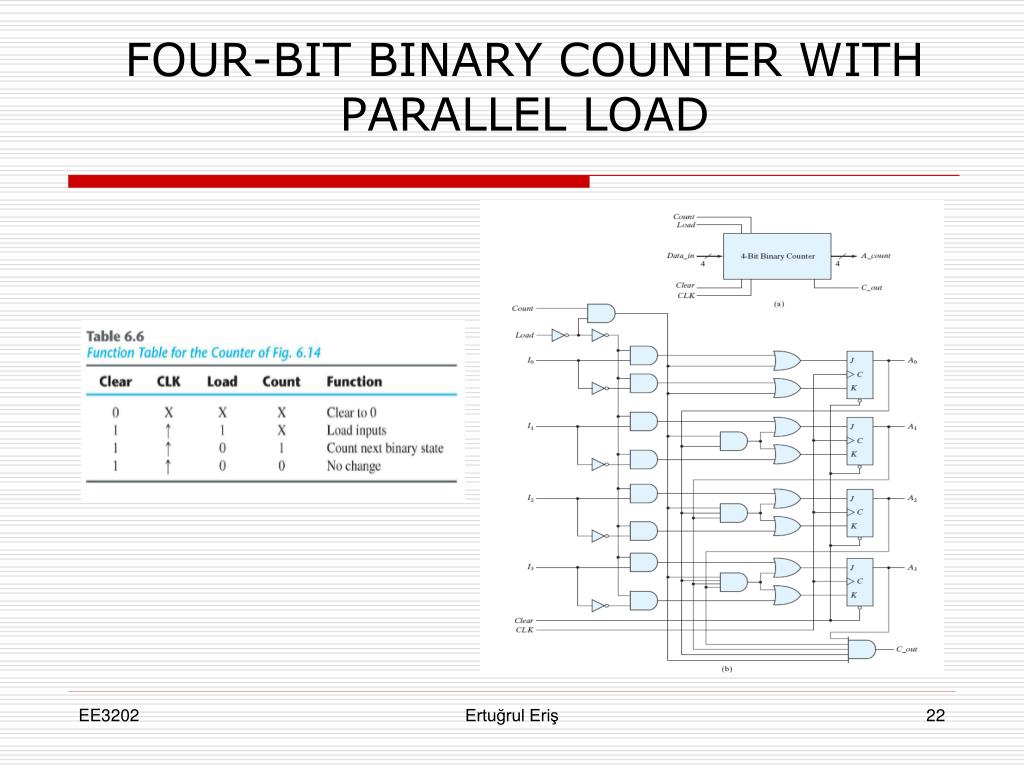

  22. FOUR-BIT BINARY COUNTER WITH PARALLEL LOAD Ertuğrul Eriş

  23. BCD COUNTER Ertuğrul Eriş

  24. SHIFT (WORD) CONTROL SIGNAL A counter application example Ertuğrul Eriş

  25. COUNTER WITH UNUSED STATES Ertuğrul Eriş

  26. RING COUNTER Ertuğrul Eriş

  27. JOHNSON COUNTER Ertuğrul Eriş

  28. FUNCTION TABLE /TIME DIAGRAMS • TRUTH TABLES ARE NOT PRACTICAL DESCRIPTION (DEFINITION RELATION) FOR MSI COMPONENTS, WHY? • FUNCTION TABLES ARE PREFERABLE • ALTERNATIVE «TIME DIAGRAMS» ARE GIVEN IN DATA SHEET. Ertuğrul Eriş

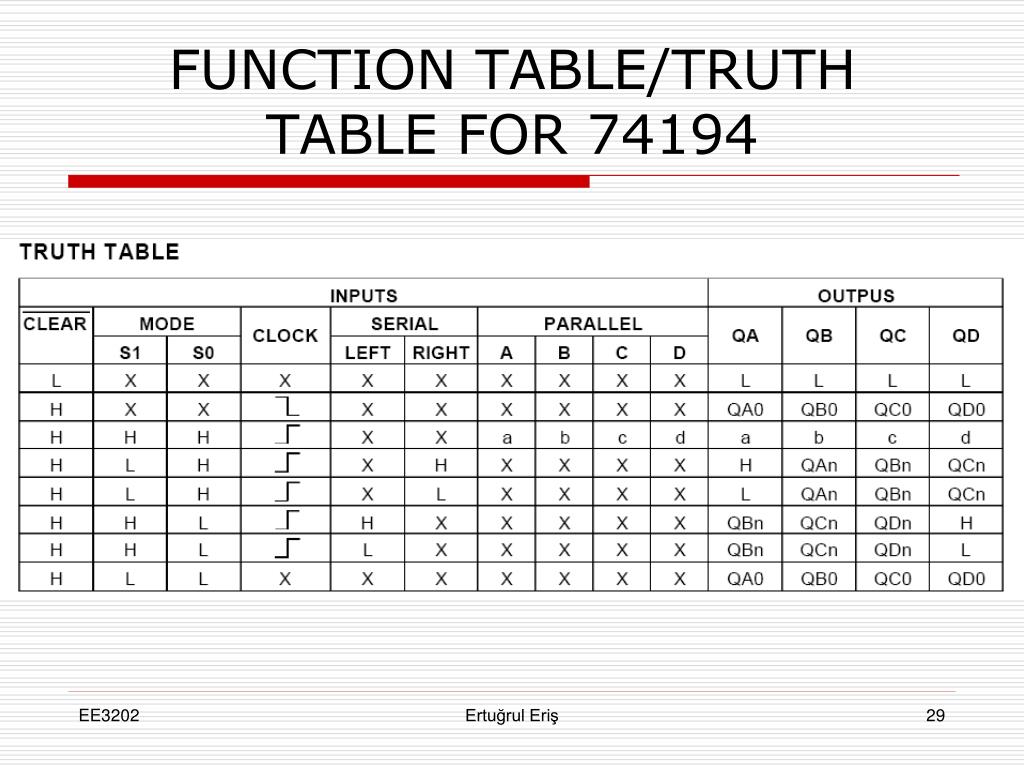

  29. FUNCTION TABLE/TRUTH TABLE FOR 74194 Ertuğrul Eriş

  30. 74194 TIME DIAGRAM/TIMING CHART Ertuğrul Eriş

  31. PROGRAM DESIGN DEPT, PROGRAM G R A D U A T E S T U D E N T STUDENT P R OG R A M O U T C O M E S PROGRAM OUTCOMES P R OG R A M O U T C O M E S STATE, ENTREPRENEUR FIELD QALIFICATIONS EU/NATIONAL QUALIFICATIONS KNOWLEDGE SKILLS COMPETENCES NEWCOMERSTUDENT ORIENTIATION GOVERNANCE Std. questionnaire ALUMNI, PARENTS ORIENTIATION STUDENT PROFILE Std. questionnaire FACULTY NGO STUDENT, ??? CIRCICULUM ??? INTRERNAL CONSTITUENT Std. questionnaire EXTRERNAL CONSTITUENT EXTRERNAL CONSTITUENT REQUIREMENTS EU/NATIONAL FIELD QUALIFICATIONS PROGRAM OUTCOMES QUESTIONNAIRES QUALITY IMP. TOOLS GOAL: NATIONAL/INTERNATIONAL ACCREDITION

  32. BLOOM’S TAXONOMYANDERSON AND KRATHWOHL (2001) !!Listening !! Doesn’t exits in the original!!! http://www.learningandteaching.info/learning/bloomtax.htm Ertuğrul Eriş

  33. ULUSAL LİSANS YETERLİLİKLER ÇERÇEVESİ BLOOMS TAXONOMY Ertuğrul Eriş

  34. COURSE ASSESMENT MATRIX LEARNING OUTCOMES Ertuğrul Eriş
