  1. NEXSAN E-Series™Best Backup to Disk

  2. Nexsan At-a-Glance • Established in 1999 • 28,000 systems installed in over 60 countries • Over 10,000 customers • Proven, Enterprise-class • 100% Channel • Markets Served Digital Surveillance Video & Entertainment Financial Local & National Government Law Enforcement Medical Scientific& Research Cloud Storage Transportation

  3. Agenda Backup and Restore Key Considerations • Backup to Disk vs. Tape • Primary Disk Storage • SAN-based vs. LAN-based Backups • The Role of Snapshots • Asynchronous Replication and Disaster Recovery • Backup Disk Storage • Best place to De-duplicate • Key Criteria • Nexsan’s Data Protection Software Partners Nexsan E-Series Disk Arrays • Capacities, configurations, features

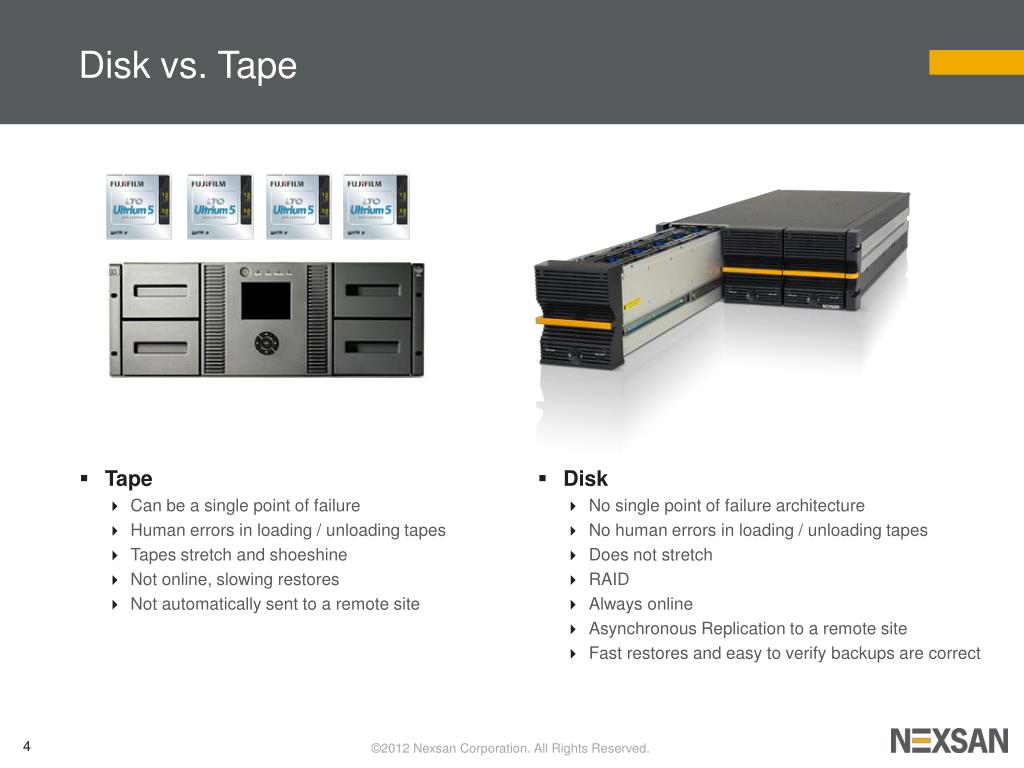

  4. Disk vs. Tape • Disk • No single point of failure architecture • No human errors in loading / unloading tapes • Does not stretch • RAID • Always online • Asynchronous Replication to a remote site • Fast restores and easy to verify backups are correct • Tape • Can be a single point of failure • Human errors in loading / unloading tapes • Tapesstretch and shoeshine • Not online, slowing restores • Not automatically sent to a remote site

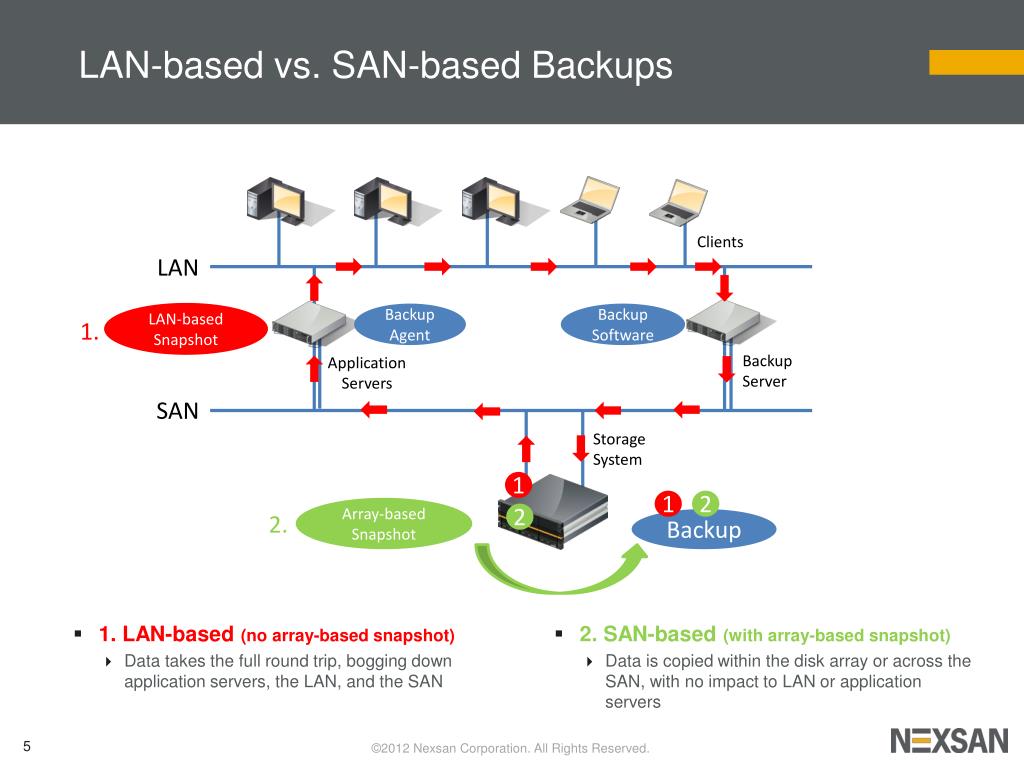

  5. LAN-based vs. SAN-based Backups • 1. LAN-based (no array-based snapshot) • Data takes the full round trip, bogging down application servers, the LAN, and the SAN Clients LAN LAN-based Snapshot Backup Agent Backup Software 1. Backup Server Application Servers SAN 1 Storage System 1 2 Array-based Snapshot 2. 2 Backup • 2. SAN-based (with array-based snapshot) • Data is copied within the disk array or across the SAN, with no impact to LAN or application servers

  6. Asynchronous Replication for Disaster Recovery Clients Clients LAN LAN Backup Server Backup Server Application Server Application Server Application Server Application Server Application Server Application Server SAN SAN Local Storage System Asynchronous Replication Asynchronous Replication Local Storage System Remote Storage System • Protection Against Site-wide Failure • Frequent snapshots are transmitted to target side • Snapshots may be mounted on target side • Backups may be performed at the target side • Good way to protect remote/branch offices • Failover / Failback to remote storage system • Pause / Resume, checkpoint restart, deduplication

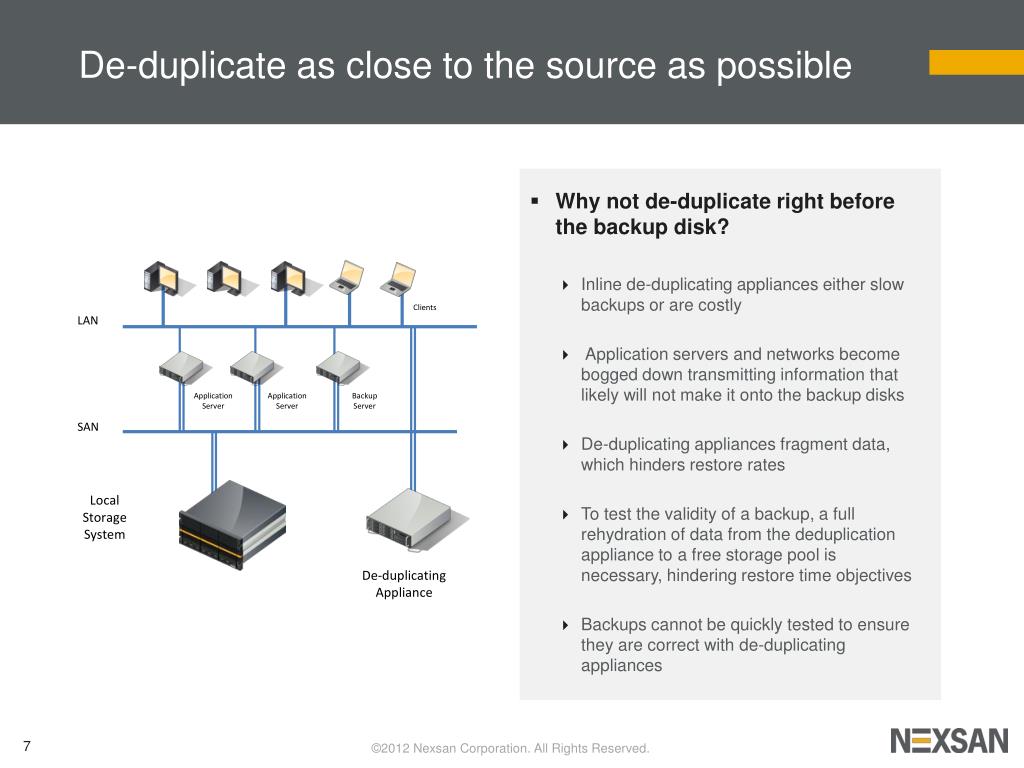

  7. De-duplicate as close to the source as possible • Why not de-duplicate right before the backup disk? • Inline de-duplicating appliances either slow backups or are costly • Application servers and networks become bogged down transmitting information that likely will not make it onto the backup disks • De-duplicating appliances fragment data, which hinders restore rates • To test the validity of a backup, a full rehydration of data from the deduplication appliance to a free storage pool is necessary, hindering restore time objectives • Backups cannot be quickly tested to ensure they are correct with de-duplicating appliances Clients LAN Application Server Application Server Backup Server SAN Local Storage System De-duplicating Appliance

  8. Nexsan Partnerships for Data Protection Software

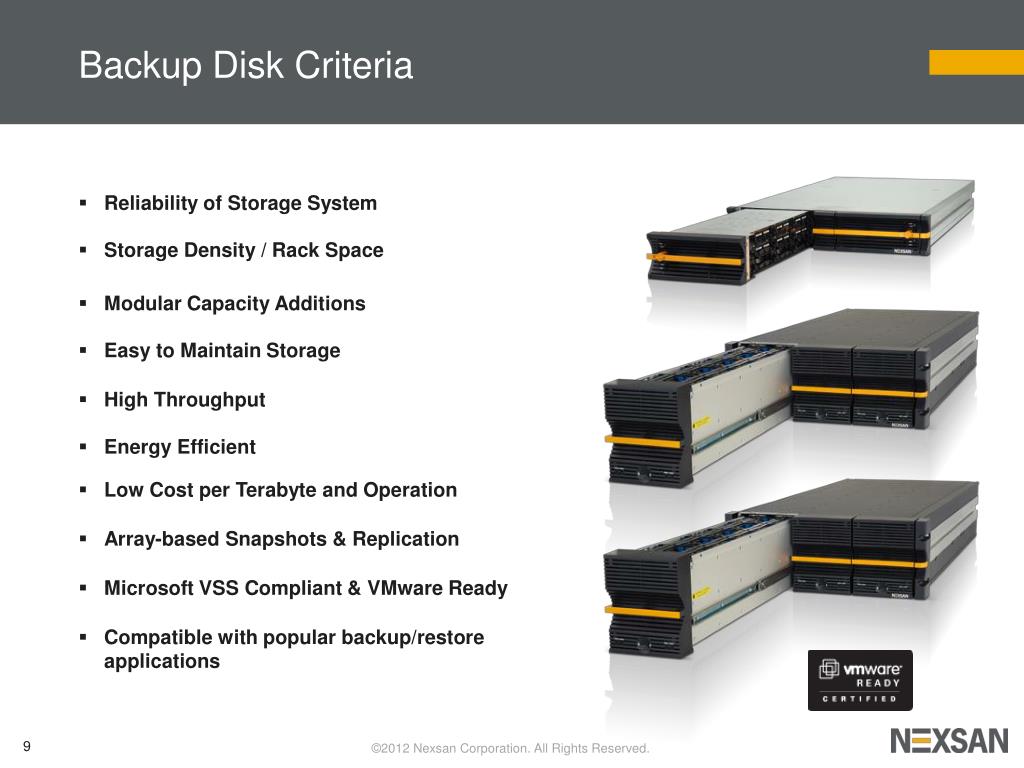

  9. Backup Disk Criteria • Reliability of Storage System • Storage Density / Rack Space • Modular Capacity Additions • Easy to Maintain Storage • High Throughput • Energy Efficient • Low Cost per Terabyte and Operation • Array-based Snapshots & Replication • Microsoft VSS Compliant & VMware Ready • Compatible with popular backup/restore applications

  10. Nexsan E-Series Disk Arrays Overview • Ultimate Reliability Storage • Hard drives individually stress tested • Then tested in the storage system • Anti-vibration Design™, Cool Drive Technology™ • Hot-swappable, redundant active components • Array-based Snapshots and Asynchronous Replication • Industry-leading Storage Density • E18: 18 drives, 72TB in 2U • E48: 48 drives 192TB in 4U • E60: 60 drives, 240TB in 4U • Active Drawer Technology™ • Administer storage with no downtime, heavy lifting or pulled wires • Active/Active Controllers • With dual RAID5/6 engines per controller • Up to 87% Energy Savings with AutoMAID® • Ideal for backup to disk or bulk storage scenarios • Leading Cost per Terabyte

  11. Nexsan E-Series: Industry-leading Design • Service drives without getting hurt • Drives remain active when drawer is open • Service system with no downtime • Increased reliability with less external wires to manage • Mount drives counter-rotating • Thick plates in chassis eliminate vibrations • Fans in front pull in air • Fans in back push out air • Air channels go straight through chassis • Even if a fan fails, air flows over drives • Variable speed fans with temperature sensors

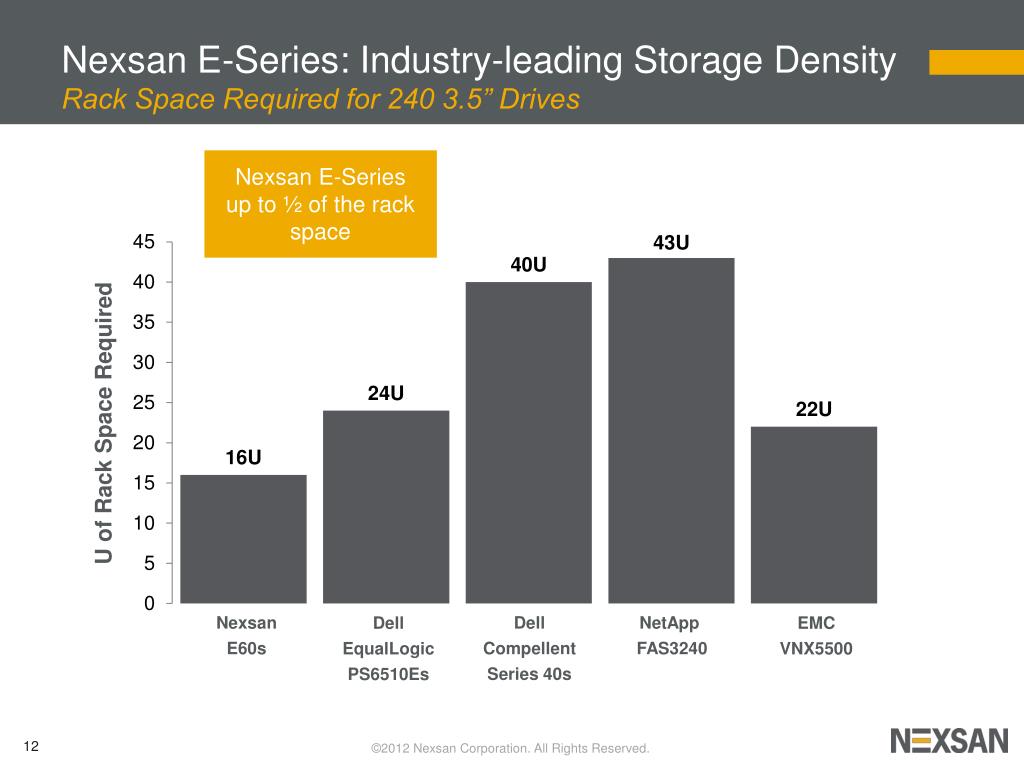

  12. Nexsan E-Series: Industry-leading Storage Density • Rack Space Required for 240 3.5” Drives Nexsan E-Series up to ½ of the rack space U of Rack Space Required • Nexsan • E60s • Dell Compellent Series 40s • NetApp • FAS3240 • Dell EqualLogic PS6510Es • EMC • VNX5500

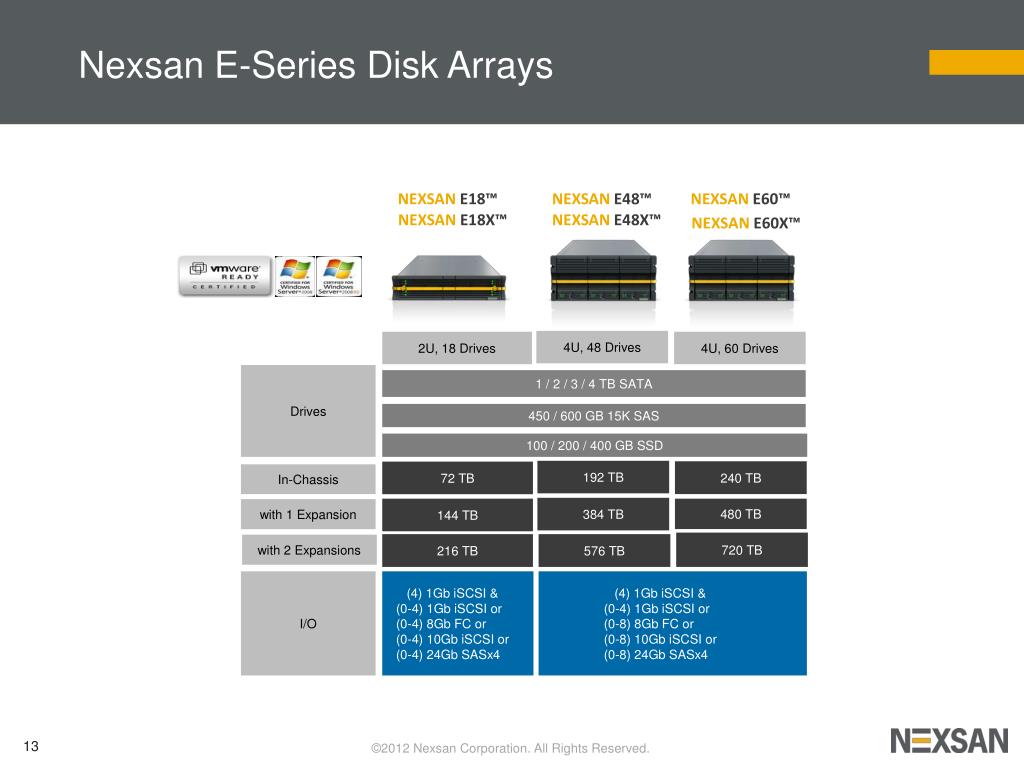

  13. Nexsan E-Series Disk Arrays NEXSAN E18™ NEXSAN E48™ NEXSAN E60™ NEXSAN E18X™ NEXSAN E48X™ NEXSAN E60X™ • 4U, 48 Drives • 2U, 18 Drives 4U, 60 Drives Drives 1 / 2 / 3 / 4 TB SATA 450 / 600 GB 15K SAS 100 / 200 / 400 GB SSD 192 TB 240 TB 72 TB In-Chassis 384 TB 144 TB 480 TB with 1 Expansion 720 TB 216 TB 576 TB with 2 Expansions I/O (4) 1Gb iSCSI & (0-4) 1Gb iSCSI or (0-4) 8Gb FC or (0-4) 10Gb iSCSI or (0-4) 24Gb SASx4 • (4) 1Gb iSCSI & • (0-4) 1Gb iSCSI or • (0-8) 8Gb FC or • (0-8) 10Gb iSCSI or • (0-8) 24Gb SASx4

  14. AutoMAID® Industry-leading Power Efficiency • Ideal for backup to disk or long-term bulk storage applications • Can use less than 1/5 of the power of competitive products Recovery time <1 second 15 seconds 30-45 seconds 30-60 seconds 30-60 seconds Drive electronics off Exp. Chassis electronics off Unload heads Slow to 4000 RPM Stop rotating • Power Savings Levels

  15. Nexsan E-Series Disk Arrays - High Availability • Dual Active/Active controllers • All ports can access all LUNs • Multi-path I/O • No single point of failure • Hot-swappable • Battery-backed cache • Sends alerts for important events

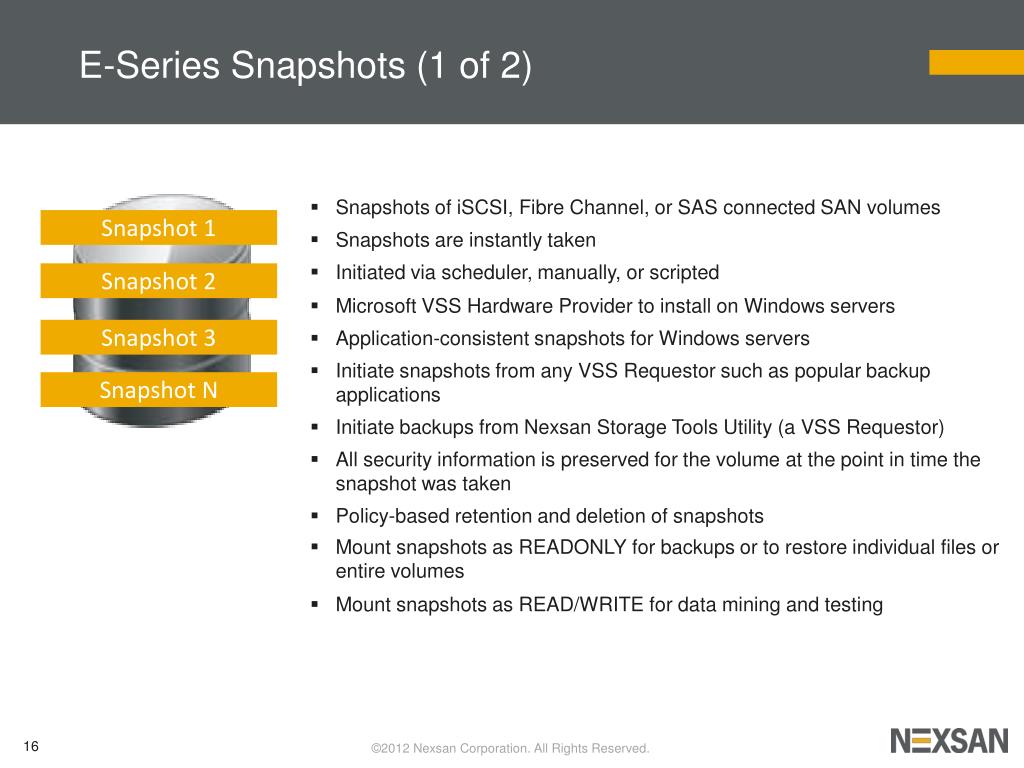

  16. E-Series Snapshots (1 of 2) • Snapshots of iSCSI, Fibre Channel, or SAS connected SAN volumes • Snapshots are instantly taken • Initiated via scheduler, manually, or scripted • Microsoft VSS Hardware Provider to install on Windows servers • Application-consistent snapshots for Windows servers • Initiate snapshots from any VSS Requestor such as popular backup applications • Initiate backups from Nexsan Storage Tools Utility (a VSS Requestor) • All security information is preserved for the volume at the point in time the snapshot was taken • Policy-based retention and deletion of snapshots • Mount snapshots as READONLY for backups or to restore individual files or entire volumes • Mount snapshots as READ/WRITE for data mining and testing Snapshot 1 Snapshot 2 Snapshot 3 Snapshot N

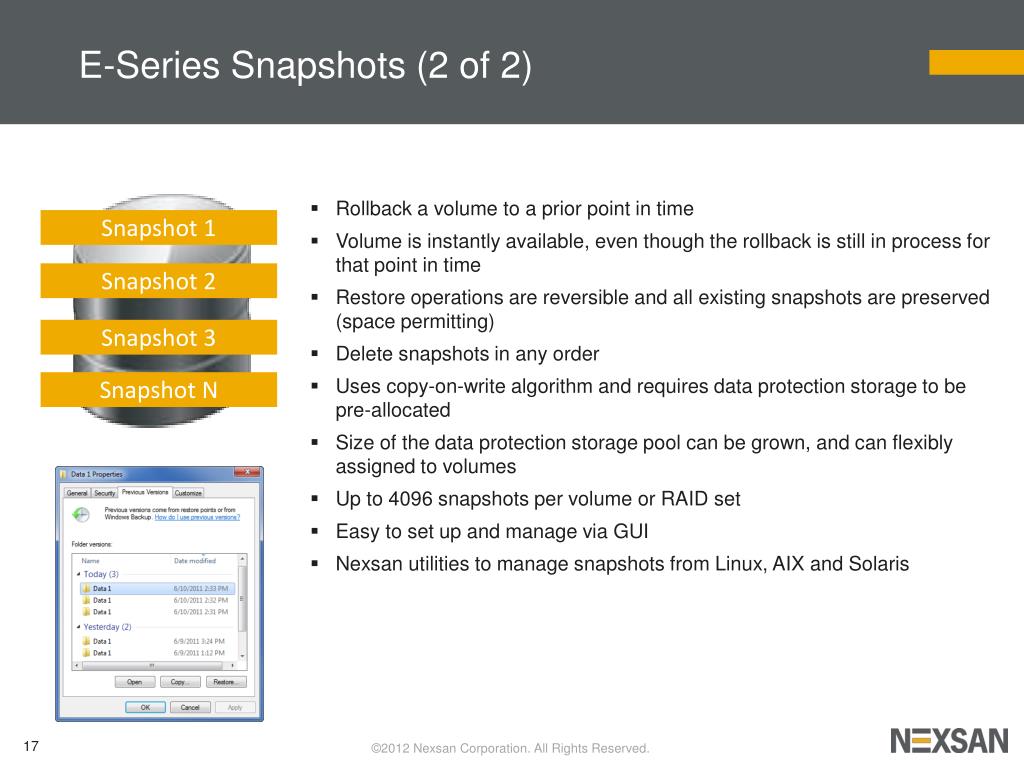

  17. E-Series Snapshots (2 of 2) • Rollback a volume to a prior point in time • Volume is instantly available, even though the rollback is still in process for that point in time • Restore operations are reversible and all existing snapshots are preserved (space permitting) • Delete snapshots in any order • Uses copy-on-write algorithm and requires data protection storage to be pre-allocated • Size of the data protection storage pool can be grown, and can flexibly assigned to volumes • Up to 4096 snapshots per volume or RAID set • Easy to set up and manage via GUI • Nexsan utilities to manage snapshots from Linux, AIX and Solaris Snapshot 1 Snapshot 2 Snapshot 3 Snapshot N

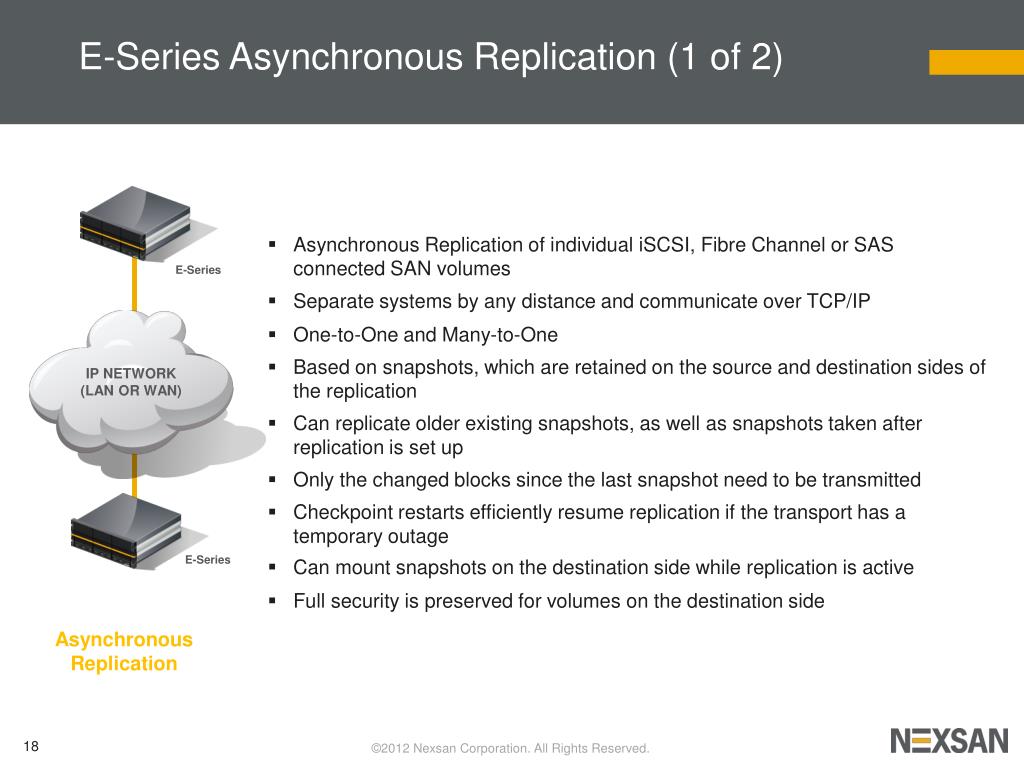

  18. E-Series Asynchronous Replication (1 of 2) • Asynchronous Replication of individual iSCSI, Fibre Channel or SAS connected SAN volumes • Separate systems by any distance and communicate over TCP/IP • One-to-One and Many-to-One • Based on snapshots, which are retained on the source and destination sides of the replication • Can replicate older existing snapshots, as well as snapshots taken after replication is set up • Only the changed blocks since the last snapshot need to be transmitted • Checkpoint restarts efficiently resume replication if the transport has a temporary outage • Can mount snapshots on the destination side while replication is active • Full security is preserved for volumes on the destination side E-Series IP NETWORK (LAN OR WAN) E-Series Asynchronous Replication

  19. E-Series Asynchronous Replication (2 of 2) • Manual failover to the secondary system on the destination side • Useful for data migration to a new system or for storage rebalancing • 128 concurrent replications, of which 16 can be active per system • Easy to set up and manage via the GUI • Replication can start when a snapshot is taken or on a schedule • Replication can be paused, resumed, or canceled E-Series IP NETWORK (LAN OR WAN) E-Series Asynchronous Replication

  20. Nexsan E-Series: Best Backup to Disk Summary • Ultimate Reliability Storage • Hard drives individually stress tested • Then tested in the storage system • Anti-vibration Design™, Cool Drive Technology™ • Hot-swappable, redundant active components • Array-based Snapshots and Asynchronous Replication • Industry-leading Storage Density • E60: 15 drives per U, 240TB in just 4U • E48: 12 drives per U, 192TB in just 4U • E18: 9 drives per U, 72TB in just 2U • Active Drawer Technology™ • Easy to manage storage with no downtime • Active/Active Controllers • With dual RAID engines per controller • Up to 87% Energy Savings with AutoMAID® • Ideal for backup to disk or bulk storage scenarios • Leading Cost per Terabyte
