Sequence 1. + 3.3V Power (DVDDIO/AVDD). + 1.8V Power (DVDD/PVDD). PWRDWN *. Keep Low during powering up. RESET *. I2C ( SCL,SDA ). 5[ms](min). 5[ms](min). PWRDWN Release. I2C(Write ) Start. RESET Release. Question 1

ima-camacho
Download Presentation

+ 3.3V Power (DVDDIO/AVDD)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

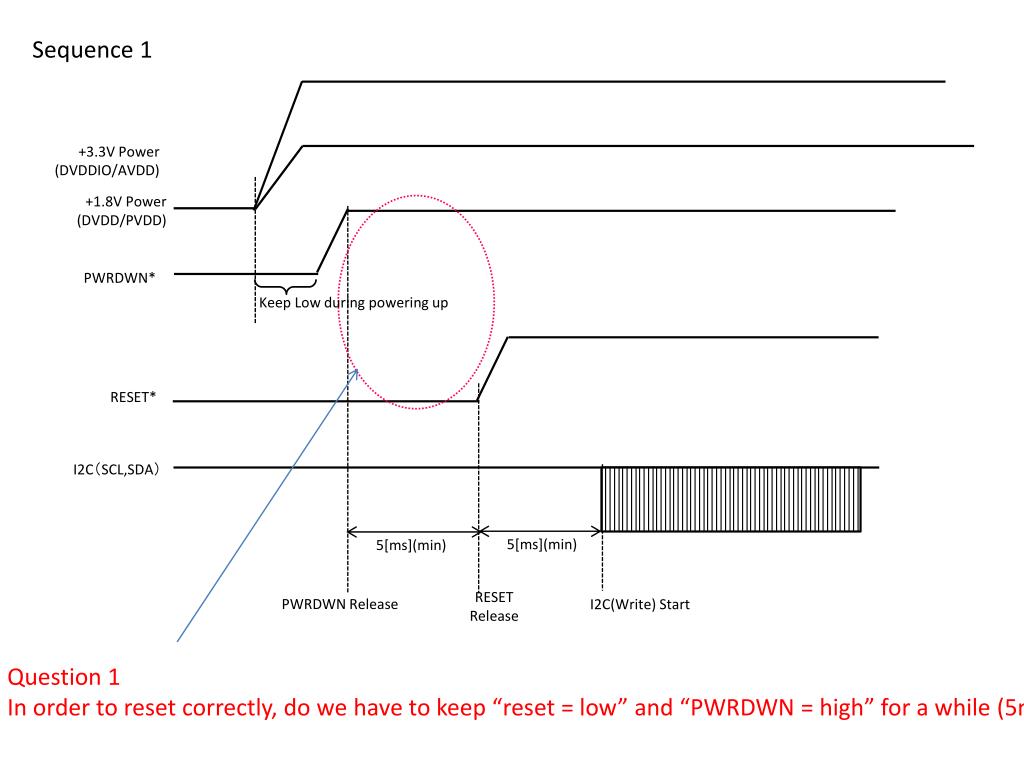

  1. Sequence 1 +3.3V Power (DVDDIO/AVDD) +1.8V Power (DVDD/PVDD) PWRDWN* Keep Low during powering up RESET* I2C(SCL,SDA) 5[ms](min) 5[ms](min) PWRDWNRelease I2C(Write)Start RESETRelease Question 1 In order to reset correctly, do we have to keep “reset = low” and “PWRDWN = high” for a while (5ms)? RESET*=Low後PWRDWN*=Lowにする。 ウェイトを設ける必要はない。

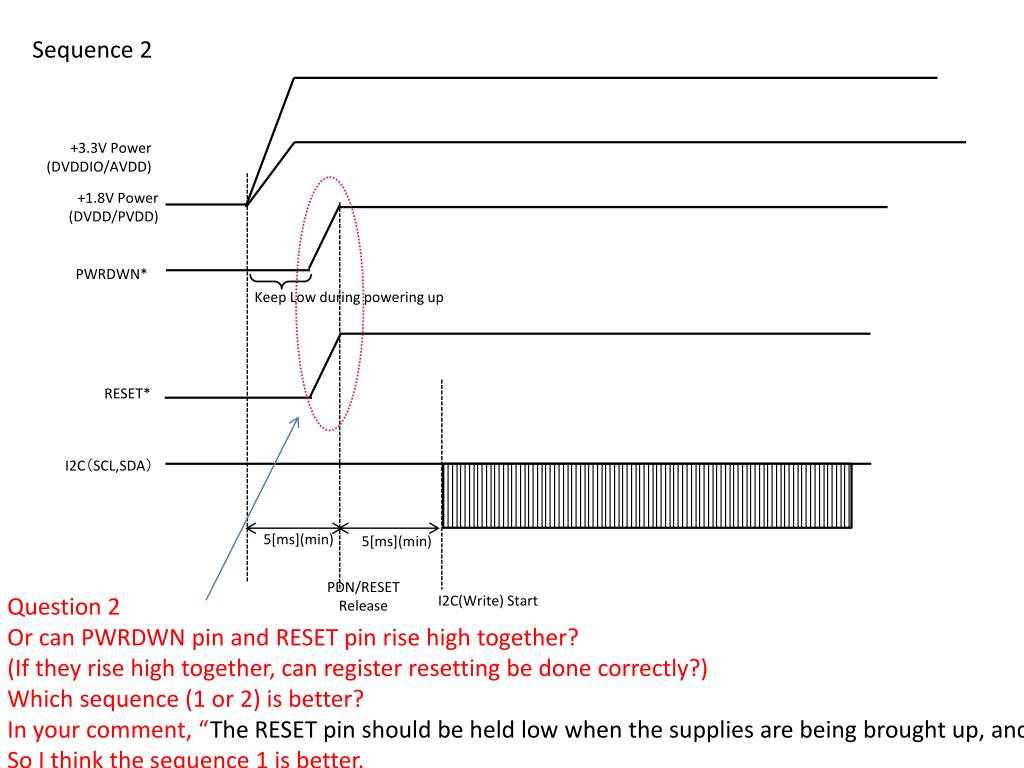

  2. Sequence 2 +3.3VPower (DVDDIO/AVDD) +1.8VPower (DVDD/PVDD) PWRDWN* • Keep Low during powering up RESET* I2C(SCL,SDA) 5[ms](min) 5[ms](min) PDN/RESETRelease Question 2 Or can PWRDWN pin and RESET pin rise high together? (If they rise high together, can register resetting be done correctly?) Which sequence (1 or 2) is better? In your comment, “The RESET pin should be held low when the supplies are being brought up, and it should be released after a minimum of 5ms after the supplies and PWRDN pin are up and stable.” So I think the sequence 1 is better. I2C(Write)Start
