Presentation Transcript
slide1

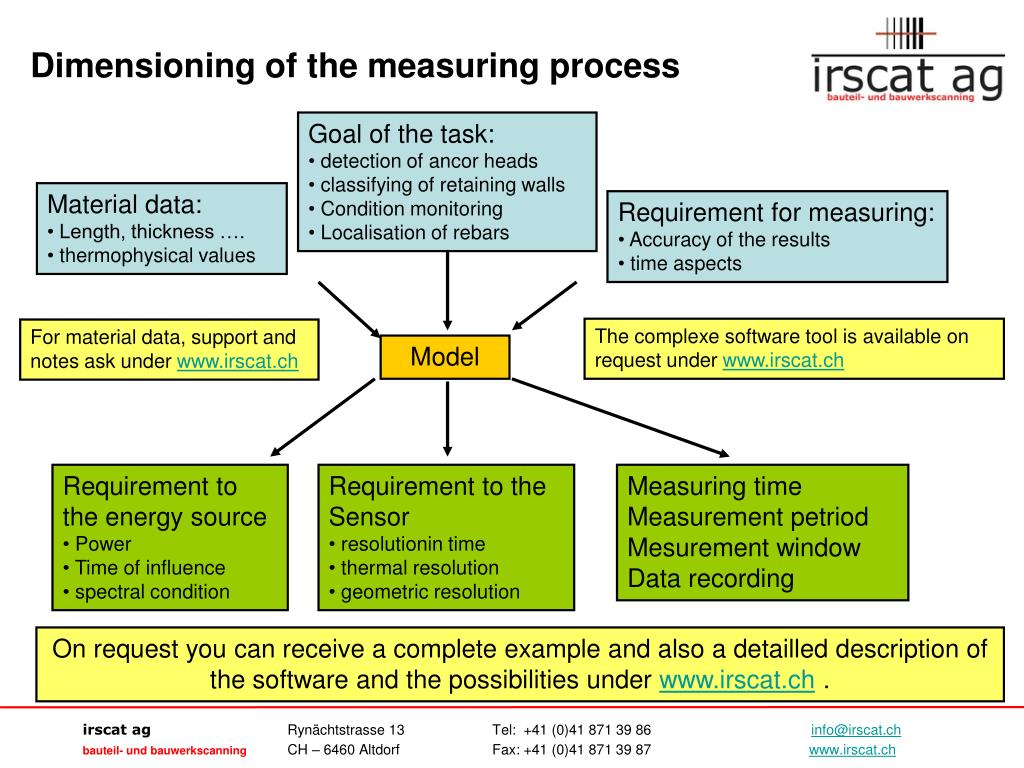

Dimensioning of the measuring process
  • Goal of the task:
  • detection of ancor heads
  • classifying of retaining walls
  • Condition monitoring
  • Localisation of rebars
  • Material data:
  • Length, thickness ….
  • thermophysical values
  • Requirement for measuring:
  • Accuracy of the results
  • time aspects

The complexe software tool is available on request under www.irscat.ch

For material data, support and notes ask under www.irscat.ch

Model

  • Requirement to the energy source
  • Power
  • Time of influence
  • spectral condition
  • Requirement to the Sensor
  • resolutionin time
  • thermal resolution
  • geometric resolution

Measuring time

Measurement petriod

Mesurement window

Data recording

On request you can receive a complete example and also a detailled description of the software and the possibilities under www.irscat.ch .
