  1. Sabadell – 24th July 2008 Tempo Product Launch

  2. Presentation Content • Product Overview and Product Features • Saving Energy with Tempo • Neighbour Friendly Unit • Compact Design • Heat Recovery Option • Hydrokit • Microchannel Condenser Coils • Design Improvement over YLAE • Competition Comparison • Introduction Timeline and Pricing Johnson Controls

  3. Product Overview • Tempo • Super Efficient • Air-Cooled Liquid Chillers • with • Microchannel Technology • Scroll Compressors • R410A Refrigerant • 310 kW to 521 kW Johnson Controls

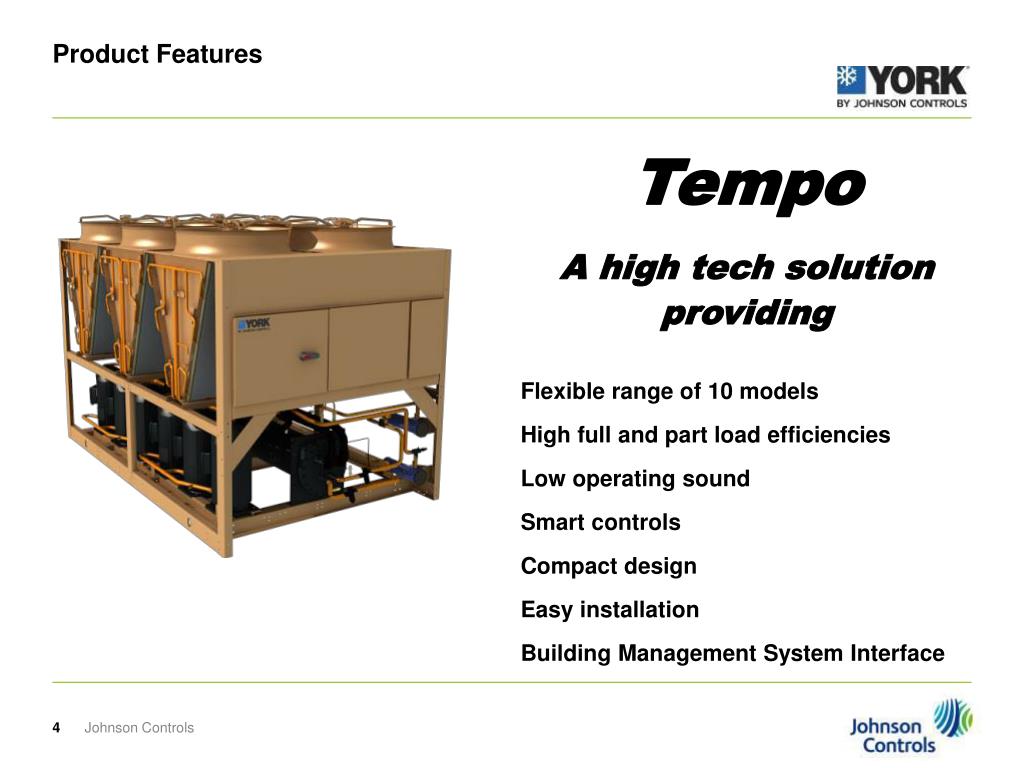

  4. Product Features • Tempo • A high tech solution providing • Flexible range of 10 models • High full and part load efficiencies • Low operating sound • Smart controls • Compact design • Easy installation • Building Management System Interface Johnson Controls

  5. Major Components Liquid Receivers MicrochannelCondenserCoils ScrollCompressors S&T Evaporator Johnson Controls

  6. Product Range Phase 2 Out (1) Phase 1 Out (3) Phase 2 Out (2) Phase 1 Out (4) Phase 2 Intro Phase 1 Intro Phase 2 Intro Phase 1 Intro Gap is now closed (1): YLAE0190SE to YLAE0330SE (2): YLAE0195HE to YLAE0315HE (3): YLAE0375SE to YLAE0490SE (4): YLAE0355HE to YLAE0510HE Johnson Controls

  7. Save Energy: Low Operating Costs • Standard Efficiency Range (SE) • Energy Efficiency Ration (EER) up to 2.7 • Eurovent Class: D • European Seasonal Energy Efficiency Ration (ESEER) up to 3.96 • High Efficiency Range (HE) • Energy Efficiency Ration (EER) up to 3.1 • Eurovent Class: A & B • European Seasonal Energy Efficiency Ration (ESEER) up to 4.35 Johnson Controls

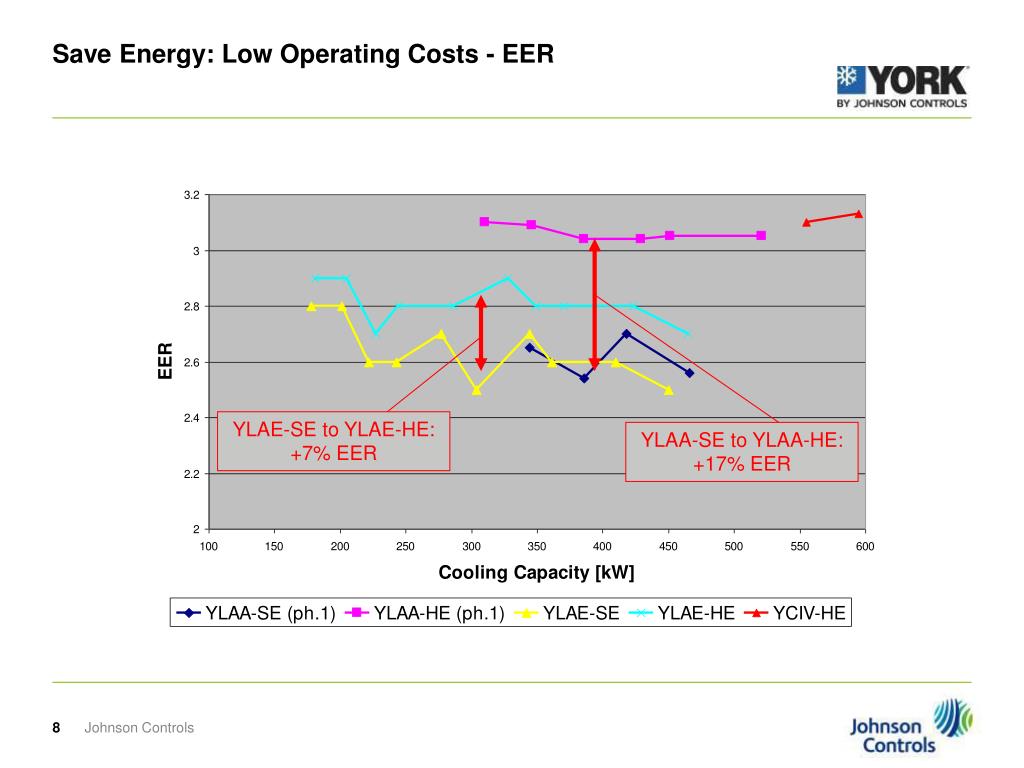

  8. Save Energy: Low Operating Costs - EER YLAE-SE to YLAE-HE: +7% EER YLAA-SE to YLAA-HE: +17% EER Johnson Controls

  9. Save Energy: Low Operating Costs – ESEER On Average, 10% better ESEER Johnson Controls

  10. Save Energy: Low Operating Costs – Approximate Energy Cost • AEC = (ACL * OH * Rate) / ESEER • ACL=Average Chiller Load (kW) • Use ESEER weighting: 0.03(100%)+0.33(75%)+0.41(50%)+0.23(25%) = 54% Average Load For YLAA0515HE Chiller: 521x 0.54 = 281 kW • OH=Operating Hours: Assume 5,000 hours per year • Rate=Utility Energy Charge (€/kWh): Assume average €0.10/kWh • ESEER=European Seasonal Energy Efficiency Ratio (kW/kW) For YLAA0515HE: ESEER=4.33 • AEC = (281 x 5,000 x 0.1) / 4.33 = 32,500 € Johnson Controls

  11. Save Energy: Low Operating Costs – AEC (continued) Average Savings: 1,300 € per year Average Savings: 650 € per year Johnson Controls

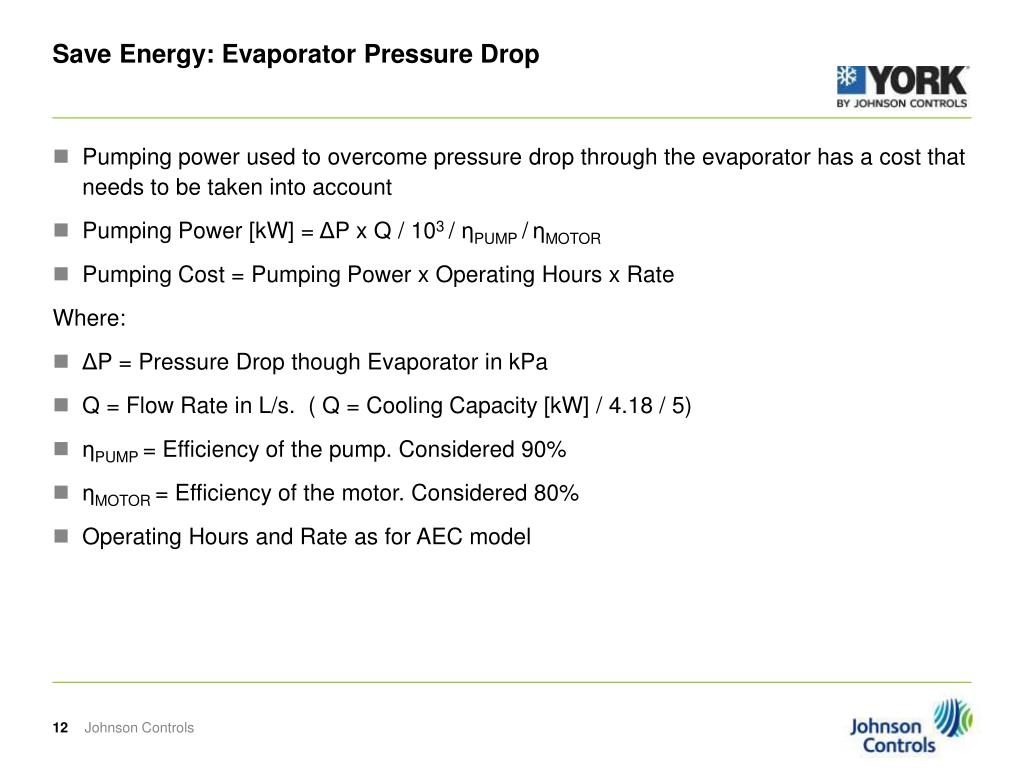

  12. Save Energy: Evaporator Pressure Drop • Pumping power used to overcome pressure drop through the evaporator has a cost that needs to be taken into account • Pumping Power [kW] = ΔP x Q / 103 / ηPUMP /ηMOTOR • Pumping Cost = Pumping Power x Operating Hours x Rate Where: • ΔP = Pressure Drop though Evaporator in kPa • Q = Flow Rate in L/s. ( Q = Cooling Capacity [kW] / 4.18 / 5) • ηPUMP = Efficiency of the pump. Considered 90% • ηMOTOR = Efficiency of the motor. Considered 80% • Operating Hours and Rate as for AEC model Johnson Controls

  13. Save Energy: Pumping Costs Johnson Controls

  14. Save Energy: Total Operating Costs Average Savings: 1,400 € per year Average Savings: 700 € per year Johnson Controls

  15. Save Energy: How do we achieve it? – Compressors & Evap. • Tandem or Trio Scroll Configuration • Same compressors as on YCWL • Proven configuration with High Efficiency • Replace ZP285 as used on YLAE by more efficient ZP295 • Use of shell and tubes evaporator increases cooling capacity compared to PHE for same compressors configuration Johnson Controls

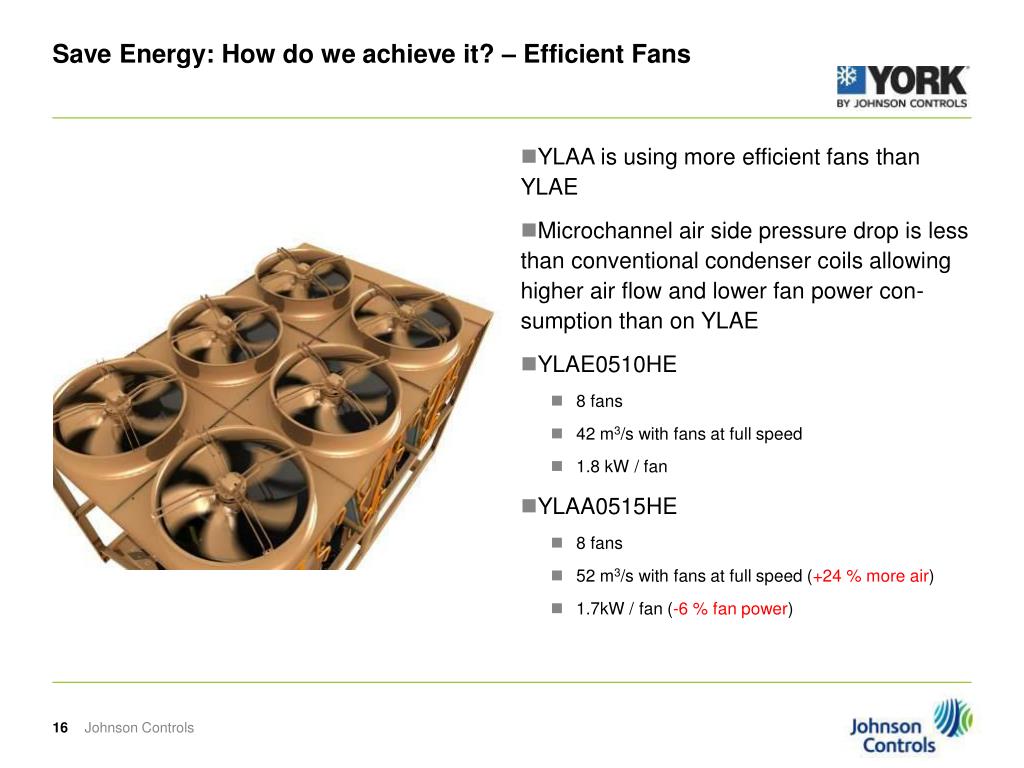

  16. Save Energy: How do we achieve it? – Efficient Fans • YLAA is using more efficient fans than YLAE • Microchannel air side pressure drop is less than conventional condenser coils allowing higher air flow and lower fan power con-sumption than on YLAE • YLAE0510HE • 8 fans • 42 m3/s with fans at full speed • 1.8 kW / fan • YLAA0515HE • 8 fans • 52 m3/s with fans at full speed (+24 % more air) • 1.7kW / fan (-6 % fan power) Johnson Controls

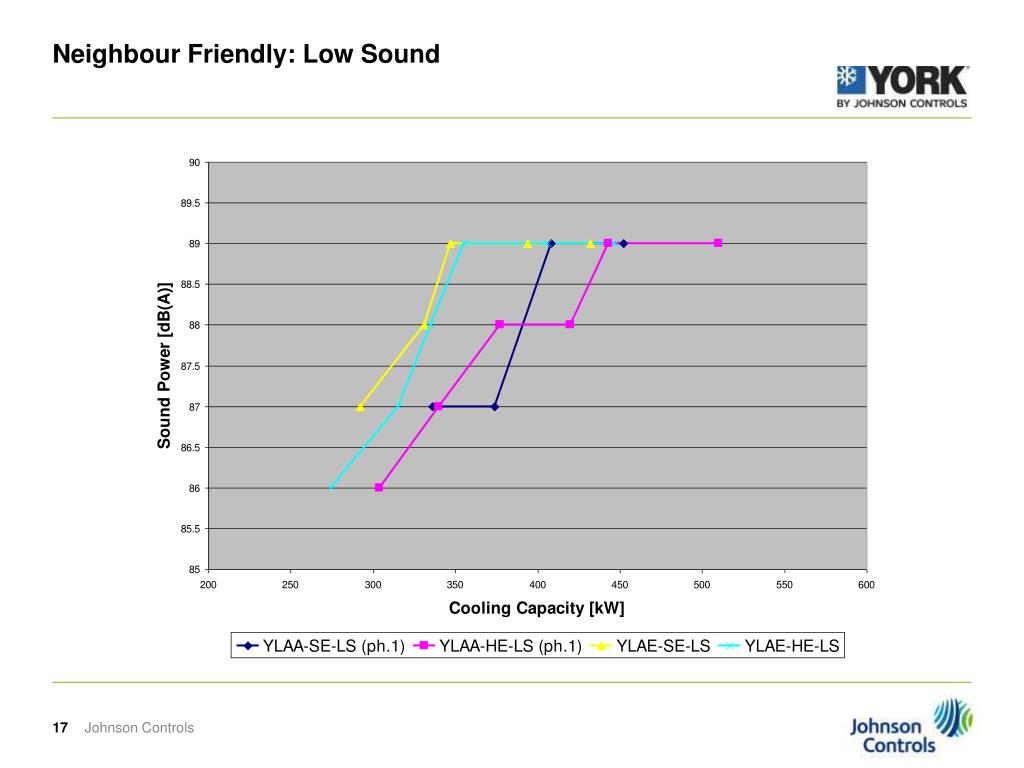

  17. Neighbour Friendly: Low Sound Johnson Controls

  18. Neighbour Friendly: Low Sound Inside car travelling at 50 km/h with windows closed Normal conversation at 1 metre distance YLAA-HE-LS Sound Pressure at 10m. Johnson Controls

  19. Neighbour Friendly: LS models • As with YLAE, LS models include: • Single low speed fans • Compressor Acoustic Enclosure • LS model on average 8 dB(A) quieter than standard models Johnson Controls

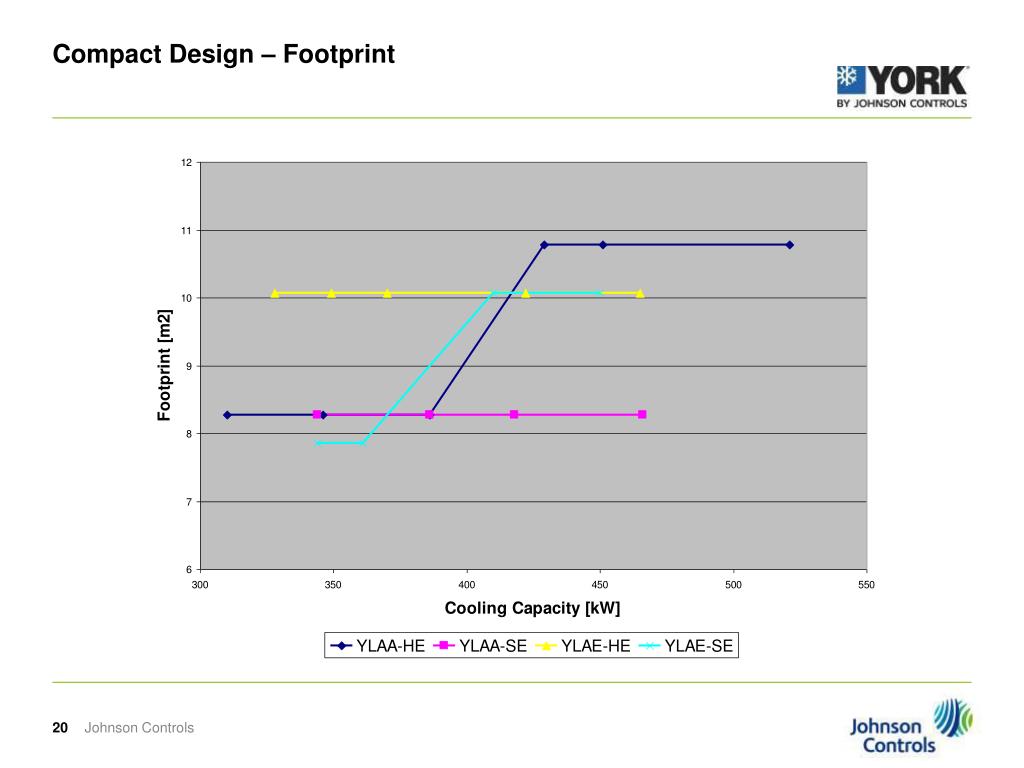

  20. Compact Design – Footprint Johnson Controls

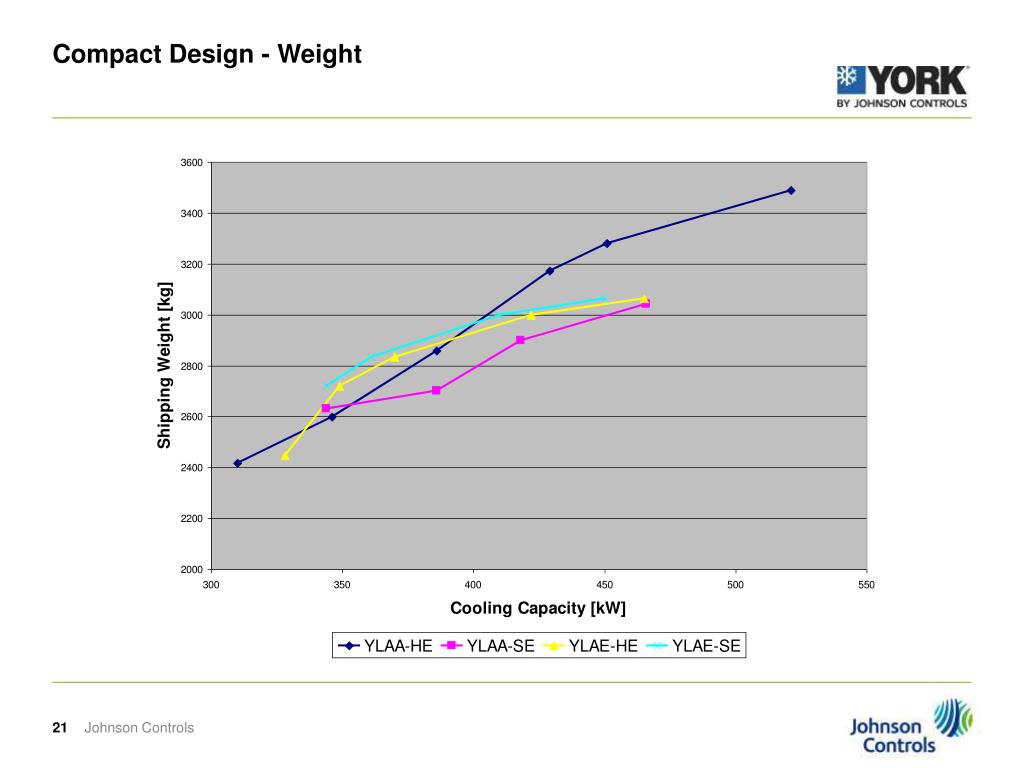

  21. Compact Design - Weight Johnson Controls

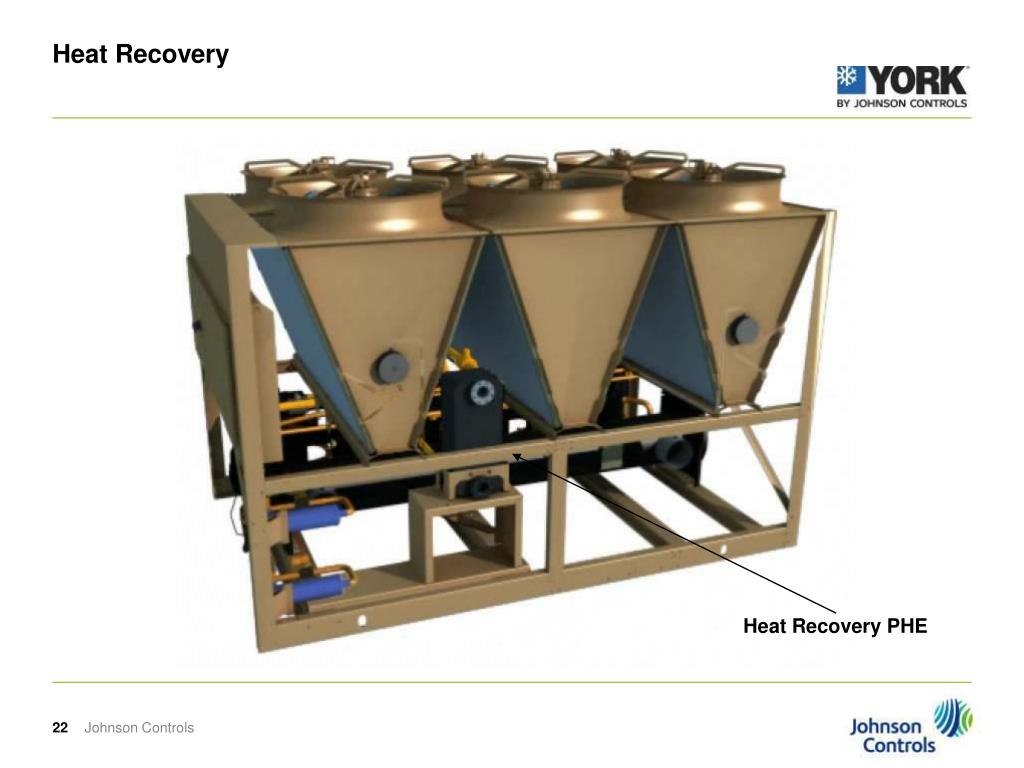

  22. Heat Recovery Heat Recovery PHE Johnson Controls

  23. Heat Recovery – (Cont’d) • Not only provides free heat but also increases cooling EER • Heat Recovery Exchanger converts the YLAA into a water-cooled chiller, therefore increasing efficiency. • Standard YLAA0515HE: • 35ºC ambient - LCWT 7ºC • EER = 3.05 • Heat Recovery YLAA0515HE: • 35ºC ambient - LCWT 7ºC – LHWT 45ºC • EER = 3.55 Johnson Controls

  24. Hydrokit Electrical Connectionboxes for trace heating: Pipework and componentsare trace heatedandinsulated Single or DualPump(s) VariousAvailable Pressure Flow RegulatingValve Flow Switch Suction Guidewith strainer Johnson Controls

  25. Microchannel Condenser Coils – Elements of design • Three basic components are used to construct microchannel coils: • Parallel Flow Aluminum Tubes • Enhanced Aluminum Fins • Header Manifolds • Combined by alternating tube and fin sections (layer of tube, layer of fin, layer of tube, etc). • Fins and tubes are captured at both ends by header manifolds. • Controlled Atmosphere Brazing (CAB) furnaces are used to manufacture all- aluminum microchannel coils (enriched with Nitrogen to minimize oxidation on the coil surface and promote clean, consistent braze joints). Header Parallel Flow Tube Enhanced Aluminum Fins Johnson Controls

  26. Microchannel Condenser Coils – Elements of design (Cont’d) De-Superheat Section Vapour Inlets 65% 35% Liquid outlet Sub-Cooling Section Johnson Controls

  27. Conventional copper tube/aluminum fin coils are predisposed to galvanic corrosion (2 dissimilar materials). Microchannel coils reduce the rate of galvanic corrosion by utilizing tube and fin material with similar properties (aluminum) and provide more than seven times greater corrosion resistance Microchannel Condenser Coils – Corrosion Resistance Conventional Coil – 1,000 Hrs Microchannel - 7,000 Hrs Johnson Controls

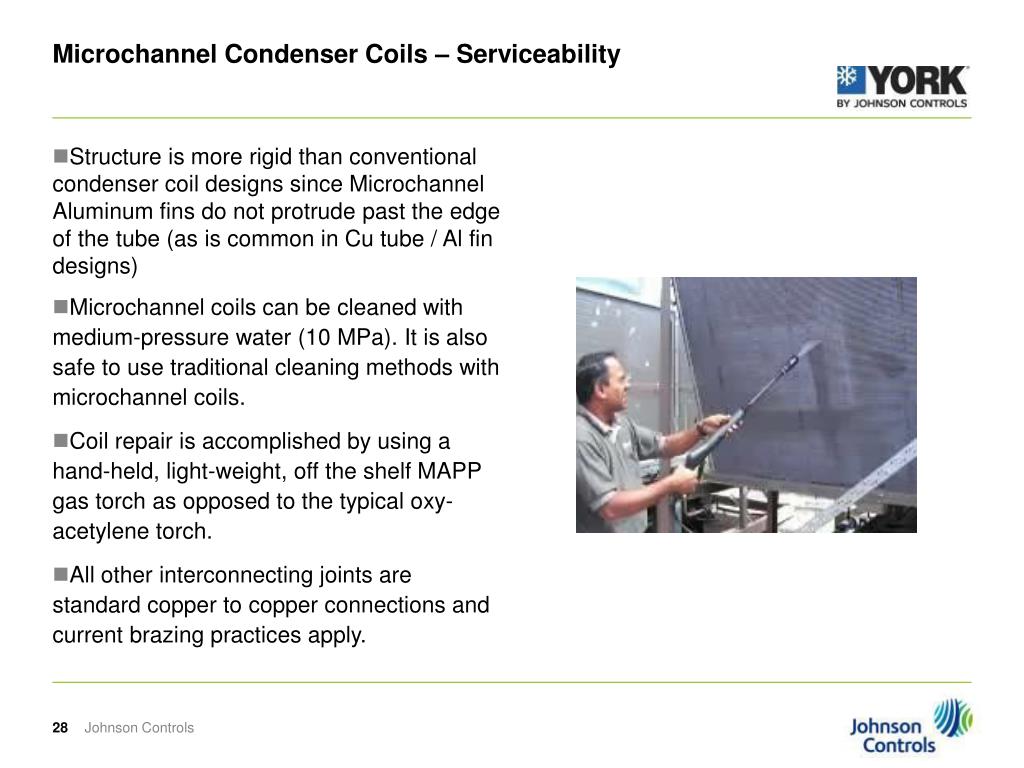

  28. Microchannel Condenser Coils – Serviceability • Structure is more rigid than conventional condenser coil designs since Microchannel Aluminum fins do not protrude past the edge of the tube (as is common in Cu tube / Al fin designs) • Microchannel coils can be cleaned with medium-pressure water (10 MPa). It is also safe to use traditional cleaning methods with microchannel coils. • Coil repair is accomplished by using a hand-held, light-weight, off the shelf MAPP gas torch as opposed to the typical oxy-acetylene torch. • All other interconnecting joints are standard copper to copper connections and current brazing practices apply. Johnson Controls

  29. Microchannel Condenser Coils – Additional Advantages • Leak potential of microchannel condenser coil is far less than tube/fin coil as there are no brazed return bends (only vertical header) • Significant Weight reduction on the overall Condenser Section. The coil dimensions are 1200 mm x 2050 mm and weighs approximately 30 kg per coil slab. • Air Side pressure is less than for equivalent conventional coil and therefore contributes to quieter sound level. • Technology benefits from the automotive industry experience. Car Radiators have endured a severe environment for 15 years or more.They are subjected to: Salt, Oil, Sand, Tar, Gravel, Chemical Road Treatments, Dirt, Insects, Moisture and Full Range of Ambient Temperatures.WHEN DID YOU LAST CHANGE YOUR CAR RADIATOR? Johnson Controls

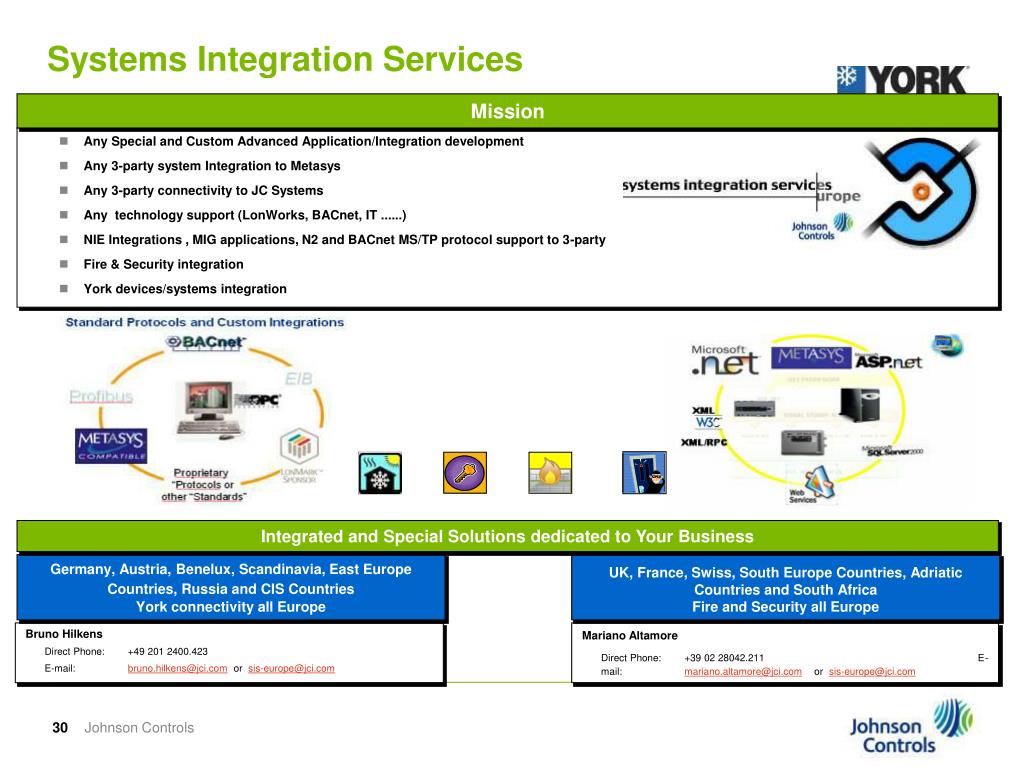

  30. Bruno Hilkens Direct Phone: +49 201 2400.423 E-mail: bruno.hilkens@jci.com or sis-europe@jci.com Systems Integration Services Mission One Company – One Team – One Goal • Any Special and Custom Advanced Application/Integration development • Any 3-party system Integration to Metasys • Any 3-party connectivity to JC Systems • Any technology support (LonWorks, BACnet, IT ......) • NIE Integrations , MIG applications, N2 and BACnet MS/TP protocol support to 3-party • Fire & Security integration • York devices/systems integration Integrated and Special Solutions dedicated to Your Business Germany, Austria, Benelux, Scandinavia, East Europe Countries, Russia and CIS Countries York connectivity all Europe UK, France, Swiss, South Europe Countries, Adriatic Countries and South Africa Fire and Security all Europe • Mariano Altamore • Direct Phone: +39 02 28042.211 E-mail: mariano.altamore@jci.com or sis-europe@jci.com Johnson Controls

  31. Camera/IP PLC NAE VDR CK72x SECURITY APPLICATION DVN BACnet MS/TP TVCC ACCESS CONTROL INTRUSION LIGHT CONTROL, POWER STATION … JCI Building Efficiency as Solutions Supplier (Internal Leaflet Overview FY08) MSEA Application Data Server P2000 Server NAE FIRE CONTROL HVAC APPLICATION AHU BACnet MS/TP FAN COILS CHILLER VRV Johnson Controls

  32. York Product Line Connectivity York product line connectivity to building automation systems Johnson Controls

  33. Quadro Chiller Sequencer • Sequences from 2 to 4 chillers. • 4 line 36 character display. • Option of GB, DE, ES, IT, FR languages. • Bacnet standard. • Auto or Manual lead-lag. • Alarm management. • IP55 hinged and lockable enclosure. • Temperature sensor with 6 metre cable. Johnson Controls

  34. Condenser Fans options • Standard single speed Fans • Dual Speed Fans • Single Low speed Fans • High Static Fans Johnson Controls

  35. YLAA0300HE 5 fans unit – VSD Add. Cost = 2,350 € ESEER: 4. 35 with Dual Speed Fans < 4.5 with VSD Fans (Prediction subject to testing) Scenario 1: 5,000 running hours per year AEC (2 speed fans) = 19,250 € AEC max (VSD fans) = 18,600 € Payback (0% interest rate) = 3.7 years Scenario 2: 2,500 running hours per year AEC (2 speed fans) = 9,600 € AEC min (VSD fans) = 9,300 € Payback (0% interest rate) = 7.3 years YLAA0515HE 8 fans unit – VSD Add. Cost = 3,760 € ESEER: 4.33 with Dual Speed Fans < 4.5 with VSD Fans (Prediction subject to testing) Scenario 1: 5,000 running hours per year AEC (2 speed fans) = 32,500 € AEC max (VSD fans) = 31,300 € Payback (0% interest rate) = 3.1 years Scenario 2: 2,500 running hours per year AEC (2 speed fans) = 16,250 € AEC min (VSD fans) = 15,650 € Payback (0% interest rate) = 6.1 years Condenser Fans – VSD Fan Vs Dual Speed Fan Analysis Johnson Controls

  36. YLAE Design 2-door box design Top to Bottom door opening Box fully exposed to elements Power Harness Entry: Back of panel YLAA Design 3-door box design Side door opening Box protected by top louvered panel Power Harness Entry: Bottom of panel Improved wrapper design with sealant on each joint Rain “gutter” at the top of each opening Water Ingress Corrective Actions Johnson Controls

  37. Refrigerant Leaks Corrective Actions • Reduction of number of joints: • Large reduction of return bends on condenser coils, from several hundreds brazed joints to just a few. • Improvement of quality of joints: • Six Sigma projects: • Loctite joint conversion to brazed joints on angle valves • Where Loctite joints are necessary, improved manufacturing process for Loctite dosing Johnson Controls

  38. LCD Display and control keypad language: English, French, German, Italian, Spanish. Heat Recovery Hydrokit (Single/Dual Pump, Various Available Pressures) Soft Start Power Factor Correction Dual Pressure Relief Valves Victaulic Flange Kit 2 Speed fans, High Static Fans Wire Guards / Louvered Panels Flow Switch. Spring anti-vibration mountings. Neoprene Pad Isolators. Quadro Chiller Sequencer. Accessories and Options Johnson Controls

  39. Competition Comparison - EER Johnson Controls

  40. Competition Comparison - ESEER Johnson Controls

  41. Competition Comparison – Total Operating Costs Johnson Controls

  42. Competition Comparison – ESEER / EER Johnson Controls

  43. Competition Comparison – Sound Power Johnson Controls

  44. Competition Comparison – Footprint Johnson Controls

  45. YLAA Phase In / YLAE Phase Out Timeline • YLAA Phase In Timeline: (Applies to phase 1 units only) • First Order Accepted: July 28th • First Shipment Ex-Sabadell: November 24th • 10 pre-production units manufactured in Sept. and Oct. • Pre-production units will be manufactured for stock and advertised on stock list • YLAE Phase Out Timeline: (Overlapping range with phase 1 YLAA) • Last order accepted: November 7th • May be limited number of units (specific sizes) available in December depending on residual inventory. Johnson Controls

  46. Pricing – SE Range YLAA-SE FY09: 9.6% cheaper than YLAE-SE FY09 4.3% cheaper than YLAE-SE FY08 Comparison made in €/kW Johnson Controls

  47. Pricing – HE Range YLAA-HE FY09: 8.0% cheaper than YLAE-HE FY09 2.9% cheaper than YLAE-HE FY08 Comparison made in €/kW Johnson Controls

  48. Global Product Recognition • 2008 DEALER DESIGN AWARD from “The NEWS“ • “The NEWS” is an HVAC contractor magazine • "Product of the Year" finalist nomination • This is a Consulting and Specifying Engineering community Award • Recognition from both side of the industry:Contractors and Consultants Johnson Controls

  49. Questions Johnson Controls
